KIT-400 Quick Start
P/N:
2900- 301388QS
Rev:
3
Scan for full manual
KIT-400 Quick Start Guide
This guide helps you install and use your KIT-400 for the first time.
Go to www.kramerav.com/downloads/KIT-400 todownload the latest user manualand checkif firmware
upgrades are available.
Step 1: Check what’s in the box
KIT-400,including:
KIT-400T 4K HDMI/PC Auto Switcher Transmitter
and KIT-400R 4K HDBT/HDMI Receiver/Scaler
2 Bracket sets
8 Rubber feet
1 Power adapter and cord
1 Quick start guide
Step 2: Get to know your KIT-400
KIT-400T
#
Feature
Function
1
IN 1
SELECT Button
Press to select the IN 1 input.
Lights red when the analog audio is selected; lights green when the embedded
audio is selected.
2
HDMI Connector
Connect to an HDMI source.
3
IN 2
SELECT Button
Press to select the IN 2 input.
Lights red when the analog audio is selected; lights green when the embedded
audio is selected.
4
HDMI Connector
Connect to an HDMI source.
5
IN 3
SELECT Button
Press to select the IN 3 input.
Lights red when the analog audio is selected; lights green when embedded audio
from embedded HDMI is selected, see Step 4: Connect inputs and outputs.
6
15-pin HD Connector
Connect to a PC graphics source.
7
AUDIO IN 3.5mm Mini Jack
Connect to an unbalanced, stereo audio source (for example, the audio output of
the laptop).
8
IN 4 (REMOTE) Button
Press to select the inputs on KIT-400R:
•Button lights –HDMI INPUT on KIT-400R is selected as the input.
•Button off –The selected input on KIT-400T is routed via HDBT.
9
ON LED
Lights green when the device is powered by a power adapter; lights red when
power is provided via PoC.
10
AUDIO OUT 3.5mm Mini Jack
Connect to the unbalanced, stereo audio acceptor (for example, active speakers).
11
LAN RJ-45 Connector
Connect to the LAN (Ethernet traffic or PC controller).
12
RS-232
CONTROL 3-pin Terminal
Block Connector
Connect to a serial controller or PC.
13
DATA 3-pin Terminal
Block Connector
Connect to a serial data source or acceptor.
14
Remote Contact-closure 4-pin
Terminal Block Connector
Connect to contact closure switches (by momentary contact between the desired
pin and GND pin) to select an input, the remote IN 4 and audio volume (up or
down), see Step 6: Operate KIT-400.
15
RESET Button
Short press: sends a reset command to KIT-400R and then reboots KIT-400T.
Long press: resets KIT-400R to its factory default parameters and then resets
KIT-400T to its factory default parameters.

#
Feature
Function
16
SETUP 4-way DIP-switch
Set the device behavior, see Step 4: Connect inputs and outputs.
17
SERVICE Mini USB Connector
Connect to a PC to perform a firmware upgrade.
18
HDBT OUT RJ-45 Connector
Connect to KIT-400R.
19
LINK LED
Lights blue when a link is established with the receiver.
Follow powering instructions in Step 5: Connect power.
Failure to use PoC and power connector correctly may destroy the devices!
20
PoC (Power over Cable) Switch
Set the PoC switch to ON on both KIT-400T and KIT-400R.
21
12V DC Connector
Connect to the supplied power adapter, unless the power adapter is connected
to KIT-400R.
KIT-400R
#
Feature
Function
22
PROG USB Connector
Connect to a USB stick to perform firmware upgrades.
23
INPUTS
SELECT Button
Press to select the input (HDBT or HDMI).
24
HDBT LED
Lights blue when the HDBT input is selected.
25
HDMI LED
Lights blue when the HDMI input is selected.
26
MENU Button
Press to enter/exit the on-screen display (OSD) menu. Press together with the
–button to reset to 1080p.
27
ENTER Button
In OSD, press to choose the highlightedmenu item. Press together with the
FREEZE/+ button to reset to XGA.
28
–
In OSD, press to move back through menus or decrement parameter values.
29
FREEZE/+ Button
In OSD, press to move forward through menus or increment parameter values.
When not in OSD, press to freeze the display.
30
LINK LED
Lights blue when a link is established with the transmitter.
31
ON LED
Lights green when device is powered.
32
INPUTS
HDBT RJ-45 Connector
Connect to KIT-400T.
33
HDMI™ Connector
Connect to an HDMI source.
34
OUTPUT
HDMI Connector
Connect to an HDMI acceptor.
35
AUDIO 5-pin Terminal
Block Connector
Connect to a balanced stereo audio acceptor.
36
REMOTE Contact-Closure 4-pin
Terminal Block Connector
Connect to contact closure switches (by momentary contact between the
desired pin and GND pin). To turn display on or off, see Step 6: Operate KIT-
400.
37
RS-232
CONTROL 3-pin Terminal
Block Connector
Connect to a serial controller or PC.
38
DATA 3-pin Terminal Block
Connector
Connect to a serial data source or acceptor.
39
RELAY 3-pin Terminal Block Connector
Connections to the internal relay: Normally open (NO), normally closed (NC),
and common (C). Connect to devices to be controlled by relay (for example, a
motorized projection screen).
Follow powering instructions in Step 5: Connect power.
Failure to use PoC and power connector correctly may destroy the devices!
40
PoC (Power Over Cable) Switch
Set the PoC switch to ON on both KIT-400T and KIT-400R.
41
12V DC Connector
Connect to the supplied power adapter, unless the power adapter is connected
to KIT-400T.

Step 3: Mount KIT-400
Install KIT-400 using one of the following methods:
•Attach the rubber feet and place the unit on a flat surface.
•Fasten a bracket (included) on each side of the unit and attach it to a flat surface
(see www.kramerav.com/downloads/KIT-400).
•Mount the unit in a rack using the recommended rack adapter
(see www.kramerav.com/product/KIT-400).
•Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
•Avoid uneven mechanical loading.
•Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
•Reliable earthing of rack-mounted equipment should be maintained.
•Maximum mounting height for the device is 2 meters.

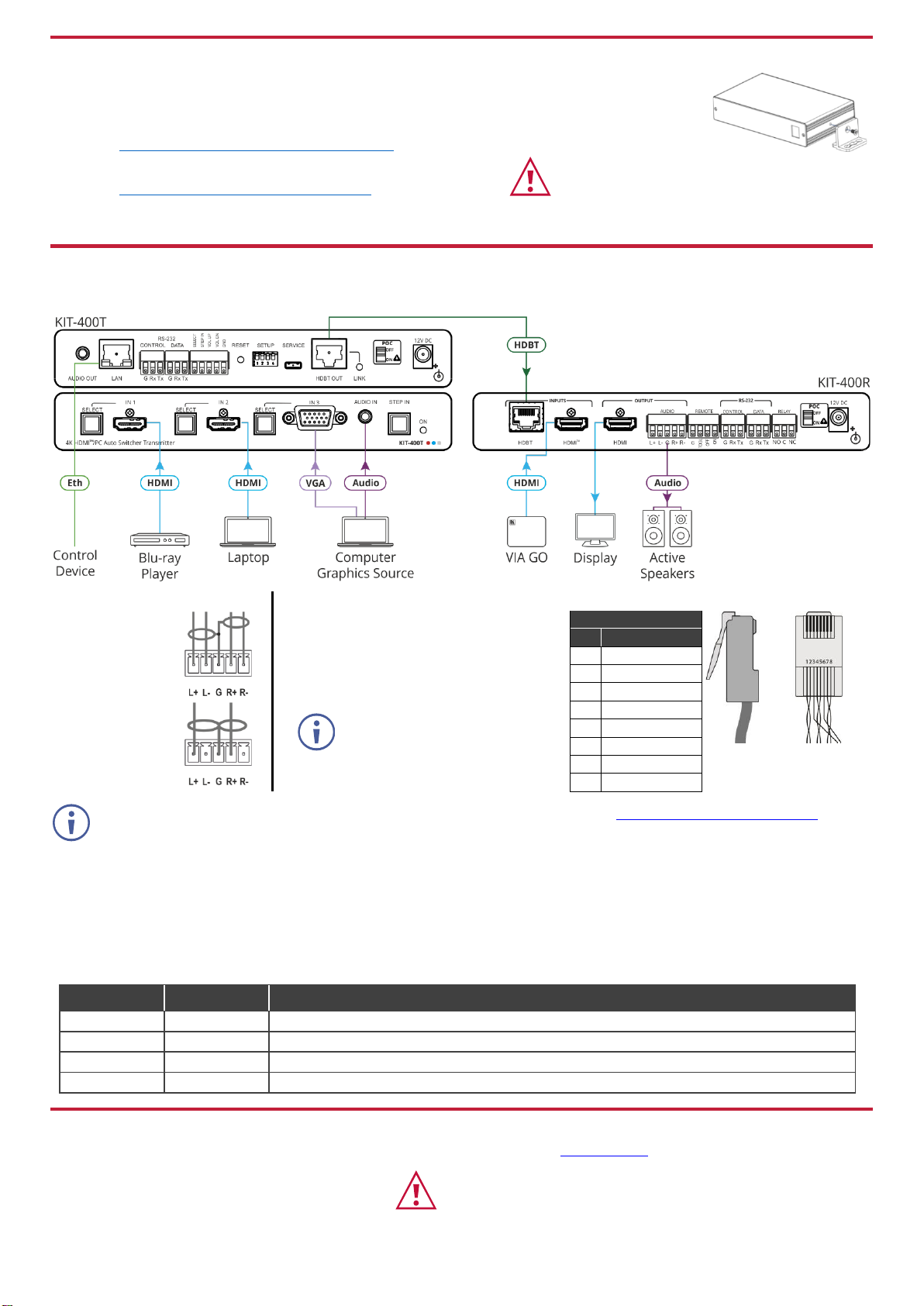

Step 4: Connect inputs and outputs
Always switch OFF the power on each device before connecting it to your KIT-400.
Connecting the audio output
Wiring the RJ-45 connectors
To a balanced
stereo audio
acceptor:
This section defines the TP pinout, using
a straight pin-to-pin cable with RJ-45
connectors.
EIA /TIA 568B
PIN
Wire Color
1
Orange / White
2
Orange
3
Green / White
To an unbalanced
stereo audio
acceptor:
For HDBT cables, it is recommended
that the cable ground shielding be
connected/soldered to the connector
shield.
4
Blue
5
Blue / White
6
Green
7
Brown / White
8
Brown
To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/KIT-400.
Using third-party cables may cause damage!
Setting the KIT-400T DIP-switches
A switch that is down is on; a switch that is up is off. By default, all the switches are up (off). After changing a DIP-switch you
must power cycle the device to implement the change.
DIP-switch 1 set to off (up).
DIP-switch 2 set to off (up).
Audio Switching Selection
DIP-switch 3
DIP-switch 4
Audio Input Selection
Off (up)
Off (up)
Automatic –Priority selection: Embedded HDMI analog Audio In (high to low priority).
Off (up)
On (down)
Automatic –Priority selection: Analog Audio In embedded HDMI (high to low priority).
On (down)
Off (up)
Embedded HDMI.
On (down)
On (down)
Analog Audio In
Step 5: Connect power
To power the devices:
1. Set the PoC switches to ON on both
devices.
2. Connect the power adapter to one of the
devices (KIT-400T or KIT-400R).
Safety Instructions (See www.kramerav.com for updated safety information)
Caution:
•For products with relay terminals and GPI\O ports, please refer to the permitted rating for
an external connection, located next to the terminal or in the User Manual.
•There are no operator serviceable parts inside the unit.
Warning:
•Failure to use PoC and power connector correctly may destroy the devices!
•Use only the power cord that is supplied with the unit.
Disconnect the power and unplug the unit from the wall before installing.

Step 6: Operate KIT-400
Operate KIT-400 via:
•Front panel buttons
•Remotely, by RS-232 serial
commands transmitted by a
touch screen system, PC, or
other serial controller
•Embedded web pages via the
Ethernet
•Remote control switches.
•Room Automation Panel.
RS-232 Control / Protocol 3000
Baud Rate:
115,200
Parity:
None
Data Bits:
8
Command Format:
ASCII
Stop Bits:
1
Example: (Set the Audio out volume level to 75): #AUD-LVL 1,1,75
Default Ethernet Parameters
IP Address:
192.168.1.39
UDP Port #:
50000
Subnet mask:
255.255.0.0
TCP Port #:
5000
Gateway:
0.0.0.0.
Operating via the remote control switches
Momentarily connect the desired pin to the GND pin to select an input:
Pin Name
Function
KIT-400T
KIT-400R
KIT-400T
SELECT
Short press –Select the input.
Long press –Adjust the VGA phase shift.
IN 4
Select the IN 4 input on KIT-400R.
VOL UP
Increase the analog audio output level.
Short press –Increase volume by one step.
Long Press –Increase the volume from 0 to 100% in
10 seconds.
VOL DN
Decrease the analog audio output level.
Short press –Decrease volume by one step.
Long Press –Decrease the volume from 100% to 0
in 10 seconds.
KIT-400R
TOGL
One button toggles between display on and display
off (instead of using two separate buttons for on and
off). Alternatively, using the KIT-400R OSD,
configure toggling display on and off according to
whether a switch is open or closed (for example,
when using an occupancy sensor).
OFF
Turn off the display.
ON
Turn on the display.
Operating via Room Automation Panel
Control KIT-400 via any of Kramer’s touch panels which include the Kramer Aware app (for example, KT-1010).
To operate KIT-400 via room automation
panel:
1. Open Kramer Aware app on your
touch panel.
2. Enter KIT-400R IP address.
The KIT-400 default control screen
appears.
You can change the default control screen
configuration via the KIT-400 embedded
web pages.
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
