INSTALLATION GUIDE

1
Congratulations on the purchase of your new
Kraus plumbing xture!
Please keep teh box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance, or have any problems with your product:
Please contact our Customer Service Team
1-800-775-0703 / customerser[email protected]
Have the model number available, and retain a copy of your receipt
with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE

2
PRIOR TO INSTALLATION
• Make sure you have all necessary parts by checking the diagram and parts
list. If any part is missing or damaged, please contact Kraus Customer
Service at 800-775-0703 for a replacement
• Turn o the hot and cold water supply at the angle stops and turn on the
old faucet to release any built up pressure. Remove existing faucet. Clean
sink or countertop to remove any debris, plumber’s putty, or silicone
• Place bucket under angle stops. Turn on to ush any debris prior to
installing new plumbing. Shut o angle stops
• Pre-drilled hole size requirement: 1-3/8”
• Max countertop thickness without deck plate: 1-3/8”
Tools Required
For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [e-mail]
Adjustable Wrench
6 5/8”
5 4/5”
3/8”
(10mm)
7/8”
19.7º(22mm)
8 5/16”
1 1/4-18UNF-2A
(21mm)
10 1/8”
(257mm)
1 3/8”
(35mm)
3 3/4”
(168mm)
(147.3mm)
(96mm)
∅ 1 3/4”
(∅ 45mm)
∅ 1 15/16”
(∅ 50mm)
9/16”-18UNEF
27mm ~ 41.3mm 1 1/16” ~ 1 5/8”
∅ 1 15/16”
(∅ 50mm)
12 7/16”
(316mm)
1 5/8”
(42.5 mm Max)
7A
8B
8C
8D
8A
7A
8B
8C
8D
8A
Silicone Sealant
6 5/8”
5 4/5”
3/8”
(10mm)
7/8”
19.7º(22mm)
8 5/16”
1 1/4-18UNF-2A
(21mm)
10 1/8”
(257mm)
1 3/8”
(35mm)
3 3/4”
(168mm)
(147.3mm)
(96mm)
∅ 1 3/4”
(∅ 45mm)
∅ 1 15/16”
(∅ 50mm)
9/16”-18UNEF
27mm ~ 41.3mm 1 1/16” ~ 1 5/8”
∅ 1 15/16”
(∅ 50mm)
12 7/16”
(316mm)
1 5/8”
(42.5 mm Max)
7A
8B
8C
8D
8A
7A
8B
8C
8D
8A
Phillips Screwdriver Safety Goggles Bucket

3

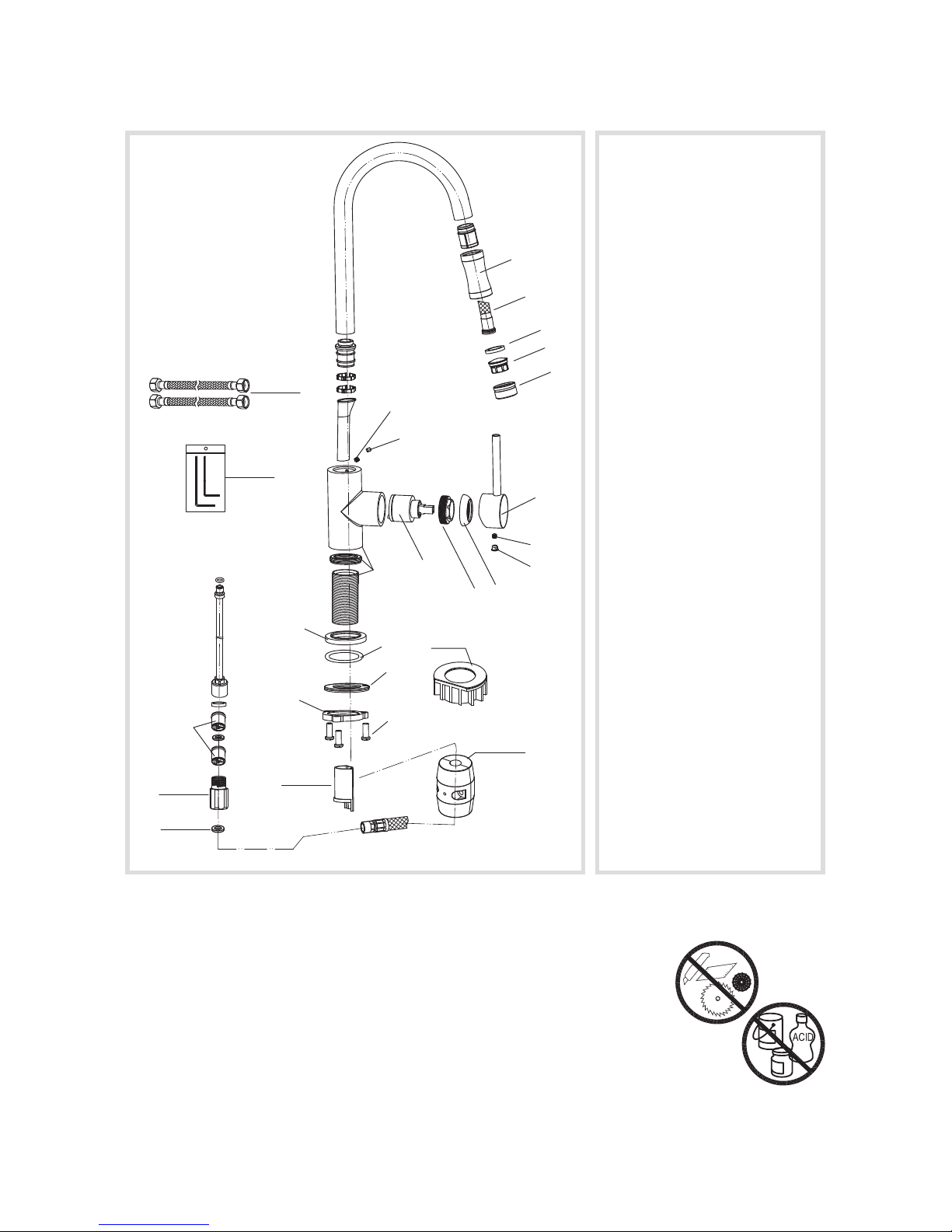

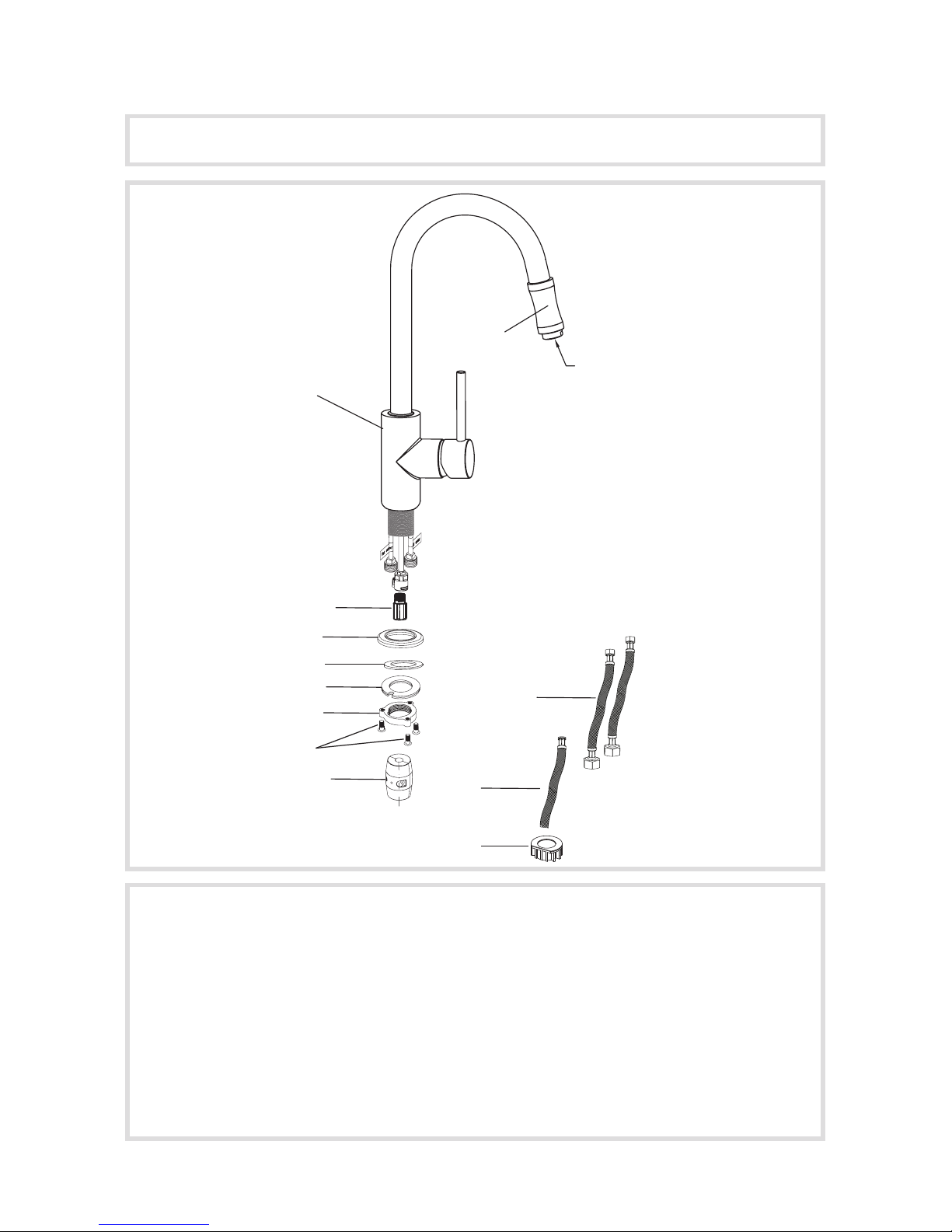

Diagram and Parts List
A. Faucet Body
B. Aerator Head
C. Base
D. Base O-Ring
E. Mounting Hardware Assembly
E1 Rubber& Metal Washer
E2 Mounting Nut
E3 Mounting Screws
F. Weight
G. Hot & Cold Waterlines
H. Spray Hose
I. Spacer
J. Check Valve
Included Parts:
1. Faucet Body
2. Aerator Head
3. Base
4. Base O-Ring
5. Rubber Washer
6. Mounting Nut
7. Mounting Screws
8. Weight
9. Hot & Cold Waterlines
10. Spray Hose
11. Spacer
KPF-1622 Diagram and Parts List
2
Aerator
Pull Out Hose
14 3/4”
1
3
4
5
6
7
810
11
9
Wrench Phillips Screwdriver
Tools you will need:
3
2
Aerator
Pull Out Hose
14 3/4”
1
4
5
6
7
8
9
10 12
13
11
3
2
Aerator
14 3/4”
1
4
5
6
7
8
9
10 12
13
11
12
12. Check Valve
A
B
D
C
E1
E2
E3
F
G
H
I
J

4

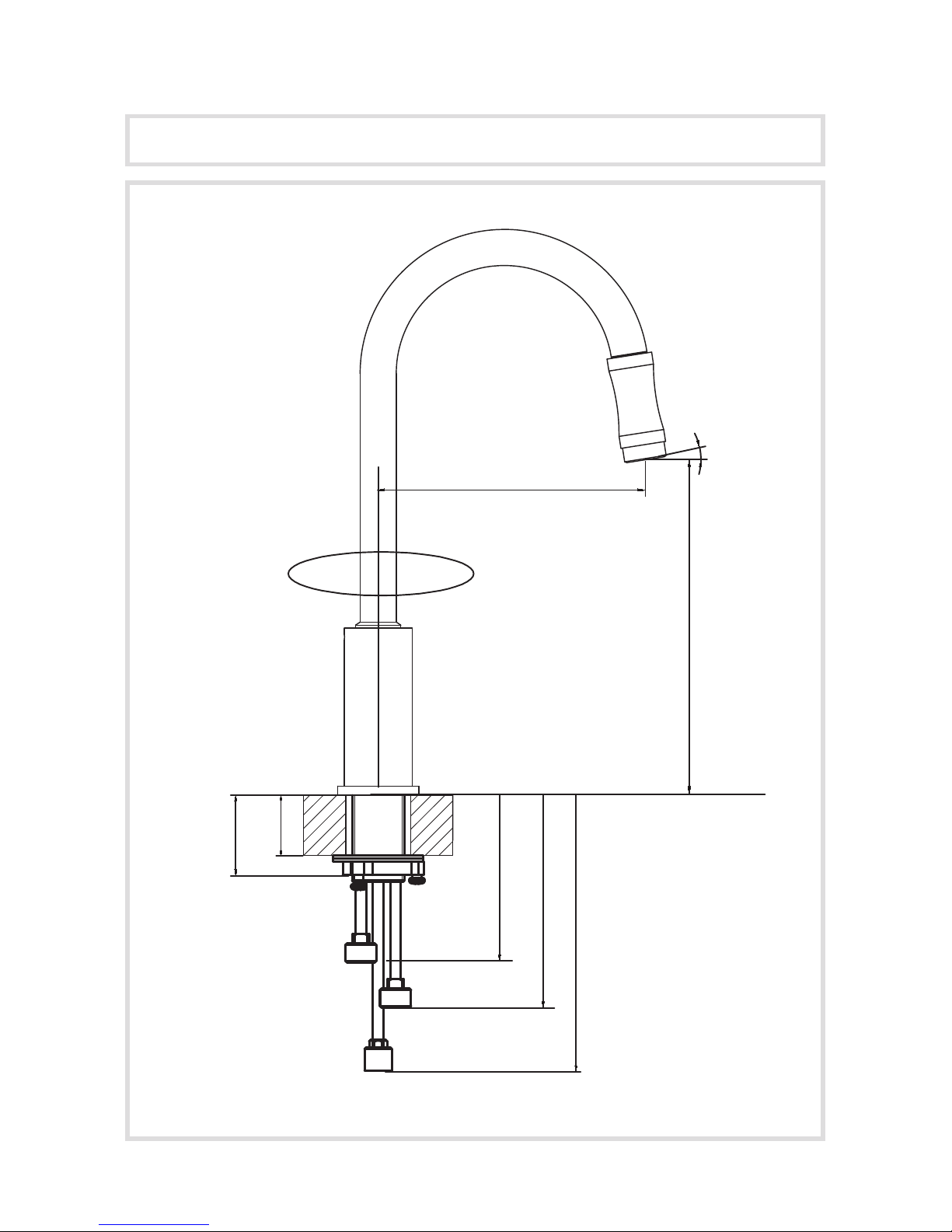

Faucet Dimensions
7”
(179 mm)
12°
8 -1/4”
(209 mm)
9 -3/8”
(239 mm)
6 -7/8”
(175 mm)
5-3/8”
(135 mm)
2 -5/8”
(66 mm)
14 -7/8”
(377 mm)
2 -1/8”
(53 mm)
360°

5
Faucet Dimensions
7”
(179 mm)
12°
8 -1/4”
(209 mm)
9 -3/8”
(239 mm)
6 -7/8”
(175 mm)
5-3/8”
(135 mm)
2 -5/8”
(66 mm)
14 -7/8”
(377 mm)
2 -1/8”
(53 mm)
360°

6

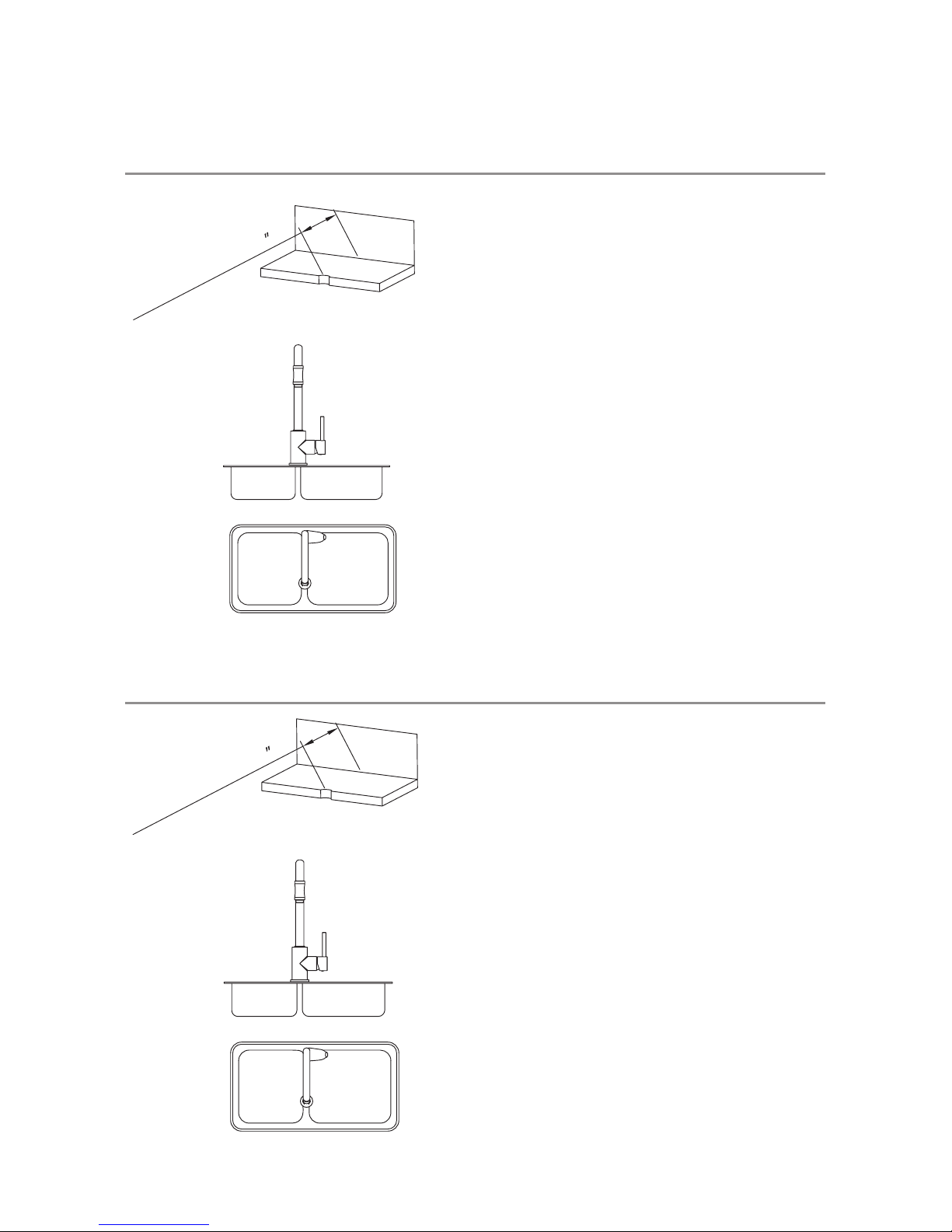

Faucet Installation Methods
Installation Method 1
Installation Method 2

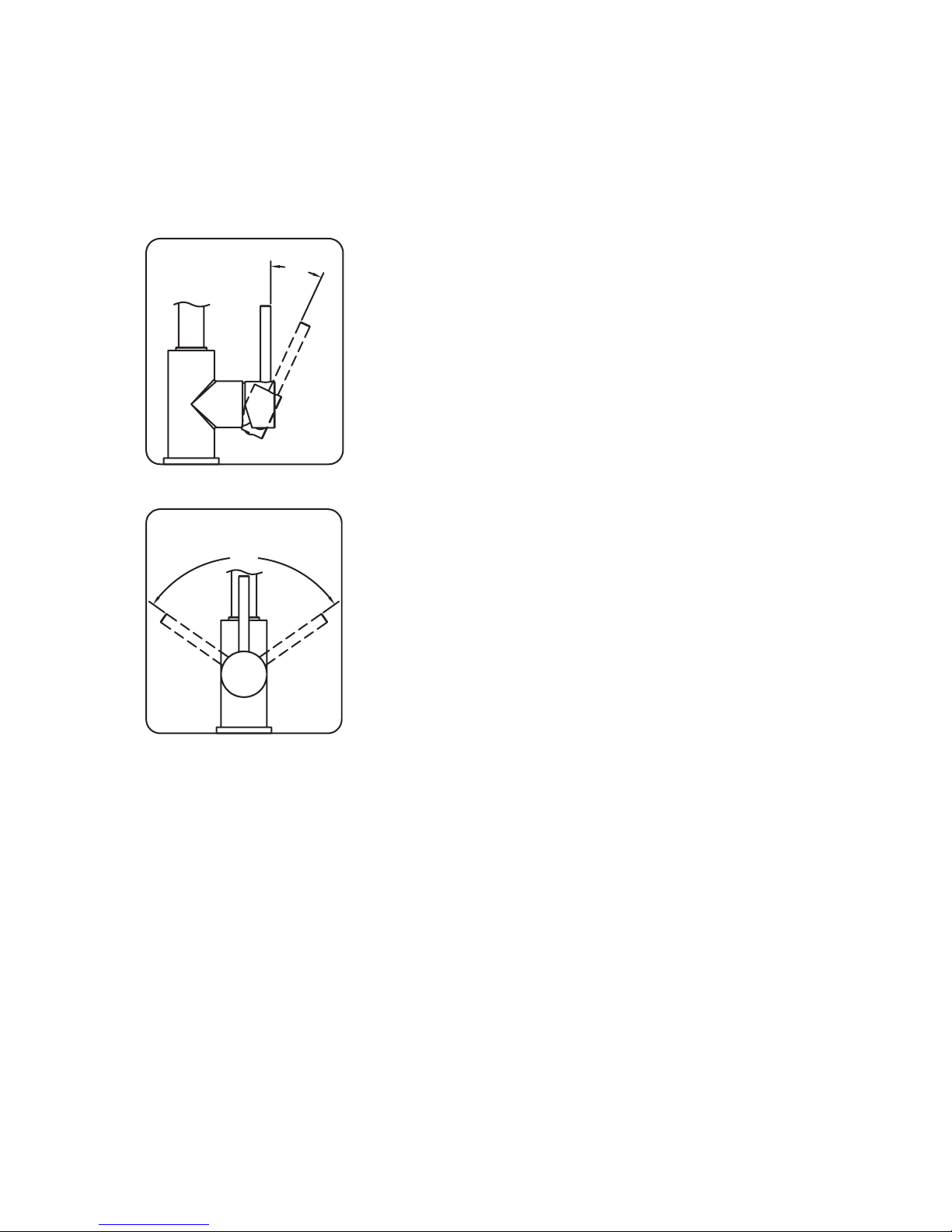

The minimum distance between
the faucet hole and wall should
be 3.5”
If the distance between the
faucet hole and the wall is less
than 3.5”, position the faucet
lever 30 degrees to 90 degrees
off the wall to allow for full
operation
1. Remove mounting screws (9), mounting nut (8), metal washer (7),
and rubber washer (6) from the faucet body (1).
Minimum distance 3.5
Less than
Ø35~Ø38
Ø1 ~Ø1
Step 1
1
6
7
8
9
1. Remove mounting screws (9), mounting nut (8), metal washer (7),
and rubber washer (6) from the faucet body (1).
Minimum distance 3.5
Less than
Ø35~Ø38
Ø1 ~Ø1
Step 1
1
6
7
8
9
Faucet Installation Methods
Installation Method 1
Installation Method 2
The minimum distance between
the faucet hole and wall should
be 3.5”
If the distance between the
faucet hole and the wall is less
than 3.5”, position the faucet
lever 30 degrees to 90 degrees
off the wall to allow for full
operation
1. Remove mounting screws (9), mounting nut (8), metal washer (7),
and rubber washer (6) from the faucet body (1).
Minimum distance 3.5
Less than
Ø35~Ø38
Ø1 ~Ø1
Step 1
1
6
7
8
9
1. Remove mounting screws (9), mounting nut (8), metal washer (7),
and rubber washer (6) from the faucet body (1).
Mi
nimum distance 3.5
Less than
Ø35~Ø38
Ø1 ~Ø1
Step 1
1
6
7
8
9
Faucet Installation Procedures
Installation Method 1
Installation Method 2 (optional)
The minimum distance between
the faucet hole and the wall should
be 3.5”
If the distance between the faucet
hole and the wall is less than 3.5,”
position the faucet lever 30° to
90° off the wall to allow for full
operation

7
Step 1
1. Remove mounting screws (9), mounting nut (8), metal washer (7),
and rubber washer (6) from the faucet body (1).
Ø35~Ø38
Ø1 ~Ø1
Step 1
1
Installation Steps
Step 2
Step 1
1. Remove mounting screws (9), mounting nut (8), metal washer (7),
and rubber washer (6) from the faucet body (1).
Ø35~Ø38
Ø1 ~Ø1
Step 1
1
Installation Steps
Step 2
Remove mounting hardware
assembly (E)
Connect waterlines (G) to hot and
cold copper lines on faucet
E1
E2
E3
9
Step 6
Hot
Water
Cold
Water
Installer Tip
F
E
G
F
Hexagon Nut
Hot
Water
Cold
Water
Close
Open Left
Hot Water
Push
25˚ 90˚
Step 5
KPF-1602.indd 9 2016-08-09 3:39 PM
A
J
Use two wrenches when
securing waterlines (G) to
copper lines to prevent kinking,
as shown in picture
Step 1
Step 2

8
t the faucet body (1) into the hole on the deck with the base
(4) and base o-ring (5), and then install the rubber washer (6),
metal washer (7), mounting nut (8) and mounting screws (9) from
underneath the sink.
1
8
Step 3
2. Insert the faucet body (1) into the hole on the deck with the base
(4) and base o-ring (5), and then install the rubber washer (6),
metal washer (7), mounting nut (8) and mounting screws (9) from
underneath the sink.
4
5
6
7
8
9
3. After adjusting the direction of the faucet body (1), tighten the
mounting nut (8) until snug and tighten the mounting screws (9) to
Step 4
Step 3
t the faucet body (1) into the hole on the deck with the base
(4) and base o-ring (5), and then install the rubber washer (6),
metal washer (7), mounting nut (8) and mounting screws (9) from
underneath the sink.
1
8
Step 3
2. Insert the faucet body (1) into the hole on the deck with the base
(4) and base o-ring (5), and then install the rubber washer (6),
metal washer (7), mounting nut (8) and mounting screws (9) from
underneath the sink.
4
5
6
7
8
9
3. After adjusting the direction of the faucet body (1), tighten the
mounting nut (8) until snug and tighten the mounting screws (9) to
Step 4
Step 3

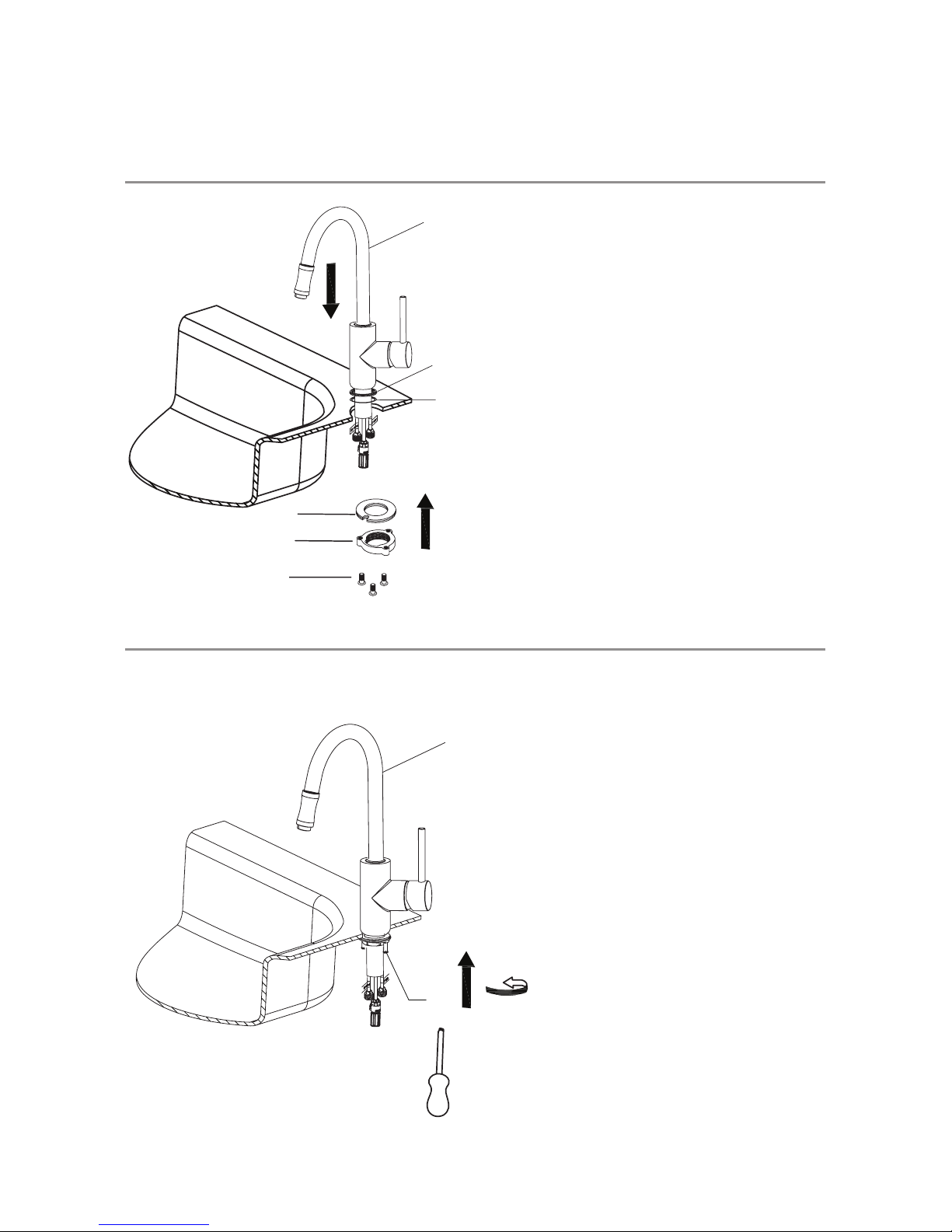

Insert faucet body (A) into hole
on deck or sink with base (C) and
base o-ring (D) attached. Attach
mounting hardware assembly (E)
Adjust faucet body (A). Secure
mounting hardware (E) with
wrench and Phillips head
screwdriver
E1
C
D
E2
E3
A
A
E
9
Step 6
Hot
Water
Cold
Water
Installer Tip
F
E
G
F
Hexagon Nut
Hot
Water
Cold
Water
Close
Open Left
Hot Water
Push
25˚ 90˚
Step 5
KPF-1602.indd 9 2016-08-09 3:39 PM
A
J
Step 3
Step 4

9
Connect spray hose (H) to check
valve (J) and tighten with an
adjustable wrench.
9
Step 6
Hot
Water
Cold
Water
Installer Tip
F
E
G
F
Hexagon Nut
Hot
Water
Cold
Water
Close
Open Left
Hot Water
Push
25˚ 90˚
Step 5
KPF-1602.indd 9 2016-08-09 3:39 PM
A
J
Insert washer
Step 5
Step 6
Step 4
4. Connect the spray h
with a wrench until snug
hose (12). Connect h
and tighten with a wrench, then turn on water supplies and check
leaks.
Attach weight (F) to lowest point
vertically on spray hose (H)
Connect and tighten waterlines (G)
to angle stops. Turn on the angle
stops and check for leaks
(DO NOT TURN FAUCET ON)
Step 5
Step 6
Step 4
4. Connect the spray h
with a wrench until snug
hose (12). Connect h
and tighten with a wrench, then turn on water supplies and check
leaks.
Installer Tip
Remove aerator and turn faucet on
for 60 seconds to flush any debris
F
H
J
A
Step 5
Step 6
