Krix ATMOSPHERIX AS User manual

ATMOSPHERIX AS & A20
INSTALLATION GUIDE

SETUP IN BRIEF
The following setup procedure will help you achieve the best
performance from your in-ceiling speaker:
1. Unpacking
Remove your speaker from the packaging
2. Introduction
Learn about the Atmospherix AS and Atmospherix A20
3. Before you begin
Determine a suitable location for your speakers
4. Installation
Cut mounting hole, connect cabling and install speaker
5. Listen and enjoy
Listen to your favourite music/movies and enjoy
Disclaimer
Drilling into anything can be dangerous. You should make sure you know what is behind or inside the surface that you are drilling before
you start to drill. For example, you might strike an electrical cable.
You must install the speaker securely to the surface that you are xing it to. If you don’t, injury or damage may occur.
If you do not feel entirely condent about installing this product, contact a professional installer.
To the extent permissible by law:
All warranties, conditions, representations, promises and statements relating howsoever to this product whether express or implied and
whether in contract or tort are excluded to the extent permitted by law; and
Our liability to you under a condition or warranty (if any) implied into this sale and purchase agreement relating to these brackets by the
Trade
Practices Act 1974 (as amended) or any other law (whether a law of Australia or any other country) other than a condition implied by Section
69 of the said Act is limited at our option to:
the replacement of the product; or
the supply of an equivalent product; or
the repair of the product.
If you do not accept the above conditions, return this product (in the original packaging) with proof of purchase for a full refund.
Congratulations on choosing Krix
Your Krix speakers are designed to reproduce the highest quality sound. To get the best
performance from your speakers please read these installation instructions thoroughly as
there are many factors that influence the performance of your speakers. If you have any
difculties please contact one of our friendly authorised Krix dealers.
2

500mm
recommended
minimum
500mm
Figure 3
Figure 2
Figure 1
INTRODUCTION
Introduction
The Atmospherix AS and Atmospherix A20
are high quality in-ceiling loudspeakers
featuring fully sealed back-boxes to control
and maximise bass response, whilst keeping
out dust and other ceiling inhabitants.
The Atmospherix A20 employs an
acoustically optimised front baffle angled
at 20 degrees, allowing its sound output to
be projected towards your primary listening
area. The Atmospherix AS employs a flat
front baffle for uniform sound coverage in all
directions. (gure 1)
Applications best suited to
Atmospherix AS
The wide uniform coverage of the
Atmospherix AS makes it the ideal choice
for 2 channel stereo and background
music applications. Its uniform coverage is
ideally suited to any applications where the
listening area is not conned to a specic
part of the room. For examples, hallways,
dinning rooms, ofce spaces and bedrooms
and multipurpose rooms. (gure 2)
Applications best suited to
Atmospherix A20
The ability of the Atmospherix A20 to project
sound toward your primary listening area
makes it ideally suited to home cinema
applications (gure 3). Dialogue will become
more articulate, music will have better
denition and surround effects will become
more involving and realistic. The A20’s ability
to direct more sound towards the listener
results in less sound reflecting off walls
and other surfaces in the room creating a
clearer, more three dimensional soundstage.
The A20 may also be useful for background
music applications where the speakers must
be placed near a side wall for aesthetic or
structural reasons. In this application the A20
can be used to project the sound towards
the centre of the room.
Atmospherix A20 Atmospherix AS
3

• Also ensure that there is enough ceiling/
wall space to accommodate the speaker
enclosure.
Connecting
To ensure optimum performance, it is
important that your speaker system is
connected properly:
Turn off all electronic equipment and
disconnect from the power point.
• Follow the connection instructions
supplied with your amplier, CD/DVD,
hard disk recorder, video player etc.
• Install speaker cable in wall or ceiling
cavity, or run cable along wall surface.
Allow approximately 300mm of excess
cable to facilitate loudspeaker installation.
• Follow the connection instructions
supplied with your amplier to connect
the speaker cables to amplier. Take
care to assign the same cable colour or
trace to the positive (+) connector on the
amplier as the positive (+) connector on
the speaker.
• Prepare speaker cables for connecting to
speakers by neatly stripping cable ends.
Care should be taken to eliminate loose
strands of wire that may be present a
short circuit hazard.
Painting
• If the speaker grille requires painting it is
recommended to use a spray can for ease
of application. Alternatively, it is possible
to apply acrylic or enamel paint using a
small foam roller but this will require more
applications to achieve a good result.

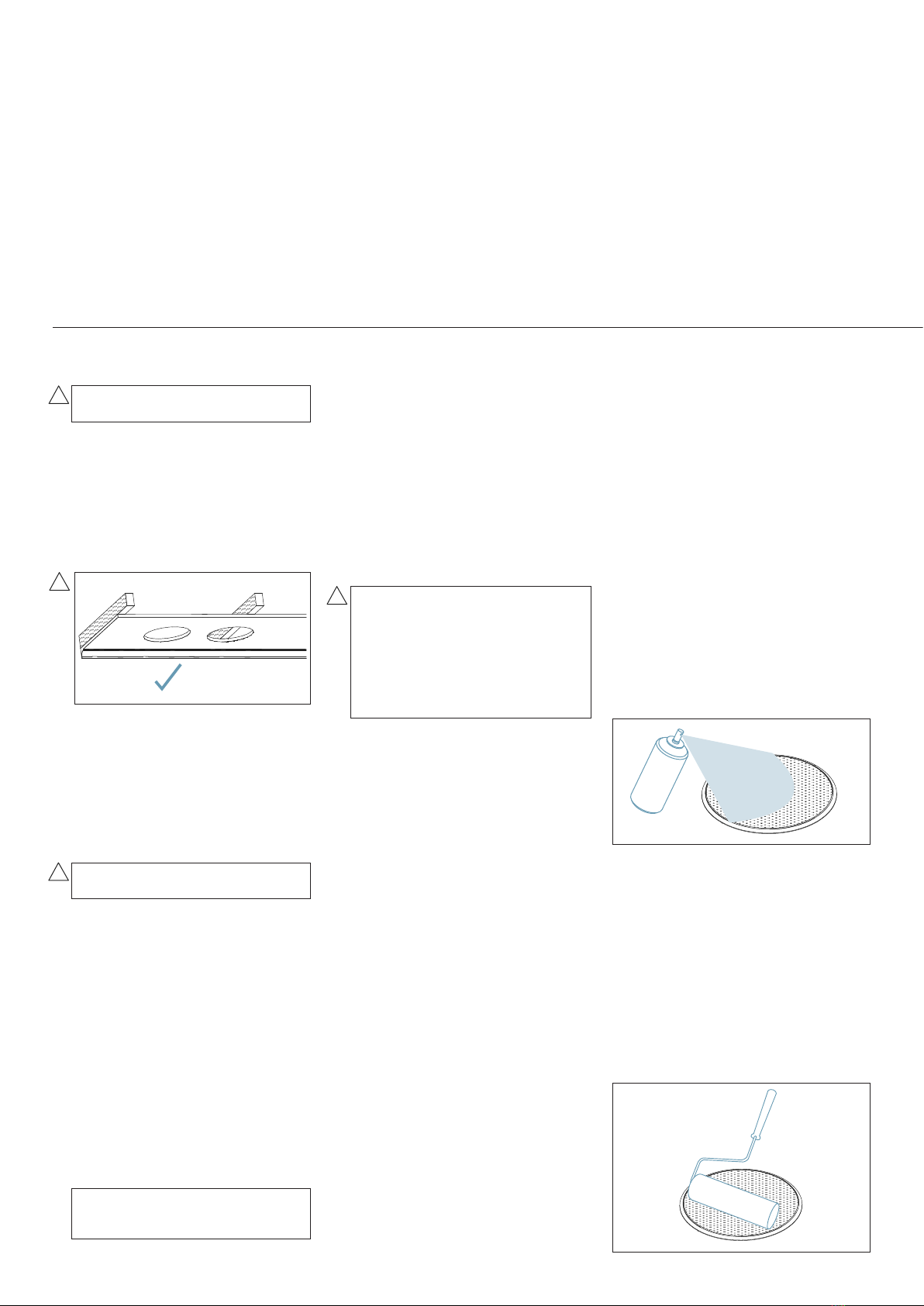

Spray can application
• Use a spray can to apply a light coat of
paint. Rotate the product at 90° intervals
and apply three more light coats to ensure
an even coverage (gure 5).
• Be careful in applying single heavy coats
of paint as there is a higher probability of
blocking the holes in the grille.
• If the grill does become blocked by paint,
use a small pin or similar to release the
blockage, while the paint is still wet.
Roller application
• Load a foam roller with a light coverage
of thin paint and then roll onto the grille.
Try to avoiding blocking the holes in the
grille. If the grille does become blocked
by paint, use a small pin or similar to
release the blockage, while the paint is
still wet.
• Allow the paint to dry. Apply three or more
light coats to ensure an even coverage
(gure 6).
Installation
• Once the correct placement has been
determined, use the cardboard insert
marked ‘template’ (from the internal
packing) to trace the required cut-out
onto the ceiling/wall (gure 7).
• Drill a hole inside the marked cut-out.
Using a ne gyprock saw, cut around the
inside of the marked cut-out (gure 8).
• Remove the circular offcut and insert the
speaker to check the hole is the correct
size. Enlarge the cut-out if required.
Atmospherix A20 only:
Determine the correct orientation for
your speaker. A small arrow embossed
in the front baffle marks the direction
of the speakers primary coverage. It is
recommended that this arrow is aimed
towards your primary listening area for
best results (gure 3, gure 9).
• Pull the stripped speaker cable through
the ceiling/wall opening. Push and hold
down the positive (+) red binding post on
the speaker and insert the positive (+) wire
through hole in post. Take care to assign
the same cable colour or trace to the
positive (+) connector on the amplier, as
the positive (+) connector on the speaker.
Repeat connection process with the
negative (-) black binding post and the
negative (-) wire (gure 10).
• Ensure all mounting clamps are swung
back against the speaker enclosure
(gure 10), so that the speaker can be easily
inserted into the ceiling cut-out. Once the
speaker has been located in the ceiling/
wall, use a Phillips head screwdriver to
tighten all mounting screws. As the screws
are tightened, the mounting clamps will
automatically swing out over the plaster
board and clamp the speaker in place.
Be careful not to overtighten the screws,
as this may strip the clamp, or crush the
plaster board surface (gure 11).
• Gently t the magnetic grille to the front
of the speaker housing (gure 12).
INSTALLATION
Before you begin
Please read the disclaimer on page 2 of
this manual.
• Refer to page 3 of this manual and
discuss with your local Krix distributor,
or installation consultant, to determine
the best location for your loudspeakers.
Be sure to check for any obstructions,
such as electrical wiring, plumbing, stud
work or air conditioning ducts before
commencing the installation (gure 4).
4
!
Figure 4
Figure 5
Figure 6
!
!
!
!

Figure 12
Figure 9 Figure 10
Figure 11
Figure 8
Figure 7
INSTALLATION
5
Atmospherix A20 only:
Aim arrow towards
primary listening area

6
SPECIFICATIONS
Warranty
Lifetime limited warranty applies to the
cabinet and speaker.
(Refer to the details on the warranty card
supplied)
Queries
If you have any queries regarding the
Atmospherix or any other Krix product,
please contact your nearest Krix dealer or Krix
directly. Contact details are on the back cover
of this booklet.
Atmospherix AS
Frequency range 45Hz - 40kHz in room response
Power handling 20-120 watts RMS recommended amplier power
Sensitivity 90dB for 2.83 volts at 1 metre
Conguration 5 inch 2-way
Bass Driver(s) Cast aluminium basket with a nominal 130mm (5”) doped
curvilinear paper cone. 25mm (1”) voice coil wound on high
powered aluminium former with copper shorting ring.
Vented and double magnet shielded
Tweeter 26mm (1”) dual concentric diaphragm with wave-guide
centre plug for controlled directivity. Neodymium magnet
Crossover Points 2.1kHz
Impedance Nominally 6 ohms (minimum 3.6 ohms)
Enclosure Type Bass reflex, front vented
Dimensions 295mm diameter x 183mm deep
Mounting cut-out diameter 247mm
Finish White (can be painted to match your décor)
Input Terminals Push type connectors
Internal Volume 8 litres
Weight 2.5kg each

7
SPECIFICATIONS
Atmospherix A20
Frequency range 45Hz - 40kHz in room response
Power handling 20-120 watts RMS recommended amplier power
Sensitivity 90dB for 2.83 volts at 1 metre
Conguration 5 inch 2-way with 20 degree angle
Bass Driver(s) Cast aluminium basket with a nominal 130mm (5”) doped
curvilinear paper cone. 25mm (1”) voice coil wound on high
powered aluminium former with copper shorting ring.
Vented and double magnet shielded
Tweeter 26mm (1”) dual concentric diaphragm with wave-guide
centre plug for controlled directivity. Neodymium magnet
Crossover Points 2.1kHz
Impedance Nominally 6 ohms (minimum 3.6 ohms)
Enclosure Type Bass reflex, front vented
Dimensions 295mm diameter x 193mm deep
Mounting cut-out diameter 247mm
Finish White (can be painted to match your décor)
Input Terminals Push type connectors
Internal Volume 8 litres
Weight 2.5kg each

krix.com
Krix Loudspeakers Pty Ltd
14 Chapman Road
Hackham SA 5163
Australia
T 61 8 8384 3433
F 61 8 8384 3419
[email protected] Rev #10004.1
