Krix Quatrix KX-5972 User manual

krix.com
Enhancing Krix’s existing 3 way design
by adding an Ultra High Frequency element
has created the first extensive range of
4 way loudspeakers. The UHF element
significantly improves pattern control beyond
10kHz and enhances audio quality with even
smoother and sweeter highs. The patented
horn technology extends and flattens the
frequency response from 7.5kHz to 20kHz
while significantly reducing distortion.
The Quatrix 4 way system has optimum
coverage with significant improvements
for the right directivity pattern. There is less
variation with frequency than ever before.
True horn loading of acoustic transducers is
essential for pattern control, and a major step
forward is the development of a patented
throat configuration transforming pattern
control, improving frequency response and
reducing distortion.
Krix Loudspeakers Pty Ltd
14 Chapman Road
Hackham SA 5163
Australia
T 61 8 8384 3433
F 61 8 8384 3419
list[email protected]
www.krix.com
Krix chose direct radiating vented enclosures
for the low frequency to achieve the radiation
pattern required for a flatter low frequency
response with lower distortion. The important
passive filter network has had great care in
the design and manufacture to improve the
integration of the whole array. The filter
network provides the correct crossover points
with the appropriate phase responses for each
section, high order slopes for minimal vertical
off axis disturbance, and to equalise the whole
array for simplified auditorium equalisation.
The Quatrix 4 way system is available in 4
models to suit every cinema, large or small.
Krix is number one for Quatrix 4 way systems.
DUE TO CONTINUED DEVELOPMENT SPECIFICATIONS MAY CHANGE WITHOUT NOTICE. KRIX AND THE KRIX LOGO
ARE TRADEMARKS OF KRIX LOUDSPEAKERS PTY LTD, REGISTERED IN AUSTRALIA AND OTHER COUNTRIES.
made with passion in australia
enhanced cinema experience
Features
• 4 way array for maximum output, optimal coverage and minimum distortion
• Extended and smoother frequency response and more precise pattern control
in all elements of the loudspeaker system
• Bi-amped operation with passive filter combining MF/HF/UHF, compatible
with industry standard 500Hz 4th order Linkwitz Riley
• Active filter parameters are available for tri-amped and fully active
system operation
• True horn loaded midrange, high and ultra high frequency
• Well defined and precise constant coverage control
• Flat front profile for use with infinite baffle applications
• Coverage pattern has a smooth transition from LF to MF/HF/UHF array
• Maximum system depth is 500mm
4 way systems

4 way systems

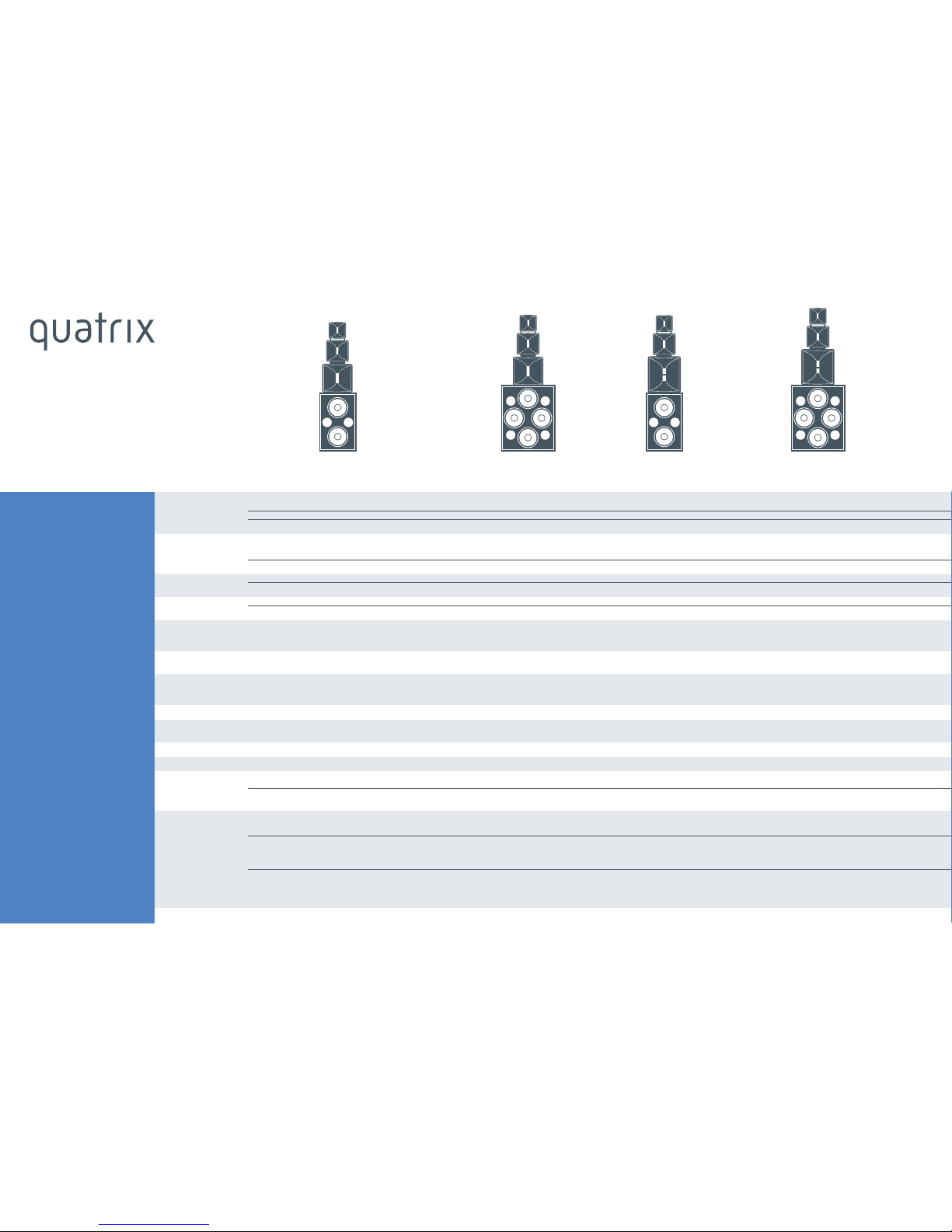

Quatrix KX-5982Quatrix KX-5976Quatrix KX-5972 Quatrix KX-5986
Low Frequency Drivers Dual 15 inch (380mm) paper cones Quad 15 inch (380mm) paper cones Dual 15 inch (380mm) paper cones Quad 15 inch (380mm) paper cones
configured in a shaded array configured in a shaded array
Enclosure 225 litre vented enclosure tuned to 41Hz 450 litre vented enclosure tuned to 41Hz 225 litre vented enclosure tuned to 41Hz 450 litre vented enclosure tuned to 41Hz
Damping Fire rated polyester fibre Fire rated polyester fibre Fire rated polyester fibre Fire rated polyester fibre
Mid Frequency Drivers Single 6.5 inch (165mm) paper cone mounted Single 6.5 inch (165mm) paper cone mounted Dual 6.5 inch (165mm) paper cones mounted Dual 6.5 inch (165mm) paper cones mounted
in an innovative rear enclosure to improve in an innovative rear enclosure to improve in an innovative rear enclosure to improve in an innovative rear enclosure to improve
thermal performance thermal performance thermal performance thermal performance.
Horn 90º x 40º short throw 90º x 40º short throw 90º x 40º short throw 90º x 40º short throw
High Frequency Driver 4 inch voice coil compression driver 4 inch voice coil compression driver 4 inch voice coil compression driver 4 inch voice coil compression driver
Horn 90º x 40º short throw 90º x 40º short throw 90º x 40º short throw 90º x 40º short throw
Ultra High Frequency Driver 1.75 inch voice coil compression driver 1.75 inch voice coil compression driver 1.75 inch voice coil compression driver 1.75 inch voice coil compression driver
Horn 90º x 40º short throw 90º x 40º short throw 90º x 40º short throw 90º x 40º short throw
Crossover Point Recommended 500Hz active 4th order Recommended 500Hz active 4th order Recommended 500Hz active 4th order Recommended 500Hz active 4th order
Linkwitz Riley for bi-amplified model Linkwitz Riley for bi-amplified model Linkwitz Riley for bi-amplified model Linkwitz Riley for bi-amplified model
(useable 350Hz to 800Hz) (useable 350Hz to 800Hz) (useable 350Hz to 800Hz) (useable 350Hz to 800Hz)
Frequency Response 40Hz to 15kHz (pre-equalised to ISO2969 house 40Hz to 15kHz (pre-equalised to ISO2969 house 40Hz to 15kHz (pre-equalised to ISO2969 house 40Hz to 15kHz (pre-equalised to ISO2969 house
curve ±3dB) free space. Bi-amplified model only curve ±3dB) free space. Bi-amplified model only curve ±3dB) free space. Bi-amplified model only curve ±3dB) free space. Bi-amplified model only
Directivity Index 6.0 @ 500Hz rising smoothly to 9.0 @ 1kHz 6.0 @ 500Hz rising smoothly to 9.0 @ 1kHz 6.0 @ 500Hz rising smoothly to 9.0 @ 1kHz 6.0 @ 500Hz rising smoothly to 9.0 @ 1kHz
(9.0±0.7 – 1kHz to 15kHz) (9.0±0.7 – 1kHz to 15kHz) (9.0±0.7 – 1kHz to 15kHz) (9.0±0.7 – 1kHz to 15kHz)
Bi-amplified model only Bi-amplified model only Bi-amplified model only Bi-amplified model only
Finish Cinema black Cinema black Cinema black Cinema black
Input Terminals 200 amp proprietary terminal posts which 200 amp proprietary terminal posts which 200 amp proprietary terminal posts which 200 amp proprietary terminal posts which
will accept up to 6mm diameter cable will accept up to 6mm diameter cable will accept up to 6mm diameter cable will accept up to 6mm diameter cable
Dimensions Fully Assembled 2380mm high, 670mm wide, 450mm deep 2540mm high, 1050mm wide, 500mm deep 2550mm high, 670mm wide, 450mm deep 2710mm high, 1050mm wide, 500mm deep
Weight Assembled 105kg 180kg 115kg 190kg
Power Handling Thermal capacity LF – 600 watts RMS LF – 1200 watts RMS LF – 600 watts RMS LF – 1200 watts RMS
(bi-amped) MF/HF/UHF – 100 watts RMS MF/HF/UHF – 100 watts RMS MF/HF/UHF – 200 watts RMS MF/HF/UHF – 200 watts RMS
Program power capacity LF – 1200 watts RMS LF – 2400 watts RMS LF – 1200 watts RMS LF – 2400 watts RMS
(bi-amped) MF/HF/UHF – 200 watts RMS MF/HF/UHF – 200 watts RMS MF/HF/UHF – 400 watts RMS MF/HF/UHF – 400 watts RMS
Axial Sensitivity Bi-amped LF – 104dB / 2.83V per metre into 4.0ΩLF – 109dB / 2.83V per metre into 2.1ΩLF – 104dB / 2.83V per metre into 4.0ΩLF – 109dB / 2.83V per metre into 2.1Ω
MF/HF/UHF – 105.5dB / 2.83V per metre into MF/HF/UHF – 105.5dB / 2.83V per metre into MF/HF/UHF – 103.5dB / 2.83V per metre into MF/HF/UHF – 103.5dB / 2.83V per metre into
7.5Ω ±2.0Ωminimum 5.5Ω(300Hz-20kHz) 7.5Ω±2.0Ωminimum 5.5Ω(300Hz-20kHz) 20.0Ω±10.0Ωminimum 8.7Ω(300Hz-20kHz) 20.0Ω±10.0Ωminimum 8.7Ω(300Hz-20kHz)
Tri-amped LF – 104dB / 2.83V per metre into 4.0ΩLF – 109dB / 2.83V per metre into 2.1ΩLF – 104dB / 2.83V per metre into 4.0ΩLF – 109dB / 2.83V per metre into 2.1Ω
MF – 105.5dB / 2.83V per metre into 9.7ΩMF – 105.5dB / 2.83V per metre into 9.7ΩMF – 112.5dB / 2.83V per metre into 5.0ΩMF – 112.5dB / 2.83V per metre into 5.0Ω
HF/UHF – 104.5dB / 2.83V per metre into 11.0ΩHF/UHF – 104.5dB / 2.83V per metre into 11.0ΩHF/UHF – 104.5dB / 2.83V per metre into 11.0ΩHF/UHF – 104.5dB / 2.83V per metre into 11.0Ω
±5.0Ωminimum 6.0Ω(300Hz-20kHz) ±5.0Ωminimum 6.0Ω(300Hz-20kHz ±5.0Ωminimum 6.0Ω(300Hz-20kHz) ±5.0Ωminimum 6.0Ω(300Hz-20kHz)
Fully Active LF – 104dB / 2.83V per metre into 4.0ΩLF – 109dB / 2.83V per metre into 2.1ΩLF – 104dB / 2.83V per metre into 4.0ΩLF – 109dB / 2.83V per metre into 2.1Ω
MF – 105.5dB / 2.83V per metre into 9.7ΩMF – 105.5dB / 2.83V per metre into 9.7ΩMF – 112.5dB / 2.83V per metre into 5.0ΩMF – 112.5dB / 2.83V per metre into 5.0Ω
HF – 109.5dB / 2.83V per metre into 8.3ΩHF – 109.5dB / 2.83V per metre into 8.3ΩHF – 109.5dB / 2.83V per metre into 8.3ΩHF – 109.5dB / 2.83V per metre into 8.3Ω
UHF – 108.5dB / 2.83V per metre into 7.5ΩUHF – 108.5dB / 2.83V per metre into 7.5ΩUHF – 108.5dB / 2.83V per metre into 7.5ΩUHF – 108.5dB / 2.83V per metre into 7.5Ω
Active Filter Settings Please contact Krix for recommended active Please contact Krix for recommended active Please contact Krix for recommended active Please contact Krix for recommended active
crossover frequencies and delay settings crossover frequencies and delay settings crossover frequencies and delay settings crossover frequencies and delay settings
With 25 years cinema industry
experience Krix are passionate
about creating enhanced cinema
sound. After extensive research,
Krix has developed a family of
high end, state of the art cinema
loudspeakers, designed for optimal
21st century cinema sound. The
exceptional Quatrix 4 way system
makes every seat in your cinema
the best in the house.
Specifications
