1About this document
1.1Function
This operating instructions manual has all the information you
need for quick setup and safe operation of OPTISOUND 3030
C.Please read this manual before you start setup.
1.2Target group
This operating instructions manual is directed to trained
personnel.The contents of this manual should be made
available to these personnel and put into practice by them.
1.3Symbolism used
Information,tip,note
This symbol indicates helpful additional information.
Caution,warning,danger
This symbol informs you of a dangerous situation that could
occur.Ignoring this cautionary note can impair the person and/
or the instrument.
Ex applications
This symbol indicates special instructions for Ex applications.
lList
The dot set in front indicates a list with no implied sequence.
àAction
This arrow indicates a single action.
1Sequence
Numbers set in front indicate successive steps in a procedure.
4OPTISOUND 3030 C-4…20 mA/HART
About this document
30511-EN-050914

2For your safety
2.1Authorised personnel
All operations described in this operating instructions manual
must be carried out only by trained,specialised personnel
authorised by the operator.For safety and warranty reasons,
any internal work on the instruments must be carried out only
by personnel authorised by the manufacturer.
2.2Appropriate use
OPTISOUND 3030 Cis a sensor for continuous level
measurement.
2.3Warning about misuse
Inappropriate or incorrect use of the instrument can give rise to
application-specific hazards,e.g.vessel overfill or damage to
system components through incorrect mounting or adjustment.
2.4General safety instructions
OPTISOUND 3030 Cis a high-tech instrument requiring the
strict observance of standard regulations and guidelines.The
user must take note of the safety instructions in this operating
instructions manual,the country-specific installation standards
(e.g.the VDE regulations in Germany)as well as all prevailing
safety regulations and accident prevention rules.
2.5CE conformity
OPTISOUND 3030 Cis in CE conformity with EMC (89/336/
EWG), fulfils the NAMUR recommendation NE 21 and is in CE
conformity with LVD (73/23/EWG).
Conformity has been judged acc.to the following standards:
lEMC:
-Emission EN 61326:1997 (class A)
-Susceptibility EN 61326:1997/A1:1998
lLVD:EN 61010-1:2001
2.6Compatibility acc.to NAMUR NE 53
OPTISOUND 3030 Cmeets NAMUR recommendation NE 53.
OPTISOUND 3030 C-4…20 mA/HART 5
For your safety
30511-EN-050914

The parameter adjustment of the basic sensor functions is
independent of the software version.The range of available
functions depends on the respective software version of the
individual components.
The software version of OPTISOUND 3030 Ccan be
determined as follows:
lon the type label of the electronics
lvia the indicating/adjustment module.
You can find all software histories on our website www.krohne.
com.
2.7Safety information for Ex areas
Please note the Ex-specific safety information for installation
and operation in Ex areas.These safety instructions are part of
the operating instructions manual and come with the Ex-
approved instruments.
6OPTISOUND 3030 C-4…20 mA/HART
For your safety
30511-EN-050914

3Product description
3.1Configuration
The scope of delivery encompasses:
lOPTISOUND 3030 Cultrasonic sensor
loptionally available with mounting strap or compression
flange
lDocumentation
-this operating instructions manual
-Operating instructions manual "Indicating and adjust-
ment module"-optional
OPTISOUND 3030 Cconsists of the following components:
lProcess fitting with transducer
lHousing with electronics
lHousing cover,optionally available with indicating/adjust-
ment module
The components are available in different versions.
1
2
3
Fig.1:OPTISOUND 3030 Cwith plastic housing
1Housing cover,optionally available with indicating/adjustment module
2Housing with electronics
3Process fitting with transducer
3.2Principle of operation
OPTISOUND 3030 Cis an ultrasonic sensor for continuous
level measurement.It is suitable for liquids and solids in
practically all industries.
Scope of delivery
Components
Area of application
OPTISOUND 3030 C-4…20 mA/HART 7
Product description
30511-EN-050914

The transducer of the ultrasonic sensor emits short ultrasonic
pulses to the measured product.These pulses are reflected by
the product surface and received by the transducer as echoes.
The running time of the ultrasonic pulses from emission to
reception is proportional to the distance and hence to the level.
The determined level is converted into an appropriate output
signal and outputted as measured value.
Two-wire electronics 4…20 mA/HART for power supply and
measured value transmission on the same cable.
The power supply range can differ depending on the instru-
ment version.The exact range is stated in the "Technical data"
in the "Supplement".
3.3Adjustment
OPTISOUND 3030 Ccan be adjusted with two different
adjustment media:
lthe indicating/adjustment module
laHART handheld
The entered parameters are generally saved in OPTISOUND
3030 C,optionally also in the indicating/adjustment module.
3.4Storage and transport
Your instrument was protected by packaging during transport.
Its capacity to handle normal loads during transport is assured
by a test acc.to DIN EN 24180.
The packaging of standard instruments consists of environ-
ment-friendly,recyclable cardboard.For special versions,PE
foam or PE foil is also used.Dispose of the packaging material
via specialised recycling companies.
lStorage and transport temperature see "Supplement –
Technical data –Ambient conditions"
lRelative humidity 20 …85 %
Physical principle
Power supply
Packaging
Storage and transport tem-
perature
8OPTISOUND 3030 C-4…20 mA/HART
Product description
30511-EN-050914

4Mounting
4.1General instructions
Select an installation position you can easily reach for
mounting and connecting as well as later retrofitting of an
indicating and adjustment module.The housing can be rotated
by 330°without the use of any tools.You can also install the
indicating and adjustment module in four different positions
(each displaced by 90°).
Use the recommended cable (see chapter "Connecting to
power supply")and thighten the cable gland.
You can give your OPTISOUND 3030 Cadditional protection
against moisture penetration by leading the connection cable
downward in front of the cable entry.Rain and condensation
water can thus drain off.This applies mainly to mounting
outdoors,in areas where moisture is expected (e.g.by
cleaning processes)or on cooled or heated vessels.
Fig.2:Measures against moisture penetration
The reference plane for the measuring range is the lower edge
of the transducer.
Make sure that a min.distance -the so called dead zone -
below the reference plane is maintained in which a measure-
ment is not possible.The exact value of the dead zone is
stated in the Technical data in the Supplement.
Installation position
Moisture
Measuring range
OPTISOUND 3030 C-4…20 mA/HART 9
Mounting
30511-EN-050914

132
100%
0%
Fig.3:Min.distance to the max.level
1Dead zone
2Reference plane
Information:
If the product reaches the transducer,buildup can form on it
over a period of time and later cause measurement errors.
1 32
100%
0%

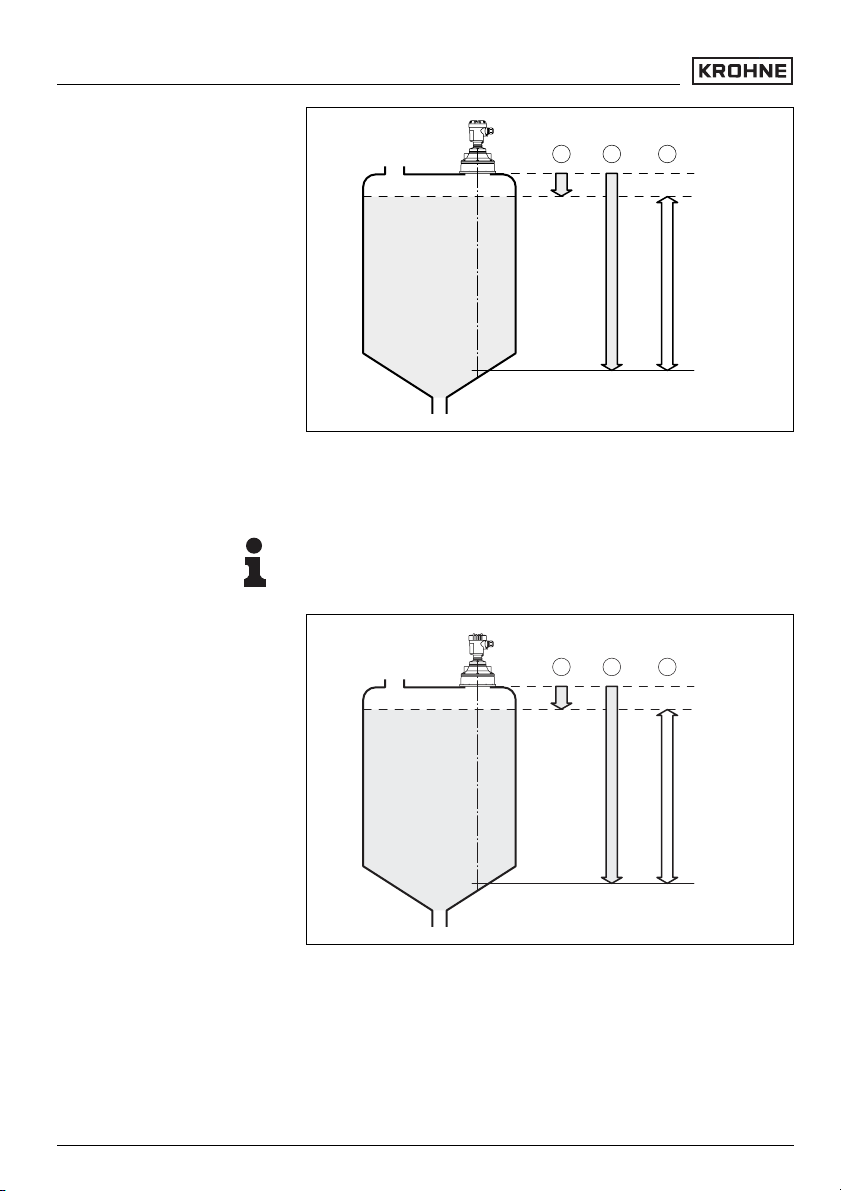

Fig.4:Measuring range (operating range)and max.measuring distance
1full
2empty (max.measuring distance)
3Measuring range
Gauge pressure in the vessel does not influence OPTISOUND
3030 C.Low pressure or vacuum,however,damp the
ultrasonic pulses.This influences the measuring result,
Pressure/Vacuum
10 OPTISOUND 3030 C-4…20 mA/HART
Mounting
30511-EN-050914

particularly if the level is very low.With pressures under -
0.2bar (-20 kPa)you should use a different measuring
principle,e.g.radar or guided radar (TDR).
4.2Mounting information
When mounting OPTISOUND 3030 C,keep a distance of at
least 200 mm (7.9in)to the vessel wall.If the sensor is
installed in the center of dished or rounded vessel tops,
multiple echoes can arise.These can,however,be faded out
by an appropriate adjustment (see chapter "Setup").
If this distance cannot be maintained,a false echo storage
should be carried out during setup.This applies particularly if
buildup on the vessel wall is expected.In this case,we
recommend repeating the false echo storage later on with
existing buildup.
12
> 200 mm
Fig.5:Mounting on dished vessel tops
1Reference plane
2Vessel center or symmetry axis
In vessels with conical bottom it can be advantageous to
mount the sensor in the center of the vessel,as measurement
is then possible down to the lowest point of the vessel bottom.
Installation position
OPTISOUND 3030 C-4…20 mA/HART 11
Mounting
30511-EN-050914

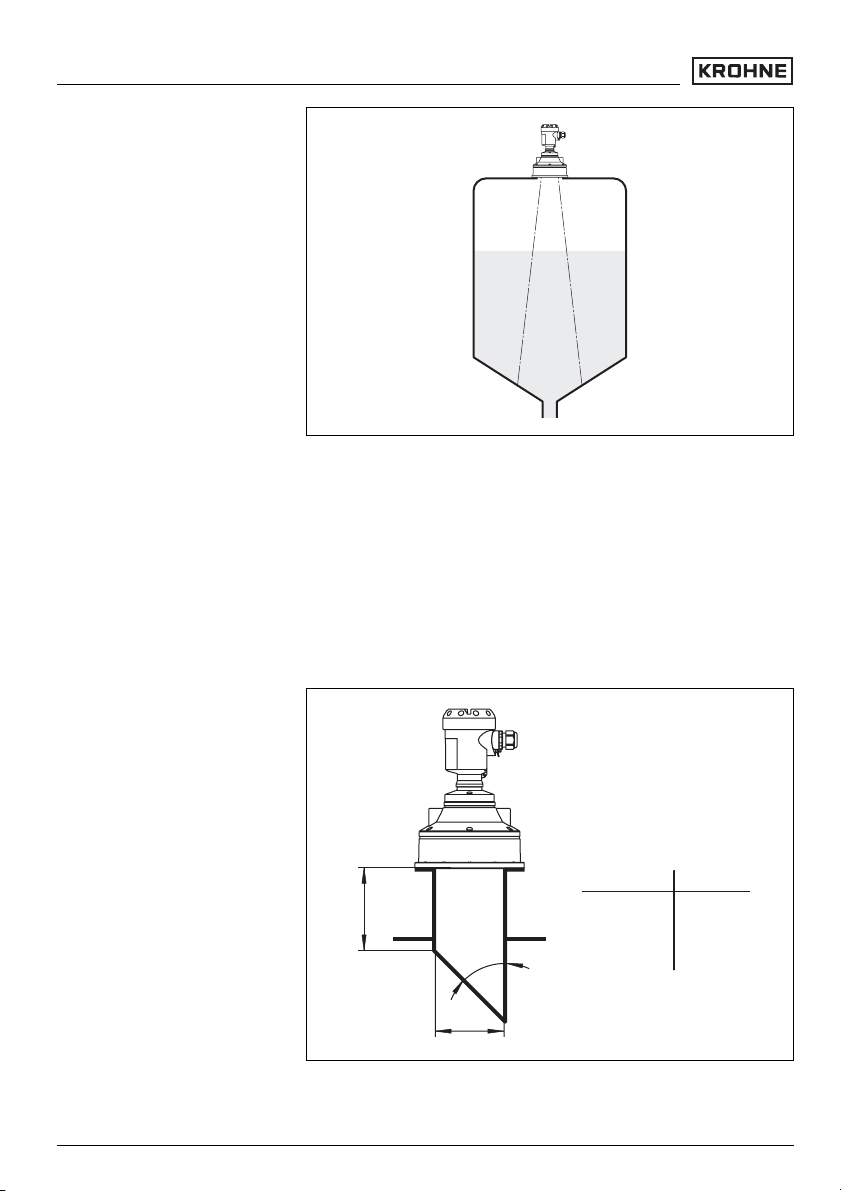

Fig.6:Vessel with conical bottom
Preferably the transducer should be mounted flush to the
vessel top.
If the reflective properties of the medium are good,you can
mount OPTISOUND 3030 Con a socket piece.You will find
recommended values of the socket heights in the following
illustration.The socket end should be smooth and burr-free,if
possible also rounded.Carry out a false echo storage.
d
45°
hmax.
d
100 mm/4"
150 mm/6"
200 mm/8"
250 mm/10"
300 mm
400 mm
500 mm
600 mm
hmax.

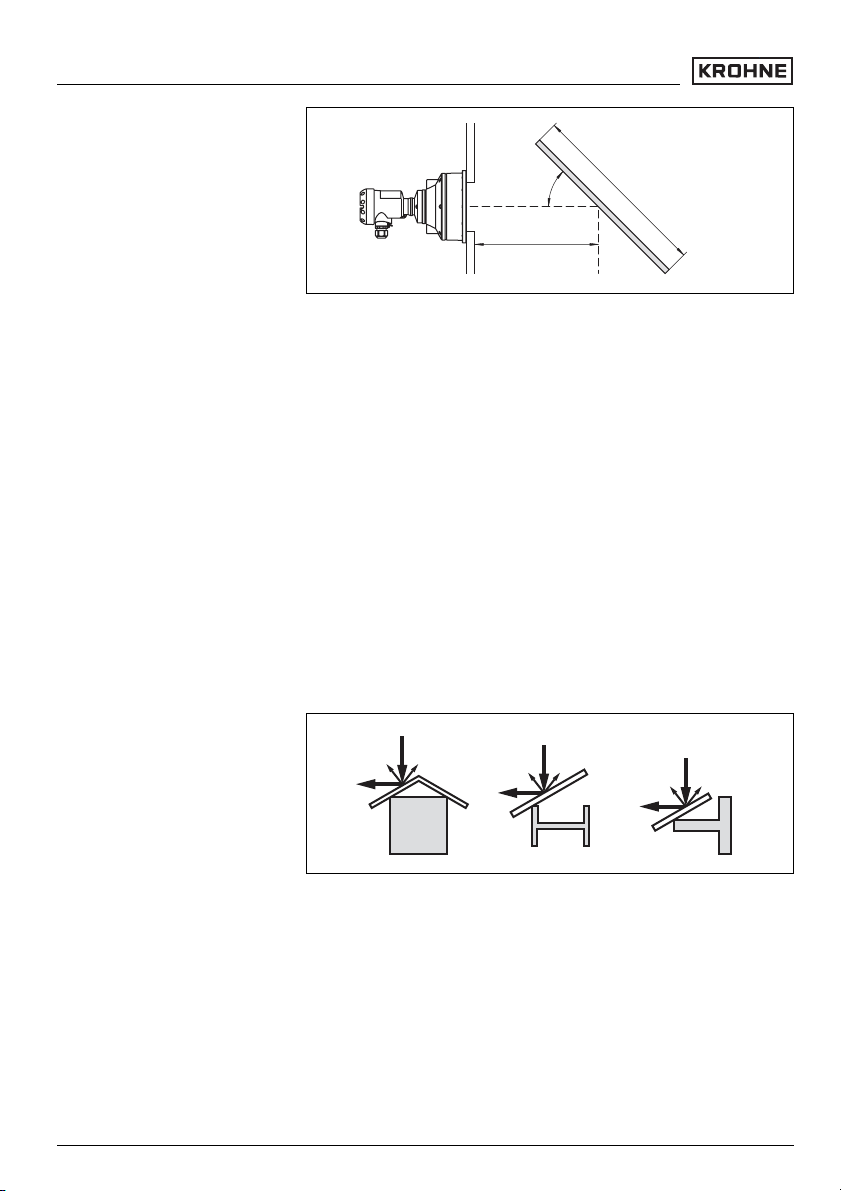

Fig.7:Deviating socket dimensions
Socket
12 OPTISOUND 3030 C-4…20 mA/HART
Mounting
30511-EN-050914

In liquids,direct the sensor as perpendicular as possible to the
product surface to achieve optimum measurement results.

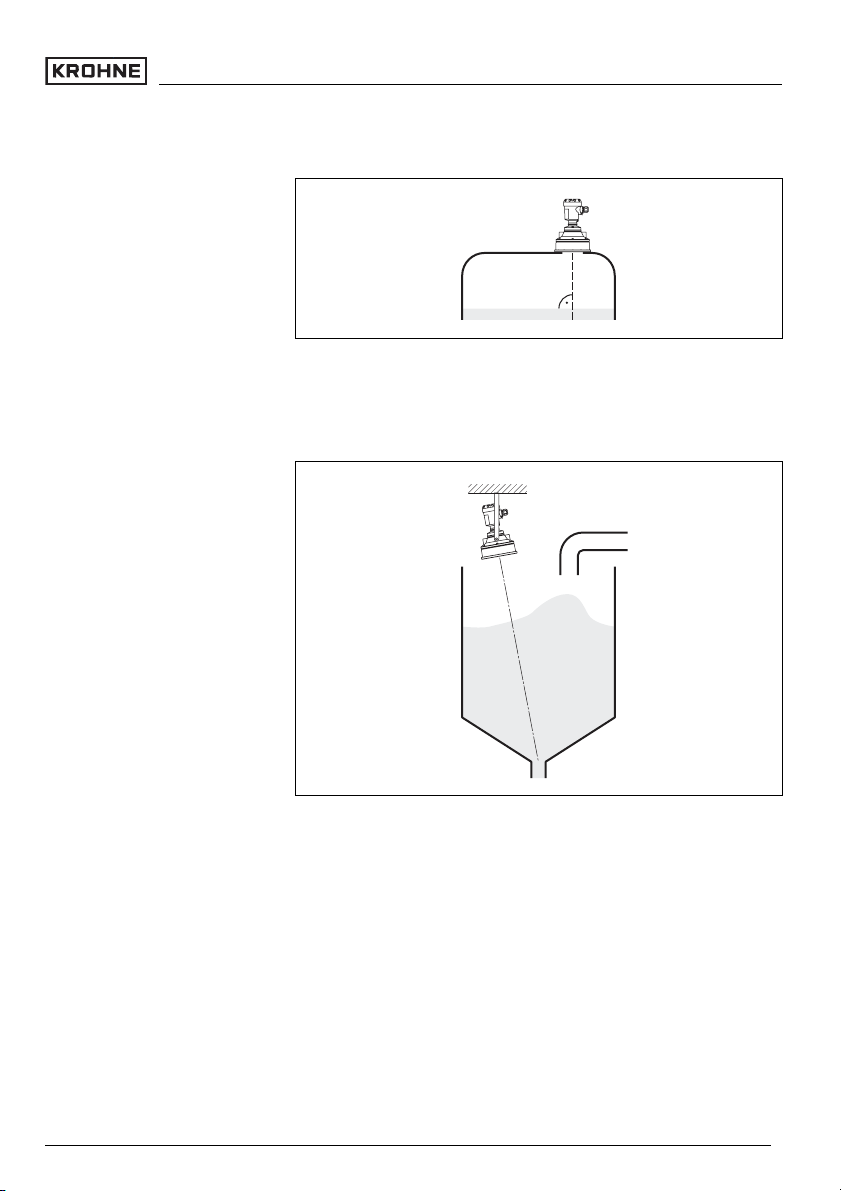

Fig.8:Orientation in liquids
To optimally align the sensor to solid products,a swivelling
holder (mounting strap)can be implemented.
Fig.9:Orientation in solids
To reduce the min.distance to the medium,you can also
mount OPTISOUND 3030 Cwith a beam deflector.By doing
this,it is possible to fill the vessel nearly to maximum.This
arrangement is particularly suitable for open vessels such as e.
g.overflow basins.
Sensor orientation
OPTISOUND 3030 C-4…20 mA/HART 13
Mounting
30511-EN-050914

~200
~400x400
45°
Fig.10:Beam deflector
The ultrasonic sensor should be installed at a location where
no installations cross the ultrasonic beam.
Vessel installations such as for example,ladders,limit
switches,heating spirals,struts etc.can cause false echoes
superimposed on the useful echo.Make sure when planning
your measuring site that the ultrasonic signals have "free
access"to the measured product.
If there are existing vessel installations,a false echo storage
should be carried out during setup.
If large vessel installations such as struts or supports cause
false echoes,these can be attenuated through supplementary
measures.Small,inclined sheet metal or plastic baffles above
the installations scatter the ultrasonic signals and avoid direct
false echoes.
Fig.11:Cover smooth profiles with deflectors
If there are agitators in the vessel,a false echo storage should
be carried out with the agitators in motion.This ensures that
the interfering reflections from the agitators are saved with the
blades in different positions.
Vessel installations
Agitators
14 OPTISOUND 3030 C-4…20 mA/HART
Mounting
30511-EN-050914

Fig.12:Agitators
Do not mount the instruments in or above the filling stream.
Make sure that you detect the product surface and not the
inflowing product.
Fig.13:Inflowing liquid
Through the action of filling,stirring and other processes in the
vessel,dense foams which considerably damp the emitted
signals may form on the product surface.
If foams are causing measurement errors,the sensor should
be used in a standpipe or,alternatively,the more suitable
guided radar sensors (TDR)should be used.
Inflowing material
Foam
OPTISOUND 3030 C-4…20 mA/HART 15
Mounting
30511-EN-050914

Guided radar is not influenced by foam generation and is
particularly suitable for such applications.
If there are strong air currents in the vessel,e.g.due to strong
winds in outdoor installations,or because of air turbulence,e.
g.through cyclone exhausting,you should mount OPTI-
SOUND 3030 Cin a standpipe or use a different measuring
principle,e.g.radar or guided radar (TDR).
By using a standpipe (surge or bypass tube), the influence of
vessel installations,foam generation and turbulence is
excluded.
Standpipes must extend all the way down to the requested
min.level,as measurement is only possible within the tube.
max.
min.
1
Fig.14:Standpipe in a tank
1Vent hole ø5…10 mm
OPTISOUND 3030 Ccan be used from tube diameters of
100 mm.
Avoid large gaps and thick welding joints when connecting the
tubes.Generally carry out a false echo storage.
Measurement in a standpipe is not recommended for very
adhesive products.
Air flow
Standpipe measurement
16 OPTISOUND 3030 C-4…20 mA/HART
Mounting
30511-EN-050914

5Connecting to power supply
5.1Preparing the connection
Always observe the following safety instructions:
lConnect only in the complete absence of line voltage
lIf overvoltages are expected,overvoltage arresters should
be installed.
In hazardous areas you should take note of the appropriate
regulations,conformity and type approval certificates of the
sensors and power supply units.
Power supply and current signal are transmitted via the same
two-wire connection cable.The power supply range can differ
depending on the instrument version.The exact range is
stated in the "Technical data"in the Supplement.
Provide a reliable separation between the supply circuit and
the mains circuits acc.to DIN VDE 0106 part 101.
Bear in mind the following factors regarding supply voltage:
lthe reduction of the output voltage of the power supply unit
under nominal load (with a sensor current of 20.5mAor
22 mAin case of fault signal)
lthe influence of additional instruments in the circuit (see
load values in Technical data).
OPTISOUND 3030 Cis connected with standard two-wire
cable without screen.An outer cable diameter of 5... 9mm
ensures the seal effect of the cable entry.If electromagnetic
interference is expected,we recommend the use of screened
cable.
Connect the cable screen on both ends to ground potential.In
the sensor,the screen must be connected directly to the
internal ground terminal.The ground terminal outside on the
housing must be connected to the potential equalisation (low
impedance).
If potential equalisation currents are expected,the connection
on the evaluation side must be made via a ceramic capacitor
(e.g.1nF,1500 V). The low frequency potential equalisation
currents are thus suppressed,but the protective effect against
high frequency interference signals remains.
Note safety instructions
Take note of safety
instructions for Ex
applications
Select power supply
Selecting the connection ca-
ble
Cable screening and ground-
ing
OPTISOUND 3030 C-4…20 mA/HART 17
Connecting to power supply
30511-EN-050914

Take note of the corresponding installation regulations for Ex
applications.In particular,make sure that no potential equal-
isation currents flow over the cable screen.In case of
grounding on both sides this can be achieved by the use of a
capacitor or a separate potential equalisation.
5.2Connection procedure
Proceed as follows:
1Unscrew the housing cover
2If an indicating and adjustment module is installed,remove
it by turning it slightly to the left.
3Loosen compression nut of the cable entry
4Remove approx.10 cm (4in)of the cable mantle,strip
approx.1cm (0.4in)insulation from the ends of the
individual wires
5Insert the cable into the sensor through the cable entry
6Lift the opening levers of the terminals with a screwdriver
(see following illustration)
7Insert the wire ends into the open terminals according to
the wiring plan
8Press down the opening levers of the terminals,you will
hear the terminal spring closing
9Check the hold of the wires in the terminals by lightly
pulling on them
10 Connect the screen to the internal ground terminal and the
external ground terminal to potential equalisation
11 Tighten the compression nut of the cable entry,the seal
ring must completely encircle the cable
12 Screw the housing cover back on
The electrical connection is finished.
Select connection
cable for Ex applica-
tions
18 OPTISOUND 3030 C-4…20 mA/HART
Connecting to power supply
30511-EN-050914

Fig.15:Connection steps 6and 7
5.3Wiring plans,single chamber housing
1
4
44
23
Fig.16:Material versions,single chamber housing
1Plastic
2Aluminium
3Stainless steel
4Filter element for pressure compensation
Housing overview
OPTISOUND 3030 C-4…20 mA/HART 19
Connecting to power supply
30511-EN-050914

I2C
Display
12 5678
2
1
Fig.17:Electronics and connection compartment,single chamber housing
1Spring-loaded terminals for power supply
2Ground terminal for connection of the cable screen
I2C
Display
1
12 5678
Fig.18:Wiring plan,single chamber housing
1Power supply/Signal output
Electronics and connection
compartment
Wiring plan
20 OPTISOUND 3030 C-4…20 mA/HART
Connecting to power supply
30511-EN-050914
