1 About this document
OPTISOUND 3030 C • Foundation Fieldbus
51118-EN-210701
1 About this document
1.1 Function
This instruction provides all the information you need for mounting,
connection and setup as well as important instructions for mainte-
nance,faultrectication,theexchangeofpartsandthesafetyofthe
user. Please read this information before putting the instrument into
operation and keep this manual accessible in the immediate vicinity
of the device.
1.2 Target group
This operating instructions manual is directed to trained personnel.
Thecontentsofthismanualmustbemadeavailabletothequalied
personnel and implemented.
1.3 Symbols used
Information, note, tip: This symbol indicates helpful additional infor-
mation and tips for successful work.
Note: This symbol indicates notes to prevent failures, malfunctions,
damage to devices or plants.
Caution: Non-observance of the information marked with this symbol
may result in personal injury.
Warning: Non-observance of the information marked with this symbol
may result in serious or fatal personal injury.
Danger: Non-observance of the information marked with this symbol
results in serious or fatal personal injury.
Ex applications
This symbol indicates special instructions for Ex applications.
• List
The dot set in front indicates a list with no implied sequence.
1 Sequence of actions
Numbers set in front indicate successive steps in a procedure.
Battery disposal
This symbol indicates special information about the disposal of bat-
teries and accumulators.

5
2 For your safety
OPTISOUND 3030 C • Foundation Fieldbus
51118-EN-210701
2 For your safety
2.1 Authorised personnel
All operations described in this documentation must be carried out
onlybytrained,qualiedpersonnelauthorisedbytheplantoperator.
During work on and with the device, the required personal protective
equipment must always be worn.
2.2 Appropriate use
OPTISOUND 3030 C is a sensor for continuous level measurement.
Youcannddetailedinformationabouttheareaofapplicationin
chapter " Product description".
Operational reliability is ensured only if the instrument is properly
usedaccordingtothespecicationsintheoperatinginstructions
manual as well as possible supplementary instructions.
2.3 Warning about incorrect use
Inappropriate or incorrect use of this product can give rise to applica-
tion-specichazards,e.g.vesseloverllthroughincorrectmounting
or adjustment. Damage to property and persons or environmental
contamination can result. Also, the protective characteristics of the
instrument can be impaired.
2.4 General safety instructions
This is a state-of-the-art instrument complying with all prevailing
regulations and directives. The instrument must only be operated in a
technicallyawlessandreliablecondition.Theoperatorisresponsi-
ble for the trouble-free operation of the instrument. When measuring
aggressive or corrosive media that can cause a dangerous situation
if the instrument malfunctions, the operator has to implement suitable
measures to make sure the instrument is functioning properly.
The safety instructions in this operating instructions manual, the na-
tional installation standards as well as the valid safety regulations and
accident prevention rules must be observed by the user.
For safety and warranty reasons, any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer. Arbi-
traryconversionsormodicationsareexplicitlyforbidden.Forsafety
reasons,onlytheaccessoryspeciedbythemanufacturermustbe
used.
To avoid any danger, the safety approval markings and safety tips on
the device must also be observed.
2.5 Safety label on the instrument
The safety approval markings and safety tips on the device must be
observed.

6
2 For your safety
OPTISOUND 3030 C • Foundation Fieldbus
51118-EN-210701
2.6 EU conformity
ThedevicefullsthelegalrequirementsoftheapplicableEUdirec-
tives.ByaxingtheCEmarking,weconrmtheconformityofthe
instrument with these directives.
The EU conformity declaration can be found on our homepage.
2.7 FulllmentofNAMURrecommendations
NAMURistheautomationtechnologyuserassociationintheprocess
industryinGermany.ThepublishedNAMURrecommendationsare
acceptedasthestandardineldinstrumentation.
ThedevicefullstherequirementsofthefollowingNAMURrecom-
mendations:
• NE 21: 2012 – Electromagnetic compatibility of equipment
• NE 43 – Signal level for fault information from measuring transduc-
ers
• NE53–Compatibilityofelddevicesanddisplay/adjustment
components
For further information see www.namur.de.
2.8 Installation and operation in the USA and
Canada
This information is only valid for USA and Canada. Hence the follow-
ing text is only available in the English language.
Installations in the US shall comply with the relevant requirements of
theNationalElectricalCode(ANSI/NFPA70).
Installations in Canada shall comply with the relevant requirements of
the Canadian Electrical Code.

7
3 Product description
OPTISOUND 3030 C • Foundation Fieldbus
51118-EN-210701
3 Product description
3.1 Conguration
The scope of delivery encompasses:
• OPTISOUND 3030 C ultrasonic sensor
• Optionallymountingstraporcompressionange
• Documentation
– This operating instructions manual
– Ex-specicafetyinstructions(withExversions)
– Operating instructions "Display and adjustment module"
(optional)
– Ifnecessary,furthercerticates
Information:
Optional instrument features are also described in this operating
instructions manual. The respective scope of delivery results from the
orderspecication.
The OPTISOUND 3030 C consists of the components:
• Processttingwithtransducer
• Housing with electronics
• Housing lid with integrated display and adjustment module
(optional)
Thecomponentsareavailableindierentversions.
1
2
3
Fig. 1: OPTISOUND 3030 C, plastic housing
1 Housing lid with integrated display and adjustment module (optional)
2 Housing with electronics
3 Processttingwithtransducer
Thetypelabelcontainsthemostimportantdataforidenticationand
use of the instrument:
• Instrument type
• Article and serial number device
• Article numbers, documentation
Scope of delivery
Constituent parts
Type label

8
3 Product description
OPTISOUND 3030 C • Foundation Fieldbus
51118-EN-210701
• Technical data: For example approvals, process temperature,
processtting/material,signaloutput,voltagesupply,protection
3.2 Principle of operation
OPTISOUND 3030 C is an ultrasonic sensor for continuous level
measurement. It is suitable for liquids and solids in practically all
industries.
The transducer of the ultrasonic sensor transmits short ultrasonic
pulsestothemeasuredproduct.Thesepulsesarereectedby
medium surface and received back by the transducer as echoes.
The running time of the ultrasonic pulses from emission to reception
is proportional to the distance and hence the level. The determined
level is converted into an appropriate output signal and outputted as
measured value.
Power is supplied via the H1 Fieldbus. A two-wire cable according to
Fieldbusspecicationservesascarrierofbothpoweranddigitaldata
for multiple sensors. This cable can be operated in two versions:
• via an H1 interface card in the control system and additional power
supply
• viaaLinkingdevicewithHSE(HighspeedEthernet)andaddi-
tional power supply according to IEC 61158-2
TheDD(DeviceDescriptions)andCFF(capabilityles)necessary
forplanningandcongurationofyourFF(FoundationFieldbus)com-
munication network are available in the download area.
The backlight of the display and adjustment module is powered by the
sensor. Prerequisite is a certain level of operating voltage.
Thedataforpowersupplyarespeciedinchapter"Technical data".
3.3 Packaging, transport and storage
Your instrument was protected by packaging during transport. Its
capacity to handle normal loads during transport is assured by a test
based on ISO 4180.
The packaging of standard instruments consists of environment-
friendly, recyclable cardboard. For special versions, PE foam or PE
foil is also used. Dispose of the packaging material via specialised
recycling companies.
Transport must be carried out in due consideration of the notes on the
transport packaging. Nonobservance of these instructions can cause
damage to the device.
The delivery must be checked for completeness and possible transit
damage immediately at receipt. Ascertained transit damage or con-
cealed defects must be appropriately dealt with.
Application area
Functional principle
Power supply and bus
communication
DD/CFF
Packaging
Transport
Transport inspection

9
3 Product description
OPTISOUND 3030 C • Foundation Fieldbus
51118-EN-210701
Up to the time of installation, the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Unless otherwise indicated, the packages must be stored only under
the following conditions:
• Not in the open
• Dry and dust free
• Not exposed to corrosive media
• Protected against solar radiation
• Avoiding mechanical shock and vibration
• Storage and transport temperature see chapter " Supplement -
Technical data - Ambient conditions"
• Relativehumidity20…85%
Withinstrumentweightsofmorethan18kg(39.68lbs)suitableand
approved equipment must be used for lifting and carrying.
Storage
Storage and transport
temperature
Lifting and carrying

10
4Mounting
OPTISOUND 3030 C • Foundation Fieldbus
51118-EN-210701
4 Mounting
4.1 General instructions
Select an installation position you can easily reach for mounting and
connectingaswellaslaterretrottingofadisplayandadjustment
module.The housing can be rotated by 330° without the use of any
tools.You can also install the display and adjustment module in four
dierentpositions(eachdisplacedby90°).
Use the recommended cables (see chapter " Connecting to power
supply")andtightenthecablegland.
You can give your instrument additional protection against moisture
penetration by leading the connection cable downward in front of the
cablegland.Rainandcondensationwatercanthusdraino.This
applies mainly to outdoor mounting as well as installation in areas
wherehighhumidityisexpected(e.g.throughcleaningprocesses)or
on cooled or heated vessels.
To maintain the housing protection, make sure that the housing lid is
closed during operation and locked, if necessary.

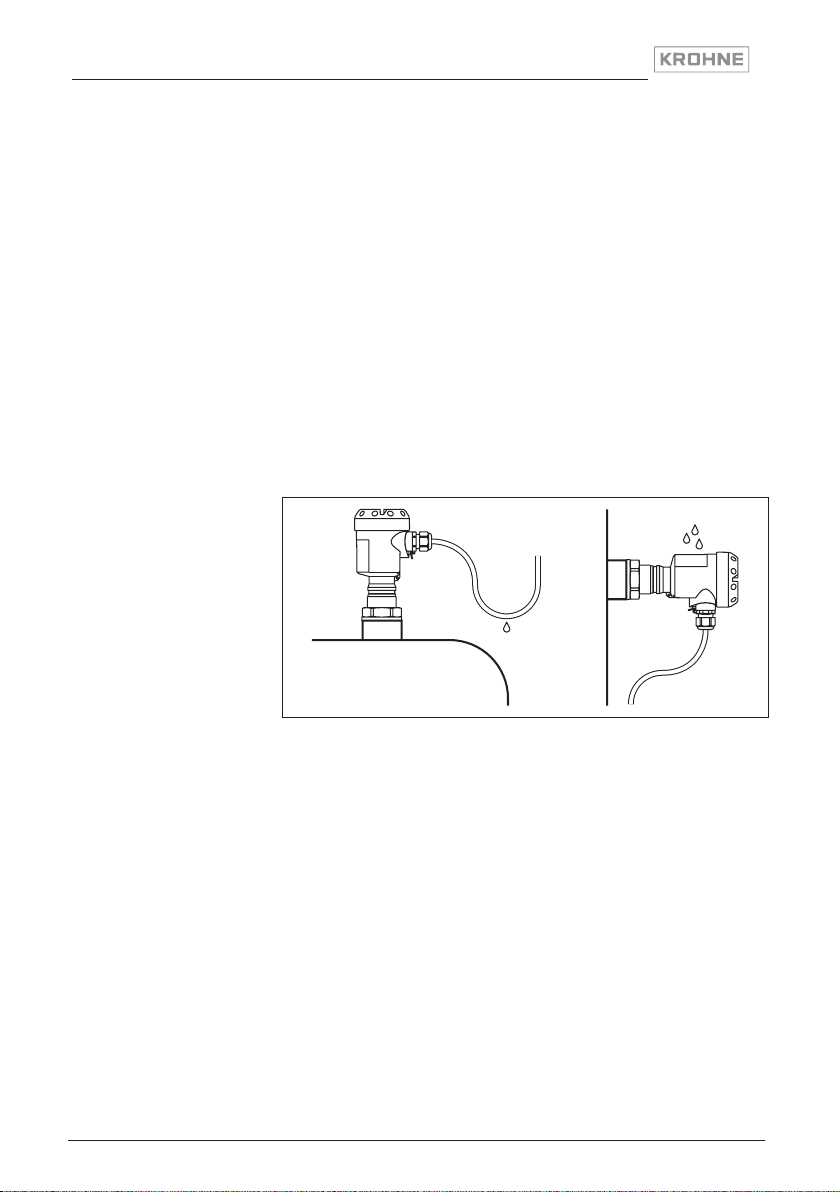

Fig. 2: Measures against moisture ingress
Metric threads
In the case of instrument housings with metric thread, the cable
glands are screwed in at the factory. They are sealed with plastic
plugs as transport protection.
You have to remove these plugs before electrical connection.
NPT thread
In the case of instrument housings with self-sealing NPT threads, it is
not possible to have the cable entries screwed in at the factory. The
free openings for the cable glands are therefore covered with red dust
protection caps as transport protection.
Prior to setup you have to replace these protective caps with ap-
proved cable glands or close the openings with suitable blind plugs.
The reference plane for the measuring range is the lower edge of the
transducer.
Makesurethataminimumdistancefromthereferenceplane-the
so-calleddeadzone,inwhichmeasurementisnotpossible-is
Installation position
Moisture
Cable entries - NPT
thread
Cable glands
Measuring range

11
4Mounting
OPTISOUND 3030 C • Foundation Fieldbus
51118-EN-210701
maintained.Theexactvalueofthedeadzoneisstatedinchapter
"Technical data".
1
2
Fig. 3: Minimum distance to the max. level
1 Dead zone
2 Reference plane
Information:
If the medium reaches the transducer, buildup can form on it and
cause faulty measurements later on.
132
100%
0%
Fig. 4: Measuring range (operating range) and max. measuring distance
1 full
2 empty (max. measuring distance)
3 Measuring range
GaugepressureinthevesseldoesnotinuenceOPTISOUND3030
C. Low pressure or vacuum does, however, damp the ultrasonic
pulses.Thisinuencesthemeasuringresult,particularlyifthelevel
isverylow.Withpressuresunder-0.2bar(-20kPa)youshouldusea
dierentmeasuringprinciple,e.g.radarorguidedradar(TDR).
4.2 Mounting instructions
When mounting the OPTISOUND 3030 C, keep a distance of at least
200mm(7.874in)tothevesselwall.Ifthesensorisinstalledinthe
center of dished or round vessel tops, multiple echoes can arise.
Pressure/Vacuum
Installation position

12
4Mounting
OPTISOUND 3030 C • Foundation Fieldbus
51118-EN-210701
These can, however, be suppressed by an appropriate adjustment
(see chapter "Setup").
If this distance cannot be maintained, a false signal suppression
should be carried out during setup. This applies particularly if buildup
on the vessel wall is expected. In such cases, we recommend repeat-
ing the false signal suppression at a later date with existing buildup.
12
> 200 mm
Fig. 5: Mounting on round vessel tops
1 Reference plane
2 Vessel center or symmetry axis
In vessels with conical bottom it can be advantageous to mount the
sensor in the centre of the vessel, as measurement is then possible
down to the bottom.
Fig. 6: Vessel with conical bottom
Preferablythetransducershouldbemountedushtothevesseltop.Mounting socket

13
4Mounting
OPTISOUND 3030 C • Foundation Fieldbus
51118-EN-210701
Ifthereectivepropertiesofthemediumaregood,youcanmount
OPTISOUND3030Conasocketpiece.Youwillndrecommended
values for socket heights in the following illustration. The socket end
should be smooth and burr-free, if possible also rounded. Carry out a
false signal suppression.
d
45°
hmax.
d
100 mm/4"
150 mm/6"
200 mm/8"
250 mm/10"
300 mm
400 mm
500 mm
600 mm
hmax.
Fig. 7: Deviating socket dimensions
In liquids, direct the sensor as perpendicular as possible to the me-
dium surface to achieve optimum measurement results.
Fig. 8: Alignment in liquids
To optimally align the sensor to solid products, a swivelling holder
(mountingstrap)canbeimplemented.
Sensor orientation

14
4Mounting
OPTISOUND 3030 C • Foundation Fieldbus
51118-EN-210701
Fig. 9: Orientation in solids
To reduce the min. distance to the medium, you can also mount OP-
TISOUND3030Cwithabeamdeector.Bydoingthis,itispossible
tollthevesselnearlytomaximum.Suchanarrangementissuitable
primarilyforopenvesselssuchase.g.overowbasins.

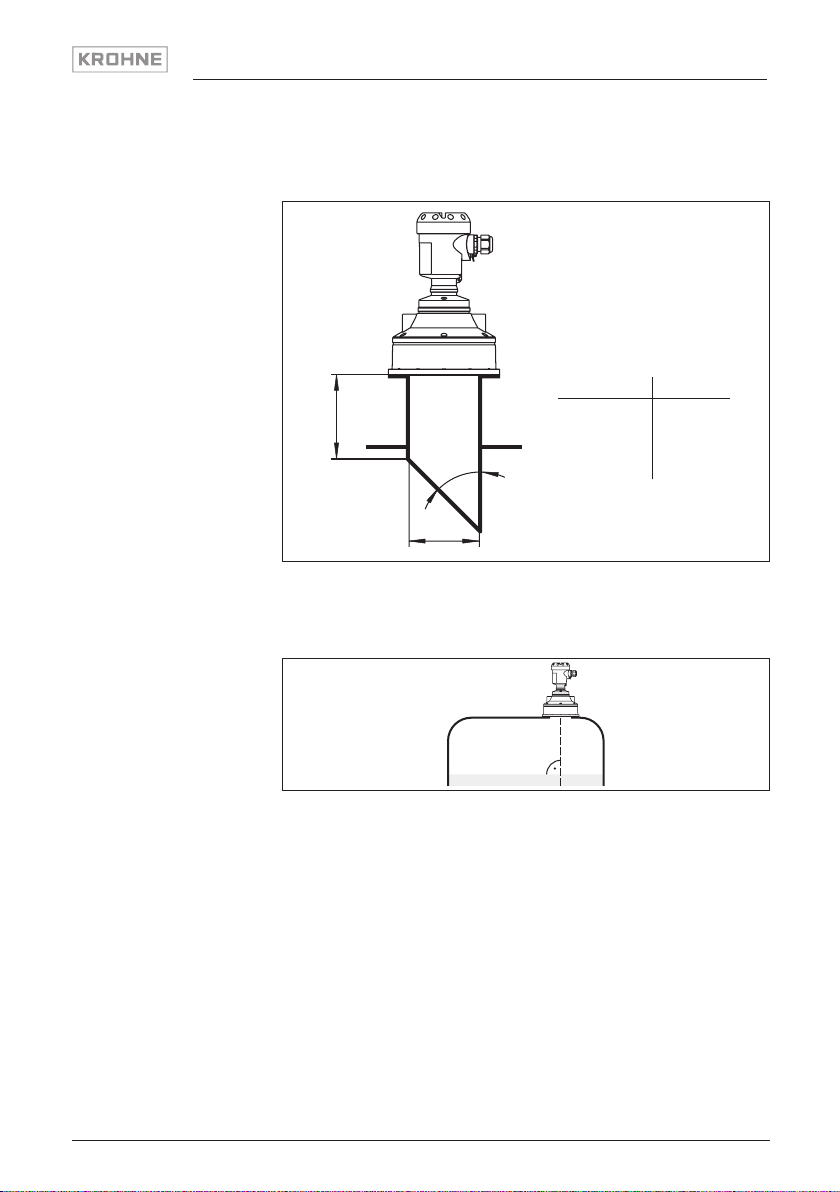

45°
~200 mm
(7.87")
~400 mm x 400 mm
(15.75" x 15.75")
Fig.10:Beamdeector
The ultrasonic sensor should be installed at a location where no
installations cross the ultrasonic beam.
Vessel installations such as for example, ladders, limit switches, heat-
ing spirals, struts etc. can cause false echoes that interfere with the
usefulecho.Makesurewhenplanningyourmeasuringsitethatthe
ultrasonic signals have a "clear view" to the measured product.
In case of existing vessel installations, a false signal suppression
should be carried out during setup.
If large vessel installations such as struts or supports cause false
echoes, these can be attenuated through supplementary measures.
Small,inclinedsheetmetalorplasticbaesabovetheinstallations
scatter the ultrasonic signals and avoid direct false echoes.
Vessel installations

15
4Mounting
OPTISOUND 3030 C • Foundation Fieldbus
51118-EN-210701
α
α
α
α
α
α
Fig.11:Coverat,large-areaproleswithdeectors
If there are agitators in the vessel, a false signal suppression should
be carried out with the agitators in motion. This ensures that the
interferingreectionsfromtheagitatorsaresavedwiththebladesin
dierentpositions.
Fig. 12: Agitators
Donotmounttheinstrumentsinorabovethellingstream.Makesure
thatyoudetectthemediumsurface,nottheinowingproduct.
Agitators
Inowingmedium

16
4Mounting
OPTISOUND 3030 C • Foundation Fieldbus
51118-EN-210701
Fig.13:Inowingliquid
Throughtheactionoflling,stirringandotherprocessesinthevessel,
dense foams which considerably damp the emitted signals may form
on the medium surface.
If foams are causing measurement errors, the sensor should be used
in a standpipe or, alternatively, the more suitable guided radar sen-
sors(TDR)shouldbeused.
Guidedwaveradarisunaectedbyfoamgenerationandisparticu-
larly suitable for such applications.
If there are strong air currents in the vessel, e.g. due to strong winds
in outdoor installations or air turbulence, e.g. by cyclone extraction
youshouldmountOPTISOUND3030Cinastandpipeoruseadier-
entmeasuringprinciple,e.g.radarorguidedradar(TDR).
Byusingastandpipe(surgeorbypasstube),theinuenceofvessel
installations, foam generation and turbulence is excluded.
Standpipes must extend all the way down to the requested min. level,
as measurement is only possible within the tube.
Foam
Air turbulences
Standpipe measurement

17
4Mounting
OPTISOUND 3030 C • Foundation Fieldbus
51118-EN-210701
max.
min.
1
Fig. 14: Standpipe in the tank
1 Vent hole ø 5 … 10 mm
OPTISOUND 3030 C can be used from tube diameters of 100 mm.
Avoid large gaps and thick welding joints when connecting the tubes.
Generally carry out a false signal suppression.
Measurementinastandpipeisnotrecommendedforadhesive
products.

18
5 Connecting to power supply
OPTISOUND 3030 C • Foundation Fieldbus
51118-EN-210701
5 Connecting to power supply
5.1 Preparing the connection
Always keep in mind the following safety instructions:
Warning:
Connect only in the complete absence of line voltage.
• The electrical connection must only be carried out by trained,
qualiedpersonnelauthorisedbytheplantoperator.
• If overvoltage surges are expected, overvoltage arresters should
be installed.
Theinstrumentrequiresaoperatingvoltageof9…32VDC.Operat-
ing voltage and the digital bus signal are carried on the same two-wire
connection cable. Power is supplied via the H1 power supply.
Connection is carried out with screened cable according to Fieldbus
specication.
Makesurethatthecableusedhastherequiredtemperatureresist-
anceandresafetyformax.occurringambienttemperature
Use cable with round cross section for instruments with housing and
cablegland.Toensurethesealeectofthecablegland(IPprotection
rating),ndoutwhichcableouterdiameterthecableglandissuitable
for.
Useacableglandttingthecablediameter.
Makesurethattheentireinstallationiscarriedoutaccordingtothe
Fieldbusspecication.Inparticular,makesurethatthebusistermi-
nated with suitable terminating resistors.
Caution:
No grease should be used when screwing the NPT cable gland or
steel tube into the threaded insert. Standard grease can contain
additives that corrode the connection between threaded insert and
housing.Thiswouldinuencethestabilityoftheconnectionandthe
tightness of the housing.
In systems with potential equalisation, connect the cable screening
directly to ground potential at the power supply unit, in the connection
box and at the sensor. The screen in the sensor must be connected
directly to the internal ground terminal.The ground terminal outside
on the housing must be connected to the potential equalisation (low
impedance).
In systems without potential equalisation, connect the cable screen
directly to ground potential at the power supply unit and at the sensor.
In the connection box or T-distributor, the screening of the short stub
to the sensor must not be connected to ground potential or to another
cable screen. The cable screens to the power supply unit and to the
next distributor must be connected to each other and also connected
togroundpotentialviaaceramiccapacitor(e.g.1nF,1500V).The
low frequency potential equalisation currents are thus suppressed,
Safety instructions
Voltage supply
Connection cable
Cable screening and
grounding

19
5 Connecting to power supply
OPTISOUND 3030 C • Foundation Fieldbus
51118-EN-210701
buttheprotectiveeectagainsthighfrequencyinterferencesignals
remains.
The total capacitance of the cable and of all capacitors must not
exceed 10 nF in Ex applications.
Take note of the corresponding installation regulations for Ex applica-
tions. In particular, make sure that no potential equalisation currents
owoverthecablescreen.Incaseofgroundingonbothsidesthis
can be achieved by the use of a capacitor or a separate potential
equalisation.
5.2 Connection procedure
Proceed as follows:
1. Unscrew the housing lid
2. If a display and adjustment module is installed, remove it by turn-
ing it to the left
3. Loosen compression nut of the cable gland and remove blind
plug
4. Removeapprox.10cm(4in)ofthecablemantle,stripapprox.
1cm(0.4in)ofinsulationfromtheendsoftheindividualwires
5. Insert the cable into the sensor through the cable entry
6. Lift the opening levers of the terminals with a screwdriver (see
followingillustration)
7. Insert the wire ends into the open terminals according to the wir-
ing plan
Fig. 15: Connection steps 6 and 7
8. Press down the opening levers of the terminals, you will hear the
terminal spring closing
9. Check the hold of the wires in the terminals by lightly pulling on
them

20
5 Connecting to power supply
OPTISOUND 3030 C • Foundation Fieldbus
51118-EN-210701
10. Connect the shielding to the internal ground terminal, connect the
external ground terminal to potential equalisation
11. Tighten the compression nut of the cable entry gland. The seal
ring must completely encircle the cable
12. Screw the housing lid back on
Theelectricalconnectionisnished.
5.3 Wiring plan, single chamber housing
1
4
44
2 3
Fig. 16: Material versions, single chamber housing
1 Plastic
2 Aluminium
3 Stainless steel
4 Filter element for air pressure compensation
I²C
5
1
24
3
Display
Typ:
12 5678
Bus
Sim.
Fig. 17: Electronics and connection compartment - single chamber housing
1 Spring-loaded terminals for Foundation Fieldbus connection
2 Simulation switch ("on" = simulation mode)
3 Spring contacts for display and adjustment module
4 Interface for service
5 Ground terminal for connection of the cable screening
Housing overview
Electronics and connec-
tion compartment
