USER MANUAL
Undercabinet Range Hoods
KM300
ENGLISH

2 3
Please follow the recommendations and guidelines contained in this
manual. This way the appliance will give you consistent high performance KM300

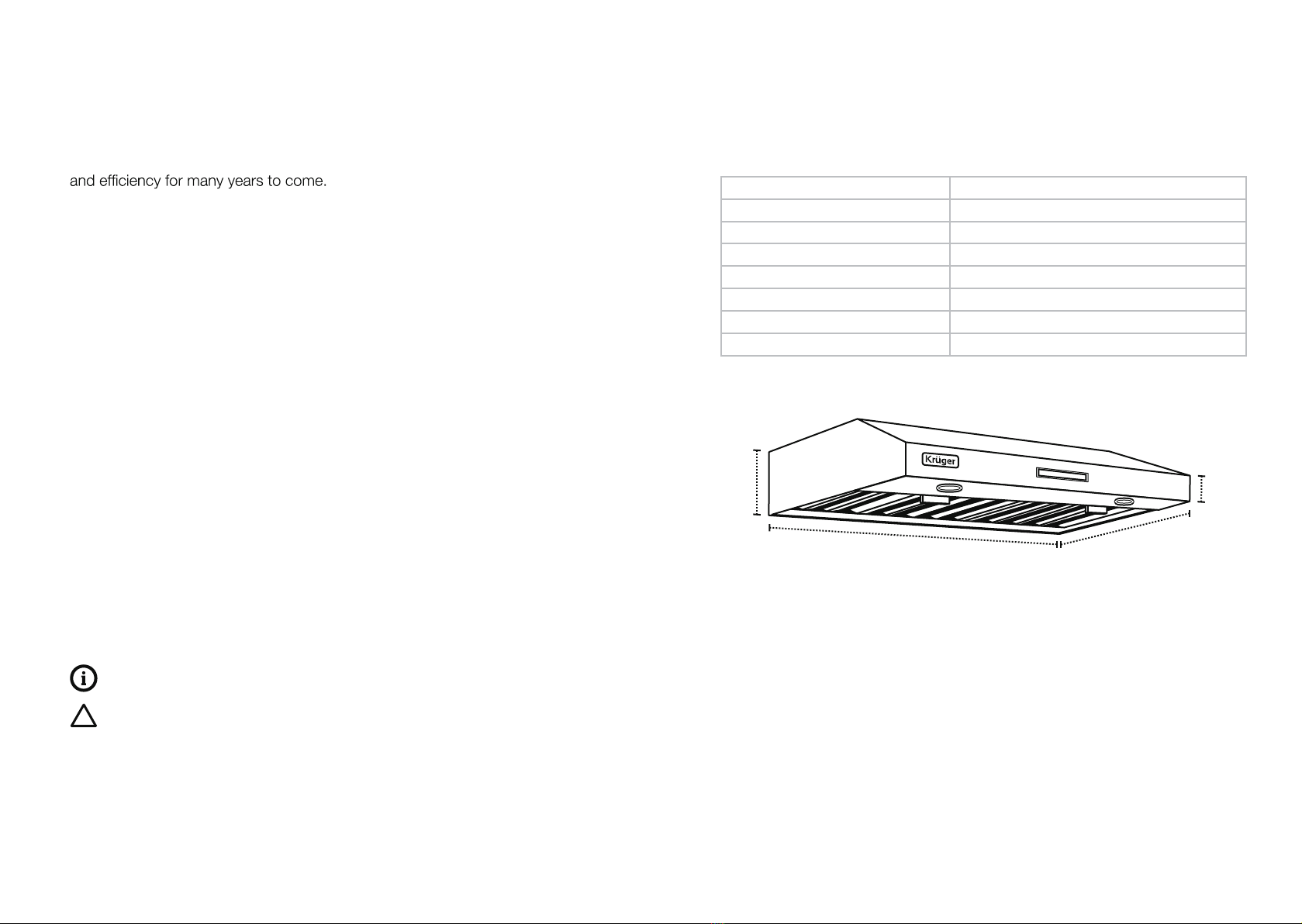

Thank you for choosing Krüger home appliances! SPECIFICATIONS & TECHNICAL PARAMETERS
Rated Voltage 110V - 120V
Rated Power Frequency 60Hz
Lighting Power Consumption 2 x 50W
Motor Power Consumption 2 x 100W
Total Power Consumption 300W
Number of Motors 2
Dimensions of Duct Exhaust 7” Ø (Circular) or 3 ¼” x 10”
Overall Dimensions 29 3/4” (Width) x 22” (Depth) x 6 7/8” (Height)
ALTO - M
The following symbols will help you when reading this instruction manual:
TABLE OF CONTENTS
Guide to using this manual
Characteristics.........................................................................3
Warnings & Caution ..................................................................4
Installation & Usage.....................................................................8
Maintenance & Cleaning...........................................................17
Warranty......................................................................20
Suggestions & Advice
Safety Information
!
29 3/4 ”
2 3/8”
6 7/8”
22”

4 5
These instructions have been drawn up for your safety and that of others.
You are therefore strongly urged to read them carefully before installing
and using the appliance. Keep this instruction manual for future reference
as necessary. If the appliance is sold or moved, make sure that the manual
is transferred over to the new user.
Installation of the appliance and its connection to the electrical mains
must only be carried out by QUALIFIED PERSONNEL in accordance
construction.
The hood must be placed at a minimum distance of 26” and a
maximum of 30” from the cooktop for best capture of cooking
impurities, and a minimum distance of 28” from the gas range.
the chimney, follow the heating equipment manufacturer’s guideline
and safety standards such as those published by the National Fire
Protection Association, and the American Society for Heating,
Refrigeration and Air Conditioning Engineer (ASHRAE), and local code
authorities.
solid-state speed control device.
When cutting or drilling into the wall or ceiling, do not damage
electrical wiring and other hidden utilities.
This unit is meant for household kitchen use only. To ensure your
safety, it needs to be connected to a GFCI protected branch circuit.
Before any cleaning or service procedure, it is important to check that
the appliance is DISCONNECTED from the electrical service panel.
This will prevent power from being switched on accidentally.
It is risky to modify or attempt to modify the characteristics of this
product.
After removing the appliance from the packaging, make sure that
it is undamaged, and that the electrical lead is in perfect condition.
Otherwise contact your dealer before putting the appliance into
operation.
Use this unit only in the manner it is intended for by the manufacturer.
If you have any questions regarding the usage of this appliance,
please contact the manufacturer or the local agent closest to you.
The Manufacturer declines all responsibility in case of failure to comply
with the accident prevention regulations.
Make sure that air is able to circulate freely around the appliance. Poor
ventilation may result in a shortage of oxygen.
Make sure that the appliance is supplied with the type of gas indicated
on the relative sticker next to the main gas connection pipe.
Use of a gas cooking appliance produces heat and moisture in the
room in which it is installed. Ensure that the room is well ventilated by
keeping the air intakes open and in good working order or by installing
an extractor hood with a discharge pipe.
If the appliance is required to be used intensively for a long period of
time, the effectiveness of the ventilation will have to be increased, for
example by opening a window or increasing the power of any electric
extractor fan.
The stainless steel structural housing may have sharp edges. Be
careful to avoid cuts and abrasions during installation and cleaning.
TO REDUCE RISK OF FIRE, ELECTRIC SHOCK
OR INJURY TO PERSONS, PLEASE OBSERVE
THE FOLLOWING:
i.1 Installation
WARNING

6 7
This product is designed to cook food inside ordinary homes and
for non-professional purposes. It should not be used for any other
purpose.
After using the appliance, make sure that all controls are in the “OFF”
position.
If you use an electrical socket in close proximity to this appliance, take
care that the cables of the appliances you are using are far away from
any parts of this appliance that may heat up.
This appliance is designed and intended to be operated by adults
only. Children are not allowed to tamper with the controls or play with
this appliance.
The exposed parts of this appliance heat up during cooking and
remain hot for some time even after it is switched off. Keep children
well away until the appliance has cooled down.
Keep the appliance thoroughly cleaned after every use. Grease should
In the unlikely instance of a malfunction, never attempt to repair the
appliance yourself. Repairs by unskilled persons may further damage
the unit, and can greatly jeopardize the safety of yourself and your
family.
To diagnose the malfunction, please refer to the contents of this
your nearest service centre.
Servicing work on this appliance must be carried out by a KRÜGER™
authorized technical service centre. Always request the use of original
replacement parts.
i.2 During Use
i.3 Child Safety
i.4 Cleaning & Maintenance
i.5 Servicing & Parts
All the materials used to build this appliance are environmentally
compatible and recyclable. Please make your contribution to
conserving the environment by using the various waste collection
channels available.
Appliances which are no longer used or usable are not worthless
waste. Through environmentally friendly disposal, a number of
materials used in the production of your appliance can be recovered.
Find out about the current disposal options from your dealer, or your
local authority.
Before scrapping the appliance, cut the power supply lead and render
it unusable for safe handling.
i.6 Environmental Protection

8 9
For proper operation of a gas appliance, the air necessary for the combustion
walls. These openings must have an unobstructed cross-section not less
than 1.18CFM or 2m3/h for each kw of power (see total power in kw on the
appliance nameplate).
This opening must be constructed so that it will not be obstructed from inside
If it is not feasible to provide these openings in the room where the appliance
is installed, the necessary air may be taken from an adjacent room, provided
that:
• This room is not a bedroom or a hazardous environment;
• This room has ventilation;
• The ventilation between the room where the appliance is installed and the
adjacent room have openings.
Installation Premises
INSTALLATION
This appliance must only be installed and used in rooms with permanent
ventilation to local standards.
Installation of the appliance and its connection to the electrical mains
must only be carried out by QUALIFIED PROFESSIONALS.
Before installation, it is important to check that the appliance is
DISCONNECTED from the electrical main service terminal. KRUGER™
declines all responsibility for any damages arising from installation in
breach of the regulations in force or from failure to comply with the
accident prevention regulations.
!
installation.
1. Use the dimensional drawings above to lay out the range hood’s mounting
holes, wiring access and ductwork. Mark the cabinet bottom and drywall
where applicable.
2. Make a cutout for the wiring and duct work.
3.
surface.
4. Run two conductor wires from a power source to the hood location. Bring
approximately 12’’ of wiring through wiring hole.
5. Drill 3/32” diameter pilot holes at the points where mounting holes are
marked.
6. Insert 4 mounting screws, leaving approximately ¼” of thread exposed.

10 11
Hood Preparation
Vertical Exhaust Option
1.
tab then pulling them out of the slots.
2. Remove the bottom panel of the hood by
removing its 8 mounting screws. Set aside the
bottom panel once it has been removed.
3. Depending on the type of exhaust options you
would like to go with, please skip ahead to vertical
exhaust installation or horizontal exhaust installation.
3. Install the small shut-off plate, or backdraft damper, inside the back of the
hood. (see below)
4. Install the small shut-off
plate, or backdraft damper,
outside the back of the hood.
5. Install the rubber gasket
(Included) on the top of the hood.
6. Install either the 7” circular duct or 3 ¼” x 10” rectangular duct.
Mount the 7” round duct on the top of the hood.
Mount the 3¼” x 10” duct onto the top of the hood.

12 13
Install the gasket onto the top of the hood. Mount the shut off plate onto the
Install the adaptor to the back of the hood, using 6 screws.
Rear Exhaust Option
1. Insert the power cable in the hood and tighten
the wire clamp to screw in the cable.
2. Align the hood’s keyhole mounting slots over
the 4 partially installed screws.
3. Making sure the duct positions over the hood’s
duct adaptor, push the hood against the rear
wall.
Mounting The Hood
1. Using provided wire connectors, connect
wires as follows:
BLACK to BLACK (A)
WHITE to WHITE (B)
GREEN to BARE or GREEN-YELLOW (C)
2. Reinstall the wiring box converter. And
plug back all the small connectors inside
the hood.
Electrical Connection
The range hood requires two GU10 halogen bulbs. Max 50W ea.
LIGHTING
Always switch off the electrical supply before carrying out any
operation or maintenance on the appliance.
!
1. Wait for the bulbs to cool if the range hood has been in use.
2. Remove and replace the bulb with an identical GU10 bulb.

14 15

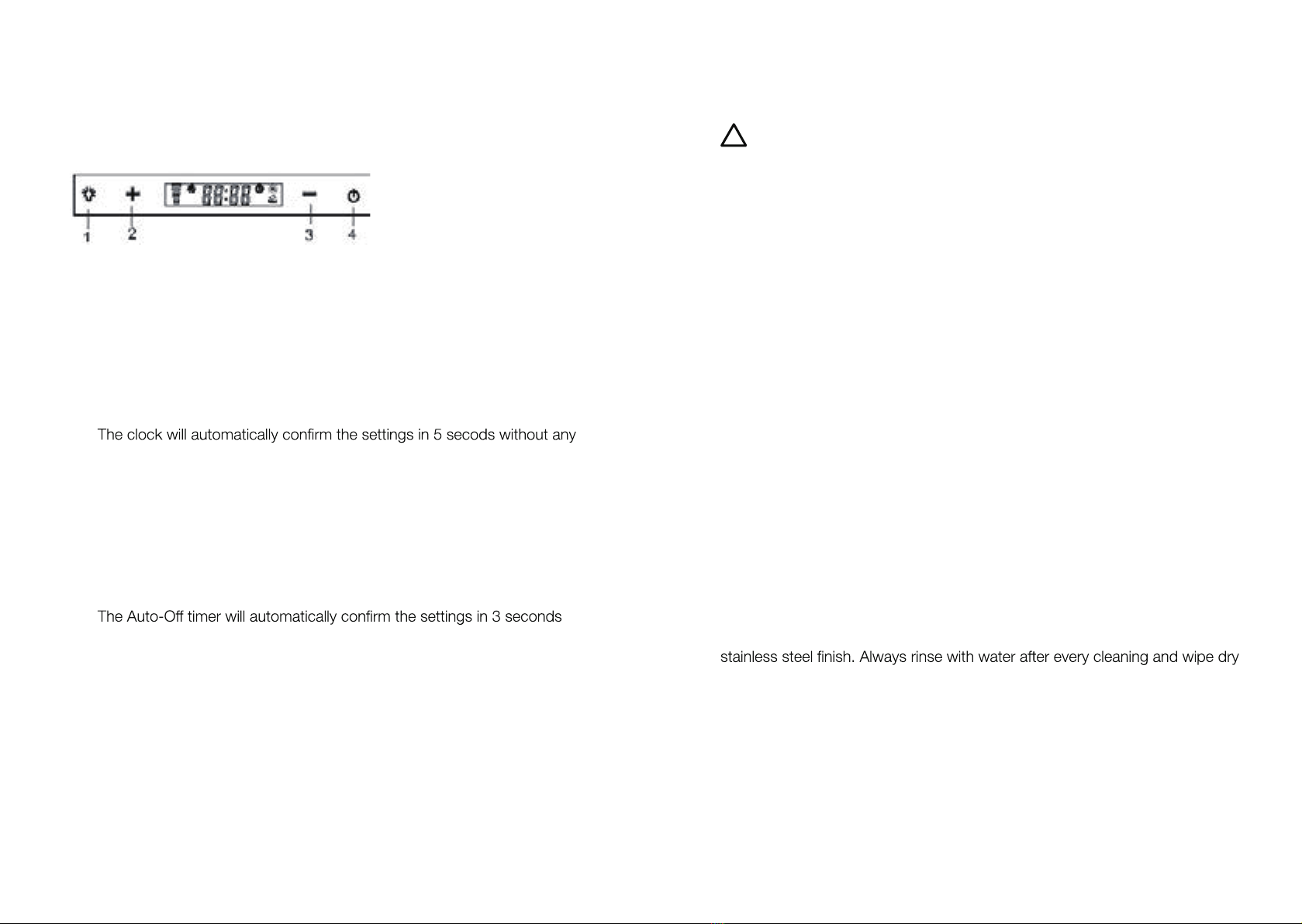

This range hood is operated using push
button switches on the front panel.
1. When the fan is off, press and hold the Power button for 3 seconds.
2. The time indicator will begin blinking, and you are ready to set the hour.
3. Use the + and - buttons to increase or decrease the hour number.
4. Press the Power button to switch over to set minutes.
5. Use the + and - buttons to increase or decrease the minutes.
6.
additional input.
1. When the fan is on, press and hold the Power button for 3 seconds.
2. The time indicator will begin blinking.
3. Use the + and - buttons to set the number of minutes you would like.
4. The Auto-Off timer delay can be set between 1 minute to 15 minutes.
5.
without any additional input.
OPERATION
How to set the clock?
How to set the Auto-Off Timer?
1. Lights
2. Increase Power
3. Reduce Power
4. On / Off
Wash enameled and stainless steel parts with lukewarm water and detergent.
Do not use abrasive products which might damage them.
Hot water with liquid soap can remove most stains easily. Always rinse the
surface with clean water and wipe dry with a soft clean cloth to prevent
water marks.
For tougher stains, use ordinary non-abrasive detergents or stainless steel
polishing powder with a little water.
For stubborn grimes and deposits, use a scouring pad or soft bristle brush
along with a stainless steel cleaner and water. Always rub in the direction of
the polished lines, or “grain” of the stainless steel finish. Avoid using too much
pressure as it may mar the surface. We strongly advise you against using acids
for cleaning.
Do not allow deposits to remain for long periods of time. Do not use ordinary
steel wool or steel brushes to clean the range hood.
Do not allow salt solutions, disinfectants, bleaches, or cleaning compounds
to remain in contact with the stainless steel surface for prolonged periods of
time. Many of these compounds contain chemicals that can be harmful to the
with a clean cloth.
General Cleaning
Before cleaning or servicing your appliance, disconnect it from the
electrical service panel and allow it to cool down.
!
CLEANING & MAINTENANCE
Stainless steel is one of the easiest materials to keep clean. Occasional care
will help preserve its fine appearance for years to come.

16 17
Follow These Steps to Clean The Fans Manually
Follow These Steps to Clean The Exterior
on the motor shaft.
Stainless steel is one of the easiest materials to keep clean. Occasional care
!
1.
counter-clockwise.
2.
3.
housing can come off.
4. Remove the wheel center cap and loosen the wheel set screw in order to
disengage the wheel from its motorshaft.
5. Soak all the removed parts for 30 minutes in warm water with liquid soap.
Then wash with a nylon brush or a soft scouring pad. Rinse and dry
completely before reinstalling.
1. Hot water with liquid soap can remove most stains easily.
2. Harder to remove stains, discolourations, and persistent deposits can be
removed with a non-abrasive household cleaner or stainless steel polishing
powder with a little water.
3. For stubborn stains and deposits, use a scouring pad or soft bristle brush
along with a stainless steel cleaner and water. Always rub in the direction
Avoid using too
much pressure as it may mar the surface.
4. Do not allow deposits to remain for long periods of time. Do not use
ordinary steel wool or steel brushes to clean the range hood.
5. Do not allow salt solutions, disinfectants, bleaches, or cleaning
compounds to remain in contact with the stainless steel surface for
prolonged periods of time. Many of these compounds contain chemicals
after every cleaning and wipe dry with a clean cloth.
Before leaving the factory, this appliance was tested and adjusted by qualified
professional technicians to give the best operating results. Any subsequent
necessary repairs or adjustments must be carried out with the greatest care
and attention.
For this reason, we strongly advise you always to contact the dealer who
sold you the appliance or our nearest service centre, specifying the nature of
the problem, the model of the equipment (Mod.), The product number (Prod.
No.) And the serial number (Ser. No.). These can be found on a sticker placed
underneath the cooktop. Always request the use of original spare parts.
Service & Parts
You new appliance is covered by a warranty. The warranty conditions are
provided in full at the back of this manual.
Keep the receipt or delivery note, either of which documents your purchase of
the appliance and provides proof of date of purchase, in a safe place together
with this manual.
In the event that a technician is required to visit your home, show these
documents to the technician prior to the inspection and subsequent repairs.
If this procedure is not followed, KRÜGER™ will have no option but to charge
for any repairs.
Warranty Conditions
work checked periodically. If anomalies are found, do not attempt to repair, but
have the faulty part replaced completely.
To ensure good performance and safety, the motor must be inspected
periodically.
Routine Maintenance
personnel, who must also be contacted if the appliance malfunctions.
!

18 19
Kruger® Rangehood Limited Lifetime Warranty
Kruger® Rangehood Limited Lifetime Warranty provides assurances to the
consumer that the Kruger® Rangehood is free from defective manufacturing and
workmanship for the lifetime of the product, which is a duration of one (1) year.
Homeowners must claim any and all manufacturing and workmanship defects within the
first year of installation.
Kruger® Rangehood Limited Warranty reserves the right to either provide credit, parts,
or a replacement. It is under Kruger®’s discretion to issue a full product replacement or
a replacement part if the product in question is eligible for the warranty. In the case that
a replacement is necessary, the homeowner will only receive a replacement of the
same value or of the same model.
Kruger® is not responsible for any costs associated with the replacement or return of the
Kruger® product and is not responsible for any costs or damages associated with the
installation or removal of the Kruger® Rangehood including the replacement of parts.
Kruger® Rangehood Limited Warranty coverage excludes: a) damages and problems
originating from improper installation, b) finish reduction, c) scratching and staining,
d) damage from chemical cleaners, e) damage from abrasive cleaners, f) damage from
atmospheric and environmental conditions, g) damage to material from external force i)
other external damages not listed here.
Any damage, incidents or maintenance associated with the Rangehood will not be the
responsibility of Kruger®. This includes but is not limited to, normal maintenance and
service. Any normal wear and tear on mechanical and/or movable and/or removable
parts, including tracks, ball bearings, and extensions, water stains, cabinet damage,
appliance damage, or accidents resulting in physical harm.
The liability of Kruger® only covers the Kruger® Rangehood and shall not exceed the
purchase price of the product. Kruger® Rangehoods are only warrantable for home
use only, any commercial usage voids the warranty. The warranty of Kruger® is
voided if damages are caused by the following: environmental disasters (fire,
earthquakes, floods, storms) misuse, abuse, and any other external causes not listed
here. Any damages, harm, or legal building code compliance resulting outside the
physical Rangehood are the responsibilities of the homeowner and installers.
Installations that are not done by a licensed trade professional are not the
responsibility of Kruger® and the warranty would then be voided. All installations
are to be tested before use by the installer.
To be eligible for the Kruger® Rangehood Limited Warranty, The Rangehood
must be in its original installation position, if the Kruger® Rangehood has been
relocated in any way, the warranty will be voided. Relocation of the Kruger®
Rangehood includes the installation of the Rangehood to a different location in the
home, in a new home, in its originating location after a home is rebuilt, or if the
Rangehood was used for commercial use.
Relocation of the Kruger® Rangehood includes the installation of the Rangehood
to a different location in the home, in a new home, in its originating location after
a home is rebuilt, or if the Rangehood was used for commercial use.
To qualify for Kruger® Rangehood Limited Warranty, the homeowner must
provide the following:
• Proof of Authenticity of the Rangehood
• Proof of Original Installation Date. Documents acceptable for proof can include
the following:
• Original Receipt from the Origin of Purchase
• Packing Slip
• Invoice from Plumber or Supplier.
To prove the product in question is a Kruger® Rangehood, the homeowner
must provide pictures of the Rangehood in its entirety and a picture of the
Kruger® Logo. The picture of the whole Rangehood must be clear and identifiable
as Kruger® Rangehood. The picture of the logo must clearly show the logo,
pictures that are distorted or doctored by software will not be accepted.
To claim a Kruger® Rangehood Limited Warranty please fill out the form
here or Email us at [email protected]

The KRÜGER® word mark and logos are registered
trademarks owned by KRÜGER™ Kitchen Appliances Inc.
Some features of this product are not available in all areas.
Feature availability is subject to change.
Content of this manual and the website is subject to change.
Other company and product names mentioned herein may
be trademarks of their respective companies.
Mention of third-party products is for informational
purposes only and constitutes neither an endorsement nor
a recommendation. KRÜGER™ assumes no responsibility
with regard to the performance or use of these products. All
understandings, agreements, or warranties, if any, take place
directly between the vendors and the prospective users.
Every effort has been made to ensure that the information
in this manual is accurate. KRÜGER™ is not responsible for
printing or clerical errors.
019-2266/2012-10
KRÜGER™ Kitchen Appliances Inc.
© 2015 KRÜGER™ All Rights Reserved.
