KS BAIONA N KSL00927 Product manual

1
BAIONA N SOAP DISPENSER
BAIONA N ESPUMA FOAM DISPENSER
TOUCH FREE DECK MOUNTED SOAP DISPENSERS
INSTALLATION AND MAINTENANCE GUIDEINSTALLATION AND MAINTENANCE GUIDE

1
INDEX
TECHNICAL DATA
Capacity 1 Liter \ 33.8 oz. (individual models)
6 Liters \ 203 oz (multifeed models)
Power Supply liquid soap dispenser ∙ Battery box for 6xD batteries
∙ 12V transformer
Power Supply foam soap dispenser 12V transformer
Soap viscosity BAIONA N SOAP DISPENSER 100-3800 cPs
Soap viscosity BAIONA N ESPUMA FOAM DISPENSER up to 100 cPs
Standard discharge BAIONA N SOAP DISPENSER 1.4cc, Adjustable
Standard discharge BAIONA N ESPUMA FOAM DISPENSER Varies according to viscosity and “foamability”
Sensor range 30-100 mm +/- 10 mm
The information in this document reflects products at the date of printing. Kassel Sanitär, S.L. reserves the right, subject to all applicable laws, at any time, at its sole discretion, and without
notice, to discontinue or change the features, designs, materials and other specications of its products, and to either permanently or temporarily withdraw any of the forgoing from the
market. All information in this document is provided “as is” without warranty of any kind, either expressed or implied, including but not limited to any implied warranties of merchantability,
tness for a particular purpose, or non-infringement. Kassel Sanitär, S.L. assumes no responsibility for errors or omissions in the information presented in this document. In no event shall
Kassel Sanitär, S.L. be liable for any special, incidental, indirect or consequential damages of any kind, or any damages whatsoever arising out of or in connection with the use or perfor-
mance of this information. The tradenames, trademarks, logos and service marks presented in this document, including their design, are the property of Kassel Sanitär, S.L. or other third
parties and you are not permitted to use them without the prior written consent of Kassel Sanitär, S.L. or such third party as may own them.
BAIONA N SOAP DISPENSER
KSL00927
PS BAIONA N SOAP DISPENSER
KSL00958
BAIONA N ESPUMA FOAM DISPENSER
KSL00932
1 TECHNICAL DATA
2 PRE-INSTALLATION INFO
3-5 PACK CONTENTS - INDIVIDUAL SOAP/FOAM DISPENSERS
6-8 INSTALLATION - INDIVIDUAL SOAP/FOAM DISPENSERS
AND MULTIFEED MODELS
9 FILLINGTHE SOAPTANK - INDIVIDUAL SOAP/FOAM DISPENSERS
10 PACK CONTENTS -TOP FILLING PROFESSIONAL SYSTEM KIT
11-12 INSTALLATION -TOP FILLING PROFESSIONAL SYSTEM KIT
13 FILLINGTHE SOAPTANK - MULTIFEED SOAP/FOAM DISPENSERS
14 REMOTE CONTROL FUNCTIONS - LIQUID SOAP DISPENSER
15 REMOTE CONTROL FUNCTIONS - FOAM SOAP DISPENSER
16 BATTERY REPLACEMENT
17 MAINTENANCE
18 LIMITED WARRANTY
19-20 TROUBLESHOOTING - LIQUID SOAP DISPENSER
21 TROUBLESHOOTING - FOAM SOAP DISPENSER

3
2
PRE-INSTALLATION INFO
Check contents
Separate all parts from the packaging and check each part with the “Pack
contents” section.
Make sure all parts are accounted for before diשצscarding any packaging material.
If any parts are missing, do not attempt to install your touch free soap dispenser
until you obtain the missing parts.
Warnings
Do not install the system facing a mirror or any electronic system operated by an
infrared sensor.
To prevent reflection problems, it is recommended to keep a minimum distance
of 1.50 meters between the soap dispenser and any other objects.
IMPORTANT: Keep in mind that when using the faucet installed next to the soap
dispenser, the user hands should not interfere with the soap dispenser sensor
detection area.
CORRECT INSTALLATION INCORRECT INSTALLATION
DO NOT AIM SOAP SENSOR
AT WATER STREAM
Familiarize yourself with the part names and ensure that all the parts are
included in your package.
PACK CONTENTS
LIQUID SOAP DISPENSER
1X QUICK CONNECTION FITTING
1 X PUMP ASSEMBLY
WITH BOTTLE SUPPORT
AND SOAPTANK
2 SCREWS AND
2 ANCHORS
1 X BODY AND FIXING ACCESSORIES
2 X ANTI
ROTATION PINS
1 X BATTERY BOX FOR 6XD ALKALINE
BATTERIES \ 12VTRANSFORMER

5
4
Familiarize yourself with the part names and ensure that all the parts are
included in your package.
Familiarize yourself with the part names and ensure that all the parts are
included in your package.
12VTRANSFORMER
FOAM SOAP DISPENSER PS SOAP DISPENSER
1 X FOAM DISPENSER BODY
1 X FOAM COMPRESSOR WITH PIPE
12VTRANSFORMER
1 X PUMP ASSEMBLY
WITH BOTTLE SUPPORT
AND SOAPTANK
2 SCREWS AND
2 ANCHORS
2 X ANTI
ROTATION PINS
PACK CONTENTS PACK CONTENTS
1 X BODY AND FIXING ACCESSORIES
2 X ANTI
ROTATION PINS

7
6
4
FOR LIQUID SOAP DISPENSER MODELS
Connect the soap tube extending from the soap
dispenser body to the quick connector at the
top of the soap dispenser pump assembly by
snapping it in.
FOR FOAM SOAP DISPENSER MODELS
Connect the soap tube extending from the soap
dispenser body to the quick connection fitting at
the top of the soap dispenser compressor unit by
snapping it in.
Connect the second soap tube provided in the
packaging from the compressor to the quick
connection fitting at the top of the soap dispenser
pump assembly by snapping it in.
IMPORTANT: Make sure to cut the soap tube to the minimum required length

FOR MULTIFEED MODELS
If you are using the soap tank support x it to the
desired location.
NOTE: Keep in mind the maximum distance
between the Multifeed dispenser pump and the
Multifeed Kit should not exceed  meters.
Place the soap tank under the deck or into the
tank support.

Cut the soap pipe coming from the MF soap
dispenser to the right length as required by the
installation.
In order for the pipe to reach the bottom of the tank,
make sure that the end of the pipe is approximately
2 cm longer than the tank inner base.

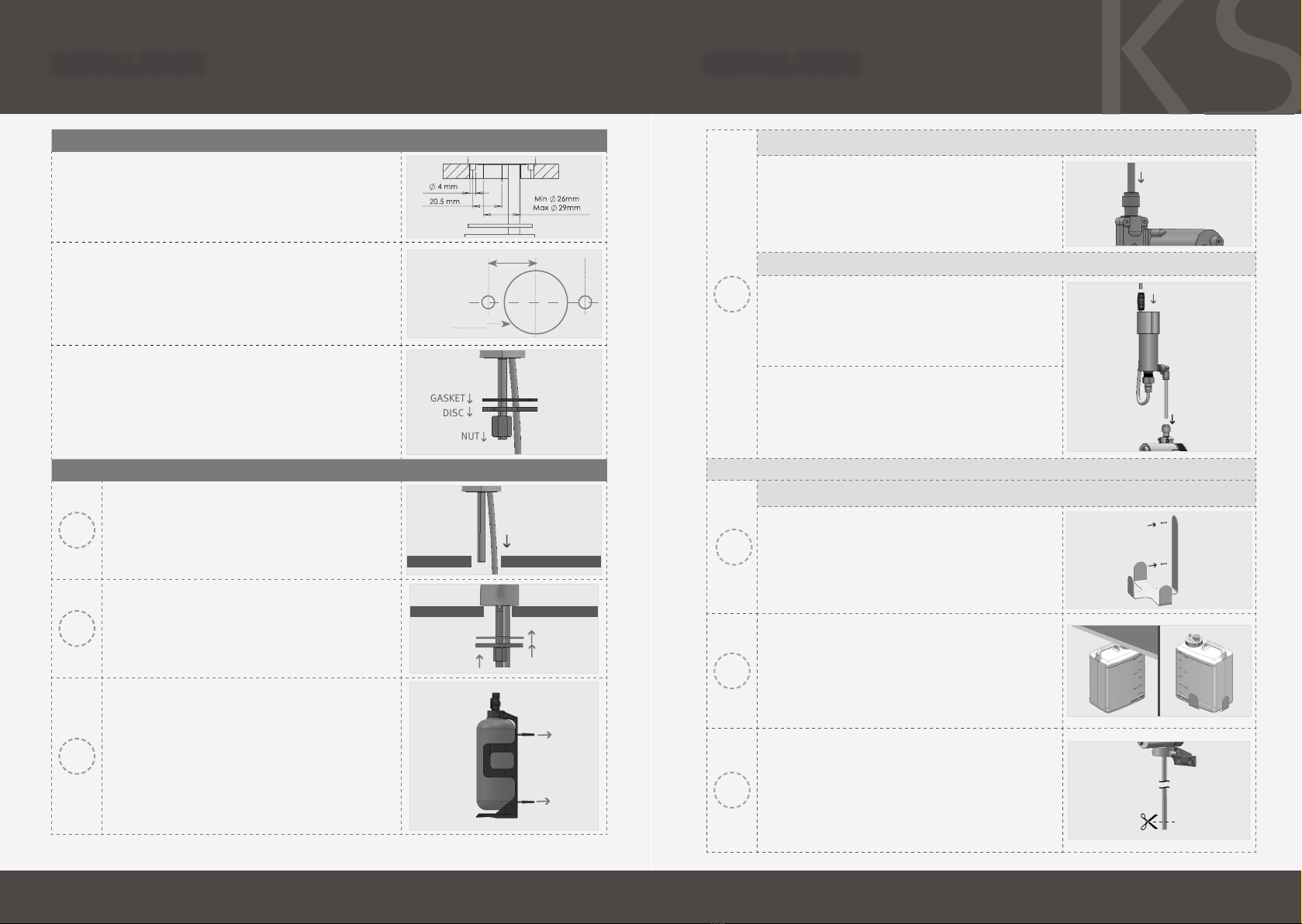

INSTALLATION
STEP 1 – PREPERATION
Drill a hole (26-29 mm) at the designated installation
location of the foam soap dispenser body.
Drill 2 small holes (4 mm) on each side of the main
installation hole. Consult the diagram.
IMPORTANT: Make sure the anti rotation 4mm holes are
drilled accurately.
20.5mm
26-29mm
RECOMMENDED
HOLE SIZE
Remove the nut, disk and gasket from the base of the
soap dispenser body.
NUT
DISC
GASKET
STEP 2 – INSTALLING THE SOAP DISPENSER
1
Insert the soap dispenser body and the anti
rotation pins along with the rosette into the
drilled holes.
2
Under the deck, secure the gasket, disk and nut
over the soap dispenser body nipple.
3
a. For an individual soap dispenser installation:
Fix the bottle support to the desired location.The
pump MUST be within reach range of the Com
cable and black supply tube.
b. For multiple soap dispensers installation:
Fix the soap pumps of each MF dispenser with
the pump support to the desired location.
INSTALLATION

9
8
FILLING THE SOAP TANK
1Unscrew the soap tank from the pump assembly
and pull it out from the bottle support.
2Fill the bottle with liquid soap to the top line.
Make sure the bottle is clean before filling it with
soap.
3Insert the bottle back into the bottle support.
4Screw the soap tank back into the pump
assembly. Make sure the tank is firmly secured
into place.
5
Press and hold the refill button located at the back
of the pump assembly until soap is dispensed
from the soap dispenser spout.
Release the button once soap begins dispensing
from the spout.
Alternately, use the FILL function on the remote
control (if available). see page 13/14.
Note: When the soap in the soap tank reaches the
bottom line, the tank needs to be refilled.
To refill the soap tank please refer to steps 1-5.
INSTALLATION

Insert the MF soap dispensers’ pipes to
the holes in the soap tank cap. Ensure the
soap pipe reaches the bottom of the soap
tank and is not bent or curved.
!
NOTE:TheTop filling Multifeed Kit
enables installing up to 6 soap dispensers
simultaneously. When installing less than
6 soap dispensers, make sure to plug the
remaining holes with the provided plugs.
STEP 3 – CONNECTING THE POWER SOURCE
1
Connect the matching 4 contact connector
extending from the soap dispenser body
to the pump connector.
For FOAM version, connect the matching
connector from the foam dispenser
body to the compressor unit, and the
compressor unit to the pump connector.
Please note that since the connector is
water proof, some pressure must be
applied for a prefect seal.
O-RING VISIBLE –
NOT CONNECTED PROPERLY
ONLY THE GROOVES ARE VISIBLE –
CONNECTED PROPERLY
IMPORTANT: The 4 contacts connector should be connected properly so that the white
o-ring is not visible and a clicking sound is heard.
PAY ATTENTION: If the 4 contacts connectors are not connected properly, the pump will
not operate properly.
2
Connect the transformer connector to the
matching connector from the sensor and
plug the transformer into the electricity
socket.
FROM THE TRANSFORMER TO THE SOAP DISPENSER
3
Wait about 10 seconds before placing your
hands within the sensor range to avoid
adjustment mode.
10
SECONDS
ABOUT

11
10
1
Drill a hole in the deck or
lavatory according to the top
filling kit recommended hole
size.
Remove the flat seal, disk
and nut from the ba se of the
top filling kit. Recommended hole size
.
.

2
Place the top filling kit into
the hole in the deck or
lavatory and secure it in
place using the flat seal, disk
and nut.
3
If you are using the soap tank
support fix it to the desired
location.
NOTE: Keep in mind the
maximum distance between
the Multifeed dispenser
pump and the Multifeed Kit
should not exceed 3 meters.
4Place the soap tank under the
deck or into the tank support.
TOP FILLING PROFESSIONAL SYSTEM KIT
INSTALLATION
Familiarize yourself with the part names and ensure all the parts are included
in your package.
STAND FOR MULTIFEEDTANK
1 X LIQUID SOAPTUBE
1 XTOP FILLING KIT
1 X COUPLING CAP WITH CLAMPS
FOR 6TUBES AND ACCESSORIES
1 X 6 LITERS SOAPTANK
6 X 8mm PLUGS
1 X 6 mm ALLEN KEY
1 X COUPLING NUT
1 X CLIP FOR PIPES
1 X BREATHE PIPE
TOP FILLING PROFESSIONAL SYSTEM KIT
PACK CONTENTS

13
12
STEP 1 - FILLING THE SOAP TANK
1
Fill the soap tank with liquid soap
until it is full. Open the top filling cap
using the 6mm Allen key provided in
the package. Keep the key for future
use (soap tank re-filling).
2Refer to the ‘Technical Data’ section
of this manual for soap viscosity
specifications.
STEP 2 - PRIMING THE SOAP
1
Press and hold the refill button
located at the back of the pump
assembly until soap is dispensed
from the soap dispenser spout.
press
2Alternately, press the FILL button on
the soap or foam dispenser remote
control (if available). press
FILL
TOP FILLING PROFESSIONAL SYSTEM KIT
FILLING THE
SOAP TANK
5If needed, cut the corrugated
soap tube to the correct length
as required by the installation.
6Ensure the tube fully covers the
cap outlet and the two o-rings
on the outlet.
7
Connect the breathe pipe to the
breathe nozzle in the cap.
Ensure both the breathe pipe
and the corrugated tube are
connected to the top filling unit
by means of the clip.
8
Cut the soap pipe coming from
the Multifeed soap dispenser to
the right length as required by the
installation.
In order for the pipe to reach
the bottom of the tank, make
sure that the end of the pipe is
approximately 2 cm longer than
the tank inner base.
9
Insert the Multifeed soap
dispensers’ pipes into the holes
of the soap tank cap. Ensure the
soap pipes reach the bottom of
the soap tank and are not bent
or curved.
!
NOTE:TheTop filling Multifeed
Kit enables installing up to 6
soap dispensers simultaneously.
When installing less than 6 soap
dispensers, make sure to plug the
remaining holes with the provided
plugs.
TOP FILLING PROFESSIONAL SYSTEM KIT
INSTALLATION

15
14

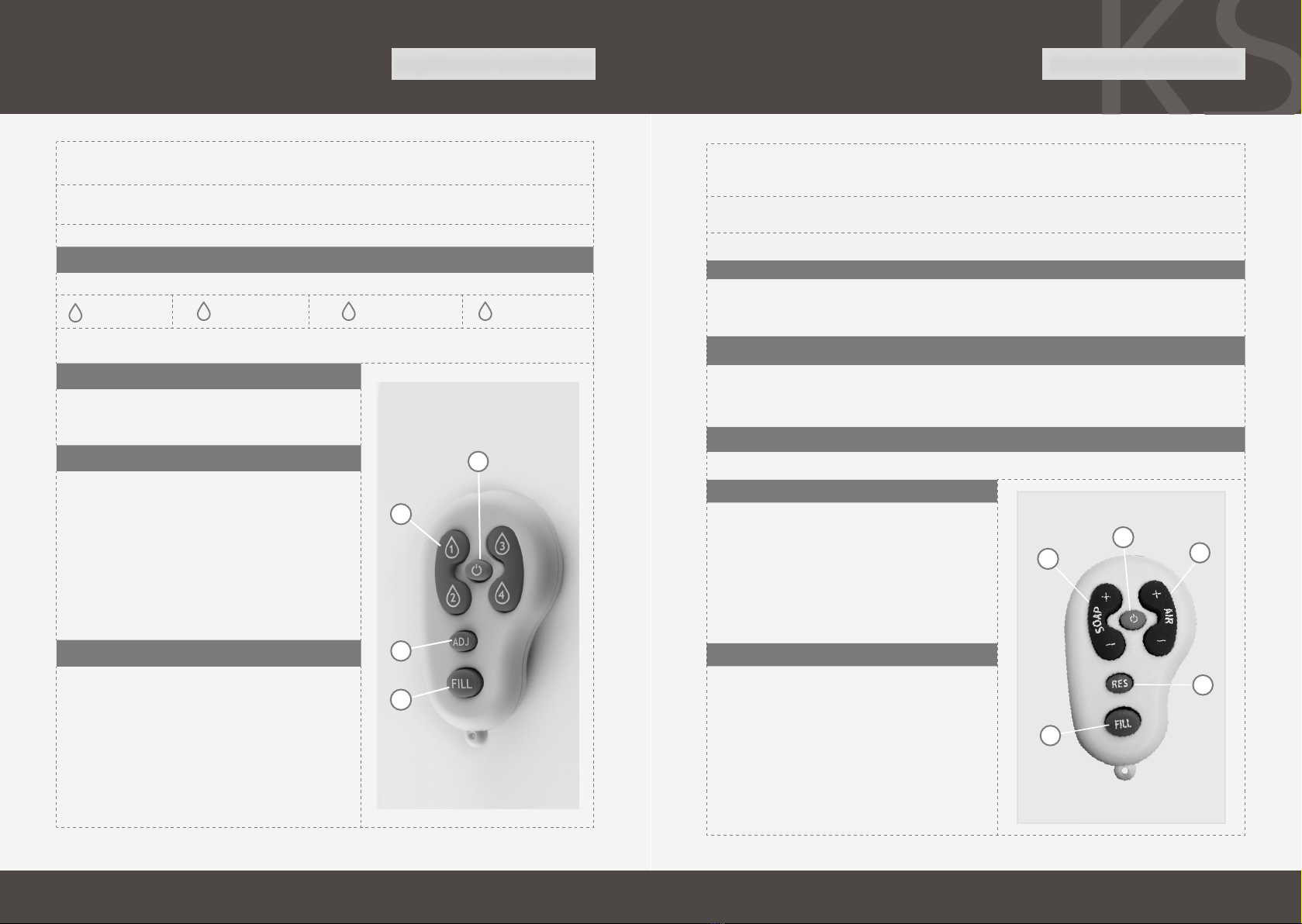

REMOTE CONTROL FUNCTIONS
FOAM SOAP DISPENSERS
If available, the foam dispenser remote control can adjust the dispenser’s
settings.To use the remote control hold it in front of the sensor at a distance of
10-15cm (4-6”).
Attention:The remote control will not operate out of the recommended range
(too close or too far).
The remote control can be used to adjust the following functions:
1-SOAP QUANTITY
Press the + sign on the SOAP button to increase the soap quantity by increasing
the dispensing time. Press the - button to decrease it.
Indication: continuous blinking LED light in the sensor eye.
2-AIR QUANTITY
To improve soap consistency (“foamability) change the amount air to be mixed. Press
the + sign on the AIR button to increase the air quantity and the - to decrease it.
Indication: 2 blinks of the LED light in the sensor eye.
3-RES
This function resets the sensor back to its factory settings.
4-TEMPORARY OFF FUNCTION
2
3
5
1
4
This function temporary disables the
dispenser. Use this function to preform
maintenance in front of the sensor without
activating the system (for example: cleaning).
The soap dispenser will shut off for one
minute after this button is pressed once.
To return to normal operation before the
minute is over, press the On/Off button again.
5-FILL THE SOAP TANK
Once the soap tank has been filled \ refilled,
press the FILL button.The pump will run for
one minute, priming the piping with soap.
Once soap begins dispensing from the spout,
priming is complete. press the FILL button
again to stop the priming before the minute is
over.
Indication: continuous solid LED light in the
sensor eye.
If available, the soap dispenser remote control can adjust the dispenser’s settings.To
use the remote control hold it in front of the sensor at a distance of 10-15cm (4-6”).
Attention:The remote control will not operate out of the recommended range (too close
or too far).
The remote control can be used to adjust the following functions:
1-SOAP QUANTITY
The 1-4 drop keys allow the user to choose the desired soap quantity.
2.1 to 2.3 cc * 1.6 to 1.9 cc 1.2 to 1.6 cc
0.7 to 0.9cc
Indication: continuous blinking of the light in the sensor eye.
2
3
1
4
2-ADJ
This function resets the sensor back to factory
settings.
Indication: 2 blinks of the light in the sensor eye.
3-TEMPORARY OFF FUNCTION
This function temporary disables the
dispenser. Use this function to preform
maintenance in front of the sensor without
activating the system (for example: cleaning).
The soap dispenser will shut off for one minute
after this button is pressed once.
To return to normal operation before the
minute is over, press the On/Off button again.
Indication: OFF – 2fast blinks, ON – 4 fast blinks
4-FILL THE SOAP TANK
Once the soap tank has been filled \ refilled,
press the FILL button.The pump will run for
one minute, priming the piping with soap.
Once soap begins dispensing from the
spout, priming is complete. press the FILL
button again to stop the priming before the
minute is over.
Indication: continuous solid light in the
sensor eye.
REMOTE CONTROL FUNCTIONS
LIQUID SOAP DISPENSERS

17
16
BATTERY REPLACEMENT FOR LIQUID SOAP DISPENSER
Battery models only
When the battery weakens, the LED indicator light will blink at a constant rate when the
user’s hands are within the sensor range.The battery must be replaced within two weeks.
To replace the battery in battery models:
1. Carefully open the battery box, use a 2.5 mm Allen key
2. Replace the used batteries with new D batteries
3. Close the box.
NOTE: Do not mix used batteries with new ones.
Important: Spent batteries should not be disposed of with normal household
waste. Contact your local authority for information on waste disposal and
recycling.
MAINTENANCE
Care and cleaning of chrome and special finishes
DO NOT use steel wool or cleansing agents containing alcohol, acid, abrasives, or their like.
Use of any prohibited cleaning or maintenance products or substances could damage the
surface of the soap dispenser. For surface cleaning use ONLY soap and water, then wipe dry
with a clean cloth or towel. When cleaning bathroom tiles, the soap dispenser should be
protected from any splattering of harsh cleansers.
Disassemble of the soap pipe from the pump
The soap pipe can be disconnected from the soap pump by a simple slide & pull action.The
sliding ring of the quick connection fixation nipple on the pump should be pulled down. It
releases the open end of the soap pipe which can then be easily pulled out.
Filter cleaning instructions (foam dispenser only)
This soap dispenser is provided with a foam filter. It is recommended to clean the filter every
six (6) months.
If the soap supply has decreased, this may be caused by the clogged filter.The filter can be
cleaned as follows:
1. Use a wrench to unscrew the quick connection fitting from the foam compressor and
pull out the filter housing.
2. Remove the filter from the housing.
3. Replace the filter (recommended) or wash it under running water for a temporary fix.
4. Reassemble the parts.

19
18
TROUBLESHOOTING
LIMITED WARRANTY
KASSEL SANITÄR S.L. warrants that its electronic products will be free of defects
in material and workmanship during normal use for two years from the date the
product is purchased.
If a defect is found in normal use, KASSEL SANITÄR S.L. will, at its discretion,
repair, provide a replacement part or product, or make appropriate adjustments.
Damage caused by accident, misuse, or abuse is not covered by this warranty.
Improper care and cleaning will void the warranty. Proof of purchase (original sales
receipt) must be provided to KASSEL SANITÄR S.L. with all warranty claims.
KASSEL SANITÄR S.L. is not responsible for labor charges, installation, or other
incidental or consequential costs other than those noted above. In no event shall
the liability of KASSEL SANITÄR S.L. exceed the purchase price of the product.
If you believe that you have a warranty claim, contact your Kassel Distributor,
Dealer or Plumbing Contractor. Please be sure to provide all pertinent information
regarding your claim, including a complete description of the problem, the product,
model number, the date the product was purchased, from whom the product was
purchased and the installation date. Also include your original invoice.
KASSEL SANITÄR S.L. AND/OR SELLER DISCLAIM ANY LIABILITY FOR SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty excludes product
damage due to installation error, incorrect maintenance, wear and tear, battery,
product abuse, or product misuse, whether performed by a contractor, service
company, or the consumer. This warranty does not cover product damage caused
by the following:
- Incorrect installation.
- Inversions of supply pipes.
- Pressures or temperatures exceeding recommended limits.
- Improper manipulation, tampering, bad or lapsed maintenance.
- Foreign bodies, dirt or scale introduced by the water supply or soap tank.
- Use of the soap outside of viscosity specifications.
- Alteration of the original soap/foam dispenser components (including pipes).
IllustrationSolutionCauseInvestigationIndication
O-RING VISIBLE –
NOT CONNECTED PROPERLY
ONLY THE GROOVES ARE VISIBLE –
CONNECTED PROPERLY
The connector should be inserted fully
until white o-ring is not visible. Remove the
o-ring if necessary
AUX connector
not fully inserted
Continuous
discharge from the
nozzle
False
activation:
Soap/Foam
dispensing
Min . M
Eliminate any cause of reflection and if
necessary use appropriate remote control to
shorten detection range.
Reflection issue
from basin or
other object
Random discharge
from the nozzle
Replace the Pump. Rinse warm water
through the pipe and the body of the soap
dispenser all the way to the nozzle.
Damaged pump
due to high
viscosity or
debris in pipes
Soap discharging
from pump
housing.
Fill with soap with correct viscosity
(100 - 3800 cPs for liquid soap and up to 100
cPs for foam) and prime pipes using the fill
button on remote control.
Soap tank is
empty
Pump and/
or compressor
making sounds
when sensor is
activated
Soap/
Foam not
dispensing
Press
FILL
Button
Prime the soap dispenser by pressing the
fill button on the remote or by pressing the
refill button located at the bottom of the
pump, until soap exits the nozzle.
Soap dispenser
has not been
primed
Replace the PumpDamaged pump
(discharge from
housing)
Run warm water through pipe, pump, and
body all the way to the nozzle. Replace with
soap of correct viscosity.
NOTE: Using the soap dispenser with
high viscosity soap may cause permanent
damage to the pump and shorten the
lifecycle.
Debris or dried
soap in the pipe
or tank
Soap Viscosity
   cPs
for liquid soap
and up to  cPs
for foam)
High viscosity
soap
(> 3800 cPs for
liquid soap or
> 100 cPs for
foam)
Unbend or straighten pipes.Bent pipes

21
20
TROUBLESHOOTING TROUBLESHOOTING
IllustrationSolutionCauseInvestigationIndication
O-RING VISIBLE –
NOT CONNECTED PROPERLY
ONLY THE GROOVES ARE VISIBLE –
CONNECTED PROPERLY
The connector should be inserted
fully until the white o-ring is
not visible. Remove the o-ring if
necessary
AUX connector not
fully inserted
Sensor is
blinking
when hand
is placed in
front
Pump is
not making
sound
when the
sensor is
activated
Soap/
Foam not
dispensing
Press
Replace the Pump. Rinse warm
water through the pipe and the
body of the soap dispenser all the
way to the nozzle.
Refill button on
pump does not
activate the pump.
Damaged pump
(discharge from
housing).
Run warm water through pipe,
pump, and body all the way to the
nozzle. Replace with soap of correct
viscosity.
NOTE: Using the soap dispenser
with high viscosity soap may cause
permanent damage to the pump
and shorten the lifecycle.
Debris or dried soap
in the tank or tubing
Rell
button
Transformer: Check operation with
functioning transformer. Where
necessary replace with appropriate
transformer. For part numbers see
spare parts list.
Refill button on
pump does not
activate the pump.
Sensor is
not blinking
when hand
is placed in
front
Battery: Check operation with
functioning battery pack. Where
necessary, replace batteries or
replace the battery pack: Battery
pack (without batteries)
Min . M
Eliminate any cause of reflection
and use appropriate remote control
to shorten detection range.
Reflection issue
from basin or other
object
Replace
sensor
If the above two solutions have
not resolved this issue replace
with appropriate sensor. For part
numbers see spare parts list.
Damaged sensor
IllustrationSolutionCauseIndication
1. Increase the air to soap
ratio.
Liquid rather than
foam is being
dispensed out of
the nozzle
Foam not dispensing
2. Verify that the filter is
clean.
3. Replace compressor
(supplied with pump). For
part numbers see spare
parts list.
Use remote to decrease
soap volume by pressing
the "- Soap" key.
Foam dosage is
too large
Foam is dispensing
Use remote to increase
soap volume by pressing
the "+ Soap" key.
Foam dosage is
too small
Use remote to decrease
the amount of air in the
foam by pressing the "-
Air" Key.
Foam is too dense
Use remote to increase
the amount of air in the
foam by pressing the " +
Air" key.
Foam is too
liquefied

KSL01210 03/2020
Kassel Sanitär S.L.
•Avda. de Castilla, 1 - Polígono Industrial, 28830 San Fernando de Henares, Madrid, Spain
•
Daimlerstraße 2, D-93133 Burglengenfeld, Germany
Tel. [phone] | Fax. [phone] | [email protected] | www.kassel.es
