KSB Etaseco Series Installation instructions

Standardised Water Pump
Etaseco/Etaseco I
With Canned Motor
Seal-less
Installation/Operating
Manual
Order number:

Legal information/Copyright
Installation/Operating Manual Etaseco/Etaseco I
Original operating manual
KSB Aktiengesellschaft Pegnitz
All rights reserved. Contents provided herein must neither be distributed, copied, reproduced, edited
or processed for any other purpose, nor otherwise transmitted, published or made available to a third
party without KSB´s express written consent.
Subject to technical modification without prior notice.
© KSB Aktiengesellschaft Frankenthal 05.05.2010

Contents
Glossary ................................................................................................ 5
1 General ................................................................................................ 6
1.1 Principles .......................................................................................................... 6
1.2 Installation of partly completed machinery .................................................. 6
1.3 Target group ................................................................................................... 6
1.4 Other applicable documents .......................................................................... 6
1.5 Symbols ............................................................................................................ 6
2 Safety ................................................................................................... 8
2.1 Key to safety symbols/markings ..................................................................... 8
2.2 General ............................................................................................................ 8
2.3 Intended use .................................................................................................... 8
2.4 Personnel qualification and training ............................................................. 9
2.5 Consequences and risks caused by non-compliance with these operating
instructions ...................................................................................................... 9
2.6 Safety awareness ............................................................................................. 9
2.7 Safety information for the operator/user .................................................... 10
2.8 Safety information for maintenance, inspection and installation work ... 10
2.9 Unauthorised modes of operation ............................................................... 10
3 Transport/Temporary Storage/Disposal ........................................... 11
3.1 Transport ....................................................................................................... 11
3.2 Storage/Preservation ..................................................................................... 12
3.3 Return to supplier ......................................................................................... 12
3.4 Disposal .......................................................................................................... 13
4 Description of the Pump (Set) .......................................................... 14
4.1 General description ....................................................................................... 14
4.2 Designation ................................................................................................... 14
4.3 Name plate .................................................................................................... 14
4.4 Design details ................................................................................................ 15
4.5 Configuration and function ......................................................................... 16
4.6 Noise characteristics ...................................................................................... 17
4.7 Dimensions and weights ............................................................................... 17
4.8 Scope of supply ............................................................................................. 17
5 Installation at Site ............................................................................. 18
5.1 Safety regulations ......................................................................................... 18
5.2 Checks to be carried out prior to installation ............................................. 18
5.3 Installing the pump set ................................................................................. 18
5.4 Piping ............................................................................................................. 21
5.5 Connecting the potential equalisation conductor ...................................... 23
Contents
Etaseco/Etaseco I 3 of 60

5.6 Connection to power supply ........................................................................ 24
6 Commissioning/Start-up/Shutdown ................................................. 28
6.1 Commissioning/start-up ................................................................................ 28
6.2 Operating limits ............................................................................................ 31
6.3 Shutdown/storage/preservation ................................................................... 33
6.4 Returning to service after storage ............................................................... 33
7 Servicing/Maintenance ...................................................................... 35
7.1 Safety regulations ......................................................................................... 35
7.2 Servicing/inspection ...................................................................................... 35
7.3 Drainage/disposal .......................................................................................... 38
7.4 Dismantling the pump set ............................................................................ 39
7.5 Reassembling the pump set .......................................................................... 43
7.6 Tightening torques ....................................................................................... 47
7.7 Spare parts stock ........................................................................................... 48
8 Trouble-shooting ............................................................................... 50
9 Related Documents ........................................................................... 52
9.1 General assembly drawing with list of components ................................... 52
9.2 Spare motor unit ........................................................................................... 55
10 EC Declaration of Conformity .......................................................... 56
11 Certificate of Decontamination ....................................................... 57
Index .................................................................................................. 58
Contents
4 of 60 Etaseco/Etaseco I

Glossary
(Spare) motor unit
Stator with motor housing, can and electrical
connection elements for the stator; without
rotor, main bearing and hydraulic system
Back pull-out design
The complete back pull-out unit can be pulled
out without having to remove the pump casing
from the piping.
Back pull-out unit (canned motor pump)
Drive unit with impeller but without pump
casing; partly completed machinery
Certificate of decontamination
A certificate of decontamination certifies that
the pump (set) has been properly drained to
eliminate any environmental and health
hazards arising from components in contact
with the fluid handled.
Discharge line
The line which is connected to the discharge
nozzle
Pool of pumps
Pumps which are purchased and stored
independently of their later use
Pump
Machine without drive, additional components
or accessories
Pump set
Complete pump set consisting of pump, drive,
additional components and accessories
Suction lift line/suction head line
The line which is connected to the suction
nozzle
Glossary
Etaseco/Etaseco I 5 of 60

1 General
1.1 Principles
This manual is supplied as an integral part of the type series and variants indicated
on the front cover. It describes the proper and safe use of this equipment in all
phases of operation.
The name plate indicates the type series and size, the main operating data, the order
number and the order item number. The order number and order item number
clearly identify the pump (set) and serve as identification for all further business
processes.
In the event of damage, contact your nearest KSB service centre immediately to
maintain the right to claim under warranty.
Noise characteristics (⇨ Section 4.6 Page 17)
1.2 Installation of partly completed machinery
To install partly completed machinery supplied by KSB, refer to the sub-sections
under Servicing/Maintenance. (⇨ Section 7.5.3.1 Page 44) (⇨ Section 7.5.7 Page 46)
1.3 Target group
This manual is aimed at the target group of trained and qualified specialist technical
personnel. (⇨ Section 2.4 Page 9)
1.4 Other applicable documents
Table 1: Overview of other applicable documents
Document Contents
Data sheet Description of the technical data of the pump
(set)
General arrangement drawing/
Outline drawing
Description of mating and installation dimensions
for the pump (set)
Drawing of auxiliary connections Description of auxiliary connections
Hydraulic characteristic curve Characteristic curves showing head, NPSH
required, efficiency and power input
General assembly drawing1) Sectional drawing of the pump
Sub-supplier product literature1) Operating manuals and other product literature
of accessories and integrated machinery
components
Spare parts lists1) Description of spare parts
Piping layout1) Description of auxiliary piping
List of components1) Description of all pump components
1.5 Symbols
Table 2: Symbols used in this manual
Symbol Description
✓Conditions which need to be fulfilled before proceeding with the
step-by-step instructions
⊳Safety instructions
⇨Result of an action
⇨Cross-references
1) If agreed to be included in the scope of supply
1 General
6 of 60 Etaseco/Etaseco I

Symbol Description
1.
2.
Step-by-step instructions
Note
Recommendations and important information on how to handle
the product
1 General
Etaseco/Etaseco I 7 of 60

2 Safety
All the information contained in this section refers to hazardous situations.
2.1 Key to safety symbols/markings
Table 3: Definition of safety symbols/markings
Symbol Description
!DANGER
DANGER
This signal word indicates a high-risk hazard which, if not avoided,
will result in death or serious injury.
!WARNING
WARNING
This signal word indicates a medium-risk hazard which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION
This signal word indicates a hazard which, if not avoided, could
result in damage to the machine and its functions.
Explosion protection
This symbol identifies information about avoiding explosions in
potentially explosive atmospheres in accordance with EC Directive
94/9/EC (ATEX).
General hazard
In conjunction with one of the signal words this symbol indicates a
hazard which will or could result in death or serious injury.
Electrical hazard
In conjunction with one of the signal words this symbol indicates a
hazard involving electrical voltage and identifies information
about protection against electrical voltage.
Machine damage
In conjunction with the signal word CAUTION this symbol indicates
a hazard for the machine and its functions.
2.2 General
This manual contains general installation, operating and maintenance instructions
that must be observed to ensure safe pump operation and prevent personal injury
and damage to property.
The safety information in all sections of this manual must be complied with.
This manual must be read and completely understood by the responsible specialist
personnel/operators prior to installation and commissioning.
The contents of this manual must be available to the specialist personnel at the site
at all times.
Information attached directly to the pump must always be complied with and be
kept in a perfectly legible condition at all times. This applies to, for example:
▪Arrow indicating the direction of rotation
▪Markings for connections
▪Name plate
The operator is responsible for ensuring compliance with all local regulations which
are not taken into account in this manual.
2.3 Intended use
The pump (set) must only be operated within the operating limits which are
described in the other applicable documents.
▪Only operate pumps/pump sets which are in perfect technical condition.
▪Do not operate partially assembled pumps/pump sets.
!DANGER
2 Safety
8 of 60 Etaseco/Etaseco I

▪Only use the pump to handle the fluids specified in the data sheet or product
literature of the respective design variant.
▪Never operate the pump without the fluid to be handled.
▪Observe the minimum flow rates indicated in the data sheet or product literature
(to prevent overheating, bearing damage, etc).
▪Observe the maximum flow rates indicated in the data sheet or product
literature (to prevent overheating, mechanical seal damage, cavitation damage,
bearing damage, etc).
▪Do not throttle the flow rate on the suction side of the pump (to prevent
cavitation damage).
▪Consult the manufacturer about any use or mode of operation not described in
the data sheet or product literature.
Prevention of foreseeable misuse
▪Never open discharge-side shut-off elements further than permitted.
– The maximum flow rate specified in the data sheet or product literature
would be exceeded.
– Risk of cavitation damage
▪Never exceed the permissible operating limits specified in the data sheet or
product literature regarding pressure, temperature, etc.
▪Observe all safety information and instructions in this manual.
2.4 Personnel qualification and training
All personnel involved must be fully qualified to install, operate, maintain and
inspect the machinery this manual refers to.
The responsibilities, competence and supervision of all personnel involved in
installation, operation, maintenance and inspection must be clearly defined by the
operator.
Deficits in knowledge must be rectified by sufficiently trained specialist personnel
training and instructing the personnel who will carry out the respective tasks. If
required, the operator can commission the manufacturer/supplier to train the
personnel.
Training on the pump (set) must always be supervised by technical specialist
personnel.
2.5 Consequences and risks caused by non-compliance with these operating
instructions
▪Non-compliance with these operating instructions will lead to forfeiture of
warranty cover and of any and all rights to claims for damages.
▪Non-compliance can, for example, have the following consequences:
–Hazards to persons due to electrical, thermal, mechanical and chemical
effects and explosions
– Failure of important product functions
– Failure of prescribed maintenance and servicing practices
– Hazard to the environment due to leakage of hazardous substances
2.6 Safety awareness
In addition to the safety information contained in this manual and the intended use,
the following safety regulations shall be complied with:
▪Accident prevention, health and safety regulations
▪Explosion protection regulations
2 Safety
Etaseco/Etaseco I 9 of 60

▪Safety regulations for handling hazardous substances
▪Applicable standards and laws
2.7 Safety information for the operator/user
▪The operator shall fit contact guards for hot, cold or moving parts and check that
the guards function properly.
▪Do not remove the contact guard while the pump is running.
▪Connect an earth conductor to the metal jacket if the fluid handled is
electrostatically charged.
▪Provide the personnel with protective equipment and make sure it is used.
▪Contain leakages (e.g at the shaft seal) of hazardous fluids handled (e.g.
explosive, toxic, hot) so as to avoid any danger to persons and the environment.
Adhere to all relevant laws.
▪Eliminate all electrical hazards. (In this respect refer to the applicable national
safety regulations and/or regulations issued by the local energy supply
companies.)
2.8 Safety information for maintenance, inspection and installation work
▪Modifications or alterations of the pump are only permitted with the
manufacturer's prior consent.
▪Use only original spare parts or parts authorised by the manufacturer. The use of
other parts can invalidate any liability of the manufacturer for resulting damage.
▪The operator ensures that all maintenance, inspection and installation work is
performed by authorised, qualified specialist personnel who are thoroughly
familiar with the manual.
▪Carry out work on the pump (set) during standstill only.
▪The pump casing must have cooled down to ambient temperature.
▪Pump pressure must have been released and the pump must have been drained.
▪When taking the pump set out of service always adhere to the procedure
described in the manual.
▪Decontaminate pumps which handle fluids posing a health hazard.
▪As soon as the work is completed, re-install and/or re-activate any safety-relevant
and protective devices. Before returning the product to service, observe all
instructions on commissioning. (⇨ Section 6.1 Page 28)
2.9 Unauthorised modes of operation
Never operate the pump (set) outside the limits stated in the data sheet and in this
manual.
The warranty relating to the operating reliability and safety of the supplied pump
(set) is only valid if the equipment is used in accordance with its intended use. (⇨
Section 2.3 Page 8)
2 Safety
10 of 60 Etaseco/Etaseco I

3 Transport/Temporary Storage/Disposal
CAUTION
Non-compliance with permissible cable bending radius
Damage to the cable!
▷Observe the permissible minimum bending radius indicated in the
manufacturer's data sheet; consult KSB, if necessary.
3.1 Transport
DANGER
The pump (set) could slip out of the suspension arrangement.
Danger to life from falling parts!
▷Transport the pump (set) as shown.
▷Never attach the suspension arrangement to the free shaft end of the motor.
▷Refer to the weights given in the general arrangement drawing.
▷Observe the local accident prevention regulations.
▷Use suitable, permitted lifting tackle, e.g. self-tightening lifting tongs.
To transport the pump/pump set suspend it from the lifting tackle as shown.
Fig. 1: Transporting the pump set
Fig. 2: Transporting the pump set (motor on top)
3 Transport/Temporary Storage/Disposal
Etaseco/Etaseco I 11 of 60

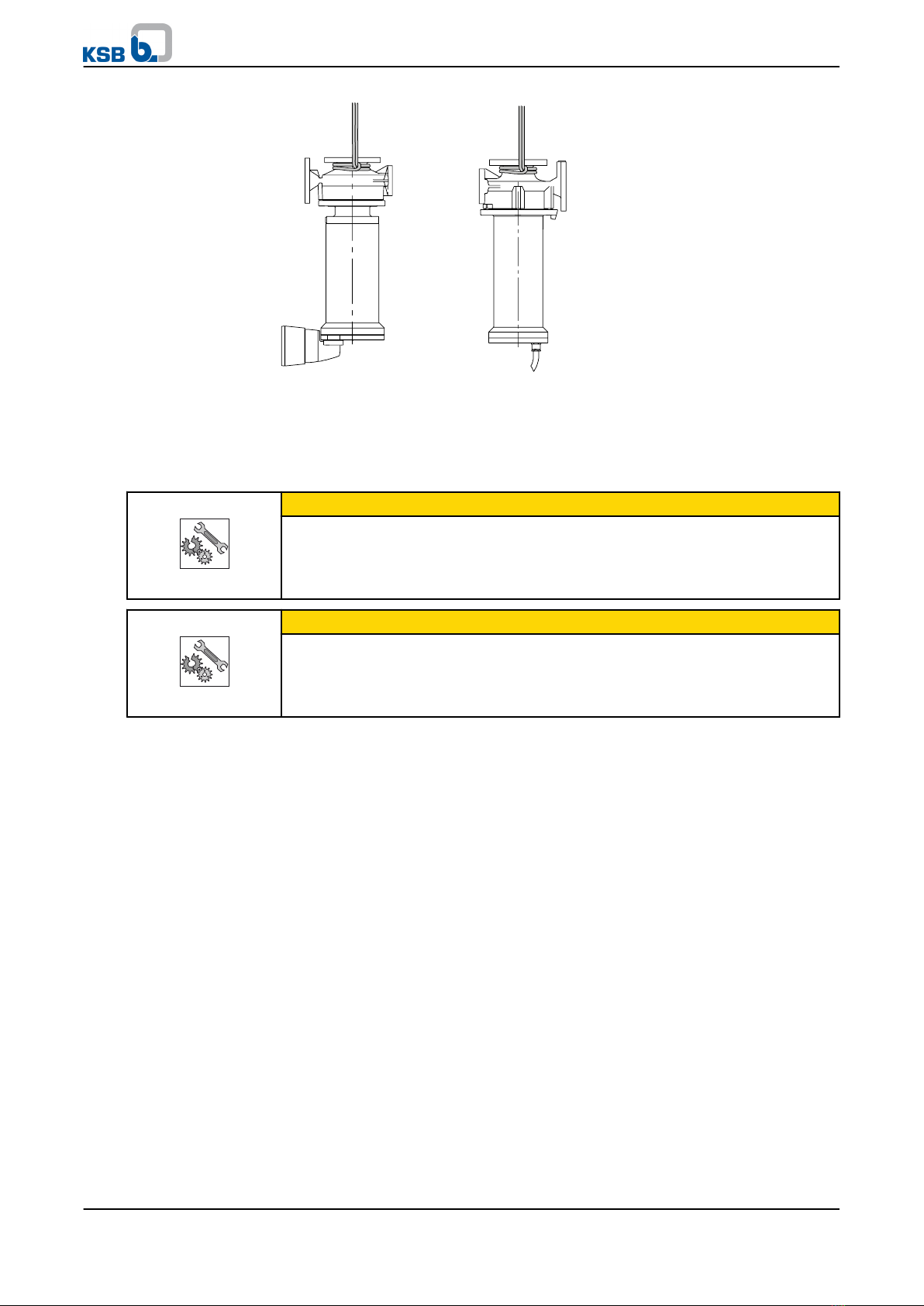

Fig. 3: Transporting the pump set (motor below)
3.2 Storage/Preservation
If commissioning is to take place some time after delivery, we recommend that the
following measures be taken for pump (set) storage.
CAUTION
Damage during storage by humidity, dirt, or vermin
Corrosion/contamination of the pump (set)!
▷For outdoor storage cover the pump (set) or the packaged pump (set) and
accessories with waterproof material.
CAUTION
Wet, contaminated or damaged openings and connections
Leakage or damage to the pump set!
▷Only remove caps/covers from the openings of the pump set at the time of
installation.
Store the pump (set) in a dry, protected room where the atmospheric humidity is as
constant as possible.
If properly stored indoors, the pump set is protected for a maximum of 12 months.
New pumps/pump sets are supplied by our factory duly prepared for storage.
For storing a pump (set) which has already been operated, observe the instructions in
(⇨ Section 6.3 Page 33).
3.3 Return to supplier
1. Drain the pump as per operating instructions.
2. Always flush and clean the pump, particularly if it has been used for handling
noxious, explosive, hot or other hazardous fluids.
3. If the fluids handled by the pump leave residues which might lead to corrosion
damage when coming into contact with atmospheric humidity, or which might
ignite when coming into contact with oxygen, the pump set must also be
neutralised, and anhydrous inert gas must be blown through the pump for
drying purposes.
4. Always complete and enclose a certificate of decontamination when returning
the pump (set). (⇨ Section 11 Page 57)
It is imperative to indicate any safety and decontamination measures taken.
3 Transport/Temporary Storage/Disposal
12 of 60 Etaseco/Etaseco I

NOTE
If required, a blank certificate of decontamination can be downloaded from the KSB web
site at: www.ksb.com/certificate_of_decontamination
3.4 Disposal
WARNING
Fluids posing a health hazard
Hazardous to persons and the environment!
▷Collect and properly dispose of flushing liquid and any fluid residues.
▷Wear safety clothing and a protective mask, if required.
▷Observe all legal regulations on the disposal of fluids posing a health hazard.
1. Dismantle the pump (set).
Collect greases and other lubricants during dismantling.
2. Separate and sort the pump materials, e.g. by:
- Metals
- Plastics
- Electronic waste
- Greases and other lubricants
3. Dispose of materials in accordance with local regulations or in another controlled
manner.
3 Transport/Temporary Storage/Disposal
Etaseco/Etaseco I 13 of 60

4 Description of the Pump (Set)
4.1 General description
▪Standardised water pump with canned motor
Pump for handling toxic, volatile or valuable liquids in environmental and industrial
engineering
4.2 Designation
Example: Etaseco G - I 32 - 125.1 / 1 2
Table 4: Key to the designation
Code Description
Etaseco (short: ESO) Type series
G Pump casing material
INozzle position on pump casing2)
32 Nominal discharge nozzle diameter [mm]
125 Nominal impeller diameter [mm]
.1 Hydraulic system optimised for low flow
1 Rated motor power in kW (rounded off
to full kW)
2 Number of motor poles
Motor designation (last two digits of the designation), e.g. "1 2":
Table 5: Key to the motor designation
Motor code Complete motor designation
12 DS 90.2-1,1
22 DS 90.2-2,2
42 DS 112.2-4
52 DS 112.2-5,5
72 DS 132.2-7,5
112 DS 132.2-11
152 DS 132.2-15
4.3 Name plate
KSB Aktiengesellschaft
67227 Frankenthal
Motor/Moteur
Q
∆ / Y
P2
A
V 3 ~ 50
cos φ
kW bei/at/à T - H2O°C
IP
Hz S1
H
n1/min
m
m3/h
Mat.-No.:01 097 746 ZN 3828 - M 14
IN
8
3,6
1,70
DS90.2-1,1 H
--/400
0,87 55
70
22
2906
1
2
3
4
5
2009
ESO-G-I 32-125.1 / 12 9970654321 / 00100 / 01
6
7
8
9
10
11
Fig. 4: Etaseco name plate
1 Type series, size, version 2 Flow rate
3 Head 4 Speed
5 Year of construction 6 Order number/item number/pump
number
7 Motor size and thermal class 8 Voltage, frequency, mode of
operation
2) Without letter: 90° (axial suction nozzle, radial discharge nozzle); "- I": 180° (suction and discharge nozzles arranged
opposite to each other)
4 Description of the Pump (Set)
14 of 60 Etaseco/Etaseco I

9 Rated current, cos φ, enclosure 10 Rated power of the motor at
defined fluid temperature
11 Further required information
4.4 Design details
Design
▪Volute casing pump
▪Back pull-out design
▪Horizontal/vertical installation
▪Single-stage
Pump casing
▪Radially split volute casing
▪Main dimensions to EN 733
Impeller type
▪Closed radial impeller with multiply curved vanes
▪Axial thrust balancing by sealing clearance
Bearings
▪Plain bearing
▪Product-lubricated
Shaft seal
▪Seal-less (canned motor)
Drive
▪Three-phase asynchronous motor
▪Fully enclosed canned motor
Table 6: Motor data
Parameter Description
Voltage and frequency Rated voltages:
▪50 Hz: 230 V, 400 V, 500 V, 690 V
▪60 Hz: 275 V, 480 V, 600 V
Voltage tolerances:
▪For the above mentioned rated
voltages: ± 10 %
▪For voltage ranges3) : ± 5 %
Frequency tolerance: ± 1 %
Starting method DOL or Y/∆ (depending on motor rating)
Thermal class H
Frequency inverter operation Possible up to rated motor frequency
Enclosure (VDE 0530) IP 55 (version with terminal box)
IP 66 (version with cable)
Mode of operation (VDE 0530) S 1
3) Example: 380 - 420 V
4 Description of the Pump (Set)
Etaseco/Etaseco I 15 of 60

4.5 Configuration and function
1 2 3 4 5 6 7
111098 12
Fig. 5: Sectional drawing of Etaseco
1 Impeller 2 Bore
3 Plain bearing (impeller-end) 4 Can
5 Support sleeve 6 Plain bearing (motor-end)
7 Terminal box 8 Bore
9 Shaft 10 Rotor
11 Stator 12 Free cable end
The hydraulic system and the motor are firmly connected and form a close-coupled
unit.
Both impeller (1) and rotor (10) are arranged on a common shaft (9).
The shaft runs in product-lubricated plain bearings (3/6). The rotor space is sealed off
towards the stator space by the can (4). The can, made of corrosion-resistant
material, rests on the stator (11) and the support sleeves (5) to compensate the forces
resulting from the pressure within the rotor space.
The bearings are lubricated by the fluid in the rotor space. When the pump is started
up, the fluid enters the rotor space through the bores (2, 8) and vents the rotor space
through a bore in the shaft. The partial flow tapped from the product flow through
the bores (2 and 8) surrounds the rotor during pump operation and enters an axial
bore provided at the rear end of the rotor shaft. The axial bore leads to the front
face of the impeller-side shaft end.
The pressure difference between the bores (2 and 8) and the outlet of the axial bore
through the shaft at the impeller-side shaft end results in a continuous partial flow
of fluid handled. As this partial flow passes through the circular clearance between
the rotor and the can, it dissipates the heat losses generated in the motor. The
intensive exchange of fluid from the hydraulic space to the rotor space and back to
the suction side of the hydraulic system also ensures sufficient lubrication of the plain
bearings.
Depending on the pump model, the pump set is connected to the power supply
either via the terminal box (7) or the free cable end (12), which is firmly connected to
the motor. Depending on the technical version, additional equipment such as
temperature sensors for monitoring the rotor space temperature (PT-100) can be
provided in the motor.
Design
Function
4 Description of the Pump (Set)
16 of 60 Etaseco/Etaseco I

PTC thermistors for monitoring the winding temperature can optionally be fitted. On
pump models with "free cable end" the temperature sensors can optionally be
connected via an additional connection cable.
The pump is a seal-less canned motor pump.
It is sealed by static O-rings. It is not fitted with any dynamic sealing elements.
4.6 Noise characteristics
Table 7: Surface sound pressure level LpA
Motor code Motor size DS Surface sound pressure
level4) LpA
[dB]
12 90.2–1,1 49
22 90.2–2,2 49
42 112.2–4 52
52 112.2–5,5 53
72 132.2–7,5 55
112 132.2–11 58
152 132.2–15 60
4.7 Dimensions and weights
For dimensions and weights please refer to the general arrangement drawing/outline
drawing of the pump/pump set.
4.8 Scope of supply
▪Pump with motor
Special accessories:
▪Dry running protection
▪Motor standstill heater
▪Thermistor tripping unit (if thermal motor protection is used)
▪Main flow filter
Sealing
4) Spatial average; as per ISO 3744 and EN 12639; valid for pump operation in the Q/Qopt = 0.80 - 1.1 range and for non-
cavitating operation. If noise levels are to be warranted, add 3 dB for measuring and constructional tolerance.
4 Description of the Pump (Set)
Etaseco/Etaseco I 17 of 60

5 Installation at Site
5.1 Safety regulations
DANGER
Installation in potentially explosive atmospheres
Explosion hazard!
▷Do not install the pump in potentially explosive atmospheres.
▷Observe the information given in the data sheet and on the name plates of the
pump system.
5.2 Checks to be carried out prior to installation
Place of installation
WARNING
Installation on foundations which are unsecured and cannot support the load
Personal injury and damage to property!
▷Make sure the foundation concrete is of sufficient strength (min. X0 to
DIN 1045).
▷Only place the pump set on a foundation whose concrete has set firmly.
▷Only place the pump set on a horizontal and level surface.
▷Refer to the weights given in the general arrangement drawing.
CAUTION
Non-compliance with permissible cable bending radius
Damage to the cable!
▷Observe the permissible minimum bending radius indicated in the
manufacturer's data sheet; consult KSB, if necessary.
1. Check structural requirements.
All structural work required must have been prepared in accordance with the
dimensions stated in the outline drawing/general arrangement drawing.
2. When selecting the place of installation make sure that connections 6B, 10E and
11E can easily be accessed during pump operation.
D00352
21
34
1 Connection 1M (pressure gauge) /
6D (vent connection, if required)
2 Connection 10E (barrier fluid) /
11E.3 (flushing liquid)
3 Connection 6B.4 (motor drain) /
11E (flushing liquid)
4 Connection 6B (casing drain)
5.3 Installing the pump set
The pump set can be installed in either horizontal position or vertical position (with
the motor on top or below).
Other installation types only after consultation with KSB.
5 Installation at Site
18 of 60 Etaseco/Etaseco I

5.3.1 Horizontal installation
5.3.1.1 Installation without baseplate
Fig. 6: Horizontal installation
✓The installation surface has the required strength and characteristics.
✓The installation surface has been prepared in accordance with the dimensions
given in the outline drawing/general arrangement drawing.
✓The plug fixings used are suitable for the pump weight.
1. Remove the covers from the suction and discharge flanges.
2. Position the pump set on the installation surface and support the motor end in
such a way that the discharge nozzle flange is in horizontal position.
3. Use shims for height compensation, if necessary.
All shims must lie perfectly flush.
4. Insert the fastening bolts into the casing foot and tighten them lightly.
5. Align the pump set with the help of a spirit level placed on the motor housing
and the discharge nozzle.
6. To prevent any stresses and strains when tightening the bolts completely, remove
any supports from underneath the pump set.
7. Tighten the fastening bolts completely.
5.3.1.2 Installation with baseplate (optional)
12
43
Fig. 7: Fitting the shims
1 Bolt-to-bolt clearance 2 Shim
3 Shim for bolt-to-bolt clearance >
800 mm
4 Foundation bolt
✓The installation surface has the required strength and characteristics.
✓The installation surface has been prepared in accordance with the dimensions
given in the outline drawing/general arrangement drawing.
✓The plug fixings used are suitable for the pump weight.
1. Remove the covers from the suction and discharge flanges.
2. Position the pump set on the foundation and align it with the help of a spirit
level placed on the shaft and discharge nozzle.
Permissible deviation: 0.2 mm/m.
3. Use shims (2) for height compensation, if necessary.
Always fit shims between the baseplate/foundation frame and the foundation
itself; always insert them to the left and right of the foundation bolts (4) and in
5 Installation at Site
Etaseco/Etaseco I 19 of 60

close proximity to these bolts.
For a bolt-to-bolt clearance > 800 mm, fit additional shims (3) halfway between
the adjoining holes.
All shims must lie perfectly flush.
4. Insert the foundation bolts (4) into the holes provided.
5. Use concrete to set the foundation bolts (4) into the foundation.
6. Wait until the concrete has set firmly, then align the baseplate.
7. Tighten the foundation bolts (4) evenly and firmly.
5.3.2 Vertical installation
CAUTION
Viscosity of fluid handled > 15mm²/s and installation with "motor on top"
Pump damage during start-up!
▷Manually prime/vent the motor space during start-up (pump set will not be self-
venting).
12
Fig. 8: Vertical installation
1 Installation type "Motor below" 2 Installation type "Motor on top"
✓The wall has the required strength and characteristics.
✓The wall has been prepared in accordance with the dimensions given in the
outline drawing/general arrangement drawing.
✓The plug fixings used are suitable for the pump weight.
1. Remove the covers from the suction and discharge flanges.
2. Position the pump in the required place of installation with a floor-mounted
support or crane.
3. Insert the fastening bolts into the casing foot and tighten them sufficiently to
make sure the pump set cannot tip over.
4. To prevent any stresses and strains when tightening the bolts completely, remove
any floor-mounted supports from underneath the pump set.
5. Align the pump set with the help of a spirit level placed on the suction nozzle
and the motor housing in such a way that the discharge nozzle flange is in
vertical position.
6. Use shims for height compensation, if necessary.
All shims must lie perfectly flush.
7. Tighten the fastening bolts at the pump foot completely.
8. Tighten the support foot (if any) at the motor without transmitting any stresses
or strains.
Use shims for height compensation, if necessary. All shims must lie perfectly flush.
5 Installation at Site
20 of 60 Etaseco/Etaseco I
