Kubota B2301 User manual

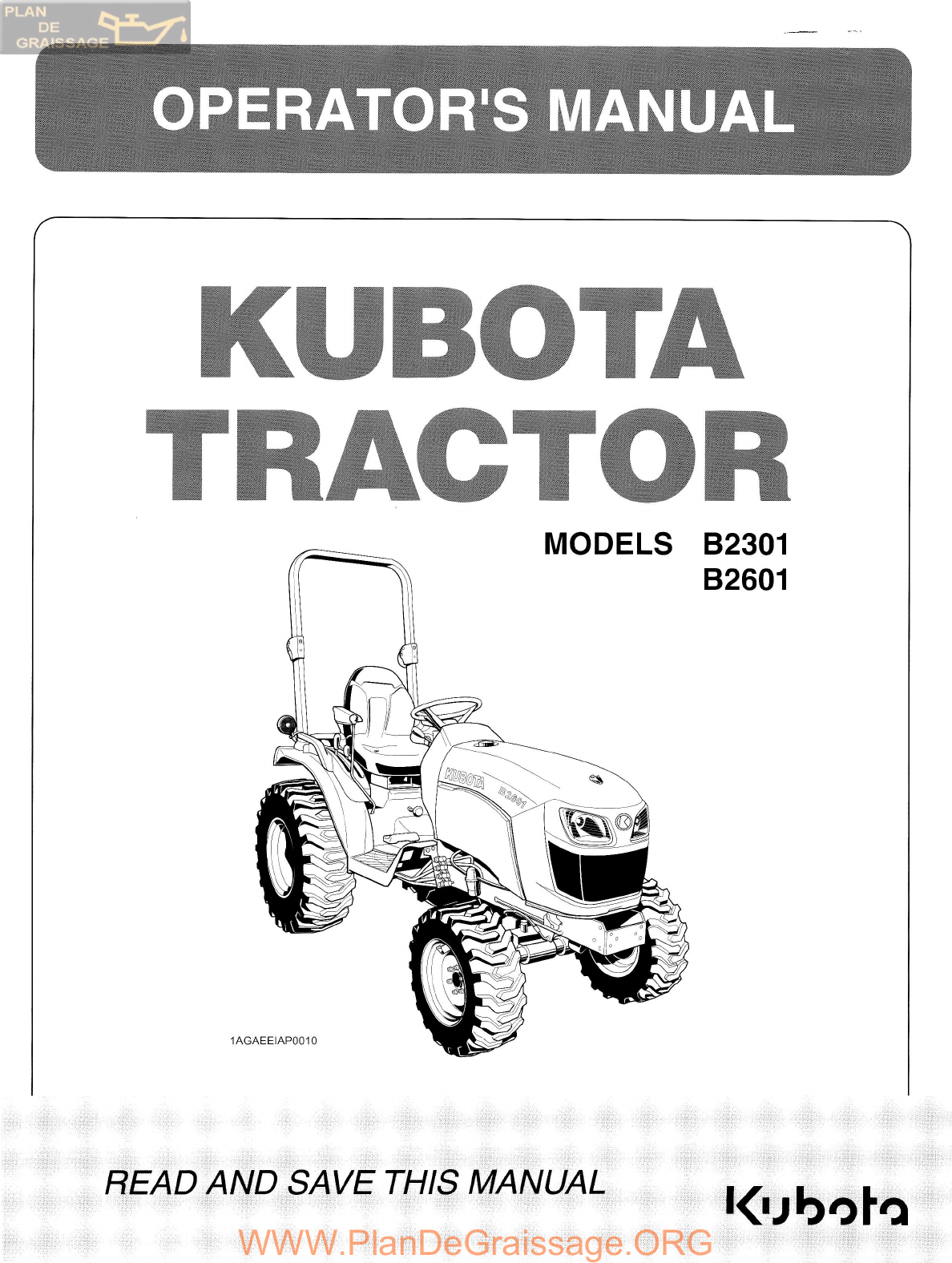

OPERATOR'S MANUAL
KUBOTA
1AGAEEIAP0010
MODELS B2301
B2601
READ AND SAVE THIS MANUAL
Kuboho
WWW.PlanDeGraissage.ORG

ABBREVIATION LIST
Abbreviations
Definitions
2WD
2-Wheel Drive
4WD
4-Wheel Drive
API
American Petroleum Institute
ASABE
American Society of Agricultural and Biological Engineers, USA
ASTM
American Society of Testing and Materials, USA
DIN Deutsches Institut fur Normung, GERMANY
DT Dual Traction [4WD]
fpm Feet Per Minute
Hi-Lo
High Speed-Low Speed
HST Hydrostatic Transmission
m/s Meters Per Second
PTO
Power Take Off
RH/LH Right-hand and left-hand sides are determined by facing in
the direction of forward travel
ROPS
Roll-Over Protective Structures
rpm Revolutions Per Minute
r/s Revolutions Per Second
SAE Society of Automotive Engineers, USA
SMV
Slow Moving Vehicle
California Proposition 65
A WARNING A
Engine exhaust, some of its constituents,
certain vehicle components and fluids,
contain or emit chemicals known to the
State of California to cause cancer and birth
defects or other reproductive harm.
IMPORTANT
The engine in this machine is not equipped by the manufacturer
with a standard spark arrester.
It is a violation of California Public Resource Code Section 4442 to
use or operate this engine on or near any forest-covered, brush-
covered land, or grass- covered land unless the exhaust system is
equipped with a working spark arrester meeting state laws. Other
states or federal areas may have similar laws.
WWW.PlanDeGraissage.ORG

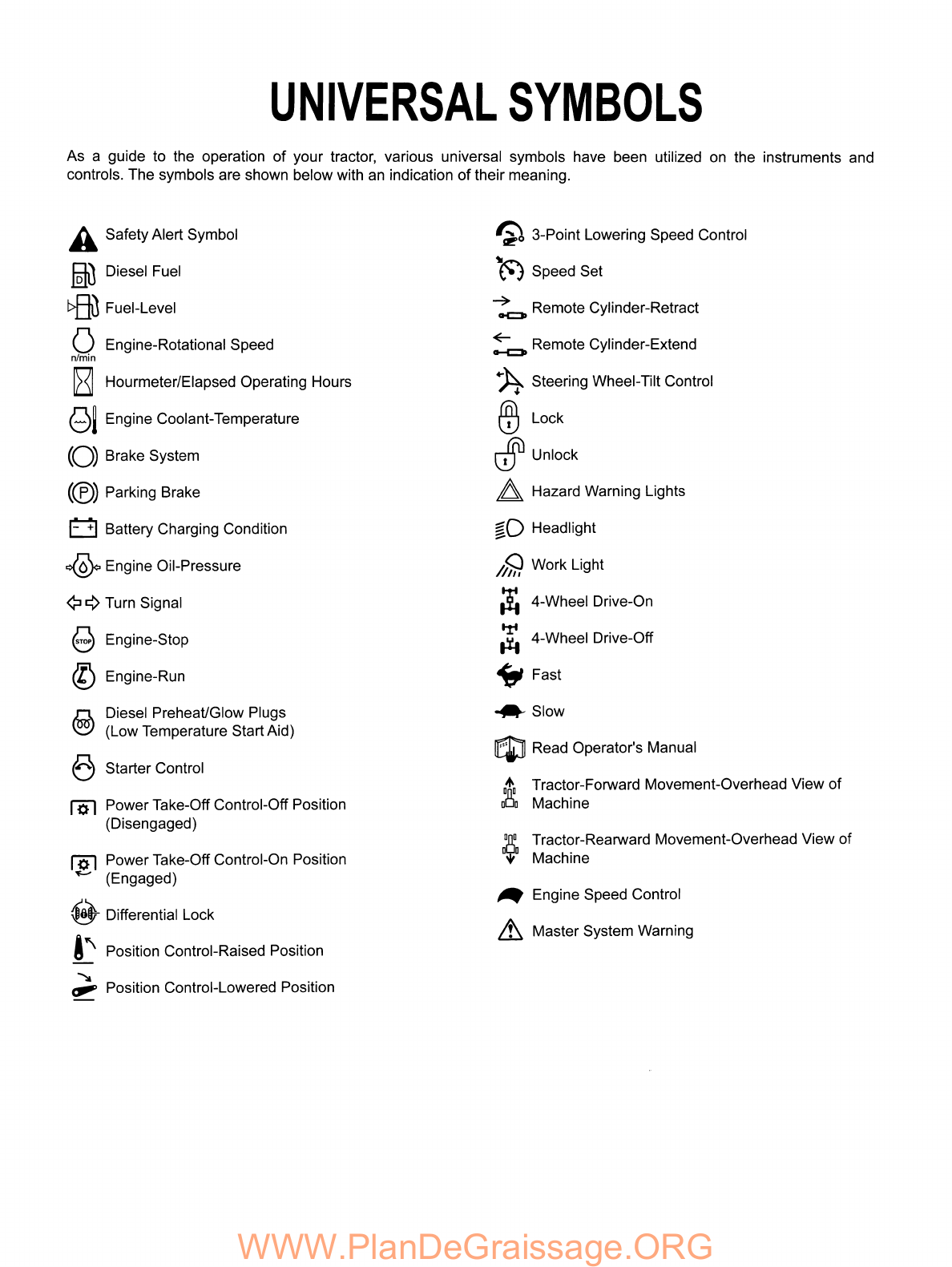

UNIVERSAL SYMBOLS
As a guide to tlie operation of your tractor, various universal symbols have been utilized on the instruments and
controls. The symbols are shown below with an indication of their meaning.
Safety Alert Symbol
D esel Fuel
l>~il Fuel-Level
Engine-Rotational Speed
n/min
^ Hourmeter/Elapsed Operating Hours
(^1 Engine Coolant-Temperature
(O) System
(©) ^^'"'^''^9 Brake
l" +1 Battery Charging Condition
Engine Oil-Pressure
Turn Signal
0 Engine-Stop
^ Engine-Run
n Diesel Preheat/Glow Plugs
® (Low Temperature Start Aid)
^ Starter Control
Power Take-Off Control-Off Position
(Disengaged)
Power Take-Off Control-On Position
^(Engaged)
Differential Lock
Position Control-Raised Position
Position Control-Lowered Position
-Si
A
to
K
»!•
A
3-Point Lowering Speed Control
Speed Set
Remote Cylinder-Retract
Remote Cylinder-Extend
Steering Wheel-Tilt Control
Lock
Unlock
Hazard Warning Lights
Headlight
Work Light
4-Wheel Drive-On
4-Wheel Drive-Off
Fast
Slow
Read Operator's Manual
Tractor-Forward Movement-Overhead View of
Machine
Tractor-Rearward Movement-Overhead View of
Machine
Engine Speed Control
Master System Warning
WWW.PlanDeGraissage.ORG

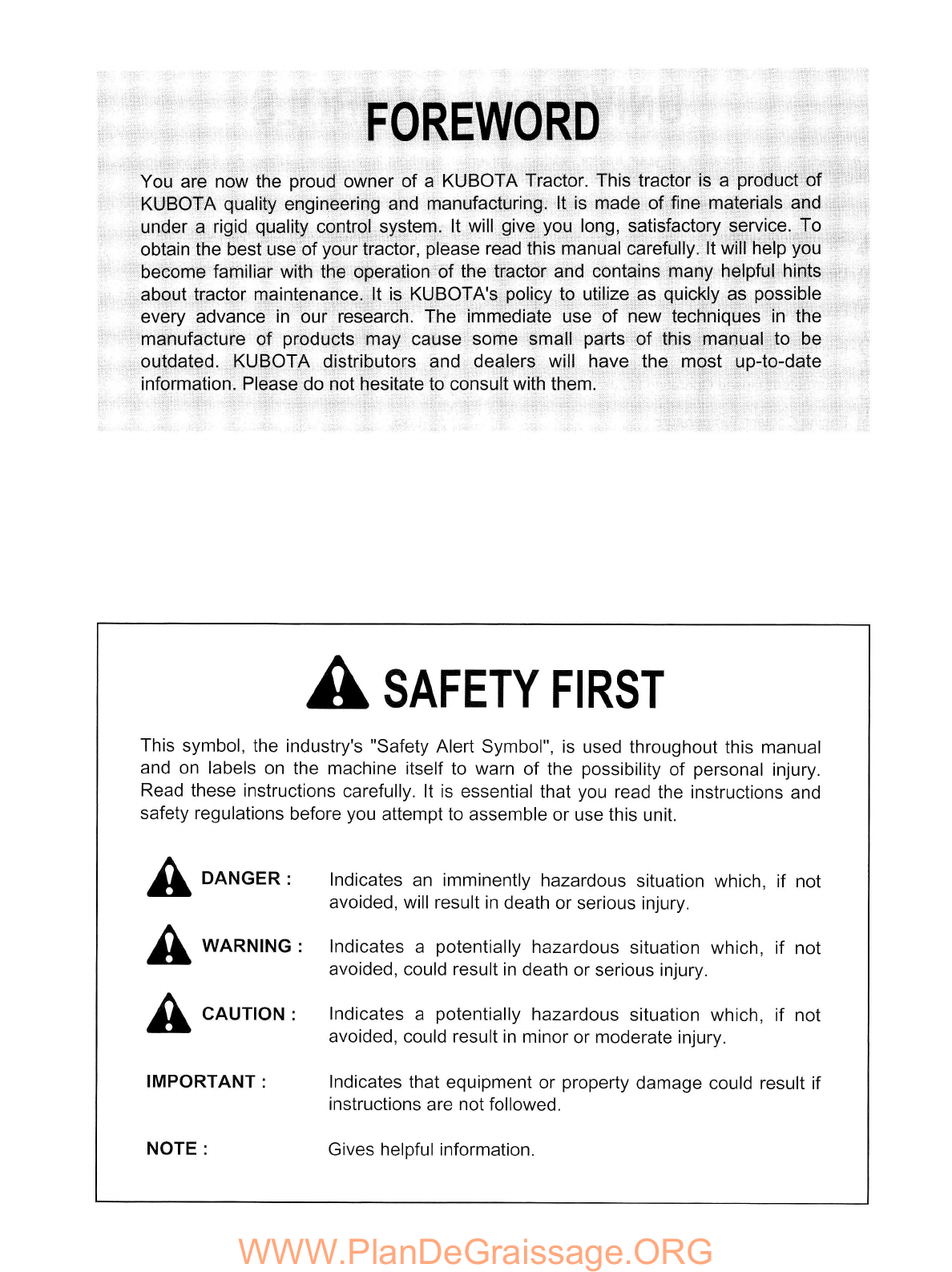

FOREWORD
You are now the proud owner of a KUBOTA Tractor. This tractor is a product of
KUBOTA quality engineering
and manufacturing. It is made of fine materials and
under a rigid quality control system. It will give you long, satisfactory service. To
obtain the best use of your tractor, please read this manual carefully. It will help you
become familiar with the operation of the tractor and contains many helpful hints
about tractor maintenance. It is KUBOTA's policy to utilize as quickly as possible
every advance in our research. The immediate use of new techniques in the
manufacture of products may cause some small parts of this manual to be
outdated. KUBOTA distributors and dealers will have the most up-to-date
information. Please do not hesitate to consult with them.
A SAFETY FIRST
This symbol, the industry's "Safety Alert Symbol", is used throughout this manual
and on labels on the machine itself to warn of the possibility of personal injury.
Read these instructions carefully. It is essential that you read the instructions and
safety regulations before you attempt to assemble or use this unit.
A
A
A
DANGER : Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING :
Indicates apotentially hazardous situation which, if not
avoided, could result in
death or serious injury.
CAUTION : Indicates a potentially hazardous situation which, if not
avoided, could result in minor or moderate injury.
IMPORTANT:
Indicates that equipment or property damage could result if
instructions are not followed.
Gives helpful information.
WWW.PlanDeGraissage.ORG

ASAFE OPERATION A-1

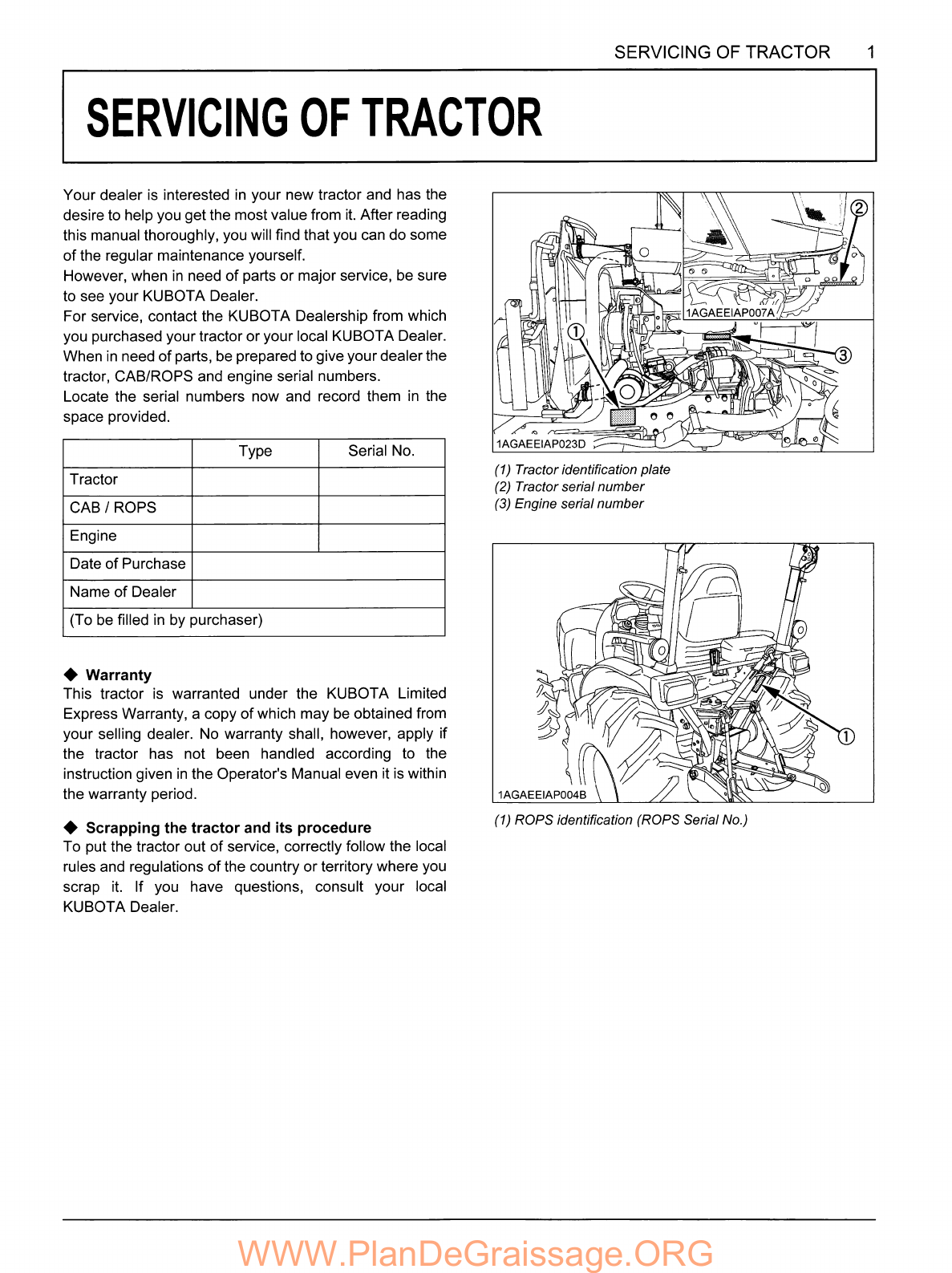

SERVICING OF TRACTOR 1
SPECIFICATIONS 2
SPECIFICATION TABLE 2
TRAVELING SPEEDS 4
IMPLEMENT LIMITATIONS 5
INSTRUMENT PANEL AND CONTROLS 7
PRE-OPERATION CHECK 9
DAILY CHECK 9
OPERATING THE ENGINE 10
STARTING THE ENGINE 10
Block Heater (Option) 13
STOPPING THE ENGINE 13
WARMING UP 14
Warm-up Transmission Oil at Low Ambient Temperatures 14
JUMP STARTING 14
OPERATING THE TRACTOR 16
OPERATING NEW TRACTOR 16
Do not Operate the Tractor at Full Speed for the First 50 Hours 16
Changing Lubricating Oil for New Tractors 16
BOARDING AND LEAVING THE TRACTOR 16
OPERATING FOLDABLE ROPS 16
To Fold the ROPS 16
To Raise the ROPS to Upright Position 17
Adjustment of Foldable ROPS 18
STARTING 18
Operator's Seat 18
Seat Belt 19
TiltSteering Adjustment 19
Head Light / Turn Signal /Hazard Light Switch 20
Tractor Lights 21
Brake Pedals (Right and Left) 21
Range Gear Shift Lever (L-M-H) 22
Front Wheel Drive Lever 23
Hand Throttle Lever 23
Parking Brake 23
Speed Control Pedal 24
Speed Set Device 24
STOPPING 25
Stopping 25
CHECK DURING DRIVING 25
Immediately Stop the Engine if: 25
Easy Checker (TM) 25
WWW.PlanDeGraissage.ORG

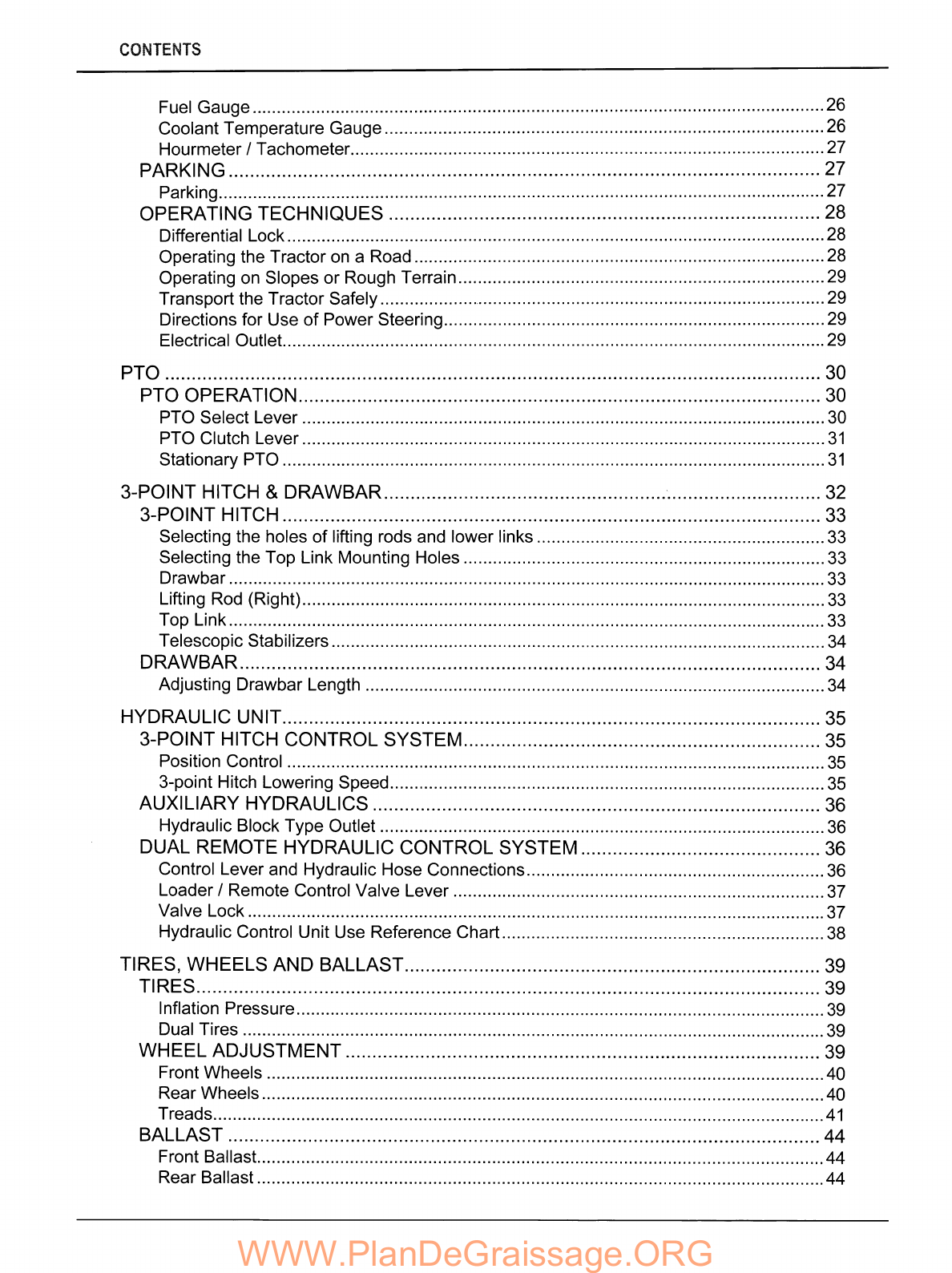

CONTENTS
Fuel Gauge 26
Coolant Temperature Gauge 26
Hourmeter / Tachometer 27
PARKING 27
Parking 27
OPERATING TECHNIQUES 28
Differential Lock 28
Operating the Tractor on a Road 28
Operating on Slopes or Rough Terrain 29
Transport the Tractor Safely 29
Directions for Use of Power Steering 29
Electrical Outlet 29
PTO 30
PTO OPERATION 30
PTO Select Lever 30
PTO Clutch Lever 31
Stationary PTO 31
3-POINT HITCH & DRAWBAR 32
3-POINT HITCH 33
Selecting the holes of lifting rods and lower links 33
Selecting the Top Link Mounting Holes 33
Drawbar 33
Lifting Rod (Right) 33
Top Link 33
Telescopic Stabilizers 34
DRAWBAR 34
Adjusting Drawbar Length 34
HYDRAULIC UNIT 35
3-POINT HITCH CONTROL SYSTEM 35
Position Control 35
3-point Hitch Lowering Speed 35
AUXILIARY HYDRAULICS 36
Hydraulic Block Type Outlet 36
DUAL REMOTE HYDRAULIC CONTROL SYSTEM 36
Control Lever and Hydraulic Hose Connections 36
Loader / Remote Control Valve Lever 37
Valve Lock 37
Hydraulic Control Unit Use Reference Chart 38
TIRES, WHEELS AND BALLAST 39
TIRES 39
Inflation Pressure 39
Dual Tires 39
WHEEL ADJUSTMENT 39
Front Wheels 40
Rear Wheels 40
Treads 41
BALLAST 44
Front Ballast 44
Rear Ballast 44
WWW.PlanDeGraissage.ORG

CONTENTS
MAINTENANCE 45
SERVICE INTERVALS 45
LUBRICANTS,FUEL AND COOLANT 47
PERIODIC SERVICE 50
HOW TO OPEN THE HOOD 50
Hood 50
Engine Side Cover 51
DAILY CHECK 51
Walk Around Inspection 51
Checking and Refueling 51
Checking Engine Oil Level 52
Checking Transmission Fluid Level 52
Checking
Coolant Level 53
Cleaning Evacuator Valve 53
Cleaning Grill and Radiator Screen 53
Checking Brake
Pedal 54
Checking Gauges, Meter and Easy Checker(TM) 54
Checking Head Light, Hazard Light etc ....54
Checking Seat Belt and ROPS 54
Checking and Cleaning of Electrical Wiring and Battery Cables 54
Checking Movable Parts 54
EVERY 50 HOURS 55
Lubricating Grease Fittings 55
Checking Engine Start System 55
Checking Wheel Bolt Torque 56
EVERY 100 HOURS 56
Checking Battery Condition 56
Cleaning AirCleaner Primary Element 58
Cleaning Fuel Filter 58
Adjusting Fan Belt Tension 59
Adjusting Brake Pedal 60
Checking Fuel Line 60
EVERY 200 HOURS 61
Replacing Engine Oil Filter 61
Changing Engine oil 61
Replacing Transmission
Oil Filter [HST] 62
Checking Radiator Hose and Clamp 63
Checking Intake Air Line 63
Adjusting Toe-in 64
EVERY 400 HOURS 64
Changing Transmission Fluid 64
Replacing Hydraulic Oil Filter 65
Adjusting Front Axle Pivot [4WD] 66
Replacing Fuel Filter Element 66
Changing Front Axle
Case Oil 67
EVERY 800 HOURS 67
Adjusting Engine Valve Clearance 67
EVERY 1 500 HOURS 67
Checking Fuel Injection Nozzle Injection Pressure 67
EVERY 3 000 HOURS 67
Checking Injection Pump 67
WWW.PlanDeGraissage.ORG

CONTENTS
EVERY 1 YEAR 67
Replacing Air Cleaner Primary Element and Secondary Element 67
EVERY 2 YEARS 67
Flushing Cooling System and Changing Coolant 67
Anti-Freeze 68
Replacing Radiator Hose (Water pipes) 69
Replacing Fuel Hose 69
Replacing Intake Air Line 69
SERVICE AS REQUIRED 69
Bleeding Fuel System 69
Draining Clutch Housing Water 69
Replacing Fuse 70
Replacing Light Bulb 70
STORAGE 71
TRACTOR STORAGE 71
REMOVING THE TRACTOR FROM STORAGE 71
TROUBLESHOOTING 72
ENGINE TROUBLESHOOTING 72
OPTIONS 73
APPENDICES 74
INDEX 74
WWW.PlanDeGraissage.ORG

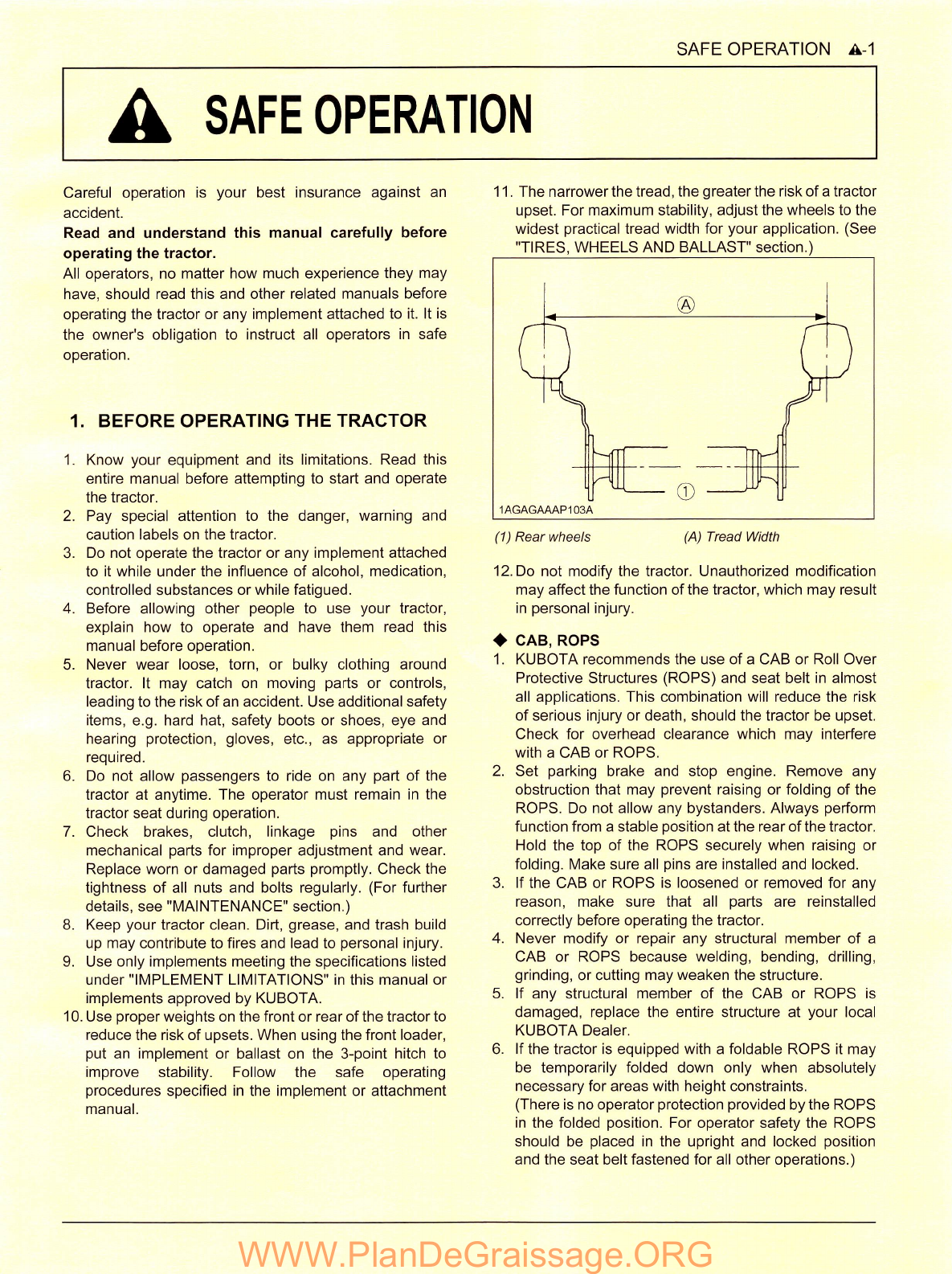

SAFE OPERATION A-1
SAFE OPERATION
Careful operation is your best insurance against an
accident.
Read and understand this manual carefully before
operating the tractor.
All operators, no matter how much experience they may
have, should read this and other related manuals before
operating the tractor or any implement attached to it. It is
the owner's obligation to instruct all operators in safe
operation.
1. BEFORE OPERATING THE TRACTOR
1.
2.
3.
4.
5.
6.
7.
8.
9.
Know your equipment and its limitations. Read this
entire manual before attempting to start and operate
the tractor.
Pay special attention to the danger, warning and
caution labels on the tractor.
Do not operate the tractor or any implement attached
to it while under the influence of alcohol, medication,
controlled substances or while fatigued.
Before allowing other people to use your tractor,
explain how to operate and have them read this
manual before operation.
Never wear loose, torn, or bulky clothing around
tractor. It may catch on moving parts or controls,
leading to
the risk of an accident. Use additional safety
items, e.g. hard hat, safety boots or shoes, eye and
hearing protection, gloves, etc., as appropriate or
required.
Do not allow passengers to ride on any part of the
tractor at anytime. The operator must remain in the
tractor seat during operation.
Check brakes, clutch, linkage pins and other
mechanical parts for improper adjustment and wear.
Replace worn or damaged parts promptly. Check the
tightness of all nuts and bolts regularly. (For further
details,
see "MAINTENANCE" section.)
Keep your tractor clean. Dirt, grease, and trash build
up may contribute to fires and lead to personal injury.
Use only implements meeting the specifications listed
under "IMPLEMENT LIMITATIONS" in this manual or
implements approved by KUBOTA.
10. Use proper weights on the front or rear of the tractor to
reduce the risk of upsets. When using the front loader,
put an implement or ballast on the 3-point hitch to
improve stability. Follow the safe operating
procedures specified in the implement or attachment
manual.
11. The narrower the tread, the greater the risk of a tractor
upset. For maximum stability, adjust the wheels to the
widest practical tread width for your application. (See
"TIRES, WHEELS AND BALLAST" section.)
1AGAGAAAP103A
(1) Rear wheels
(A) Tread Width
12. Do not modify the tractor. Unauthorized modification
may affect the function of the tractor, which may result
in personal injury.
♦ CAB, ROPS
1. KUBOTA recommends the use of a CAB or Roll Over
Protective Structures (ROPS) and seat belt in almost
all applications. This combination will reduce the risk
of
serious injury or death, should the tractor be upset.
Check for overhead clearance which may interfere
with a CAB or ROPS.
2. Set parking brake and stop engine. Remove any
obstruction that may prevent raising or folding of the
ROPS. Do not allow any bystanders. Always perform
function from a stable position at the rear of the tractor.
Hold the top of the ROPS securely when raising or
folding. Make
sure all pins are installed and locked.
3. If
the CAB or ROPS is loosened or removed for any
reason, make sure that all parts are reinstalled
correctly before operating the tractor.
4. Never modify or repair any structural member of a
CAB or ROPS because welding, bending, drilling,
grinding, or cutting
may weaken the structure.
5. If any structural member of the CAB or ROPS is
damaged, replace the entire structure at your local
KUBOTA Dealer.
6. If the tractor is equipped with a foldable ROPS it may
be temporarily folded down only when absolutely
necessary for areas with height constraints.
(There is no operator protection provided by the ROPS
in the folded position. For operator safety the ROPS
should be placed in the upright and locked position
and the seat belt fastened for all other operations.)
WWW.PlanDeGraissage.ORG

A-2 SAFE OPERATION

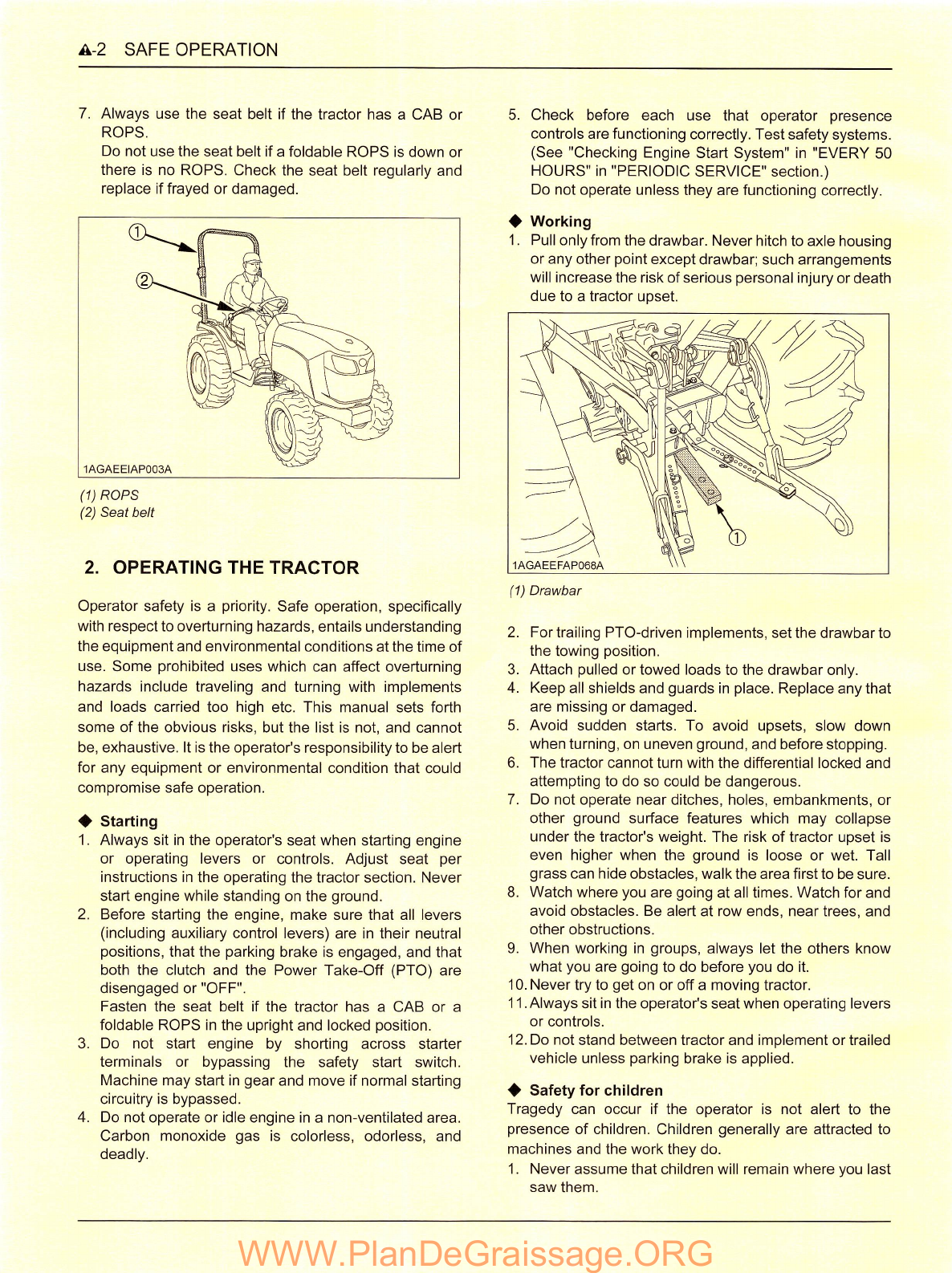

7. Always use the seat belt if the tractor has a CAB or
ROPS.
Do not use the seat belt if a foldable ROPS is down or
there is no ROPS. Check the seat belt regularly and
replace iffrayed or damaged.
1AGAEEIAP003A
(1) ROPS
{2) Seat belt
2. OPERATING THE TRACTOR
Operator safety is a priority. Safe operation, specifically
with
respect to overturning hazards, entails understanding
the equipment and environmental conditions at the time of
use. Some prohibited uses which can affect overturning
hazards include traveling and turning with implements
and loads carried too high etc. This manual sets forth
some of the obvious risks, but the list is not, and cannot
be, exhaustive. Itis the operator's responsibility to be alert
for any equipment or environmental condition that could
compromise safe operation.
♦
1.
2.
3.
4.
Starting
Always sit in the operator's seat when starting engine
or operating levers or controls. Adjust seat per
instructions in the operating the tractor section. Never
start engine while standing on the ground.
Before starting the engine, make sure that all levers
(including auxiliary control levers) are in their neutral
positions, that the parking brake is engaged, and that
both the clutch and the Power Take-Off (PTO) are
disengaged or "OFF".
Fasten the seat belt if the tractor has a CAB or a
foldable ROPS in the upright and locked position.
Do not
start engine by shorting across starter
terminals or bypassing the safety start switch.
Machine may start in gear and move if normal starting
circuitry is bypassed.
Do not operate or idle engine in a non-ventilated area.
Carbon monoxide gas is colorless, odorless, and
deadly.
5. Check before each use that operator presence
controls are functioning correctly. Test safety systems.
(See "Checking Engine Start System" in "EVERY 50
HOURS" in "PERIODIC SERVICE" section.)
Do not operate unless they are functioning correctly.
♦ Working
1. Pull only from the drawbar. Never hitch to axle housing
or any other point except drawbar; such arrangements
will increase the risk of serious personal injury or death
due to a tractor upset.
1AGAEEFAP068A
(1) Drawbar
2.
For trailing PTO-driven implements, set the drawbar to
the towing position.
3. Attach pulled or towed loads to the drawbar only.
4. Keep all shields and guards in place. Replace any that
are missing or damaged.
5. Avoid sudden starts. To avoid upsets, slow down
when turning, on uneven ground, and before stopping.
6. The tractor cannot turn with the differential locked and
attempting to do so could be dangerous.
7. Do not operate near ditches, holes, embankments, or
other ground surface features which may collapse
under the tractor's weight. The risk of tractor upset is
even higher when the ground is loose or wet. Tall
grass can hide obstacles, walk the area first to be sure.
8. Watch where you are going at all times. Watch for and
avoid obstacles. Be alert at row ends, near trees, and
other obstructions.
9. When working in groups, always let the others know
what you are going to do before you do it.
10.
Never try to get on or off a moving tractor.
11. Always sit in the operator's seat when operating levers
or controls.
12. Do not stand between tractor and implement or trailed
vehicle unless parking brake is applied.
♦ Safety for children
Tragedy can occur if the operator is not alert to the
presence of children. Children generally are attracted to
machines and the work they do.
1.
Never assume that children will remain where you last
saw them.
WWW.PlanDeGraissage.ORG

2. Keep children out of the work area and under the
watchful eye of another responsible adult.
3. Be alert and shut your machine down ifchildren enter
the work area.
4. Never carry children on your machine. There is no safe
place for them to ride. They may fall off and be run
over or interfere with your control of the machine.
5. Never allow children to operate the machine even
under adult supervision.
6. Never allow children to play on the machine or on the
implement.
7. Use extra caution when backing up. Look behind and
down to make sure area is clear before moving.
♦ Operating on slopes
Slopes are a major factor related to loss-of-control and tip-
over accidents, which can result in severe injury or death.
All slopes require extra caution.
1. To avoid upsets, always back up steep slopes. If you
cannot back up the slope or ifyou feel uneasy on it, do
not
operate on it. Stay off slopes too steep for safe
operation.
2. Driving forward out of a ditch, mired condition or up a
steep slope increases the risk of a tractor to be upset
backward. Always back out of these situations. Extra
caution Is required with 4-wheel drive models because
their increased traction can give the operator false
confidence in the tractor's ability to climb slopes.
3. Keep all movement on slopes slow and gradual. Do
not
make sudden changes in speed, direction or apply
brake and make sudden motions of the steering
wheel.
4. Avoid disengaging the clutch or changing gears speed
when climbing or going down a slope. If on a slope
disengaging the clutch or changing gears to neutral
could cause loss of control.
5. Special attention should be made to the weight and
location of implements and loads as such will affect the
stability of the tractor.
6. To improve stability on slope, set widest wheel tread
as shown in "TIRES, WHEELS AND BALLAST"
section.
Follow recommendations for proper ballasting.
♦ Driving the tractor on the road
1. Lock the 2 brake pedals together to help assure
straight-line stops. Uneven braking at road speeds
could cause the tractor to tip over.
1AGAEEFAP017A
(1) Brake Pedal (LH)
(2) Brake Pedal (RH)
(3)
Brake Pedal Lock
SAFE OPERATION A-3
(A) Whenever travelling on the road
2. Check the front wheel engagement. The braking
characteristics are different between 2 and 4-wheel
drive. Be aware of the difference and use carefully.
3. Always slow
the tractor down before turning. Turning
at high speed may tip the tractor over.
4. Make sure that the Slow Moving Vehicle (SMV) sign is
clean and visible. Use hazard lights and turn signals as
required.
1AGAEEIAP004A
(1) SMV emblem
(2) Bracket
5. Observe all local traffic and safety regulations.
6. Turn the headlights on. Dim them when meeting
another vehicle.
7. Drive at speeds that allow you to maintain control at all
times.
8. Do not apply the differential lock while traveling at road
speeds. The tractor may run out of control.
9. Avoid sudden motions of the steering wheel as they
can lead to a dangerous loss of stability. The risk is
especially great when the tractor is traveling at road
speeds.
WWW.PlanDeGraissage.ORG

A-4 SAFE OPERATION
10. Keep the ROPS in the "UP" position and wear the seat
belt when driving the tractor on the road.
Otherwise, you will not be protected in the event of a
tractor roll-over.
11. Do not operate an implement while the tractor is on the
road. Lock the 3-point hitch in the raised position.
12. When towing other equipment, use a safety chain and
place an SMV emblem on it as well.
1AGAEEAAP019A
(1) Safety chain
13. Set the implement lowering speed knob in the "LOCK"
position to hold the implement in the raised position.
1AGAEEIAP005A
(1) 3-point hitch lowering speed l<nob (A) "FAST"
(B) "SLOW"
(C) "LOCK"
3. PARKING THE TRACTOR
1. Disengage the PTO, lower all implements to the
ground, place all control levers in their neutral
positions,
set the parking brake, stop the engine,
remove the key from the ignition and lock the cab door
(if equipped). Leaving transmission in gear with the
engine stopped will not prevent tractor from rolling.
2. Make sure that the tractor has come to a complete
stop before dismounting.
3. Avoid parking on steep slopes, if at all possible park on
a firm and level surface; ifnot, park across a slope with
chock the wheels.
Failure to comply with this warning may allow the
tractor to move and could cause injury or death.
4. OPERATING THE PTO
1. Wait until all moving components have completely
stopped before getting off the tractor, connecting,
disconnecting, adjusting, cleaning, or servicing any
PTO driven equipment.
2. Keep the PTO shaft cover in place at all times.
Replace the PTO shaft cap when the shaft is not in
use.
1AGAEEFAP003B
(1) PTO Shaft cover
(2) PTO Shaft cap
(A) "NORMAL POSITION"
(B) "RAISED POSITION"
3. Before installing or using PTO driven equipment, read
the manufacturer's manual and review the safety
labels attached to the equipment.
4. When operating stationary PTO driven equipment,
always apply the tractor parking brake and place
chocks behind and in front of the rear wheels. Stay
clear of all rotating parts. Never step over rotating
parts.
5. USING 3-POINT HITCH
1. Use the 3-point hitch only with equipment designed for
3-point hitch usage.
2. When using a3-point hitch mounted implement, be
sure to install the proper counterbalance weight on the
front of the tractor.
3. When transporting on the road, set the implement
lowering speed knob in the "LOCK" position to hold the
implement in the raised position.
WWW.PlanDeGraissage.ORG

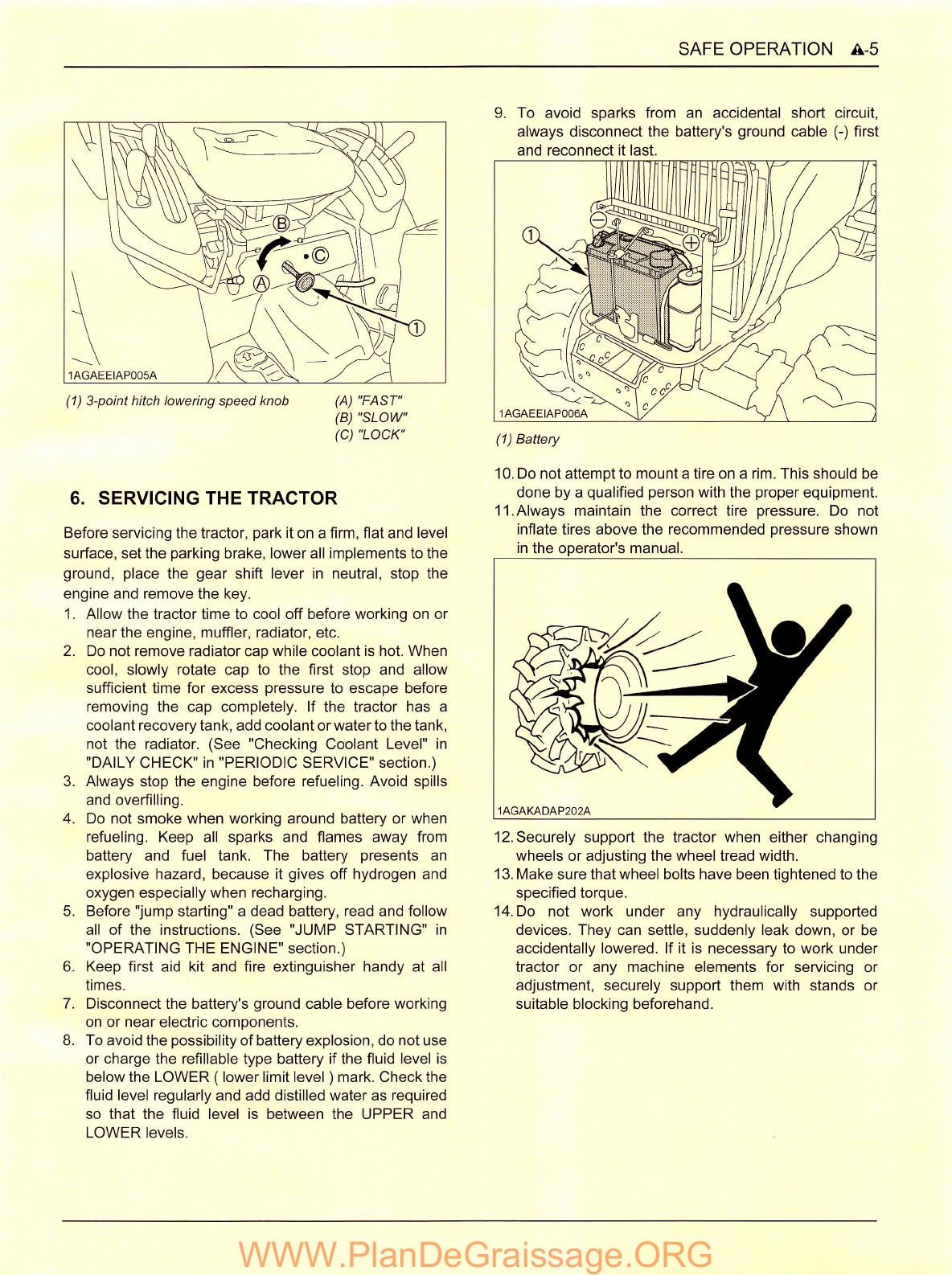

1AGAEEIAP005A
(1) 3-point hitch lowering speed i<nob (A) "FAST"
(B) "SLOW"
(C) "LOCK"
6. SERVICING THE TRACTOR
Before servicing the tractor, park iton a firm, flat and level
surface, set the parking brake, lower all implements to the
ground, place the gear shift lever in neutral, stop the
engine and remove the key.
1. Allow
the tractor time to cool off before working on or
near the engine, muffler, radiator, etc.
2. Do not remove radiator cap while coolant is hot. When
cool, slowly rotate cap to the first stop and allow
sufficient
time for excess pressure to escape before
removing the cap completely. If the tractor has a
coolant recovery tank, add coolant or water to the tank,
not the radiator. (See "Checking Coolant Level" in
"DAILYCHECK" in "PERIODIC SERVICE" section.)
3. Always stop the engine before refueling. Avoid spills
and overfilling.
4. Do not smoke when working around battery or when
refueling. Keep all sparks and flames away from
battery and fuel tank. The battery presents an
explosive hazard, because it gives off hydrogen and
oxygen especially when recharging.
5. Before "jump starting" a dead battery, read and follow
all of the instructions. (See "JUMP STARTING" in
"OPERATING THE ENGINE" section.)
6. Keep first aid kit and fire extinguisher handy at all
times.
7. Disconnect the battery's ground cable before working
on or near electric components.
8. To avoid the possibility of battery explosion, do not use
or charge the refillable type battery if the fluid level is
below the LOWER (lower limit level) mark. Check the
fluid level regularly and add distilled water as required
so that the fluid level is between the UPPER and
LOWER levels.
SAFE OPERATION A-5
9. To avoid sparks from an accidental short circuit,
always disconnect the battery's ground cable (-) first
and reconnect it last.
;©
1AGAEEIAP006A
(1) Battery
10. Do not attempt to mount a tire on a rim. This should be
done by a qualified person with the proper equipment.
11. Always maintain the correct tire pressure. Do not
inflate tires above the recommended pressure shown
in the operator's manual.
1AGAKADAP202A
12. Securely support the tractor when either changing
wheels or adjusting the wheel tread width.
13. Make sure that wheel bolts have been tightened to the
specified torque.
14. Do not work under any hydraulically supported
devices. They can settle, suddenly leak down, or be
accidentally lowered. If it is necessary to work under
tractor or any machine elements for servicing or
adjustment, securely support them with stands or
suitable blocking beforehand.
WWW.PlanDeGraissage.ORG

A-6 SAFE OPERATION
15. Escaping hydraulic fluid under pressure has sufficient
force to
penetrate skin, causing serious personal
injury. Before disconnecting hydraulic lines, be sure to
release all residual pressure. Before applying
pressure to the hydraulic system, make sure that all
connections are tight and that all lines, pipes, and
hoses are free of damage.
1BAACAAAP010B
16. Fluid escaping from pinholes may be invisible. Do not
use hands to search for suspected leaks; use a piece
of cardboard or wood. Use of safety goggles or other
eye protection is also highly recommended. If injured
by escaping fluid, see a medical doctor at once. This
fluid will produce gangrene or severe allergic reaction.
1AGAEAAAP114A
(1) Cardboard
(2) Hydraulic line
(3) Magnifying
glass
WWW.PlanDeGraissage.ORG

7. DANGER, WARNING AND CAUTION LABELS
(1) Part No. TA240-9848-2
'6 (^)
A WARNING
TO AVOID INJURY OR DEATH FROM ROLL-OVER:
• Keep Roll-Over Protective Structures (ROPS)
in the upright and lodged position.
• Fasten SEAT BELT before operating.
THERE IS NO OPERATOR PROTECTION WHEN THEROPSIS INTHE FOLDED POSITION:
•Check the operating area and fold the ROPS only
when absolutely necessary.
• Do not wear SEAT BELT if ROPS is folded.
• Raise and lock ROPS as soon as vertical clearance allows.
• Read ROPS related instructions and warnings.
(2) Part No. TC420-4956-1
Diesel fuel only No fire
n>
•P \
ULTRA LOW SULFUR DIESEL
FUEL ONLY
1AGAIDHAP154E
1AGAEBMAP071E
SAFE OPERATION A-7
(3) Part No. 6C090-4958-2
Do not get your hands close
to engine fan and fan belt.
1AGAIAZAP110A
1AGAEEAP005D
1AGAEEIAP027A
WWW.PlanDeGraissage.ORG

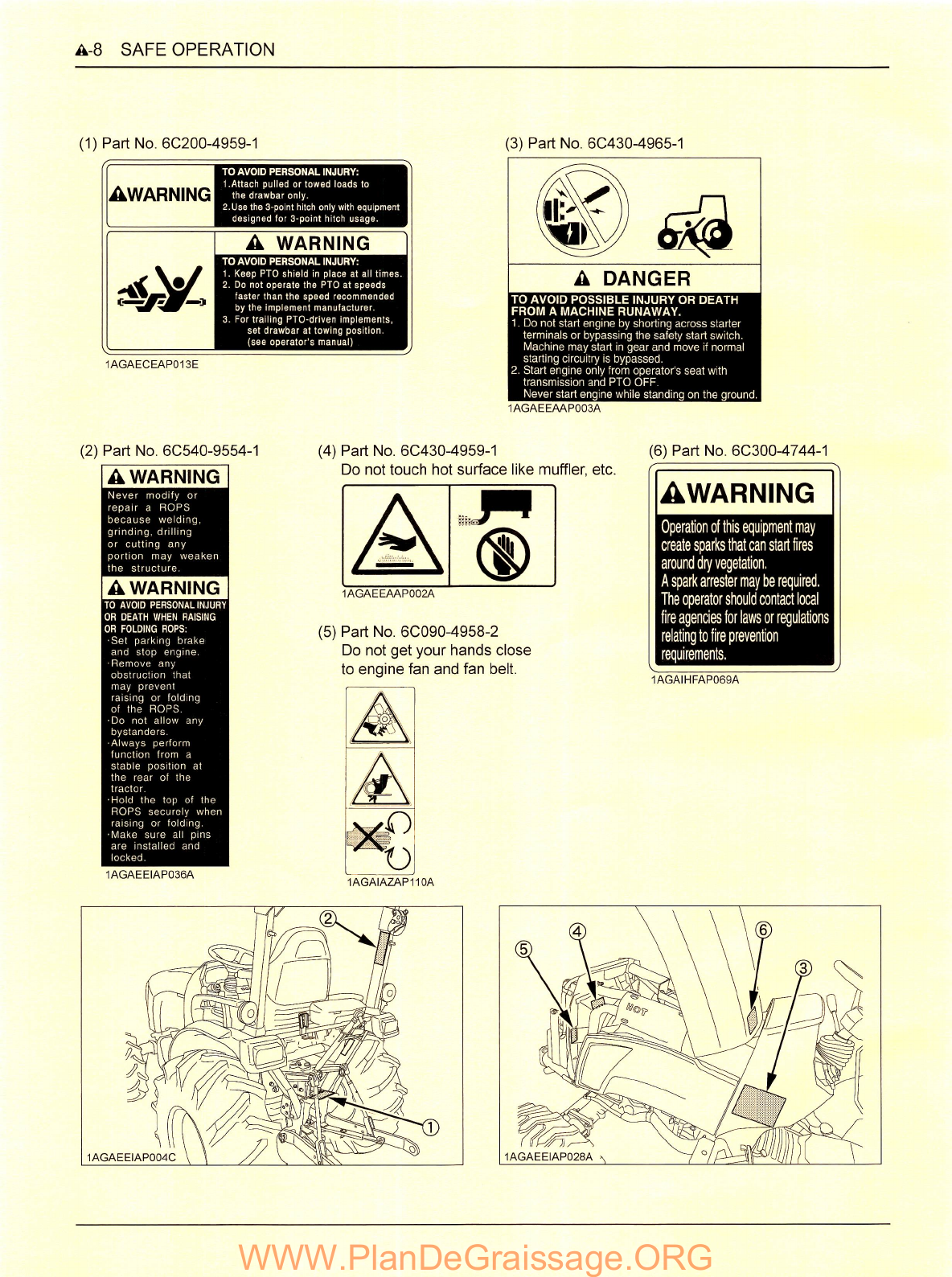

A-8 SAFE OPERATION
(1)Part No. 6C200-4959-1
AWARNING
TO AVOID PERSONAL INJURY:
1 .Attach pulled or towed loads to
the drawbar only.
2.Use the 3-polnt hitch only with equipment
designed for 3-point hitch usage.
V '
A WARNING
TO AVOID PERSONAL INJURY:
1. Keep PTO shield in place at all times.
2. Do not operate the PTO at speeds
faster than the speed recommended
by the implement manufacturer.
3. For trailing PTO-driven implements,
set drawbar at towing position,
(see operator's manual)
1AGAECEAP013E
(3) Part No. 6C430-4965-1
A DANGER
TO AVOID POSSIBLE INJURY OR DEATH
FROM A MACHINE RUNAWAY.
1. Do not start engine by shorting across starter
terminals or bypassing the safety start switch.
Machine may start in
gear and move ifnormal
starting circuitry is
bypassed.
2. Start engine only from operator's seat with
transmission and PTO OFF.
Neverstart engine whilestanding on the ground.
1AGAEEAAP003A
(2) Part No. 6C540-9554-1
A WARNING
(4) Part No. 6C430-4959-1
Do not touch hot surface like muffler, etc.
(6) Part No. 6C300-4744-1
AWARNING
Never modify or
repair a HOPS
because welding,
grinding, drilling
or cutting any
portion may weaken
the structure.
A WARNING
TO AVOID PERSONAL INJURY
OR DEATH WHEN RAISING
OR FOLDING ROPS:
•Set parking brake
and stop engine.
•Remove any
obstruction that
may prevent
raising or folding
of the ROPS.
•Do not allow any
bystanders.
•Always perform
function from a
stable position at
the rear of the
tractor.
•Hold the top of the
ROPS securely when
raising or folding.
•Make sure all pins
are installed and
locked.
1AGAEEIAP036A
1AGAEEIAP004C
A
A
1AGAEEAAP002A
(5) Part No. 6C090-4958-2
Do not get your hands close
to engine fan and fan belt.
1AGAIAZAP110A
1AGAEEIAP028A \
Operation of this equipment may
create sparks thai can start fires
around dry vegetation.
A sparl( arrester may be required.
The operator should contact local
fire agencies for laws or regulations
relating to fire prevention
requirements.
1AGAIHFAP069A
WWW.PlanDeGraissage.ORG

(1) Part No. 6C300-3012-2
33
CHARGE
BATTERY
REPLACE
BATTERY
W©
FUMMA91.6S &H1EU}
eyes
A ® A
CAUnOlB or read INSTRlfCnON gXPtOSiVE
SlkFUftlCWIO HANUALCMEFmr
SWEU) KEEPOin-OF?W£
eyes BEACHOFCBilOREN
55B24LS 430CCA (SAE) 360CCA (EN)
12V 45Ah(20HR) RC80(MIN)
1AGAEBQAP107A
(2) Part No. 6C540-4742-1
rA W A R N I N G
TO AVOID PERSONAL INJURY OR DEATH;
1. Read and understand the operator's manual before operation.
2. Before starting the engine, mal<e sure that everyone is at a safe distance
from the tractor and that the PTO is OFF.
3. Do not allow passengers on the tractor at any time.
4. Before allowing other people to use the tractor, have them read the
operator's manual.
5. Check the tightness of all nuts and bolts regularly.
6. Keep all shields in place and stay away from all moving parts.
7. Lock the two brake pedals together before driving on the road.
8. Slow down for turns, or rough
roads, or when applying individual brakes.
9. On public roads use SMV emblem and hazard lights, if required by local
traffic and safety regulations.
10. Pull only from the drawbar.
11. Before dismounting, lower the implement to the ground, set the parking
brake, stop the engine and remove the key.
12. Securely support tractor and implements before working underneath.
1AGAEEIAP035A
SAFE OPERATION A-9
DANGER
•OUE TO HYDROGD^ GAS GENERATED m(M BATItRY. HANDLING WmOlTT CARE CAN CAUSE f 1R£ AKO 0(PLOSK)N.
•THIS \2V BATTtPY IS CWIY m STAR1ING 9Bm. K) NOT APPLY THIS TFOR OTHER USES.
•CHARGE THIS e^.HERY (^iLY AT ^NTIUI^ PLACES. AHD AVO!0 SHORTS OR SPARKS.
•REFER 70 THE iKSTRUGTlON OF VSHIClE OR BATTERY BEFORE US3^G SOOSTER CABLE.
SDIFUj?{C ACiO MAY CAUSE BLINDNESS OR SEVERE BURfi IN CA^ EYES. Sm. CLOTKES OR ANY ARTICLES ARE
STAINED VVJTH ACID, aUSHOaH:TS IMMEDIATEY WfTH WAT5?. ir ACS 3£l^ SWALLOWED, PLEKTY GF
WM£R PfiCWPTLY IN CASE OF ACCiOBITAL CONTACT, C(WSULTAOOCTQR IMWEOmY
•aATTERY FHIS) mi ACiD (DO NOTTU OR SP!Ll) -FIAMMA&IE. 00 NOT CHARGE NEAR BRE OR SPARKS
•OOf^OT CHARGE fWiOlY -DO NOT OiS^SEI^aE THE 3AnERYtSEAL£0
PROPOSITION 65 WARNING
BATTERY TOSTS. TERMINALS. AND RELATED ACCESSORIES
CONTAIM lEAD AND LEAD COMPOUNDS. CHEMICALS KNOWN
TOTHESTATEOF CAUFORNIft TOCAUSE CANCER AND
REPRODUCTIVE HARM. WASH HANDS AFTER HANDLING.
(3) Part No. 6C150-4743-1
AWARNING
BEFORE DISMOUNTING TRACTOR;
1. ALWAYS SET PARKING BRAKE.
Leaving transmission in gear with the engine
stopped will not prevent tractor Itom rolling.
2. PARK ON LEVEL GROUND WHENEVER POSSIBLE,
If parking on a slope, position tractor
across the slope.
3. LOWER ALL IMPLEMENTS TO THE GROUND.
4.STOP THE ENGINE.
1AGAEBMAP069E
1AGAEEIAP006F
1AGAEEIAP029A
WWW.PlanDeGraissage.ORG

A-10 SAFE OPERATION
8. CARE OF DANGER, WARNING AND CAUTION LABELS
1. Keep danger, warning and caution labels clean and free from obstructing material.
2. Clean danger, warning and caution labels with soap and water, dry with a soft cloth.
3. Replace damaged or missing danger, warning and caution labels with new labels from your local KUBOTA Dealer.
4. Ifa component with danger, warning and caution label(s) affixed is replaced with new part, make sure new label(s) is
(are) attached in the same location(s) as the replaced component.
5. Mount new danger, warning and caution labels by applying on a clean dry surface and pressing any bubbles to outside
edge.
WWW.PlanDeGraissage.ORG

SERVICING OF TRACTOR 1
SERVICING OF TRACTOR
Your dealer is interested in your new tractor and has the
desire to help you get the most value from it. After reading
this
manual thoroughly, you willfind that you can do some
of the regular maintenance yourself.
However, when in need of parts or major service, be sure
to see your KUBOTA Dealer.
For service, contact the KUBOTA Dealership from which
you purchased your tractor or your local KUBOTA Dealer.
When in need of parts, be prepared to give your dealer the
tractor, CAB/ROPS and engine serial numbers.
Locate the serial numbers now and record them in the
space provided.
Type Serial No.
T ractor
CAB/ROPS
Engine
Date of Purchase
Name of Dealer
(To be filled in by purchaser)
♦ Warranty
This tractor is warranted under the KUBOTA Limited
Express Warranty, a copy of which may be obtained from
your selling dealer. No warranty shall, however, apply if
the tractor has not been handled according to the
instruction given in the Operator's Manual even it is within
the warranty period.
♦ Scrapping the tractor and its procedure
To put the tractor out of service, correctly follow the local
rules and regulations of the country or territory where you
scrap it. If you have questions, consult your local
KUBOTA Dealer.
1AGAEEIAP023D
(1) Tractor identification plate
(2) Tractor serial number
(3) Engine serial number
1AGAEEIAP004B \
1AGAEE1AP007A
(1) ROPS identification (ROPS Serial No.)
WWW.PlanDeGraissage.ORG

SPECIFICATIONS
SPECIFICATIONS
SPECIFICATION TABLE
Model B2301HSD
B2601HSD
PTO power
kW (HP)
13.0 (17.5)* 14.5(19.5)*
Maker
KUBOTA
Model
D1005-E4-D32 D1105-E4-D32
Type
E-TVCS, liquid cooled, 3-cylinder diesel
Number of cylinders
3
Bore and stroke mm (in.)
076x73.6(03.0x2.9) 078x78.4 (03.1x3.1)
Engine
Total displacement
cc (cu.in.) 1001 (61.1) 1123 (68.5)
Engine gross power kW (HP) 16.4 (22)*
19.0 (25.5)*
Rated revolution rpm
2800
Low idling revolution rpm
1000 to 1100
Maximum torque N-m (ft-lb)
60 (44) 71 (52)
Battery
12V, RC ;SOmin, CCA : 430A
Fuel tank L (U.S.gals.)
23 (6.1)
Capacities
Engine crankcase (with filter) L (U.S.qts.)
3.1 (3.3)
Engine coolant
L (U.S.qts.) 3.8 (4.0)
Transmission case L (U.S.gals.)
15 (4.0)
Overall length (without 3P)
mm (in.) 2380 (93.7)
2410(94.9)
Overall width (min. tread) mm (in.)
1150 (45.3) 1245 (49.0)
Overall
height mm (in.)
2130 (83.9) 2160 (85.0)
Dimensions
Wheel base mm (in.) 1560 (61.4)
Minimum ground clearance
mm (in.) 305 (12.0) 325(12.8)
Tread
Front mm (in.) 800 (31.5) 815(32.1)
Rear mm (in.) 900 (35.5) 950 (37.4)
Weight
kg (lbs.)
710(1566) 740(1632)
Clutch
Not applicable
Tires
Front
6-12 7-12
Rear 9.5-16 11.2-16
Traveling
system
Steering
Hydrostatic type power steering
Transmission HST (3 ranges)
Brake Dry single plate
Minimum turning radius
(with brake)
m(feet) 2.1 (6.9)
WWW.PlanDeGraissage.ORG
