Kuppersberg FV3XE Installation and maintenance instructions

TECHNICAL PASSPORT
ПАСПОРТ ТЕХНИЧЕСКОГО ИЗДЕЛИЯ
MIXED AND GAS FUELLED BUILT-IN HOT PLATES
КОМБИНИРОВАННЫЕ ВАРОЧНЫЕ ПОВЕРХНОСТИ
FV3XE, FV3TGX

2
TECHNICAL PASSPORT ENGLISH
Mixed and gas fuelled built-in hot plates
1. APPEAL TO THE CUSTOMER
Dear Customer,
Thank you for having purchased one of our products.
We are certain that this new, modern, functional and practical appliance, built
with the very highest quality materials, will meet your requirements in the best
possible way. This appliance is easy to use. it is, however, important to thoroughly
read the instructions in this handbook in order to obtain the best results.
The manufacturer shall not be held responsible for any damages to persons or
property caused by incorrect installation or use of the appliance .
The Manufacturer shall not be held responsible lor any inaccuracies in this
handbook due to printing or transcription errors; the designs in the  gures are purely
indicative. The Manufacturer also reserves the right to make any modi cations to
the products as may be considered necessary or useful, also in the interests of the
user, without jeopardizing the main functional and safety features of the products
themselves.

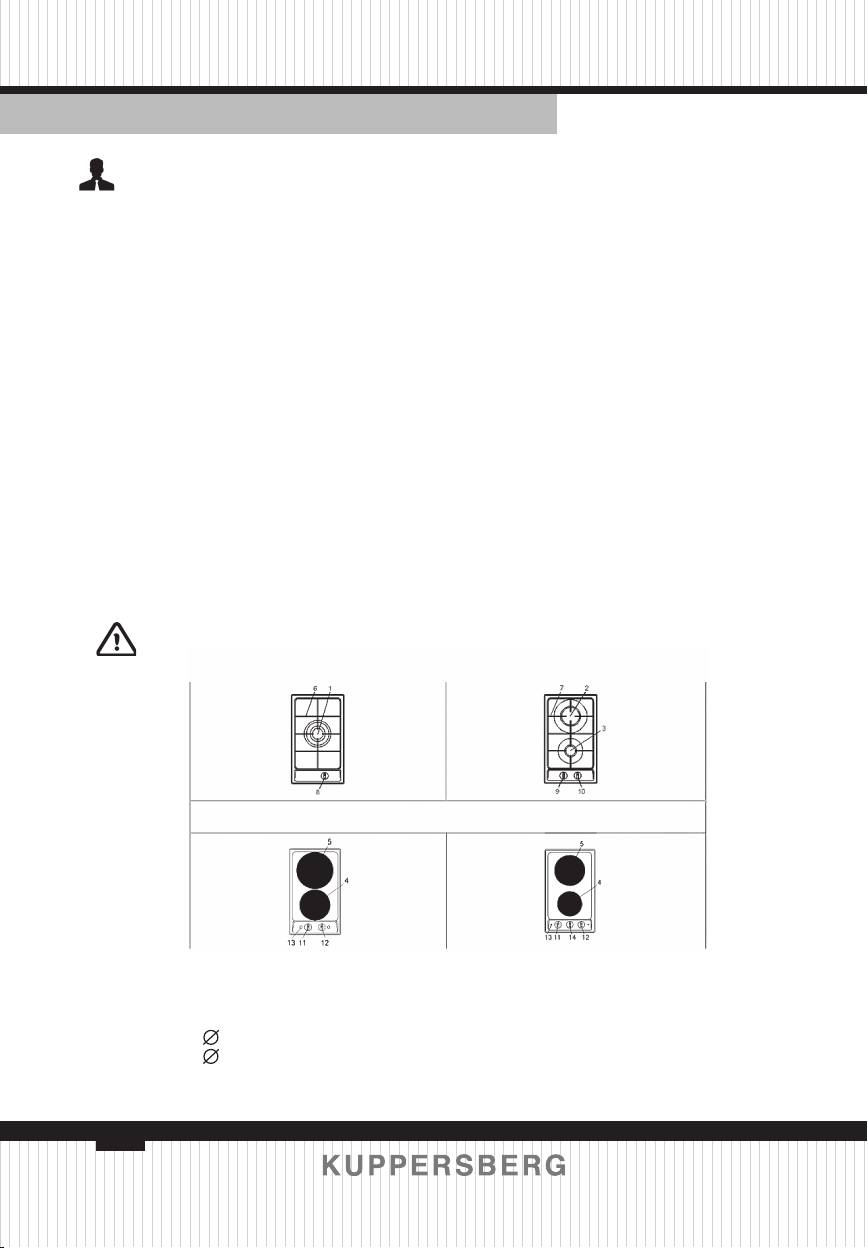

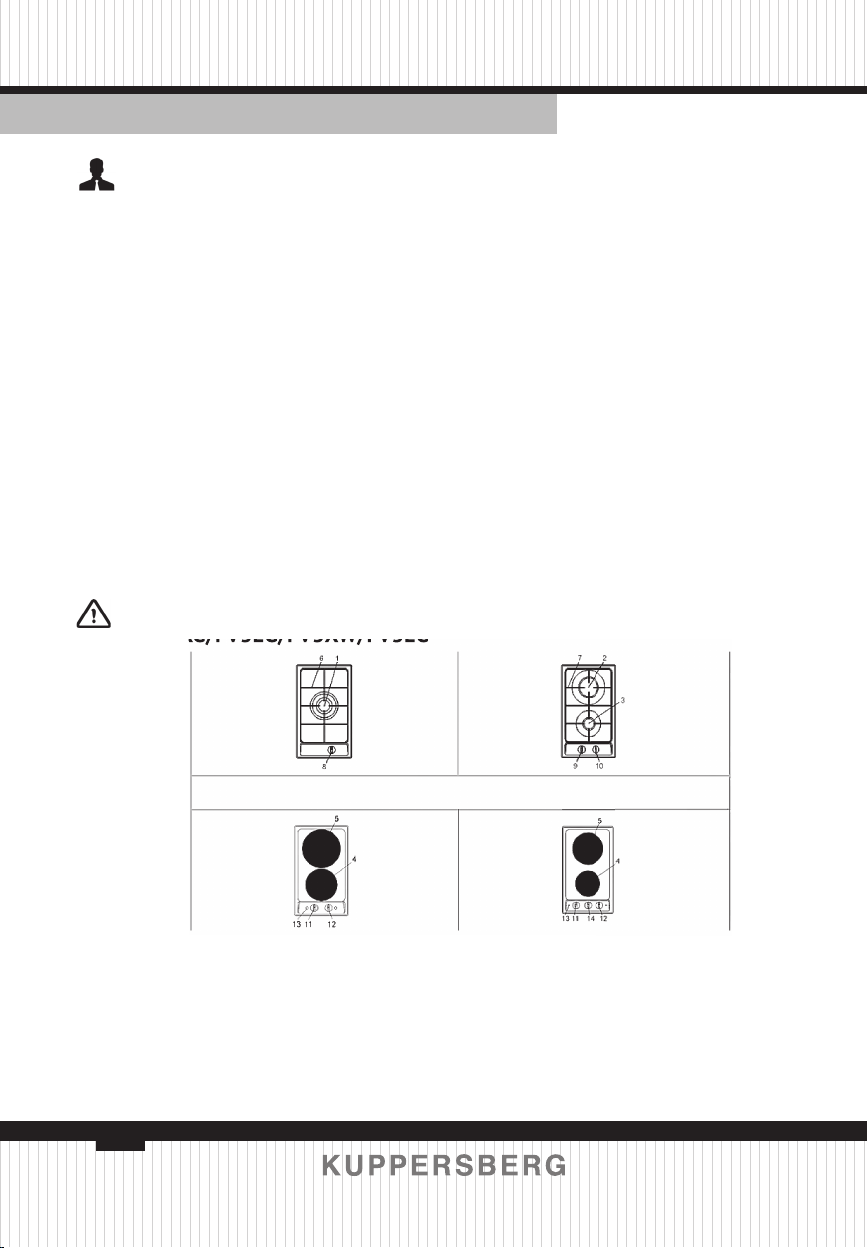

FV3XG/FV3EG/FV3XW/FV3EG
FV3XE/FV3EE
1 Ultra rapid burner of 3350W
2 Rapid gas burner of 3000W
3 Auxiliary gas burner of 1000 W
4 Electric plate 145 mm of 1000-1500 W
5 Electric plate 180 mm of 1500 -2000 W
6 Enamelled steel pan support 1 F
7 Enamelled sıeel pan support 2F
8 Burner n° 1 control knob
9 Burner n° 3 control knob
10 Burner n° 2 control knob
11 Electric plate n° 5 control knob
12 Electric plate n° 4 control knob
13 Electric plate operation warning light
14Timer
TECHNICAL CHARACTERISTICS AND DRAWINGS

3
ENGLISH TECHNICAL PASSPORT
Mixed and gas fuelled built-in hot plates

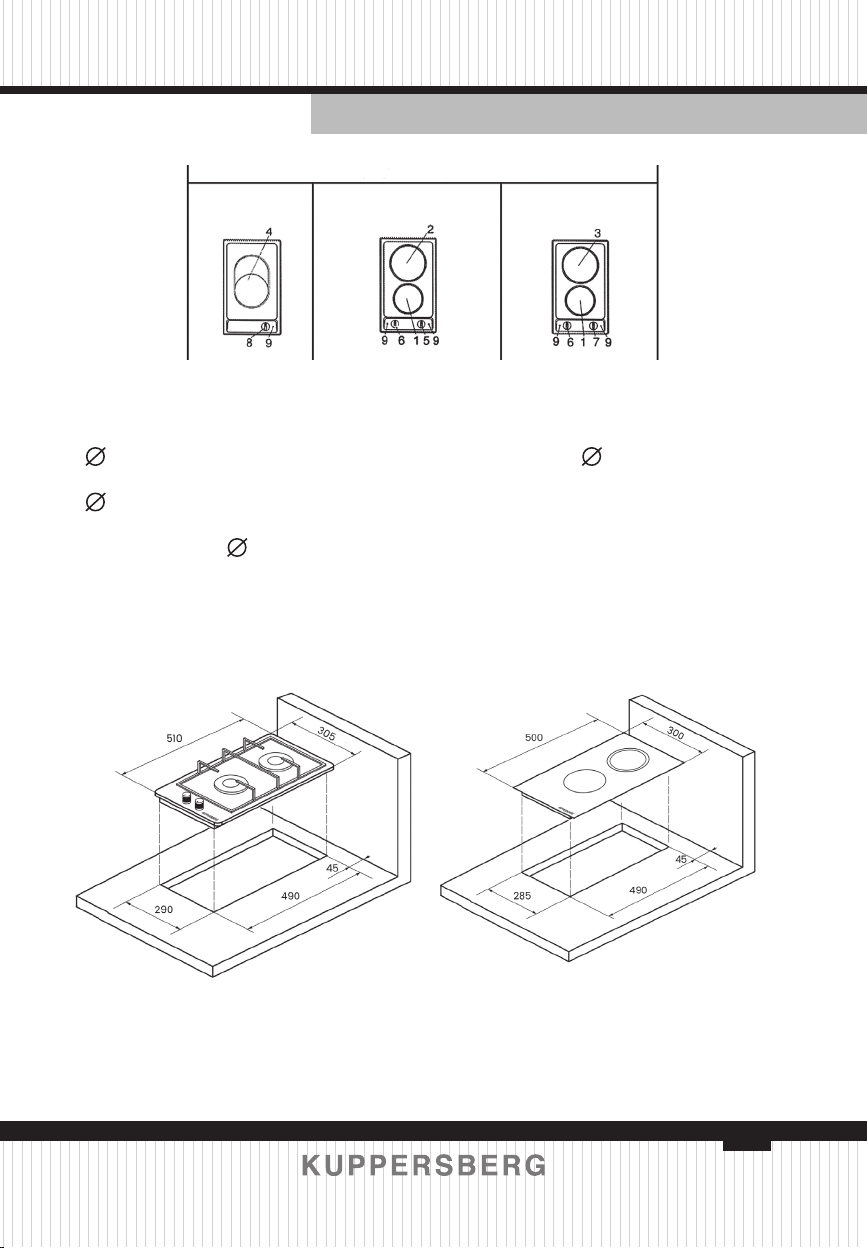

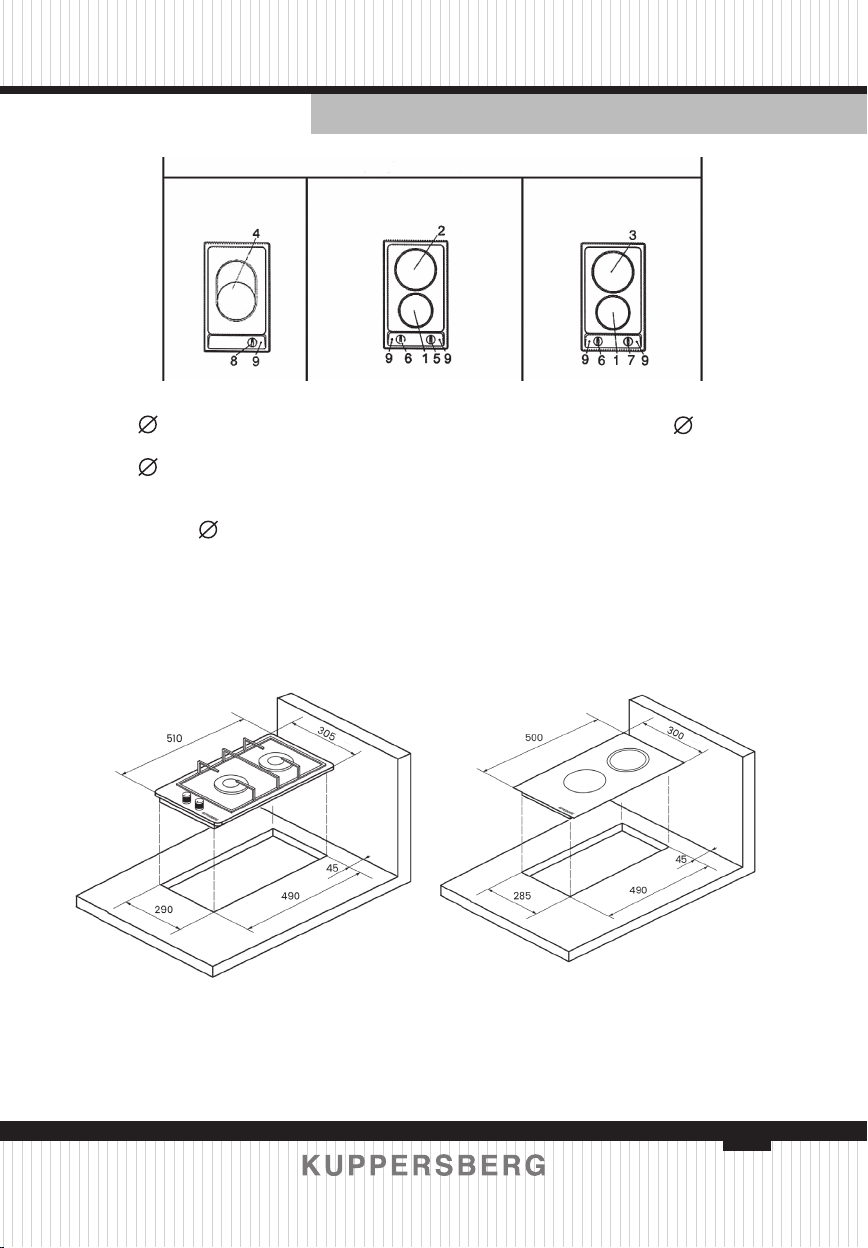

FV3VR/FV3VR
FV3TG X FV3XE
1 Hi-light electric heating element
140 mm 1200 W
2 Hi-light electric heating element
180 mm 1800 W
3 Hi-light electric heating element double
cooking zone (conc.) 180/120 mm 1700 W
(«Hilight» as well)
4 Hi-light electric heating element double
cooking zone (oval) 265/170 mm 2200 W
5 Switch for el. element n.2
6 Switch tor el. element n.1
7 Switch for el. element n.3
8 Switch for el. element n.4
9 Residual heat indicator

4
TECHNICAL PASSPORT ENGLISH
Mixed and gas fuelled built-in hot plates
1) ELECTRIC HOB
(for ceran glass products)
The hot plates are equipped with 2
hi-light heating elements with different
powers and diametres. On the frontal
panel, close to each knob, has been silk-
screened a scheme where is indicated to
which cooking zone the knob refers (g. 2).
In some particular models the scheme
annexes a light indicator that turns on
when the cooking zome temperature is
above 60 C.
The indicator will turn off only when
the temperature of the cooking zone will
be below the value: thes is the reason why
we call it residual heat indicator. Some
other models they have only one indicator.
Connection of electric heating
elements
Heating elements are controlled by
energy regulators that permit to obtain a
big range of different temperatures.
To connect the heating elements
es necessary to turn clockwise or
anticlockwise the relaive knob. Indicator
light 9 shows the connection of one or
more heating elements.
To connect the heating elements with
double cooking zone is necessary to turn
clockwise the knob to the «Ф1 sign and
release again.
How to use the cooking zones
Heating takes place only in the inside
part of the circles drawn on the special
glass. The circles have to be wholly
covered by the pots.
WARNINGS:
For a correct use, please look at g.3
and remind:
BSwitch on the electricity
only after having placed the pot on the
cooking zone.
BUse pots and pans with at
solid bottoms.
BUse pots with the same
diameter of the cooking zones.
BDry the bottom of the pot
before put in on the cooking zones.
BDo not scrape the pot against
the glass so to not damage it.
BDuring the use of the cooking
zones, please, keep the children away
from the hot plates. Make sure that the
handles of the pots are placed in the
right way towards the interior. Be aware
that overheated fats and oils may become
inamed.
BCooking zones after using
remain warm; don’t leave objects, don’t
lean your hands so to avoid burns, till the
indicator light is off.
BIf the glass cracks, please,
disconnect the appliance.
BDon’(use plastic pots or
alluminium sheets.
BDon’t use hob as a
supplementary surface.

5
ENGLISH TECHNICAL PASSPORT
Mixed and gas fuelled built-in hot plates
NORMAL
AND
RAPID
PLATES
HEAT
INTENSITY
HEAT
INTENSITY
0Off
1 Weak
To dissolve butter,
chocolate, etc.. To heat
small amounts of liquid.
2Low
To heat larger amounts of
liquid. To prepare cremes
and suces requiring long
slow cooking times.
3Slow
To thaw frozen foods and
prepare stews, heat to
boiling point or simmer.
4Medium
To heat foods to boiling
point. To brown delicate
meats and  sh.
5Strong
For escalopes and steaks.
To simmer large amounts
of food.
6High
To bring large amounts
of liquid to the boil. For
frying.
USE
2) HOW TO USE THE ELECTRIC
PLATES
Mixed hot plates may be equipped with
a normal or rapid electric plates. There
are controlled by switches with various
positions (see  g. 4 ) and is switched on by
turning the knob to the required setting.
A diagram is screen-printed above each
knob on the front panel. This diagram
indicates to which electric plates the knob
in question corresponds (see  g. 4). A red
warning light will come on to indicate that
the plate is operating.
A purely indicative regulation table for
the normal electric plates is given below.
TABLE
WARNINGS;
When the plate is switched on for
the  rst time, or if it has remained
unused for a long period, it should be
dried for 30 minutes on switch position
n° 1. This will eliminate any moisture
that may have been absorbed by the
insulating material.
To correctly use the appliance,
remember
To place a pan on the plate before
switching this on.
To always use pans with  at and

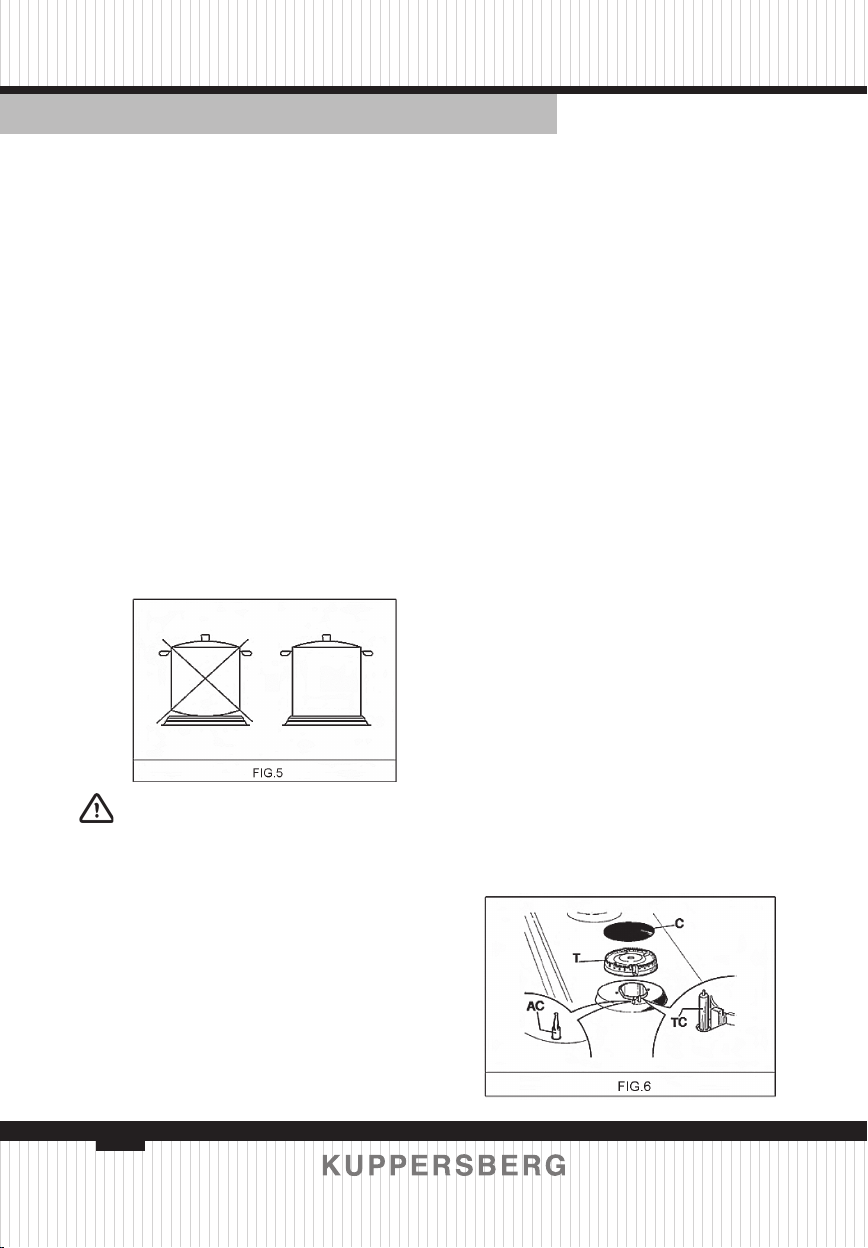

very thick bottoms (see  g. 5).
To never use pans that are smaller
than the plate diameters.
To dry the bottom of the pan before
placing it on the plate.
Never leave the appliance
unattended when the plates are being
used. Make sure that there are no
children in the near vicinity. Particularly
make sure that the pan handles are
correctly positioned and keep a check
on foods requiring oil and grease to
cook since these products can easily
catch  re.
The plates will remain hot for a
long period of time even use after

6
TECHNICAL PASSPORT ENGLISH
Mixed and gas fuelled built-in hot plates
use, never touch them with the hands or
other objects in order to prevent bums.
Immediately disconnect the
appliance from the electricity main as
soon as cracks are noted on the surfaces
of the plates.
If the built-in hot plate has a lid,
any spilt food should be immediately
removed from this before it is opened. If
the appliance has a glass lid, this could
shatter when the cooker becomes hot.
Always switch off all the plates before
closing the lid.
IMPORTANT:
Always disconnect the appliance
from the gas and electricity mains
before carrying out any cleaning
operation.
CLEANING
3) HOT PLATE
Periodically wash the hot plate,
the enamelled stell pan support, the
enamelled burner caps “C» and the
burner heads “M” (see  g. 6) with
lukewarm soapy water. Following this,
all parts should be thoroughly rinsed
and dried. Never wash them while they
are still warm and never use abrasive
powders. Do not allow vinegar, coffee,
milk, salted water, lemon or tomato
juice from remaining in contact with
the enamelled surfaces for long periods
of time.
WARNINGS:
Comply with the following
instructions, before remounting the
parts:
BCheck that burner head slots
have not become clogged by foreign
bodies.
BCheck that enamelled burner
cap “C” ( g. 6) have correctly positioned
on the burner head. It must be steady.
BThe exact position of the pan
support is established by the rounded
corners, which should be set towards
the side edge of the hot plate.
BDo not force the taps if they
are dif cult open or close. Contact the
technical assistance service for repairs.
BCorrectly preserve the plate
after use by treating it with special
products, easily available on the market.
This will keep the surface of the plate
clean and bright. The operation will
also prevent the formation of rust.

7
ENGLISH TECHNICAL PASSPORT
Mixed and gas fuelled built-in hot plates
2) ELECTRIC HOB
lf you want to preserve the surface
clean and bright, we recommend you
to use a silicone conditioner. The use of
this conditioners, prior to jam-making,
helps to protect the surface of the hob.
It is very important to clean the
surface soon after every use, when the
glass is stili tepid.
Do not use metallic sponges,powder
abrasives or corrosive sprays.
Depending on the dirty level we
recommend:
ÂSlights stains: it is enought the
use of a moist clean rag.
ÂBurnt or soiling may be removed

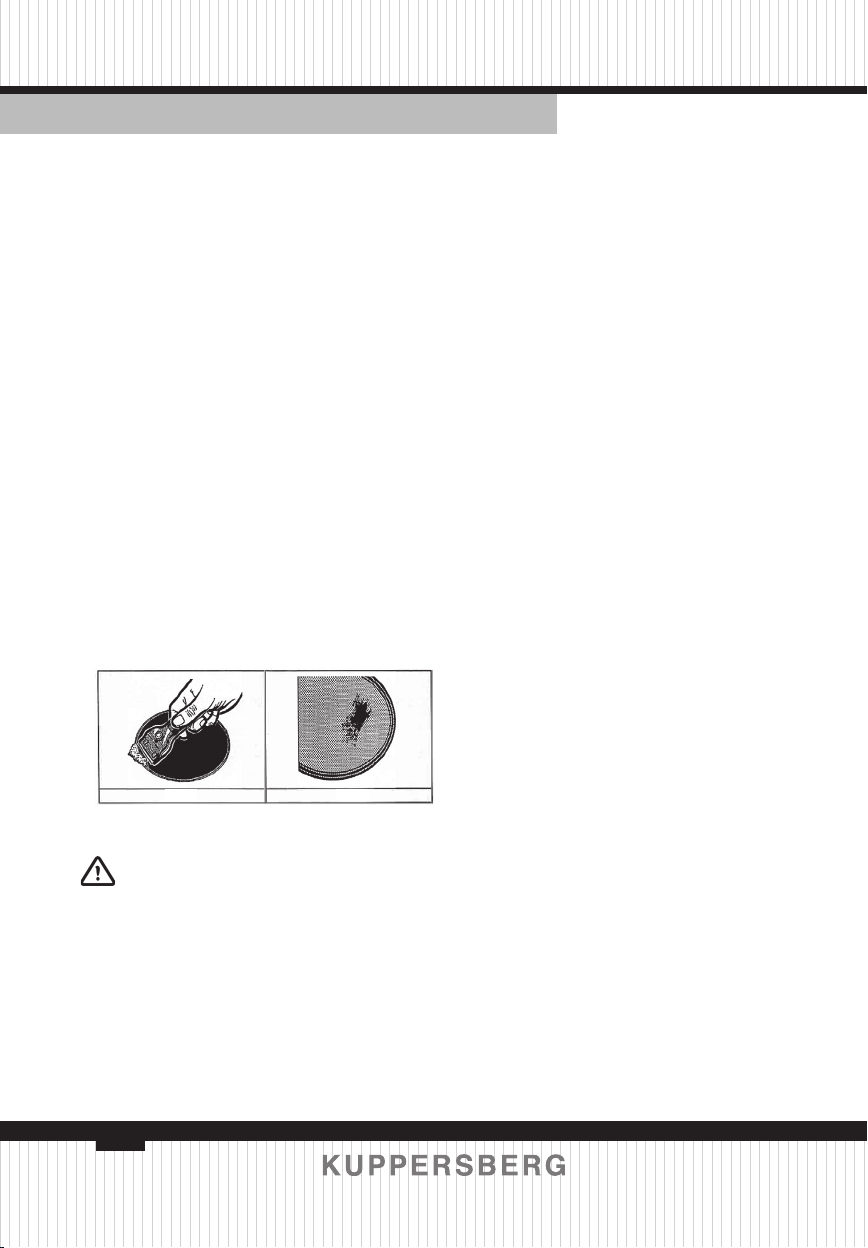

with a special razor scraper ( g. 7 ); be
aware that the razor can cause wounds.
ÂMarks of liquid, over owed from
the pot, can be removed using vinegar
or lemon.
ÂPay attention to not /et fail sugar
or element with sugar. in this case turn
the swithch off and clean the surface
with hot water and the razor b/ade
scraper.
ÂAfter a period of time may appear
metal re ex and scratches ( g. 8) due to
the wrong cleaning and the wrong use
of the pots. The scratches are dif cultly
removable, but they do not compromise
!he good working of the hob.
SAFETY INSTALLATION
TECHNICAL INFORMATION FOR
THE INSTALLER
Installation, adjustments of controls
and maintenance must only be carried
out by a quali ed engineer.
Incorrect installation may cause
damage to persons, animals or property
for which the Manufacturer shall not be
considered responsible.
During the life of the system, the
automatic safety or regulating devices
on the appliance may only be modi ed
by the manufacturer or by his duly
authorized dealer.
4) INSTALLING THE HOT PLATE
Check that the appliance is in a good
condition after having removed the
outer packaging and internal wrappings
from around the various loose parts. In
case of doubt, do not use the appliance
and contact quali ed personnel.
Never leave the packaging materials
(cardboard, bags, polystyrene foam,
nails, etc.) within childrens reach since
they could become potential sources of
danger.

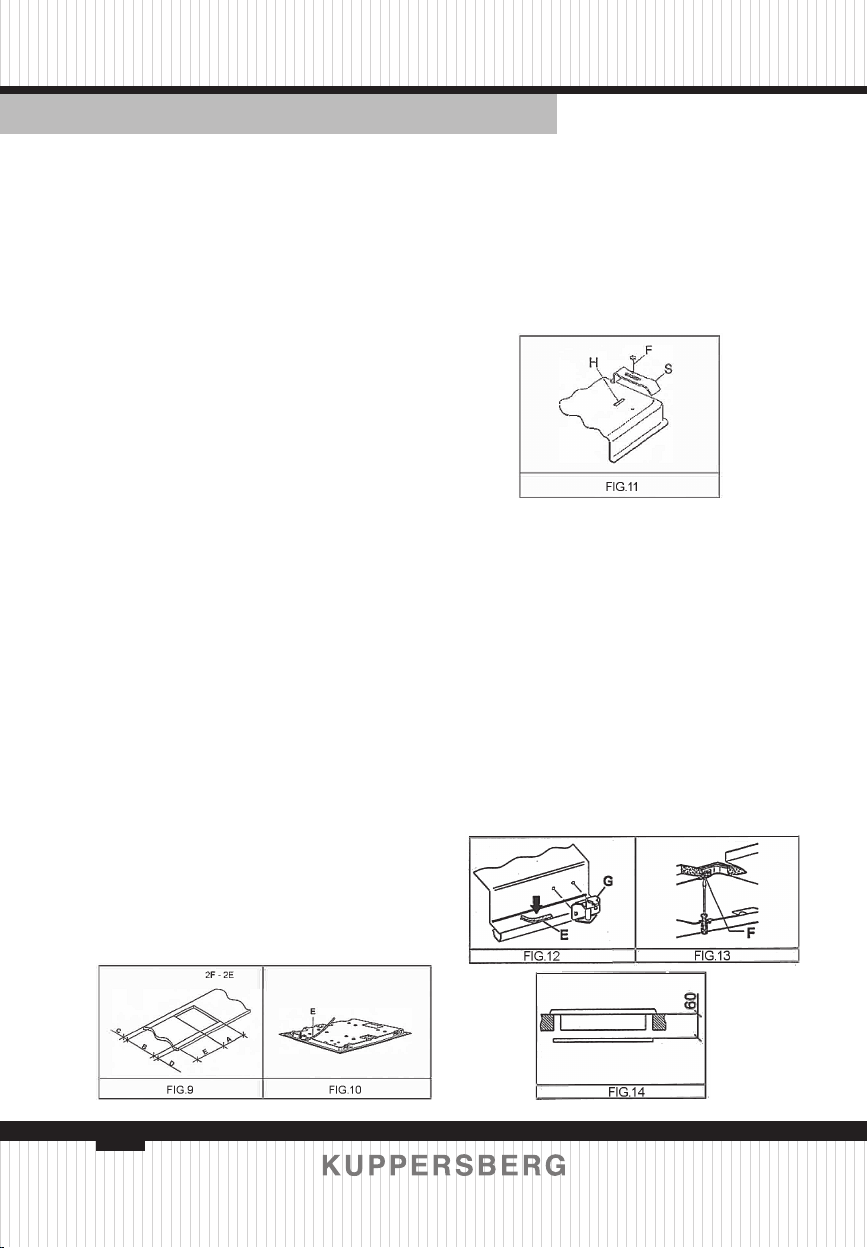

The measurements of the opening
made in the top of the modular

8
TECHNICAL PASSPORT ENGLISH
Mixed and gas fuelled built-in hot plates
cabinet and into which the hot plate
will be installed are indicaled in
either  g. 9. Always comply with the
measurements given for the hole into
which Ihe appliance will be recessed.
The appliance belongs to class 3 and
is therefore subject to all the provisions
established by the provisions governing
such appliances.
5) SEALING THE HOT PLATE
The hot plate has a special seal
which prevents liquid from in ltrating
into the cabinet. Strictly comply with
the following instructions in order to
correctly apply this seal:
ÂDetach the seals from their
backing, checking that the transparent
protection still adheres to the seal itself.
ÂOverturn Ihe hol plate and
correctly position seal “E” ( g. 1O) under
the edge of the hol plate itself, so that
the outer side of the seal perfectly
matches the outer perimetral edge of
the hol plate. The ends of the strips
must  t together without overlapping.
ÂEvenly and securely  x the seal
to the hot plate, pressing it in place
with the  ngers.
For the models FV3XW/FV3EW/
FV3XG/FV3EG/FV3XE/FV3GE
Fix the hob with the proper bracets
«S» and  t the prominent part into the
porhole «H» on the bottom; turn the
screw «F» until the bracket «S» stick on
the top (fıg.11)
FV3VR/FM3VR/FV3XF/FV3XB
ÂRemove the clamps «G» from the
package and install !hem according to
the diagram in fıg.12.
ÂSecure the appliance by
thigtening the clamp screws «F» (see
fıg.13).
ÂIn order to prevent any accidental
contact with the suıface of the heated
bbarbecue during use, a separation in
wood must be inserted and fastened
with screws at a minimum distance of
60 mm from the top ( g.14).

9
ENGLISH TECHNICAL PASSPORT
Mixed and gas fuelled built-in hot plates
COMPL Y WITH THE
DIMENSIONS (mm)
Product A B СD E
FV3X6
F3E6
FV3XW
FV3EW
FV3XE
FV3EG
280 480 57.5 57.5 min
100
FV3VR
FM3VR 285 485 60 60 min 60
IMPORTANT INSTALLATION
SPECIFICATIONS
The installer should note that the
appliance that side walls should be
no higher than the hot plate itself.
Furthermore, the rear wall, the surfaces
surrounding and adjacent to the
appliance must be able to withstand an
overtemperature of 65 K.
The adhesive used to stick the
plastic laminate to the cabinet must be
able to withstand a temperature of not
less than 150° C otherwise the laminate
could come unstuck.
The appliance must be installed in
compliance with the provisions in force.
This appliance is not connected to a
device able to dispose of the combustion
fumes.It must therefore be connected in
compliance with the above mentioned
installation standards. Particular
care should be paid to the following
provisions governing ventilation and
aeration.
6) ROOM VENTILATION
(for gas product)
It is essential to ensure that the
room in which the appliance is installed
is permanently ventilated in order to
allow the appliance itself to operate
correctly. The necessary amount of air is
that required lor regular gas combustion
and ventilation of the relative room, the
volume of which must not be less than
20 m3. Air must naturally  ow through
permanent openings in the walls of the
room in question. These openings must
vent the fumes outdoors and their section
must be at least 100 cm2Construction
of the openings must ensure that the
openings themselves may never be
blocked.Indirect ventilation by air drawn
from an adjacent room is also permitted,
in strict compliance with the provisions
in force.
7) LOCATION AND AERATION
Gas cooking appliances must
always dispose of their combustion
fumes through hoods. These must be
connected to  ues, chimneys or straight
outside. lf it is not possible to install a
hood, an electric fan can be installed on
a window or on a wall facing outside.
This must be activated at the same
time as the appliance, so long as the
speci cations in the provisions in force
are strictly complied with.

10
TECHNICAL PASSPORT ENGLISH
Mixed and gas fuelled built-in hot plates
8) GAS CONNECTION
Before connecting the appliance,
check that the values on the data label
afxed to the underside of the hot plate
correspond to those of the gas and
electricity mains in the home.
Alabel on the appliance indicates the
regulating conditions: type of gas and
«working pressure. Gas connection must
comply with the pertinent standards
and provisions in force. When gas is
supplied through ducts,the appliance
must be connected to the gai> supply
system:
Bwith a rigid steel pipe. The
joints of this pipe must consist of
threaded ttings conforming to the
standards. Use of seals such as heinp
with suitable cement, or Teon tape, is
permitted;
Bwith copper pipe. The joints
of this pipe must consist of unions with
mechanical seals;
Bwith seamless exible
stainless steel pipe. The length of this
pipe must be 2 meters at most and the
seals must comply with the standards.
When the gas is supplied by a
bottle the appliance must be fuelled
by a pressure (governor conforming
to the provisions in force and must be
connected:
Bwith a copper pipe. The joints
of this pipe must consist of unions with
mechanical seals;
Bwith seamless exible stainless
steel pipe. The length of this pipe must
be 2 meters at most and the seals
must comply with the standards. it is
advisable to apply the special adapter
to the exible pipe. This is easily
available from the shops and facilitates
connection with tlhe hose nipple of the
pressure governor on the bottle.
Bwith rubber hose pipe
in compliance with standards. The
diameter of this hose pipe must be mm
and its length must be no less than
400 mm and no more than 1500 mm.
It must be rmly xed to the hose
nipple by means of the safety
clamp specied by standards.

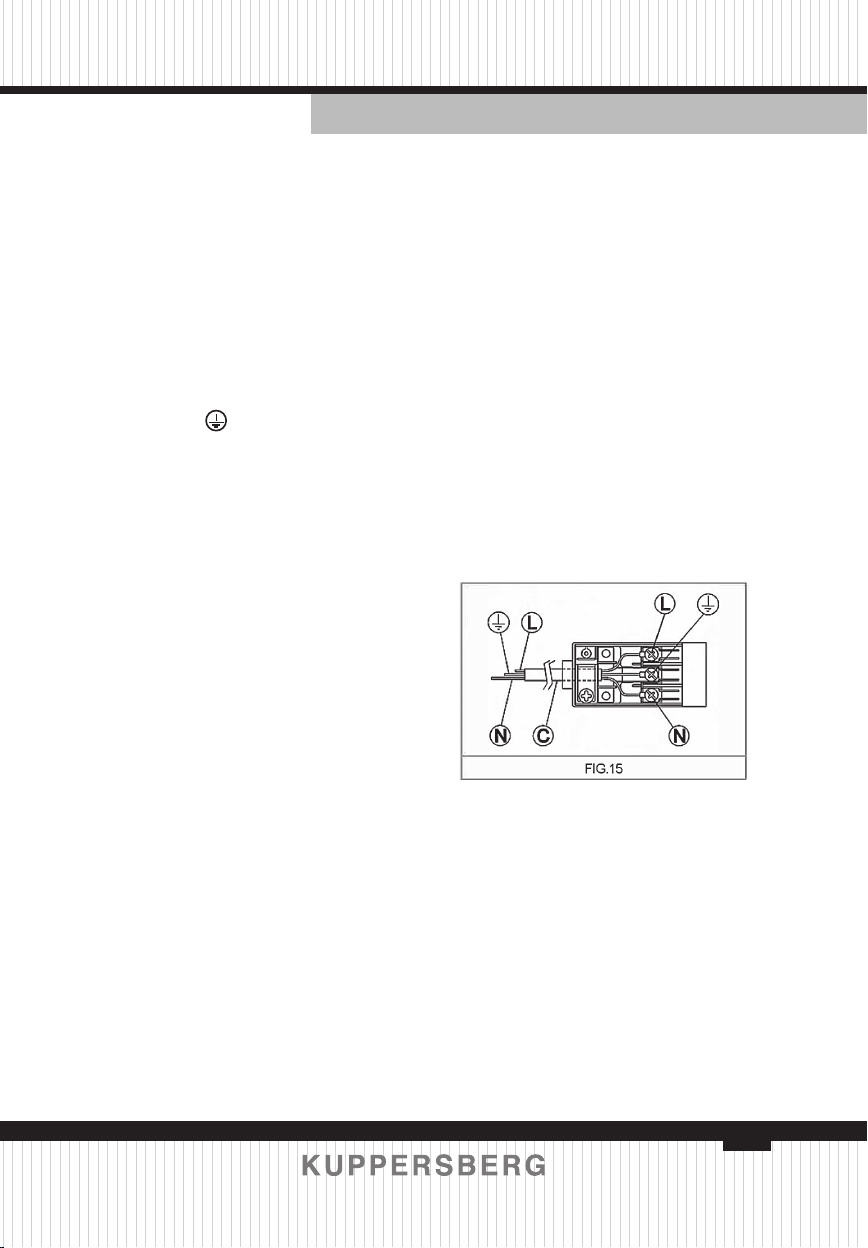

9) ELECTRICAL CONNECTION
The electrical connections of the
appliance must be carried out in
compliance with the provisions and
standards in force.
Before connecting the appliance,
check that:
BThe electrical capacity of
the mains supply and current sockets
suit the maximum power rating of
the appliance (consult the data label
applied to the underside of the hot
plate).
BThe socket or system has an
efcient earth connection in compliance
with the provisions and standards in
force. The manufacturer declines all
responsibility for failing to comply with
these provisions.
