INSTALLATION
BEFORE MOUNTING THE APPLIANCE
ENSURE the oven cavity is empty before mounting.
ENSURE that the appliance is not damaged before mounting
it in the cabinet.
CHECK THAT ALL MATERIAL for mounting the appliance is sup-
plied in the package.
IFTHE COOKER HOOD IS USED TOGETHER WITH OTHER AP-
PLIANCES which consume the air in the room
(e.g. gas, diesel oil or coal appliances, water-
heaters, boilers) remember that the hood as-
pires air from the room which may therefore
not be sufficient for burning.
THIS APPLIANCE IS DESIGNED to be mounted
over electrical or gas cooker ranges only!
The distance between the cooker range
and bottom part of this appliance must
be at least 460 mm for electrical cooker
ranges and at least 650 mm for gas cook-
er ranges.
THE MANUFACTURER MUST BE CONTACTED for the mini-
mum mounting distance where:
Electrical range:
The cooker range has more than 4 hob el-
ements.
The two rear elements exceed a rating of 2
kW per element.
The two front hob elements exceed a rat-
ing of 1.5 kW per element.
Gas range:
The gas burner develop more than 3.2 kw
per burner
The cooker range develop more than 10
kw in total.





EXTERNAL EVACUATION:
THE FLANGE has a Ø 120 mm opening so that,
evacuation pipes with Ø 120 mm can be
mounted.
EVACUATION SHOULD NOT be through a flue
used for the evacuation of other vapours
or burnt gas, that is through a pipe used
as a flue for open flame sources.
COOKER HOODS AND OTHER APPLIANCES REQUIRING A
FLUE, can only be used together safely if there
is a maximum depression of 0.04 mbar in room
which prevents the reabsorbing of the burnt
gases.
This is possible only if the combustion air is
evacuated through non-closing apertures
such as doors, windows, wall boxes for the
supply and evacuation of air or similar techni-
cal devices such as reciprocal blocking devic-
es or similar. If you are not certain call a quali-
fied technician.
NOTE: For best function keep the kitchen win-
dows closed when using the fan. If not you
have no negative pressure in the kitchen. But
one window in an adjacent room ought to be
open.
FOR EVACUATION use flexible aluminium pipes or
sheet plate pipes which are resistant to corro-
sion.
IFYOU ARE INSTALLING THE APPLIANCE TO AN UNUSED
FLUE for the evacuation of vapour’s or burnt
gas, we recommend that you request the ad-
vice and approval of a competent technician
before making the installation.
DONOT USE INFLAMMABLE PLASTIC PIPES. Al-
ways ensure that the evacuation chan-
nels and pipes are as short as possible.
DONOT MOUNT THE PIPES AT RIGHT ANGLES. They
must always be curved and should be fitted
into the flue at an upward angle. The diameter
of the pipe must not narrow towards the top.
THE PERFORMANCE OF THE FAN will be reduced with
small diameter pipes.

3
PRIOR TO CONNECTING
ENSURE THAT THE APPLIANCE IS NOT DAMAGED. Check
that the oven door closes firmly against the
door support. Empty the oven and clean the
interior with a soft, damp cloth.
AFTER CONNECTING
THE EARTHING OF THIS APPLIANCE is compulso-
ry. The manufacturer will accept no re-
sponsibility for injury to persons, ani-
mals or damage to objects arising from
the non-observance of this requirement.
The manufacturers are not liable for any
problems caused by the user’s failure to ob-
serve these instructions.
DONOT OPERATE THIS APPLIANCE if it has a
damaged mains cord or plug, if it is not
working properly, or if it has been dam-
aged or dropped. Do not immerse the
mains cord or plug in water. Keep the
cord away from hot surfaces. Electrical
shock, fire or other hazards may result.
DONOT REMOVE THE MICROWAVE INLET PROTECTION
PLATES located on the side of the oven cavi-
ty wall. They prevent grease & food particles
from entering the microwave inlet channels.
CHECK THAT THE VOLTAGE on the rating
plate corresponds to the voltage in your
home.
THE OVEN CAN BE OPERATED ONLY if the oven door is
firmly closed.
Poor television reception
and radio interference may
result if the oven is located
close to a TV, radio or aerial.
FOLLOW THE SUPPLIED separate mounting in-
structions when installing the appliance.

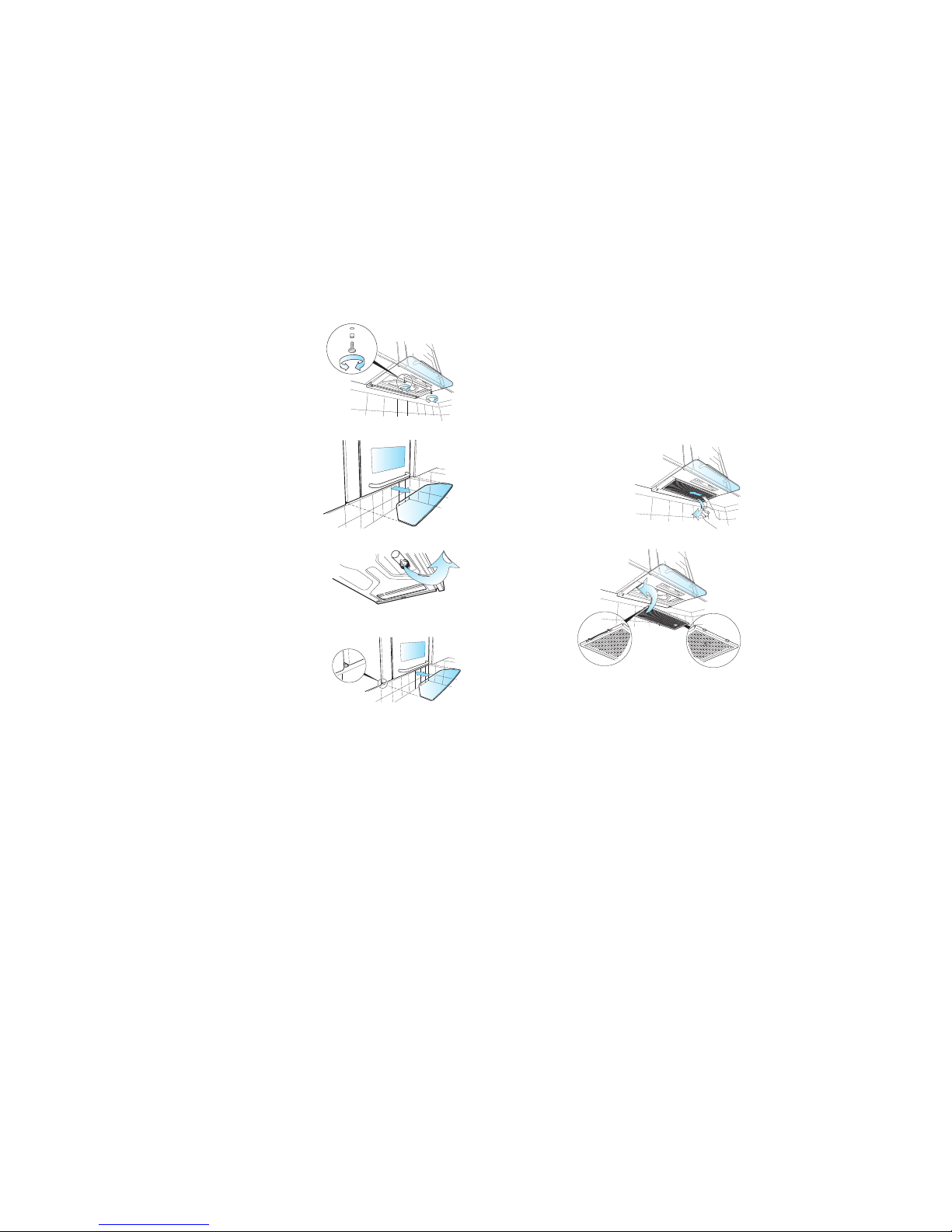

INTERNAL RECIRCULATION
THE COOKER HOOD is used with the internal re-
circulation system when there is no pipe or
opening on the external wall. In the case of in-
ternal recirculation, the optional carbon fil-
ter must be installed for the absorption of the
cooking vapours.
THE INTERNAL RECIRCULATION COOKER HOOD – with
carbon filter is in no way dangerous.
INSTALLATION

4
IMPORTANT SAFETY INSTRUCTIONS
DONOT HEAT, OR USE FLAMMABLE MATERIALS in
or near the oven. Fumes can create a fire
hazard or explosion.
DONOT USE YOUR APPLIANCE FOR DRYING TEX-
TILES, PAPER, SPICES, HERBS, WOOD, FLOWERS,
FRUIT OR OTHER COMBUSTIBLE MATERIALS. FIRE
COULD RESULT.
DONOT OVER-COOK FOOD. Fire could result.
DONOT LEAVE THE OVEN UNATTENDED, espe-
cially when using paper, plastic or oth-
er combustible materials in the cook-
ing process. Paper can char or burn and
some plastics can melt if used when
heating foods.
IFMATERIAL INSIDE / OUTSIDE THE OVEN SHOULD
IGNITE OR SMOKE IS OBSERVED, keep oven
door closed and turn the oven off. Dis-
connect the power cord or shut off pow-
er at the fuse or circuit breaker panel.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
ONLY ALLOW CHILDREN to use the appliance
without adult supervision after adequate
instructions have been given, so that the
child is able to use the appliance in a safe
way and understands the hazards of im-
proper use.
THIS APPLIANCE IS NOT INTENDED FOR use by per-
sons (including children) with reduced
physical. sensory or mental capabilities,
or lack of experience and knowledge, un-
less they have been given supervision or in-
struction concerning use of the appliance
by a person responsible for their safety.
CHILDREN SHOULD BE SUPERVISED to ensure that
they do not play with the appliance.
Children should only use the appliance un-
der adult supervision due to the high tem-
peratures generated.
DONOT USE YOUR APPLIANCE FOR
HEATING ANYTHING IN AIRTIGHT
SEALED CONTAINERS. THE PRES-
SURE INCREASES AND MAY
CAUSE DAMAGE WHEN OPENING OR
MAY EXPLODE.
EGGS
DONOT USE THE MICROWAVE FUNCTION for cook-
ing or reheating whole eggs with or
without shell since they may
explode even after microwave
heating has ended.
THE DOOR SEALS AND THE DOOR SEAL AREAS must
be regularly inspected for damage. If these
areas are damaged the appliance should
not be operated until it has been repaired
by a trained service technician.
DONOT USE corrosive chemicals or va-
pors in this appliance. This type of oven
is specifically designed to heat or cook
food. It is not designed for industrial or
laboratory use.
IFTHE FILTER IS DAMAGED it must be re-
placed. Do not use the extractor hood
without the filter. It is not designed for
such operation.
NEVER PREPARE ”FLAMBÉ” DISHES under the
cooker hood!
NEVER USE AN OPEN FLAME under the hood.
The use of an unprotected flame is dan-
gerous for the filters and could cause
fires.
NEVER LEAVE THE PAN ALONE when frying
foods. The cooking oil can easily flare up.
This is a potential fire hazard!
The manufacturers refuse to accept any responsibil-
ity for damage to the hood or its catching on fire be-
cause of failure to observe the above instructions.

5
GENERAL
THIS APPLIANCE IS DESIGNED FOR DOMESTIC USE ONLY!
THE APPLIANCE SHOULD NOT BE OPERATED without food
in the oven when using microwaves. Operation in
this manner is likely to damage the appliance.
IFYOU PRACTICE OPERATING the oven, put a glass
of water inside. The water will absorb the mi-
crowave energy and the oven will not be dam-
aged.
REMOVE WIRE TWIST-TIES from paper or
plastic bags before placing bag in
the oven.
DEEPFRYING
DONOT USE YOUR APPLIANCE FOR DEEP-FRYING, BECAUSE
THE OIL TEMPERATURE CANNOT BE CONTROLLED.
LIQUIDS
E.G. BEVERAGES OR WATER. Overheating the liquid
beyond boiling point can occur
without evidence of bubbling.
This could result in a sudden
boil over of the hot liquid.
To prevent this possibility the
following steps should be taken:
1. Avoid using straight-sided containers with
narrow necks.
2. Stir the liquid before placing the container
in the oven and let the teaspoon remain
in the container.
3. After heating, allow standing for a short
time, stirring again before carefully re-
moving the container from the oven.
CAREFUL
ALWAYS REFER to a microwave cookbook for de-
tails. Especially, if cooking or reheating food
that contains alcohol.
AFTER HEATING BABY FOOD or liquids in a
baby bottle or in a baby food
jar, always stir and check the
temperature before serving.
This will ensure that the heat is evenly distributed
and the risk of scalding or burns can be avoided.
Ensure the Lid and the Teat is removed be-
fore heating!
PRECAUTIONS
USE HOT PADS OR OVEN MITTS to prevent
burns, when touching containers, oven
parts, and pan after cooking.
DONOT USE THE CAVITY for any storage purposes.

6
IFACCESSORIES CONTAINING METAL comes in contact
with the oven interior, while the oven is in op-
eration, sparking can occur and the oven could
be damaged.
ALWAYS ENSURE that the turntable is able to turn
freely before starting the oven. If the turnta-
ble isn’t able to turn freely you should use a
smaller vessel.

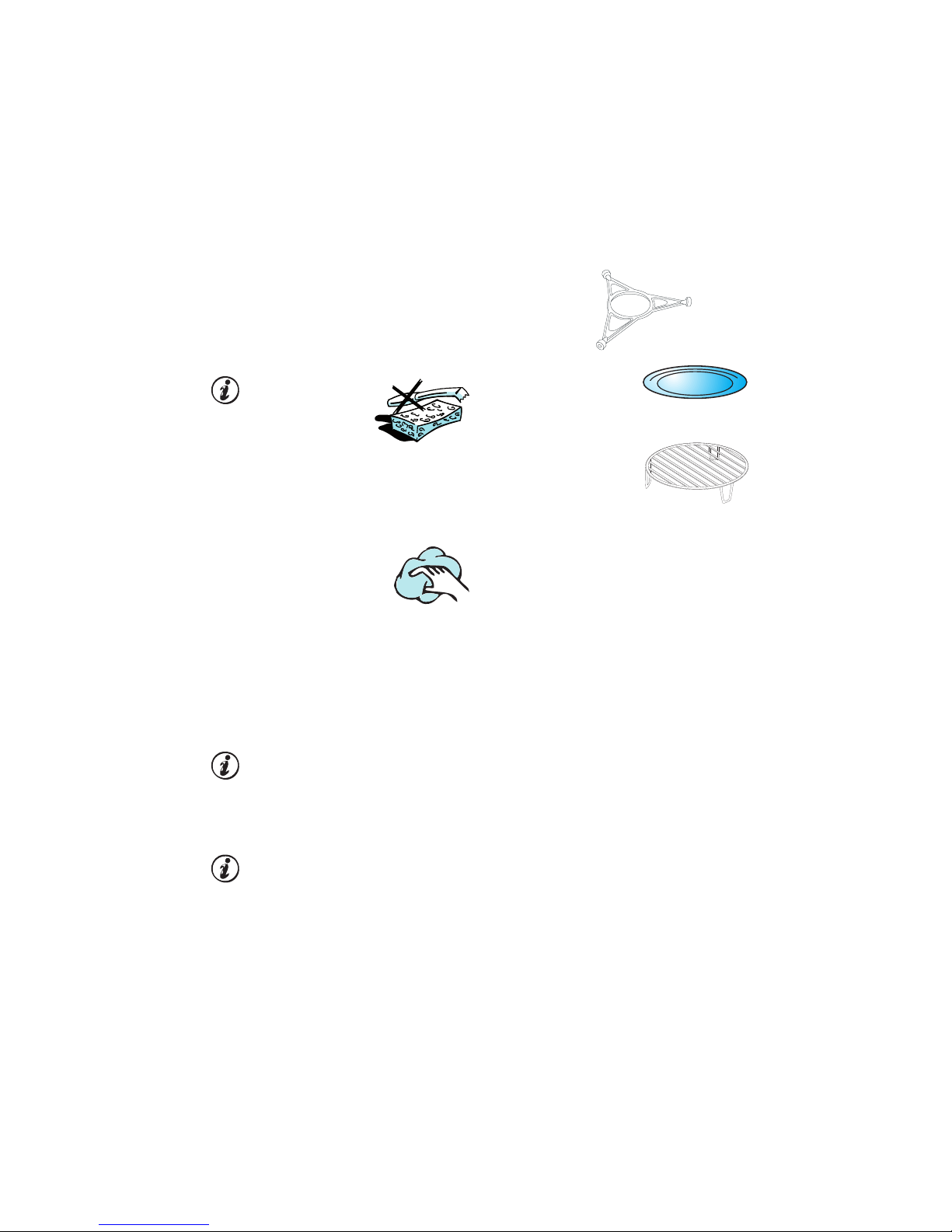

ACCESSORIES
GENERAL
ENSURE THAT THE UTENSILS YOU USE are oven proof
and allow microwaves to
pass through them before
cooking.
THERE ARE a number of accessories available on
the market. Before you buy, ensure they are
suitable for microwave use.
CARBON FILTER
THE CARBON FILTER effectively absorbs the va-
pours from the kitchen range.
ITIS NOT WASHABLE AND MUST BE REPLACED AT REGU-
LAR INTERVALS and can be obtained via your lo-
cal dealer.
SUPPLIED
OPTIONAL
TURNTABLE SUPPORT
USE THE TURNTABLE SUPPORT un-
der the Glass turntable. Nev-
er put any other utensils on
the turntable support.
Fit the turntable support
in the oven.

GLASS TURNTABLE
USE THE GLASS TURNTABLE with all cooking meth-
ods. It collects the dripping
juices and food particles
that otherwise would stain
and soil the interior of the oven.
Place the Glass turntable on
the turntable support.

WHEN YOU PUT FOOD AND ACCESSORIES in the micro-
wave oven, ensure that they do not come in
contact with the interior of the oven.
This is especially important with accessories
made of metal or metal parts.
WIRE RACK
USE THE WIRE RACK when grill-
ing using the grill or cooking
in combination (microwaves and grill).

7
START PROTECTION / CHILD LOCK
THIS AUTOMATIC SAFETY FUNCTION IS ACTIVATED ONE
MINUTE AFTER the oven has returned to
“stand by mode“. (The oven is in
“stand by” when the 24-hour clock is
displayed or if the clock has not been
set, when the display is blank).
THE DOOR MUST BE OPENED AND CLOSED e.g. putting
food into it, before the safety lock is released.
Else the display will show “DOOR“.
DOOR
PAUSE OR STOP COOKING
TOPAUSE COOKING:
THE COOKING CAN BE PAUSED to
check, turn or stir the food
by opening the door. The
setting will be maintained
for 10 minutes.
IFYOU DON’TWANT TO CONTINUE COOKING:
REMOVE THE FOOD, close the door
and press the STOP button
TOCONTINUE COOKING:
CLOSE THE DOOR and press the Start
button ONCE. The cooking is re-
sumed from where it was paused.
PRESSING THE START BUTTON TWICE will in-
crease the time by 30 seconds.
A BEEP WILL SIGNAL once a minute for 10 min-
utes when the cooking is fin-
ished. Press the STOP but-
ton or open the door to can-
cel the signal.
NOTE: The oven will only hold the settings for
30 seconds if the door is opened and then
closed after the cooking is finished.
WHEN AFUNCTION IS FINISHED, the oven carries out
a cooling procedure. This is normal.
After this procedure the oven switches off au-
tomatically.
THE COOLING PROCEDURE can be interrupted with-
out any harm to the oven by opening the door.
COOLING DOWN

8
FAN
THE HOOD HAS AFAN FUNCTION. It is turned on / off
or regulates the fan speed by pressing the Fan
button repeatedly. The Fan always starts with
the speed set to minimum. Repeated pressing
increases the fan speed. When max fan speed
is reached the next press turns the fan off.
KITCHEN TIMER
USE THIS FUNCTION when you need a kitchen tim-
er to measure exact time for various purpos-
es such as cooking eggs, pasta or letting the
dough rise before baking etc.
qPRESS THE +/- BUTTONS to set the time to
measure.
wPRESS THE POWER BUTTON repeatedly to set
the power to 0 W.
ePRESS THE START BUTTON.
ANACOUSTIC SIGNAL will be heard when the timer
has finished to count down.
TOTURN THE KITCHEN TIMER OFF before the count-
down have finished, press the Stop button.
THE HOOD HAS ALIGHT FUNCTION. It is turned on /
off by pressing the light button.
LIGHT
q
we

9
CLOCK
KEEP THE DOOR OPEN while setting the Clock. This
gives you 5 minutes to complete the setting
of the Clock. Otherwise, each step must be ac-
complished within 30 seconds.
qPRESS THE STOP BUTTON (3 seconds) until the
left-hand digit (hour’s) flicker.
wPRESS THE +/- BUTTONS to set the hours.
ePRESS THE START BUTTON. (The two right
hand digits (minutes) flicker).
rPRESS THE +/- BUTTONS to set the minutes.
tPRESS THE START BUTTON AGAIN.
THE CLOCK IS SET and in operation.
NOTE: When the appliance is first plugged in
or after a power failure, the display is blank.
If the clock is not set, the display will remain
blank until the cooking time is set.
qwe
rt

10
COOK & REHEAT WITH MICROWAVES
CHOOSING POWER LEVEL
USE THIS FUNCTION for normal cooking and re-
heating, such as vegetables, fish, potatoes and
meat.
qPRESS THE +/- BUTTONS TO SET THE TIME.
wPRESS THE POWER BUTTON REPEATEDLY TO SET THE
POWER.
ePRESS THE START BUTTON.
ONCE THE COOKING PROCESS HAS BEEN STARTED:
THE TIME CAN EASILY BE INCREASED in 30-second
steps by pressing the Start button. Each press
increases the time with 30 seconds. You may
also alter the time by pressing the +/- buttons
to increase or decrease the time.
PRESSING THE POWER BUTTON may also change the
power level. The first press will show you the
current power level. Press the power button
repeatedly to change power level.
qe
w
MICROWAVES ONLY
POWER SUGGESTED USE:
Jet (750 W) REHEATING OF BEVERAGES, water, clear soups, coffee, tea or other food with a high wa-
ter content. If the food contains egg or cream choose a lower power.
650 W COOKING OF fish, meat, vegetables etc.
500 W MORE CAREFUL COOKING e.g. high protein sauces, cheese and egg dishes and to finish
cooking casseroles.
350 W SIMMERING STEWS, melting butter.
160 W DEFROSTING. Softening butter, cheeses.
90 W SOFTENING Ice cream

11
THIS FUNCTION IS USED for quick reheating of food
with a high water content such as clear soups,
coffee or tea.
JET START
qPRESS THE START BUTTON.
PRESS TO AUTOMATICALLY START with full micro-
wave power level and the cooking time set
to 30 seconds. Each additional press increas-
es the time with 30 seconds. You may also al-
ter the time by pressing the +/- buttons to in-
crease or decrease the time after the function
has started.
MANUAL DEFROST
FOLLOW THE PROCEDURE for “Cook & Reheat with
Microwaves” and choose power level 160 W
when defrosting manually.
CHECK AND INSPECT THE FOOD REGULARLY. Experi-
ence will give you the times needed for vari-
ous amounts.
TURN LARGE JOINTS halfway through the defrost-
ing process.
FROZEN FOOD IN PLASTIC BAGS, plastic films or card-
board packages can be placed directly in the
oven as long as the package has no met-
al parts (e.g. metal twist ties).
THE SHAPE OF THE PACKAGE alters the de-
frosting time. Shallow packets defrost
more quickly than a deep block.
SEPARATE PIECES as they begin to defrost.
Individual slices defrost more easily.
SHIELD AREAS OF FOOD with small
pieces of aluminum foil if they
start to become warm (e.g.
chicken legs and wing tips).
BOILED FOOD, STEWS AND MEAT SAUCES defrost
better if stirred during defrosting time.
WHEN DEFROSTING it is better to under-
thaw the food slightly and allow the
process to finish during standing time.
STANDING TIME AFTER DEFROSTING ALWAYS IMPROVES
the result since the temperature
will then be evenly distributed
throughout the food.
q

12
JET DEFROST
USE THIS FUNCTION FOR DEFROSTING MEAT, FISH &
POULTRY ONLY. For other foods such as Bread
& Fruit you should follow the procedure for
”How to cook and reheat with microwaves”
and choose 160 W when defrosting.
JET DEFROST SHOULD ONLY BE USED if the net weight
is between 100 - 2000g.
qPRESS THE JET DEFROST BUTTON.
wPRESS THE + / - BUTTONS TO SET THE WEIGHT OF
THE FOOD.
ePRESS THE START BUTTON.
MIDWAY THROUGH THE DEFROSTING PROCESS the oven
stops and prompts you to TURN FOOD.
Open the door.
Turn the food.
Close the door and restart by pressing the
Start button.
NOTE: The oven continues automatically after
2 min. if the food hasn’t been turned. The de-
frosting time will be longer in this case.



THIS FUNCTION NEEDS TO KNOW the net weight of the food.
IFTHE WEIGHT IS LESSER OR GREATER THAN RECOMMEND-
ED WEIGHT: Follow the procedure for
“Cook & Reheat with Microwaves” and
choose 160 W when defrosting.
IFTHE FOOD IS WARMER than deep-freeze temper-
ature (-18°C), choose lower weight of
the food.
IFTHE FOOD IS COLDER than deep-freeze
temperature (-18°C), choose higher
weight of the food.
e
w
q
FOOD AMOUNT HINTS
MEAT 100G- 2KGMinced meat, cutlets, steaks or roasts.
POULTRY 100G- 2KGChicken whole, pieces or fillets.
FISH 100G- 2KGWhole, steaks or fillets.
FOR FOOD NOT LISTED IN THIS TABLE and if the weight is lesser or greater than recommended weight,
you should follow the procedure for “Cook and reheat with microwaves” and choose 160 W
when defrosting.

13
GRILL
USE THIS FUNCTION TO quickly give a pleasant
brown surface to the food.
qPRESS THE GRILL BUTTON.
wPRESS THE +/- BUTTONS to set the time.
ePRESS THE START BUTTON.
PRESSING THE GRILL BUTTON DURING COOKING switch-
es the Grill element on and off. The timer will
continue to count down when the Grill ele-
ment is turned off.
DONOT LEAVE THE OVEN DOOR OPEN for long periods
when the Grill is in operation, as this will cause
a drop in temperature.
ENSURE THAT THE UTENSILS used are heat re-
sistant and ovenproof before grilling with
them.
DONOT USE PLASTIC utensils when grilling.
They will melt. Items of wood or paper are
not suitable either.
e
wq

14
GRILL AND MICROWAVES
USE THIS FUNCTION TO cook such food as Gratin’s,
Lasagne, Poultry and Baked potatoes.
qPRESS THE GRILL BUTTON.
wPRESS THE POWER BUTTON to set the power.
ePRESS THE +/- BUTTONS to set the time.
rPRESS THE START BUTTON.
DURING OPERATION you can switch the Grill ele-
ment on/off by pressing the Grill button. The
Max. possible microwave power level when us-
ing the Grill is limited to a factory-preset level.
CHOOSING POWER LEVEL
ITIS POSSIBLE to switch the microwaves off by
reducing the microwave power level to 0 W.
When 0 W is reached, the oven switches to Grill
only mode.
e
wq
r
GRILL COMBI
POWER SUGGESTED USE:
350 - 500 W COOKING Poultry, Lasagne & Veg-
etables
160 - 350 W COOKING Fish & frozen gratins
160 W COOKING Meat
90 W GRATINATING fruit
0 W BROWNING only during cooking

15
COMBI
USE THIS FUNCTION TO reheat and cook larg-
er amounts of frozen or fresh gratins (min 3-4
portions). For smaller amounts choose the grill
+ microwave combination.
qPRESS THE COMBI BUTTON.
wPRESS THE +/- BUTTONS TO SET THE TIME.
ePRESS THE START BUTTON.
ITIS NOT POSSIBLE TO CHANGE or switch, the Pow-
er level or Grill, on/off, when using the Com-
bi function.
THE OVEN MAY become very hot when using
this function.
BECAREFUL, NOT TO TOUCH THE CEILING beneath
the Grill element.
USE OVEN MITTENS when removing the hot
Cooking vessle.
e
wq

16
MAINTENANCE & CLEANING
CLEANING IS THE ONLY MAINTENANCE normally re-
quired.
DISHWASHER SAFE:
TURNTABLE SUPPORT.
GLASS TURNTABLE.
FAILURE TO MAINTAIN THE OVEN in a clean condition
could lead to deterioration of the surface that
could adversely affect the life of the appliance
and possibly result in a hazardous situation
and risk of fire.
DONOT USE METAL SCOURING PADS,
ABRASIVE CLEANSERS, steel-
wool pads, gritty wash-
cloths, etc. which can
damage the control pan-
el, and the interior and exterior oven sur-
faces. Use a sponge with a mild detergent
or a paper towel with spray glass cleaner.
Apply spray glass cleaner to a paper towel.
DONOT SPRAY directly on the oven.
ATREGULAR INTERVALS, especially if spill
overs have occurred, remove the
turntable, the turntable support
and wipe the base of the oven
clean.
THIS OVEN IS DESIGNED to operate with the turnta-
ble in place.
USE AMILD DETERGENT, water and a soft cloth to
clean the interior surfaces, front and rear of the
door and the door opening.
DONOT ALLOW GREASE or food particles to
build up around the door.
DONOT USE STEAM CLEANING APPLIANCES when
cleaning your appliance.
ADDING SOME LEMON JUICE to a cup of water, plac-
ing this on Glass drip tray and boiling for a few
minutes can eliminate odors inside the oven.
FOR STUBBORN STAINS, boil a cup of water in the
oven for 2 or 3 minutes. Steam will soften the
marks.
WIRE RACK.

17
GREASE FILTER
THE GREASE FILTER captures the greases from the
cooking fumes and needs to be cleaned at a
regular basis. The more often the better they
work. The grease filter is made of several layers
of streched aluminium. Wash it in hot soapy
water or in a dishwasher (60°C) once a month.
Remove the grease filter by pulling the han-
dle down to release the filter from it’s mount-
ed position.
qPUSH the release handle to
the side and lower the
grease filter.
REPLACING THE LIGHTS
qDISCONNECT the appliance from the mains.
wUNSCREW the fix-
ing sqrews on the
glass shelf. (It also
serves as lamp cov-
er).
MAINTENANCE & CLEANING
eREMOVE the glassshelf
by pulling it out.
rREPLACE the damaged lamp
with one of the
same power.
tINREVERSE ORDER re-
fit the glass shelf
and tighten the
sqrews.
BEFORE CALLING for repair ser-
vice beacuse the lights fail to light up. Please
check that the lamps are fitted tightly.
wREMOUNT the grease
filter in the reverse
order after it has
been cleaned.

18
TROUBLE SHOOTING GUIDE
IFTHE OVEN DOES NOT WORK, do not make a service
call until you have made the following checks:
The Turntable and turntable support is in
place.
The Plug is properly inserted in the wall
socket.
The Door is properly closed.
Check your Fuses and ensure that there is
power available.
Check that the oven has ample ventilation.
Wait for 10 minutes, then try to operate the
oven once more.
Open and then close the door before you
try again.
THIS IS TO AVOID unnecessary calls for which you
will be charged.
When calling for Service, please give the serial
number and type number of the oven (see Ser-
vice label). Consult your warranty booklet for
further advice.







IFTHE MAINS CORD NEEDS REPLACING it should
be replaced by the original
mains cord, which is avail-
able via our service organi-
zation. The mains cord may
only be replaced by a trained
service technician.
SERVICE ONLY TO BE CARRIED OUT BY
ATRAINED SERVICE TECHNICIAN. It
is hazardous for anyone oth-
er than a trained person to carry
out any service or repair oper-
ation, which involves the re-
moval of any cover, which gives pro-
tection against exposure to microwave
energy.
DONOT REMOVE ANY COVER.
ENVIRONMENTAL HINTS
THE SYMBOL on the product, or on the docu-
ments accompanying the
product, indicates that this
appliance may not be treat-
ed as household waste. In-
stead it shall be handed over
to the applicable collection
point for the recycling of elec-
trical and electronic equip-
ment.
DISPOSAL must be carried
out in accordance with lo-
cal environmental regula-
tions for waste disposal.
FOR MORE DETAILED INFORMATION about treatment,
recovery and recycling of this product, please
contact your local city office, your household
waste disposal service or the shop where you
purchased the product.
BEFORE SCRAPPING, cut off the mains cord so that
the appliance cannot be connected to the
mains.
THE PACKING BOX may be fully recy-
cled as confirmed by the recy-
cling symbol. Follow local
disposal regulations. Keep
potentially hazardous pack-
aging (plastic bags, polysty-
rene etc.) out of the reach of children.
THIS APPLIANCE is marked according to the Euro-
pean directive 2002/96/EC on Waste Electrical
and Electronic Equipment (WEEE). By ensuring
this product is disposed of correctly, you will
help prevent potential negative consequences
for the environment and human health, which
could otherwise be caused by inappropriate
waste handling of this product.

19

20
Whirlpool Sweden AB
GB
4619- 694- 68061
INACCORDANCE WITH IEC 60705.
THE INTERNATIONAL ELECTROTECHNICAL COMMISSION has developed a standard for comparative testing of
heating performance of different appliances. We recommend the following for this oven:
TECHNICAL SPECIFICATION
DATA FOR PERFORMANCE TESTS
SUPPLY VOLTAGE 230 V/50 HZ
RATED POWER INPUT 2200 W
FUSE 10 A (UK 13 A)
MW OUTPUT POWER 750 W
LIGHTING 2 X25 W
FLANGE OPENING Ø120 MM
OUTER DIMENSIONS (HXWXD) 583 X598 X320 MM
INNER DIMENSIONS (HXWXD) 187 X370 X290 MM
Test Amount Approx. time Power level Container
12.3.1 750 G10 MIN 750 W PYREX 3.220
12.3.2 475 G5 ½ MIN 750 W PYREX 3.827
12.3.3 900 G15 MIN 750 W PYREX 3.838
12.3.4 1100 G23-25 MIN GRILL + 500 W PYREX 3.827
13. 3 500 G12 - 13 MIN 160 W
