KUSSMAUL 091-22F User manual

F
AUTO CURRENT
D.C. CURRENT SENSOR
INSTALLATION INSTRUCTIONS
TEL: in NY 631-567-0314 TOLL FREE: 800-346-0857 FAX: [phone]
KUSSMAUL ELECTRONICS CO., INC.
170 CHERRY AVE., WEST SAYVILLE, N.Y. 11796
The Auto Current F detects current and closes a
switch when the sensed current flows to provide a
remote indication. An electronic flasher interrupts
the indicator output approximately once per second
to provide a flashing indication.
Designed for applications where a remote indicator
must be illuminated when one or more lights or other
loads are energized. By detecting load current any
one , or more than one lamp, or other load will cause
the indicator to light. The indicator circuit contains
a relay which is operated by the sensor and flashing
circuit. Indicator currents as high as 5 amperes may
be driven by the relay.

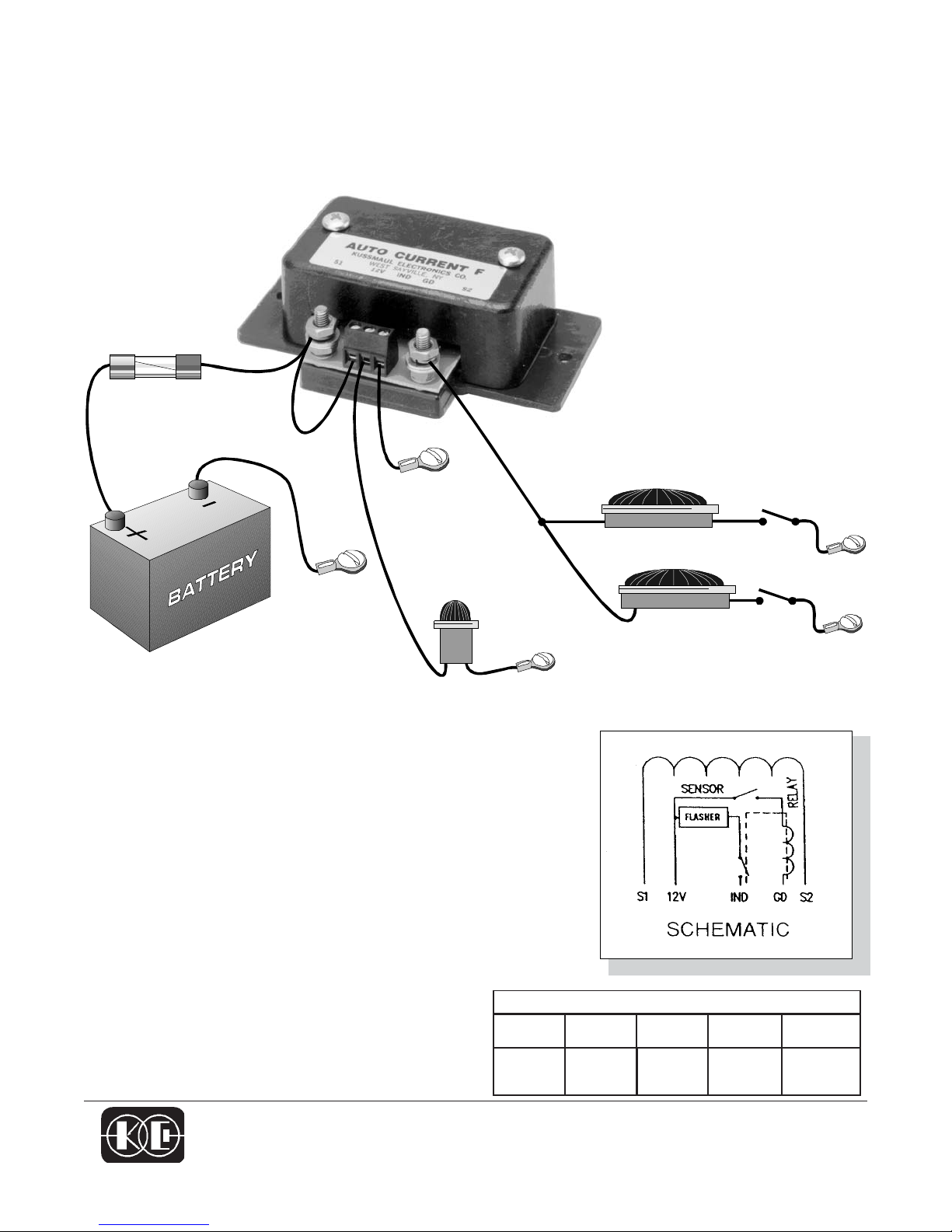

Chassis
Ground
Chassis
Ground Chassis
Ground
Chassis
Ground
Door
Switch
Door
Switch
Compartment
Lights
Loads
Loads
Indicator
Lamp
Fuse S1
S2
12V
IND
GND
MODEL
NUMBER
ORDERINGINFORMATION
RESIST
OHMS MIN.OPER.
AMPS MAX.OPER. AMPS SWITCH
RATING12V
091-22F-2
091-22F-3
091-22F-5
.01
.01
.02
1.0
.25
.25
30
30
10
5AMP
5AMP
5AMP
