KUSSMAUL 450-0700-0 User manual

170 Cherry Avenue
West Sayville, NY 11796
www.kussmaul.com
Ph: 800-346-0857
Fax: [phone]
[email protected]
INSTRUCTION MANUAL
INVERTER
PURE SINE WAVE INVERTER
700/1000/1500/2000/3000/4000
File: IM_450-XXXX-0_revA.pdf
Rev: B
Revised By: SO
Dat: 12-17-2015
MODEL #: 450-0700-0
MODEL #: 450-1000-0
MODEL #: 450-1500-0
MODEL #: 450-2000-0
MODEL #: 450-3000-0
MODEL #: 450-4000-0
700 Watt
1000 Watt
1500 Watt
2000 Watt
3000 Watt
4000 Watt
All manuals and user guides at all-guides.com
all-guides.com

Table of Content
1.SAFETY INSTRUCTIONS 1
1-1. General Safety Precautions 1
1-2. Other Safety Notes 1
2.FUNCTIONAL CHARACTERISTICS INTRODUCTION 3
2-1. System 3
2-2. Block Diagram 3
2-3. Electrical Specification 4
4
5
2-3-1. 450-0700-0 Specification (700 WATT, 100-120 VAC)
2-3-2. 450-0700-0 Specification (700 WATT, 200-240 VAC)
2-3-3. 450-1000-0 Specification (1000 WATT, 100-120 VAC) 7
8
10
11
13
14
2-3-4. 450-1000-0 Specification (1000 WATT, 200-240 VAC)
2-3-5. 450-1500-0 Specification (1500 WATT, 100-120 VAC)
2-3-6. 450-1500-0 Specification (1500 WATT, 200-240 VAC)
2-3-7. 450-2000-0 Specification (2000 WATT, 100-120 VAC)
2-3-8. 450-2000-0 Specification (2000 WATT, 200-240 VAC)
2-3-9. 450-3000-0 Specification (3000 WATT, 100-120 VAC) 16
17
19
2-3-10. 450-3000-0 Specification (3000 WATT, 200-240 VAC)
2-3-11. 450-4000-0 Specification (4000 WATT, 100-120 VAC)
2-3-12. 450-4000-0 Specification (4000 WATT, 200-240 VAC) 20
2-3-13. Voltage & temperature performance 22
2-4. Mechanical Drawings 23
3.INSTALLATION AND MAINTENANCE 24
3-1. AC Output Side (Front Panel) Introduction 24
3-1-1. Main Switch 25
3-1-2. LED Indicator 25
3-1-3. Function Switch Introduction 26
All manuals and user guides at all-guides.com

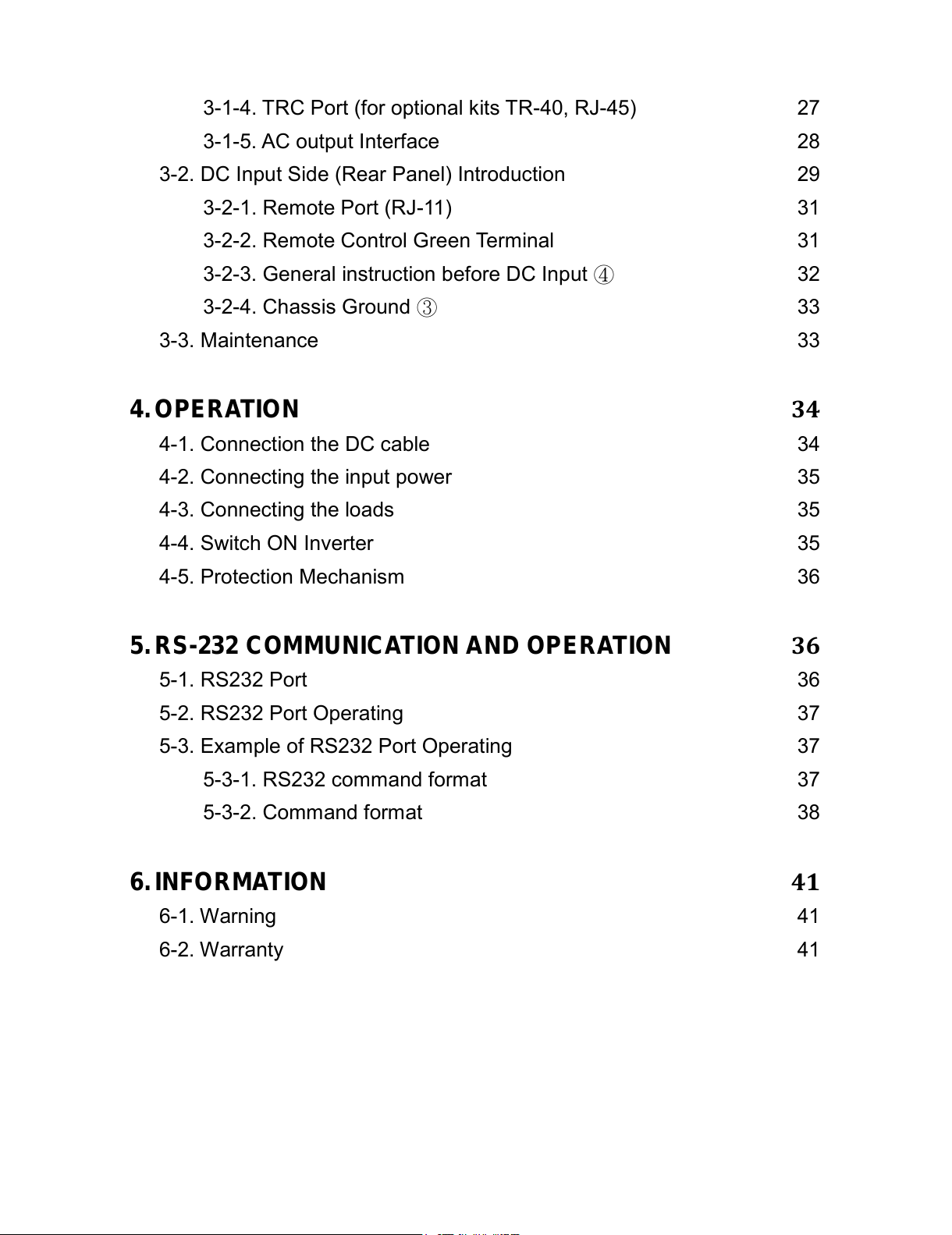

3-1-4. TRC Port (for optional kits TR-40, RJ-45) 27
3-1-5. AC output Interface 28
3-2. DC Input Side (Rear Panel) Introduction 29
3-2-1. Remote Port (RJ-11) 31
3-2-2. Remote Control Green Terminal 31
3-2-3. General instruction before DC Input ④32
3-2-4. Chassis Ground ③33
3-3. Maintenance 33
4.OPERATION 34
4-1. Connection the DC cable 34
4-2. Connecting the input power 35
4-3. Connecting the loads 35
4-4. Switch ON Inverter 35
4-5. Protection Mechanism 36
5.RS-232 COMMUNICATION AND OPERATION 36
5-1. RS232 Port 36
5-2. RS232 Port Operating 37
5-3. Example of RS232 Port Operating 37
5-3-1. RS232 command format 37
5-3-2. Command format 38
6.INFORMATION 41
6-1. Warning 41
6-2. Warranty 41
All manuals and user guides at all-guides.com

1

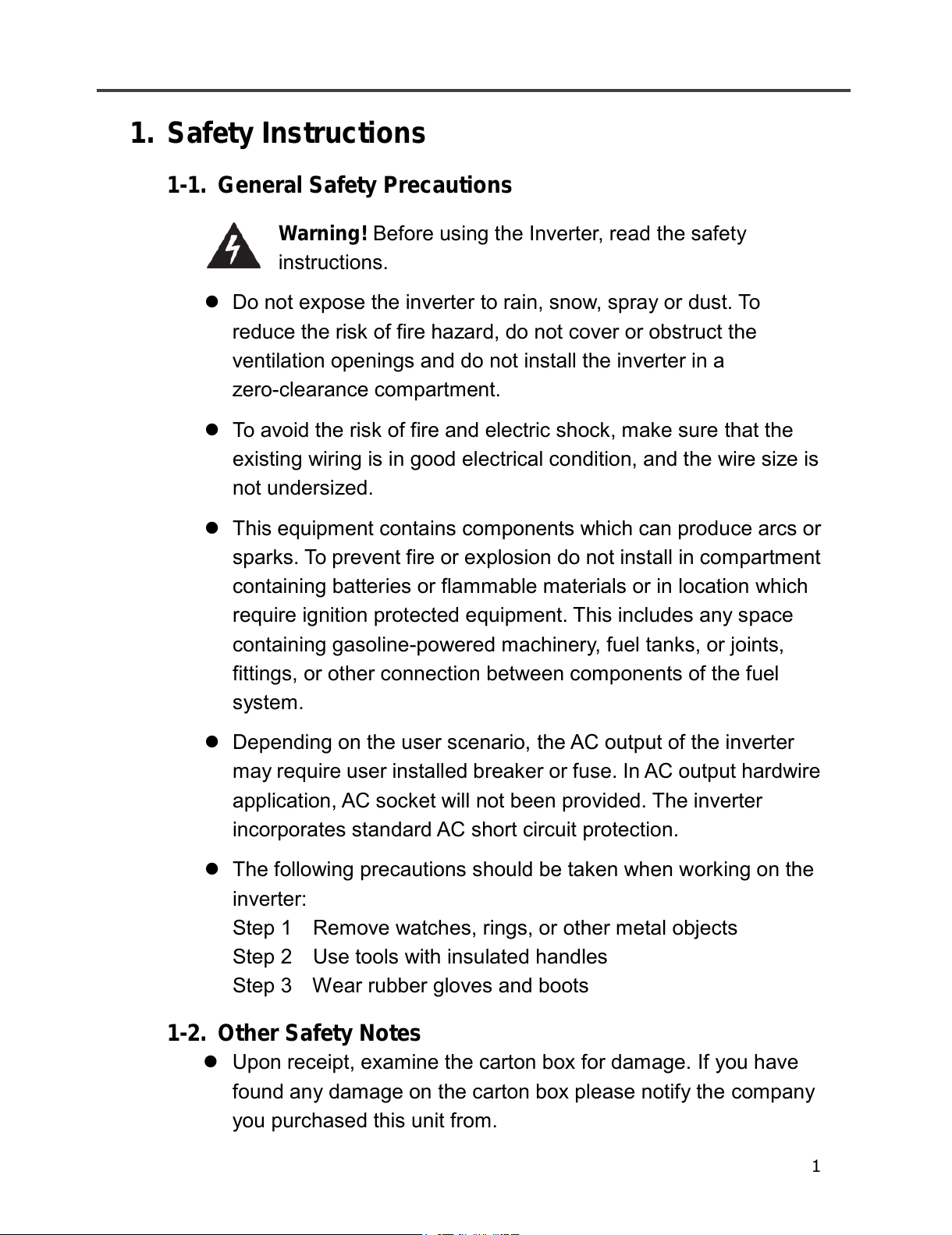

1. Safety Instructions
1-1. General Safety Precautions
Warning! Before using the Inverter, read the safety
instructions.
Do not expose the inverter to rain, snow, spray or dust. To
reduce the risk of fire hazard, do not cover or obstruct the
ventilation openings and do not install the inverter in a
zero-clearance compartment.
To avoid the risk of fire and electric shock, make sure that the
existing wiring is in good electrical condition, and the wire size is
not undersized.
This equipment contains components which can produce arcs or
sparks. To prevent fire or explosion do not install in compartment
containing batteries or flammable materials or in location which
require ignition protected equipment. This includes any space
containing gasoline-powered machinery, fuel tanks, or joints,
fittings, or other connection between components of the fuel
system.
Depending on the user scenario, the AC output of the inverter
may require user installed breaker or fuse. In AC output hardwire
application, AC socket will not been provided. The inverter
incorporates standard AC short circuit protection.
The following precautions should be taken when working on the
inverter:
Step 1 Remove watches, rings, or other metal objects
Step 2 Use tools with insulated handles
Step 3 Wear rubber gloves and boots
1-2. Other Safety Notes
Upon receipt, examine the carton box for damage. If you have
found any damage on the carton box please notify the company
you purchased this unit from.
All manuals and user guides at all-guides.com

2
Do not operate near water or in excessive humidity.
Do not open or disassemble the inverter, and warranty may be
voided.
The DC side connections should be firm and tight.
Grounding: Reliable grounding should be maintained.
Do not drop a metal tool on the battery. The resulting spark or
short-circuit on the battery or on the other electrical part may
cause an explosion.
Install the inverter in a well-ventilated area. Do not block the front
air vents, or the rear air exhausts of the unit.
Wiring: Adequate input power must be supplied to the inverter for
proper use; correct wiring sizes must be ensured.
Mount the inverter such that the fan axis is horizontal.
Do not operate the inverter close to combustible gas or open fire.
Do not operate appliances that may feed power back into the
inverter.
Temperature: The inverter should be operated in an ambient
temperature range of -20℃ to 40℃ otherwise the output
efficiency may be affected. Air flow to the inverter must not be
blocked.
All manuals and user guides at all-guides.com

3

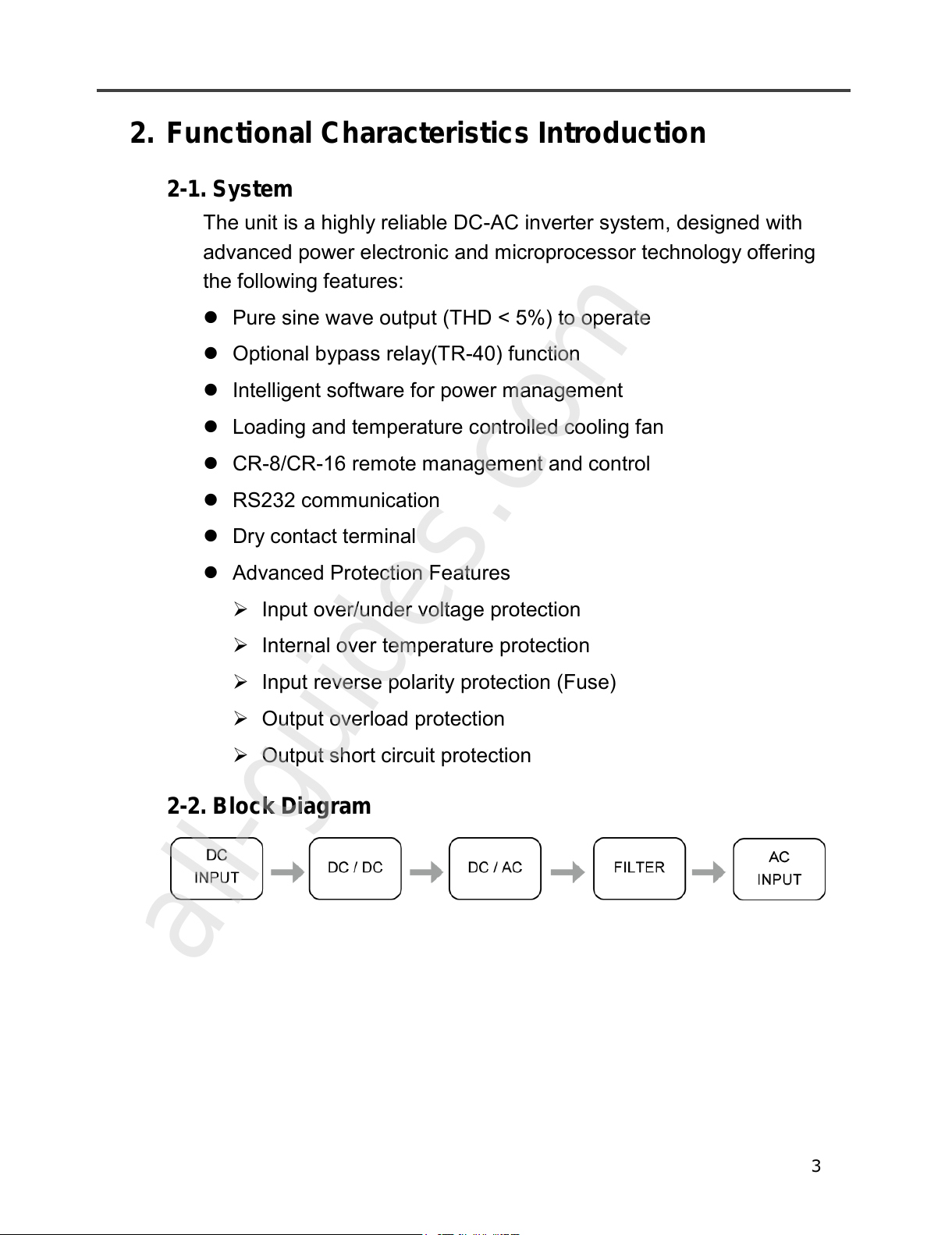

2. Functional Characteristics Introduction
2-1. System
The unit is a highly reliable DC-AC inverter system, designed with
advanced power electronic and microprocessor technology offering
the following features:
Pure sine wave output (THD < 5%) to operate
Optional bypass relay(TR-40) function
Intelligent software for power management
Loading and temperature controlled cooling fan
CR-8/CR-16 remote management and control
RS232 communication
Dry contact terminal
Advanced Protection Features
Input over/under voltage protection
Internal over temperature protection
Input reverse polarity protection (Fuse)
Output overload protection
Output short circuit protection
2-2. Block Diagram
All manuals and user guides at all-guides.com
all-guides.com

4
2-3. Electrical Specification

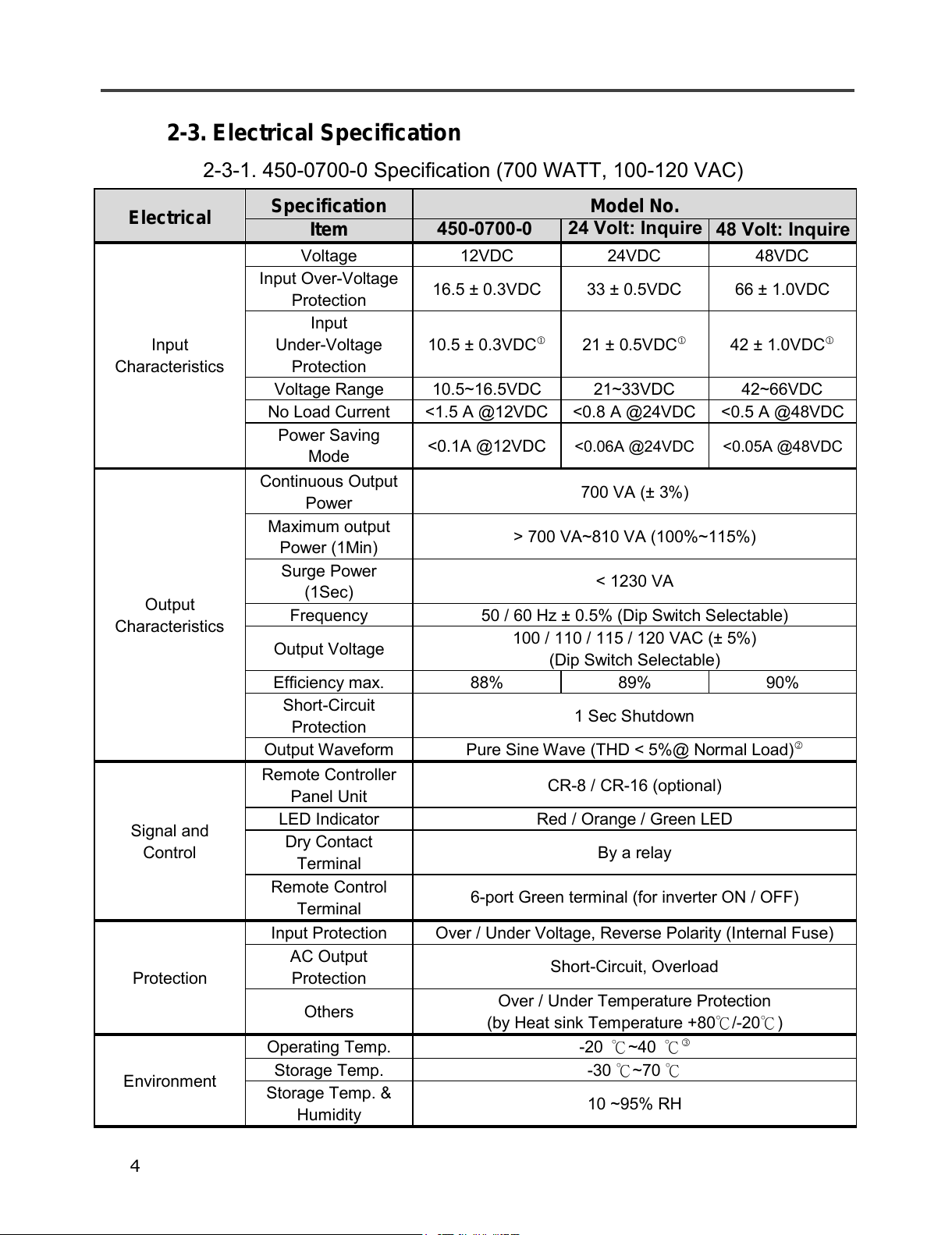

2-3-1. 450-0700-0 Specification (700 WATT, 100-120 VAC)
Electrical
Specification
Model No.
Item
450-0700-0 24 Volt: Inquire 48 Volt: Inquire
Input
Characteristics
Voltage
12VDC
24VDC
48VDC
Input Over-Voltage
Protection
16.5 ± 0.3VDC
33 ± 0.5VDC
66 ± 1.0VDC
Input
Under-Voltage
Protection
10.5 ± 0.3VDC
21 ± 0.5VDC
42 ± 1.0VDC
Voltage Range
10.5~16.5VDC
21~33VDC
42~66VDC
No Load Current
<1.5 A @12VDC
<0.8 A @24VDC
<0.5 A @48VDC
Power Saving
Mode
<0.1A @12VDC
<0.06A @24VDC
<0.05A @48VDC
Output
Characteristics
Continuous Output
Power
700 VA (± 3%)
Maximum output
Power (1Min)
> 700 VA~810 VA (100%~115%)
Surge Power
(1Sec)
< 1230 VA
Frequency
50 / 60 Hz ± 0.5% (Dip Switch Selectable)
Output Voltage
100 / 110 / 115 / 120 VAC (± 5%)
(Dip Switch Selectable)
Efficiency max.
88%
89%
90%
Short-Circuit
Protection
1 Sec Shutdown
Output Waveform
Pure Sine Wave (THD < 5%@ Normal Load)
Signal and
Control
Remote Controller
Panel Unit
CR-8 / CR-16 (optional)
LED Indicator
Red / Orange / Green LED
Dry Contact
Terminal
By a relay
Remote Control
Terminal
6-port Green terminal (for inverter ON / OFF)
Protection
Input Protection
Over / Under Voltage, Reverse Polarity (Internal Fuse)
AC Output
Protection
Short-Circuit, Overload
Others
Over / Under Temperature Protection
(by Heat sink Temperature +80℃/-20℃)
Environment
Operating Temp.
-20 ℃~40 ℃
Storage Temp.
-30 ℃~70 ℃
Storage Temp. &
Humidity
10 ~95% RH
All manuals and user guides at all-guides.com

5
Electrical
Specification
Model No.
Item
450-0700-0 24 Volt: Inquire 48 Volt, Inquire
Safety & EMC
Safety Standards
Certified UL 458
(UL only for GFCI receptacles)
----
EMC standards
Certified FCC class B
E-mark
----
Dimension(WxHxD)
200mm X 83mm X 330mm
Weight
2.6 KG
Cooling
Temperature & Load Controlled cooling Fan
AC Transfer Function Accessories
TR-40 (optional)
Table 1. 450-0700-0 for Output 100/110/115/120 VAC Specification.
Note：
 Voltage range：Please refer to Figure 1
 Normal load Condition： Vin =12.5V/25V/50V,
Vo=100/110/115/120 VAC 80% Full load (PF=1.0)
Operating temperature：Please refer to Figure 2
2-3-2. Specification (700 WATT, 200-240 VAC)
Electrical
Specification
Model No.
Item
Inquire
Inquire Inquire
Input
Characteristics
Voltage
12VDC
24VDC
48VDC
Input Over-Voltage
Protection
16.5 ± 0.3VDC
33 ± 0.5VDC
66 ± 1.0VDC
Input
Under-Voltage
Protection
10.5 ± 0.3VDC
21 ± 0.5VDC
42 ± 1.0VDC
Voltage Range
10.5~16.5VDC
21~33VDC
42~66VDC
No Load Current
<1.5 A @12VDC
<0.8A @24VDC
<0.5 A @48VDC
Power Saving
Mode
<0.1 A @12VDC
<0.06A @24VDC
<0.05 A @48VDC
Output
Characteristics
Continuous Output
Power
700 VA (± 3%)
Maximum output
Power (1Min)
> 700 VA~810 VA (100%~115%)
Surge Power
(1Sec)
< 1230 VA
Frequency
50 / 60 Hz ± 0.5% (Dip Switch Selectable)
Output Voltage
200 / 220 / 230 / 240 VAC (± 3%)
(Dip Switch Selectable)
All manuals and user guides at all-guides.com

6
Electrical
Specification
Model No.
Item
Inquire Inquire Inquire
Output
Characteristics
Efficiency max.
88%
89%
90%
Short-Circuit
Protection
1 Sec Shutdown
Output Waveform
Pure Sine Wave (THD < 5%@ Normal Load)
Signal and
Control
Remote Controller
Panel Unit
CR-8 / CR-16 (optional)
LED Indicator
Red / Orange / Green LED
Dry Contact
Terminal
By a relay
Remote Control
Terminal
6-port Green terminal (for inverter ON / OFF)
Protection
Input Protection
Over / Under Voltage, Reverse Polarity (Internal Fuse)
AC Output
Protection
Short-Circuit, Overload
Others
Over / Under Temperature Protection
(by Heat sink Temperature +80℃/-20℃)
Environment
Operating Temp.
-20 ℃~40 ℃
Storage Temp.
-30 ℃~70 ℃
Storage Temp. &
Humidity

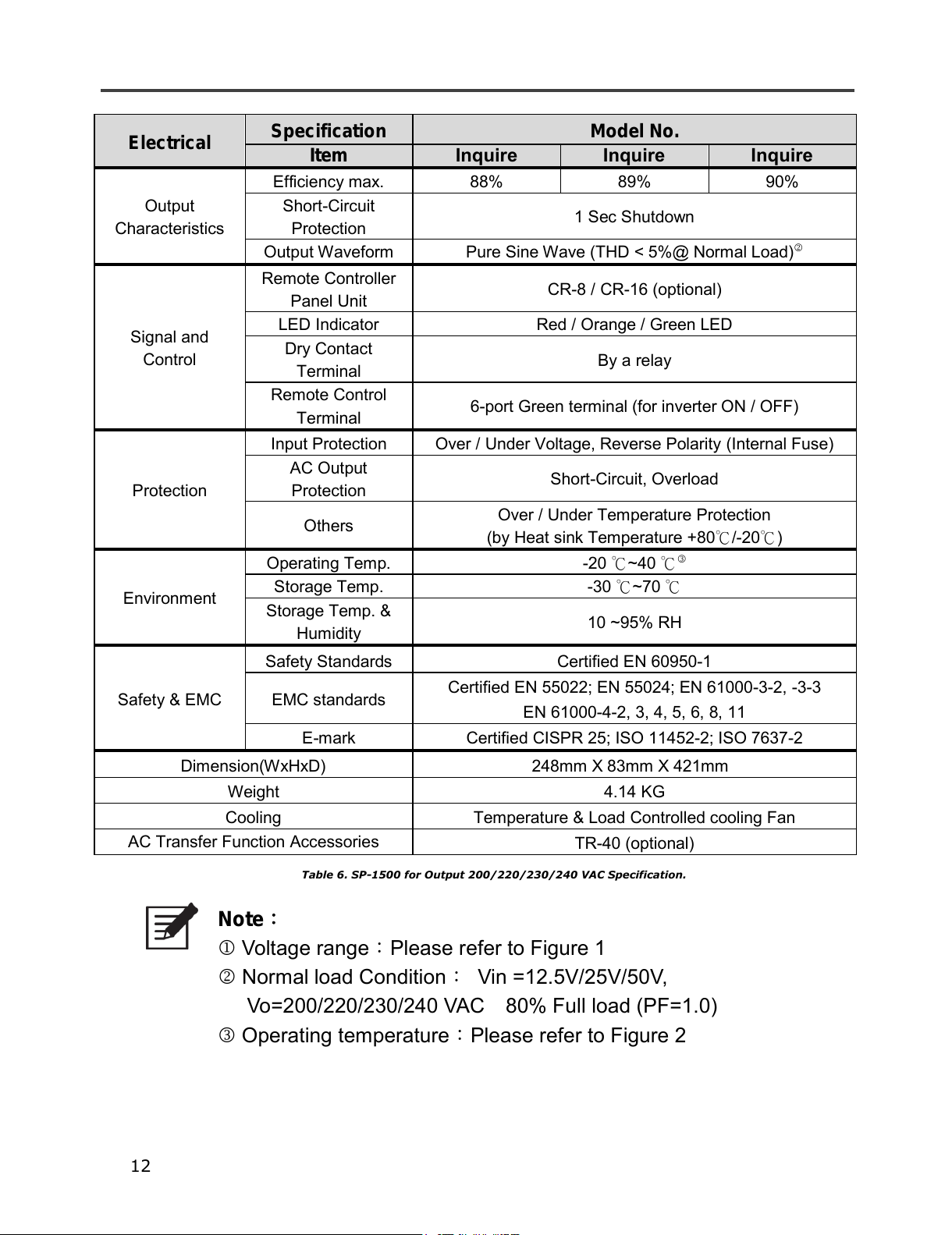

10 ~95% RH
Safety & EMC
Safety Standards
Certified EN 60950-1
EMC standards
Certified EN 55022; EN 55024; EN 61000-3-2, -3-3
EN 61000-4-2, 3, 4, 5, 6, 8, 11
E-mark
Certified CISPR 25; ISO 11452-2; ISO 7637-2
Dimension(WxHxD)
200mm X 83mm X 330mm
Weight
2.6 KG
Cooling
Temperature & Load Controlled cooling Fan
AC Transfer Function Accessories
TR-40 (optional)
Table 2. 450-0700-0 for Output 200/220/230/240 VAC Specification.
Note：
 Voltage range：Please refer to Figure 1
 Normal load Condition： Vin =12.5V/25V/50V,
Vo=200/220/230/240 VAC 80% Full load (PF=1.0)
Operating temperature：Please refer to Figure 2
All manuals and user guides at all-guides.com

7
2-3-3. 450-1000-0 Specification (1000 WATT, 100-120 VAC)
Electrical
Specification
Model No.
Item
450-1000-0 Inquire Inquire
Input
Characteristics
Voltage
12VDC
24VDC
48VDC
Input Over-Voltage
Protection
16.5 ± 0.3VDC
33 ± 0.5VDC
66 ± 1.0VDC
Input
Under-Voltage
Protection
10.5 ± 0.3VDC
21 ± 0.5VDC
42 ± 1.0VDC
Voltage Range
10.5~16.5 VDC
21~33 VDC
42~66 VDC
No Load Current
<1.5 A @12VDC
<0.8 A @24VDC
<0.5 A @48VDC
Power Saving
Mode
<0.1A @12VDC
<0.06A @24VDC
<0.05A @48VDC
Output
Characteristics
Continuous Output
Power
1000 VA(± 3%)
Maximum output
Power (1Min)
> 1000 VA~1150 VA (100%~115%)
Surge Power
(1Sec)
< 1750 VA
Frequency
50 / 60 Hz ± 0.5% (Dip Switch Selectable)
Output Voltage
100 / 110 / 115 / 120 VAC (± 5%)
(Dip Switch Selectable)
Efficiency max.
88%
89%
90%
Short-Circuit
Protection
1 Sec Shutdown
Output Waveform
Pure Sine Wave (THD < 5%@ Normal Load)
Signal and
Control
Remote Controller
Panel Unit
CR-8 / CR-16 (optional)
LED Indicator
Red / Orange / Green LED
Dry Contact
Terminal
By a relay
Remote Control
Terminal
6-port Green terminal (for inverter ON / OFF)
Protection
Input Protection
Over / Under Voltage, Reverse Polarity (Internal Fuse)
AC Output
Protection
Short-Circuit, Overload
Others
Over / Under Temperature Protection
(by Heat sink Temperature +80℃/-20℃)
Environment
Operating Temp.
-20 ℃~40 ℃
Storage Temp.
-30 ℃~70 ℃
Storage Temp. &
Humidity
10 ~95% RH
Safety & EMC
Safety Standards
Certified UL 458
(UL only for GFCI receptacles)
----
EMC standards
Certified FCC class B
E-mark
----
All manuals and user guides at all-guides.com

8
Electrical
Specification
Model No.
Item
450-1000-0 Inquire Inquire
Dimension(WxHxD)
200mm X 83mm X 372mm
Weight
3.26 KG
Cooling
Temperature & Load Controlled cooling Fan
AC Transfer Function Accessories
TR-40 (optional)
Table 3. SP-1000 for Output 100/110/115/120 VAC Specification.
Note：
 Voltage range：Please refer to Figure 1
 Normal load Condition： Vin =12.5V/25V/50V,
Vo=100/110/115/120 VAC 80% Full load (PF=1.0)
Operating temperature：Please refer to Figure 2
2-3-4. Specification (1000 WATT, 200-240 VAC)
Electrical
Specification
Model No.
Item
Inquire Inquire Inquire
Input
Characteristics
Voltage
12VDC
24VDC
48VDC
Input Over-Voltage
Protection
16.5 ± 0.3VDC
33 ± 0.5VDC
66 ± 1.0VDC
Input
Under-Voltage
Protection
10.5 ± 0.3VDC
21 ± 0.5VDC
42 ± 1.0VDC
Voltage Range
10.5~16.5 VDC
21~33 VDC
42~66 VDC
No Load Current
<1.5 A @12VDC
<0.8 A @24VDC
<0.4 A @48VDC
Power Saving
Mode
< 0.1A @12VDC
<0.05A @24VDC
<0.05A @48VDC
Output
Characteristics
Continuous Output
Power
1000 VA(± 3%)
Maximum output
Power (1Min)
> 1000 VA~1150 VA (100%~115%)
Surge Power
(1Sec)
< 1750 VA
Frequency
50 / 60 Hz ± 0.5% (Dip Switch Selectable)
Output Voltage
200 / 220 / 230 / 240 VAC (± 3%)
(Dip Switch Selectable)
Efficiency max.
88%
89%
90%
Short-Circuit
Protection
1 Sec Shutdown
Output Waveform
Pure Sine Wave (THD < 5%@ Normal Load)
All manuals and user guides at all-guides.com
all-guides.com

9
Electrical
Specification
Model No.
Item
Inquire Inquire Inquire
Signal and
Control
Remote Controller
Panel Unit
CR-8 / CR-16 (optional)
LED Indicator
Red / Orange / Green LED
Dry Contact
Terminal
By a relay
Remote Control
Terminal
6-port Green terminal (for inverter ON / OFF)
Protection
Input Protection
Over / Under Voltage, Reverse Polarity (Internal Fuse)
AC Output
Protection
Short-Circuit, Overload
Others
Over / Under Temperature Protection
(by Heat sink Temperature +80℃/-20℃)
Environment
Operating Temp.
-20 ℃~40 ℃
Storage Temp.
-30 ℃~70 ℃
Storage Temp. &
Humidity
10 ~95% RH
Safety & EMC
Safety Standards
Certified EN 60950-1
EMC standards
Certified EN 55022; EN 55024; EN 61000-3-2, -3-3
EN 61000-4-2, 3, 4, 5, 6, 8, 11
E-mark
Certified CISPR 25; ISO 11452-2; ISO 7637-2
Dimension(WxHxD)
200mm X 83mm X 372mm
Weight
3.26 KG
Cooling
Temperature & Load Controlled cooling Fan
AC Transfer Function Accessories
TR-40 (optional)
Table 4. SP-1000 for Output 200/220/230/240 VAC Specification.
Note：
 Voltage range：Please refer to Figure 1
 Normal load Condition： Vin =12.5V/25V/50V,
Vo=200/220/230/240 VAC 80% Full load (PF=1.0)
Operating temperature：Please refer to Figure 2
All manuals and user guides at all-guides.com

10
2-3-5. 450-1500-0 Specification (1500 WATT, 100-120 VAC)
Electrical
Specification
Model No.
Item
450-1500-0 Inquire Inquire
Input
Characteristics
Voltage
12VDC
24VDC
48VDC
Input Over-Voltage
Protection
16.5 ± 0.3VDC
33 ± 0.5VDC
66 ± 1.0VDC
Input
Under-Voltage
Protection
10.5 ± 0.3VDC
21 ± 0.5VDC
42 ± 1.0VDC
Voltage Range
10.5~16.5 VDC
21~33 VDC
42~66 VDC
No Load Current
<1.8A @12VDC
<0.9 A @24VDC
<0.5 A @48VDC
Power Saving
Mode
<0.1A @12VDC
<0.05A @24VDC
<0.05A @48VDC
Output
Characteristics
Continuous Output
Power
1500 VA(± 3%)
Maximum output
Power (1Min)
> 1500 VA~1730VA (100%~115%)
Surge Power
(1Sec)
<2650 VA
Frequency
50 / 60 Hz ± 0.5% (Dip Switch Selectable)
Output Voltage
100 / 110 / 115 / 120 VAC (± 5%)
(Dip Switch Selectable)
Efficiency max.
88%
89%
90%
Short-Circuit
Protection
1 Sec Shutdown
Output Waveform
Pure Sine Wave (THD < 5%@ Normal Load)
Signal and
Control
Remote Controller
Panel Unit
CR-8 / CR-16 (optional)
LED Indicator
Red / Orange / Green LED
Dry Contact
Terminal
By a relay
Remote Control
Terminal
6-port Green terminal (for inverter ON / OFF)
Protection
Input Protection
Over / Under Voltage, Reverse Polarity (Internal Fuse)
AC Output
Protection
Short-Circuit, Overload
Others
Over / Under Temperature Protection
(by Heat sink Temperature +80℃/-20℃)
Environment
Operating Temp.
-20 ℃~40 ℃
Storage Temp.
-30 ℃~70 ℃
Storage Temp. &
Humidity
10 ~95% RH
All manuals and user guides at all-guides.com

11
Electrical
Specification
Model No.
Item
450-1500-0 Inquire Inquire
Safety & EMC
Safety Standards
Certified UL 458
(UL only for GFCI receptacles)
----
EMC standards
Certified FCC class B
E-mark
----
Dimension(WxHxD)
248mm X 83mm X 421mm
Weight
4.14 KG
Cooling
Temperature & Load Controlled cooling Fan
AC Transfer Function Accessories
TR-40 (optional)
Table 5. SP-1500 for Output 100/110/115/120 VAC Specification.
Note：
 Voltage range：Please refer to Figure 1
 Normal load Condition： Vin =12.5V/25V/50V,
Vo=100/110/115/120VAC 80% Full load (PF=1.0)
Operating temperature：Please refer to Figure 2
2-3-6. Specification (1000 WATT, 200-240 VAC)
Electrical
Specification
Model No.
Item
Inquire Inquire Inquire
Input
Characteristics
Voltage
12VDC
24VDC
48VDC
Input Over-Voltage
Protection
16.5 ± 0.3VDC
33 ± 0.5VDC
66 ± 1.0VDC
Input
Under-Voltage
Protection
10.5 ± 0.3VDC
21 ± 0.5VDC
42 ± 1.0VDC
Voltage Range
10.5~16.5 VDC
21~33 VDC
42~66 VDC
No Load Current
<1.8A @12VDC
<0.9 A @24VDC
<0.5 A @48VDC
Power Saving
Mode
<0.1A @12VDC
<0.05A @24VDC
<0.05A @48VDC
Output
Characteristics
Continuous Output
Power
1500 VA(± 3%)
Maximum output
Power (1Min)
> 1500 VA~1730VA (100%~115%)
Surge Power
(1Sec)
<2650 VA
Frequency
50 / 60 Hz ± 0.5% (Dip Switch Selectable)
Output Voltage
200 / 220 / 230 / 240 VAC (± 3%)
(Dip Switch Selectable)
All manuals and user guides at all-guides.com

12
Electrical
Specification
Model No.
Item
Inquire Inquire Inquire
Output
Characteristics
Efficiency max.
88%
89%
90%
Short-Circuit
Protection
1 Sec Shutdown
Output Waveform
Pure Sine Wave (THD < 5%@ Normal Load)
Signal and
Control
Remote Controller
Panel Unit
CR-8 / CR-16 (optional)
LED Indicator
Red / Orange / Green LED
Dry Contact
Terminal
By a relay
Remote Control
Terminal
6-port Green terminal (for inverter ON / OFF)
Protection
Input Protection
Over / Under Voltage, Reverse Polarity (Internal Fuse)
AC Output
Protection
Short-Circuit, Overload
Others
Over / Under Temperature Protection
(by Heat sink Temperature +80℃/-20℃)
Environment
Operating Temp.
-20 ℃~40 ℃
Storage Temp.
-30 ℃~70 ℃
Storage Temp. &
Humidity
10 ~95% RH
Safety & EMC
Safety Standards
Certified EN 60950-1
EMC standards
Certified EN 55022; EN 55024; EN 61000-3-2, -3-3
EN 61000-4-2, 3, 4, 5, 6, 8, 11
E-mark
Certified CISPR 25; ISO 11452-2; ISO 7637-2
Dimension(WxHxD)
248mm X 83mm X 421mm
Weight
4.14 KG
Cooling
Temperature & Load Controlled cooling Fan
AC Transfer Function Accessories
TR-40 (optional)
Table 6. SP-1500 for Output 200/220/230/240 VAC Specification.
Note：
 Voltage range：Please refer to Figure 1
 Normal load Condition： Vin =12.5V/25V/50V,
Vo=200/220/230/240 VAC 80% Full load (PF=1.0)
Operating temperature：Please refer to Figure 2
All manuals and user guides at all-guides.com

13
2-3-7. 450-2000-0 Specification (2000 WATT, 100-120 VAC)
Electrical
Specification
Model No.
Item
450-2000-0 Inquire Inquire
Input
Characteristics
Voltage
12VDC
24VDC
48VDC
Input Over-Voltage
Protection
16.5 ± 0.3VDC
33 ± 0.5VDC
66 ± 1.0VDC
Input
Under-Voltage
Protection
10.5 ± 0.3VDC
21 ± 0.5VDC
42 ± 1.0VDC
Voltage Range
10.5~16.5 VDC
21~33 VDC
42~66 VDC
No Load Current
<1.8 A @12VDC
<0.9 A @24VDC
<0.5 A @48VDC
Power Saving
Mode
<0.1A @12VDC
<0.05A @24VDC
<0.05A @48VDC
Output
Characteristics
Continuous Output
Power
2000 VA(± 3%)
Maximum output
Power (1Min)
> 2000 VA~2300 VA (100%~115%)
Surge Power
(1Sec)
< 3500 VA
Frequency
50 / 60 Hz ± 0.5% (Dip Switch Selectable)
Output Voltage
100 / 110 / 115 / 120 VAC (± 5%)
(Dip Switch Selectable)
Efficiency max.
88%
89%
90%
Short-Circuit
Protection
1 Sec Shutdown
Output Waveform
Pure Sine Wave (THD < 5%@ Normal Load)
Signal and
Control
Remote Controller
Panel Unit
CR-8 / CR-16 (optional)
LED Indicator
Red / Orange / Green LED
Dry Contact
Terminal
By a relay
Remote Control
Terminal
6-port Green terminal (for inverter ON / OFF)
Protection
Input Protection
Over / Under Voltage, Reverse Polarity (Internal Fuse)
AC Output
Protection
Short-Circuit, Overload
Others
Over / Under Temperature Protection
(by Heat sink Temperature +80℃/-20℃)
Environment
Operating Temp.
-20 ℃~40 ℃
Storage Temp.
-30 ℃~70 ℃
Storage Temp. &
Humidity
10 ~95% RH
All manuals and user guides at all-guides.com
all-guides.com

14
Electrical
Specification
Model No.
Item
450-2000-0 Inquire Inquire
Safety & EMC
Safety Standards
Certified UL 458
(UL only for GFCI receptacles)
----
EMC standards
Certified FCC class B
E-mark
----
Dimension(WxHxD)
248mm X 83mm X 443mm
Weight
5.24 KG
Cooling
Temperature & Load Controlled cooling Fan
AC Transfer Function Accessories
TR-40 (optional)
Table 7. SP-2000 for Output 100/110/115/120 VAC Specification.
Note：
 Voltage range：Please refer to Figure 1
 Normal load Condition： Vin =12.5V/25V/50V,
Vo=100/110/115/120 VAC 80% Full load (PF=1.0)
Operating temperature：Please refer to Figure 2
2-3-8. Specification (2000 WATT, 200-240 VAC)
Electrical
Specification
Model No.
Item
Inquire Inquire Inquire
Input
Characteristics
Voltage
12VDC
24VDC
48VDC
Input Over-Voltage
Protection
16.5 ± 0.3VDC
33 ± 0.5VDC
66 ± 1.0VDC
Input
Under-Voltage
Protection
10.5 ± 0.3VDC
21 ± 0.5VDC
42 ± 1.0VDC
Voltage Range
10.5~16.5 VDC
21~33 VDC
42~66 VDC
No Load Current
<1.8 A @12VDC
<0.9 A @24VDC
<0.5 A @48VDC
Power Saving
Mode
<0.1A @12VDC
<0.05A @24VDC
<0.05A @48VDC
Output
Characteristics
Continuous Output
Power
2000 VA(± 3%)
Maximum output
Power (1Min)
> 2000 VA~2300 VA (100%~115%)
Surge Power
(1Sec)
< 3500 VA
Frequency
50 / 60 Hz ± 0.5% (Dip Switch Selectable)
Output Voltage
200 / 220 / 230 / 240 VAC (± 3%)
(Dip Switch Selectable)
Efficiency max.
89%
89%
90%
All manuals and user guides at all-guides.com

15
Electrical
Specification
Model No.
Item
Inquire Inquire Inquire
Output
Characteristics
Short-Circuit
Protection
1 Sec Shutdown
Output Waveform
Pure Sine Wave (THD < 5%@ Normal Load)
Signal and
Control
Remote Controller
Panel Unit
CR-8 / CR-16 (optional)
LED Indicator
Red / Orange / Green LED
Dry Contact
Terminal
By a relay
Remote Control
Terminal
6-port Green terminal (for inverter ON / OFF)
Protection
Input Protection
Over / Under Voltage, Reverse Polarity (Internal Fuse)
AC Output
Protection
Short-Circuit, Overload
Others
Over / Under Temperature Protection
(by Heat sink Temperature +80℃/-20℃)
Environment
Operating Temp.
-20 ℃~40 ℃
Storage Temp.
-30 ℃~70 ℃
Storage Temp. &
Humidity
10 ~95% RH
Safety & EMC
Safety Standards
Certified EN 60950-1
EMC standards
Certified EN 55022; EN 55024; EN 61000-3-2, -3-3
EN 61000-4-2, 3, 4, 5, 6, 8, 11
E-mark
Certified CISPR 25; ISO 11452-2; ISO 7637-2
Dimension(WxHxD)
248mm X 83mm X 443mm
Weight
5.24 KG
Cooling
Temperature & Load Controlled cooling Fan
AC Transfer Function Accessories
TR-40 (optional)
Table 8. SP-2000 for Output 200/220/230/240 VAC Specification.
Note：
 Voltage range：Please refer to Figure 1
 Normal load Condition： Vin =12.5V/25V/50V,
Vo=200/220/230/240 VAC 80% Full load (PF=1.0)
Operating temperature：Please refer to Figure 2
All manuals and user guides at all-guides.com

16
2-3-9. 450-3000-0 Specification (3000 WATT, 100-120 VAC)
Electrical
Specification
Model No.
Item
450-3000-0 Inquire Inquire
Input
Characteristics
Voltage
12VDC
24VDC
48VDC
Input Over-Voltage
Protection
16.5 ± 0.3VDC
33 ± 0.5VDC
66 ± 1.0VDC
Input
Under-Voltage
Protection
10.5 ± 0.3VDC
21 ± 0.5VDC
42 ± 1.0VDC
Voltage Range
10.5~16.5 VDC
21~33 VDC
42~66 VDC
No Load Current
<3.8 A @12VDC
<1.9 A @24VDC
<1.0 A @48VDC
Power Saving
Mode
<0.4A @12VDC
<0.2A @24VDC
<0.1A @48VDC
Output
Characteristics
Continuous Output
Power
3000 VA(± 3%)
Maximum output
Power (1Min)
>3000 VA~3450 VA (100%~115%)
Surge Power
(1Sec)
< 6000 VA
Frequency
50 / 60 Hz ± 0.5% (Dip Switch Selectable)
Output Voltage
100 / 110 / 115 / 120 VAC (± 5%)
(Dip Switch Selectable)
Efficiency max.
88%
89%
90%
Short-Circuit
Protection
1 Sec Shutdown
Output Waveform
Pure Sine Wave (THD < 5%@ Normal Load)
Signal and
Control
Remote Controller
Panel Unit
CR-8 / CR-16 (optional)
LED Indicator
Red / Orange / Green LED
Dry Contact
Terminal
By a relay
Remote Control
Terminal
6-port Green terminal (for inverter ON / OFF)
Protection
Input Protection
Over / Under Voltage, Reverse Polarity (Internal Fuse)
AC Output
Protection
Short-Circuit, Overload
Others
Over / Under Temperature Protection
(by Heat sink Temperature +80℃/-20℃)
Environment
Operating Temp.
-20 ℃~40 ℃
Storage Temp.
-30 ℃~70 ℃
Storage Temp. &
Humidity
10 ~95% RH
All manuals and user guides at all-guides.com

17
Electrical
Specification
Model No.
Item
450-3000-0 Inquire Inquire

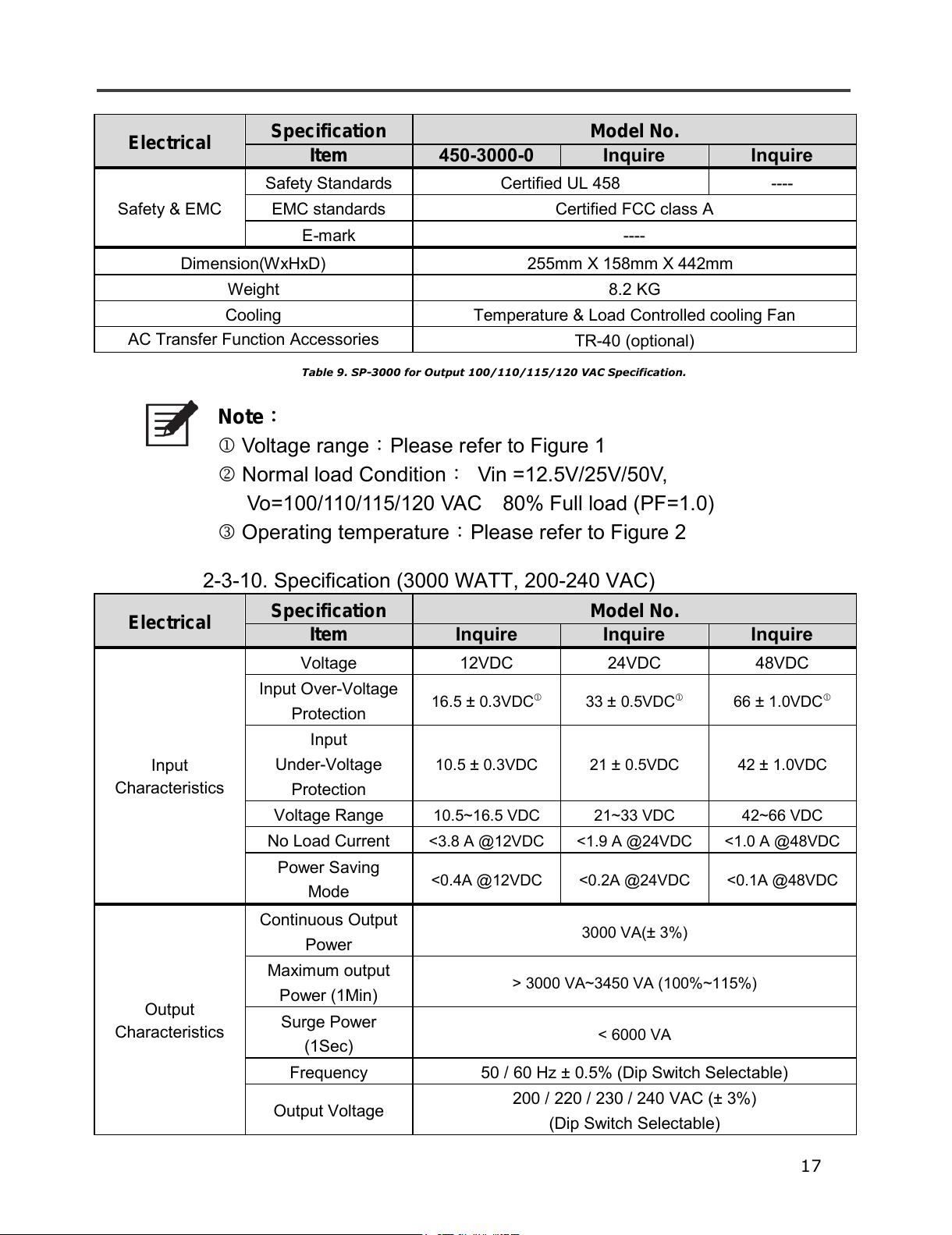

Safety & EMC
Safety Standards
Certified UL 458
----
EMC standards
Certified FCC class A
E-mark
----
Dimension(WxHxD)
255mm X 158mm X 442mm
Weight
8.2 KG
Cooling
Temperature & Load Controlled cooling Fan
AC Transfer Function Accessories
TR-40 (optional)
Table 9. SP-3000 for Output 100/110/115/120 VAC Specification.
Note：
 Voltage range：Please refer to Figure 1
 Normal load Condition： Vin =12.5V/25V/50V,
Vo=100/110/115/120 VAC 80% Full load (PF=1.0)
Operating temperature：Please refer to Figure 2
2-3-10. Specification (3000 WATT, 200-240 VAC)
Electrical
Specification
Model No.
Item
Inquire Inquire Inquire
Input
Characteristics
Voltage
12VDC
24VDC
48VDC
Input Over-Voltage
Protection
16.5 ± 0.3VDC
33 ± 0.5VDC
66 ± 1.0VDC
Input
Under-Voltage
Protection
10.5 ± 0.3VDC
21 ± 0.5VDC
42 ± 1.0VDC
Voltage Range
10.5~16.5 VDC
21~33 VDC
42~66 VDC
No Load Current
<3.8 A @12VDC
<1.9 A @24VDC
<1.0 A @48VDC
Power Saving
Mode
<0.4A @12VDC
<0.2A @24VDC
<0.1A @48VDC
Output
Characteristics
Continuous Output
Power
3000 VA(± 3%)
Maximum output
Power (1Min)
>3000 VA~3450 VA (100%~115%)
Surge Power
(1Sec)
< 6000 VA
Frequency
50 / 60 Hz ± 0.5% (Dip Switch Selectable)
Output Voltage
200 / 220 / 230 / 240 VAC (± 3%)
(Dip Switch Selectable)
All manuals and user guides at all-guides.com
