KV2 Audio ESM26 User manual

User Guide
ESM Series
The Future of Sound.
Made Perfectly Clear.
At KV2 Audio our vision is to constantly develop technologies
that eliminate distortion and loss of information providing
a true dynamic representation of the source.
Our aim is to create audio products that absorb you,
place you within the performance and deliver a listening
experience beyond expectations.
· ESM26 · ESM12

Contents ESM Series
ESM26
Overview
Contents Overview
21
CONTENTS 1
ESM26 - THE ULTIMATE COMPACT PASSIVE MONITOR 2
Overview 2
Drawing 3
Specifications 4
ESM12 - THE ULTIMATE PASSIVE MONITOR 5
Overview 5
Drawing - ESM12L 6
Drawing - ESM12R 7
Specifications 8
ACCESSORIES 9
WARRANTY - SERVICE 11

Contents ESM Series
ESM26
Overview
Overview
2
1
KVV 987 263 - ESM26
Applications
Description
The ESM26 is a purpose built stage monitor with incredible clarity and presence, especially in the
all important vocal range. Incorporating two high quality 6” drivers and a 1.75” compression driver
on a 100x100 degree horn flare. The ESM26 utilises KV2’s revolutionary delay line technology for
optimum output and feedback rejection. A full width bass port along the bottom of the cabinet
couples with the floor to deliver bass response comparable to monitors twice its size. Under 400mm
wide this small monitor takes up minimal room on stage and is ideal for visually critical applications
like TV and theatre.
•Specically designed as an extremely
compact-low prole passive-vocal oor
monitor
•Live performance
•Concert venues
•Portable PA
•Fixed installations
THE ULTIMATE COMPACT PASSIVE MONITOR
Connection
The ESM26 features two Speakon (NL4) connectors. The connectors are interconnected in parallel to
allow the “daisy chaining“ of additional ESM26’s.

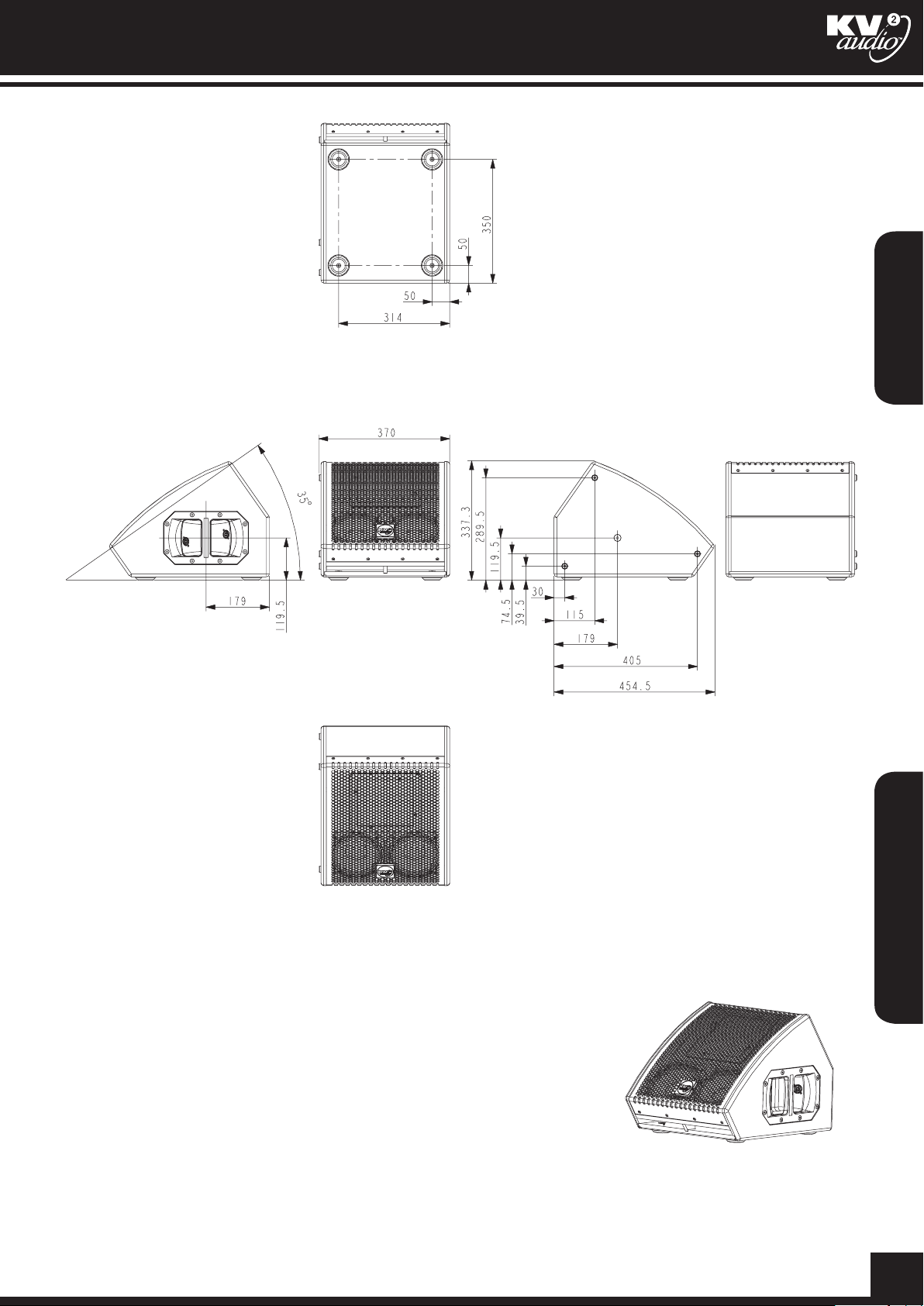

Drawing ESM26
ESM26
Specifications
Drawing
Specifications
4
3

Drawing ESM26
ESM26
Specifications
Specifications
4
3
ESM26 Frequency response (half space)
ESM26 Specifications
System Acoustic Perfomance
Max SPL Long-term 123dB
Max SPL Peak 126dB
-3dB Response 70Hz to 16kHz
Recommended Power 275W
Sensitivity 98dB
Impedance 8Ω
Crossover Point 2.5kHz
High Frequency Section
Acoustic Design Horn Loaded
High Horn Coverage Horizontal / Vertical 100° x 100°
Throat Exit Diameter / Diaphragm Size 1" / 1.75"
Diaphragm Material Nitride Titanium
Magnet Type Neodymium
Low Frequency Section
Acoustic Design Front Loaded, Bass Reflex
Number of Drivers 2
Woofer Size / Voice Coil Diameter / Design 6" / 1.75"
Diaphragm Material Epoxy Reinforced Cellulose
Magnet Type Neodymium
Speaker Input
Speaker Input 2x Neutrik Speakon®
Features
RMS Limiter autoreset
Cabinet
Cabinet Material Baltic birch
Handles 1
Color "Orange peeled" Matt Black or any RAL
Physical Dimensions
Height 339.5mm
Width 373.5mm
Depth 455mm
Weight 15kg

Overview ESM12
ESM12L
Drawing
Overview
Drawing
6
5
KVV 987 216 - ESM12L
KVV 987 218 - ESM12R
Applications
Description
The ESM12 is a full-range low profile 2-way, passive monitoring solution with a 12” trans-coil neo
woofer and the same 3” NVPD large format compression driver found in our flagship VHD products.
The ESM12 also features our revolutionary passive delay line, which dramatically reduces feedback.
Housed in a professional Baltic Birch cabinet, with a protective Polymer coating and heavy-duty grill,
the ESM12 can be utilized for FOH applications with the inclusion of a pole mount. Truly one of the
most impressive monitoring solutions on the market today, the ESM12 is available in left and right
configurations.
• Specically designed as an extremely high
output, full range-low prole passive vocal
andmusicoormonitor
• Live performance
• Concert venues
• Portable PA
• Fixed installations
THEULTIMATEPASSIVEMONITOR
Connection
The ESM12 features Speakon (NL4) connectors. The connectors are interconnected in parallel
to allow the “daisy chaining“ of additional ESM12’s.

Overview ESM12
ESM12L
Drawing
Drawing
6
5

Drawing ESM12R
ESM12
Specifications
Drawing Specifications
87

Drawing ESM12R
ESM12
Specifications
Specifications
87
ESM12 Frequency response
ESM12 Specications
System Acoustic Perfomance
Max SPL Long-term 127dB
Max SPL Peak 130dB
-3dB Response 55Hz - 22kHz
Recommended Power 500W
Sensitivity 98dB
Impedance 4Ω
Crossover Point 1.2kHz
High Frequency Section
Acoustic Design Horn Loaded
High Horn Coverage Horizontal / Vertical 40° x 80°
Rotatable Horn YES
Throat Exit Diameter / Diaphragm Size 1" / 3"
Diaphragm Material Nitride Titanium
Magnet Type Neodymium
Protection RMS Limiter
Low Frequency Section
Acoustic Design Front Loaded, Bass Reflex
Woofer Size / Voice Coil Diameter / Design 12" / 2.5" / Trans Coil
Magnet Type Neodymium
Diaphragm Material Epoxy Reinforced Cellulose
Protection Thermal breaker - autoreset
Speaker Input
Speaker Input 2x Neutrik Speakon®
Features
RMS Limiter autoreset
Cabinet
Cabinet Material Baltic birch
Handles 1
Pole Mount 35mm
Color "Orange peeled" Matt Black or any RAL
Physical Dimensions
Height 368mm (14.48")
Width 606mm (23.86")
Depth 368mm (14.48")
Weight 23kg (50.7lbs)

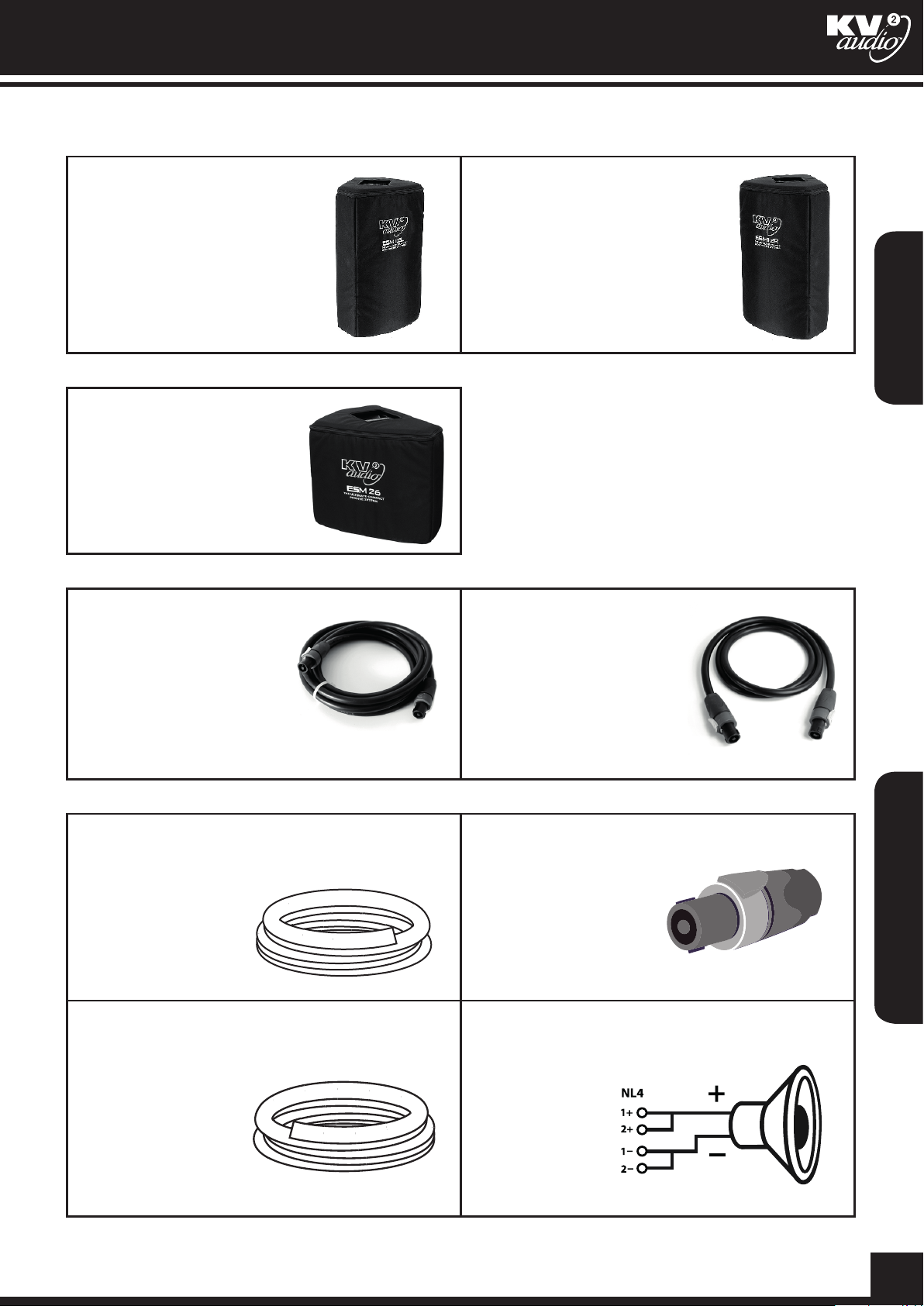

Cover for ESD12M-Left Cover for ESD12M-Right
part name:
COVER ESM12L
part number:
KVV 987 262
description:
- heavy duty
- padded
part name:
COVER ESM12R
part number:
KVV 987 261
description:
- heavy duty
- padded
Cover for ESM26
part name:
COVER ESM26
part number:
KVV 987 281
description:
- heavy duty
- padded
Bass speaker cable Speakon 4.40 Bass speaker cable Speakon 4.15
part name:
CABLE SPEAKON 4.40
part number:
KVV 987 327
description:
- 4 wire speaker cable
- Speakon NL4 connectors
- 4m (13ft)
- for K-RIG Bass Module hook-up
part name:
CABLE SPEAKON 4.15
part number:
KVV 987 326
description:
- 4 wire speaker cable
- Speakon NL4 connectors
- 1,5m (5ft)
- for K-RIG Bass Module hook-up
SPEAKER CABLES
part name:
1m - round exible speaker cable,
cross section 2 x 1.5mm
part number:
WX 002
part name:
SPEAKON NL4
part number:
KA 027
part name:
1m - round exible speaker cable,
cross section 4 x 2.5mm
part number:
WX 003
ESM, Speakon NL4 wiring
positive pin
(1 +, 2 + parallel)
negative pin
(1 -, 2 - parallel)
Accessories ESM Series
ESM Series
Accessories
Accessories
Accessories
10
9
ESM SPEAKER

Accessories ESM Series
ESM Series
Accessories
Accessories
10
9
RECOMMENDED SPEAKER CABLE LENGTHS
MINIMUM CROSS SECTION
[mm2]
LENGTH, IMPEDANCE 4Ω
[m]
LENGTH, IMPEDANCE 8Ω
[m]
LENGTH, IMPEDANCE 16Ω
[m]
1.5 8 15 30
2.5 15 30 60
2 x 2.5 20 40 90
4 25 50 100

Warranty - Service ESM Series
ESM Series
Notes
Warranty - Service
Notes
12
11
Warranty
Your ESM is covered against defects in material and workmanship. Refer to your supplier for more
details.
Service
In the unlikely event that your ESM develops a problem, it must be returned to an authorised
distributor, service centre or shipped directly to our factory. Because of the complexity of the
design and the risk of electrical shock, all repairs must be attempted only by qualified technical
personnel.
If the unit needs to be shipped back to the factory, it must be sent in its original carton. If improperly
packed, the unit may be damaged.
To obtain service, contact your nearest KV2 Audio Service Centre, Distributor or Dealer.

Warranty - Service ESM Series
ESM Series
Notes
Notes
12
11

KVV120075-00-05-0
KV2 Audio International
Nádražní 936, 399 01 Milevsko
Czech Republic
Tel.: [phone]
Email: [email protected]
www.kv2audio.com
The Future of Sound.
Made Perfectly Clear.
