KVS MORAVIA 9170 Installation guide
10/2016
TYPE 9170
OPERATION & MAINTENANCE
MANUAL
INSTALLATION MANUAL
This product is not suitable as a main heat source for heating.
09/2016
1
SOLID FUEL
COOKING APPLIANCE
SOLID FUEL
COOKING APPLIANCE
TYPE 9170
OPERATION & MAINTENANCE
MANUAL
INSTALLATION MANUAL
This product is not suitable as a main heat source for heating.
2
TYPE 9170 10/2016
3
TYPE 9170 10/2016
Important information, binding instructions and recommendations
OPERATION & MAINTENANCE MANUAL
Dear customer
Thank you for purchasing the KVS MORAVIA appliance – solid-fuel range cooker.
We believe that our product serves you well. Some important principles should
be observed during its operation. Therefore, in your interest, carefully peruse this
manual and operate the product according to the given instructions.
• Fortheappliancetofunctioncorrectly,ensuresufcientchimneydraught.
• Noammableliquidsshouldbeusedwhenlightingare,norshouldtheybe
used to in-crease the nominal output of the appliance.
• Theappliancemustnotbeusedforwasteincineration;recommendedfuelsmay
be used only.
• Duringoperation,theashtraydoormustbeclosed,andthereboxdoorshould
onlybeopenedforlightingareorrakingthegrateinordertopreventuegas-
es from escaping.
• Ashmustbeputintonon-ammableashbinswithcovers!Beverycarefulwhen
removing hot ash.
• Payattentiontoresafety!
• Itisforbiddentousetheapplianceifitisdamaged(untforoperation)!
• Failuretoobservetheoperatingconditionsmayresultindamagetosomeparts
oftheappliance.Itisforbiddentooverloadtheapplianceinanyway(ahot–red
hob).
• Noisy impacts (banging) that are due to the internal stress of metal pla-
tes may occur during operation. This occurrence will usually fade away
completely after a certain period of time (it depends on the frequency of
heating).
• Anyrepairoftheappliance,exceptcleaningandliningwithreclay,mayonlybe
done by an authorised worker.
• Alllocalregulations,includingthoseregulationsrelatedtonationalandEurope-
an standards, shall be observed during the installation of the appliance.
• Itisrecommendedthatyouonlyusesparepartsapprovedbythemanufacturer.
• Unauthorisedmodicationsoftheapplianceareforbidden.
• Theappliancemayonlybeoperatedbyadultsandduringoperationtheapplian-
cerequiresintermittentattendanceandsupervision.
4
TYPE 9170 10/2016
Technical data – VSP 9170
The type 9170 appliance has been designed for combusting solid fuels in periodic
charges and it is intended for cooking in households and for heating the space in
whichitissituated,accord-ingtoČSNEN12815:2002andAmendmentA1:2005.
TheappliancecomplieswithCommissionRegulation(EU)2015/1185–ecodesign
of solid-fuel local space heaters.
The appliance can be connected to a chimney from the top side through a hole in
the hob or from the rear side.
Theapplianceistforshort-termoperation,soitisnotpossibletosetaperma-
nent-heat process with the shortest interval of fuel supply of 10 hours.
Appliance VSP 9170
Energyefciencyclass A+
NominalHeatOutput(NHO) 6.6kW
Directheatoutput 6.6kW
Indirect heating function NO
Energyefciencyindex 108
EfciencyatNHO 81.5%
(Seasonalefciency 71.5%)
AveragetemperatureofuegasesatNHO 163°C
MassowrateofuegasesatNHO 9.3g/s
EmissionsduringheatingofspacesatNHO(withO2=13%):
PM 38mg/m3
OGC 64mg/m3
CO 1182mg/m3
Nox 91mg/m3
Minimum chimney draught 12 Pa
Preferredfuel woodbriquettes(pressedwood
withmoisturecontent<12%)
Consumptionofpreferredfuel 1.74kg/h
Appliance weight 107 kg
Dimensions
Worktopheight 850mm
Appliancewidth 725mm
Appliancedepth 520mm
Heighttothecentreoftheexhaustue 755±5mm
Diameteroftheexhaustcollar 120mm
Hob area 0.3 m2
Dimensions of rebox
WidthxHeightхDepth 185х250x350mm
Firegrate,WidthхDepth 160х290mm
Stokehole,WidthxHeight 160х200mm
5
TYPE 9170 10/2016
VSP 9170

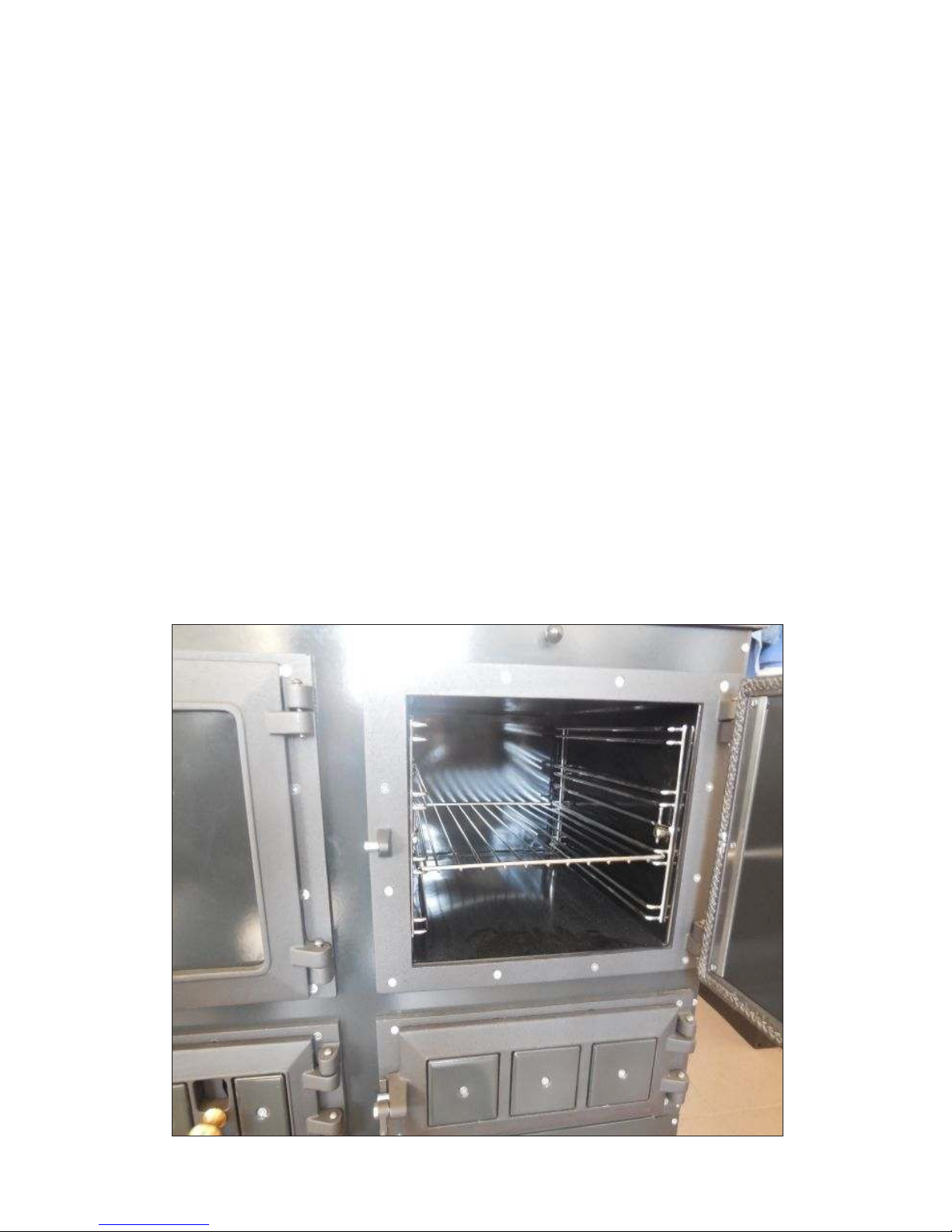

Dimensions of baking oven
WidthxHeightxDepth 300x250x420mm
Accessories
baking sheet 1 item
oven grate 1 item
poker 1 item
gloves 1 item
NOTE:
The manufacturer reserves the right to make minor alterations arising from innovation or
technological changes to the product that do not affect the function of the product.

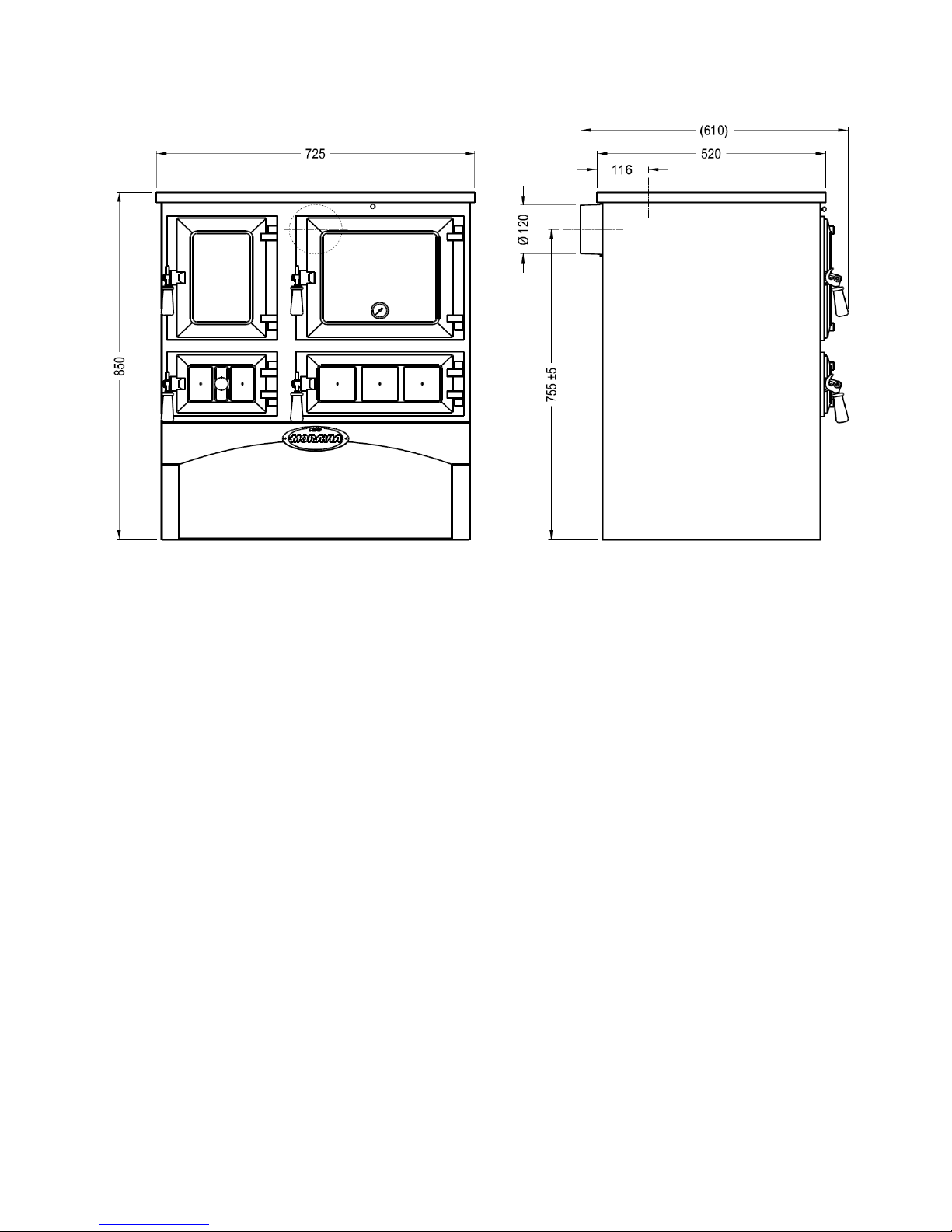

Dimensions´s draft
TYPE 9170 09/2016
6
6
TYPE 9170 10/2016
Dimensions´s draft
NOTE:
The manufacturer reserves the right to make minor alterations arising from inno-
vation or technological changes to the product that do not affect the function of the
product.
7
TYPE 9170 10/2016
Recommended fuel
■wood briquettes (diameter 90 mm),wood(max.diameter 190 mm,max.
length300mm).
■Makesurethatthefuelisdry.Itisnotrecommendedtoburnhigh-caloric
fuels, which reduce the service life of the appliance.
Grates
Theapplianceisequippedwithonegrate.
Grating
It is done by means of the poker in order to allow unburned fuel remains to fall
throughtotheashtray,whichincreasesagainthesupplyofcombustion(primary)
airtotherebox.
8
TYPE 9170 10/2016

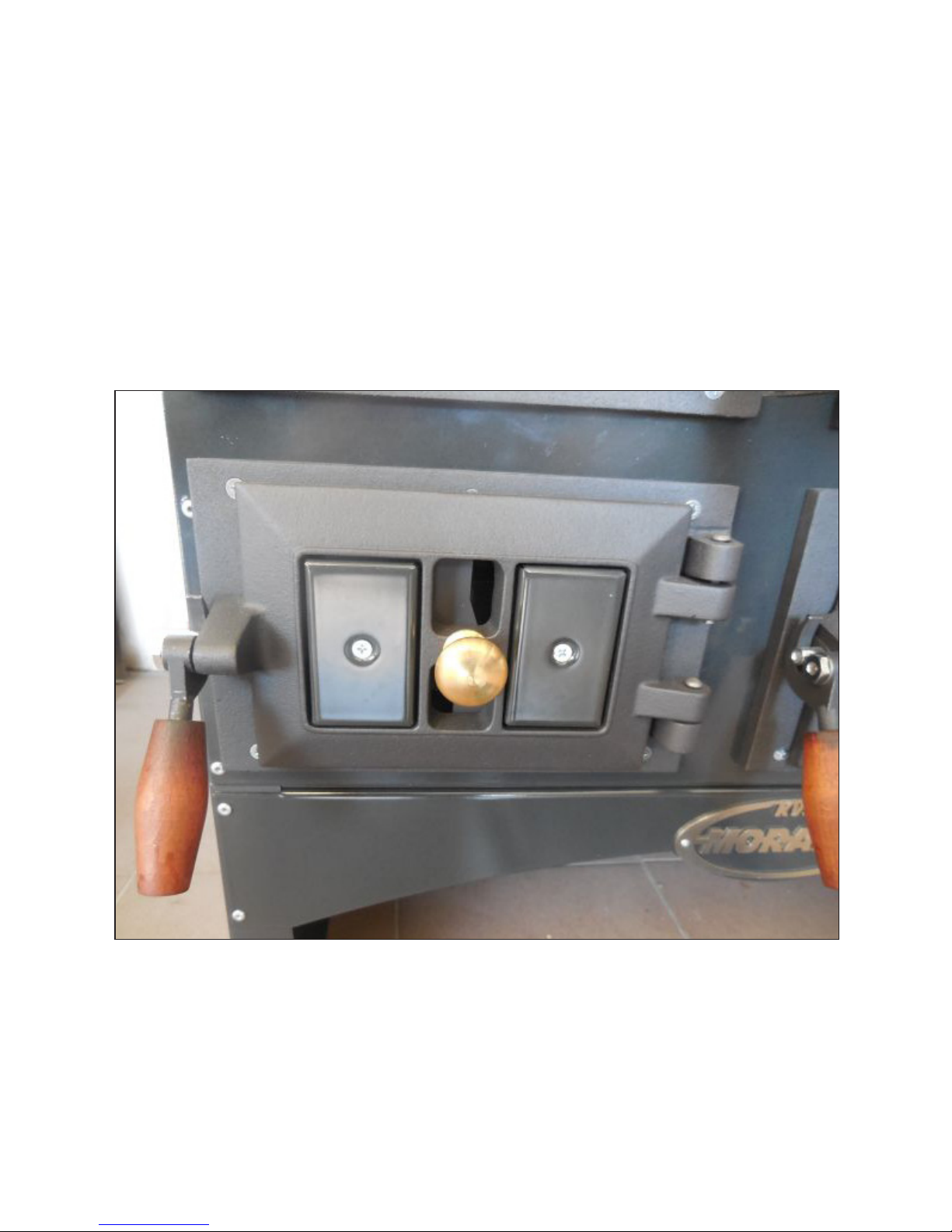

Air supply control
Controlling the supply of combustion air is enabled by means of an air rose, which
is a part of the ashtray door. Turning the rose by means of the rose handle makes
it possible to continuously control air supply, thereby acting on the speed of fuel
combustion(applianceout-put).
Secondaryairiscontinuouslyandindependentlysuppliedintothereboxthrough
airholesinthebottompartofthereboxdoor.
Duringtheoperationoftheappliance,thesupplyofcombustionairmustbese-
curedandtheairsupplyinletmustnotbecomeblocked.Airexhaustersmustnot
beusedintheroomwheretheapplianceisinstalledunlesssufcientairsupplyis
provided for ventilation.
9
TYPE 9170 10/2016
Appliance hob
Thehobconsistsofthebase,xedpartanddetachable(expansion)parts.
Thehobabovethereboxisintendedforquickcooking,andthehobwithlower
temperature above the oven is suitable for slow cooking and keeping the foods
warm.
Sweeping hole
Soot deposits in colder parts of the draught system (mainly when coal is used) after a certain time
of operation of the appliance. This process causes deterioration of the appliance’s draught, which
results in lighting a fire being more difficult but also in deterioration of the economy of operation,
especially when baking in the oven.
During actual cleaning, first remove the detachable parts of the hob and clean the soot off the
flue-gas ducts and the outer surfaces of the oven. Then open the sweeping hole and sweep all dirt
out of the space under the oven.
TYPE 9170 09/2016
10
10
TYPE 9170 10/2016
Sweeping hole
Sootdepositsincolderpartsofthedraughtsystem(mainlywhencoalisused)after
a certain time of operation of the appliance. This process causes deterioration of
theappliance’sdraught,whichresultsinlightingarebeingmoredifcultbutalso
in deterioration of the economy of operation, especially when baking in the oven.
During actual cleaning, rst remove the detachable parts of the hob and clean
thesootofftheue-gasductsandtheoutersurfacesoftheoven.Thenopenthe
sweeping hole and sweep all dirt out of the space under the oven.

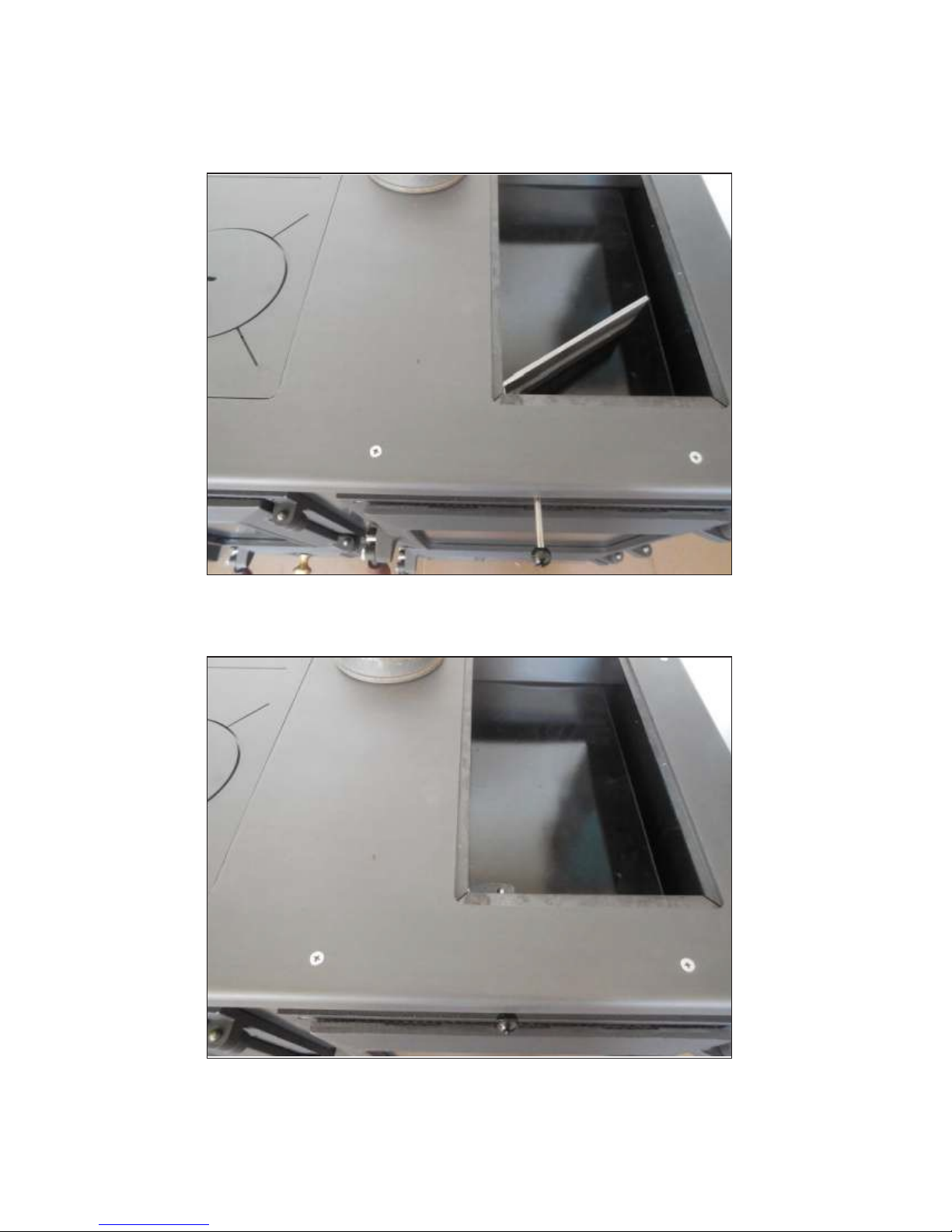

Lighting flap – control by flap lever
The flap lever is located above the oven.
It has two modes of operation:
Heating mode (flap opened, lever shifted out).
The operation of baking in the oven and cooking on the hob (flap closed, lever shifted in towards
the hob).
After the fire starts burning perfectly, close the lighting flap and operate the appliance with
the lighting flap closed even though you will not be baking. In this way, you extend the flow
of flue gases and increase the output and efficiency of the appliance.
TYPE 9170 09/2016
11
Lighting flap – control by flap lever
The flap lever is located above the oven.
It has two modes of operation:
Heating mode (flap opened, lever shifted out).
The operation of baking in the oven and cooking on the hob (flap closed, lever shifted in towards
the hob).
After the fire starts burning perfectly, close the lighting flap and operate the appliance with
the lighting flap closed even though you will not be baking. In this way, you extend the flow
of flue gases and increase the output and efficiency of the appliance.
TYPE 9170 09/2016
11
11
TYPE 9170 10/2016
Lighting ap – control by ap lever
Theapleverislocatedabovetheoven.
Ithastwomodesofoperation:
■ heatingmode(apopened,levershiftedout).
■ theoperationofbakingintheovenandcookingonthehob(apclosed,lever
shiftedintowardsthehob).
After the re starts burning perfectly, close the lighting ap and operate the
appliance with the lighting ap closed even though you will not be baking.
In this way, you extend the ow of ue gases and increase the output and
efciency of the appliance.
12
TYPE 9170 10/2016
INSTALLATION INSTRUCTIONS
Basedonthestructuraldesignandthenatureofuse,thissolid-fuelappliancemust
beinstalledintoanenvironmentdenedbyČSN332000-1:2009asordinaryen-
vironment(ČSN332000-1:2009–EnvironmentstandardoftheCzechRepublic).
Requirementsforthesupplyofcombustionairwillbemetprovidedthattheappli-
ance is installed in a room with a minimum volume of 20 m3. Ventilate in the room
as needed, according to the appliance‘s operation or in the simultaneous operation
ofotherheatequipment.Intheeventof dangerof,forexample,justtemporary
formationofcombustiblegasesandduringworkwiththepossibledangerofare
(explosion),theappliancemustbeshutdownintimebeforeit(thefuelwillbeallo-
wedtoburnoutonthegratewiththereboxdoorclosed).
Mounting the exhaust collar – rear outlet
Remove the blanking cap of the rear outlet.
Mounttheexhaustcollarontotherearoutlet.Themountingpropertakesplacein
suchawaythattheringisappliedfromtheinsideoftheapplianceandtheexhaust
collar is applied from the outside and by moving them in the opposite direction they
are tightened.
Mounting the exhaust collar – top outlet
Whenyouusethetopoutlet(throughthehob),itisnecessarytoremovetheblan-
kingcapinthehobandputtheexhaustcollaron–withnoring.
Firstinsertthecollarwithitsgrooveobliquelyintothehobandthenusethegroove
intheholeforthehobandinsertthecollarin.Finishthemountingbycircularly
moving the collar.
• Fortransportreasons,theexhaustcollarispackedseparately.
Connecting the appliance to the chimney
• Beforeconnectingtheappliancecheckthechimneyforsufcientchimneydrau-
ght;theameofignitedpapershouldbedrawnintothechimneyopening.
• Trytoensurethattheconnectionoftheappliancetothechimneyisasshort
as possible.
Connection of the appliance to the chimney should comply with the individual nati-
onalregulationsattheplaceofinstallationanduse(forexampleČSN734201:2010
StandardoftheCzechRepublic).Thechimneyshallbeissuedwithacerticate
(inspectionreport)givenbyarespectiveauthority(chimneysweepingcompany).
Inassembly,itisnecessarytoobservetheprinciplesofresafety(forexample
accordingtotheČSN061008:1998StandardoftheCzechRepublic).
The appliance cannot be connected to a shared chimney. Chimneys and ue
ducting to which solid fuel are connected should be swept 2 times or 3 times a year
–seasonaloryearlongoperation(forexampleaccordingtotheCzechgovernment
DecreeNo.34/2016Coll.).
Soot and tar deposit in the chimney in routine operation, especially due to damp
fuel. If regular inspection and cleaning of the chimney are neglected, the probability
ofareinthechimneyincreases.
13
TYPE 9170 10/2016
Operation
Beforelightingtheapplianceforthersttime,checkontheplacementofthedeta-
chable parts of the hob.
Anyheattreatmentoffoodisforbiddenwhentheapplianceisbeinglitfortherst
time.Providesufcientventilationoftheroomastheprotectivecoatingsandfat
residues tend to burn off.
Beforelightingareopenthereboxdoorandcheckifthegrateisclean.Askind-
ling use paper, on which you lay out small chips of dry soft wood, then put larger
piecesofdrywoodonthechips.Openthelightingapbeforelightingare.
Opentheairinlettothemaximum:primaryairunderthegratethroughtheairrose
on the ash-tray door.
Afterthefuelislitclosethereboxdoorandwhenthefuelburnsthrough,stokeup.
After a layer of burning embers is formed you can add more fuel. Make sure not to
extinguishtherebyaddingalargeamountoffueltooquickly.Graduallyprolong
theintervalsofstokingsothatthenalintervalisonceanhour.Theaveragefuel
consumption is about 2 kg of fuel per hour. Adding of fuel shall be carefully done
manually or by means of a suitable trowel.
When operating the appliance at the rated heat output, it is necessary for the pri-
mary-air inlet to be open at about one third.
CAUTION:afterstoking,theprimary-airsupplylinemustbeopenedtothemaximum
for about 2-3 minutes until the fuel ignites reliably, and then it must be pushed to.
The appliance output can be controlled by the amount of fuel supplied and by the
supplyofair.Fromtimetotimecleanthegratebymeansofthepoker.Iftheappli-
ance is smoking when being stoked, close the air inlets and release the operating
handleofthereboxdoor,openamereslotandonlyafterseveralsecondsopen
thedoorfully.Theentirespaceofthereboxcanbeusedforcombustion.Make
surethatthefueldoesnotfalloutofthereboxduringstokingup.
If there are bad draught or bad weather conditions, you can open the ashtray door
for a short period of time and use dried small wood logs as a fuel.
Combustioncanbevisuallycheckedeasily:nosmokecanbeseenrisingfromthe
chimney(exceptthetimeimmediatelyafterstokingup).
If you add half the amount of fuel every thirty minutes and perform grating at the
same time, the combustion parameters will improve.
Cooking on the appliance hob
Withthesetoperationdescribed,2litresofwaterinaat-bottompotofadiameter
of18cmwithalidshouldstartboilingwithin30minutes.Ifintensivecookingisne-
cessary, supply more layers of fuel so that the fuel being burnt is closer to the hob.
Useat-bottompotsthatadheretothehobwiththeirentiresurface.
Duringcookingwatchoutforboilingover.Ifithappens,wipeoffcoarseparticles
immediatelyandafternishingtheoperationoftheappliancecleantheremainder
usingadamptowel,detergentand,nally,adrytowel.Ifparticlesbakein,itisvery
difculttoremovethemlater.Fromtimetotime(dependingonthefrequencyof
operation)greasethehobringswithvegetableoil.
Baking
If you want to use the appliance for baking, it must be sufficiently heated up and thermally
stabilised.
To fire up the oven quickly, use smaller dry logs.
Set the lighting flap to the baking position and open the air inlet completely. The necessary
temperature is reached in about 15 minutes.
However, we recommend that you start baking only after half an hour, when the appliance is
heated evenly and the temperature in the oven no longer rises.
To ensure that baking is even, we recommend turning the baking tray approximately halfway
through the baking.
If you want to increase the intensity of baking from above, set the lighting flap into the
intermediate position.
If you want to decrease the intensity of baking from above, use an empty tray as shielding.
When taking the tray with a meal out you must not place it on a cooking hob. The cooking hob has
substantially higher temperature than the temperature of the oven and the meal would easily boil
over or get burnt.
The baking accessories of the appliance are intended for short-term contact with food. Short-term
contact does not exceed 4 hours for beverages and 48 hours for food of solid or pasty
consistency.
TYPE 9170 09/2016
14
14
TYPE 9170 10/2016
Baking
Ifyouwanttousetheapplianceforbaking,itmustbesufcientlyheatedupand
thermally stabilised.
Toreuptheovenquickly,usesmallerdrylogs.
Setthelightingaptothebakingpositionandopentheairinletcompletely.The
necessarytemperatureisreachedinabout15minutes.
However, we recommend that you start baking only after half an hour, when the
appliance is heated evenly and the temperature in the oven no longer rises.
Toensurethatbakingiseven,werecommendturningthebakingtrayapproxima-
tely halfway through the baking.
Ifyouwanttoincreasetheintensityofbakingfromabove,setthelightingapinto
the intermediate position.
If you want to decrease the intensity of baking from above, use an empty tray as
shielding.
When taking the tray with a meal out you must not place it on a cooking hob. The
cooking hob has substantially higher temperature than the temperature of the oven
and the meal would easily boil over or get burnt.
The baking accessories of the appliance are intended for short-term contact with
food.Short-termcontactdoesnotexceed4hoursforbeveragesand48hoursfor
food of solid or pasty consistency.
15
TYPE 9170 10/2016
Cleaning and maintenance
Cleaning the rebox and ue ducts
To maintain good parameters of the appliance it is necessary to clean it regularly.
Cleaningofthereboxmustalwaysbedonewiththeapplianceoutofoperation.
Beforeringuptheapplianceafteraprolongedperiodofinterruptionofoperati-
on,itisnecessarytocheckthatueducts,ueandchimneysarenotblockedor
obstructed. Regular maintenance should be carried out once a year by a service
engineer.
Remove unburned residues from the grate by means of the trowel and poker.
Sweep the ash into the ashtray.
Cleaning of the inner walls of the appliance and inner housing of the oven shall be
doneasfollows:
Remove the detachable parts of the hob to get access to dirty surfaces inside, from
which you can sweep the soot easily down to the bottom of the appliance.
Fromthereyouwillthensweepthemoutthroughthesweepinghole.Afterclea-
ning, restore the original state of the appliance. Make sure that the individual parts
ttightlyandsealperfectlyandthatthepackingcordisplacedonalldoors.
Cleaning the outer surfaces
Clean the appliance only after it has cooled down.
• Cleantheenamelledsurfacewithadampclothorspongeandthenpolishit
dry. Never use abrasive agents that would disrupt the structure of the enamel. If
fouling is rather considerable, use detergents.
• Ifpossible,protect the hobrings from contact with watertoavoidcorrosion.
Clean them only when they are dry. If you use a damp cloth with a detergent
whencleaningahobring,thehobringsshouldbedriedwhennished.Were-
commend greasing the hob rings with a thin layer of vegetable fat from time to
time;doitalsobeforelightingtheapplianceforthersttime.
• Whencleaningtheoven,donotremovefoodremainswithsharpobjectsbut
disrupt them when immersed with a brush and wipe the oven with a cloth or,
where appropriate, use a suitable cleaning agent for the removal of coarse im-
purities and burnt food remains adhering to the surface.
16
TYPE 9170 10/2016
Fault conditions
Method of utilisation and disposal of packaging
Complaints
Disposal of the appliance after the end of its lifetime
Theappliancecannotberedup - Inspecttheueducts,ueandchimney.
- Checkonthesettingofthelightingap,
airrose,reboxdoorandashtray.
Overheated appliance - Put it out of service – do not stoke,
closetheairrose,letthereburnout.
Fireinthechimney - Donotusewatertoextinguishthere
in any case.
- Close all of the air inlets for burning
and cover the chimney if possible.
- Contact a chimney sweeping service
to assess the chimney’s
conditionfollowingthere.
- Contact your supplier.
Corrugated cardboard, wrap. paper - Sell them to a waste collection point.
- Put them into scrap-paper collection
containers.
Woodenparts - Burntheminaccordance
with the instructions.
- Put them in a place designated
by the municipality for waste deposition.
PVC bands, bags, plastic sheets - Put them into plastic collection containers
The appliance contains valuable materials that should be reused. Hand the appli-
ance to a waste collection point or to a place designated by the municipality for
waste deposition.
If a fault occurs during the warranty period, never repair it by yourselves.
Lodge a complaint in the shop where the product was purchased.
A claim may only be made if all the warranty conditions have been observed.
17
TYPE 9170 10/2016
Safety instructions
Safety instructions
TheminimumsafedistancefromammablematterswithcombustibilitygradesB,
C1,C2is750mminthedirectionperpendiculartotheopenablewalland200mm
intheotherdirections.ForammablematterswithC3combustibilitygradeand
withanunprovencombustibilitygrade,thedistanceshouldbedoubled.Noobjects
madefromammablematerialsshouldbeplacedontheapplianceandatadistan-
ce less than the safe distance from it. When the appliance is being placed on a
oormadeofaammablematerial,itshouldbesetonareproof,heat-insulating
plateoverlappingitsfootprint:
-notlessthan600mminfrontofthestokehole
- not less than 400 mm from the lateral side of the stokehole.
A protectivebafeplateisusedincaseswhere,duetospacereasons,thepre-
scribedsafedistancecannotbekept.Theprotectivebafeplateshallhaveacon-
stant position between the appliance and the protected material in a distance of
30±5mmfromtheprotectedmaterial.Theprotectivebafeplateshouldoverlap
theprotectedmaterialuptothenearestwall(ceiling)madeofareproofmaterial,
howevernotlessthan300mmattheuppersideand150mmatthelateralsides.
We recommend that your installer check this reduced dimension with your
local building control department.
Description ofmaterials type forammableclassicationin cookermanuals (in
accordancewithCzechandEUstandardNo.13501-1+A1:2010):
Flammable level Rating Materials
А. Non-ammable asbestos, brick, ceramic wall tile,
chamotte,plastermixture(without
organicenclosure).
В. Uneasily-ammable
buildingwallpanels(forexamplea
gypsumwallboard),VELOX,IGNOS,
touchstonefeltpanels,breglass
panels.
С1. Flammablewith
difculty
beechwood,HORBEXboard,wood
multi-layerboard,WERZALIT,Formi-
ca, felt boards.
С2. Moderatelyam-
mable
pine tree wood, larch wood, spruce
wood, wood chip boards.
С3. Easilyammable
sarking felt, cellulose boards, tar
panels,wood-pulpbre,phellem,
polyurethane, polystyrene, polypro-
pylene, polyethylene.
18
TYPE 9170 10/2016
Warning about places where burns can occur:
•hob, hob frame
• reboxdoor
• innerwallsoftheoven
• controlhandles
• smokeue
• Ensure that your children are made aware of the danger of burns.
The manufacturer is only liable for manufacturing defects.
The warranty does not cover damage due to improper installation,
the use of improper fuel and overloading of the appliance.
Pursuant to safety regulations for construction products, the buyer
and the operator shall familiarise themselves with correct operation
as described in the operation manual.
1. Production standards
KVSMORAVIAsolidfuelappliancesareproducedinaccordancewiththeČSN
EN12815:2002StandardwithamendedA1:2005,whichisvalidfortheCzechRe-
public and European Union.
2. Installation and operation standards
All the above installation and operation instructions for the appliances primarily
complywiththeCzechregulations,andmaynotcomplyfullywithindividualnatio-
nalregulationsattheplaceofinstallationanduse!
Thebuyershouldconsulttheirinstallerorspecialisedofcialsonallofthelocal
installationandoperationregulationsforthisapplianceorsimilarappliances!
Important Notice
19
TYPE 9170 10/2016
Manufacturer:
KVS EKODIVIZE a. s.
závod Dvorce
Opavská 272
793 68 Dvorce u Bruntálu
CZECH REPUBLIC
Phone:+420 554 797 131/171
Fax: +420 554 745 500
E-mail: prodej.dvorce@kvs-ekodivize.cz
www.kvs-ekodivize.cz
TYPE 9170 09/2016
20
20
TYPE 9170 10/2016
KVS EKODIVIZE a. s.
závodDvorce
Opavská272
79368DvorceuBruntálu
CZECH REPUBLIC
Phone:+420554797131/171
Fax:+420554745500
E-mail:prodej.dvorce@kvs-ekodivize.cz
www.kvs-ekodivize.cz
Table of contents
Other KVS MORAVIA Kitchen Appliance manuals
