KWorld TV BOX WS User manual

FCC Information
This equipment has been tested and found to comply with the limits for a Class B
digital device pursuant to Subpart J of Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that which the
receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
FCC Warning
To assure continued FCC compliance the user must use grounded power supply core
and the provided shielded video interface cable with bonded ferrite cores.
If a BNC cable is going to be used, use only a shielded BNC(5) cable. Also,
any unauthorized changes or modifications no expressly approved by the party
responsible for compliance could void the user’s authority to operate this device.
© Copyright 2005 Vision® Ver 1.0
All brand names and trademarks are the registered property of their respective
owners.
i

ii
TableofContents
1. Introduction
1-1. Features………………………………………………….……01
1-2. Specification…………………………………………….….…01
1-3. Package Contents……………………………………….…….02
1-4. Location of Controls (Box Set)……………………………….03
1-5. Location of Controls (Remote) ………………………………04
2. Set Up
2-1. Connecting TV Antenna/Cable………………………….….…05
2-2. Connecting Video Out To Monitor …….……………….…….05
2-3. Connecting Video Input From PC……………………….…….06
2-4. Connecting Audio Line Input/Output…………………….……06
2-5. Connecting Power Supply……………………………….…….07
2-6. Connecting Audio/Video Equipment…………………….…….07
3. Operation
3-1. Watching TV Programs…………………………..……….…….08
3-2. Convenient Remote Functions…………………..……….……..09
3-3. Adjusting the Picture……………………………..……….…….12

1
1.Introduction
Congratulation! You have purchased the KWORLD TV BOX WS to enhance your
multimedia PC. We will guide you through all of the features installation and operation.
This manual will help you use the many exciting and useful features to make your TV
viewing more enjoyable than ever before.
1-1.Features
zWatch live broadcast TV or cable TV on your LCD monitor
zBuilt with cable ready TV tuner with 181 channels (CATV 125 Channels) and
automatic channel scan function.
zSupport SVGA(800x600),XGA (1024 x 768 ), SXGA(1280 x 1024),
WXGA(1440 x 900), and SXGA+(1400x1050)
zAuto Channel memorized to set up channels automatically
zVideo / S-Video support NTSC, PAL system
zConnect game console, V8,DV, VCD/DVD player for viewing on your monitor
zEasy used. Don’t need to power on PC then you can watch TV program
zFull function remote control
1-2.Specification
zRF Input: 75Ωcoaxial input for broadcast TV or cable TV
zSupport TV System: PAL/SECAM/NTSC
zVideo Resolution: 800x600,1024x768, 1280x1024,1440x900,1600x1200,
1400x1050,1680 x 1050 (PC signal depends on PC setting)
zSignal Input: S-video, composite, PC VGA (D-sub), audio
zSignal Output: PC VGA (D-sub), audio

1-3.Package Contents
zKWORLD TV BOX WS
zVGA cable
z3.5mm mini Stereo Audio cable
zRemote controller
zBatteries
zDC 5V power adapter
zUser’s manual
2
TV BOX WS Remote control VGA Cable
Power Adaptor Stereo Audio Cable AAA Batteries
Check to make sure that all the components are present and that nothing is damaged during shipping. If you
encounter any problems, please contact your dealer.

1-4.Location of Controls (Box Set)
Game Console
Video Camera
DVD Player
Power ON/OFF
Input Source Change
Channel+
Channel-
Volume+
Volume-
Power Adapter
Power Adapter
UHF/VHF antenna RF input device
VGA input from PC
VGA output to CRT/LCD
Audio in from PC
Audio Line output to Speaker
Front Panel
Rear View
3

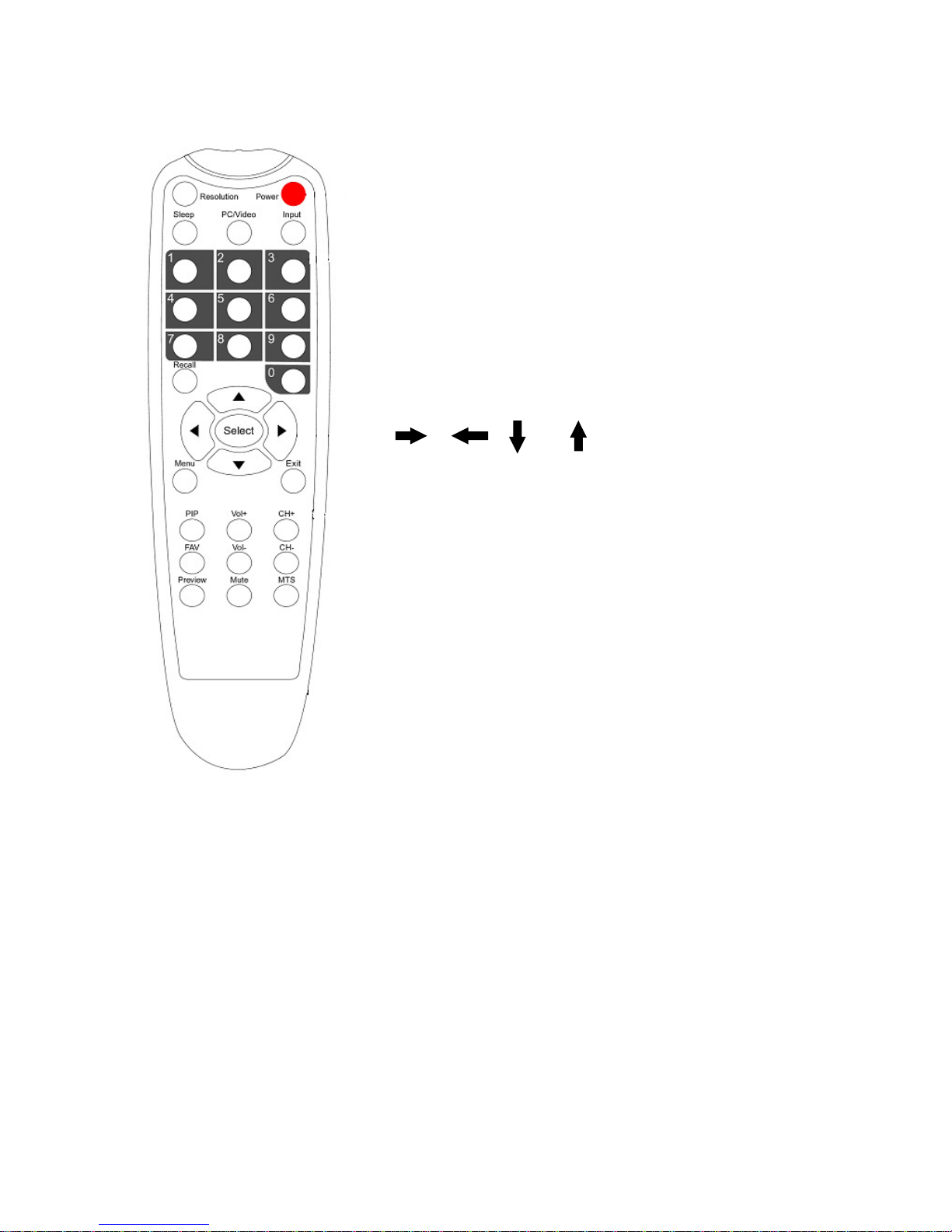

1-5.Location of Controls (Remote)
[POWER]: Power button
[RESOLUTION]: Change the Video Resolution
[INPUT]: Change Video Source
[PC/Video]: Select PC or Video
[Sleep]: Sleep Time Select button
[0~9]: Channel Number buttons
[Recall]: Channel Recall button
[Select]:Confirm Setting or OSD show up.
[ ][ ][ ][ ]: Adjusting Picture Quality
[EXIT]: Exit Select key or Menu button
[Menu]: Select Item for Adjusting Function
[VOL-]: Volume Down button
[VOL+]: Volume Up button
[CH-]: Channel Down button
[CH+]: Channel Up button
[PIP]: Activate PIP mode button (OPTION)
[FAV]: Sets the current channel to “Favorite Channel”.
[Preview]: Channel Preview button
[Mute]: Audio Mute button
[MTS]: Stereo/SAP/Mono Select button (option)
4

2.SetUp

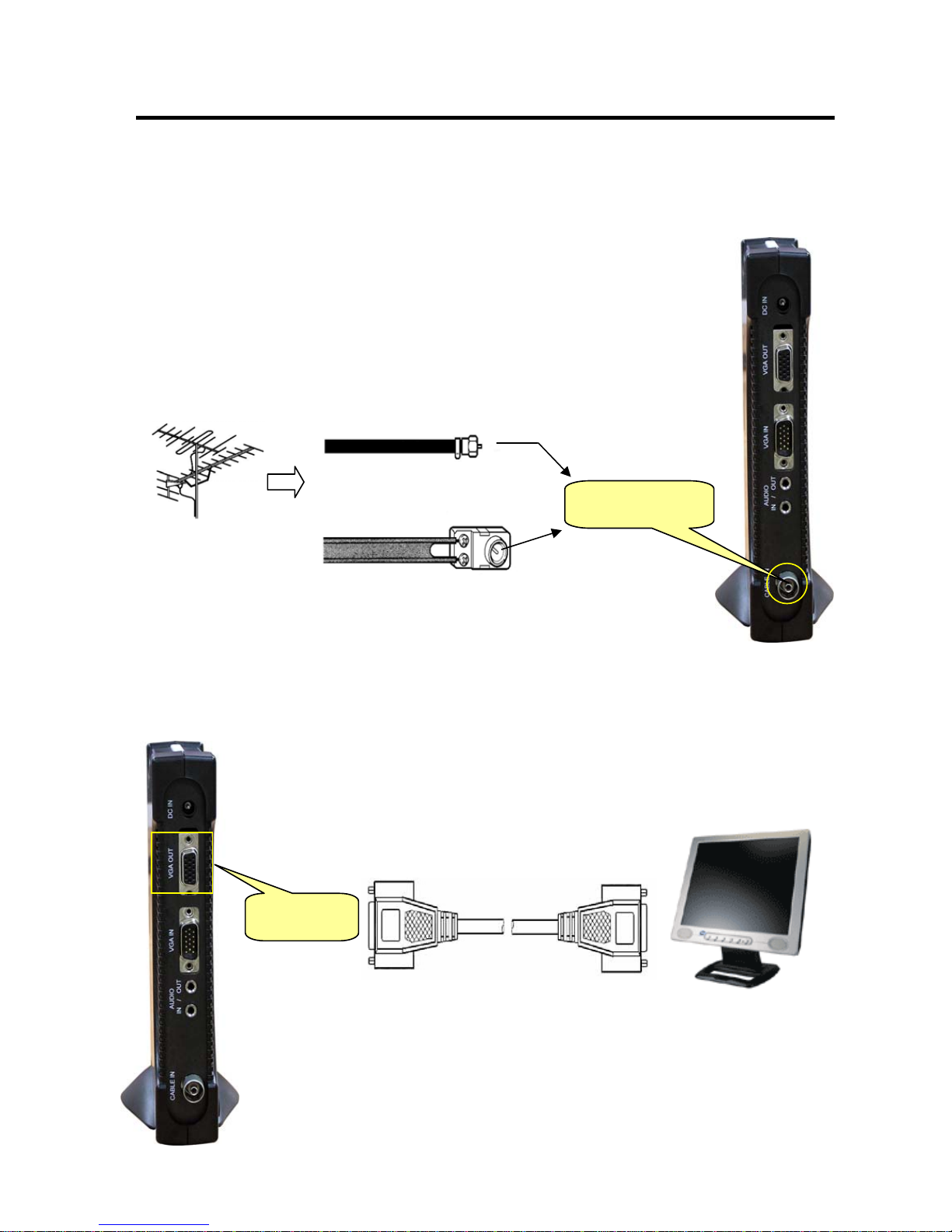

2-1.Connecting TVAntenna/Cable
You can use either an indoor or outdoor antenna to VHF and/or UHF channels.
You can receive Cable TV by connecting a cable supplied by
your local cable company。
75 ohm coaxial cable
300 ohm twin-lead
Antenna
OR
VHF, UHF or Cable TV
TV signal input
Rear View
2-2. Connecting Video Out to Monitor
5
VGAout
VGA out to LCD Monitor cable
Monitor
Rear View

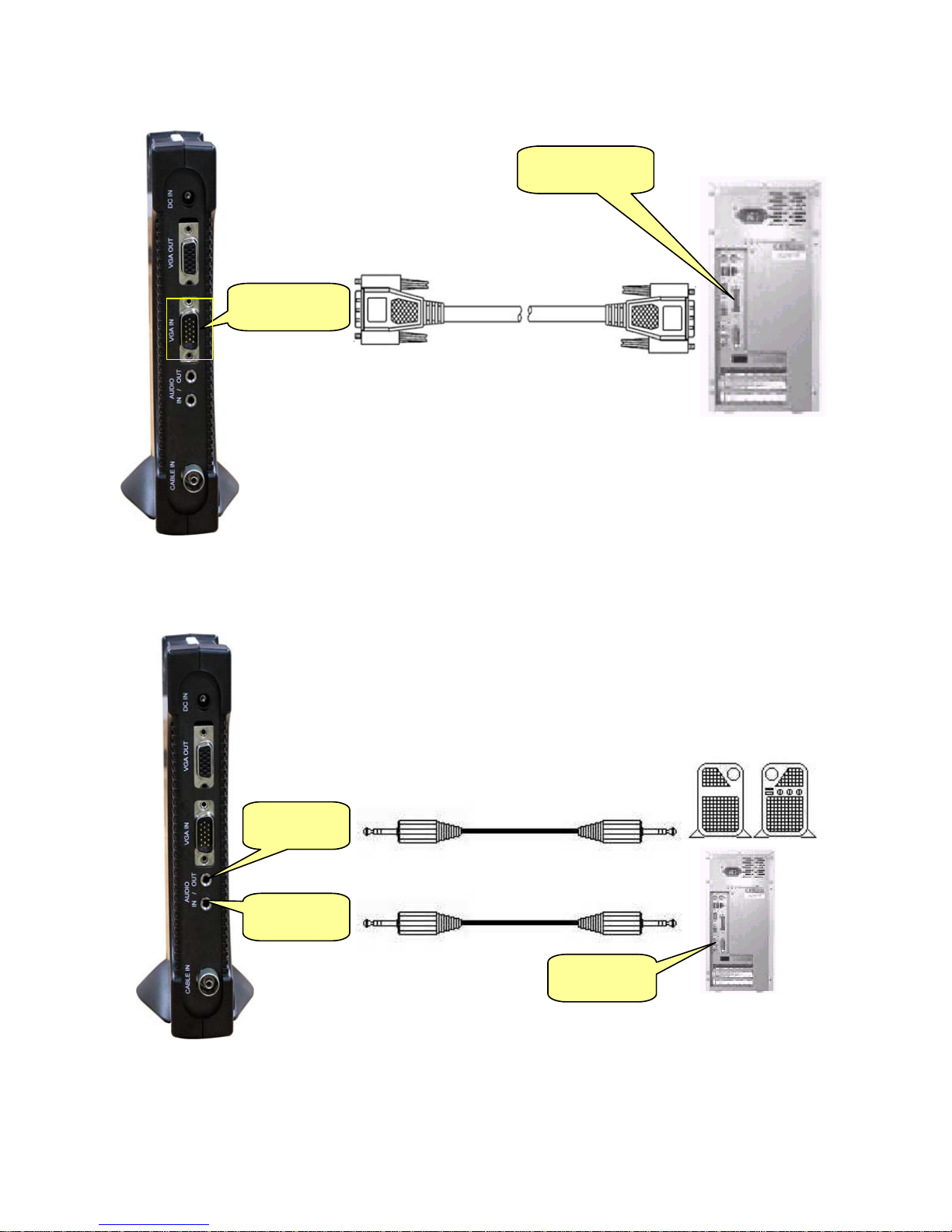

2-3. Connecting Video Input from PC
6
VGA input
VGA cable
VGA(D-sub)
PC
2-4.ConnectingAudio Line Input/Output
Audio in
Audio out Audio Cable
PC
Audio Cable
Line in
Speaker

2-5. Connecting Power Supply
7
DC 5V Input
AC/DC Adaptor
2-6. ConnectingAudio/Video Equipment
Video Source Input
Left Audio Channel Input
Right Audio Channel Input
S-Video Source Input
Front View

3.Operation

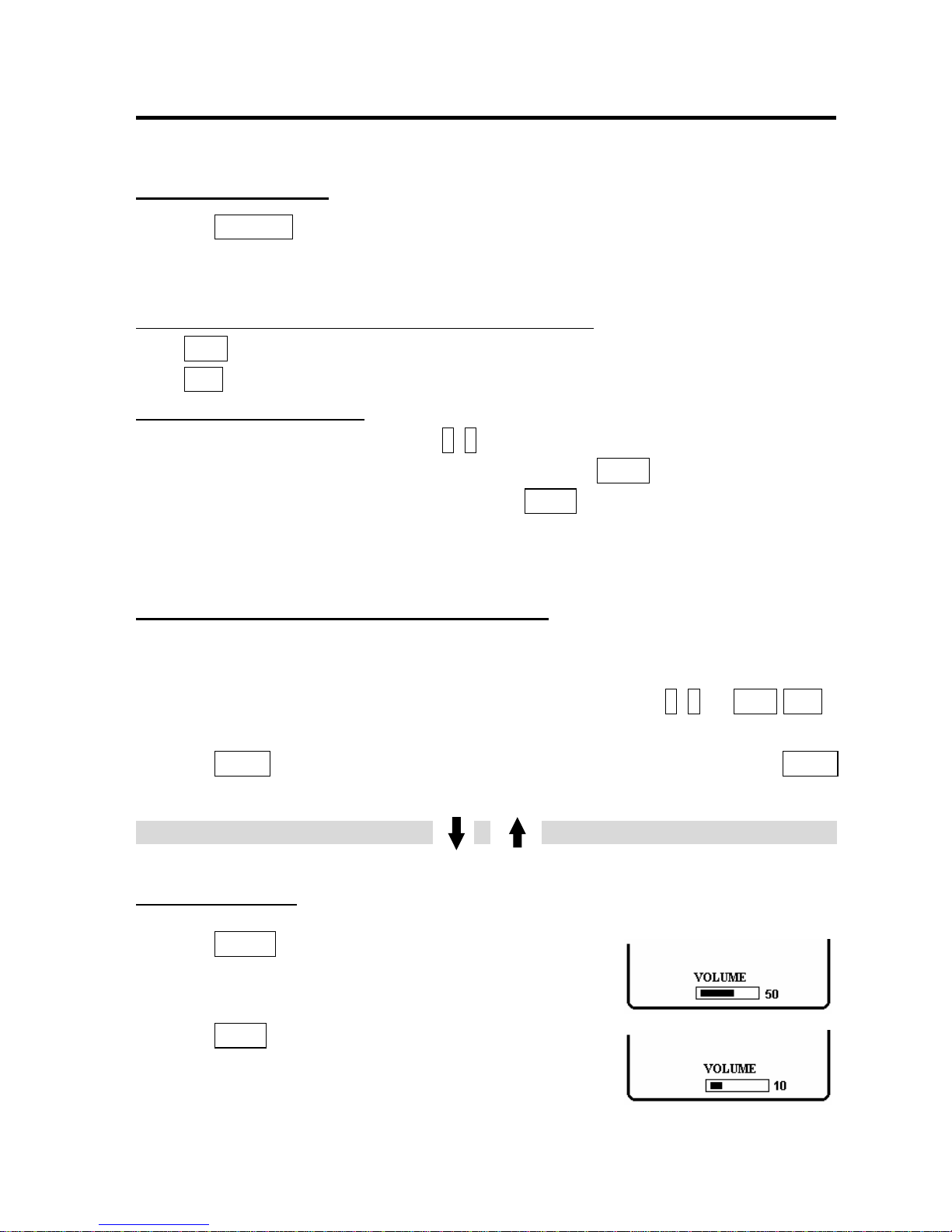

3-1.Watching TV Programs
※To select channel
1.Press POWER button to turn on or turn off.
2.Select a channel in one of the following two ways.
To scan the memorized channels in numerical sequence:
Press CH+ to select the next higher channel.
Press CH- to select the next lower channel.
To select a channel directly:
Press the Channel Number buttons (0~9)
Example: To select channel 7, press “0”, “7”, than Press Select
To select channel 12, press “1”, “2”, than Press Select
To select channel 120, press “1”, “2”, and “0”
※To change quickly between two channel
1.Select the first channel you want to view.
2.Select the other channel with the Channel Number buttons (0~9) or CH+/CH-
button.
3.Press Recall button. The previous channel will return. Each time you press Recall
button, the TV will switch back and forth between the two channels.
8
Note: In TV mode, you can press or button to select channel up or down.
※Sound volume
1.Press VOL + to increase
the volume. The segment of the indicator increases.
2.Press VOL- to decrease the volume. The segment of
the indicator decreases.
