KYL-600L Wireless audio and Data
Radio Module User Manual
Shenzhen KYL Communication Equipment Co., Ltd
Address: Room 305-307, Building 1, Zhuguang Innovation Science and Technology
Park, Xili, Nanshan District, Shenzhen, China
Tel: [phone]
Fax: [phone]
Skype：rf-data
E_mail: [email protected]；
Website: http://www.rf-data.com
Before using the product please read the use manual carefully.
Any question in technical, you can contact us.

Shenzhen KYL Communication Equipment Co., Ltd
Tel: [phone] E_mail: [e-mail]；www.rf-data.com

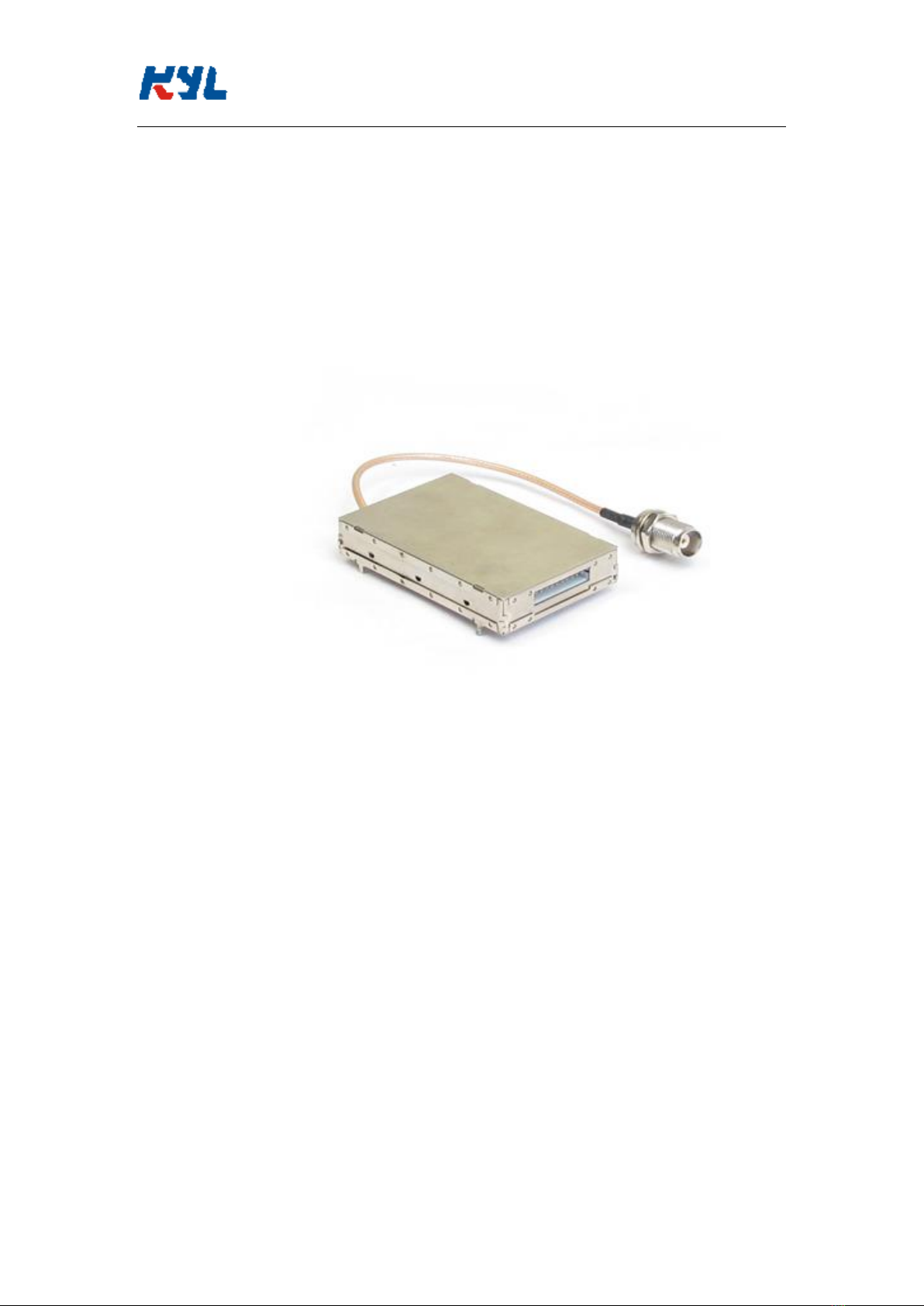

About KYL-600L:
KYL-600L, the data radio module adopt double VCO structure, high stability TXCO,
integration RF and so on advanced technique; at the same time it use the advanced
rectify fault arithmetic in software. So it has high stability and reliability. It is the first
equipment for the user in the field of industry control, water conservancy, electric
power, oil field and so on. This product can provide multiple MODEM
communication protocols so that users have more choice. Of course, we can design
according to users’ demands, or we can provide technique support and second
development for users for free.
1. Specifications:
* Operating Voltage: DC 5V
* Carrier Frequency: VHF/UHF 230-450MHz
* Interface: standard RS-232/RS-485/TTL Selectable
* Baud Rate: 1200/2400/4800bps Selectable
* Channel spacing: 25kHz
* Frequency stability: ±2.5ppm
* Modulation: FSK; Channels: 16
* Impedance: 50Ω
* Transfer distance:3km(BER=10-3@9600bps);
* Temperature: -25℃~+65℃
* Size: 70x46x12mm(without antenna port)
* Weight:180g
2. Receiver:
* Receiving sensibility: ≤0.25μV (12dB SINAD)
* Signal-to-Noise: ≤-40dB
* Adjacent channel selectivity: ≥70dB
* Intermodulation rejection: ≥65dB
* Clutter and images rejection: ≥70dB
* Receiving current: 50mA
* Audio Output power: 0.5W（8Ω，10％distortion）
* Receiving distortion: ≤3％

Shenzhen KYL Communication Equipment Co., Ltd
Tel: [phone] E_mail: [e-mail]；www.rf-data.com
3. Transmitter:
* RF power: ≤500mW （1W/2W customized）
* Transmitting current: 300mA
* Modulation: FFSK
* Audio distortion: ≤3%
* Frequency deviation: ±5.0kHz
* Adjacent channel power: ≥70dB
* Transmitter startup time: ≤50m
* Surplus Frequency Modulation: ≤-40dB
* Modulation distortion: ≤3％
* Modulation sensibility: 5mV
* Transmission distance: 3Km
* Volts D.C.: 5V (12V optional)
4. Features about KYL-600L:
1) Design based on the special use of the wireless data transmission in the industrial
automatization field.
2) Provide high stability, high reliability and low cost data transmission.
3) Standard connection: RS-232/485/TTL
4) Facility for installation and maintenance, Flexible networking configuration,
suitable for the field of multiple point but decentralization and complex geography
environment.
5) Metal shell, good shielding performance, providing frequency passage.
6) Providing many MODEM communication protocols
7) To adapt different user structure, we can develop various size modules and offer
sufficient technology support for client use the module and second development for
free.
5. Size
* Product dimension: 70x46x12mm
* Antenna connection: TNC(SMA) -50Ω

Shenzhen KYL Communication Equipment Co., Ltd
Tel: [phone] E_mail: [e-mail]；www.rf-data.com
* Interface definition:
Pin
No.
Signal
Name
Function
Level
Connection with
terminal
1
VCC
Input power
12V
5V optional
2
3
GND
Grounding of the power
4
5
A(TXD)
RS-485 A or TXD of
RS-232
Choose RS-485 or
RS-232
6
B(RXD)
RS-485 B or RXD of
RS-232
7
PTT
transmitting controlling
TTL
Low level
8
MIC
Input audio
Using microphone of
1-2kΩ and -27dB
9
SP
Output audio
8Ω 0.5
10
SQ
Receiving
TTL
High level
6.Applications:
* Industrial automatic control and remote control
* Wireless data acquisition and SCADA
* Environment monitoring systems
* AMR Automatic Meter Reading
* Wireless alarm and security systems
* Building automation, security, wireless monitoring and control of room equipment,
Access Control System;
* Wireless data transmission, automatic data collection system;
* Low power telemetry
* Data radio can be used for Wireless conference voting system;
* Mapping;
* Radio modem can be used for Sports training & competition;
* Wireless dishes ordering;
* Wireless POS, PDA wireless smart terminal;
* RF modem can be used for Electronic bus station and intelligent traffic;
* RF transmitter Wireless electronic display screen and queuing machine;
* Wireless telemetry Charging for parking, parking lot;
* Wireless modem Automobile inspection and four-wheel orientation;
* Wireless sensor Industrial wireless remote control and air conditioning remote
controller;

Shenzhen KYL Communication Equipment Co., Ltd
Tel: [phone] E_mail: [e-mail]；www.rf-data.com
* Data communication used for railway, oil field, dock and army.
* LED display in thruway and public places
* Point to multi-point wireless network, wireless on-the-spot bus and automatic data
collection system;
7. The installing schematic
8. Notices during the use of KYL-600L
1) The antenna should away from the power supply if use the switch power, because
the transmitting of the antenna may affect the normal work of the switch power. When
the transmission happen fault, checking the power voltage whether interfered from the
antenna is one way of eliminating fault.
2) Use the min. grain wave and high anti-jamming switch power or batteries
3) The power capacity must meet D.C. 5~12V, more than 800mAoutput current
4) The space between the experiment Radio should be more than 5m. The antenna
should span on the high to increase the distance of electric wave. It is important for
using shortwave communication equipment in the city.
5) After connecting the antenna to the Radio, the space between the Radios should
more than 10m, so avoiding signal backup.
6) The antenna plywood should nip in the connection inside the antenna, but not nip
the antenna projectile, so avoiding the performance of the antenna.
7) High frequency cable don’t come down directness, circle a circuit and fixup it on
the frame for the best.

Shenzhen KYL Communication Equipment Co., Ltd
Tel: [phone] E_mail: [e-mail]；www.rf-data.com
9. Standard configuration and Antenna configuration
i: Standard configuration:
*One KYL-600L RF module
*A 9pin flat Connection Line
*A whip antenna（about 10cm）

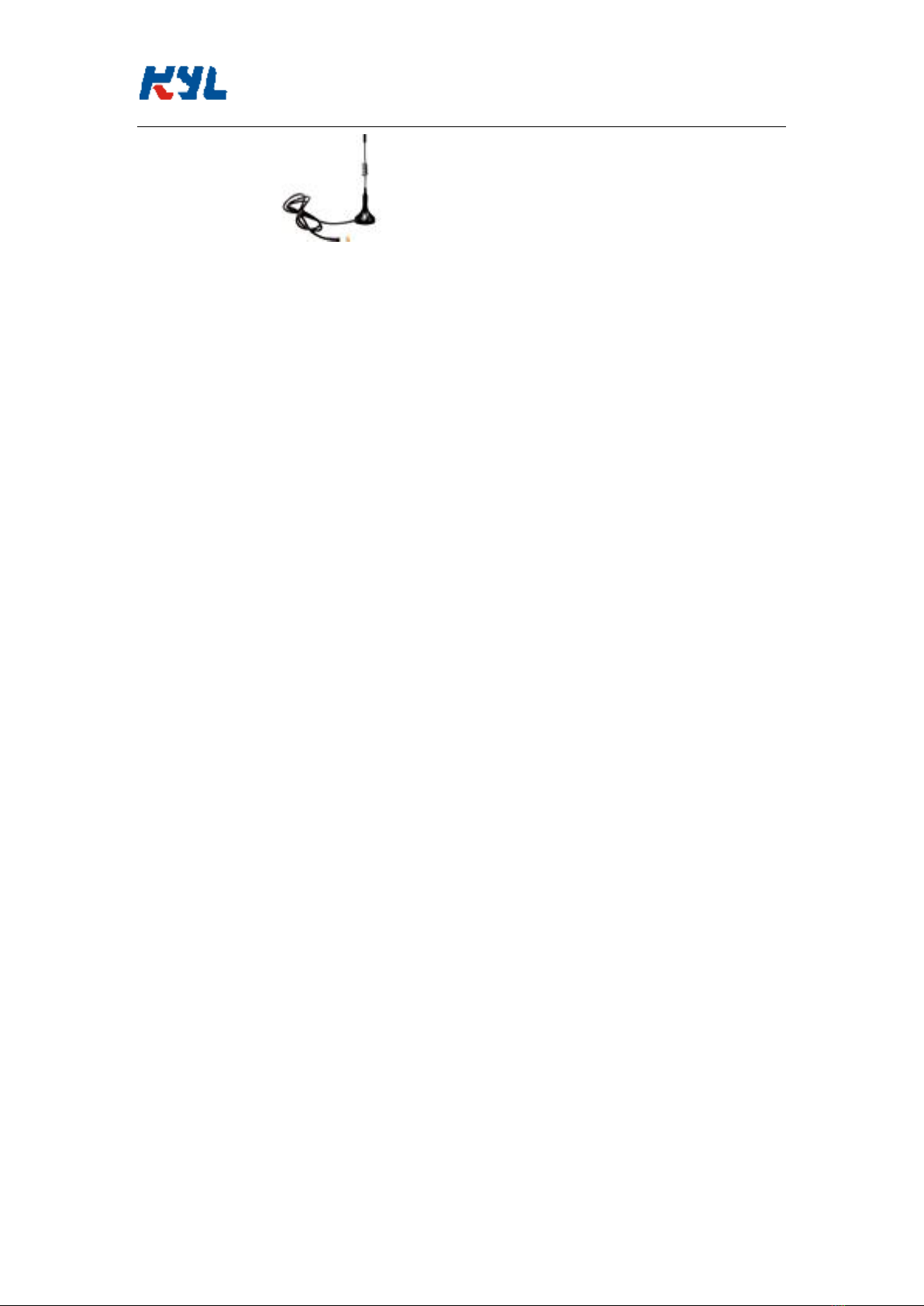

ii: Antenna configuration:
Many appropriative antennas for low power RF modules are selected for meeting
different user antenna configuration. Please ask our Sales office for further
information about the antenna’s dimension and performance. The main options of
antennas are exterior flagelliform rubber antenna with helical SMA joint, small
osculum antenna, small rod antenna and elbow antenna. If the user has special
demands on antennas, we can design and produce for them specially.
a. Helical SMA antennas: KYL-ANT-S868-5-SMA
b. Elbow antenna : KYL-ANT-S433L-10-ESMA
c. Small rod antenna: KYL-ANT-S433-4-RSMA
d. Small osculum antenna: KYL-ANT-O433S-300H1.5-SMA

Shenzhen KYL Communication Equipment Co., Ltd
Tel: [phone] E_mail: [e-mail]；www.rf-data.com
10.Application of KYL-600L Networking
The communication channel of KYL-600L is half duplex, which is most suitable for
the communication mode of point to multi-point. Under this mode, one master station
must be set, and all of the rest are slave stations. A unique address is given to each
station. The coordination of communication is controlled by master station that uses
data frames containing address code to transmit data or command. Slave station will
receive all of the data and command and compare the received address code with local
address code. If they are different, the data will be deserted without any response. If
those address codes are the same, it means the data is sent to the local. Slave station
will make different responses according to the transmitted data or command and send
back the data of response. All these jobs must be performed by upper protocol, and it
is assured that there is only one transmitter-receiver in the state of transmission in the
communication network at any instant moment so as to avoid the cross-interference.
KYL-600L can also be used for point-to- point communication with easier operation.
For the programming of serial port, all you have to do is to remember that its
communication mode is semi duplex while always observing the time sequence of
come-and-go for receiving and transmitting.
