KYLAND SICOM3014GV Assembly instructions

SICOM3014GV Industrial Ethernet Switch
Hardware Installation Manual
Publication Data: Oct. 2018
Version: V1.1

SICOM3014GV Industrial Ethernet Switch
Hardware Installation Manual
Disclaimer: Kyland Technology Co., Ltd. tries to keep the content of this manual as
accurate and as updated as possible. This document is not guaranteed to be error-free, and
we reserve the right to amend it without notice to users.
All rights reserved.
No part of this documentation may be excerpted, reproduced, translated, annotated or
duplicated, in any form or by any means without the prior written permission of KYLAND
Corporation.
Copyright © 2018 Kyland Technology Co., Ltd.

Notice for Safety Operation
The product performs reliably as long as it is used according to the guidance. Artificial
damage or destruction of the device should be avoided. Before using the device, read this
notice carefully for personal and equipment safety. Please keep the manual for further
reference. Kyland is not liable to any personal or equipment damage caused by violation of
this notice.
 Do not place the device near water sources or damp areas. Keep the ambient relative
humidity within the range from 5% to 95% (non-condensing).
 Do not place the device in an environment with high magnetic field, strong shock, or high
temperature. Keep the working and storage temperatures within the allowed range.
 Install and place the device securely and firmly.
 Please keep the device clean; if necessary, wipe it with a soft cotton cloth.
 Do not place any irrelevant materials on the device or cables. Ensure adequate heat
dissipation and tidy cable layout without knots.
 Wear antistatic gloves or take other protective measures when operating the device.
 Avoid any exposed metal wires because they may be oxidized or electrified.
 Install the device in accordance with related national and local regulations.
 Before power-on, make sure the power supply is within the allowed range of the device.
High voltage may damage the device.
 Power connectors and other connectors should be firmly interconnected.
 Do not plug in or out the power supply with wet hands. When the device is powered on,
do not touch the device or any parts with wet hands.
 Before operating a device connected to a power cable, remove all jewelry (such as rings,
bracelets, watches, and necklaces) or any other metal objects, because they may cause
electric shock or burns.
 Do not operate the device or connect or disconnect cables during an electrical storm.
 Use compatible connectors and cables. If you are not sure, contact our sales or
technical support personnel for confirmation.

 Do not disassemble the device by yourself. When an anomaly occurs, contact our sales
or technical support personnel.
 If any part is lost, contact our sales or technical support personnel to purchase the
substitute. Do not purchase parts from other channels.
 Dispose of the device in accordance with relevant national provisions, preventing
environmental pollution.
In the following cases, please immediately shut down your power supply and contact your
Kyland representative:
 Water gets into the equipment.
 Equipment damage or shell damage.
 Equipment operation or performance has abnormally changed.
 The equipment emits odor, smoke or abnormal noise.

I
CONTENTS
1 Product Overview .......................................................................................................... 1
2 Structure and Interface .................................................................................................. 2
2.1 Front Panel ................................................................................................................ 2
2.2 Top Panel ................................................................................................................... 3
3 Mounting ........................................................................................................................ 4
3.1 Dimension Drawing .................................................................................................... 4
3.2 Mounting Modes and Steps ....................................................................................... 4
3.2.1 Mounting ............................................................................................................. 5
3.2.2 Wall Mounting ..................................................................................................... 5
4 Connection .................................................................................................................... 7
4.1 10/100/1000Base-T(X) Ethernet Port ......................................................................... 7
4.2 100/1000Base-X, 10/100/1000Base-T(X) SFP slot .................................................... 8
4.2.1 Gigabit SFP Optical Module ................................................................................ 9
4.2.2 Gigabit SFP Electrical Module .......................................................................... 10
4.3 Console Port ............................................................................................................ 10
4.4 Grounding / Power Terminal Block/ Alarm Terminal Block........................................ 12

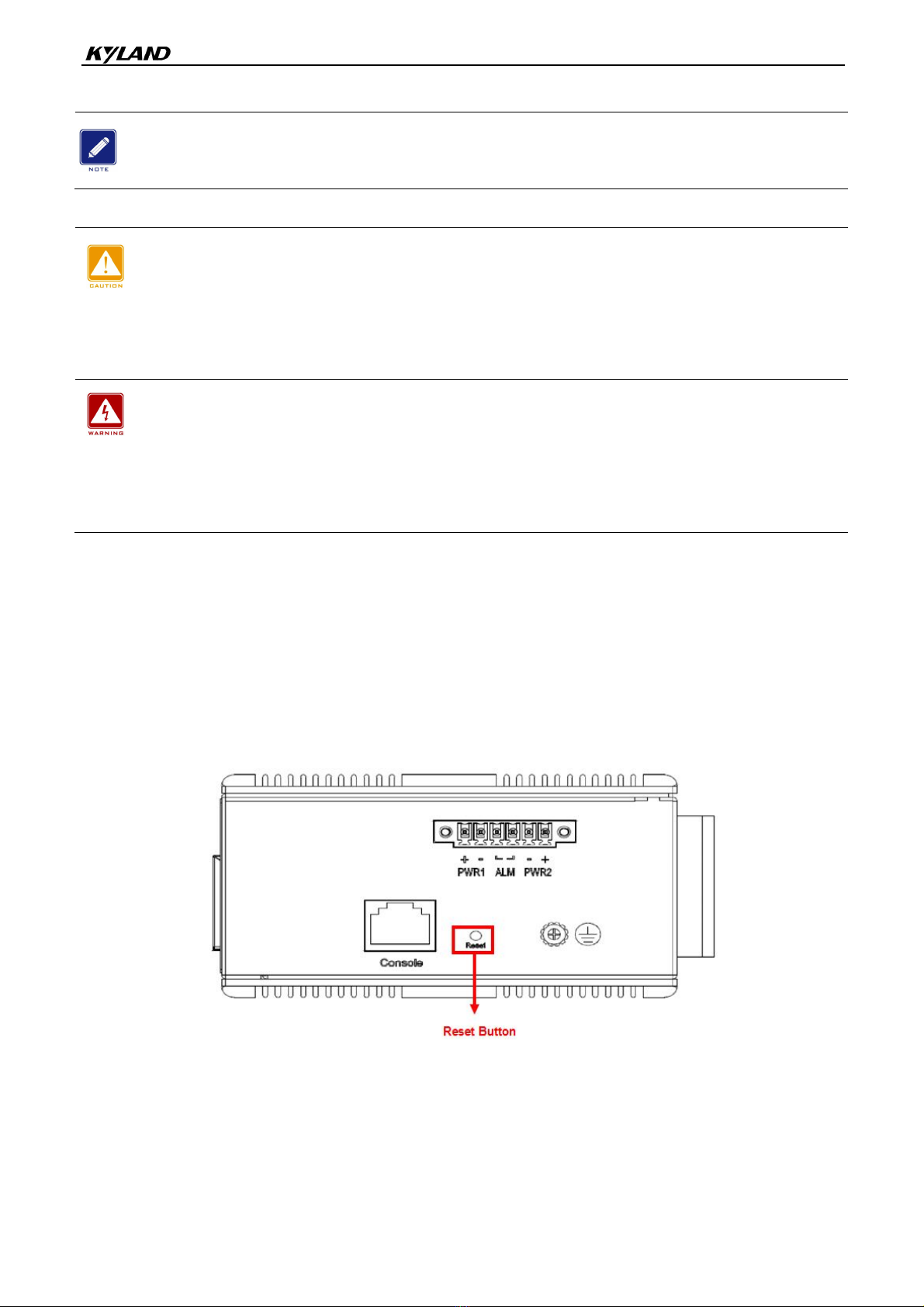

4.5 SYSTEM RESET ...................................................................................................... 13
5 LEDs ............................................................................................................................ 14
6 Switch Access ............................................................................................................. 15
6.1 Access through Console Port................................................................................... 15
6.2 Access through Telnet .............................................................................................. 17
6.3 Access through Web ................................................................................................ 18
7 Basic Features and Specifications............................................................................... 19

Product Overview
1
1 Product Overview
Managed video surveillance SICOM3014GV Industrial Ethernet Switch applied in the ITS,
highway, industrial automation, oil&gas and many other industries. The SICOM3014GV are
applicable to harsh and hazardous industrial environments due to its high-performance
switching engine, solid closed housing, fanless but heat dissipation-capable single-rib
shaped chassis, overcurrent, overvoltage, and EMC protection for power input, and EMC
protection of RJ45 ports. The redundant network and power input support guarantees the
reliable operation of the system.
The SICOM3014GV provide powerful network management functions. The device can be
managed through CLI, Telnet, Web.
The device support DIN rail and panel mounting. For details, see the following table.
Table 1 SICOM3014GV Models
Model SICOM3014GV- Ports - PS1- PS2
Code definition Code option
Ports: GX/GE
4GX10GE
Note ：
4GX10GE ：
four 100/1000Base-X ， 10/100/1000Base-T(X) SFP slots ；
ten 10/100/1000Base-T(X) ports.
PS1:power input 1 L15(12-58VDC)
PS2: power input 2 L15(12-58VDC)
Note:
We reserve the right to amend the product information listed in this table without notice. To
obtain the latest information, contact our sales or technical support personnel.

Structure and Interface
2
2 Structure and Interface
Caution:
It is recommended to purchase the port dustproof shield (optional) to keep ports clean
and ensure switch performance.

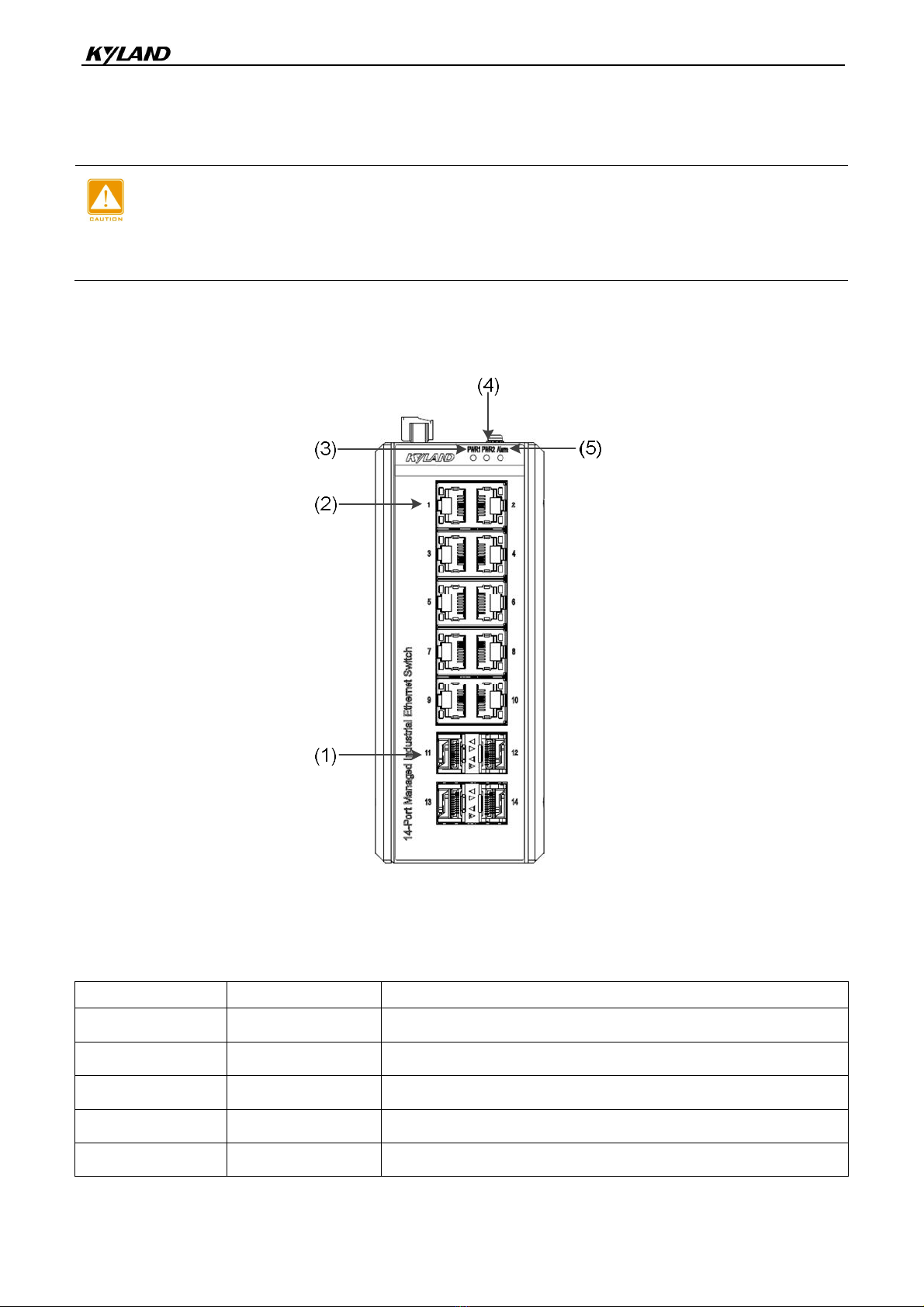

2.1 Front Panel
Figure 1 Front Panel
Table 2 Description of the Front Panel
No. Identifier Description
(1) 11-14 four 100/1000Base-X,10/100/1000Base-T(X) SFP slots
(2) 1-10 ten 10/100/1000Base-T(X) ports
(3) PWR1 power 1 LED
(4) PWR2 power 2 LED
(5) Alarm Alarm LED

Structure and Interface
3
2.2 Top Panel
Figure 2 Top Panel
Table 3 Description of the Top Panel
No. Identifier Description
(1) PWR1 Power terminal block 1
(2) Console Console port
(3) Reset Reset button for switch
(4) ALM Alarm relay output
(5) Grouding screw
(6) PWR2 Power terminal block 2

Mounting
4
3 Mounting
3.1 Dimension Drawing
Figure 3 Dimensions (unit: mm)
Caution:
 As part of the heat dissipation system, the switch housing becomes hot during operation.
Please use caution when coming in contact and avoid covering the switch housing when the
switch is running.
 The figures in this manual are only for reference.
3.2 Mounting Modes and Steps
The switch support DIN-rail and panel mounting. Before installation, make sure that the
following requirements are met.
1) Environment: temperature (-40℃ to 75℃), ambient relative humidity (5% to 95%,

Mounting
5
non-condensing)
2) Power requirement: The power input is within the voltage range of the switch.
3) Grounding resistance: <5
4) No direct sunlight, distant from heat source and areas with strong electromagnetic
interference.
3.2.1 Mounting
 DIN-Rail Mounting
Step 1: Select the mounting position for the device and guarantee adequate space and heat
dissipation .
Step 2: Insert the connecting seat onto the top of the DIN rail, and push the bottom of the
device inward and upward to ensure the DIN rail fits in the connecting seat. Make
sure the device is firmly installed on the DIN rail, as shown in the following figure.
Figure 4 DIN-Rail Mounting
3.2.2 Wall Mounting
Note:
Purchase the plate (optional) for panel mounting.
 Wall Mounting
Screw the wall-mount brackets with screws in the accessory kit.

Mounting
6
Figure 5 Wall Mounting

Connection
7
4 Connection
4.1 10/100/1000Base-T(X) Ethernet Port
10/100/1000Base-T(X) Ethernet port is equipped with RJ45 connector. The port is
self-adaptive. It can automatically configure itself to work in 10M, 100M, or 1000M state, full
or half duplex mode. The port can also adapt to MDI or MDI-X connection automatically. You
can connect the port to a terminal or network device with a straight-through or cross-over
cable.
 Pin Definition
Figure 6 RJ45 Port
Table 4 Pin Definitions of 10/100/1000Base-T(X) RJ45 Port
Pin MDI-X MDI
1 Transmit/Receive Data (TRD1+) Transmit/Receive Data (TRD0+)
2 Transmit/Receive Data (TRD1-) Transmit/Receive Data (TRD0-)
3 Transmit/Receive Data (TRD0+) Transmit/Receive Data (TRD1+)
4 Transmit/Receive Data (TRD3+) Transmit/Receive Data (TRD2+)
5 Transmit/Receive Data (TRD3-) Transmit/Receive Data (TRD2-)
6 Transmit/Receive Data (TRD0-) Transmit/Receive Data (TRD1-)
7 Transmit/Receive Data (TRD2+) Transmit/Receive Data (TRD3+)
8 Transmit/Receive Data (TRD2-) Transmit/Receive Data (TRD3-)
Note:
"+" and "-" indicate level polarities.

Connection
8
 Wiring Sequence
Figure 7 Connection Using Straight-through/Cross-over Cable
Note：
The color of the cable for RJ45 connector meets the 568B standard: 1-orange and white,
2-orange, 3-green and white, 4-blue, 5-blue and white, 6-green, 7-brown and white, and
8-brown.
4.2 100/1000Base-X, 10/100/1000Base-T(X) SFP slot
100/1000Base-X, 10/100/1000Base-T(X) SFP slot (gigabit SFP slot) requires an SFP
optical/electrical module to enable data transmission. The following table lists the gigabit
SFP optical/electrical modules (optional) supported by the switch.
Table 5 Gigabit SFP Optical/Electrical Modules
Model Port MM/SM Connector
Central
Wavelength
Transmission
Distance
IGSFP-M-SX-LC-850-0.55 1000Base-X port MM LC 850nm 0.55km
IGSFP-S-LX-LC-1310-10 1000Base-X port SM LC 1310nm 10km
IGSFP-S-LH-LC-1310-40 1000Base-X port SM LC 1310nm 40km
IGSFP-S-ZX-LC-1550-80 1000Base-X port SM LC 1550nm 80km
IGSFP-10/100/1000BASE- 10/100/1000Base- -- RJ45 -- --

Connection
9
T-RJ45 T(X) port

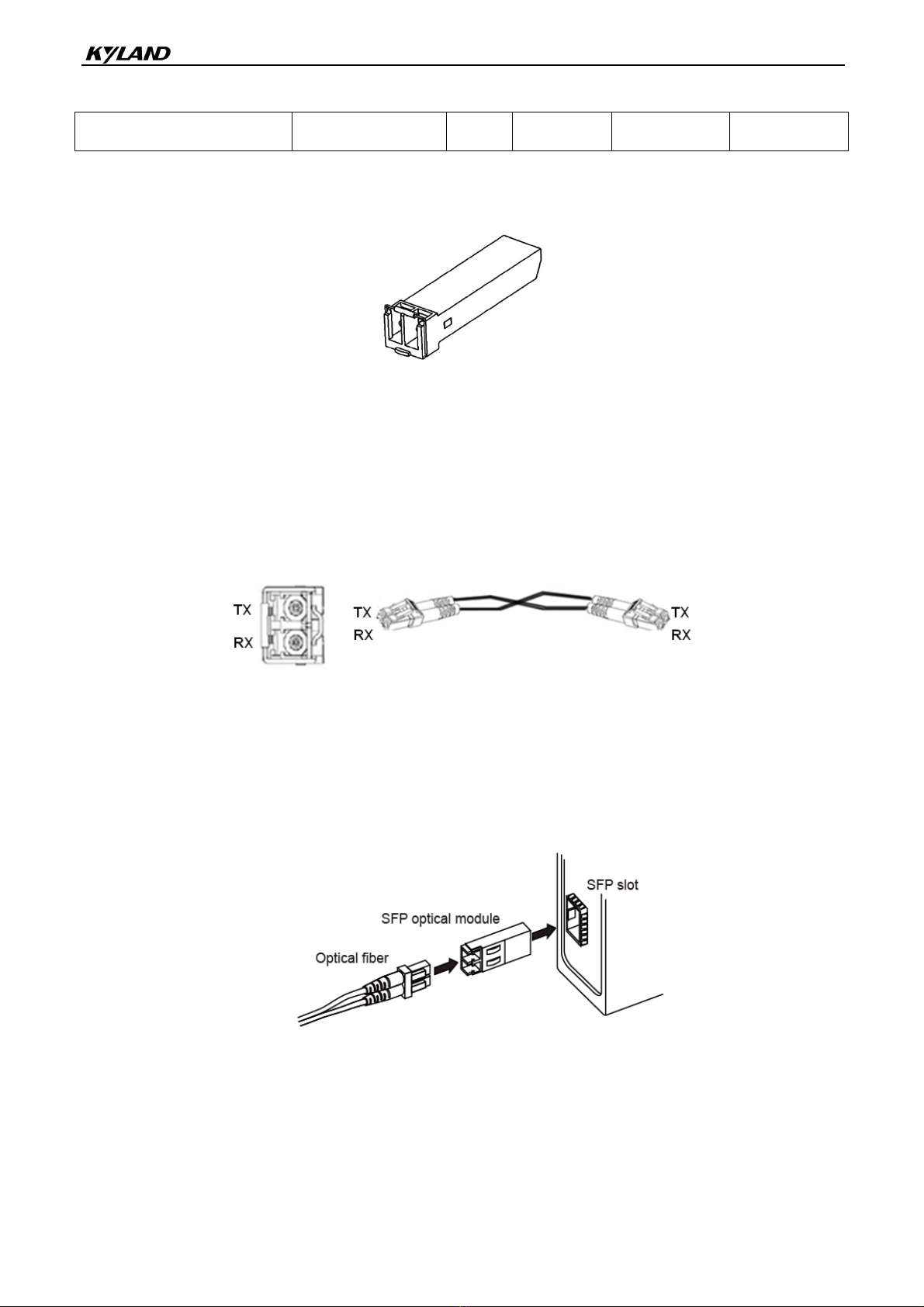

4.2.1 Gigabit SFP Optical Module
Figure 8 Gigabit SFP Optical Module
An SFP optical module is equipped with LC connector, and each port consists of a TX
(transmit) port and an RX (receive) port. To enable communication between Device A and
Device B, connect the TX port of Device A to the RX port of Device B, and the RX port of
Device A to the TX port of Device B, as shown in the following figure.
Figure 9 Fiber Connection of an SFP Optical Module
 How to Connect the SFP Optical Module
Insert the SFP optical module into the SFP slot in the switch, and then insert the fibers into
the TX port and RX port of the SFP module.
Figure 10 Connecting the SFP Optical Module
Identify the RX port and TX port of an SFP optical module:
1. Insert the two connectors in one end of two fibers into the SFP module, and those in the
other end into the peer module.

Connection
10
2. View the corresponding connection status LED:
If the LED is on, the connection is correct. If the LED is off, the link is not connected. This
may be caused by incorrect connection of the TX and RX ports. In this case, swop the two
connectors at one end of the fibers.
Caution:
 The device uses laser to transmit signals in fibers. The laser meets the requirements of level 1
laser products. Routine operation is not harmful to your eyes, but do not look directly at the
fiber port when the device is powered on.
 If the defined transmission distance of an SFP module is longer than 60km, do not use a short
fiber (<20km) for connection. If such a short fiber is used, the module will be burned.
4.2.2 Gigabit SFP Electrical Module
Figure 11 Gigabit SFP Electrical Module
 How to Connect the SFP Electrical Module
Insert the SFP electrical module into the SFP slot in the switch, and then insert the RJ45
connector of the twisted pair into the SFP module.
Figure 12 Connecting the SFP Electrical Module
4.3 Console Port
The Console port is for local management by using a terminal emulator or a computer with
terminal emulation software.

Connection
11
● DB9 connector connect to computer COM port
● Baud rate: 115200bps
● 8 data bits, 1 stop bit
● None Priority
● None flow control
Figure 13 Console connector
To connect the host PC to the console port, a RJ45 (male) connector-to-RS232 DB9
(female) connector cable is required. The RJ45 connector of the cable is connected to the
CID port of SICOM3014GV; the DB9 connector of the cable is connected to the PC COM
port. The pin assignment of the console cable is shown below:
Figure 14 Console connector Define
Table 6 Pin Definitions of DB9 Port (9-Pin Serial Port) and RJ45 Port (Console Port)
DB9 Port (9-Pin Serial Port) RJ45 Port (Console Port)
Pin Signal Pin Signal

Connection
12
2 RXD (Receive data) 3 RXD (Receive data)
3 TXD (Transmit data) 4 TXD (Transmit data)
5 DGND (Grounding) 6 DGND (Grounding)
4.4 Grounding / Power Terminal Block/ Alarm Terminal Block
The alarm relay output contacts are in the middle of the DC terminal block connector as
shown in the figure below.
The alarm relay out is “Normal Open”, and it will be closed when detected any predefined
failure such as power failures or Ethernet link failures
The relay output with current carrying capacity of 0.5A @ 24 VDC.
Figure 15 Grounding

Connection
13
Note:
Cross-sectional area of the chassis grounding cable>2.5mm2; grounding resistance<5.
Caution:
The switch supports power input (as listed in Table 1). Before connecting the device to power
supply, make sure that the power input meets the power requirement. If connected to an
incorrect power input, the device may be damaged.
Warning:
 Do not touch any exposed conducting wire, terminal, or component with a voltage warning
sign, because it may cause damage to humans.
 Do not remove any part or plug in or out any connector when the device is powered on.
4.5 SYSTEM RESET
The Reset button is provided to reboot the system without the need to remove power. Under
normal circumstances, you will not have to use it. However, or rare occasions, the
MANAGED SWITCH may not respond; then you may need to push the Reset button.
Figure 16 System Reset

LEDs
14
5 LEDs
Table 7 Front Panel LEDs
LED Name Indicator /color Condition
PWR1/ PWR2 On Green PWR1/ PWR2 power line has power
Off PWR1/ PWR2 power line disconnect or does not have
Alarm On Red Ethernet link fails, alarm or power failure alarm occurs
Off No Ethernet link fails and no power failure alarm
Port speed LED
10/100/1000Base-T(X)
Ethernet port
On 1000M working state
Off 10/100M working state or no connection
10/100Base-T(X)
Ethernet port
On 100M working state
Off 10M working state or no connection
Port connection status LED
On Effective port connection
Blinking Ongoing network activities
Off No effective port connection
LED 1 and LED 2 indicate the status of the lower gigabit SFP slot, while LED3 and LED 4 indicate the
status of the
upper gigabit SFP slot.
100/1000Base-X,
10/100/1000Base-
T(X)
SFP slot speed LED
Gigabit SFP optical
module
On 1000M working state (1000Base-TX)
Off 100M working state (100Base-FX) or no connection
Gigabit SFP
electrical module
On 1000M working state (1000Base-TX)
Off
10/100M working state (10/100Base-T(X)) or
no connection
100/1000Base-X, 10/100/1000Base-
T(X)
SFP slot connection status LED
On Effective port connection
Blinking Ongoing network activities
Off No effective port connection

Switch Access
15
6 Switch Access
You can access the switch in any of the following ways:
6.1 Access through Console Port
Step 1: Connect the console port of the switch to the 9-pin serial port of a PC with the
RJ45-DB9 console cable.
Step 2: Open Hyper Terminal in Windows OS. On the computer’s desktop, click Start → All
Programs → Accessories → Communications → Hyper Terminal.
Step 3: Create a connection "Switch", as shown in the following figure.
Figure 17 Creating a Connection
Step 4: Connect the communication port in use, as shown in the following figure.
