Kyocera Mita KM-3530 User manual

SERVICE
MANUAL
Published in December ’01
2BH70763
Revision 3
KM-2530/3530
Contains: AD-63
F-2305
J-1402
MD-15
RA-1
ST-14
Fax System (C)

CAUTION
DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH
THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISPOSE OF
USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.
ATTENTION
IL Y A DANGER D’EXPLOSION S’IL Y A REMPLACEMENT INCORRECT DE LA BATTERIE.
REMPLACER UNIQUEMENT AVEC UNE BATTERIE DU MÊME TYPE OU D’UN TYPE REC-
OMMANDÉ PAR LE CONSTRUCTEUR. METTRE AU RÉBUT LES BATTERIES USAGÉES
CONFORMÉMENT AUX INSTRUCTIONS DU FABRICANT.

Safety precautions
This booklet provides safety warnings and precautions for our service personnel to ensure the safety of
their customers, their machines as well as themselves during maintenance activities. Service personnel
are advised to read this booklet carefully to familiarize themselves with the warnings and precautions
described here before engaging in maintenance activities.

indicates that action is required. The specific action required is shown inside the symbol.
General action required.
Remove the power plug from the wall outlet.
Always ground the copier.
Safety warnings and precautions
Various symbols are used to protect our service personnel and customers from physical danger and
to prevent damage to their property. These symbols are described below:
DANGER: High risk of serious bodily injury or death may result from insufficient attention to or incorrect
compliance with warning messages using this symbol.
WARNING:Serious bodily injury or death may result from insufficient attention to or incorrect compliance
with warning messages using this symbol.
CAUTION: Bodily injury or damage to property may result from insufficient attention to or incorrect
compliance with warning messages using this symbol.
Symbols
The triangle ( ) symbol indicates a warning including danger and caution. The specific point
of attention is shown inside the symbol.
General warning.
Warning of risk of electric shock.
Warning of high temperature.
indicates a prohibited action. The specific prohibition is shown inside the symbol.
General prohibited action.
Disassembly prohibited.

1. Installation Precautions
WARNING
• Do not use a power supply with a voltage other than that specified. Avoid multiple connections to
one outlet: they may cause fire or electric shock. When using an extension cable, always check
that it is adequate for the rated current. ............................................................................................
• Connect the ground wire to a suitable grounding point. Not grounding the copier may cause fire or
electric shock. Connecting the earth wire to an object not approved for the purpose may cause
explosion or electric shock. Never connect the ground cable to any of the following: gas pipes,
lightning rods, ground cables for telephone lines and water pipes or faucets not approved by the
proper authorities. .............................................................................................................................
CAUTION:
•Do not place the copier on an infirm or angled surface: the copier may tip over, causing injury. .....
•Do not install the copier in a humid or dusty place. This may cause fire or electric shock. ..............
•Do not install the copier near a radiator, heater, other heat source or near flammable material.
This may cause fire. ..........................................................................................................................
•Allow sufficient space around the copier to allow the ventilation grills to keep the machine as cool
as possible. Insufficient ventilation may cause heat buildup and poor copying performance. ..........
•Always handle the machine by the correct locations when moving it. ..............................................
•Always use anti-toppling and locking devices on copiers so equipped. Failure to do this may
cause the copier to move unexpectedly or topple, leading to injury..................................................
•Avoid inhaling toner or developer excessively. Protect the eyes. If toner or developer is
accidentally ingested, drink a lot of water to dilute it in the stomach and obtain medical attention
immediately. If it gets into the eyes, rinse immediately with copious amounts of water and obtain
medical attention. ..............................................................................................................................
•Advice customers that they must always follow the safety warnings and precautions in the copier’s
instruction handbook. ........................................................................................................................

•Check that the power cable covering is free of damage. Check that the power plug is dust-free. If
it is dirty, clean it to remove the risk of fire or electric shock. ............................................................
•Never attempt to disassemble the optical unit in machines using lasers. Leaking laser light may
damage eyesight. ..............................................................................................................................
•Handle the charger sections with care. They are charged to high potentials and may cause
electric shock if handled improperly. .................................................................................................
CAUTION
•Wear safe clothing. If wearing loose clothing or accessories such as ties, make sure they are
safely secured so they will not be caught in rotating sections...........................................................
•Use utmost caution when working on a powered machine. Keep away from chains and belts. .......
•Handle the fixing section with care to avoid burns as it can be extremely hot. .................................
•Check that the fixing unit thermistor, heat and press rollers are clean. Dirt on them can cause
abnormally high temperatures...........................................................................................................
•Do not remove the ozone filter, if any, from the copier except for routine replacement. ...................
2. Precautions for Maintenance
WARNING
•Always remove the power plug from the wall outlet before starting machine disassembly...............
•Always follow the procedures for maintenance described in the service manual and other related
brochures. .........................................................................................................................................
•Under no circumstances attempt to bypass or disable safety features including safety
mechanisms and protective circuits. .................................................................................................
•Always use parts having the correct specifications. ..........................................................................
•Always use the thermostat or thermal fuse specified in the service manual or other related
brochure when replacing them. Using a piece of wire, for example, could lead to fire or other
serious accident. ...............................................................................................................................
•When the service manual or other serious brochure specifies a distance or gap for installation of a
part, always use the correct scale and measure carefully. ...............................................................
•Always check that the copier is correctly connected to an outlet with a ground connection. ............

•Do not pull on the AC power cord or connector wires on high-voltage components when removing
them; always hold the plug itself. ......................................................................................................
•Do not route the power cable where it may be stood on or trapped. If necessary, protect it with a
cable cover or other appropriate item. ..............................................................................................
•Treat the ends of the wire carefully when installing a new charger wire to avoid electric leaks........
•Remove toner completely from electronic components. ...................................................................
•Run wire harnesses carefully so that wires will not be trapped or damaged. ...................................
•After maintenance, always check that all the parts, screws, connectors and wires that were
removed, have been refitted correctly. Special attention should be paid to any forgotten
connector, trapped wire and missing screws. ..................................................................................
•Check that all the caution labels that should be present on the machine according to the
instruction handbook are clean and not peeling. Replace with new ones if necessary. ...................
•Handle greases and solvents with care by following the instructions below: ....................................
·Use only a small amount of solvent at a time, being careful not to spill. Wipe spills off completely.
·Ventilate the room well while using grease or solvents.
·Allow applied solvents to evaporate completely before refitting the covers or turning the main
switch on.
·Always wash hands afterwards.
•Never dispose of toner or toner bottles in fire. Toner may cause sparks when exposed directly to
fire in a furnace, etc...........................................................................................................................
•Should smoke be seen coming from the copier, remove the power plug from the wall outlet
immediately. ......................................................................................................................................
3. Miscellaneous
WARNING
•Never attempt to heat the drum or expose it to any organic solvents such as alcohol, other than
the specified refiner; it may generate toxic gas. ................................................................................

1-1-1
2BH/J-3
CONTENTS
1-1 Specifications
1-1-1 Specifications ....................................................................................................................................... 1-1-1
1-1-2 Parts names and their functions ........................................................................................................... 1-1-3
(1) Copier ............................................................................................................................................. 1-1-3
(2) Operation panel .............................................................................................................................. 1-1-4
1-1-3 Machine cross section .......................................................................................................................... 1-1-5
1-1-4 Drive system ........................................................................................................................................ 1-1-6
(1) Drive system 1 (drive motor and eject motor drive trains) .............................................................. 1-1-6
(2) Drive system 2 (paper feed motor drive train) ................................................................................ 1-1-7
1-2 Handling Precautions
1-2-1 Drum .................................................................................................................................................... 1-2-1
1-2-2 Toner .................................................................................................................................................... 1-2-1
1-2-3 Installation environment ....................................................................................................................... 1-2-1
1-3 Installation
1-3-1 Unpacking and installation ................................................................................................................... 1-3-1
(1) Installation procedure ..................................................................................................................... 1-3-1
1-3-2 Setting initial copy modes .................................................................................................................... 1-3-9
1-3-3 Copier management ........................................................................................................................... 1-3-10
(1) Using the copier management mode ............................................................................................ 1-3-10
(2) Setting department management items ........................................................................................ 1-3-11
(3) Copy default ................................................................................................................................. 1-3-11
(4) Machine default ............................................................................................................................ 1-3-13
(5) Report ........................................................................................................................................... 1-3-14
(6) Language ...................................................................................................................................... 1-3-14
1-3-4 Installing the key counter (option) ...................................................................................................... 1-3-15
1-3-5 Installing the drawer heater (option) ................................................................................................... 1-3-17
1-3-6 Installing the paper feed desk (option) ............................................................................................... 1-3-18
1-3-7 Installing the large paper deck (option) .............................................................................................. 1-3-21
1-3-8 Installing the saddle finisher/switchback unit (option) ........................................................................ 1-3-25
1-3-9 Installing the sheet-through document holder (option) ....................................................................... 1-3-34
1-3-10 Installing the Facsimile System (option) ............................................................................................. 1-3-35
1-3-11 Installing the Printing System (option) ................................................................................................ 1-3-43
1-3-12 Installing the Scanning System (option) ............................................................................................. 1-3-45
1-3-13 Installing the duplex unit (option) ....................................................................................................... 1-3-48
1-3-14 Installing the built-in finisher (option) .................................................................................................. 1-3-50
1-3-15 Installing the job separator (option) .................................................................................................... 1-3-55
1-4 Maintenance Mode
1-4-1 Maintenance mode ............................................................................................................................... 1-4-1
(1) Executing a maintenance item ....................................................................................................... 1-4-1
(2) Maintenance mode item list ............................................................................................................ 1-4-2
(3) Contents of maintenance mode items ............................................................................................ 1-4-5
1-5 Troubleshooting
1-5-1 Paper misfeed detection ...................................................................................................................... 1-5-1
(1) Paper misfeed indication ................................................................................................................ 1-5-1
(2) Paper misfeed detection conditions ................................................................................................ 1-5-3
(3) Paper misfeeds ............................................................................................................................. 1-5-16
1-5-2 Self-diagnosis ..................................................................................................................................... 1-5-27
(1) Self-diagnostic function ................................................................................................................ 1-5-27
(2) Self-diagnostic codes ................................................................................................................... 1-5-28

1-1-2
2BH/J
1-5-3 Image formation problems ................................................................................................................. 1-5-42
(1) No image appears (entirely white). ............................................................................................... 1-5-43
(2) No image appears (entirely black). ............................................................................................... 1-5-44
(3) Image is too light. ......................................................................................................................... 1-5-45
(4) Background is visible. ................................................................................................................... 1-5-45
(5) A white line appears longitudinally. .............................................................................................. 1-5-45
(6) A black line appears longitudinally. .............................................................................................. 1-5-46
(7) A black line appears laterally. ....................................................................................................... 1-5-46
(8) One side of the copy image is darker than the other. ................................................................... 1-5-46
(9) Black dots appear on the image. .................................................................................................. 1-5-47
(10) Image is blurred. ........................................................................................................................... 1-5-47
(11) The leading edge of the image is consistently misaligned with the original. ................................ 1-5-47
(12) The leading edge of the image is sporadically misaligned with the original. ................................ 1-5-48
(13) Paper creases. ............................................................................................................................. 1-5-48
(14) Offset occurs. ............................................................................................................................... 1-5-48
(15) Image is partly missing. ................................................................................................................ 1-5-49
(16) Fixing is poor. ............................................................................................................................... 1-5-49
(17) Image is out of focus. ................................................................................................................... 1-5-49
(18) Image center does not align with the original center. ................................................................... 1-5-50
(19) Image is not square. ..................................................................................................................... 1-5-50
1-5-4 Electrical problems ............................................................................................................................. 1-5-51
(1) The machine does not operate when the main switch is turned on. ............................................. 1-5-51
(2) The drive motor does not operate (C2000). ................................................................................. 1-5-51
(3) The paper feed motor does not operate (C2500). ........................................................................ 1-5-51
(4) The eject motor does not operate. ................................................................................................ 1-5-51
(5) The upper lift motor does not operate (C1010). ........................................................................... 1-5-52
(6) The lower lift motor does not operate (C1020). ............................................................................ 1-5-52
(7) The scanner motor does not operate. .......................................................................................... 1-5-52
(8) Cooling fan motor 1 does not operate. ......................................................................................... 1-5-52
(9) Cooling fan motor 2 does not operate. ......................................................................................... 1-5-52
(10) Cooling fan motor 3 does not operate. ......................................................................................... 1-5-52
(11) Cooling fan motor 4 does not operate. ......................................................................................... 1-5-52
(12) Cooling fan motor 5 does not operate. ......................................................................................... 1-5-53
(13) Cooling fan motor 6 does not operate. ......................................................................................... 1-5-53
(14) Cooling fan motor 7 does not operate. ......................................................................................... 1-5-53
(15) Cooling fan motor 8 does not operate. ......................................................................................... 1-5-53
(16) Cooling fan motor 9 does not operate. ......................................................................................... 1-5-53
(17) The upper paper feed clutch does not operate. ............................................................................ 1-5-53
(18) The lower paper feed clutch does not operate. ............................................................................ 1-5-53
(19) Feed clutch 1 does not operate. ................................................................................................... 1-5-53
(20) Feed clutch 2 does not operate. ................................................................................................... 1-5-54
(21) Feed clutch 3 does not operate. ................................................................................................... 1-5-54
(22) The bypass paper feed clutch does not operate. ......................................................................... 1-5-54
(23) The bypass feed clutch does not operate. .................................................................................... 1-5-54
(24) The registration clutch does not operate. ..................................................................................... 1-5-54
(25) The feedshift solenoid does not operate. ..................................................................................... 1-5-54
(26) The toner feed solenoid does not operate. ................................................................................... 1-5-54
(27) The cleaning lamp does not turn on. ............................................................................................ 1-5-55
(28) The exposure lamp does not turn on. ........................................................................................... 1-5-55
(29) The exposure lamp does not turn off. ........................................................................................... 1-5-55
(30) The fixing heater does not turn on (C6000). ................................................................................. 1-5-55
(31) The fixing heater does not turn off. ............................................................................................... 1-5-55
(32) Main charging is not performed. ................................................................................................... 1-5-55
(33) Transfer charging is not performed. ............................................................................................. 1-5-55
(34) No developing bias is output. ....................................................................................................... 1-5-56
(35) The original size is not detected. .................................................................................................. 1-5-56
(36) The original size is not detected correctly. ................................................................................... 1-5-56
(37) The touch panel keys do not work. ............................................................................................... 1-5-56

1-1-3
2BH/J
(38) The message requesting paper to be loaded is shown
when paper is present in the upper drawer. ................................................................................. 1-5-56
(39) The message requesting paper to be loaded is shown
when paper is present in the lower drawer. .................................................................................. 1-5-56
(40) The message requesting paper to be loaded is shown
when paper is present on the bypass tray. ................................................................................... 1-5-56
(41) The size of paper in the upper drawer is not displayed correctly. ................................................ 1-5-56
(42) The size of paper in the lower drawer is not displayed correctly. ................................................. 1-5-57
(43) The printing width of the paper on the bypass tray is not detected correctly. ............................... 1-5-57
(44) A paper jam in the paper feed, paper conveying or fixing section is indicated
when the main switch is turned on. .............................................................................................. 1-5-57
(45) The message requesting covers to be closed is displayed
when the front cover and conveying cover are closed. ................................................................ 1-5-58
(46) Others. .......................................................................................................................................... 1-5-58
1-5-5 Mechanical problems ......................................................................................................................... 1-5-59
(1) No primary paper feed. ................................................................................................................. 1-5-59
(2) No secondary paper feed. ............................................................................................................ 1-5-59
(3) Skewed paper feed. ...................................................................................................................... 1-5-59
(4) The scanner does not travel. ........................................................................................................ 1-5-59
(5) Multiple sheets of paper are fed at one time. ................................................................................. 1-5-59
(6) Paper jams. .................................................................................................................................. 1-5-59
(7) Toner drops on the paper conveying path. ................................................................................... 1-5-60
(8) Abnormal noise is heard. .............................................................................................................. 1-5-60
1-6 Assembly and Disassembly
1-6-1 Precautions for assembly and disassembly ......................................................................................... 1-6-1
(1) Precautions ..................................................................................................................................... 1-6-1
(2) Running a maintenance item .......................................................................................................... 1-6-2
1-6-2 Paper feed section ............................................................................................................................... 1-6-3
(1) Detaching and refitting the forwarding, paper feed and separation pulleys .................................... 1-6-3
(2) Detaching and refitting the bypass separation, bypass papaer feed and
bypass forwarding pulleys .............................................................................................................. 1-6-5
(3) Adjustment after roller and clutch replacement ............................................................................ 1-6-10
(3-1) Adjusting the leading edge registration of image printing .................................................... 1-6-10
(3-2) Adjusting the leading edge registration for memory image printing..................................... 1-6-11
(3-3) Adjusting the center line of image printing........................................................................... 1-6-12
(3-4) Adjusting the margins for printing ........................................................................................ 1-6-13
(3-5) Adjusting the amount of slack in the paper.......................................................................... 1-6-14
1-6-3 Optical section .................................................................................................................................... 1-6-15
(1) Detaching and refitting the exposure lamp ................................................................................... 1-6-15
(2) Detaching and refitting the scanner wires .................................................................................... 1-6-16
(2-1) Detaching the scanner wires ............................................................................................... 1-6-16
(2-2) Refitting the scanner wires .................................................................................................. 1-6-17
(3) Detaching and refitting the laser scanner unit .............................................................................. 1-6-20
(4) Adjusting the skew of the laser scanner unit (reference) .............................................................. 1-6-22
(5) Detaching and refitting the ISU (reference) .................................................................................. 1-6-23
(6) Adjusting the position of the ISU (reference) ................................................................................ 1-6-25
(7) Adjusting the longitudinal squareness (reference) ....................................................................... 1-6-26
(8) Adjusting magnification of the scanner in the main scanning direction ........................................ 1-6-27
(9) Adjusting magnification of the scanner in the auxiliary scanning direction ................................... 1-6-28
(10) Adjusting the scanner leading edge registration ........................................................................... 1-6-29
(11) Adjusting the scanner center line ................................................................................................. 1-6-30
(11) Adjusting the margins for scanning an original on the contact glass ............................................ 1-6-31
1-6-4 Drum section ...................................................................................................................................... 1-6-32
(1) Detaching and refitting the drum unit ............................................................................................ 1-6-32
(2) Detaching and refitting the main charger unit ............................................................................... 1-6-32
(3) Detaching and refitting the drum separation claw assemblies ..................................................... 1-6-33

1-1-4
2BH/J-3
1-6-5 Developing section ............................................................................................................................. 1-6-34
(1) Detaching and refitting the developing unit .................................................................................. 1-6-34
1-6-6 Transfer section ................................................................................................................................. 1-6-35
(1) Detaching and refitting the transfer roller assembly ..................................................................... 1-6-35
1-6-7 Fixing section ..................................................................................................................................... 1-6-36
(1) Detaching and refitting the fixing unit ........................................................................................... 1-6-36
(2) Detaching and refitting the heat roller separation claws ............................................................... 1-6-36
(3) Detaching and refitting the press roller ......................................................................................... 1-6-37
(4) Detaching and refitting the fixing heater M and S ......................................................................... 1-6-38
(5) Detaching and refitting the heat roller ........................................................................................... 1-6-39
(6) Detaching and refitting the fixing unit thermistor .......................................................................... 1-6-40
1-7 Requirements on PCB Replacement
1-7-1 Upgrading the firmware on the main PCB ............................................................................................ 1-7-1
1-7-2 Replacing the backup ROM ................................................................................................................. 1-7-2
1-7-3 Adjustment-free variable resisters (VR) ............................................................................................... 1-7-3
2-1 Mechanical construction
2-1-1 Paper feed section ............................................................................................................................... 2-1-1
2-1-2 Main charging section .......................................................................................................................... 2-1-5
2-1-3 Optical section ...................................................................................................................................... 2-1-7
(1) Original scanning ............................................................................................................................ 2-1-8
(2) Image printing ................................................................................................................................. 2-1-9
2-1-4 Developing section ............................................................................................................................. 2-1-12
(1) Formation of magnetic brush ........................................................................................................ 2-1-13
(2) Computing the absolute humidity ................................................................................................. 2-1-14
(3) Single component developing system ....................................................................................... 2-1-14-1
2-1-5 Transfer and separation sections ....................................................................................................... 2-1-15
2-1-6 Cleaning and charge erasing sections ............................................................................................... 2-1-17
2-1-7 Fixing section ..................................................................................................................................... 2-1-18
2-1-8 Eject and switchback sections ........................................................................................................... 2-1-20
2-2 Electrical Parts Layout
2-2-1 Electrical parts layout ........................................................................................................................... 2-2-1
(1) PCBs .............................................................................................................................................. 2-2-1
(2) Switches and sensors ..................................................................................................................... 2-2-2
(3) Motors ............................................................................................................................................. 2-2-4
(4) Other electrical components ........................................................................................................... 2-2-5
2-3 Operation of the PCBs
2-3-1 Power source PCB ............................................................................................................................... 2-3-1
2-3-2 Main PCB ............................................................................................................................................. 2-3-4
2-3-3 Operation unit PCB ............................................................................................................................ 2-3-13
2-3-4 Scanner drive PCB ............................................................................................................................. 2-3-18
2-3-5 CCD PCB ........................................................................................................................................... 2-3-20
2-4 Appendixes
Timing chart No. 1 .......................................................................................................................................... 2-4-1
Timing chart No. 2 .......................................................................................................................................... 2-4-2
Timing chart No. 3 .......................................................................................................................................... 2-4-3
Timing chart No. 4 .......................................................................................................................................... 2-4-4
Timing chart No. 5 .......................................................................................................................................... 2-4-5
Timing chart No. 6 .......................................................................................................................................... 2-4-6
Timing chart No. 7 .......................................................................................................................................... 2-4-7
Timing chart No. 8 .......................................................................................................................................... 2-4-8
Timing chart No. 9 .......................................................................................................................................... 2-4-9
Timing chart No. 10 ...................................................................................................................................... 2-4-10
Timing chart No. 11 ...................................................................................................................................... 2-4-11
Chart of image adjustment procedures ........................................................................................................ 2-4-12

1-1-5
2BH/J
Maintenance parts list .................................................................................................................................. 2-4-15
Periodic maintenance procedures ................................................................................................................ 2-4-16
General wiring diagram ................................................................................................................................ 2-4-18

2BH/J-3
1-1-1

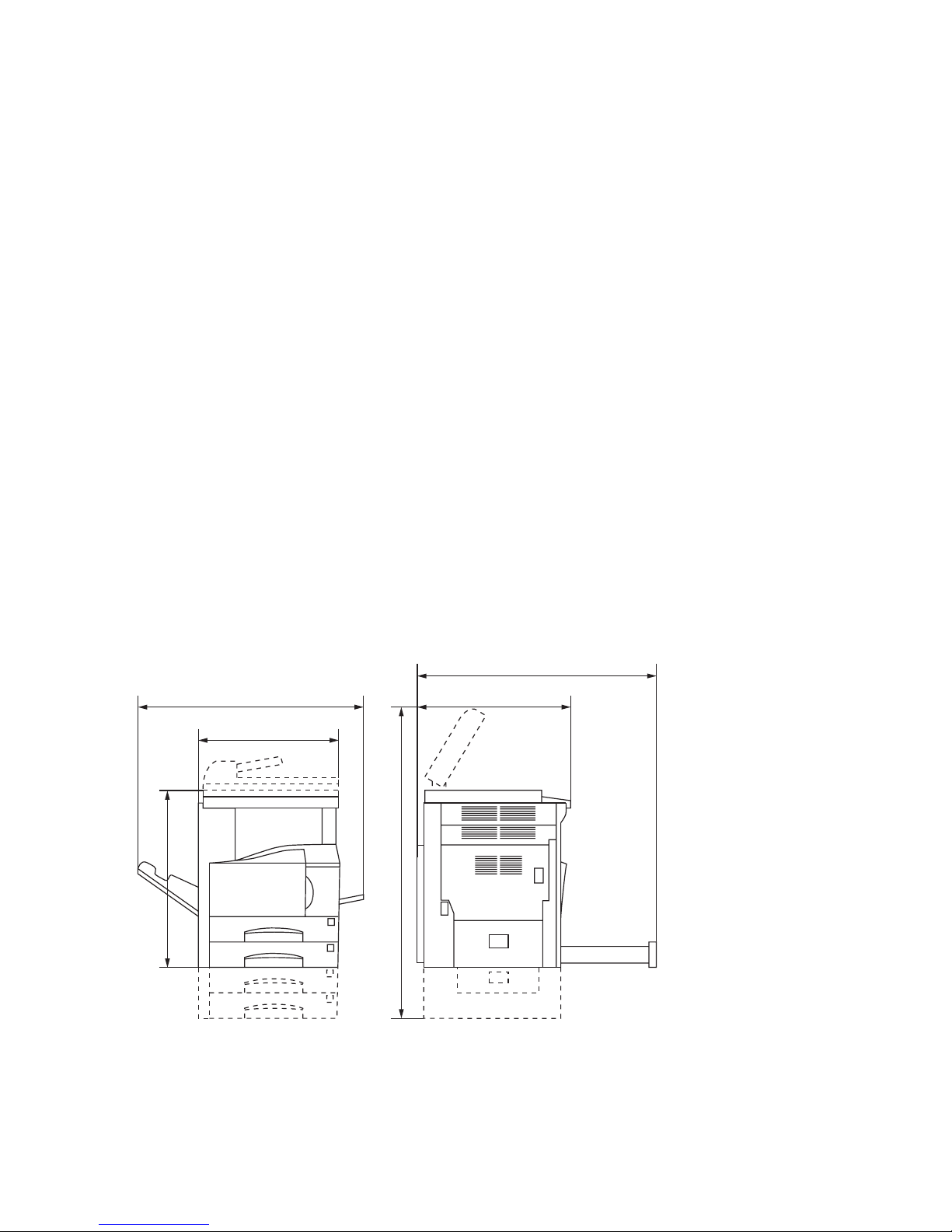

1-1-1 Specifications
Type ............................................... Desktop
Copying system.............................. Indirect electrostatic system
Originals ......................................... Sheets and books
Maximum size: A3/11" ×17"
Original feed system ...................... Fixed
Copy paper..................................... Drawer: Plain paper (60 – 105 g/m2)
Bypass table: Plain paper (45 – 200 g/m2)
Special paper: Transparencies, tracing paper, colored paper, letterhead
and envelopes (when using the printer function only)
Note: Use the bypass table for special paper.
Copying sizes ................................. Maximum: A3/11" ×17"
Minimum: A6R/51/2" ×81/2" (When the bypass table is used)
Magnification ratios ........................ Manual mode: 25 – 400%, 1% increments
Auto copy mode: fixed ratios
Metric
1:1 ± 1.0%, 1:4.00/1:2.00/1:1.41/1:1.15/1:0.81/1:0.70/1:0.50/1:0.25
Inch
1:1 ± 1.0%, 1:4.00/1:2.00/1:1.29/1:1.21/1:0.78/1:0.64/1:0.50/1:0.25
Copy speed .................................... At 100% magnification in copy mode:
25 cpm copier
A3/11" ×17": 15 copies/min.
B4/81/2" ×14": 18 copies/min.
A4/11" ×81/2": 25 copies/min.
A4R/81/2" ×11": 20 copies/min.
35 cpm copier
A3/11" ×17": 19 copies/min.
B4/81/2" ×14": 23 copies/min.
A4/11" ×81/2": 35 copies/min.
A4R/81/2" ×11": 25 copies/min.
First copy time ................................ From 3.9 s (A4/11" ×81/2")
Warm-up time ................................. 60 s or less (room temperature 20°C/68°F, 65% RH)
In preheat/energy saver mode: 30 s or less (room temperature 20°C/68°F, 65% RH)
[priorty to power save]
In preheat/energy saver mode: 10 s or less (room temperature 20°C/68°F, 65% RH)
[priorty to recovery]
Paper feed system ......................... Automatic feed
Capacity:
Drawers: 500 sheets
Manual feed
Capacity:
Bypass: 200 sheets
Continuous copying ....................... 1 - 250 sheets
Photoconductor .............................. a-Si (drum diameter 40 mm)
Charging system ............................ Single positive corona charging
(500 µA)
Exposure light source .................... Semiconductor laser
Exposure scanning system ............ Polygon mirror
Developing system ......................... Dry, reverse developing (magnetic brush)
Developer: 1-component, magnetism toner
Developing bias: +1.72 kV AC
Developing shift bias: 160 V
Toner replenishing: automatic from a toner container
Transfer system ............................. Transfer roller (100 µA)
Separation system ......................... Separation electrode (60 or 10 µA depending on the paper)
Fixing system ................................. Heat roller
Heat source: halogen heaters (120 V specifications:main 600 W, sub 400W/ 220-240
V specifications:main 630 W, sub 420 W)
Control temperature: 165°C/329°F (at normal ambient temperature)
Abnormally high temperature protection device: 170°C/338°F thermostat
Fixing pressure: 107.8 N
Charge erasing system .................. Exposure by cleaning lamp
Cleaning system ............................ Cleaning blade
Scanning system ............................ Flat bed scanning by CCD image sensor

2BH/J
1-1-2
Bit map memory ............................. 9 MB (standard)
Image storage memory .................. 23 MB (standard)
Resolution ...................................... 600 ×600 dpi
Light source ................................... Inert gas lamp
Dimensions .................................... 585 (W) ×646 (D) ×745 (H) mm
23" (W) ×252/5" (D) ×291/3" (H)
Weight ............................................ Approx. 79 kg/165 lbs
Floor requirements ......................... 1356 (W) ×646 (D) mm
533/8" (W) ×252/5" (D)
Functions........................................ Self-diagnostics, preheat, automatic copy density control, original size detection, auto
paper size selection function, auto magnification selection mode, zoom copy mode,
standard copy mode, size zoom mode, photo mode, margin mode, page separation
copy mode, border erase mode, layout copy, sort mode, copy management function,
language selection function
Power source ................................. 120 V AC, 60 Hz, 11 A
....................................................... 220 – 240 V AC, 50/60 Hz, 5.7 A
Power consumption ....................... 1320 W (120V)
1368W (220 – 240V)
Options ........................................... STDF*, SRDF, paper feed desk, large paper deck, duplex unit, job separator, finisher,
booklet stitcher, built-in finisher, key counter, fax board, printer board, network printer
board, network scanner board
*Optional for 25 cpm copier only.

2BH/J
1-1-3
1-1-2 Parts names and their functions
(1) Copier
Figure 1-1-1
1Original cover
2Operation panel
3Conveying cover handle
4Conveying cover
5Bypass tray
6Insert guides
7Toner container
8Toner container release lever
9Toner disposal tank
0Cleaning shaft
!Front cover
@Main switch
#Copy store section
$Platen
%Original size scales
^Upper drawer
&Lower drawer
*Side cover
(Length adjustment plate
)Width adjustament lever
⁄Handles for transport

2BH/J
1-1-4
(2) Operation panel
Figure 1-1-2
1Start key (Indicator)
2Stop/clear key
3Reset key
4Energy Saver (preheat) key
5Interrupt key (Indicator)
6Management key
7* (Default) key
8Numeric key
9Touch panel
0Auto selection key (Indicator)
!Facsimile priority output key (Indicator)
@Printer priority output key (Indicator)
#Brightness adjustment control dial
$Copier key (Indicator)
%Printer key (Indicator)
^Scanner key (Indicator)
&Fax key (Indicator)
Start
Stop
Clear
Reset
InterruptManagement Energy Saver
Copier
Printer
Scanner
Fax
Printer
Priority Output
Facsimile
Priority Output Auto Selection
1 2 3
4 5 6
7 8 9
0
4567#$%
^& 8 1 2 39
0!@

2BH/J
1-1-5
1-1-3 Machine cross section
Light path
Paper path
Figure 1-1-4 Machine cross section
1Paper feed section
2Main charging section
3Optical section
4Developing section
5Transfer and separation section
6Cleaning and charge erasing section section
7Fixing section
8Eject and switchback section

2BH/J
1-1-6
1-1-4 Drive system
(1) Drive system 1 (drive motor and eject motor drive trains)
Figure 1-1-4
As viewed from machine rear
1Drive motor gear
2Drum gear Z76H/Z30H
3Drum gear Z70H
4Gear Z76H/Z35H
5Gear Z50H
6Gear Z36S/Z31H
7Gear Z37H/28H
8Gear Z34H
9Registration clutch gear
0Gear Z63H/Z45S
!Gear Z37S
@Gear Z24S
#Joint gear Z32S
$Eject motor gear
%Gear Z47S/Z28S
^Eject gear Z30S

2BH/J
1-1-7

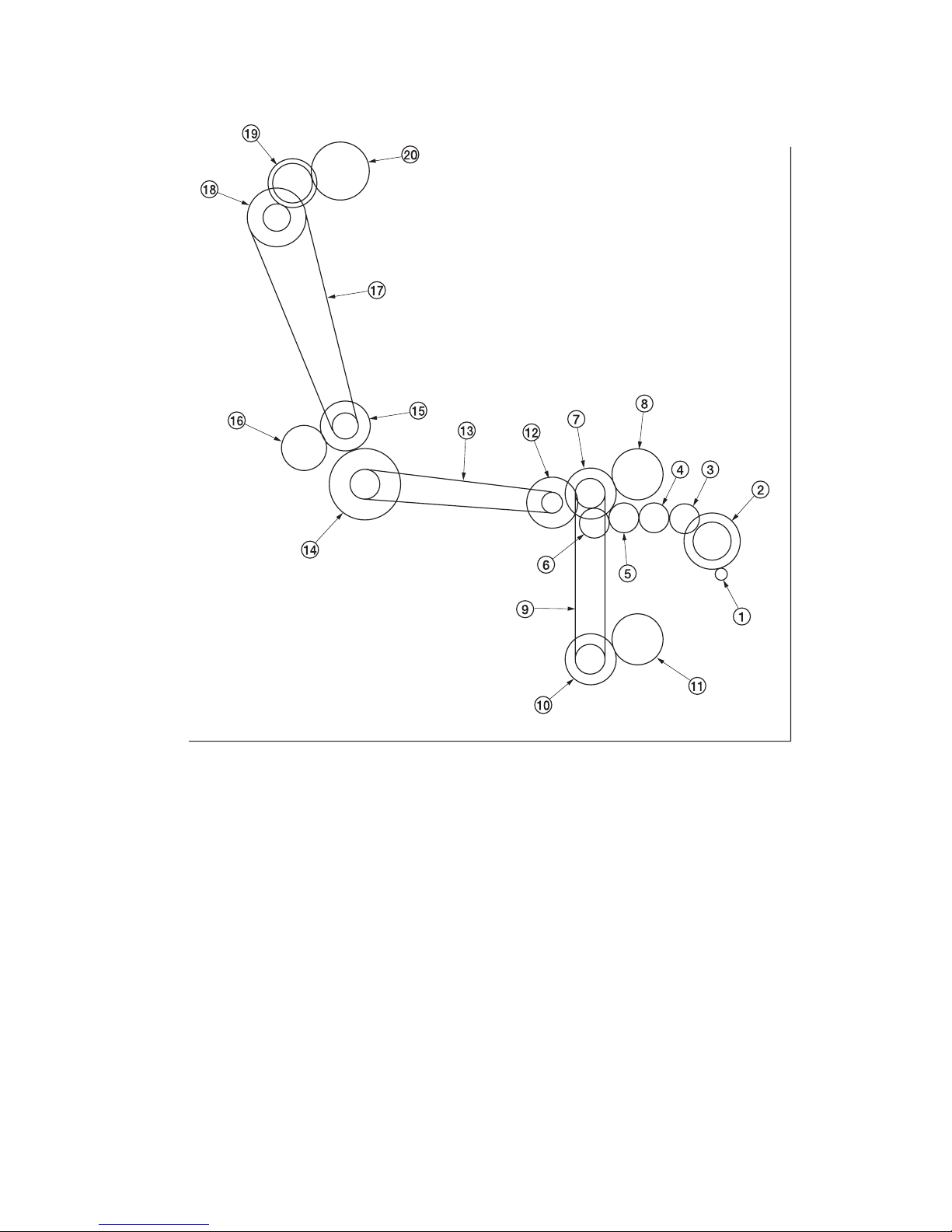

(2) Drive system 2 (paper feed motor drive train)
Figure 1-1-5
As viewed from machine rear
1Paper feed motor gear
2Gear Z76H/Z35S
3Feed gear Z25
4Feed gear Z25
5Feed gear Z25
6Feed gear Z25
7Gear Z41S/Z24S/P30
8Upper paper feed clutch gear
9Paper feed drive belt
0Gear Z41S/Z24S
!Lower paper feed clutch gear
@Gear Z41S/P15
#Bypass drive belt
$Gear Z60S/P20
%Gear Z41S/P18
^Gear Z40S/Z32S
&Container drive belt
*Gear Z24S/P40
(Gear Z40S/Z25S
)Container gear

2BH/J-3
1-2-1
1-2-1 Drum
Note the following when handling or storing the drum.
• When removing the drum unit, never expose the drum surface to strong direct light.
• Keep the drum at an ambient temperature between 0°C/32°F and 35°C/95°F and at a relative humidity not higher than
85% RH. Avoid abrupt changes in temperature and humidity.
• Avoid exposure to any substance which is harmful to or may affect the quality of the drum.
• Do not touch the drum surface with any object. Should it be touched by hands or stained with oil, clean it.
1-2-2 Toner
Store the toner in a cool, dark place. Avoid direct light and high humidity.
1-2-3 Installation environment
1. Temperature: 10 - 35°C/50 - 95°F
2. Humidity: 15 - 85%RH
3. Power supply: 120 V AC, 11 A
220 - 240 V AC, 5.7 A
4. Power source frequency: 50 Hz ±0.3%/60 Hz ±0.3%
5. Installation location
• Avoid direct sunlight or bright lighting. Ensure that the photoconductor will not be exposed to direct sunlight or other
strong light when removing paper jams.
• Avoid extremes of temperature and humidity, abrupt ambient temperature changes, and hot or cold air directed onto
the machine.
• Avoid dust and vibration.
• Choose a surface capable of supporting the weight of the machine.
• Place the machine on a level surface (maximum allowance inclination: 1° ).
• Avoid air-borne substances that may adversely affect the machine or degrade the photoconductor, such as
mercury, acidic of alkaline vapors, inorganic gasses, NOx, SOx gases and chlorine-based organic solvents.
• Select a room with good ventilation.
6. Allow sufficient access for proper operation and maintenance of the machine.
Machine front: 1000 mm/393/8" Machine rear: 300 mm/1113/16"
Machine right: 300 mm/1113/16" Machine left: 300 mm/1113/16"
Figure 1-2-1 Installation dimensions
a: 745 mm/295/16"
b: 585 mm/23"
c: 646 mm/253/8"
d: 1510 mm/597/16"
e: 1032 mm/405/8"
f: 961 mm/3713/16"
ad
b
ec
f
