Kyocera Mita KM-6330 User manual

PARTS LIST
Published in Oct. ’02
2CJ70771
Revision 1
KM-6330
Contains: Printing System (R)

NOTE
1.Indicate parts number and machine model when placing an order.
eg.Parts Number Parts Name Machine Model Cycle Quantity
2CJ04060 UPPER FRONT COVER 6330 60Hz 1
2.Service calls and freight will be charged separately.
3.Symbols in the "Parts Number" column.
•Parts with "'" indicates the service parts and the parts without "'" can not be supplied.
•Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.
eg.Parts Number Parts Name Parts Number Parts Name
2CJ93010 PARTS,ASS'Y CLEANING,SP •M2105000 NYLON CLAMP 2N,NK-2N
•M2307010 BINDING BAND,T18R
•Parts with "••" are component parts or sub-assembly with "•" appearing immediately above them.
eg.Parts Number Parts Name Parts Number Parts Name
•2CJ60020 COVER CLEANING ASS'Y SP ••2CJ18250 COVER,CLEANING
••2CJ00520 SEPARATION CLAW ASS'Y
•Parts with "•••" are component parts or sub-assembly with "••" appearing immediately above them.
eg.Parts Number Parts Name Parts Number Parts Name
••2CJ00520 SEPARATION CLAW ASS'Y •••2CJ18240 MOUNT,SEPARATION CLAW
•••2A018160 CLAW A,SEPARATION
4.See the last page of this parts list for the classification of the screws in the illustrations.
5.Items indicated by shaded areas ( ) are supply parts and should be ordered through your Regional Office.

Parts List
KM-6330

FIG.1 EXTERIOR COVERS ······················2
FIG.2 FRAMES ································4
FIG.3 CASSETTE (120V) ························6
FIG.3 CASSETTE (230/240V) ····················8
FIG.4 DECK UNIT I ·····························10
FIG.5 DECK UNIT II ····························12
FIG.6 DECK UNIT III ····························14
FIG.7 PAPER FEED-IN SECTION I ················16
FIG.8 PAPER FEED-IN SECTION II················18
FIG.9 PAPER FEED-IN SECTION III ···············20
FIG.10 PAPER FEED-IN SECTION IV ···············22
FIG.11 PAPER CONVEYING SECTION I·············24
FIG.12 PAPER CONVEYING SECTION II ············26
FIG.13 OPTICAL SECTION I ······················28
FIG.14 OPTICAL SECTION II ······················30
FIG.15 IMAGE FORMATION SECTION I ·············32
FIG.16 IMAGE FORMATION SECTION II ············34
FIG.17 DEVELOPING SECTION I ··················36
FIG.18 DEVELOPING SECTION II··················38
FIG.19 TONER HOPPER SECTION ················40
FIG.20 CLEANING SECTION I·····················42
FIG.21 CLEANING SECTION II ····················44
FIG.22 FIXING SECTION I ························46
FIG.23 FIXING SECTION II ·······················48
FIG.24 DRIVING, COOLING SECTION I ·············50
FIG.25 DRIVING, COOLING SECTION II·············52
FIG.26 DRIVING, COOLING SECTION III ············54
FIG.27 DUPLEX UNIT I ··························56
FIG.28 DUPLEX UNIT II ··························58
FIG.29 DUPLEX UNIT III ·························60
FIG.30 REVERSING SECTION ····················62
FIG.31 PAPER EJECT SECTION ···················64
FIG.32 ELECTRICAL COMPONENTS I (120V) ········66
FIG.32 ELECTRICAL COMPONENTS I (230/240V)·····68
FIG.33 ELECTRICAL COMPONENTS II ·············70
FIG.34 OPERATION UNIT ························72
FIG.35 WIRE SECTION I ·························74
FIG.36 WIRE SECTION II·························76
FIG.37 EXTERIOR COVERS (DF) ··················78
FIG.38 FRAMES (DF) ····························80
FIG.39 PAPER FEED-IN SECTION (DF) ·············82
FIG.40 PAPER CONVEYING SECTION (DF) ·········84
FIG.41 REVERSING SECTION (DF) ················86
FIG.42 PAPER EJECT SECTION (DF)···············88
FIG.43 DRIVING SECTION (DF) ···················90
FIG.44 ELECTRICAL COMPONENTS (DF) ···········92
FIG.45 ACCESSORIES & TOOL ···················94
FIG.46 OPTION I ·······························96
FIG.46 OPTION II ·······························98
•INDEX ·································100
–1 –
CONTENTS

2CJ
–2 –
FIG. 1 EXTERIOR COVERS
26
30
3
6
37 36
31
25
27
23
7
24
32
28
5
33
34
35
29
39
42
13
40
4
16
14
15
12
10
11
941
8
38
2
18
22
19
19
20
21
20
43
17
44
1
HCA
HBC
BHD
HCA
HCA
HCA
HCA
BGB
BGB
HCA
HCA HCA
HCA
HCA
BHC
BAN
HBO
HAQ
HAQ
BUA
HBC
HBC
EAH
HCA
BBB
HBC
BHC
HBC
BAN
APF
APF
BAN
RDC
BBB
BGB
BGB
BGB

–3 –
2CJ
• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.
•Parts with "'" indicates the Service parts.
SP Part. No. Description
230V120V 240V
Quantity
Ref.
No. SP Part. No. Description
230V120V 240V
Quantity
Ref.
No.
•Parts with "••" are component parts or sub-assembly with "•" appearing immediately above them.
• Parts with "•••" are component parts or sub-assembly with "••" appearing immediately above them.
FIG. 1 EXTERIOR COVERS
' 1 2CJ04250 LOWER COVER,IMAGE FORMATION 1 1 1
' 2 2CJ04060 UPPER FRONT COVER 1 1 1
3 2A004150 FRONT MOUNT,COVER HINGE 1 1 1
4 2A004160 FEED GUIDE,SAFETY SWITCH 1 1 1
5 2A004170 FRONT FEED GUIDE,COVER MAGNET 1 1 1
6 2A004330 FRONT HINGE,COVER(B) 1 1 1
' 7 2CJ04020 LOWER REAR COVER 1 1 1
8 67505110 LABEL,STOPPER 1 1
8 2AD05050 LABEL,STOPPER(EUR) 1
9 2A005130 LABEL,FEED OPERATION(EUR) 1 1 1
10 2CJ04240 LOWER RIGHT INNER COVER 1 1 1
11 2CJ04290 UPPER FRONT FEED GUIDE,COVER 1 1 1
12 60804120 MAGNET CATCH 1 1 1
13 20305090 LABEL,HIGH VOLTAGE CAUTION 1 1
' 13 2A005060 LABEL,HIGH VOLTAGE CAUTION(EUR) 1
' 14 2CJ04070 COVER,ROM 1 1 1
' 15 2CJ04200 LOWER LEFT COVER 1 1 1
16 62207620 MAGNET, FEED SHIFT 2 2 2
17 2A004130 PIN,ORIGINAL TRAY 2
' 18 2CJ04210 LOWER REAR LEFT COVER 1 1 1
19 36704210 LOWER REAR LEFT HINGE,COVER 2 2 2
20 36704220 LOWER REAR LEFT MOUNT,COVER HINGE 2 2 2
21 36704350 LEFT PROJECTION,COVER MAGNET 2 2 2
22 36718620 SPONGE,DISPOSAL TANK PRESSURE 1 1 1
23 2A004020 UPPER REAR MOUNT,COVER 1 1 1
' 24 2CJ04010 REAR COVER,MIDDLE 1 1 1
' 25 2CJ04080 UPPER LEFT COVER 1 1 1
' 26 2CJ04090 LEFT COVER,MIDDLE 1 1 1
' 27 2CJ04100 UPPER REAR COVER 1 1 1
' 28 2CJ04110 UPPER RIGHT COVER 1 1 1
' 29 2CJ04120 RIGHT COVER,MIDDLE 1 1 1
' 30 2CJ04130 UPPER INNER COVER 1 1 1
' 31 2CJ04140 LEFT COVER,IMAGE FORMATION 1 1 1
' 32 2CJ04150 RIGHT COVER,IMAGE FORMATION 1 1 1
' 33 2CJ04170 LOWER FRONT RIGHT COVER 1 1 1
' 34 2CJ04180 LOWER REAR RIGHT COVER 1 1 1
' 35 2CJ04190 LOWER RIGHT COVER 1 1 1
36 2A004320 UPPER FRONT HINGE A,COVER 1 1 1
37 2A004350 PIN,HINGE STOP 1 1 1
38 2A004370 LOWER LEFT MOUNT,COVER 2 2 2
39 2A004380 LOWER FRONT RIGHT MOUNT,COVER 2 2 2
' 40 2CJ04270 COVER,TRANSFER CONVEYING 1 1 1
41 36704560 LOWER FRONT RIGHT MOUNTA,COVER 1 1 1
' 42 20305100 LABEL,TRANSFER BELT 1 1
' 42 2A005070 LABEL,TRANSFER BELT(EUR) 1
' 43 36705040 LABEL,CONVEYING OPERATION 1 1
' 43 2A005080 LABEL,CONVEYING OPERATION(EUR) 1
44 2A004100 MOUNT,ORIGINAL TRAY 1

2CJ
–4 –
FIG. 2 FRAMES
B
D
C
D
B
A
A
C
66
7
3
37
1
62
4
4
4
5
52
52
52
6
30
67
30
70
67
39
38 57
24 27
52
78
6160
8
58
69
33
59
72
68
39 37
38
45
44
25
26
31
48 47
65
64 63
77
75
29
28
71
51
50
53
55
54
56
34
36
35
74
40 43
52
46
37
37
42
41
32
73
52
20
19
21
22
23
52
52
76
17 10
11
1214 13
9
16
15
33 49
49
49
49
33
2
59
72
18
BHD
BVX
BHD
BHD
BHD
BHD
BHD
BHC
BBE
BAN
HCA
NAK
BBE
BBE
BBE
BHC
E07
BBD
BHC
BHC
BHC
BAN
BHC
BAN
BAN
BAN
EDB
EDB
BBE
BBE
BBE
EDB
EDB
BBE
BBE
BBE
BBE
BBE
BBE
NAK
NAK
BBE
NAK
EDB
EDB
HBC
BHC
BAN
BBE
BBE
BHC
BHC
BHC
BBE
BHC
BAN
BAN
BHC
BHC
BAN
BAN
EDB
EDB
E05
AXB

–5 –
2CJ
• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.
•Parts with "'" indicates the Service parts.
SP Part. No. Description
230V120V 240V
Quantity
Ref.
No. SP Part. No. Description
230V120V 240V
Quantity
Ref.
No.
•Parts with "••" are component parts or sub-assembly with "•" appearing immediately above them.
• Parts with "•••" are component parts or sub-assembly with "••" appearing immediately above them.
FIG. 2 FRAMES
1 2A002010 FRONT FRAME 1 1 1
2 2A002020 REAR FRAME 1 1 1
3 2A002030 BASE 1 1 1
4 2A002040 RIGHT STAY,MIDDLE 4 4 4
5 2A002110 FRONT STAY,FRAME 1 1 1
6 2A002120 REAR STAY,FRAME 1 1 1
7 2A002130 RIGHT MOUNT,CASTER 1 1 1
8 36721140 REAR FULCRUM PLATE,EJECT UNIT SUPPORT 1 1 1
9 M2107120 BINDING BAND SG-130 3 3 3
10 2AC07360 HOOK,DUPLEX LOCK 1 1 1
11 2A016200 LOWER STAY,CONVEYING 1 1 1
12 36717130 GUIDE FILM,DUPLEX FAN 1 1 1
' 13 36717140 GUIDE FILM,DUPLEX FAN AUXILIARY 1 1 1
' 14 36717190 FILM,DUPLEX 1 1 1
15 36727640 JUNCTION WIRING,DUPLEX FAN 1 1 1
' 16 63523010 FAN MOTOR 1 1 1
17 48571305 TENSION SPRING,DEVELOPER UNIT DRIVE 1 1 1
18 36721370 FRONT PIN,FEED SHIFT UNIT SUPPORT 1 1 1
19 33902160 SPRING,CASSETTE LOCK 1 1 1
' 20 36708260 SLIDER,IMAGE FORMATION 1 1 1
21 36716010 RIGHT MOUNT,SLIDER 1 1 1
22 36716620 HOOK,CONVEYING 1 1 1
23 71807770 PIN,DETECTION SWITCH 2 2 2
24 36721380 UPPER REAR PIN,FEED SHIFT UNIT SUPPORT 1 1 1
25 36716020 LEFT MOUNT,SLIDER 1 1 1
' 26 36716830 SLIDER,IMAGE FORMATION 1 1 1
27 36726110 MOUNT,KEY COUNTER 1 1 1
' 28 36708260 SLIDER,IMAGE FORMATION 1 1 1
29 36708280 RIGHT MOUNT,IMAGE FORMATION SLIDER 1 1 1
30 66502120 BOLT,LEVEL 2 2 2
31 2A008020 LEFT MOUNT,IMAGE FORMATION SLIDER 1 1 1
' 32 36708260 SLIDER,IMAGE FORMATION 1 1 1
33 M2105740 MINIATURE CLAMP,UAMS-05S-2 4 4 4
34 2A007300 SLIDER,DECK 1 1 1
35 2A007670 RIGHT MOUNT,DECK RAIL 1 1 1
36 2A007720 RIGHT MOUNT,DECK RAIL 1 1 1
37 M2109020 WIRE SADDLE,WS-2WS 4 4 4
38 36702150 MOUNTA,HANDLE 2 2 2
39 74302310 HANDLE 2 2 2
40 2CJ02010 REAR FRAME,MIDDLE 1 1 1
41 36702160 MOUNT B,HANDLE 1 1 1
42 74302310 HANDLE 1 1 1
43 M2104260 EDGING,EDS-0607U(KITAGAWA) 1 1 1
44 36702170 RIGHT REAR MOUNT,HANDLE 1 1 1
45 74302310 HANDLE 1 1 1
46 M7009000 WIRE SADDLE,LCT-3.5SI(TAKEUCHI) 1 1 1
47 33902070 LEFT MOUNT,RAIL 2 2 2
' 48 66107084 SLIDER,CASSETTE 2 2 2
49 M2107120 BINDING BAND SG-130 7 7 7
50 2A007310 LEFT SLIDER,DECK 1 1 1
51 2A007680 LEFT MOUNT,DECK RAIL 1 1 1
52 M2109010 WIRE SADDLE,WS-2NS 19 19 19
53 M2109010 WIRE SADDLE,WS-2NS 3 3 3
54 2A007660 FRONT STAY,DECK FEED 1 1 1
55 2A007710 LEFT STAY,DECK PAPER FEED 1 1 1
56 2A027620 JUNCTION WIRING,FEED UNIT 1 1 1
' 57 2CJ04160 LOWER FRONT COVER 1 1 1
58 2A023030 PARTITION,MACHINE INSIDE COOLING 1 1 1
59 2A026180 GROUND PLATE,SCANNER FRAME 4 4 4
60 33902120 HOOK,CASSETTE RETAINING 2 2 2
61 33902130 SPRING,CASSETTE HOOK 2 2 2
62 M2108000 SPACER,KGLS-3S 2 2 2
63 33902060 RIGHT REINFORCEMENT 2 2 2
64 36707881 RIGHT MOUNT,RAIL 2 2 2
' 65 66107084 SLIDER,CASSETTE 2 2 2
' 66 2A002170 CASTER UA 4 4 4
67 36702270 MOUNT,LEVEL BOLT 2 2 2
68 36704230 MOUNT,COVER 1 1 1
69 36704240 MOUNT B,COVER 1 1 1
70 36704300 LOWER FRONT MOUNT,COVER 1 1 1
' 71 2CJ04230 LOWER LEFT INNER COVER 1 1 1
72 2A026180 GROUND PLATE,SCANNER FRAME 6
73 36706210 MOUNT 3000,FEED 1 1 1
74 36706230 RETAINING PIN,UNIT 1 1 1
75 36707250 FRONT RETAINING PIN,BYPASS 1 1 1
76 36708290 FRONT PIN,IMAGE FORMATION POSITIONING 2 2 2
77 36716681 PIN,CONVEYING POSITIONING 2 2 2
78 36721130 FRONT FULCRUM PLATE,EJECT UNIT SUPPORT 1 1 1

2CJ
–6 –
FIG. 3 CASSETTE(120V)

–7 –
2CJ
• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.
•Parts with "'" indicates the Service parts.
SP Part. No. Description
230V120V 240V
Quantity
Ref.
No. SP Part. No. Description
230V120V 240V
Quantity
Ref.
No.
•Parts with "••" are component parts or sub-assembly with "•" appearing immediately above them.
• Parts with "•••" are component parts or sub-assembly with "••" appearing immediately above them.
FIG. 3 CASSETTE(120V)
' 1 2CJ00370 CASSETTE ASS’Y 2
' 2 •2CJ06150 LOWER COVER,CASSETTE 2
3 •36705270 LABEL,CASSETTE OPERATION 2
4 •33907012 CASSETTE 2
5 •33907020 WORK PLATE,CASSETTE 2
6 •33907030 WORK PLATE,LIFT CASSETTE 2
7 •33968220 CASSETTE LIFT SHAFT ASS’Y 2
8 •33907050 RAILA,CURSOR 2
9 •33907060 CURSOR A,CASSETTE 2
10 •33907070 CURSOR B,CASSETTE 2
11 •33907080 LEVER,CASSETTE CURSOR 4
12 •33907090 LID A,CURSOR 2
13 •33907100 RACK,CASSETTE 4
14 •33907110 TERMINAL,PAPER SIZE PCB 2
15 •33907120 RAIL C,CURSOR 2
16 •33907130 CURSOR C,CASSETTE 2
17 •33907140 LID C,CURSOR 2
18 •33907160 LID,PAPER SIZE DETECTION 2
19 •33907170 DETECTION PLATE,PAPER SIZE 2
20 •33907190 GROUND PLATE,CASSETTE 2
21 •33907210 CUSHION,CASSETTE WORK PLATE 4
22 •33927210 WIRE,CASSETTE UNIT 2
' 23 •33928111 SIZE DETECTION PCB 2
24 •60907170 CUSHION,CASSETTE R 4
25 •61705110 LABEL,PAPER UPPER LIMIT 2
' 26 •65914120 GEAR 18,IDLE DEVELOPING 2
27 •66007120 SPRING,CURSOR C 4
28 •66007310 PIN,CASSETTE WORK PLATE 2
29 •66106080 SPRING,PAD 2
30 •66107100 PAD,CASSETTE 2
' 31 •2CJ06140 UPPER COVER,CASSETTE 2
32 •J0463080 PLUG,QR/P15-8S-C(HIROSE) 2
33 •36707850 SPACER,DRAWER 4
' 34 2A005050 LABEL,PAPER(INCH) 2
' 35 68205110 LABEL,CASSETTE SIZE(INCH K M) 2

2CJ
–8 –
FIG. 3 CASSETTE(230/240V)

–9 –
2CJ
• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.
•Parts with "'" indicates the Service parts.
SP Part. No. Description
230V120V 240V
Quantity
Ref.
No. SP Part. No. Description
230V120V 240V
Quantity
Ref.
No.
•Parts with "••" are component parts or sub-assembly with "•" appearing immediately above them.
• Parts with "•••" are component parts or sub-assembly with "••" appearing immediately above them.
FIG. 3 CASSETTE(230/240V)
' 1 2CJ00380 CASSETTE ASS’Y(EUR) 2 2
' 2•2CJ06140 UPPER COVER,CASSETTE 2 2
' 3•2CJ06150 LOWER COVER,CASSETTE 2 2
4•33907012 CASSETTE 2 2
5•33907020 WORK PLATE,CASSETTE 2 2
6•33907030 WORK PLATE,LIFT CASSETTE 2 2
7•33968220 CASSETTE LIFT SHAFT ASS’Y22
8•33907050 RAILA,CURSOR 2 2
9•33907060 CURSOR A,CASSETTE 2 2
10 •33907070 CURSOR B,CASSETTE 2 2
11 •33907080 LEVER,CASSETTE CURSOR 4 4
12 •33907090 LID A,CURSOR 2 2
13 •33907100 RACK,CASSETTE 4 4
14 •33907120 RAIL C,CURSOR 2 2
15 •33907130 CURSOR C,CASSETTE 2 2
16 •33907140 LID C,CURSOR 2 2
17 •33907180 DETECTION PLATE,CASSETTE 2 2
18 •33907190 GROUND PLATE,CASSETTE 2 2
19 •33907210 CUSHION,CASSETTE WORK PLATE 4 4
20 •36705270 LABEL,CASSETTE OPERATION 2 2
21 •60907170 CUSHION,CASSETTE R 4 4
22 •61705110 LABEL,PAPER UPPER LIMIT 2 2
' 23 •65914120 GEAR 18,IDLE DEVELOPING 2 2
24 •66007120 SPRING,CURSOR C 4 4
25 •66007310 PIN,CASSETTE WORK PLATE 2 2
26 •66107100 PAD,CASSETTE 2 2
' 27 2A005040 LABEL,PAPER(METRIC) 2 2
' 28 68205100 LABEL,CASSETTE SIZE(METRIC K M) 2 2

2CJ
–10 –

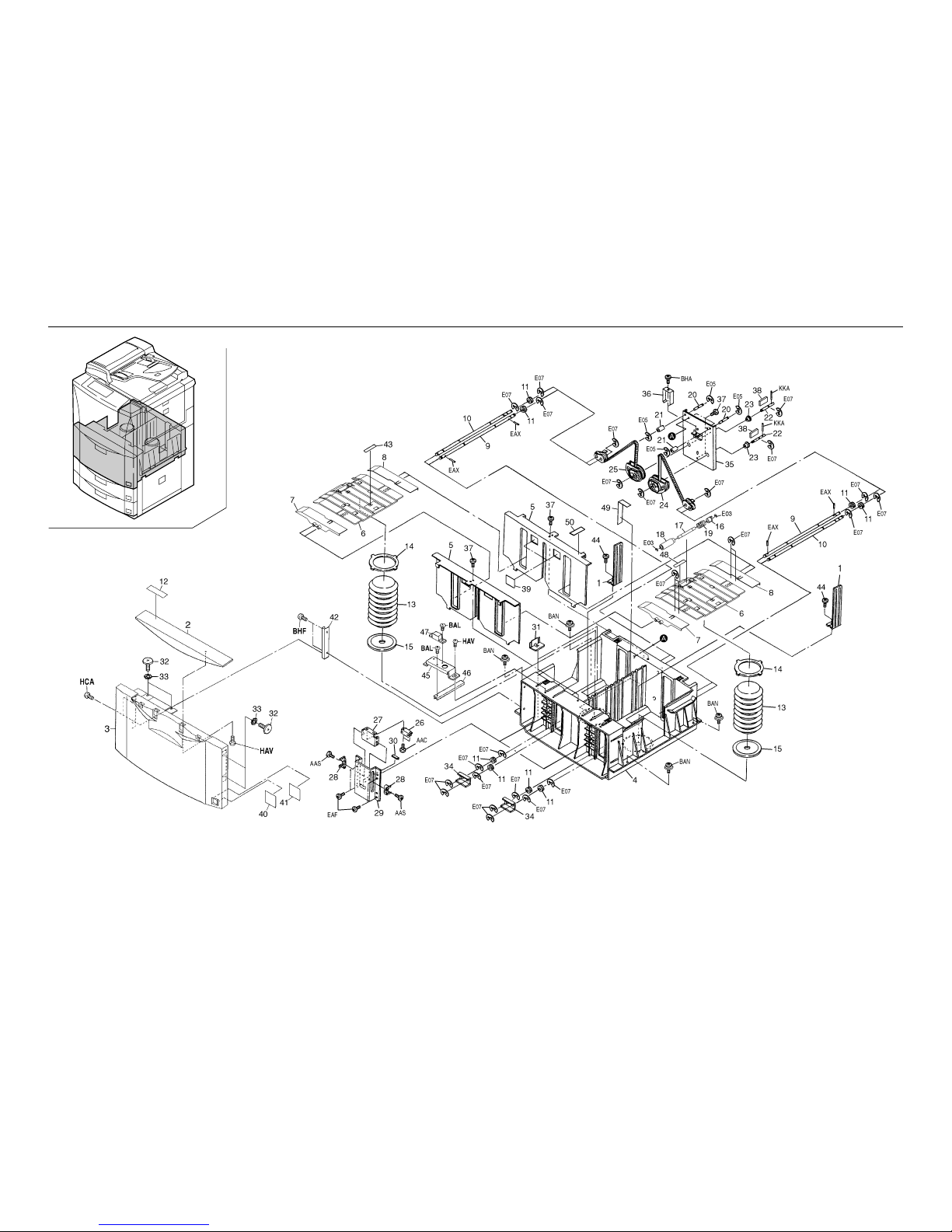

FIG. 4 DECK UNIT I

–11 –
2CJ
• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.
•Parts with "'" indicates the Service parts.
SP Part. No. Description
230V120V 240V
Quantity
Ref.
No. SP Part. No. Description
230V120V 240V
Quantity
Ref.
No.
•Parts with "••" are component parts or sub-assembly with "•" appearing immediately above them.
• Parts with "•••" are component parts or sub-assembly with "••" appearing immediately above them.
FIG. 4 DECK UNIT I
1 5A707390 C-PAPER REAR GIDE 2 2
' 2 2CJ06140 UPPER COVER,CASSETTE 1 1 1
' 3 2CJ06160 COVER,DECK 1 1 1
4 5A707130 CA-CASSETTE 1 1 1
5 2CJ06170 GUIDE,PAPER SIDE 2 2 2
6 2CJ06010 LIFT PLATE,MAIN 2 2 2
7 2CJ06020 FRONT LIFT PLATE,SUB 2 2 2
8 2CJ06030 REAR LIFT PLATE,SUB 2 2 2
9 5A707540 C-SFT-LIFT MAIN 2 2 2
10 5A707550 C-SFT-LIFT SUB 2 2 2
' 11 51608690 GER-1.0-24 8 8 8
12 2A005140 LABEL,PAPER SUPPLY CAUTION 1 1 1
13 54106950 AIR DAMPER 2 2 2
14 54107130 DAMPER SUPPORT 2 2 2
15 54107330 DAMPER MAT 2 2 2
' 16 5A707160 C-ARBOR-64 1 1 1
' 17 5A707570 C-SFT-PULLEY 1 1 1
' 18 5A707580 C-PICK PULLEY 1 1 1
' 19 5A707680 C-SP-PICK PULLEY60 1 1 1
20 5A707530 C-SFT-DRIVING FULCRUM 2 2 2
21 54106020 LIFT PULLEY 2 2 2
22 5A707560 C-SFT-CAM 2 2 2
' 23 5AA08420 BUSH-8P 2 2 2
' 24 54106930 RIGHT LIFT BELT ASS’Y111
' 25 54106940 LEFT LIFT BELT ASS’Y111
26 53310020 SLIDER MG 1 1 1
27 5A708030 BKT-MG SLIDER 1 1 1
28 5A708010 MG SLIDER 2 2 2
29 5A708040 BKT-SLIDE GUIDE 1 1 1
30 53310030 RUBBER,SIDE STOPPER 1 1 1
31 53310100 GROUND PLATE,CASSETTE 2 2 2
' 32 36707820 RETAINING PIN,DECK COVER 4 4 4
' 33 36707830 WASHER,DECK COVER 4 4 4
34 5A708020 BKT-MG STOPPER 2 2 2
35 5A707210 C-BKT-LIFTER DRIVING 1 1 1
36 5A707220 C-CAM STOPPER 1 1 1
' 37 51608740 BINDING TAP-TITE SCREW CVM3X8 5 5 5
38 54106740 PARALLEL KEY 3X3X10 2 2 2
39 2A005150 LABEL,UPPER LIMIT 2 2 2
' 40 68205110 LABEL,CASSETTE SIZE(INCH K M) 1
' 40 68205100 LABEL,CASSETTE SIZE(METRIC K M) 1 1
' 41 2A005050 LABEL,PAPER(INCH) 1
' 41 2A005040 LABEL,PAPER(METRIC) 1 1
42 2A007340 FRONT MOUNT,COVER 1 1 1
' 43 33906400 FRICTION PLATE,BYPASS 1 1 1
' 44 51608740 BINDING TAP-TITE SCREW CVM3X8 2 2
45 2A007320 MOUNT,MAGNET 1 1 1
46 2A007330 HOLDER,RELEASE 1 1 1
47 2A007880 MAGNET,DECK 1 1 1
' 48 2CJ06040 PAD,DECK 1 1 1
49 2A006160 GUIDE,CASSETTE PAPER FEED 2 2 2
50 2CJ07200 REAR SEAL,CASSETTE 1 1 1

2CJ
–12 –
FIG. 5 DECK UNIT II
19 18
17
36
26
25
24
28
27 31
31
31
31
2
11 4
4
2
2
2
8
9
12
12
12
13 14
16
34
12
22 23
21
32
10
33
2
2
3
1
13
15 29
2
67
2
30
5
5
35
19
20
20
E03
BAL
EGA
E03
E03
HAD
BAN
BAJ
BAN
BAL
BAL
BAL
EGA
KKG
KKG
E09
E09
E09
E09
E09
E09
E09
E09
BAL
E07
E07
E07
E07
DJB
BAL
BAN
E07

–13 –
2CJ
• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.
•Parts with "'" indicates the Service parts.
SP Part. No. Description
230V120V 240V
Quantity
Ref.
No. SP Part. No. Description
230V120V 240V
Quantity
Ref.
No.
•Parts with "••" are component parts or sub-assembly with "•" appearing immediately above them.
• Parts with "•••" are component parts or sub-assembly with "••" appearing immediately above them.
FIG. 5 DECK UNIT II
1 2A007040 SHAFT,PAPER FEED IDLE 1 1 1
' 2 2A007020 PULLEY,PAPER FEED BELT 8 8 8
3 2A007030 SHAFT,PAPER FEED DRIVE 1 1 1
' 4 2A007120 UPPER ROLLER,CONVEYING 2 2 2
5 2A007960 FILM,SEPARATION DUCT(INCH) 2
6 2A007070 LOWER DUCT,PAPER FEED BELT 1 1 1
' 7 66006360 PAPER SWITCH 1 1 1
8 2CJ27100 RIGHT WIRE,FEED UNIT 1 1 1
9 2A007060 UPPER DUCT,PAPER FEED BELT 1 1 1
10 2A007050 SUPPORT PLATE,PAPER FEED BELT 1 1 1
11 36816380 TORQUE LIMITER,ROLLER FEED IN 1 1 1
' 12 28107400 BEARING,688ZZNR 4 4 4
13 M2107120 BINDING BAND SG-130 2 2 2
14 2CJ07110 UPPER DUCT,INHALATION JOINT 1 1 1
15 2CJ07120 LOWER DUCT,INHALATION JOINT 1 1 1
16 2A007640 REAR LOWER SUPPORT PLATE,GUIDE CONVEYING 1 1 1
17 2CJ07080 MOUNT,PULLEY CONVEYING 1 1 1
18 2A007110 LOWER SHAFT,CONVEYING 1 1 1
' 19 60820010 EJECT PULLEY 2 2 2
20 34806050 LOWER SPRING,PAPER FEED 2 2 2
21 2A007090 LOWER GUIDE,CONVEYING 1 1 1
' 22 33906630 STOPPER 5,RING 1 1 1
23 2CJ07090 RETAINER,TORQUE LIMITER 1 1 1
24 2A007130 UPPER MOUNT,SEPARATION DUCT 1 1 1
25 2A007200 UPPER DUCT,SEPARATION 1 1 1
26 2CJ07070 GUIDE,BLADE 2 2 2
27 2A007260 LOWER GUIDE,DUCT 1 1 1
28 2A007400 LOWER FILM,DUCT 1 1 1
29 2CJ07150 SEAL,INHALATION JOINT 1 1 1
30 2CJ07140 REAR SEAL,SEPARATION 1 1 1
' 31 2A007990 BELT LCF,PAPER FEED 4 4 4
32 2A007450 FRONT GUIDE,DUCT 1 1 1
33 2A007490 FILM,COVER CLUTCH 1 1 1
' 34 2A007980 CLUTCH,PAPER FEED BELT 1 1 1
35 2A007770 FRONT SPONGE,INHALATION 1 1 1
36 2A007441 FRONT BLADE,BELT 2 2 2

2CJ
–14 –
FIG. 6 DECK UNIT III
37
21
11
19 23
25
32
40
33
331
37
37
27
36
42
3842
42
42
42
38
29
28
26
41
30
11
10
11
11
11
43
11
10
11
11
11
20
20
11
11
11
15
2
12 14
13
39
41
39
39
9
35
14
39
4
7
34 8
6
5
18 24 22
17
16
13
6
1
E05
E05
E05
E05
E05
E05
E05
E05
E05
KAK
BAJ
BAA
E05
BAJ
BAJ
E05
E05
E05
E05
E05
E05
E05
E05
KAL
BAA
BAA
KAK
KAL
E05
E05
BAJ
HAD
BBC
KAL
KAL
BBC
KAN

–15 –
2CJ
• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.
•Parts with "'" indicates the Service parts.
SP Part. No. Description
230V120V 240V
Quantity
Ref.
No. SP Part. No. Description
230V120V 240V
Quantity
Ref.
No.
•Parts with "••" are component parts or sub-assembly with "•" appearing immediately above them.
• Parts with "•••" are component parts or sub-assembly with "••" appearing immediately above them.
FIG. 6 DECK UNIT III
1 2A006220 RIGHT WEIGHT LCF 1 1 1
' 2 61727540 INTERLOCK SWITCH B 1 1 1
3 2CJ07050 LEFT BASE,DECK PAPER FEED 1 1 1
4 2CJ07020 RIGHT HOLDER LCF 1 1 1
5 2A007560 FRONT MOUNT,LIFT UP PI 1 1 1
' 6 35327400 SWITCH,FEED 2 2 2
7 2A007740 LEFT HOLDER LCF 1 1 1
8 45728105 GEAR 24,DEV.UNIT 1 1 1
' 9 2A006190 LEFT PULLEY LCF 1 1 1
' 10 73210370 GEAR 18,LOOP 2 2 2
' 11 73210450 BUSH, 6 12 12 12
12 2A007580 SHAFT LCF,CLUTCH 1 1 1
' 13 63506100 CLUTCH 35,PAPER FEED 2 2 2
' 14 78722210 GEAR 18 EJECT 2 2 2
15 2A007540 MOUNT LCF,PAPER FEED IDLE 1 1 1
' 16 36211130 GEAR 19,IDLE 1 1 1
' 17 66506640 GEAR 20,FEED CONVEYING 1 1 1
' 18 36322010 GEAR 31,IDLE 1 1 1
19 2A007610 FRONT SHAFT LCF,CLUTCH 1 1 1
' 20 66014120 GEAR 14,MAGNET ROLLER 2 2 2
' 21 45728116 GEAR 28,JOINT 1 1 1
22 2A007530 SHAFT,IDLE DECK PAPER FEED 1 1 1
23 18506140 LOWER GEAR 18,REGISTRATION 1 1 1
' 24 63122130 GEAR,33 1 1 1
25 2CJ07040 RIGHT MOUNT,LIFT UP PI 1 1 1
26 2A007620 PIN C,LCD IDLE 1 1 1
27 2A007570 LEVER,RELEASE 1 1 1
28 2A007650 PIN LCF,SLIDER 2 2 2
29 2A007520 LEFT MOVING PLATE,PAPER FEED PULLEY 1 1 1
30 72418140 SPRING, BLADE 1 1 1
31 72918050 PIN,BLADE ARM 1 1 1
32 2A007890 BRUSH,PAPER FEED 2 2 2
33 M2104260 EDGING,EDS-0607U(KITAGAWA) 1 1 1
' 34 75122090 GEAR , FRONT 1 1 1
' 35 2CJ07010 RIGHT PULLEY LCF 1 1 1
36 2CJ27090 LEFT WIRE,FEED UNIT 1 1 1
' 37 66006360 PAPER SWITCH 3 3 3
38 M2105740 MINIATURE CLAMP,UAMS-05S-2 2 2 2
' 39 65106140 STOPPER,5 4 4 4
40 2CJ07060 UPPER GUIDE LCF 1 1 1
41 2CJ07030 RIGHT SHAFT LCF,PULLEY 2 2 2
42 M2107120 BINDING BAND SG-130 6 6 6
43 2A006230 LEFT WEIGHT LCF 1 1 1

2CJ
–16 –
FIG. 7 PAPER FEED-IN SECTION I
1
2
3
4
5
67
8
8
9
10
10
11 12
13
14
14
15
17
17
18
18
19
19
20
20
20
21
22
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42 42
43
44
45
46
47
47
48
49
49 49
49
50
50
51
51
51
52 53
54
55
56
57
58
16
BBE
BBE
BBE
BBE E07
E07
BAJ
BAN
E07
E07
BBE
E07
BBE
BBE
HAI
HAI
HAI
BHI
BHI
E06
E07
E07
BAN
E05
KAL
KAM
KAM
KAM
KAM
E07
E07
BBB
BBB
RDD
HAU
BBE
HAU
EAH

–17 –
2CJ
• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.
•Parts with "'" indicates the Service parts.
SP Part. No. Description
230V120V 240V
Quantity
Ref.
No. SP Part. No. Description
230V120V 240V
Quantity
Ref.
No.
•Parts with "••" are component parts or sub-assembly with "•" appearing immediately above them.
• Parts with "•••" are component parts or sub-assembly with "••" appearing immediately above them.
FIG. 7 PAPER FEED-IN SECTION I
' 1 2CJ00400 BYPASS TABLE ASS’Y(INCH) 1
' 1 2CJ00390 BYPASS TABLE ASS’Y(METRIC) 1 1
' 2•18505180 ORIGINAL SIZE INDICATOR,BYPASS (INCH) 1
' 2•2AC05160 ORIGINAL SIZE INDICATOR,BYPASS(EUR) 1 1
' 3•2CJ06090 UPPER TABLE,BYPASS 1 1 1
' 4•2CJ06100 INNER TABLE,BYPASS 1 1 1
' 5•2CJ06110 LOWER TABLE,BYPASS 1 1 1
' 6•2CJ06120 FRONT CURSOR,BYPASS 1 1 1
' 7•2CJ06130 REAR CURSOR,BYPASS 1 1 1
8•33906880 STOPPER,BYPASS TABLE 2 2 2
' 9•33906990 SWITCH,BYPASS SIZE DETECTION 1 1 1
10 •33907100 RACK,CASSETTE 2 2 2
11 •33907110 TERMINAL,PAPER SIZE PCB 1 1 1
' 12 •33928111 SIZE DETECTION PCB 1 1 1
13 •36727380 WIRE,BYPASS UNIT 1 1 1
14 •63516110 SPRING,TRANSFER 2 2 2
' 15 •65914120 GEAR 18,IDLE DEVELOPING 1 1 1
16 77607140 TENSION PLATE FEED GUIDE 1 1 1
' 17 G3006780 BEARING 678ZZ 2 2 2
18 M2104210 EDGING,EDS-2 2 2 2
19 M2105720 MINIATURE CLAMP,UAMS-05-2 2 2 2
20 M2107120 BINDING BAND SG-130 3 3 3
21 2A006150 SPRING,BYPASS LIFT 1 1 1
' 22 33906630 STOPPER 5,RING 3 3 3
23 36707010 FRONT FRAME,BYPASS 1 1 1
24 36707020 REAR FRAME,BYPASS 1 1 1
25 36707030 UPPER GUIDE,BYPASS 1 1 1
26 36707040 LOWER GUIDE,BYPASS 1 1 1
' 27 36707050 ROLLER,SB LEADING FEED 1 1 1
28 36707060 UPPER SHAFT,SEPARATION 1 1 1
29 36707070 SHAFT,JOINT 1 1 1
30 36707080 BUSHING,BYPASS 1 1 1
31 36707090 MOUNT,PAPER EMPTY 1 1 1
' 32 36707103 ACTUATOR,EMPTY SWITCH 1 1 1
33 36707110 SHAFT,BYPASS LIMITER 1 1 1
34 36707120 GUIDE,BYPASS LIFT 1 1 1
35 36707131 SHAFT,BYPASS LIFT 1 1 1
36 36707141 LEVER,MOVING GUIDE 1 1 1
37 36707200 FRONT MOUNT,BYPASS TABLE 1 1 1
38 36707210 REAR MOUNT,BYPASS TABLE 1 1 1
' 39 36707260 PAD,BYPASS 1 1 1
' 40 36707270 FILM,BYPASS 1 1 1
41 36727090 WIRE,BYPASS PAPER FEED 1 1 1
42 61706470 SPRING,BYPASS SWITCH BACK 2 2 2
' 43 61706770 UPPER PULLEY,BYPASS 1 1 1
' 44 61706780 LOWER PULLEY,BYPASS 1 1 1
' 45 63227020 SWITCH,FEED 1 1 1
46 63420470 SHEET,BIN 1 1 1
47 65707510 SPRING,TENSION PAPER FEED 2 2 2
' 48 66006350 SWITCH,CASSETTE LIFT 1 1 1
' 49 67322230 BUSHING 8 4 4 4
' 50 72107160 BUSHING 6,LOWER REGISTRATION ROLLER 2 2 2
' 51 72107280 IDLE GEAR 20 3 3 3
' 52 72107531 SPRING,LIMITTER 1 1 1
' 53 72107710 BOSE,LIMITTER 1 1 1
' 54 72107730 ONE-WAY GEAR 20 1 1 1
' 55 72707190 COLLAR, LIMITTER 1 1 1
' 56 73210450 BUSH, 6 1 1 1
57 74306520 JOINT,PULLEY DRIVE SHAFT 1 1 1
58 75706040 STOPRING PAPER FEED PULLEY 1 1 1
