Kyocera Ci1000 User manual

Operating Instructions for the Ci1000 Color
Printer
FINAL Draft August 6, 1998

i General
(FCC) and Safety Information
General
Warning
• To prevent fire or shock hazard, do not expose this product to rain or any type
of moisture.
Caution
• Do not open covers and do not attempt to repair the unit yourself. Refer
servicing to qualified personnel.
Power source
Warning
• The power source voltage of this unit is listed on the nameplate. Only plug the
unit into an outlet with the proper voltage.When you operate this equipment,
the outlet should be near the equipment and accessible.
• To ensure safe operation the AC cord supplied must be inserted into standard
three-prong AC outlet which is effectively grounded (earthed) through the
normal wiring.
• The fact that the equipment operates satisfactorily does not imply that the
power point is grounded(earthed) and that the installation is completely safe.
For your safety, if in any doubt about the effective grounding (earthing) of the
power point, consult a qualified electrician.
• If the plug cannot be inserted into the AC outlet, contact a licensed electrician
to replace the outlet with a properly grounded (earthed) one. Do not defeat the
purpose of the grounding (earthing) plug (ex. do not use a conversion plug).
Laser safety
Caution
• This printer utilizes a laser. Use of controls or adjustments or performance of
procedures other than those specified here may result in hazardous radiation
exposure.
For Your
Safety

ii General
Ozone release
Warning
• Make sure that the printer is installed in a well ventilated room so as not to
increase density of ozone in the air. Since ozone is heavier than air, it is
recommended that air at floor level be ventilated.
Moving the unit
The printer weighs approximately 47.9 kg {105.5 lb}. It must be handled by two
people.Turn the power off and remove the power cord when handling the unit.

iii General

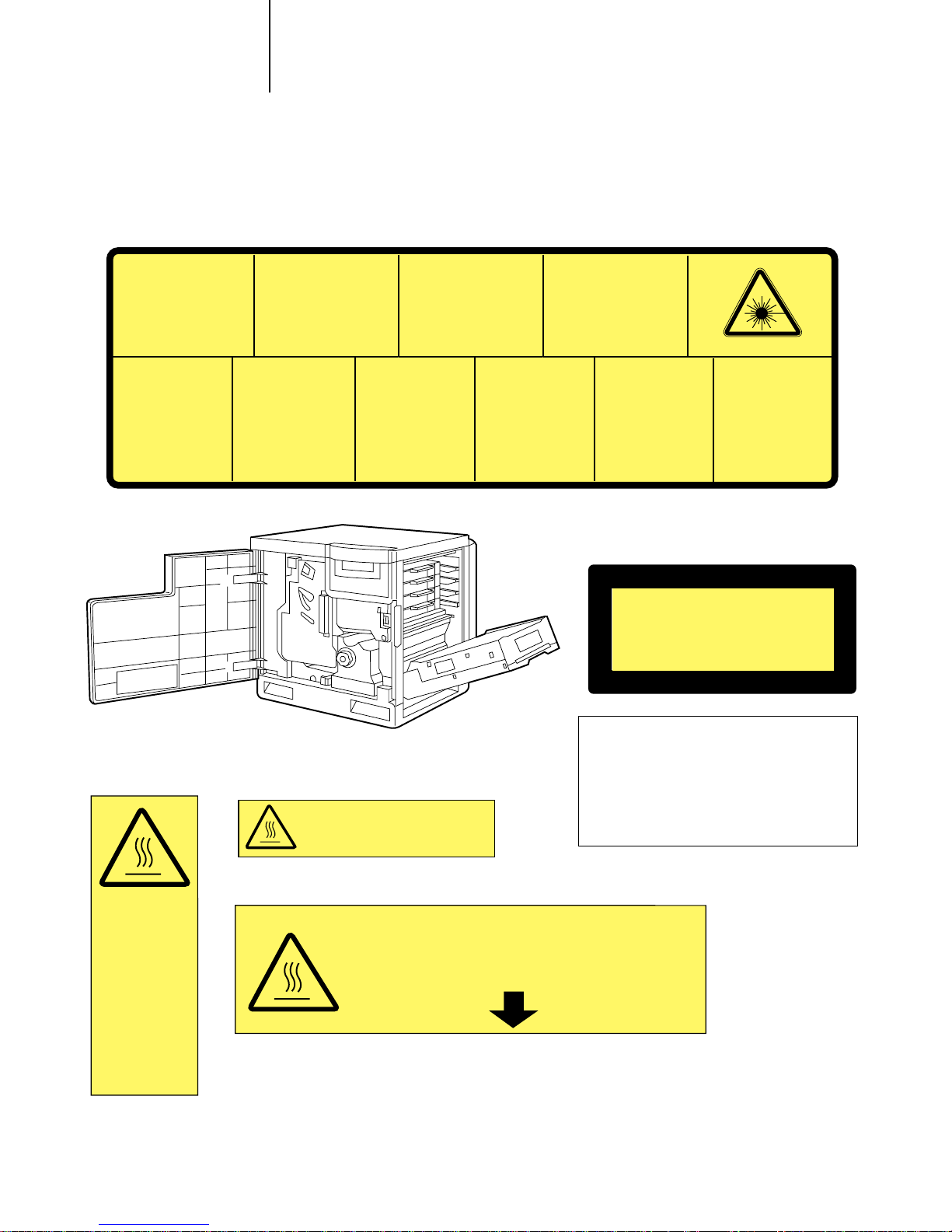

Caution labels
ATTENTION:
SURFACE
CHAUDE
CI-INTERIEUR
VORSICHT:
HEISSE FLÄCHE
INTERN
ATENCION:
SUPERFICIE
CALIENTE
EN EL INTERNO
CAUTION:
HOT SURFACE
INSIDE
CAUTION:
HOT SURFACE INSIDE
CAUTION:HOT SURFACE BELOW
ATTENTION:SURFACE CHAUDE CI-DESSOUS
VORSICHT:HEIßE OBERFLÄCHE DARUNTER
ATENCION:SUPERFICIE CALIENTE ABAJO
CLASS
KLASSE
CLASSE
CLASE
1 LASER PRODUCT
1 LASER PRODUKT
1 LASER PRODUIT
1 LÁSER PRODUCTO
ATTENTION:
Rayonnement laser invisible
dangereux en cas
d'ouverture et lorsque
la sécurité est neutralisée.
EXPOSITION DANGEREUSE
AU FAISCEAU.
VARNING:
Osynlig laser-
strålning när denna
del är öppnad och
spärrar är
urkopplade.
STRÅLEN
ÄR FARLIG.
VARO!:
Näkymätöntä
avattaessa ja
suojalukitus
ohitettaessa olet
alttiina lasersäteilylle.
ÄLÄ KATSO
SÄTEESEEN.
VARNING:
Osynlig laserstrålning
när denna del är
öppnad och spärren är
urkopplad.
BETRAKTA EJ
STRÅLEN.
ADVARSEL:
Usynlig laserstråling
ved åbning når
sikkerhedsafbrydere
er ude af funktion.
UNDGÅ
UDSÆTTELSE FOR
STRÅLING.
PELIGRO:
Cuando se abre y se
invalida el bloqueo, se
producen radiaciones
invisibles de láser.
EVÍTESE LA
EXPOSICIÓN
A TALES RAYOS.
DANGER:
Invisible laser radiation
when open and interlock
defeated.
AVOID DIRECT
EXPOSURE TO BEAM.
CAUTION:
Invisible laser radiation
when open and
interlocks defeated.
AVOID EXPOSURE
TO BEAM.
VORSICHT:
Unsichtbare Laserstrahlung,
wenn Abdeckung geöffnet
und Sicherheitsverriegelung
überbrückt.
NICHT DEM STRAHL
AUSSETZEN.
ADVARSEL:
Usynlig laserstråling
når deksel åpnes og
sikkerhedslas brytes.
UNNGÅ
EKSPONERING
FOR STRÅLEN.
(220-240 VAC equipment)
Laser diode properties
Laser output : 5 mW max
Wavelength : 780 nm
Emission duration : Continuous

iv General
FOR USERS IN U.K.
IMPORTANT:
FOR YOUR SAFETY PLEASE READTHE FOLLOWING TEXT
CAREFULLY
This printer is supplied with a moulded three pin mains plug each for your safety
and convenience. A 13 amp fuse is fitted in this plug. Should the fuse need to be
replaced please ensure that the replacement fuse has a rating of 13 amps and that
it is approved by ASTA or BSI to BS 1362.
Check for the ASTA mark or the BSI mark on the body of the
fuse.
If the plug contains a removable fuse cover you must ensure that it is refitted when
the fuse is replaced. If you lose the fuse cover the plug must not be used until a
replacement cover is obtained. A replacement fuse cover can be purchased from
your local Panasonic Dealer.
IFTHE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET
OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED
ANDTHE PLUG CUT OFF AND DISPOSED OF SAFELY.THERE IS A
DANGER OF SEVERE ELECTRICAL SHOCK IFTHE CUT OFF PLUG IS
INSERTED INTO ANY 13 AMP SOCKET.

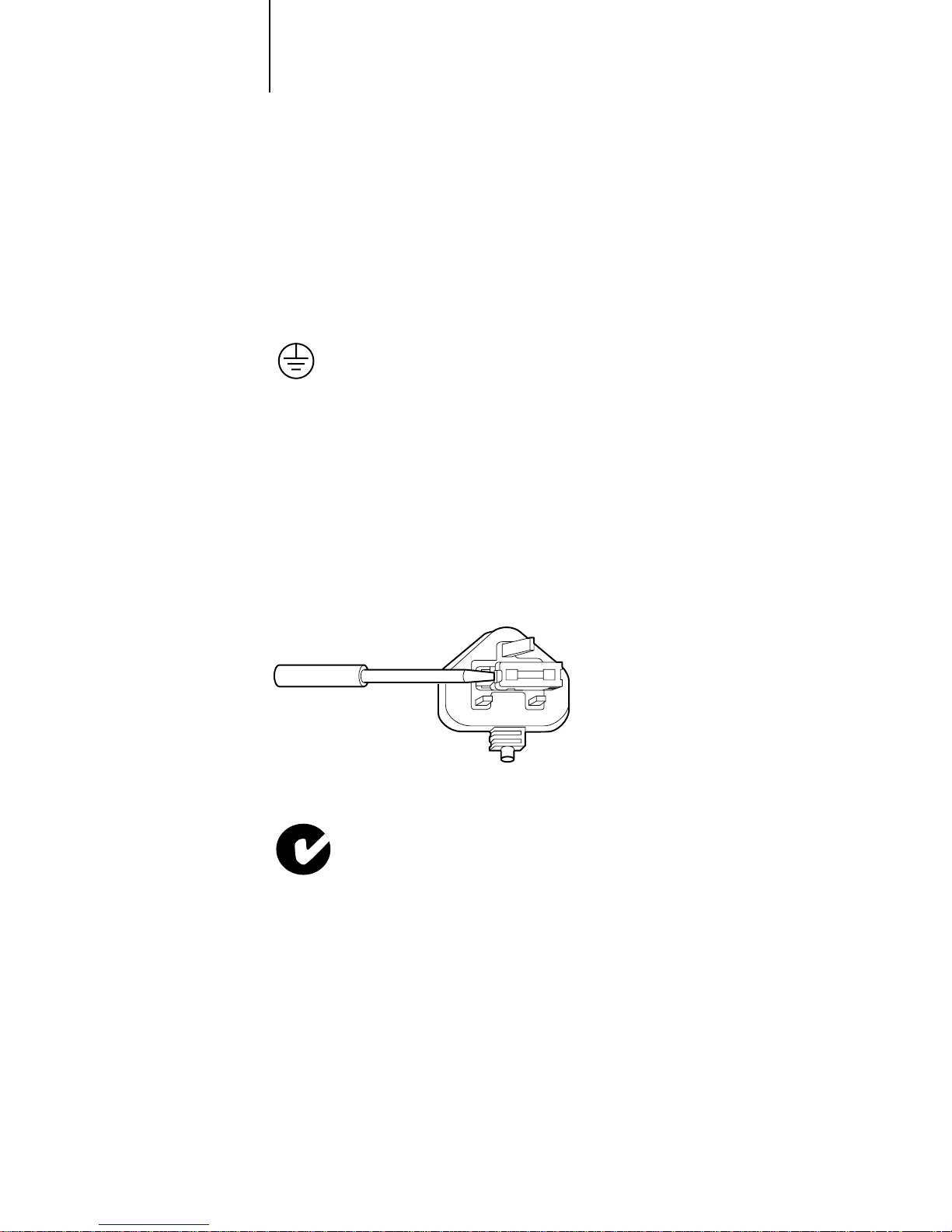

If a new plug is to be fitted please observe the wiring code as shown below. If in
any doubt please consult a qualified electrician.
WARNING:THIS APPLIANCE MUST BE EARTHED.
IMPORTANT: The wires in this mains lead are coloured in accordance with the
following code.
Green-and-Yellow: Earth Blue: Neutral Brown: Live
ASA

v General
As the colours of the wire in the mains lead of this appliance may not correspond
with the coloured markings identifying the terminals in your plug, proceed as
follows.
The wire which is coloured GREEN-AND-YELLOW must be connected to the
terminal in the plug which is marked with the letter E or by the Earth symbol
, or coloured GREEN or GREEN-AND-YELLOW.
The wire which is coloured BLUE must be connected to the terminal in the plug
which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal in the
plug which is marked with the letter L or coloured RED.
How to replace the fuse: Open the fuse compartment with a screwdriver and
replace the fuse.
.
FOR USERS IN AUSTRALIA
This mark shows that the product complies with AS/NZS 3548.
LN

vi General

Contents
For Your Safety
General i
Power source i
Laser safety i
Ozone release ii
Moving the unit ii
Caution labels iii
FOR USERS IN U.K. iv
FOR USERS IN AUSTRALIA v
Chapter 1: Before You Start
Cautions 1-1
CD-ROM 1-2
Static electricity damage 1-3
Interface cable 1-3
Waste disposal method 1-3
System requirements 1-4
With a Windows computer 1-4
With a Macintosh computer 1-4
Features of the Ci1000 1-5
High quality 1-5
High speed 1-5
Easy operation 1-5
Networking and client capabilities 1-5
Color capabilities 1-6
Color management 1-6
Fiery WebTools 1-7
Minimum space requirements 1-7
Power source 1-8
Unpacking 1-8

viii Contents
Part names 1-9
Front side view 1-9
Rear side view 1-9
Control panel overview 1-10
Activity Lights 1-10
Buttons 1-10
Chapter 2: Printer Setup
Setting up the printer 2-1
Preparing the imaging unit 2-1
Setting up the output tray 2-2
Installing the toner cartridges 2-3
Loading media 2-5
Connecting the printer to a computer 2-7
Using a parallel interface cable 2-8
Using the control panel 2-15
Status messages 2-15
Error messages 2-16
Top-level menus 2-16
Printing pages from the control panel 2-18
Chapter 3: Connecting the Printer to a Network
Network connections 3-1
Ethernet network connections 3-1
Token Ring network connections 3-3
Parallel cable connection 3-3
Setting up TCP/IP printing 3-4
Setting up the printing environment 3-5
UNIX server print queues 3-5
Verifying theTCP/IP network connection 3-9
Setting upTCP/IP clients for printing 3-10
Setting upTCP/IP clients for running Fiery WebTools 3-11
Printing and administering print jobs 3-11

ix Contents
Setting up IPX (Novell) printing 3-13
Overview of IPX printing to the Ci1000 3-13
Configuring the NetWare server 3-14
Setting up a Ci1000 print queue 3-18
Setting up NetWare Windows clients 3-21
Using AppleTalk with Macintosh computers on an IPX (Novell) network 3-21
Setting up Fiery WebTools 3-22
Setting up Windows 95 clients for WINS (SMB) printing 3-23
Setting up Windows NT 4.0 clients for WINS (SMB) printing 3-25
Chapter 4: Installing Macintosh Software
General steps for installing Macintosh software 4-1
Installing Macintosh printing software 4-1
Installing the Adobe PostScript printer driver 4-2
Setting up the Ci1000 in the Chooser 4-2
Installing the Ci1000 ColorSync profile 4-3
Installing additional software for Macintosh users 4-3
Color reference pages 4-4
Additional files 4-6
Chapter 5: Installing Software for Windows
General steps 5-1
Installing the PostScript Printer Driver for Windows 95 5-2
Specifying installed devices 5-3
Setting up IPX (Novell) printing with Windows 95 5-4
Installing the PostScript printer driver for Windows NT 3.1 5-6
Specifying installed devices 5-7
Setting up PostScript printing with Windows NT 4.0 5-10
Installing the PostScript Printer Driver for Windows NT 4.0 5-11
Specifying installed devices 5-12
Installing additional software for Windows users 5-18
PostScript andTrueType fonts 5-18

x Contents
ATM (Windows 95 and Windows 3.1x) 5-19
Color reference pages 5-19
Additional files 5-21
Removing the Ci1000 software 5-21
Chapter 6: Setup from the Control Panel and WebSetup
Initial Setup from the control panel 6-1
System Setup 6-2
Printer Setup 6-3
PostScript setup 6-4
I/O Port Setup 6-5
Ethernet Setup 6-5
Token Ring Setup 6-6
Parallel Port Setup 6-7
Network Protocol Setup 6-7
Network Service Setup 6-11
NDS Setup 6-12
Bindery Setup 6-15
SMB Setup 6-17
Language Setup 6-18
Viewing and changing Setup from Fiery WebSetup 6-18
Accessing Fiery WebSetup 6-19
System Setup 6-21
Network Setup 6-23
Printer Setup 6-33
Saving your settings and exiting Fiery WebSetup 6-34

xi Contents
Chapter 7: Care and Maintenance
Cleaning 7-1
User replaceable components 7-6
Clearing media jams 7-9
Troubleshooting 7-21
If you can’t make a print 7-32
Media problems 7-34
Problems with image size and position 7-35
Print quality problems 7-35
SCSI 7-37
Status Display program 7-38
Repacking 7-40
Chapter 8: Options and Supplies
Upgrade options 8-1
Installation Instructions 8-1
Removing and replacing the video controller board 8-1
Removing and replacing the video controller board 8-1
Installing a hard disk drive 8-4
Kit contents 8-4
Caution notes 8-4
Initializing the hard disk 8-6
Installing additional memory 8-7
Kit contents 8-7
Caution notes 8-7
Installing RAM DIMMs 8-7
Installing network cards 8-9
Kit contents 8-10
Caution notes 8-10

xii Contents
Appendix A: Specifications
Printer specifications A-1
Media sizes A-2
Controller specifications A-7
Resident printer fonts A-8
AdobeType 1 PostScript fonts A-8
TrueType fonts A-10
Index

1
1-1 Cautions
Thank you for purchasing the Ci1000 Color Printer. Before you set up your new
printer, please read the following information.
Cautions

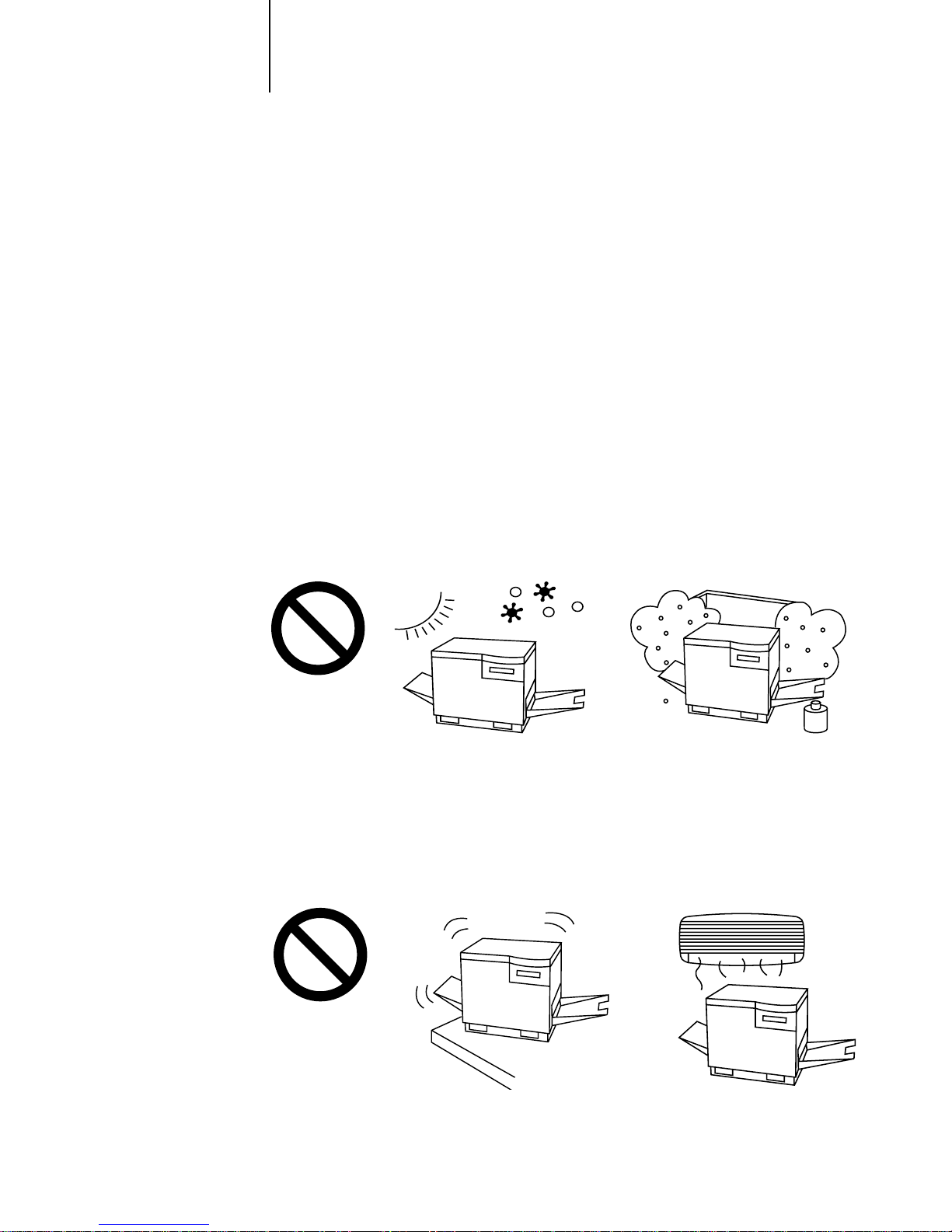

To avoid problems, do not use the equipment under the following conditions:
• Direct exposure to sunlight
• Extremely high or low temperature [temperature range: 10˚C to 32.5˚C (50˚F
to 90.5˚F)]
• Extremely high or low humidity (humidity range: 20% to 80% RH)
• Condensation due to rapid change of temperature
• Areas of poor ventilation
• Areas of high dust or chemical fume concentration (solvent etc.)
• Unstable or unlevel surfaces:
• Directly in front of air conditioning vents
Chapter 1:
Before
You Start

1
1-2 Before You Start
• Liquids near the equipment:
• Too much media/document which exceeds the limit mark on the guide of the
tray.
• Front/right/left doors opened while the printer is operating; it may cause a
media jam.
• Any toner other than genuine Mita toner. It may damage the printer.
CD-ROM
• To prevent accidental damage to the CD-ROMs
• Do not touch or write on the surface of the disc
• Do not leave the disc out of the protective case
• Do not leave the disc in direct sunlight or near heat sources
• Do not place heavy objects on the disc case or drop the case
Not genuine toner

1
1-3 Cautions
• To clean the disc, hold the disc by its edges and wipe it from the center to the
edges with a dry, soft cloth.
Static electricity damage
To prevent static electricity damage to any of the following components, touch a
grounded metal surface, such as the printer’s bare metal frame, prior to touching
the component.
• The interface connectors—parallel and optional network
• Electrical components, connectors inside the printer, any components on the
optional board (hard disk drive, RAM DIMMs, Ethernet network card, or
Token Ring network card)
• The connector pins on the optional 2nd cassette feeder for the printer
Interface cable
Always use a shielded interface cable. Use of an unshielded cable can result in
radio interference with data.
Waste disposal method
Waste material may be dumped or incinerated under conditions which meet all
federal, state, and local environmental regulations.

1
1-4 Before You Start
System requirements
You can use the printer in a networked environment and print from a PC
compatible computer running Windows or from a Macintosh computer.
With a Windows computer
The minimum hardware configuration required to use the printer with an IBM
PC or compatible includes:
• An IBM PC or compatible computer with a 386 processor or higher
• A mouse that is supported by Windows
• Microsoft Windows version 3.1 or later, Microsoft Windows 95, or Microsoft
Windows NT 4.0 (Intel version) or later
• Appropriate interface cables for your network or printer connection
With a Macintosh computer
The minimum hardware configuration required to use the printer with a
Macintosh computer is:
• Any Macintosh computer in the Macintosh II, Quadra, Centris, Performa, or
Power Macintosh families with EtherTalk Phase 2 installed
• Apple system software version 7.5 or greater
• Appropriate interface cables for your network and printer connection.

1
1-5 Features of the Ci1000
Features of the Ci1000
The Ci1000 Color Printer provides fast, high-quality color printing on plain
paper, plus the ease of operation and high performance you expect from a laser
printer, including the following.
High quality
• Resolution—maximum 1200 dpi (with optional additional memory)
High speed
• Continuous printing on Letter or A4 size paper
Full-color mode—Maximum 3.5 ppm (pages per minute)
Monochrome mode—Maximum 14 ppm
Easy operation
• Printer driver—easily prints full-color documents
Networking and client capabilities
• Supports AppleTalk (Ethertalk),TCP/IP, and IPX (Novell) protocols
simultaneously
• Supports thicknet, twisted pair, and thinnet (via transceiver) cabling
• Ethernet orToken Ring support
• SMB (Microsoft)
• IEEE 1284 compliant, Mini-Centronics type-C parallel connection based on
the IEEE P1284-C standard
N
OTE
:
AnECP compatible parallel portis recommendedforWindows95.Toturn
on the ECP mode, use the computer’s BIOS setup. Refer to the computer’s
documentation for details.

1
1-6 Before You Start
Color capabilities
ColorWise
™
CRDs (color rendering dictionaries) take full advantage of the colors
available on your printer. PostScript 3 RGB files are converted to the printer’s
CMYK color space during processing—optimizing them for rendering and
printing. CRDs available with the PostScript driver include:
• Photographic
• Presentation
• Transparency
Using the PostScript driver an image’s RGB data can be also converted to the color
space and gamut of the Ci1000 printer using RGB source profiles. Profiles
available include:
• EFIRGB
• sRGB (PC)
• Apple Standard
In addition, CMYK simulation settings can be used to simulate popular offset
printing press standards. Simulation settings include:
•SWOP
• Euroscale
• DIC
Color management
ColorWise VisualCal
™
allows experienced users to calibrate the Ci1000 for
excellent color output—eliminating out-of-calibration color most printers
experience over time.
ColorWise Color Adjustment provides controls for globally modifying toner
density and brightness.
ColorWise Business Color specifies the application of toner using a diffusion
dither pattern, which is ideal for color fills and blends commonly found in charts
and graphs used in business applications.
