Kyocera FS-6020 User manual

$
Page Printer
Installation Guide

Caution
NO LIABILITY IS ASSUMED FOR ANY DAMAGE CAUSED BY IMPROPER INSTALLATION.
Notice on Software
SOFTWARE USED WITH THIS PRINTER MUST SUPPORT THE PRINTER’S EMULATION MODE. The
printer is factory-set to emulate the HP PCL 6. The emulation mode can be changed by following the procedures
described in the Operation Guide contained as an electronic file in the CD-ROM supplied with the printer.
Notice
The information in this manual is subject to change without notification. Additional pages may be inserted in
future editions. The user is asked to excuse any technical inaccuracies or typographical errors in the present
edition.
No responsibility is assumed if accidents occur while the user is following the instructions in this manual. No
responsibility is assumed for defects in the printer’s firmware (contents of its read-only memory).
This manual, any copyrightable subject matter sold or provided with or in connection with the sale of the page
printer, are protected by copyright. All rights are reserved. Copying or other reproduction of all or part of this
manual, any copyrightable subject matter without the prior written consent of Kyocera Mita Corporation is pro-
hibited. Any copies made of all or part of this manual, any copyrightable subject must contain the same copy-
right notice as the material from which the copying is done.
Table of Contents
STEP 1 Unpacking.........................................................................1
STEP 2 Positioning the Printer .....................................................2
STEP 3 Installing the Toner Container .........................................3
STEP 4 Connecting the Printer to the Computer.........................6
STEP 5 Connecting to Power........................................................8
STEP 6 Adding Paper to the Paper Cassette and MP Tray .........9
STEP 7 Turning Power On...........................................................15
STEP 8 Printing a Status Page....................................................16
©2002 by KYOCERA MITA CORPORATION. All rights reserved
Revision 1.0 October 2002

1
Unpacking
Carefully remove the printer and other items from the box. Check that nothing is miss-
ing against the list of shipped components below.
List of Shipped Components
STEP
1
Printer
(A)
(B)
(C)
Printer
Power Cord (B)
Installation Guide
[this booklet] and
other printed matter
(C)
CD-ROM (C)
To n e r
Container (A)

2
Positioning the Printer
Make sure that the place of installation meets the following requirements:
Clearance
Be sure to secure enough space
around the printer. Prolonged
use without sufficient clearance
may cause heat to build up
within the printer, resulting in
fire.
Environment
Do not install the printer where temperature or humidity is outside the rec-
ommended range. Print quality may suffer and there will be an increased
chance of paper jams.
Places to Avoid
Avoid installing the printer in locations subject to:
• Direct drafts of hot or cold air
• Direct drafts from outside (Avoid locations near building entrances.)
• Sudden temperature or humidity changes
• Sources of high temperature, for example, near stoves or radiators
•Excessivedust
•Vibration
• Unstable surfaces and surfaces that are not level
• Ammonia or other harmful fumes (If you are planning to fumigate the room, or
make liberal use of insecticide, remove the printer first!)
• Excessive sunlight or humidity
• Lack of ventilation
• Low air pressure, e.g., elevations greater than 2000 meters (6500 feet) above
sea level
Te m p e r a tu r e 10 to 32.5 °C (50 to 90.5 °F), ideally about 23 °C (73.4 °F)
Humidity 20 to 80 %, ideally 60 %
STEP
2
30 cm
25 cm
60 cm
30 cm
50 cm

3
Installing the Toner Container
Before you can use the printer for the first time, you must set up the printer by installing
the toner container and the interfacing with the computer.

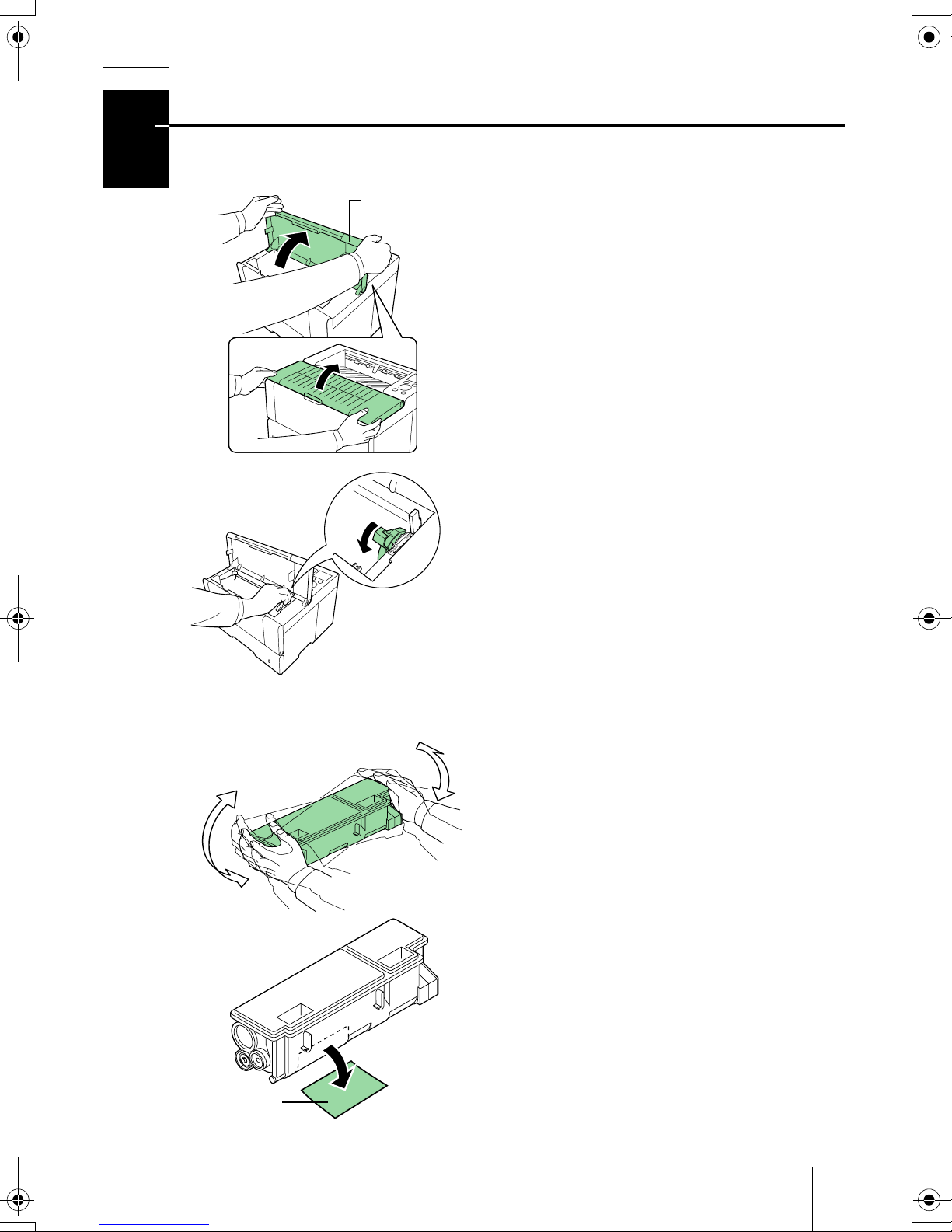

1Open the printer top cover all the way.
2Confirm that the lock lever is in the
release (UNLOCK) position. If not, pull it
forward until it is in the release posi-
tion.
3Take the toner container from the bag.
4Thoroughly shake the toner container
(in the direction of the arrow) ten times
or more to loosen and mix the toner
inside.
5Carefully remove the protective seal.
STEP
3
To p C o v e r
Toner Container
10 times or
more
Protective Seal

4

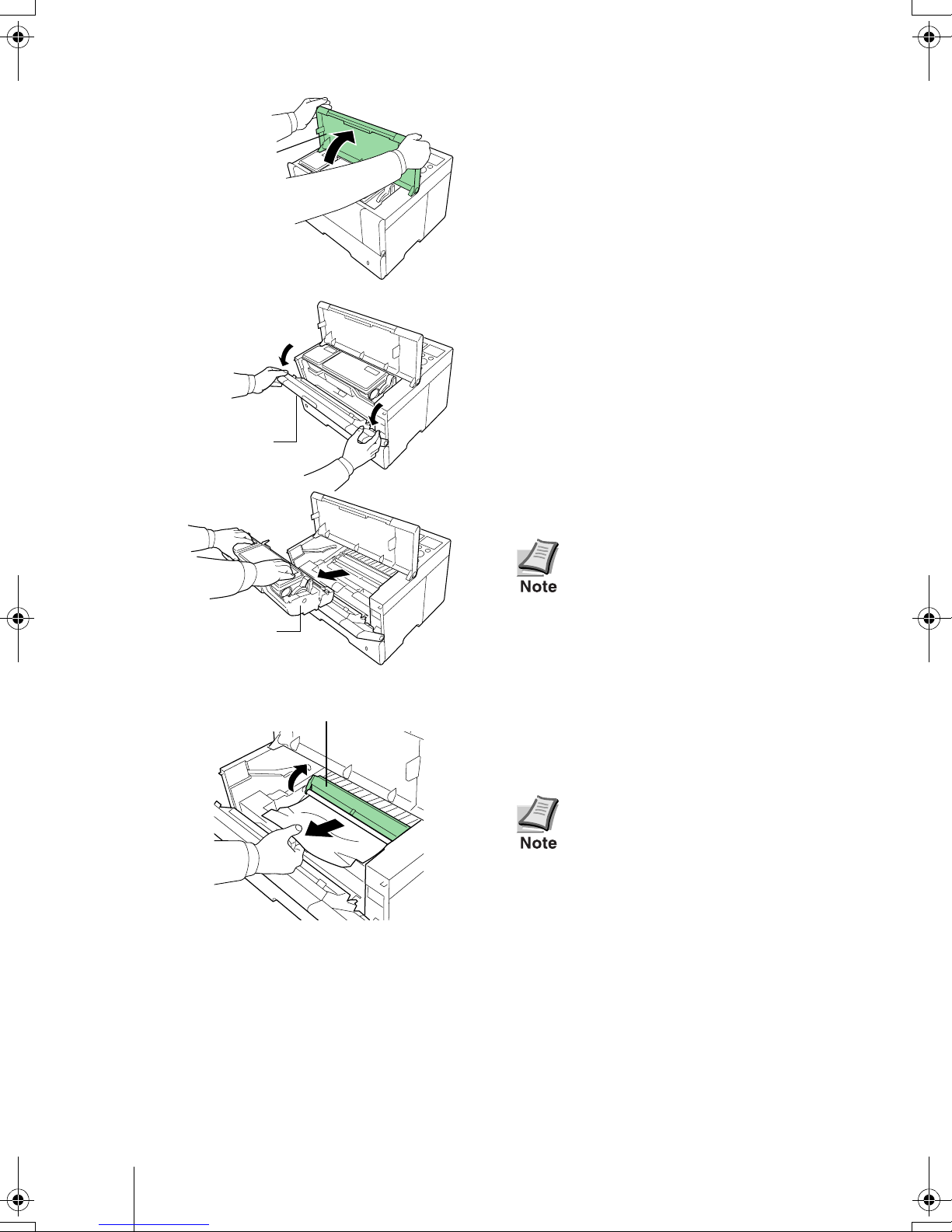

6Install the toner container into the
printer.
7Push firmly on the top of the toner con-
tainer at the positions marked PUSH
HERE.
When the toner container fits into
place, it will lock with a clicking sound.
8Push the lock lever to the lock (LOCK)
position.
9Close the top cover.

5
To remove the toner container
Pull the lock lever #1 to the release
(UNLOCK) position, pull the lock lever
#2 to the right and gently lift the toner
container.
Lock Lever #2
Lock Lever #1

6
Connecting the Printer to the Computer
There are various ways of connectingthe printer to the computer, such as throughthe
parallel interface connector, through the USB (Universal Serial Bus) interface connec-
tor, through the option serial interface board kit (IB-11) or through the option network
interface card.

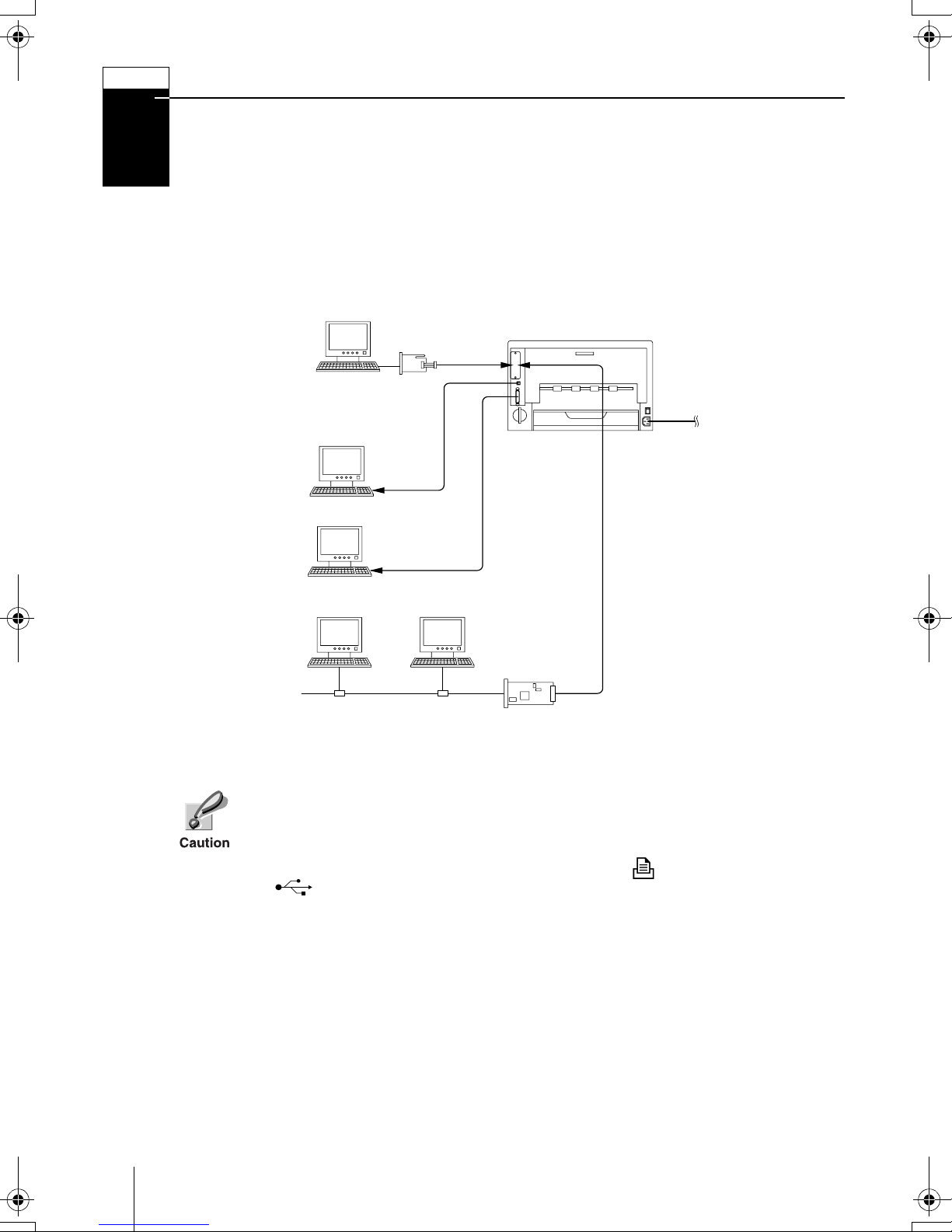

Printer Connections
Before performing this step, be sure to turn off both the printer and the com-
puter’s power switches and unplug the printer’s power plug from the power
outlet. Failure to do so may result in electrical shock.
The standard Centronics parallel interface connector ( ) and USB interface
connector ( ) are located on the rear of the printer.
STEP
4
Printer (Rear)
Parallel Interface
Network Option Network
Interface Card
(3.3 V DC)
Power Supply
USB Interface
Option Serial Interface
Board Kit (3.3 V DC)

7
Parallel Interface Connection
1Plug one end of the printer cable (not
included) into the parallel interface con-
nector on the rear of the printer.
• Use a parallel printer cable
that complies with the
IEEE1284 standards.
• The printer will work best if it
is installed near the computer.
The connecting cable should
be shielded and not be longer
than 3 meters (10 feet).
2Close the clips on both sides to fix the
connector in place.
Plug the other end of the printer cable
into the computer’s parallel interface
connector.
USB (Universal Serial Bus) Interface Connection
1Plug one end of the USB cable on the
rear of the printer.
•Useacablethatcomplies
with Full-Speed USB 2.0 stan-
dard (a rectangular Type A
plug and a square Type B
plug).
• The connecting cable should
be shielded and not be longer
than 5 meters (16 feet).
2Plug the other end of the USB cable into
the computer’s USB interface connec-
tor.
Clip
Clip
USB Cable
Parallel Printer
Cable

8
Connecting to Power
This section describes the procedure for connecting the power cord and various cau-
tions.
Notes on Power Supply
• Install the printer near an AC wall outlet, preferably one that can be used for
the printer alone.
• Only use this printer with the supply voltage indicated on the serial number
label attached to the printer’s rear panel.
• If an extension cord is used, the total length of the power cord plus extension
should be 5 meters (16 feet) or less.
Power Requirements
To Connect the Power Cord
• Be sure the printer’s power switch is turned off.
• Only use the power cord supplied with the printer.
1Plug the power cord into the power cord
connector on theear of the printer.
2Connect the other end of the power cord
into a power outlet.
Be sure to connect to a 3-wire
grounded power strip.
Voltage 220 to 240 V, ±10 %
Frequency 50/60 Hz (220 to 240V) ±2 %
Current capacity Max. 3.8 A at 220 to 240 V
STEPSTEP
5
Power Cord
Connector
Power Cord

9
Adding Paper to the Paper Cassette and MP
Tray
The paper cassette can accommodate A5 to A3 size paper and can hold approxi-
mately 250 sheets. The MP (Multi Purpose) tray can accommodate the various paper
sizes and can hold approximately 100 sheets of paper.
Paper sizes that are not standard sizes (custom sizes) but within the size limita-
tions can also be loaded into the cassette. When loading custom sizes into the cas-
sette, the size must be input into the printer on the operator panel (Refer to the
Operation Guide [PDF file] provided on the CD-ROM). Standard size paper set-
tings are indicated as fixed positions in the cassette.
The following paper weights can
be used with the printer.
The edges of paper are sharp. When loading paper, be careful not to cut
your hand on the paper.
Paper cassette
The paper cassette is adjusted to A4 size at the time of shipment. Take the follow-
ing steps to set paper into the paper cassette.

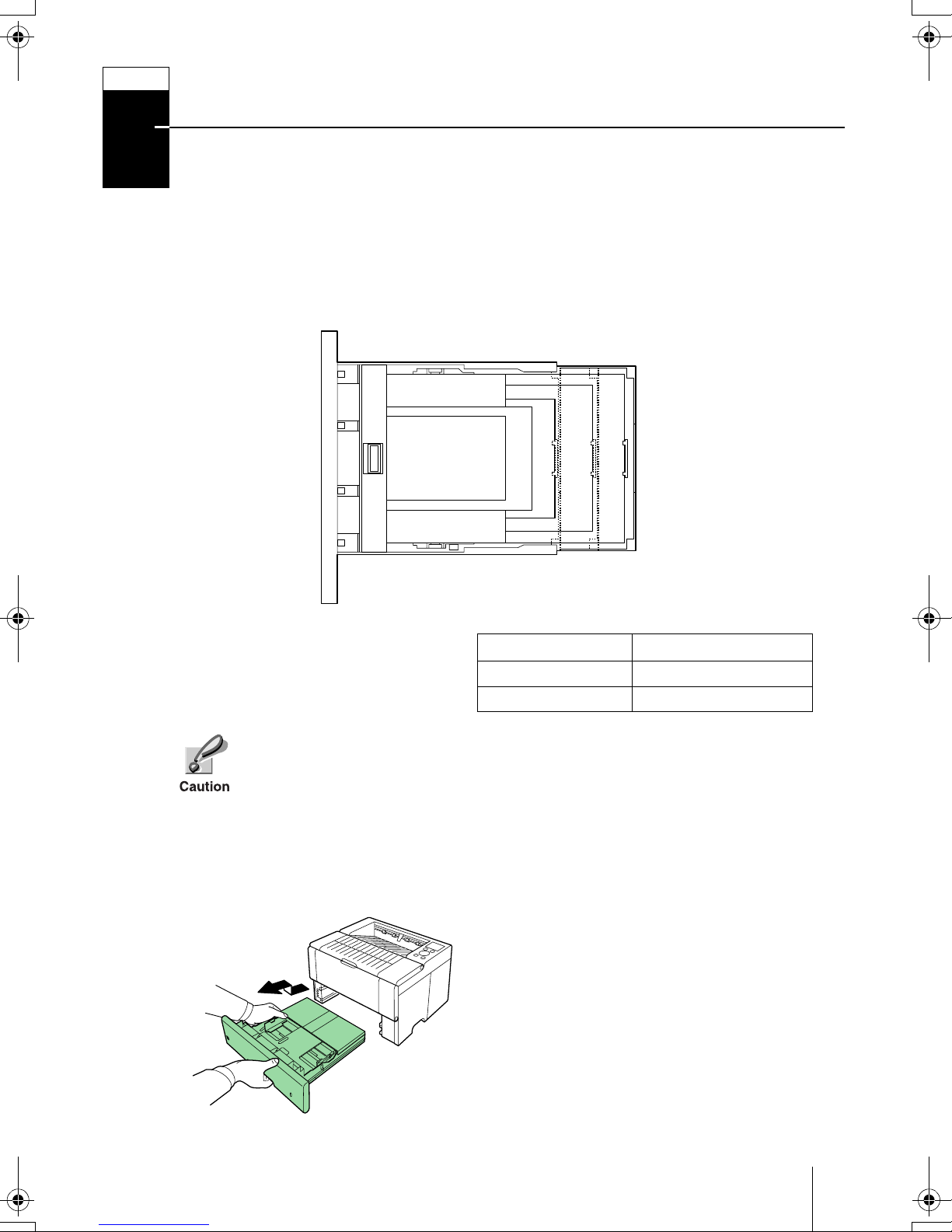

1Pull the paper cassette all the way out of
the printer.
STEP
6
A3
B4
A4R
A4
B5
A5
Paper source Paper weight
Paper cassette 60 to 105 g/m²
MP tray 60 to 200 g/m²
Paper Cassette

10

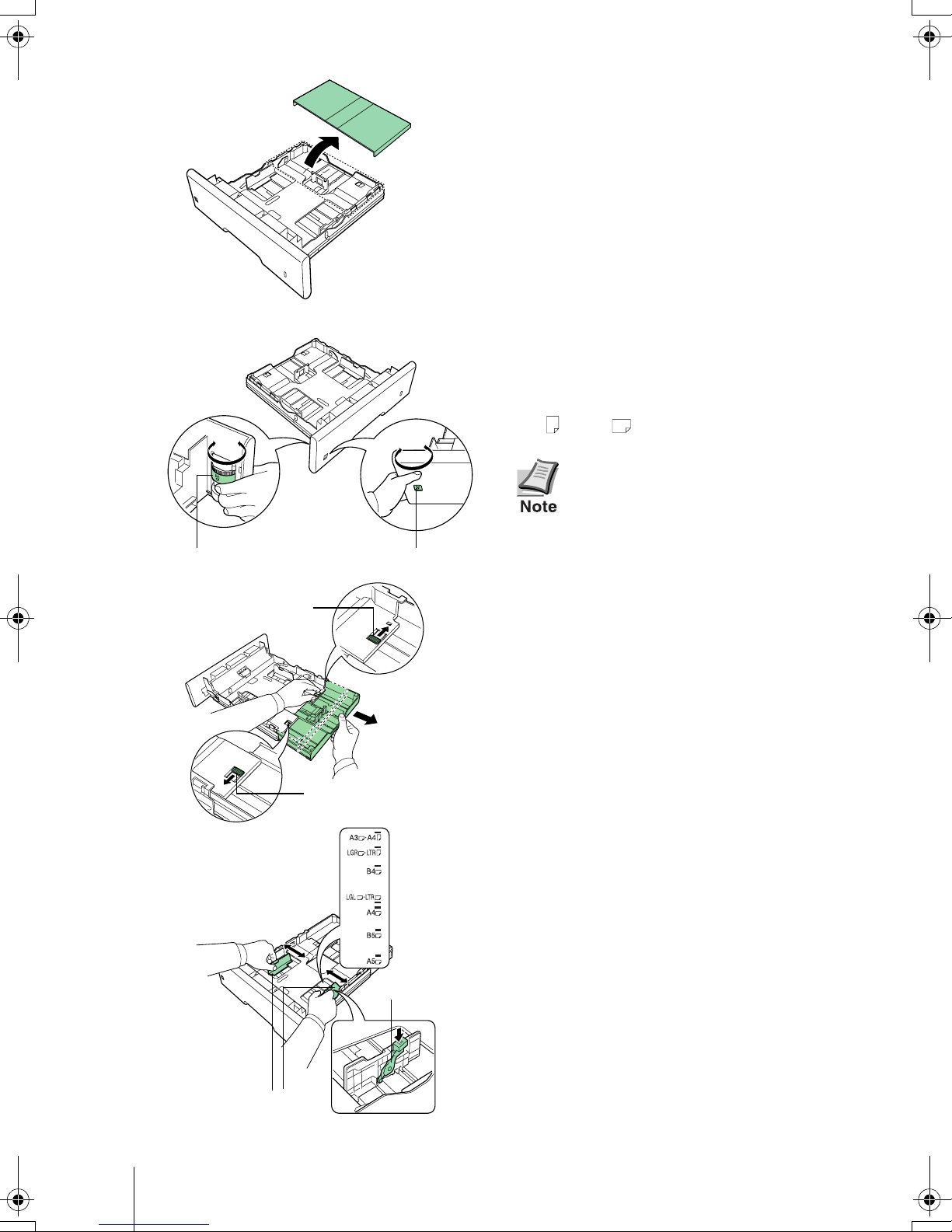

2Remove the cassette cover.
3Select the paper size by turning the
paper size dial. Check that the selected
paper size appears in the paper size
window. You can select from A5, B5,
A4 , A4R , B4, A3, and OTHER.
When the paper size dial is set
to OTHER, the actual paper size
must be set into the printer on
the operator panel. See the
Operation Guide (PDF file) pro-
vided on the CD-ROM.
4If you are going to set paper that is
longer than A4R, pull out the extension
paper cassettes pushing the lock lever
one by one and adjust them to the
desired paper size.
5Adjust the positions of the paper guides
to the paper size you are going to use by
sliding both the paper guides pushing
the release lever on the right side paper
guide.
Paper Size Dial Paper Size Window
Lock Lever
Lock Lever
Paper Guides
Release Lever

11

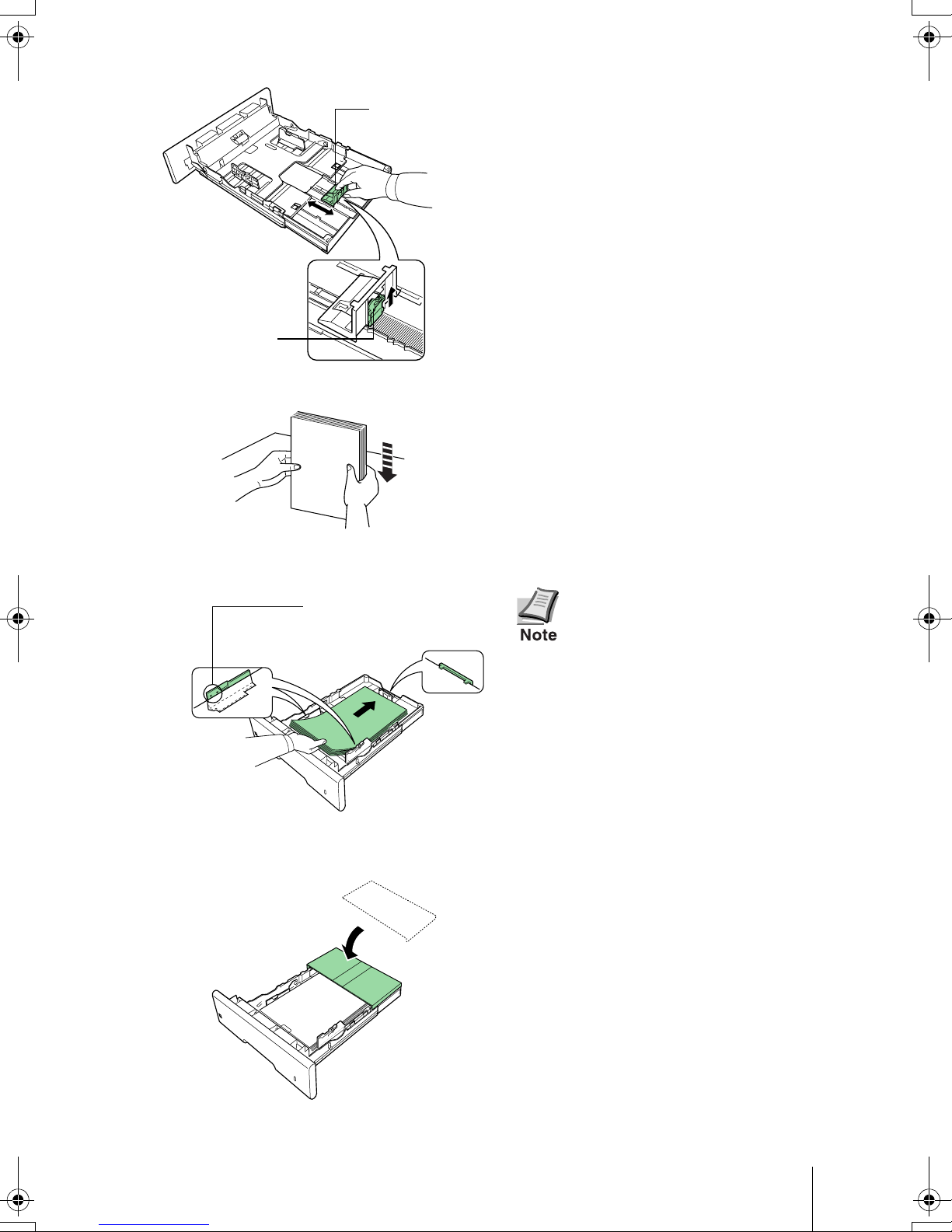

6Adjust the position of the paper stopper
to the paper size you are going to use,
pulling up the release lever located on
the back of the paper stopper.
7Make sure that the edges of the paper
are aligned. Slide the paper into the
paper cassette.
• Make sure that the paper you
set fits below the load limit
marks (VV
VVVV
VV) on the right and
left side paper guides.
• The paper cassette will hold
approximately 250 sheets of
paper with a 80 g/m² (21 lb.)
basis weight, or with a thick-
ness of 0.11 mm.
8Put the cassette cover.
Release Lever
Paper
Stopper
Load Limit Marks

12
9Insert the paper cassette into the slot in
the printer. Push it straight in as far as
it will go.
There is a paper gauge on the right
side of the front of the paper cassette
to indicate the remaining paper
supply. When paper is exhausted, the
pointer
will go down.

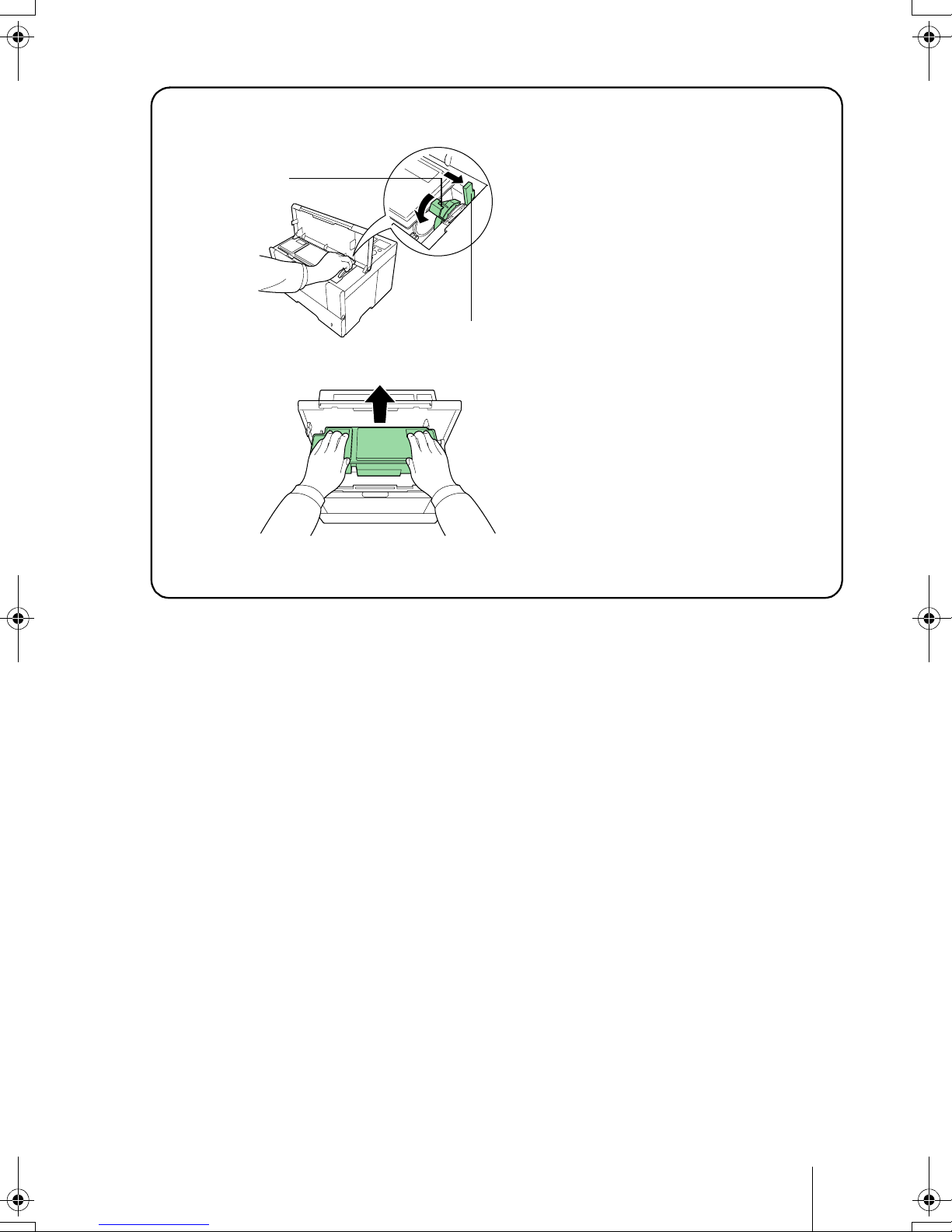

MP (Multi Purpose) tray
1Pull the MP tray towards you until it
stops.
2Pull out the subtray.
MP Tray

13
3Adjust the position of the paper guides
on the MP tray. Standard paper sizes
are attached to the MP tray. For stan-
dard paper sizes, slide the guides to the
position marked correspondingly.
4Align the paper with the paper guides
and insert as far as it will go.
Make sure that the paper you
set fits below the load limit
marks on the right and left side
paper guides.
If the paper is considerably curled in one direction, for example, if the
paper is already printed on one side, try to roll the paper in the opposite
direction to counteract the curl. Printed sheets will then come out flat.
Correct
CorrectCorrect
Correct
Incorrect
IncorrectIncorrect
Incorrect

Paper Guides
Load Limit Marks

14

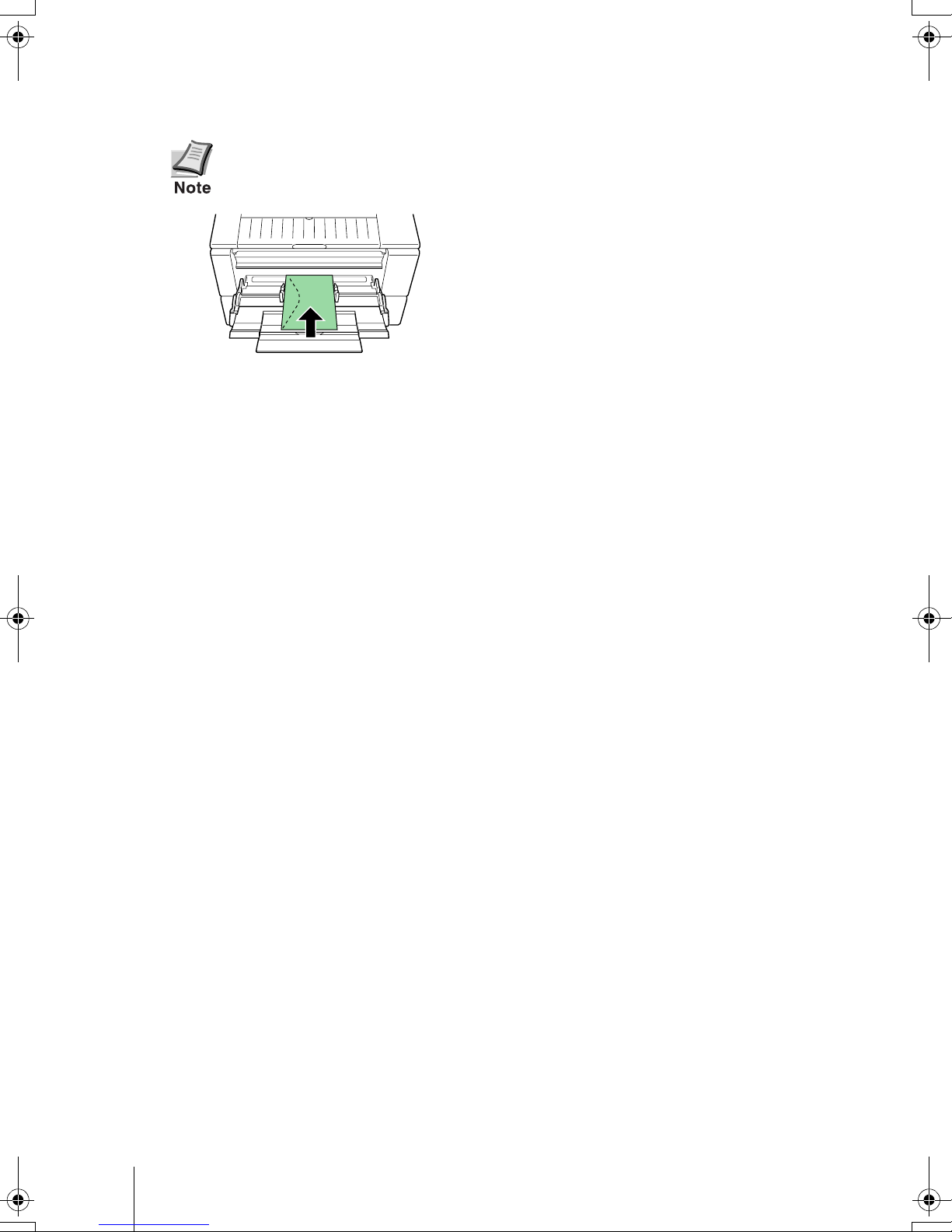

Envelopes
Envelopes should be fed in the face-up position, right edge first.
Test a sample envelope on the printer and check that printing quality is sat-
isfactory before purchasing.
Some types of envelopes are not suit-
able for printing. For details on suit-
able types of envelopes, see the
Operation Guide contained as a PDF
file in the CD-ROM supplied with the
printer.

15
Turning Power On
This section describes the procedure for turning on the printer’s power. During start-
up, the language for the message display and status page of this printer can be
selected from English, French, German, Italian, Dutch, Spanish, and Portuguese.
The default message language is English. For how to change the message lan-
guage to another, refer to the Selecting a Message Language section.
1Switch on the printer’s power. The mes-
sage display should indicate Self
test.
If the indicator does not light,
check that previous steps were
performed properly.
When the printer is first switched on
after installation, there will be a delay
of approximately 15 minutes before
the printer gets ready to print as the
developer unit needs to be filled with
toner. During this period, the message
displayshowsPlease wait (Adding
toner).
2Wait until the 5($'< indicator is also
lit and the message display indicates
Ready. The printer is ready to print.
Selecting a Message Language
The default message language is English. To change the message language to
another, follow the procedure described below. If required, your dealer can down-
load major languages other than English, French, German, Italian, Dutch, Span-
ish, and Portuguese to your printer. Please contact your dealer.
1While pressing the (17(5 key, turn the
power switch ON ( O). Keep pressing the
(17(5 key until the message display
indicates Please wait (approximately
1 minute). The message display should
indicate Self test.
STEP
STEP
7
Power Switch
Ready
--- A4 PLAIN

16
2When the message display shows
Please wait, release the (17(5 key.
3The message display indication
changes to that shown on the left and ?
flashes.
4Press the ▲or ▼key repeatedly until
the message display shows the desired
language and then press the (17(5
key.
If you do not wish to change the set-
ting, press the &$1&(/ key.
5The 5($'< indicator on the operator
panel lights and the printer gets ready
to print.
Printing a Status Page
To test the printer, print a status page indicating factory settings.
1Press the 0(18 key on the operator
panel.
2Press the ▲or ▼key repeatedly until
the message display shows
Print Status Page.
3Press the (17(5 key twice. The mes-
sage display indicates Processing
during printing of the status page, then
returns to Ready.
If the status page prints correctly,
printer setup is complete. For details
on using the printer, refer to the Oper-
ation Guide contained as a PDF file in
the CD-ROM supplied with the
printer.
Please wait
MSG language
? English
STEP
8

17
Correcting a Paper Jam
If a paper jam occurs while you are printing, remove the jammed paper as
described below. After you have removed the jammed paper, open and close the
top cover once.
When pulling the paper, pull it gently so as not to tear it. Torn pieces of
paper are difficult to remove and may be easily overlooked, deterring the
jam recovery.
Jam at the Rear Cover
1Open the printer’s rear cover.
2Open the fuser cover as illustrated.
While holding down the release lever
(green colored) remove the jammed
paper as shown in the figure.
3After removing the jammed paper, close
the rear cover.
Jam at the Paper Cassette
Pull out the paper cassette and remove
the jammed paper.
Fuser Cover
Release Lever

18
Jam Inside the Printer
1Open the printer’s top cover.
2Open the printer’s front cover.
3Lift the process unit together with the
toner container out of the printer.
The drum in the process unit is
sensitive to light. Never expose
the drum even to normal office
lighting (500 lux) for more than
five minutes. Also, store it in a
level place even temporarily.
4Open the feed cover (metal) as shown in
the figure and remove the jammed
paper.
When pulling the paper, pull
gently so as not to tear it. Torn
pieces of paper are difficult to
remove and may be easily over-
looked, preventing recovery
from the jam.
Top Cov er
Front Cover
Process Unit
Feed Cover
