KYOKUTOH CVC4 User manual

Please read this manual thoroughly before starting use, and use the product correctly.
CVC4 Chip Collector
Instruction Manual

REVISION
Revision history
Version Date Contents
First edition 03.08.2017 First edition issue
Revised
edition 03.05.2019 Change Contacts page Change of address in China
Revised
edition May.2019 Format change

1
TABLE OF CONTENTS
1. Precautions
2. External Dimensions
3. Component Details
4. Assembly Procedure
5. DB-01-SET Chip Disposal Procedure
6. Timing Chart
7. Maintenance
8. Troubleshooting
9. Supplement
10. Consumable Parts
Contacts
3
9
9
4
5
8
13
2
11
10
10

2
1. Precautions
■
FEATURES
When used with a dresser manufactured by Kyokutoh, this chip collector will efficiently collect the
chips that are generated during dresser operation.
※It cannot be attached to any dressers other than the specified models.
Supported models
CD-D-F type, CDK-R type, CD-SVR type, CDK-BAYO type, CDK-SG type, etc.
■
SYMBOLES
This following symbols “Warning” and “Caution”, are used indicate possible hazards and to
prevent their occurrence.
Be careful to follow directions as specified, as an error could lead to possible injury or
death.
Be careful to follow direction as specified, as an error could lead to malfunction and
serious damage.
■
The following symbols are explained below.
This symbol indicates operations that should not be done.
This symbol indicates operation that should be done.
※After reading, please the manual to the place where you can check the manual.

3

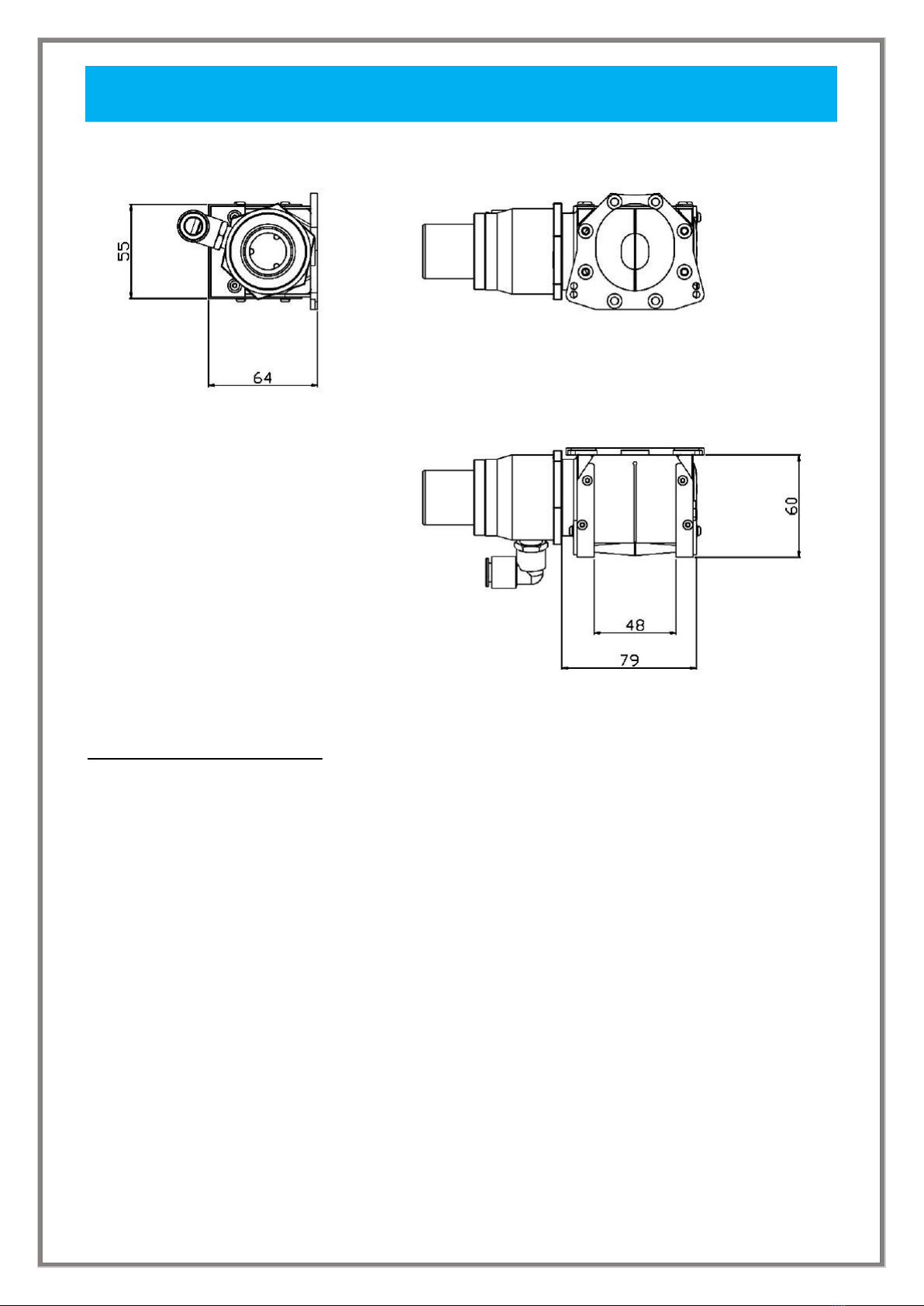

2. External Dimensions
Precautions regarding shape
※The shape of the CVC4 may vary depending on the supported model.
※Make the maximum width of the gun that can be inserted into the CVC4 38 mm or less (when
inserted from the front).
※Even if the gun width is 38 mm, depending on the gun shape and the angle of insertion,
interference may occur in some cases, so that it is only possible to use the product with a narrower
gun.
※Depending on the dresser model that the product is attached to and the insertion angle of the gun,
the gun's insertion width for an oblique insertion layout may be significantly affected by interference.
As a guideline, use a gun width of 30 mm as the maximum.

4

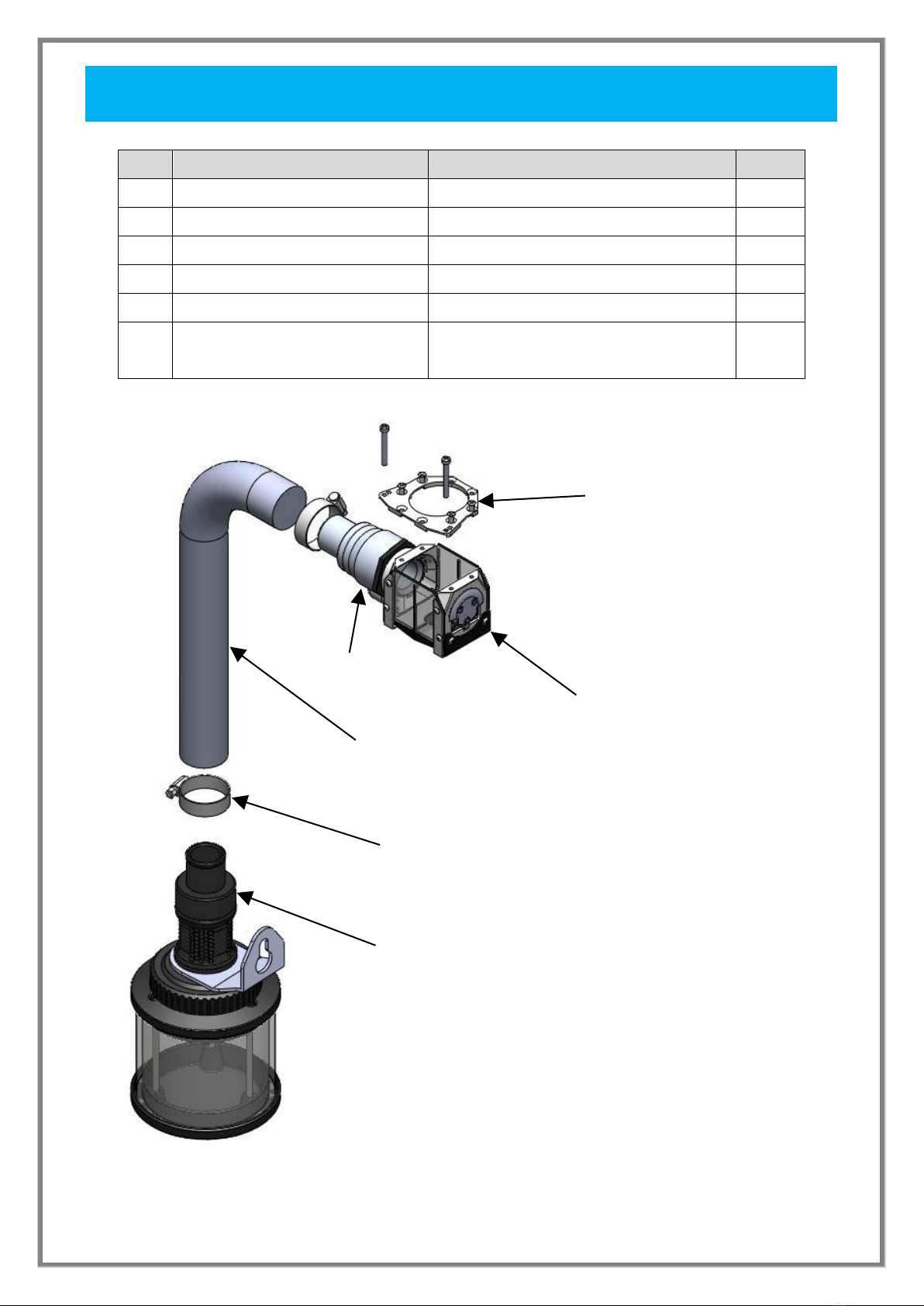

3. Component Details
No Name Model QTY
1 CVC4 main unit set CVC4-SET 1
2 Vacuum set CD-VAC2 1
3 Hose band 40 2
4 Hose (1 m) Ø32 (Inner diameter) 1
5 Dust box DB-01-SET 1
6 Adapter set
for each machine
Will vary depending on the dresser 1
※This diagram is the CVC4 assembly diagram for the K type.
⑤
③
①
②
④
⑥

5
4. Assembly Procedure
■
Referring to Table below, check the gun insertion procedure, and assemble the CVC4.
1. Installation model (dresser) and gun insertion direction
※The blue arrows indicate the gun insertion direction, and the red circles indicate the positions for
connection to the dresser.
Dresser For CD-D-F For CDK-R
Set model CVC4-D-1M CVC4-K-1M
Screw SUS cap bolt M4-L28-M4 nut SUS cap bolt M4-L30 + SW + flat washer
Insertion
direction
Front
The vacuum unit can also be attached to
the right side
The vacuum unit can also be attached to the right
side
Right
and
Left
The gun can be inserted from both right
and left
The gun can be inserted from both right and left
Diagonally
right
forward
Note) In the case of CD-D-F, attachment
may sometimes not be possible owing to
interference with the body
The attachment screw holes are different on the right
and left
Diagonally
left
forward
Note) In the case of CD-D-F, attachment
may sometimes not be possible owing to
interference with the body
The attachment screw holes are different on the right
and left

6
2. Assembling to the dresser
Assemble to the dresser using the included screws, placing them in the attachment holes on the
adapter shown in Table above.
If there are already any screws at the assembly positions for the dresser, remove them, and
replace them with the included screws.
There are models for which the screw holes that are to be used for assembly to a dresser will vary
depending on the insertion direction. Confirm the corresponding dresser type thoroughly, and then
attach to the main unit.
3. Attaching the hose and hose band (Common to all models)
For the hose, a standard 1-m hose comes included. Cut it before use if it is too long.
If you use the hose with it bent at an acute angle, it may cause chip clogging or hose damage, so
please use it with an appropriate bend angle (100R or more).
Although flame-retardant materials have been used for the hose, it will not be able to withstand
extreme heat.
Do not use it in an environment where it is conceivable that something could ignite.
※If you use the hose with a length of more than 1m, the product may not be able to demonstrate its
proper performance due to lowering the suction force.

7
4. Attach the dust box, hose and hose band (common to all models)
5. Completion
Connect the air hose to the nipple on the vacuum unit, and it is ready to use.
Use an air hose with an outer diameter Ø10.
Also, use the product in an environment with an air source pressure of 0.5 MPa or more. If the
pressure at the source is less than that, the product may not be able to demonstrate its full suction
capacity.
※Example of connection to a K type dresser manufactured by Kyokutoh.

8
5. DB-01-SET Chip Disposal Procedure
■
Precaution
ダストボックス DB-01 に切粉が完全に詰まる前にゴミの排出を行ってください。
製品や使用状況により異なりますが、一般的な φ16 チップ約 1500 回研磨で満タン
となります。切粉を廃棄せず溜まったまま本製品を使用しますと、吸引不良の原因と
なります。
■

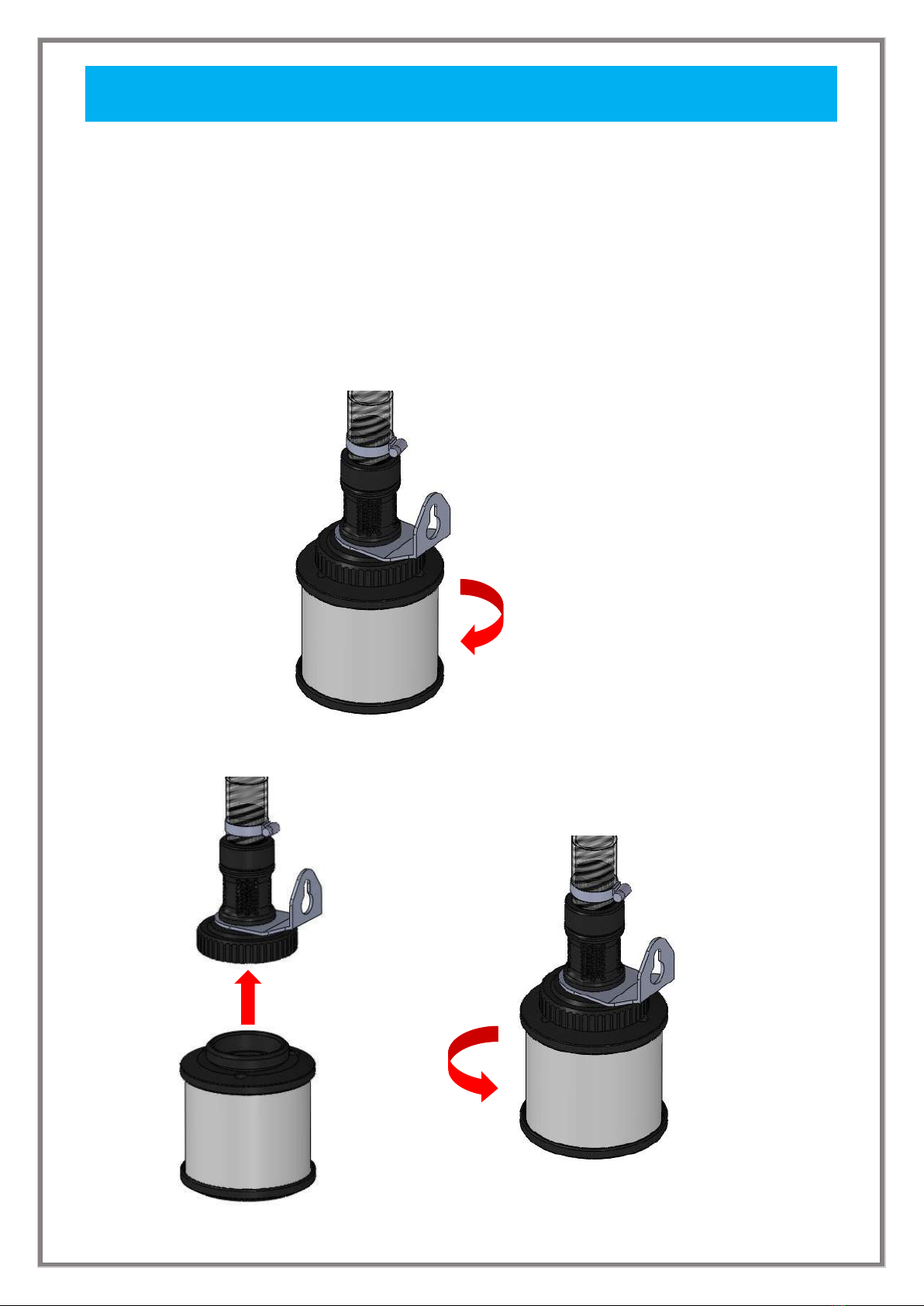

Procedures
1）Remove the dust box.
2）Dispose of the chips and assemble the dust box.

9
6. Timing Chart
■
Timing
Make adjustments as necessary, referring to the above.
If you are using a hose that is 1 m or longer for the hose from CVC to the dust box, adjust the CVC
(SOL) suction time so that it is a fairly long time.
7. Maintenance
If any damage to the transparent sheet or brush is confirmed, refer to the appendix, "Diagram of
consumable parts," and replace them.
Periodically check that chips are not getting clogged up inside the CVC, and if any clogging, dust,
etc., is confirmed, remove it.
8
Gun pressure
Dresser rotation

10
8. Troubleshooting
■
Suction is poor
1. Check the air pressure. (Recommended: 0.5 MPa.)
2. If the recommended air pressure has been confirmed, check whether the source pipe and the
CVC main unit are connected by a single pipe. When doing so, also check the hose diameter
(Ø10 or more).
※If the pipe branches midway, it will not provide a suction power of 0.5 MPa, and the suction
power will be insufficient.
3. If the hose is bent at an acute angle, the product may not be able to demonstrate its proper
performance.
It may also cause a fault, so use the hose with a moderate curvature (R150 or less).
Furthermore, check that chips have not built up in the chip receiving section (DB-01).
9. Supplement
Required specs for the solenoid valve
→One with a Cv value of 1.0 or more
Recommended solenoid valve type
→ SMC: VP342-5G1-02A
Diameter for the hose from the solenoid valve to the CVC
→ Ø10 or more
Diameter for the hose from the CVC to the dust box
→ Ø32 (Inner diameter)

11

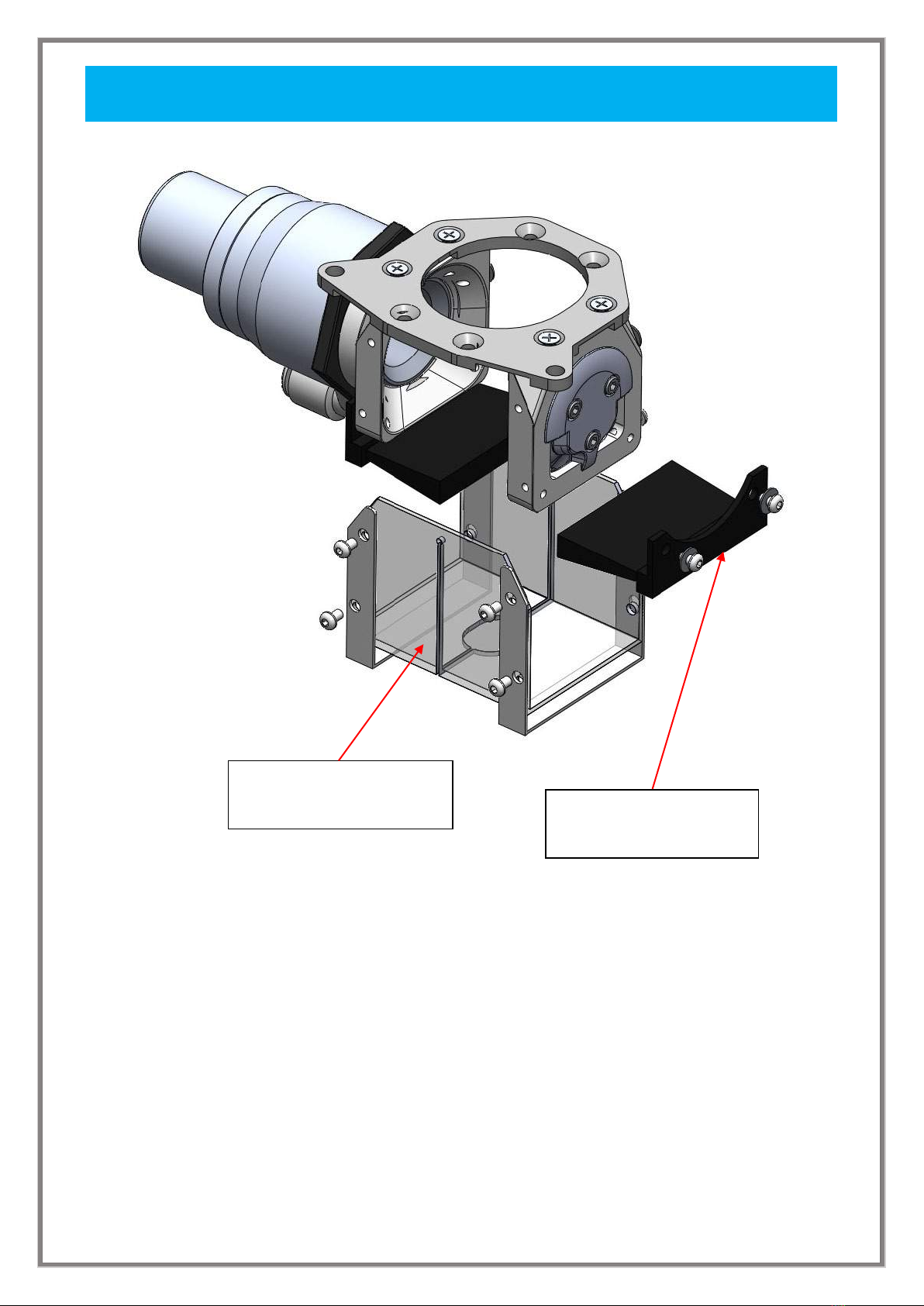

10. Consumption Parts
※One chip collector sheet and two brushes are required for one chip collector.
※Screws for attachment do not come included with each part.
Collector sheet
CVC-N-ACH-02-001 Brush for CVC
CVC-N-BB-03-001

12
MEMO

13
