La Spaziale Lucca A53 MINI User manual

INSTRUCTION MANUAL
A53 MINI
ESPRESSO MACHINE
7

2
A53 MINI LUCCA
INDEX
1. GENERAL DESCRIPTION OF THE MACHINE …………………………………………………………………….…………………………….……………………………………………………. ……………………… 3
1.1 DESCRIPTION OF THE CONTROL PANEL………………………………………………………………………………………………………………………………………………………………………………………. 4
2. GENERAL ADVICE FOR THE INSTALLER………………………………………………………………………………………………………………………………………….……………………………………………….. 5
2.1 GENERAL WARNINGS………………………………………………………………………………………………………………………………………………………………………………………………………………………………. 5
2.2 INSTALLATION …………………………………………………………………..……………………………………………………………………….……………………………………………………………………………………….…….. 5
2.3 WARNING/TECHNICAL DATE LABELS AND NAMEPLATES APPLIED TO THE MACHINE…………………………………………………………………….……………. 9
3. REMOVING THE PACKAGING……………………………………………………………………………………………………………………………………………………………………………………………………………………. 10
3.1 STANDARD EQUIPMENTS OF THE MACHINE…………………………………………………………………………………………………………………………………………………..…………………….. 10
4. WATER SOFTNER………………………………..…………………………………………………………………………………………………………………………………………………………….…………………………………………… 11
5. FILLING THE WATER TANK……………….……………………………………………………………………………………………………………………………………………………………………………………………………… 11
6. SWITCHING ON THE MACHINE………………………………………………………………………………………………………………………………………………………………………………………………………………… 12
6.1 COFFEE PREPARATION………………………………………………………………………………………………………………………………………………………………………………………………………………………… 14
6.2 POURING HOT WATER FOR PREPARING INFUSIONS………………………………………………………………………………………………………………………………………………………… 14
6.3 STEAM DELIVERY………………………………………………………………………………………………………………………………………………………………………………………………………………………………………..15
6.4 ECONOMY MODE………………………………………………………………………………………………………………………………………………………………………………………………………………………………………. 15
7. OPERATING TEMPERATURE ADJUSTMENT………………………………………………………………………………………………………………………………………………………………………………… 16
8.
VOLUMETRIC DOSE PROGRAMMING………………………………………………………………………………………………………………………………………………………………………………………………. 18
9.
…………………………………………………………………………………………………………………………………………………………………………………………………....................…………….………. 23
10. ALARMS DESCRIPTIONS…………………….…………………………………………………………………….……………………………………………………………………………………………….………………………….. 29
11. REGULAR MAINTENANCE OF THE EQUIPMENT BY THE USER…….……………………………………………………………………………………………………… …………………. 30
11.1 DAILY AT THE END OF THE JOB…………………………………………………………………………………………………………………………………………………………………………………………………….
31 11.2 BACKFLUSHING
11.3 EVERY 3 DAYS……………………………………………………………………………………………………………………………………………………………………………………………………………………………………………
32 11.3 BODYWORK………………….…………………………………………………………………………………………………………………………………………………………………………………………………………
32

S1 MINI VIVALDI
3
12. DIAGRAM………………..……………………………………………………………………………………………………………………………………………………………………………………………………………………… 34
12.1 POWER DIAGRAM……..…..……………………………………………………………………………………………………………………………………………………………………………………………… 35
12.2 KEYBOARD DIAGRAM………………………………………………………………………………………………………………………………………………………………………………………………………35
12.3 KEY TO WIRING DIAGRAM……………….…….………………………………………………………………………………………………………………………………………………………………….. 37
13. HYDRAULIC SYSTEM DIAGRAM………………………………………………………………………………………………………………………………………………………………………………………… 38
13.1 HYDRAULIC SYSTEM LEGEND………………………………………………………………………………………………………………………………………………………………………………… 39
14. TECHNICAL DATE……… ……………………………………………………………………………………………………………………………………………………………………………………………………......... 37

S1 MINI VIVALDI
3
LUUCA espresso machines carry a 12-month parts and labor warranty when purchased directly from Clive Coffee.
Warranty does not cover:
* Normal wear parts including gaskets, filters, o-rings, grinder burrs, plastic hoppers and other moving parts.
* Problems relating to water damage, poor water quality and scaling. Use a water test kit in order to make sure that you are
using the correct water in your machine. Using water outside the stated specifications is the most common reason for machine
failure. Ensure you test your water and filter accordingly.
*Products where the serial number has been damaged or removed
*Operation of product outside the parameters stated in the user documentation
*Any product that has been damaged as a result of accident, abuse, misuse, lack of reasonable and necessary maintenance/
cleaning, neglect, installation, mishandling, damage during shipment, line power surges or any external causes
*Modification or service by anyone other than Clive Coffee
*Shipping costs to ship product back to Clive Coffee for a return, exchange or service.
*Expedited shipping cost of parts to customer for self-repair.
IMPORTANT: WARRANTY INFORMATION

S1 MINI VIVALDI
4
1. GENERAL DESCRIPTION OF THE MACHINE
LEGEND
1. Top Grid 5. Gauge 9. Steam Wand
2.
Steam Leer
6. Drip Tray Grid 10. Hot Water Outlet
3. Control Panel 7. Water Drip Tray
4.
Portafilter
8
.
Tank

S1 MINI VIVALDI
5

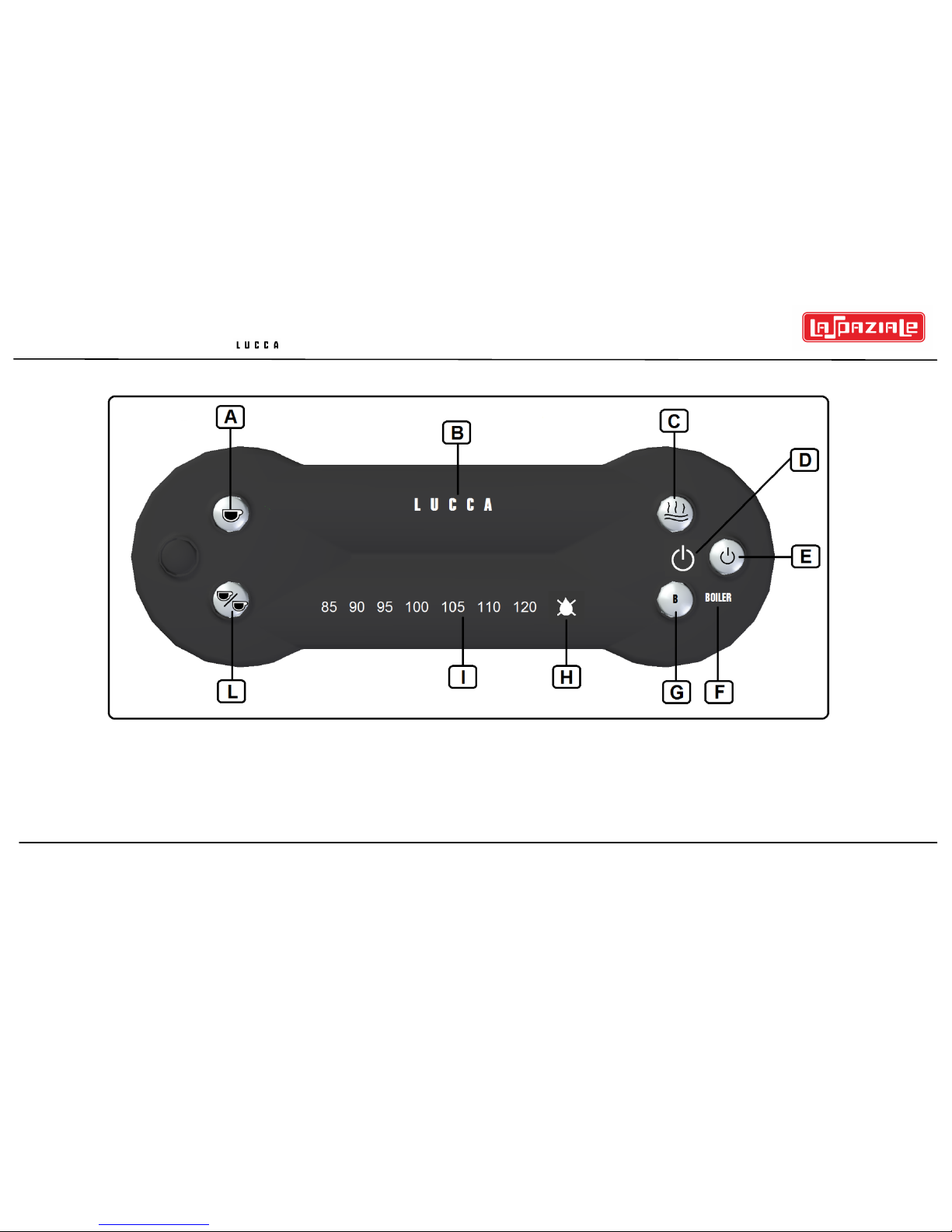

1.1 DESCRIPTION OF CONTROL PANEL
LEGEND
D. Stand-by light
E. On-off button
A. Single coffee button
B. Logo
C. Hot ater utton
F. Boiler light
G. Boiler button
H. Water tank emt
I. Coffee group temperature
L. Double coffee utton

S1 MINI VIVALDI
6
2. GENERAL ADVICE FOR THE INSTALLER
Read carefully the instructions and warnings contained in this manual, since they provide important indications
concerning the installation of the appliance.
The appliance must only be used for its intended purpose and it must be installed in a suitable place for its use. Any
other use will therefore be considered as improper and unreasonable.
The manufacturer cannot be held liable for any damage caused by improper, incorrect or unreasonable use.
Installation must be carried out according to current laws and to the manufacturer’s instructions. Incorrect installation
may cause damage to people, animals or property for which the manufacturer cannot be held liable.
2.1 GENERAL WARNINGS
ATTENTION!
CAREFULLY READ THE FOLLOWING WARNINGS, WHICH OFFER IMPORTANT GUIDELINES FOR THE SAFE
USE AND MAINTENANCE OF THE APPLIANCE.
The appliance must only be used for its intended purpose and it must be installed in a suitable place for its use. Any
other use is therefore considered as improper and unreasonable.
The manufacturer cannot be held liable for any damage caused by improper, incorrect or unreasonable use.
Installation must be carried out by qualified personnel according to current laws and to the manufacturer’s
instructions. Incorrect installation may cause damage to people, animals or property for which the manufacturer
cannot be held liable.

S1 MINI VIVALDI
7
DANGER!
The electrical safety of the appliance is fully achieved only after it has been correctly connected to an earthing system
as required by the laws in force.
It is necessary to have the earthing connection checked by professionally qualified personnel. The manufacturer
cannot be held liable for any damage caused by the lack or inefficiency of the system’s earthing connection. The
appliance has not been designed for outdoor use. It must only be operated in a place where the ambient temperature
is between +5°C and +40°C.
ATTENTION!
The use of any electrical appliance also requires observance of the following important regulations.
•Do not touch the appliance with wet or damp hands or feet.
•Do not use the appliance barefooted.
• Do not pull the power supply cord to unplug the appliance from the mains power.
• Do not allow children or unqualified persons to use the appliance.
• Access to the appliance’s service area must be restricted to those persons with the relevant practical experience
and familiarity with the appliance itself, especially in terms of safety and hygiene.
• The device is not intend to be used by people (children included) whose physical, sensory or mental capability are
reduced, unless they could benefit, through the intermediation of a person in charge of their safety, of a guard or of
instructions concerning the device’s use. Children must be kept under surveillance to be sure they wouldn’t play with
the device.
• Before carrying out any routine maintenance or cleaning operation, disconnect the appliance from the mains power.
• In the event of damage and/or malfunction of the appliance, switch it off completely without trying to make any direct
repairs. Contact the nearest Service Centre authorised by the manufacturer.
• In order to guarantee the proper efficiency and operation of the appliance, it is fundamentally important to follow the
manufacturer’s instructions, and to follow a regular maintenance schedule.

S1 MINI VIVALDI
8
•The appliance has
IPX2 protection against water and therefore, it cannot be installed in areas where it may be
subject to jets of water.
•The appliance has
class I protection against electric shocks.
• The noise emitted by the appliance during normal operation is less than 70 dB.
ATTENTION!
Failure to comply with the above regulations could jeopardise the correct operation and safety of the appliance as well
as its useful lifetime.
ATTENTION!
The appliance is supplied without water in the boiler. This is to prevent serious damage if the appliance is exposed to
low temperatures. The appliance must only be supplied with cold drinking water.
2.2 INSTALLATION
The appliance is not intended for built-in installation.
Place the appliance on a flat, secure bearing surface, lifting it by the sides.
The appliance must be installed so that the power plug is accessible.
WARNING!
Before plugging the appliance into the mains socket, make sure that the data on its rating plate correspond to the
data for the place of installation.

S1 MINI VIVALDI
9
2.3 WARNING/TECHNICAL DATE LABELS AND NAMEPLATES APPLIED TO THE MACHINE
In the figure below are shown the warning/technical data labels and nameplates positioned on the machine.
ATTENTION!
Dedicate the time necessary to familiarise yourself with these labels.
Ensure that they are readable and keep them clean or replace those that have deteriorated or illegible (both the text
and the graphics).
Use a soft cloth, soap and water to clean the labels. Do not use solvents, petrol, etc..
If a label is positioned on a component part that has to be replaced, ensure that the new component has the same
label applied or a new one.

S1 MINI VIVALDI
10
3. REMOVING THE PACKAGING
After unpacking the machine, please check its integrity; in case of doubt, do not use it and consult the manufacturer.
Packaging materials must not be left within children’s reach since they are potentially dangerous.
ATTENTION!
The appliance weight is more than 30 kg and therefore, it cannot be moved by a single person alone.
TAKE NOTE!
Dispose of the packaging as per the norms in force of the country in which the machine is utilised.
3.1 STANDARD EQUIPMENTS OF THE MACHINE
A. 1 set of filter holders with relative spouts
B. 1 complete set of hoses for connection to water mains
C. 2 sets of filters
D. 1 set of shower heads
E. 1 wrench for shower head removal
F. 1 brush
G. 1 blind filter
H. 1 manual coffee tamper
I. 1 set group-head gasket

S1 MINI VIVALDI
11
4.1WATER QUALITY
4.2 WATER SOFTENER
A softener is included with the machine.
•Remove the softener from the protective packaging.
•Rinse the softener under cold water.
• Place the softener on the bottom of the reservoir and fill with water.
Please check softener packaging for further instructions including expected life of the softener.
In order to prevent limescale from damaging and clogging the interior of your machine, it is important to fill the water
reservoir with soft water.
You can test the hardness of your water using simple test strips. The target water hardness for espress machines is less
than 50 parts per million (ppm) or 3 grains per gallon (gpg). If your results are high you can high-quality carbon filter or
charcoal filtration system to soften the water.
IMPORTANT NOTE:
Do not use distilled or deionized (reverse osmosis) filtered water in any espresso machine. This type of water cannot be
detected by the components and causes serious malfunction of the equipment.
If using bottled water in your machine, check that the mineral content is less than 50ppm and ensure that the label doesn't
say the water is distilled or deionized.

S1 MINI VIVALDI
11
5. FILLING THE WATER
T ANK
•Remove the drip tray (7).
•Then remove the container (8) and fill it with cold drinking water.
•Fit in the water tank (8), pushing it in as far as it will go, and place the drip tray (7).
WARNING!
•Plug the appliance into the mains power; the power control light (D) will flash to show that the appliance
is connected to the mains electricity (Stand-by).

S1 MINI VIVALDI
12
•Press and hold down the buttons ON/OFF (E) and hot water delivery (C) together until water begins to come
out of the delivery group.
•During this stage, the control lights to signal no water (H) and the power control light (D) will flash
and the pump will operate.
•Release the buttons ON/OFF (E) and hot water delivery (C) to stop the boiler filling cycle. The
appliance will automatically return to Stand-by mode.
6. SWITCHING ON THE MACHINE
•Press and hold down the button ON / OFF (E) for about 3 seconds; the red control light (D) will go from
flashing to lit to show that the appliance has been switched on; at the same time, the control lights from
85° C will 120°C switch on for about one second (electronic system check).
•The control light for the set temperature value will start to flash to indicate that the coffee delivery group
is heating up and the automatic boiler refill will be activated until the water level set by the manufacturer
has been reached.
•Once the filling stage is complete, the boiler control light (D) will begin to flash, indicating that the
boiler is heating up. The first time that the machine is switched on, this will not be enabled until the
group reaches the set temperature.
• Attach the ortailter (4 ) to the group ea .
Wait until the appliance reaches the set temperature, making sure that the control lights on the control panel
(I) switch on progressively as the temperature increases. This starts as soon as the temperature reaches the
minimum setting, with the switching ON of the control light 85° C, and it will proceed until the appliance
operating temperature has been reached (the control light goes from flashing to lit).
When the group reaches the set temperature, the boiler heating function is enabled. Once it reaches the set
temperature, the control light will stay lit.

S1 MINI VIVALDI
13
Every time that the temperature of the group or boiler drops below the set temperature, the control light for the
operating temperature will start to flash (appliance heating phase), until the set temperature is
reached.
•The appliance is now ready for use.
WARNING!
The boiler is activated by pressing the button “BOILER” (G). To deactivate the boiler, press and hold down the same
button for 3 seconds. When the boiler is switched off, it is not possible to dispense hot water for infusions or to
dispense steam.
TAKE NOTE!
The Boiler status is stored to memory.

S1 MINI VIVALDI
14
6.1 COFFEE PREPARATION
• Unfasten the ortailter (4) from the brewing group and ensure filter aset is in lace .
• Fill it with ground coffee, (using the coffee doser provided) making sure not to leave coffee powder
on the upper edge of the ortailter (4), and press it with the suitable coffee tamper provided.
• Reattach the ortailter (4) to the group ea so that it is secure but not excessively tight.
• Place one or two cups below the ortailter (4)
• Press the button corresponding to one cup (A) or two cups (L) to start the delivery. Once the quantity of coffee
programmed is reached, the delivery automatically stops.
TAKE NOTE!
If you want to stop te sot eore te rogramme olume is reace press the same
button again A or L.
WARNING!!!
While the machine is in operation, check frequently the filling level of the drip-tray (1) and,
if necessary, empty it out.
6.2 POURING HOT WATER FOR PREPARING INFUSIONS
•Place the pitcher below the hot water output (9).
• Press the hot water delivery button (C).

S1 MINI VIVALDI
15
•The hot water delivery starts (at this stage the pump is working).
•Once the desired quantity is reached, stop the delivery by pressing the same button (C).
6.3 STEAM DELIVERY
•Insert the steam wand (8) in the pitcher containing the drink to be heated up.
• Pus steam leer (2) u to actiate.
• At the end of the heating phase of the drink, stop the steam delivery ulling steam leer ac on
into original osition.
• Remove the pitcher from the steam wand (8) and clean immediately with a et clot or toel.
Purge te steam an eore an ater use  actiating or  secon ile careull ointing
into te ri tra.
6.4 ECONOMY MODE
This mode is meant for less frequent uses of steam and water for infusions, in fact priority is always given to
the heating of the group for coffee delivery rather than to the heating of the boiler.
In this way the two heating-elements are never fed at the same time, with a consequent remarkable power
saving.
In order to activate this mode press button boiler (E) and keep it pressed for about 10 seconds, the red light
F turns on. To deactivate it, follow the same procedure again, until the light F turns off.
WARNING!
This mode can be activated on appliances with the following voltages: 230 V 115 V with 20 A plug
It is not possible to activate the ECONOMY mode on appliances with the following voltages
115 V with 15 A plug.

S1 MINI VIVALDI
16
7. OPERATING TEMPERATURE ADJUSTMENT
•While the appliance is operating, press and hold down the button ON//OFF (E) for about 3 seconds.
The power control light (D) and the control light for the set
temperature will flash. For example, if the
set temperature is 95°C, the control light (15) will flash.
•
To set the operating temperature in 5-degree increments, proceed as follows:
Press and release the hot water button (C); each time the button is pressed, the temperature will be
increased by 5°C (and the relevant control light will start to flash).
When the maximum temperature of 120°C is reached (control light 20), the selection function will return to the
minimum temperature of 85°C (control light 14) (cyclical operation).
•Once the
required temperature has been selected, press the button
ON/ OFF
(E) to confirm the setting,
and the appliance will return to normal operation.
The operating temperature of the machine can be modified to improve the flavor profile of the coffee according to
individual tastes.
The recommended brewing temperature range for espresso coffee is 92 to 96 degrees celcius.

17
S1 MINI VIVALDI
To adjust the operating temperature by single degree increments, proceed as follows:
•
Switch off the appliance by pressing the button ON/OFF (E); the red control light (D) will go from lit to
flashing (machine on stand-by).
•
Press and hold down the two-cup button (L) for about 3 seconds; the control lights 100°C and 105°C will
switch on to indicate that the settings phase is in progress for intervals of 1°C.
•
Each time that the boiler button (G) is pressed, the control lights 18, 19 and 20 will switch ON in succession
and each control light indicates an increase of one degree centigrade compared to the set temperature.
Each time that the one-cup button (A) is pressed, the control lights 15, 14 and 13 will switch on and each of
these control lights indicates a decrease of one degree centigrade compared to the set temperature.
For example, if the set operating temperature is 95°C and the control lights 18 and 19 switch on, the set
temperature will become 95 + 2 = 97°C.
Once the required temperature has been selected, press the two-cup button (L) to confirm the setting.
Hold the ON/OFF button (E) for 3 seconds to return machine to operating mode.

S1 MINI VIVALDI
19
8.1 VOLUMETRIC DOSE PROGRAMMING
Te rogrammale olumetric osing eature allos rogramming o te Single Cu A an Doule Cu L uttons to isense
ateer uantities o esresso te user esires. Teir use or single cu an oule cu uantities is merel a suggestion. Man
users onl ull oule sots an rogram te oule sot utton or ..o or tat urose. Ten te rogram te Single Cu
utton or a larger amount or use in aclusing te grou or ulling sots manuall. Te eaut o te rogrammale osing
eature is tat te macine oner can e creatie.
Te olloing are te instructions or rogramming eac utton assuming te are eing use or single an oule sots.
. it te macine on ress te ONO E utton an ee it resse or aout
tree  secons te Stan ligt D an te one inicating te set temerature start lasing.
. Insert te ortailter ille it resl groun coee an ress it a mm coee tamer.
. asten te ortailter to te reing grou lacing a measuring cu uner te ortailter.
.  ressing te Single Cu utton A te elier starts an te ligts  turn on to so tat te one sot esresso
ose is eing rogramme.
. en te coee insie te cu as reace te esire uantit again ress te utton A to sto te elier.
. To loc te setting into memor ress te ONO utton E once o not ol. Tis ill loc te setting into memor as ell
as tae ou out o rogramming moe.
. Reeat stes aoe using te Doule Cu utton L maing sure ou use resl groun coee in te ortailter.
