Lab-T R1M User manual

Copyright ⓒ 2019. Lab-T, Inc.
User Manual

R1M Manual

1. GETTING STARTED: BUILT-IN BLUETOOTH SYSTEM

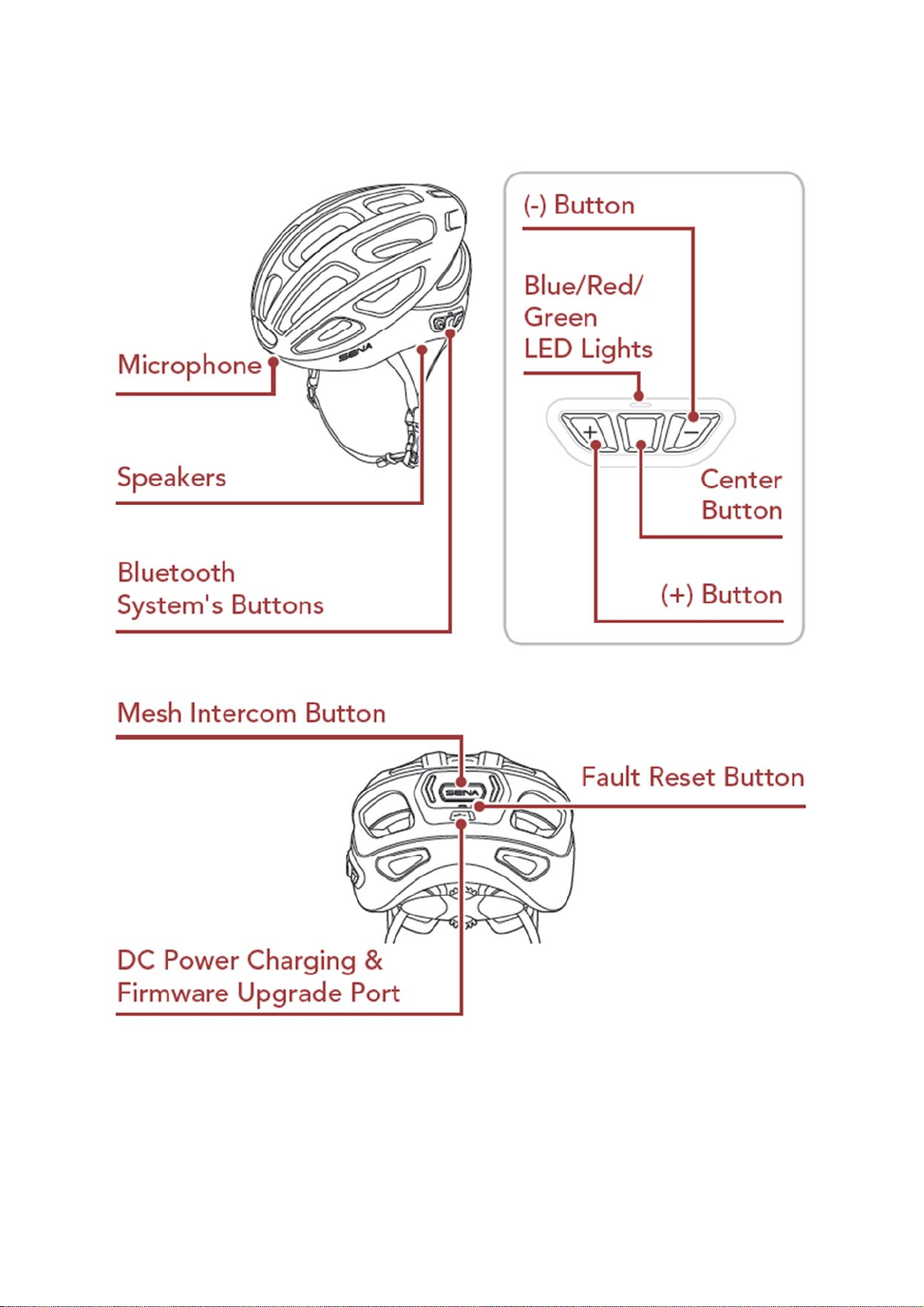

1.1 Button Functions
1.2 Powering On and Off
Press and hold the Center Button and the (+) Button at the same
time for 1 second to turn the headset on or off.
1.3 Charging
The Bluetooth Communication Module can be charged using many
common methods via the supplied USB power & data cable:
1. Plugged into a computer’s USB port.
2. With a USB-equipped AC adapter via a wall-outlet charger.
Note: Please make sure to take off your helmet while charging. The
headset automatically turns off during charging.
Depending upon the charging method, the Bluetooth Module will be
fully charged in about 2.5 hours.
1.4 Checking the Bluetooth Module’s Battery Level
There are two ways to check battery level:
1. Visually, with LEDs when powering on.
Note: Blinking LEDs alternate from blue to red when battery power is
low.
2. Audible method: Press and hold the Center Button and the (+)
Button for 3 more seconds as the headset powers on. A prompt will
announce the remaining battery level.

1.5 Volume Adjustment
You can raise or lower the volume by tapping the (+) Button or the
(-) Button. Volume is set and maintained independently at different
levels for each audio source (i.e., phone, intercom), even when the
headset is rebooted.
1.6 Configuration Menu
The Bluetooth Communication Module can be configured by
following a series of voice prompts. Further details about each of
these settings will be explained on the following pages.
1. To access the Configuration Menu, press and hold the Center
Button for 10 seconds until you hear the voice prompt,
“Configuration menu.
2. Tap the (+) Button or the (-) Button to navigate between the
menus. You will hear voice prompts for each menu item. The list of
functions is shown in the Configuration Menu Chart on page 19.
3. You can enable/disable the feature or execute the command by
tapping the Center Button.

2.1 Mobile Phone
1. Execute Phone Pairing in the Configuration Menu.
2. With your mobile phone in Bluetooth-pairing mode, select Sena R1
in the list of devices detected.
3. If your mobile phone asks for a PIN, enter 0000.
2.2 MOBILE PHONE USAGE
- Answer a Call : Tap the Center Button.
- End/Reject a Call : Press and Holde the Center Button for 2
seconds.
2.3 Speed Dialing
1. Press and hold the (+) Button for 3 seconds to enter into the
Speed Dial menu. You will hear the voice prompt, “Speed dial.”
2. Tap the (+) Button or the (-) Button to navigate between the
Speed Dial Presets.
3. To redial the last number called, tap the Center Button when you
hear the prompt, “Last number redial.”
4. To call one of your Speed Dial Presets, tap the Center Button
when you hear the prompt, “Speed dial (#).”
3. Mesh Intercom
- Mesh Intercom On : Tap the Mesh Intercom Button
- Mesh Intercom Off : Tap the Mesh Intercom Button

4. STEREO MUSIC
1. To play or pause music, press and hold the Center Button for 1
second until you hear a double beep.
2. To adjust the volume, tap the (+) Button or the (-) Button.
3. To track forward or back, press and hold the (+) Button or the (-)
Button for 1 second.
5. LED Taillight
- LED Taillight On : Tap the Center Button
- Change the mode and LED Taillight Off
Tap the Center Button continuously.
LED On and Solid -> Night Flash -> Day Flash -> LED Off
6. USING THE FM RADIO
6.1 FM Radio On/Off
To turn on or shut off the FM radio, press the (-) Button for 1
second until you hear a double beep.
6.2 Seek Radio Stations
The “Seek” feature searches for radio stations.
- Double tap the (+) Button or the (-) Button to search for radio
stations.
6.3 Scan Radio Stations
- Press and hold the (+) Button for 1 second to scan for stations.

6.4 Temporary Station Preset
The Temporary Preset feature automatically finds and saves the
nearest 10 radio stations without changing your existing preset
stations.
1. Tap the (+) Button three times to automatically find and save 10
stations.
2. The temporary preset stations will be cleared when the Bluetooth
Module reboots.
7. Fault Reset
When the helmet’s Bluetooth Module is not working properly, you
can easily reset the unit:
1. Locate the pinhole reset button below the (+) Button.
2. Gently insert a paper clip into the hole and press and Fault Reset
Button for 1 second with light pressure.
3. The communication module will shut down.
Note: Fault Reset will not restore the Bluetooth Module to factory
default settings.
8. Factory Reset
To erase all of your settings and start fresh, the headset can be
restored to factory default settings using the Factory Reset feature in
the Configuration Menu. Please refer to Section 2.7: “Configuration
Menu” for more details.
