Lacros AMBLING A200 Operation instructions

CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL)
VERSION CE 1.4 EN
1
LACROS AMBLING A200 (XL) /A400 (XL)
ELECTRIC FOLDING BIKE

CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL)
VERSION CE 1.4 EN
2
For your safety
Your safety is very important, so read the following safety advices carefully. More safety tips are listed further
in the manual:
1. The LACROS Electric bicycle is equipped with an electric motor. It is very important that you familiarize
yourself with the bicycle as soon as possible. We advise you to choose the first "practice rides" for easy
roads with little traffic and a smooth road surface.
2. When you want to ride, do not stand on the pedal, but first sit on the saddle and then start pedaling.
3. Ride the first rides preferably without electrical support to get familiar with your bike. After this you can
start with a low setting (electrical assistance).
4. The LACROS bicycles have been tested by our employees. If you have any doubts about the bicycle and/or
the electrical installation of the bicycle, we request that you contact us immediately.
5. Never expose the battery and the charger directly in the sun or heat surfaces. The battery is protected
against heat, but heating is better avoided.
6. Never use any other charger than the one provided by Shinga BV. It is very important for your safety to
always use the original charger.
7. The brakes are equipped with an "ABS" protection. As a result, the electrical assistance stops when you
use the brakes.
8. We recommend wearing a helmet while cycling.
The LACROS bicycles are delivered in accordance with the most recent European guidelines (page 3), if you
have any questions or comments, do not hesitate to contact us.
We are always available for users of LACROS bicycles:
E-mail: [e-mail]
Phone: [phone]
Thank you for your trust,
Ton van den Oetelaar
Director Shinga BV

CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL)
VERSION CE 1.4 EN
3
Quality standard
Your product is an electric folding bicycle. The bike is foldable at 2 locations, on the stem and halfway through
the frame. The bike is equipped with pedal assistance which is powered by an external battery. The battery
can be located in different locations, such as on the luggage carrier or in the frame. The battery is charged by
means of an external charger. This external charger is seen as a separate product and is already provided with
a CE marking (based on the Low Voltage Directive and the EMC Directive).
The input voltage of the battery is 36V, the motor has a maximum power capacity of 250W and the maximum
speed of the bicycle is 25 km/h.
Guidelines:
Based on the above product description, the following guidelines apply:
•EMC-directive: 2014/30/EU
•Machine directive: 2006/42/EG
The Low Voltage Directive does not apply because the input voltage is only 36V. The charger of the battery is
separately marked with a CE mark.
Based on the above guidelines, a number of (corresponding) standards apply.
The following relevant documents must be mentioned in this context and are also used as input for all other
documentation:
•NEN-EN 15194:2015 Cycles (Electrically power assisted cycles - EPAC Bicycles)
•NEN-EN-ISO 4210-1:2014 and
•EN ISO 12100:2010

CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL)
VERSION CE 1.4 EN
4
Index
For your safety .................................................... 2
Quality standard ................................................. 3
1. Unfolding the bicycle................................... 5
Magnetic lock...................................................... 5
Unfolding the frame............................................ 5
Secure the frame clamp ...................................... 5
Unfold and secure the steering wheel................. 5
Unfold the pedals ................................................ 5
2. Folding the bicycle ...................................... 6
Folding the pedals ............................................... 6
Handlebar clamp................................................. 6
Frame clamp ....................................................... 6
Folding the Frame ............................................... 6
Securing the wheels ............................................ 6
3. How to operate the bicycle.......................... 7
Switch on the battery.......................................... 7
▪ SAMA-Display .............................................. 7
Turn on the display.............................................. 7
Switch bicycle LED lights on and off.................... 7
Thumb lever walk assist ...................................... 7
Switch between the 9 levels of motor support.... 8
Additional options of the display ........................ 8
USB-input display ................................................ 8
▪ Bigstone-display........................................... 9
Turn on the display ............................................. 9
Switch bicycle LED lights on and off.................... 9
Thumb lever Walk Assist..................................... 9
Switch between the 9 levels of motor support ... 9
Additional options of the display ........................ 9
USB-input display.............................................. 10
The Shifter (1) ................................................... 10
The Shifter (2) ................................................... 10
How the electrical support work....................... 10
4. Battery and charging ................................. 11
General.............................................................. 11
Charge recommendation .................................. 11
Warning ............................................................ 11
How to charge the battery................................ 12
Removing the battery ....................................... 12
5. Range........................................................ 12
6. Safety rules ............................................... 13
7. Legal requirements.................................... 14
Environment...................................................... 14
Periodic maintenance and malfunctions .......... 14
8. Technical specifications ............................. 15
Maintenance..................................................... 15
The valves ......................................................... 15
Frame number .................................................. 15
9. EC declaration ........................................... 16

CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL)
VERSION CE 1.4 EN
5
1. Unfolding the bicycle
Magnetic lock
Push the wheels apart to release them from their
magnetic lock.
A = Metal locking plate
B = Magnet
C = Direction in which you can lock
D = Locked position
Unfolding the frame
To unfold the frame, slide the wheels apart until the frame
is in a straight position. It is easy to stand on the left side
of the bike.
Secure the frame clamp
Secure the frame clamp (A + B) (on the right side of the frame) by
first securing the latch with the frame and then locking the clamp
by pushing the clamp against the frame. Then press the plastic
locking cap over the frame clamp.
Unfold and secure the steering wheel
Unfold the handlebars (A) and secure it with the
handlebar clamp (B). Make sure that the pin engages
properly in the handlebar clamp.
Secure the handlebar clamp by rotating the locking
ring towards the handlebar clamp (located around
the steering column near the handlebar clamp).
Unfold the pedals
Unfold the pedals by pulling the pedal to its horizontal position. The pedal will automatically return to its
correct position.

CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL)
VERSION CE 1.4 EN
6

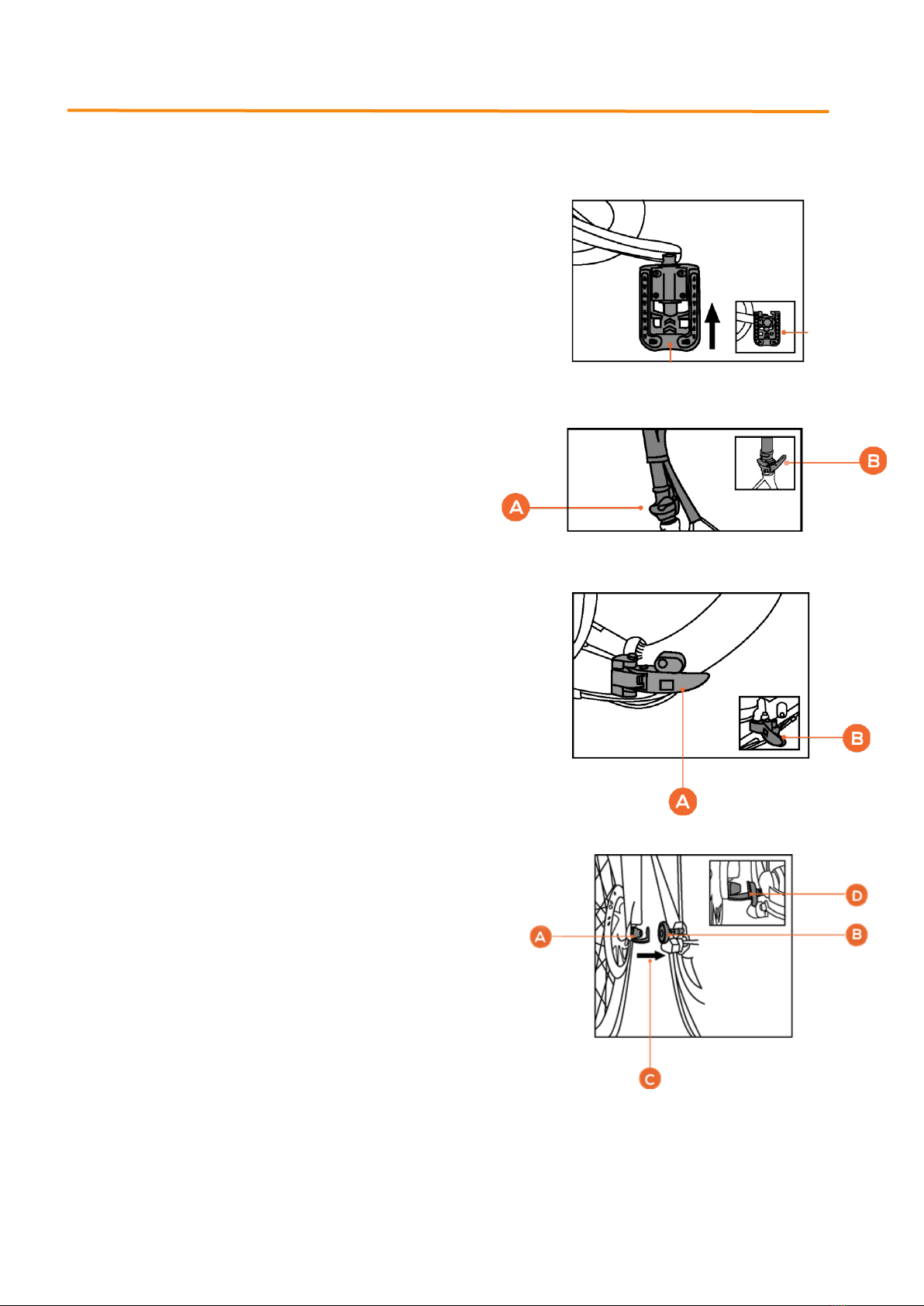

2. Folding the bicycle
Folding the pedals
Fold the kickstand of the bicycle. Fold the pedals by pushing the entire
pedal in the direction of the bicycle and then fold it up or down.
Note: Position the pedals horizontally with the left pedal forward, so
that it will not get in the way when the frame is folded.
Handlebar clamp
Release the steering, first by rotating the locking ring (A)
away from the clamp. Open the clamp (B) so you can
fold down the steering.
Frame clamp
Release the lock from the middle clamp. After the locking cap has been
released, the clamp (A + B) must be pulled outwards so that it comes
loose. The frame is now open and ready to fold.
Note: Do not use excessive force to release the clamp.
Folding the Frame
Stand to the left of the bike and fold the front wheel towards
the rear wheel so that the wheels are connected. Under the
bottom bracket there is a triangular support on which the
bicycle can rest when folded.
Securing the wheels
Secure the folded condition of the bicycle by pushing the wheels
together so that the magnets (A + B + D) connect each other (C).
It is advisable to provide the handlebar and frame with
protection during transport by means of for example a blanket.

CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL)
VERSION CE 1.4 EN
7

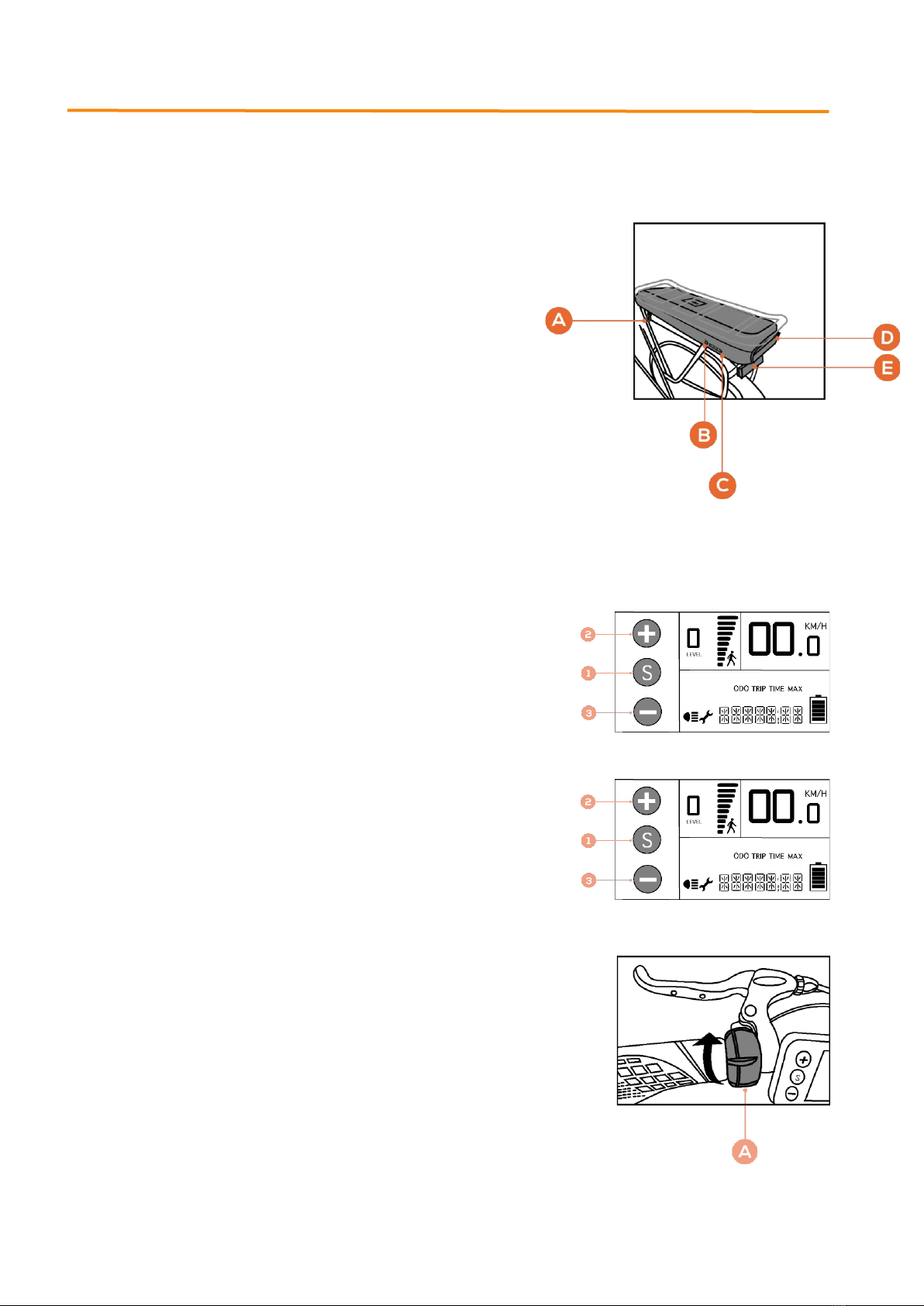

3. How to operate the bicycle
Switch on the battery
The battery is located on the luggage rack with the Scamper.
Switch on the electrical system with the button on the left side
of the battery (B). (note, you only have the battery activated,
the display is still off) The number of lights indicates the
battery charge. This is a rough indication of the battery charge.
If you want to turn off the battery, press and hold the on / off
button for 4 seconds until you see the display go out.
A = Lock
B = On/off button
C = Indicator
D = Rear light
E = Brake light
▪SAMA-Display
Turn on the display
Press (1) to turn on the bicycle electrical circuit. A menu now
appears on the display, the electric circuit is switched on.
1 = On/Off button
2 = motor support up/light
3 = motor support down
Switch bicycle LED lights on and off
Press (2) for ± 2 seconds to turn the lights on. A light-symbol
will appear on the display. Press (2) for 2 seconds to turn off
lights.
Thumb lever walk assist
By pushing the thumb lever (A) forward when stationary, you activate the
walk assist which provides support from 0 km/h to 6 km/h. By using the
thumb lever while cycling, the electrical support goes directly to its maximum
(25 km/h).

CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL)
VERSION CE 1.4 EN
8
Switch between the 9 levels of motor support
The electrical motor support has 9 levels. The active
setting is displayed on the top left of the display. You can
increase or decrease the support by using the (+) and (-)
buttons.
Additional options of the display
By pressing the (S) button briefly in succession, you can scroll
through various data:
(J) = Total Km / Miles reading (ODO)
(K) = Trip reading (TRIP)
(L) = Cycle time (TIME)
(M) = Maximum speed (MAX)
Reset Trip, Time and Maximum speed data by pressing
the (S) and the (-) buttons together for 2 seconds.
USB-input display
Below the display you will find a USB port (A) where for
example your phone or navigation device can be charged
while cycling. This charging only works when the display
is turned on.

CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL)
VERSION CE 1.4 EN
9
▪Bigstone-display
Turn on the display
Press the ”M” button (1) on the left of the display to activate
the bicycle's electrical circuit. (Note that the battery is already
turned on) A menu will now appear on the display, the electrical
circuit is switched on.
Switch bicycle LED lights on and off
Press the “+” button (2) for ± 2 seconds to turn on the
bicycle lights. A Light symbol appears in the display.
Press the "+" button (2) again for 2 seconds to switch off
the bicycle lights.
Thumb lever Walk Assist
By pushing the thumb lever (A) down when stationary, you
activate the walking mode which provides support from
0 km/h to 6 km/h. Note: The walking position using the thumb lever
does not work when the bicycle is in support position "0".
By using the thumb lever while cycling, the electric support
goes directly to its maximum (25 km/h).
Switch between the 9 levels of motor support
The electrical motor support has 9 levels. The active
setting is displayed at the bottom left of the display. You can
increase or decrease the support by using the (+) and (-)
buttons.
Additional options of the display
Briefly pressing the "M" key successively scrolls through
various data at the bottom of the display:
(J) = Total Km/Miles reading (ODO)
(K) = Trip reading (TRIP)
(L) = Cycling time (TIME)
(M) = Maximum speed (MAX)
Reset Trip, Time and Maximum speed data by pressing the (-) button
for 2 seconds.

CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL)
VERSION CE 1.4 EN
10

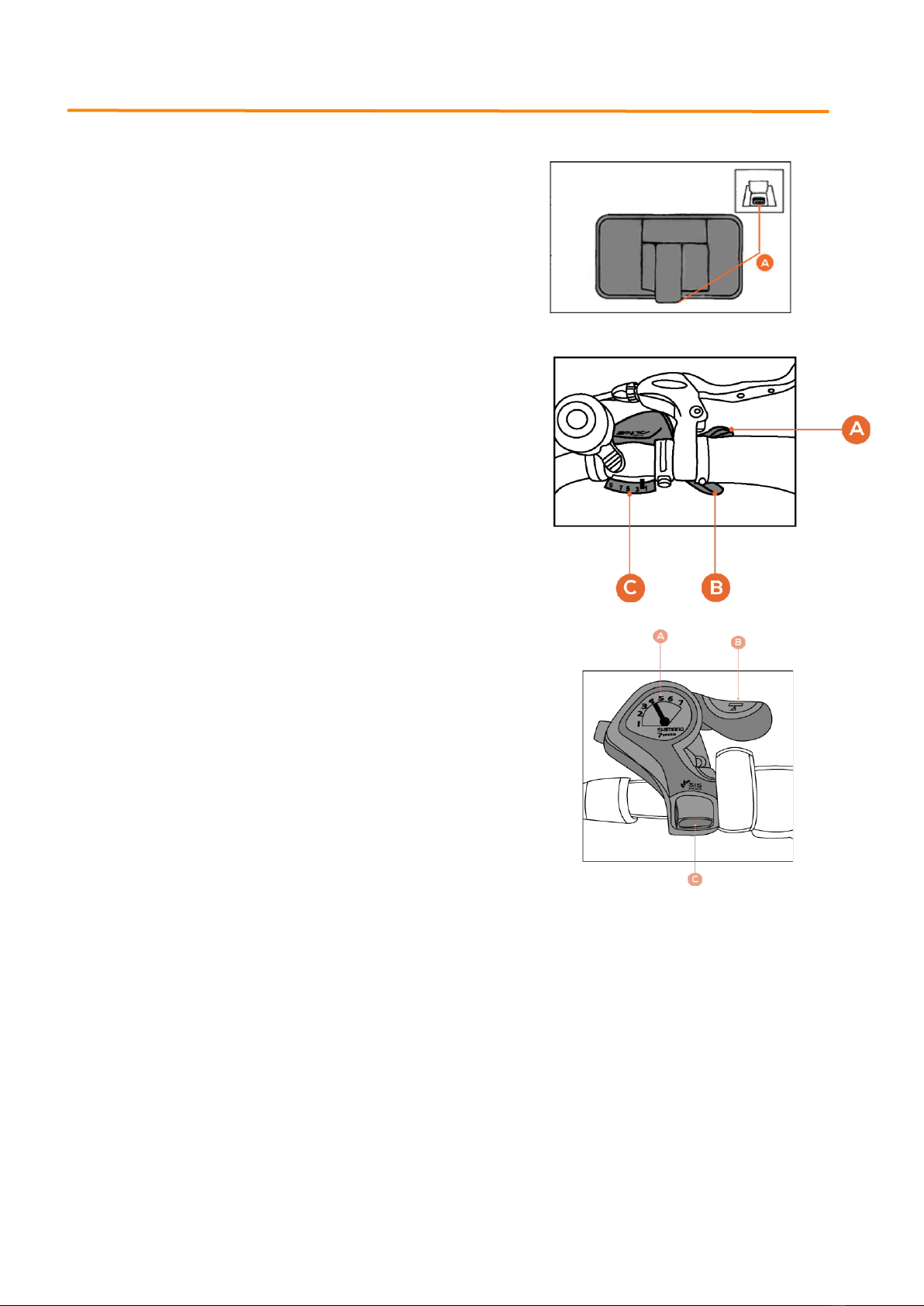

USB-input display
Below the display you will find a USB-port (A) where you can, for
example, charge your telephone or navigation while cycling. This
charging only works when the display is on.
Press the "M" key and the "+" for 2 seconds to activate the USB.
The Shifter (1)
The shift mechanism of the derailleur is located on the steering
wheel, which has a (A) and (B) Finger control. By pressing (B) you
switch up, by pushing (A) you switch down.
Note: You must keep pedaling while switching gears. However, it is
better for the gears that you do not put excessive force on the
pedals during the shift.
The Shifter (2)
The shift mechanism of the derailleur is located on the steering
wheel, which has a (B) and (C) thumb control. By pressing (B)
you switch up, by pushing (C) you switch down.
How the electrical support work
The bicycle use PAS (pedal support) through a magnet-rotation sensor. This means that the electrical support
starts the moment the pedals go around. In addition, there is a thumb lever on the left side of the handlebar
to activate the maximum support quickly and easily (which is independent of the motor support 1 to 9). As
long as you continue to hold this thumb lever forward (while pedaling), the motor will give the maximum
support, similar to support position 9 on the display.
Support is interrupted when:
-You stop pedaling.
-The brakes are used.
-Release the thumb lever if you use it.

CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL)
VERSION CE 1.4 EN
11
4. Battery and charging
General
•The battery can be recharged both in and out of the bike.
•When replacing the battery, make sure that the contact points of the battery and the contact points of the
battery compartment match properly.
Charge recommendation
•Always recharge the battery with the Lacros charger supplied with the bike. Do not use any other charger.
•The first 2 recharges of a new bicycle must be more than 60%. To realize this, wait the first 2 times before
recharging, until the battery indicator on the display has fallen below 40%.
•Recharging will stop automatically when the battery is fully charged. Only when the red indicator light on
the charger is lit, the battery will be recharged.
•After 2 full charges (first 2 charges), the battery does not have to run to a minimum of 40% before you start
recharging again. After 2 full recharges, the battery can be recharged at all times, even after short rides.
•The battery remains in good condition when you recharge the bike after every use (regardless of the
distance). So keep the battery as full as possible.
•The warranty on the battery expires if a deep discharge is detected (this can only happen if you leave the
battery on and leave it for a long time without recharging.)
•In the case of long-term storage: fully recharge the battery, disconnect the battery from the charger and
the bicycle and switch off the battery. Charge the battery at least once every three months.
•The battery performs less well below 10 °C, you will have less battery capacity.
Warning
Read the warnings below carefully.
•Do not expose the battery to fire or heat. Never put the battery in fire.
•Do not drop the battery or damage it.
•Do not immerse the battery in water or any other liquid.
•Keep the battery out of the reach of children
•Never open the battery without permission from Shinga B.V. The battery is provided with a seal. Breaking
the seal will void the warranty, unless Shinga B.V. gives permission.
•Do not put liquids or metal in the charger.
•Do not connect the charger to the battery with wet hands.
•Do not touch the charger in case of lightning.
•Do not use the charger in a very humid environment.
•Do not use the charger for purposes other than charging the corresponding battery.
•Ensure good ventilation at the location of the battery and charger during charging.
•Do not connect the charger to the power socket if the charger is not being used.
•Do not charge the battery in full sun.

CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL)
VERSION CE 1.4 EN
12

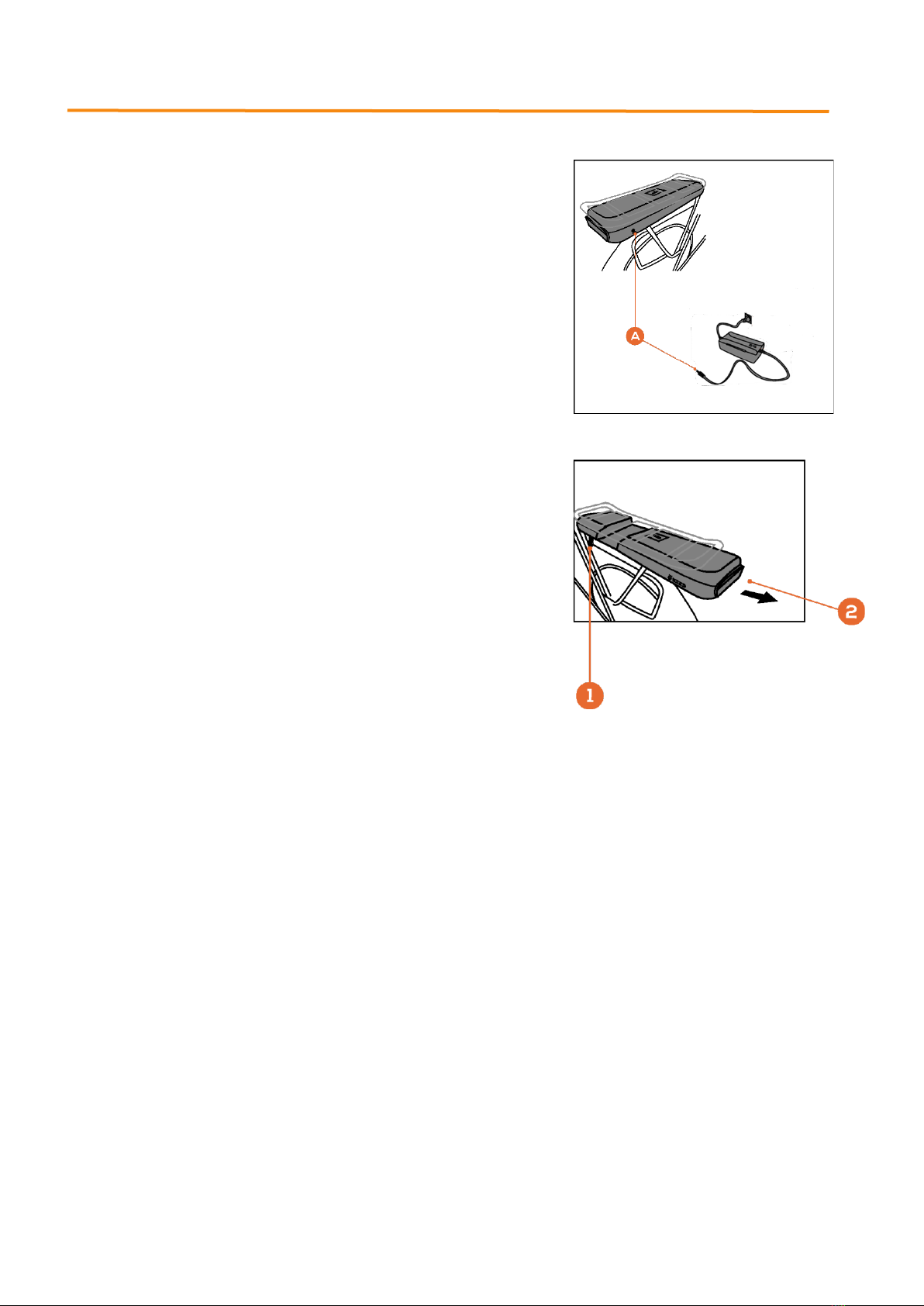

How to charge the battery
The battery has one charging point (A) on the right side of the battery.
It is recommended to first connect the charger to the battery and then
plug the 220V plug into the socket. It is better for the battery to
connect it to the charger after every cycle. The charger will stop
charging as soon as the battery is full. When the battery is full (when
the light on the charger is green) the charger can be disconnected.
Red (Power on/Charging)
Green (Power off/fully charged)
Removing the battery
The battery can be removed from the battery box by first
turning the key almost (1) 180 degrees to the left, and then
carefully pull the battery back. Ensure that the battery is
always locked when you place it back. The battery may
otherwise vibrate when cycling.
5. Range
The range represents the distance in kilometers that can be covered with a fully charged battery. The range is
influenced by various factors:
•Capacity (Ah) and voltage (V) of the battery
•Level of electrical assistance used
•The carrying weight on the bicycle
•Amount of pedaling force delivered by the rider
•Ambient temperature (battery capacity decreases below 10 ° C)
•Wind force
•Tire pressure (3,5 bar/50,7 psi)
•Condition of the road surface
The range decreases as the battery ages.

CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL)
VERSION CE 1.4 EN
13
6. Safety rules
•Read carefully the manual supplied with your bicycle before using it for the first time.
•Strictly adhere to the traffic rules.
•Never disassemble the bicycle yourself. If replacement of a part is necessary, contact your dealer or Shinga
B.V. for the relevant part.
•Do not lend your bicycle to persons with little experience on an electric bicycle.
•Do not ride under the influence of drugs or alcohol.
•Never load the bicycle beyond its maximum capacity.
•Do not modify anything on your bicycle yourself. As a result, the warranty and liability will expire.
•The maximum speed of the vehicle is 25 Km/h.
•If the front fork, steering column or handlebars are bent after an accident, they must under no
circumstances be bent back to its original position to avoid breakage. Contact your Shinga dealer or Shinga
B.V. directly to have the damaged parts replaced.
•STEER-/ SEAT PIN: See figure 1. A rib line is engraved in the seat post and stem. This is the minimum length
that must remain in the frame (with the seat post) or in the steering column (at the stem).
•STEER-/ SEAT CLAMP: See figure 2. By means of these clamps allow you to adjust the saddle and
handlebars to the correct height. Make sure these clamps are tight.
Figure 1: STEER-/ SEAT PIN
Figure 2: STEER-/ SEAT CLAMP

CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL)
VERSION CE 1.4 EN
14
7. Legal requirements
According to European legislation, the vehicle described is a bicycle because the vehicle complies with the
following rules:
•From 6 Km/h, the support is only active when the user is pedaling.
•The support is active up to a maximum of 25 Km/h.
•The power supplied is a maximum of 250 watts.
According to Dutch law, the vehicle described is a bicycle because the vehicle has the following components:
•Two independent, functioning brakes.
•Headlight with white or yellow light & rear light with red light and a reflector.
•Wheel reflector and/or reflective tires and/or reflective rims.
•Pedals with yellow reflectors.
Environment
In accordance with the environmental regulations for the collection and processing of batteries of the Ministry
of Housing, Spatial Planning and the Environment, we recommend that you always return the battery to your
dealer or Shinga B.V. The latter is obliged to take in the battery and is responsible for further processing of the
battery.
Periodic maintenance and malfunctions
Your e-bike needs regular maintenance. Shinga B.V. or your dealer can advise you on the optimal use and
maintenance of your e-bike. If you have any questions or problems with your e-bike, please contact your
dealer or Shinga B.V.

CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL)
VERSION CE 1.4 EN
15
8. Technical specifications
•Dimensions unfolded (L x W x H): 165x60x108cm (20”) 170x60x108cm (24”)
•Dimensions folded (L x W x H): 88x40x72cm (20”) 92x40x80cm (24”)
•Frame: Aluminum
•Motor type: Rear wheel motor
•Motor voltage: 36V
•Motor power: 250W
•Sensor: Magnet rotation
•Battery type: Lithium-Ion polymer (heat-resistant cells)
•Battery specifications: 36V 10.4Ah | 13Ah | 17.5Ah
•Action radius: 30-120km (10.4Ah/13Ah/17.5Ah)
•Motor support: 9 levels
•Gears: Shimano 7-gears
•Maximum carrying load: 140 kg
•Gross weight: 23,5 kg (20”) 24.5 kg (24”)
•Net weight (excl. battery and seat): 19 kg (20”) 20 kg (24”)
•Wheelsize: 20 inch 24 inch
•Maximum speed: 25 km/h 25 km/h
Maintenance
We recommend the first service of your bicycle after 1000 km. After this we recommend every 2500 Km or
once per year. To extend the life of your bike, we recommend that you keep the chain and the derailleur clean
and lubricate your chain with chain oil once every 3 months.
The valves
The tires are equipped with a Blitz valve which can be inflated with a standard bicycle pump. A reducer fits on
this valve to go from a bicycle valve to a car valve.
Frame number
The frame number is located in the battery case and at the front of the frame. This is stamped in the paint just
above the front fork suspension.

CE ORIGINAL MANUAL LACROS AMBLING A200(XL)/A400(XL)
VERSION CE 1.4 EN
16
9. EC declaration
Supplier:
Technical Files:
Manufacturer:
SHINGA B.V.
NIEUWE EERDSEBAAN 16
5482 VS SCHIJNDEL
THE NETHERLANDS
VAN DEN OETELAAR (SHINGA B.V.)
NIEUWE EERDSEBAAN 16
5482 VS SCHIJNDEL
THE NETHERLANDS
SHINGA B.V.
NIEUWE EERDSEBAAN 16
5482 VS SCHIJNDEL
THE NETHERLANDS
Product: Electric folding bike
Model: JSL 039
Name: Lacros Ambling A200 (XL) / A400 (XL)
THIS E-BIKE IS MANUFACTURED ACCORDING AND IN APPLIANCE WITH EUROPEAN UNION GUIDELINES AND
REGULATIONS CONCERNING ELECTRIC BIKES WITH A MAXIMUM SPEED OF 25 KM/HOUR AND A MAXIMUM
MOTOR OUTPUT OF 250W
THE FOLLOWING “EN” (ISO) STANDARDS APPLY:
EN ISO 12100:2010; EN 15194:2009; EN 14764:2005; EN 349:1993+A1:2008; EN 953:1997+A1:2009; EN
13857:2008
EU GUIDELINES APPROVAL:
2006/42/EC MACHINERY DIRECTIVE; 2006/95/EC LOW VOLTAGE DIRECTIVE; 2004/108/EC ELECTROMAGNETIC
COMPATIBILITY DIRECTIVE
ELECTROMAGNETIC COMPATIBILITY DIRECTIVE (2014/30/EU), MACHINE DIRECTIVE (2006/42/EC)
EC EXECUTIVE BODY CERTIFICATION: ENTE CERTIFICAZIONE MACHINE S.R.L., VIA MINCIO 386, 41056
SAVIGNANO, ITALY; NOTIFIED BODY EC TYPE OF RESEARCH NUMBER: 1282
CERTIFICATE NUMBER: 111123/ZJV845
CERTIFICATE DATE: NOVEMBER 2011
