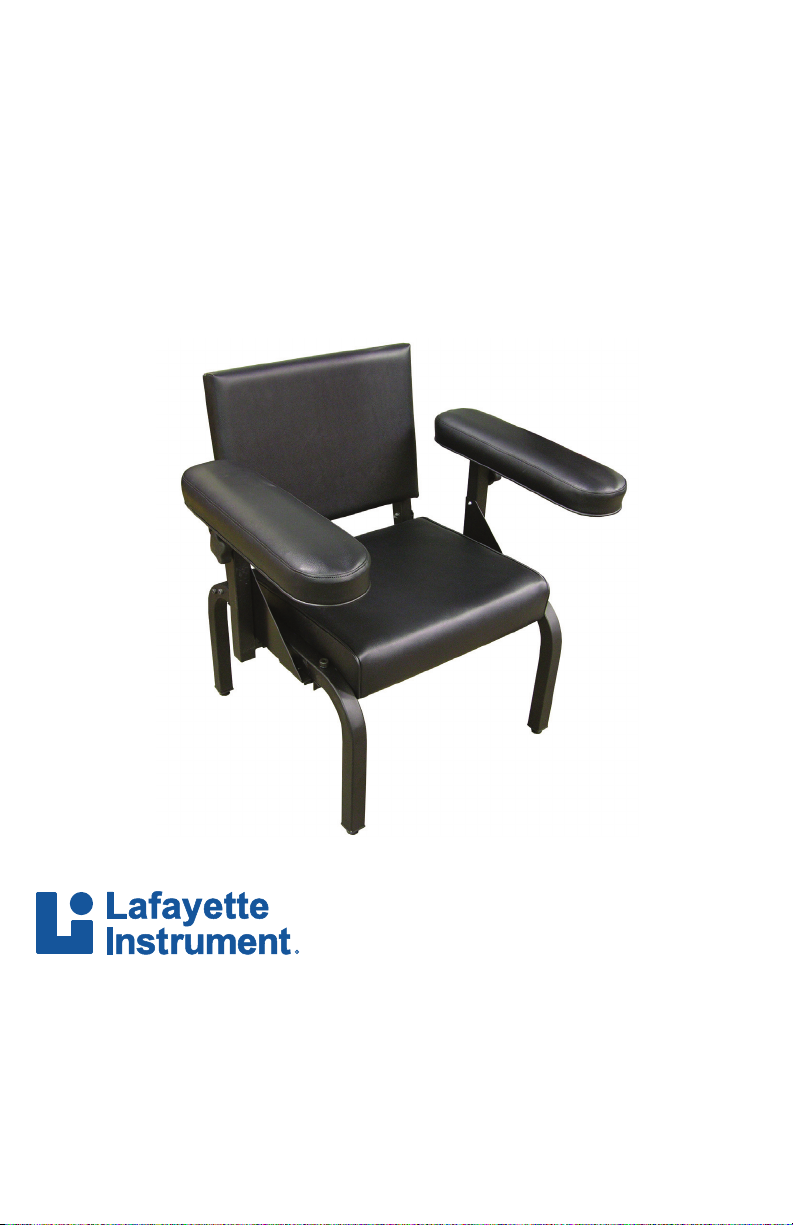

Models 76870
76870V
Adjustable Arm Subject’s Chair
Setup and User’s Manual
MAN436

3700 Sagamore Parkway North . Lafayette, IN 47904
Adjustable Arm Subject’s Chair

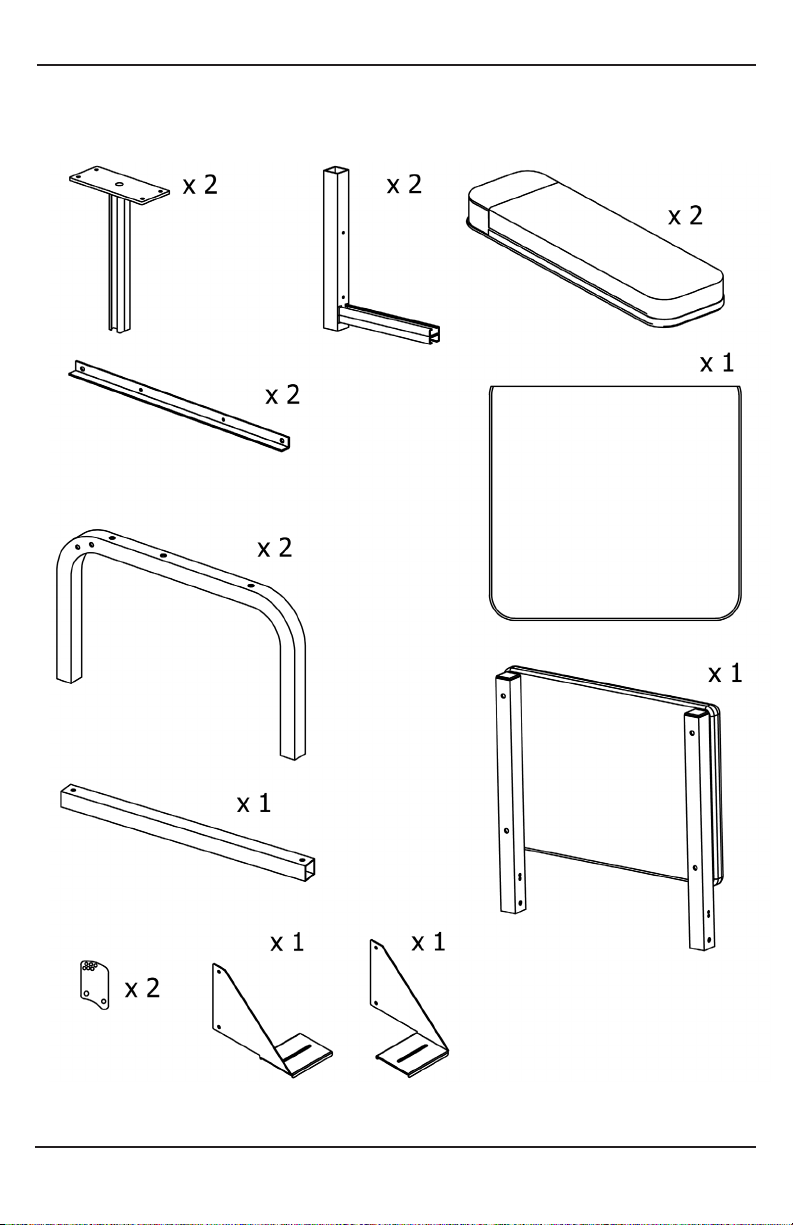

Parts Included (not actual size)
2

Phone: [phone] . [email protected]
Setup and User’s Manual

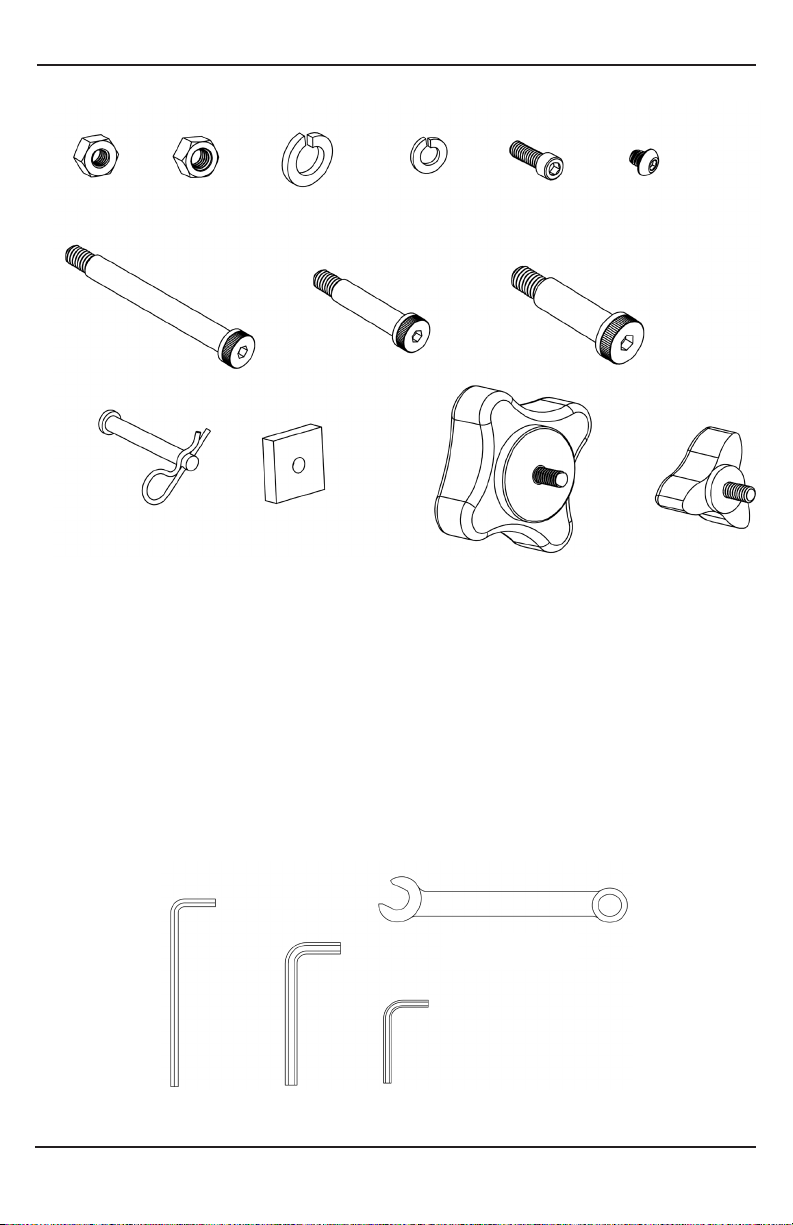

Tools Included (not actual size)
A. 5/16"-18 Heavy Hex Nut
B. 3/8"-16 Hex Nut
C. 1/2" Split Lock Washer
D. 5/16" Split Lock Washer
E. 1/4"-20 x 1" Socket Head Cap Screw
F. 1/4"-20 x 1/4" Button Head Socket Cap
Screw
G. 3/8" Shoulder x 3" Long, 5/16"-18 Thread
H. 3/8" Shoulder x 1-1/2" Long, 5/16" Thread
I. 1/2" Shoulder x 1-1/2" Long, 3/8"-16
Thread
J. 1/4" Diameter x 2" Clevis and Cotter Pin
M. 1" Square Nut, 1/4"-20 Thread
N. 3" Rubber Knob, 1/4"-20 Stud
P. 1-3/4" Knob, 1/4"-20 x 1/2" Stud
Part A: qty 4 Part B: qty 6 Part C: qty 6 Part D: qty 4 Part E: qty 12 Part F: qty 4
Part G: qty 2 Part H: qty 2 Part I: qty 6
Part J: qty 2 Part M: qty 4
Part N: qty 2
Part P: qty 4
3/16” Hex Key 1/4” Hex Key 5/32” Hex Key
9/16” Wrench
3

3700 Sagamore Parkway North . Lafayette, IN 47904
Adjustable Arm Subject’s Chair

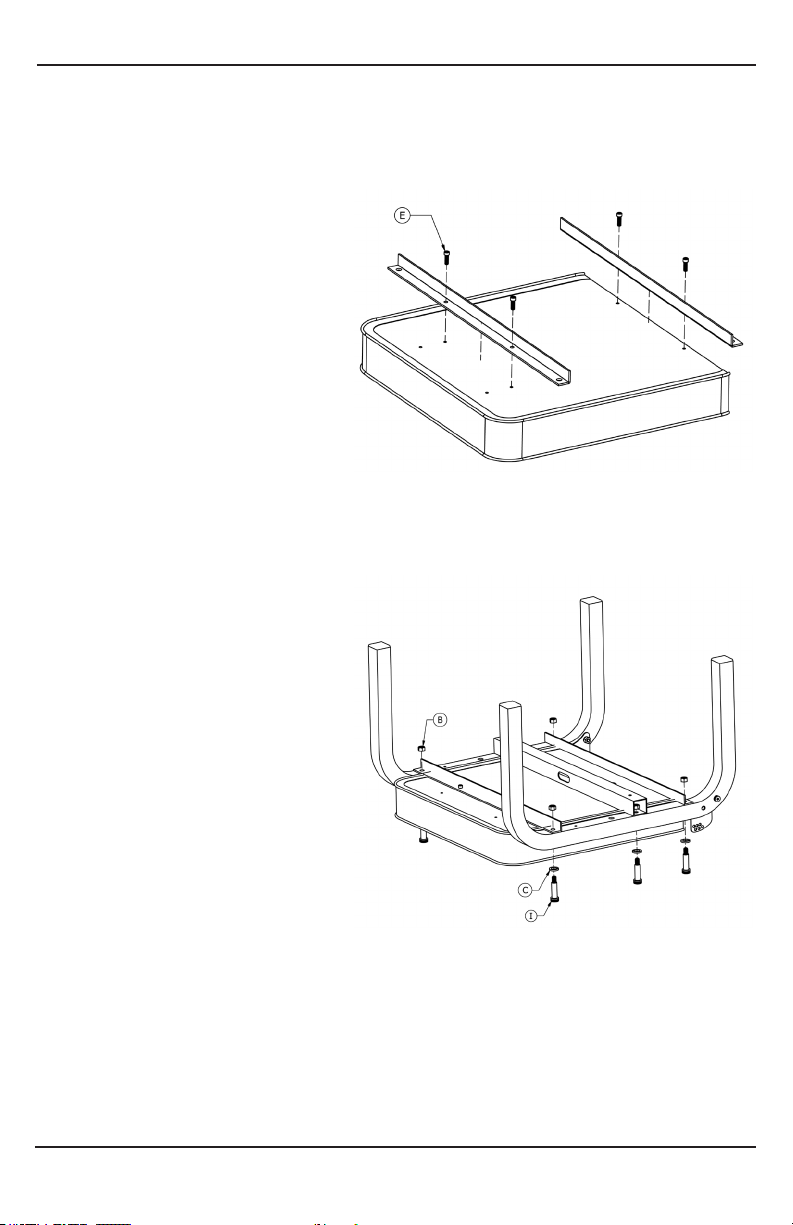

Step 1
Required
• Part E: qty 4
• 3/16" Hex Key
1. Attach the angles to the seat
as shown. Do not tighten
completely.
Step 2
Required
• Part B: qty 6
• Part C: qty 6
• Part I: qty 6
• 9/16" Wrench
• 1/4" Hex Key
2. Place the seat cushion upside
downontheoor.
3. Attach the seat cushion to the
angle brackets. Make sure the
thicker portion is furthest away
from the two holes in the sides
of the legs.
4. Attach the angle brackets and
tube to the legs. Do not tighten
completely.
Setup Instructions
4

Phone: [phone] . [email protected]
Setup and User’s Manual

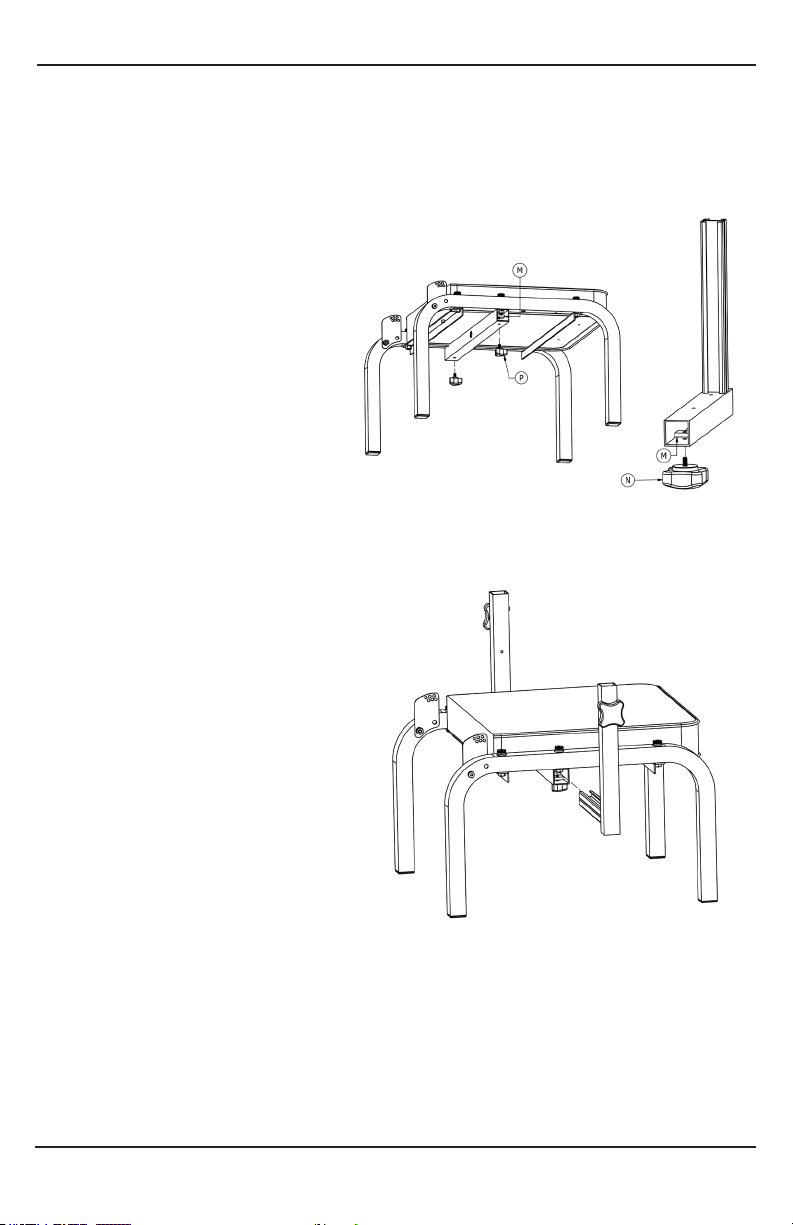

Step 3
Required
• Part M: qty 4
• Part N: qty 2
• Part P: qty 2
5. Attach the square nuts to the
handles as shown. The large
handle goes on the L shaped
piece. Do not tighten the
handles.
Step 4
6. Gently slide the channel into
the tube and tighten the
handle.
5

3700 Sagamore Parkway North . Lafayette, IN 47904
Adjustable Arm Subject’s Chair

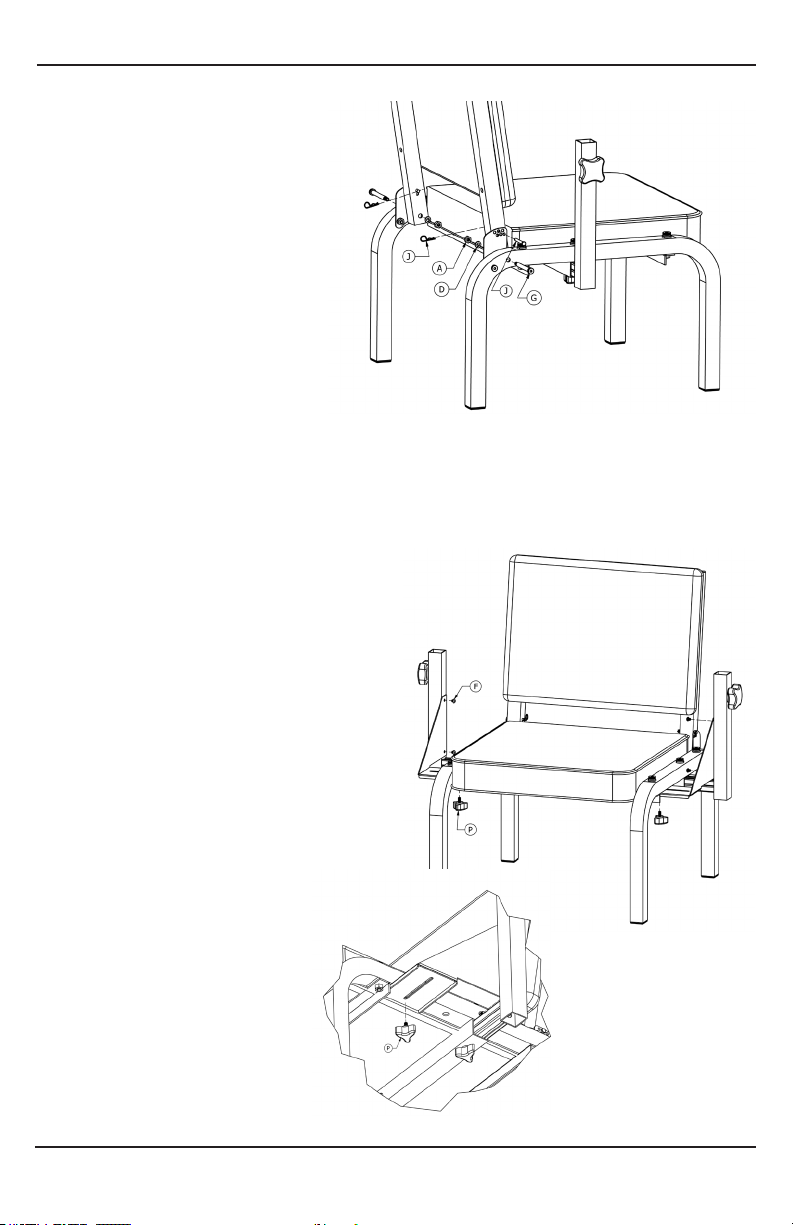

Step 5
Required
• Part A: qty 2
• Part D: qty 2
• Part J: qty 2
• 9/16” Wrench
• 3/16” Hex Key
7. Attach the back piece as
shown. Put the clevis pin
through the plate and back
tube and secure in place with
the cotter pin.
8. Make sure that everything is
straight and tighten everything
down from previous steps.
Step 6
Required
• Part P: qty 2
• Part F: qty 4
• 5/32” Hex Key
9. Slide out the arms
approximately as shown and
attach the support plate with
the screws and the small
handles.
6

Phone: [phone] . [email protected]
Setup and User’s Manual

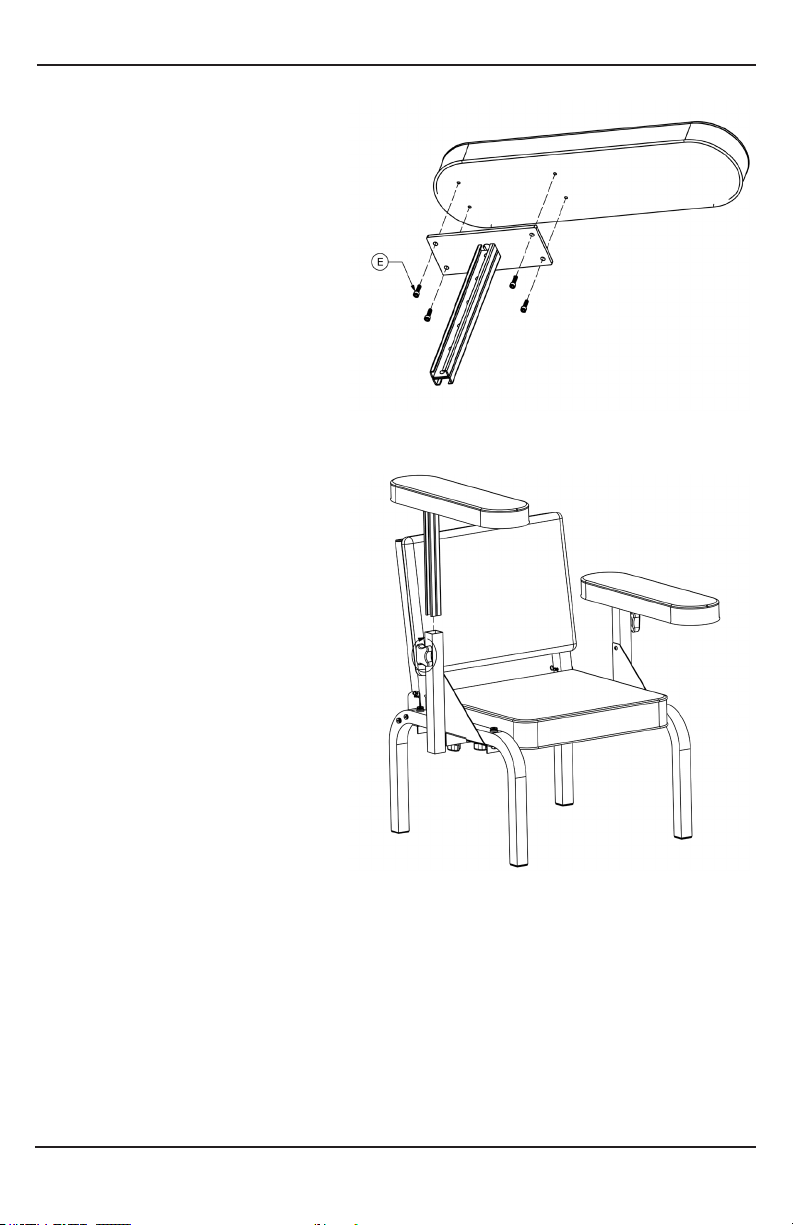

Step 7
Required
• Part E: qty 8
• 3/16” Hex Key
10. Attach the arm cushions to
the plates.
11. Slide the arms into the arm
support tubes as shown.
Turn the knob clockwise to
tighten into place at desired
height. The knobs only need
to be loosened a little bit to
reposition the arms.
WARNING: Always hold onto the
arm cushions when loosening the
height adjustment handle to avoid
injury.
7

3700 Sagamore Parkway North . Lafayette, IN 47904
Adjustable Arm Subject’s Chair
