Model 76871VA User’s Manual
© 2002 by Lafayette Instrument Company, Inc. All Rights Reserved- Rel. 6.16.08
3700 Sagamore Parkway North
P.O. Box 5729 • Lafayette, IN 47903 USA
Tel: [phone] • 800.428.7545
Fax: [phone]
E-mail: [email protected]
www.lafayetteinstrument.com
Model 76871VA
Model 76871VAS
Model 76871VASF
Model 76871VS
Model 76871VSF
Model 76871VAF
Model 76871VF
SUBJECT’S CHAIR w/ ACTIVITY SENSORS
SET UP and USER’S MANUAL

3700 Sagamore Parkway North . PO Box 5729 . Lafayette, IN 47903 USA . Ph: 765-423-1505 Fax: [phone] . www.lafayetteinstrument.com . E-mail: [email protected]
Lafayette Instrument Subject’s Chair w/ Activity Sensor
3700 Sagamore Parkway North . PO Box 5729 . Lafayette, IN 47903 USA . Ph: 765-423-1505 Fax: [phone] . www.lafayetteinstrument.com . E-mail: [email protected]
2
Chair Assembly: 4
Sensor Installation and Set Up: 6
76871VS / VSF / VAS / VASF Seat Sensor Setup: 8
76871VA / VAS / VAF / VASF Arm Sensor Setup: 9
76871VF / VAF / VSF / VASF Feet Sensor Setup: 10
Ordering Information: 12
Table of Contents:

3700 Sagamore Parkway North . PO Box 5729 . Lafayette, IN 47903 USA . Ph: 765-423-1505 Fax: [phone] . www.lafayetteinstrument.com . E-mail: [email protected]
3700 Sagamore Parkway North . PO Box 5729 . Lafayette, IN 47903 USA . Ph: 765-423-1505 Fax: [phone] . www.lafayetteinstrument.com . E-mail: [email protected]
Model 76871VA User’s Manual
3

3700 Sagamore Parkway North . PO Box 5729 . Lafayette, IN 47903 USA . Ph: 765-423-1505 Fax: [phone] . www.lafayetteinstrument.com . E-mail: [email protected]
Lafayette Instrument Subject’s Chair w/ Activity Sensor
3700 Sagamore Parkway North . PO Box 5729 . Lafayette, IN 47903 USA . Ph: 765-423-1505 Fax: [phone] . www.lafayetteinstrument.com . E-mail: [email protected]
4
ASSEMBLY:
1) Attach the Right and Left Arm Assemblies
(3,4) to the Seat Assembly (1) using the 1/4-20
x 3/4 Socket Screws (9), 1/4-20 Split Washers
(10), and 5/16 Flat Washers (6) with the
supplied Allen wrench. See Figure 1.
2) Attach the Back Rest Assembly (2) to
the Seat Assembly (1) using the 1/4-20
x 1 1/2 Hex Bolts (5), 5/16 Flat Washers
(6), Bronze Bushings (7), and 1/4-20 Hex
Nuts (8). See Detail A.
3) Adjust the Back Rest to the desired position
and secure with the Locking Pins on the Right and
Left Arm Assemblies. See Figure 2 (next page).
Item # Description Qty.
1 Seat Assembly 1
2 Back Rest Assembly 1
3 Right Arm Assembly 1
4 Left Arm Assembly 1
5 1/4-20 x 1 1/2 Hex Bolt 2
6 5/16 Steel Washer 12
7 Bronze Bushing 2
8 1/4-20 Hex Nut 2
9 1/4-20 x 3/4 Socket Screw 8
10 1/4 Split Washer 8
11 Leveling Mount Feet 4

3700 Sagamore Parkway North . PO Box 5729 . Lafayette, IN 47903 USA . Ph: 765-423-1505 Fax: [phone] . www.lafayetteinstrument.com . E-mail: [email protected]
3700 Sagamore Parkway North . PO Box 5729 . Lafayette, IN 47903 USA . Ph: 765-423-1505 Fax: [phone] . www.lafayetteinstrument.com . E-mail: [email protected]
Model 76871VA User’s Manual
5
Item # Description Qty.
1 Seat Assembly 1
2 Back Rest Assembly 1
3 Right Arm Assembly 1
4 Left Arm Assembly 1
5 1/4-20 x 1 1/2 Hex Bolt 2
6 5/16 Steel Washer 12
7 Bronze Bushing 2
8 1/4-20 Hex Nut 2
9 1/4-20 x 3/4 Socket Screw 8
10 1/4 Split Washer 8
11 Leveling Mount Feet 4

3700 Sagamore Parkway North . PO Box 5729 . Lafayette, IN 47903 USA . Ph: 765-423-1505 Fax: [phone] . www.lafayetteinstrument.com . E-mail: [email protected]
Lafayette Instrument Subject’s Chair w/ Activity Sensor
3700 Sagamore Parkway North . PO Box 5729 . Lafayette, IN 47903 USA . Ph: 765-423-1505 Fax: [phone] . www.lafayetteinstrument.com . E-mail: [email protected]
6
SENSOR INSTALLATION AND SETUP
INSTALLATION:
1) If you have purchased your chair and sensors separately,
you must first install your activity sensors. If purchased
together, your sensors are already installed; proceed to the
Setup instructions on page (next page).

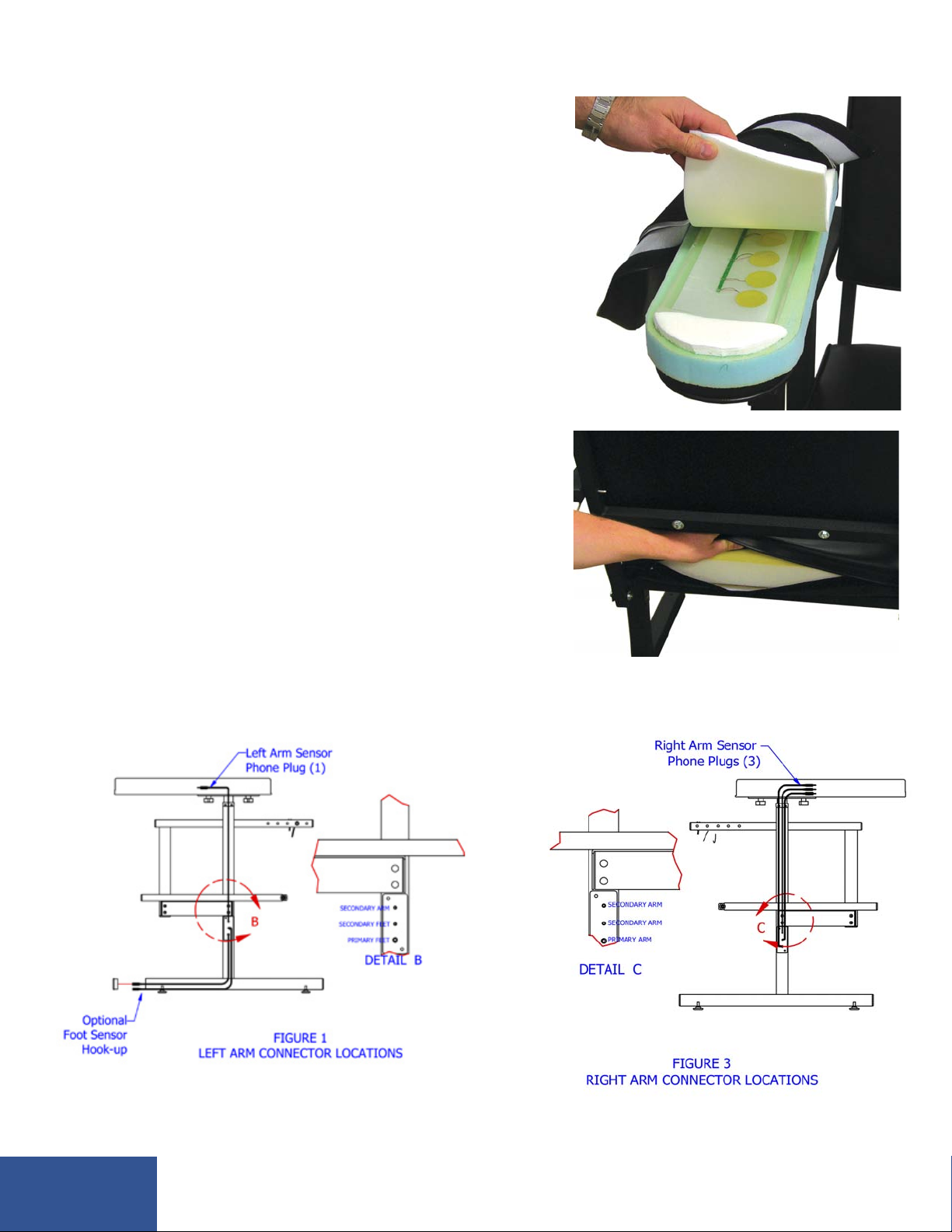

2) To install the arm cushions, peel back the arm cover and
remove the foam insert, connect the phone plugs to the jacks
inside the sensor pouch. Place the sensor into the cushion,
and close the cover. See Figures 1, 3, & 4.
3) To install the seat cushion, open the Velcro closure on the
rear of the cushion, remove the foam insert and replace with
the sensor so that the sensor cable is toward the back of the
chair. Push the sensor cable through the hole in bottom of
the seat and secure with the cable tie beneath the seat. See
Figures 2 & 4.

3700 Sagamore Parkway North . PO Box 5729 . Lafayette, IN 47903 USA . Ph: 765-423-1505 Fax: [phone] . www.lafayetteinstrument.com . E-mail: [email protected]
3700 Sagamore Parkway North . PO Box 5729 . Lafayette, IN 47903 USA . Ph: 765-423-1505 Fax: [phone] . www.lafayetteinstrument.com . E-mail: [email protected]
Model 76871VA User’s Manual
7
SETUP:
1) If using the arm sensors, the arms must
be joined together to function. Use the
Jumper Cable (1) supplied with the chair to
connect the Secondary Arm connector on
the Right Arm Assembly to the Secondary
Arm connector on the Left Arm Assembly.
See Details B and C. Use the two adhesive
backed cable guides to restrain the cable
beneath the seat cushion. See Figure 2.
2) Refer to the Activity Sensor Pad
User’s Manual for detailed instructions on
connecting the sensors to your Polygraph.
Item # Description Qty.
1 Arm Sensor Jumper Cable 1
2 Adhesive Backed Cable Tie 2

3700 Sagamore Parkway North . PO Box 5729 . Lafayette, IN 47903 USA . Ph: 765-423-1505 Fax: [phone] . www.lafayetteinstrument.com . E-mail: [email protected]
Lafayette Instrument Subject’s Chair w/ Activity Sensor
3700 Sagamore Parkway North . PO Box 5729 . Lafayette, IN 47903 USA . Ph: 765-423-1505 Fax: [phone] . www.lafayetteinstrument.com . E-mail: [email protected]
8
76871VS / VSF / VAS / VASF Sensor Setup:
Seat only - Connect only the connections shown in red
Seat add Feet - Connect the connections shown in red and blue
Seat add Arms - Connect the connections shown in red and yellow
Seat add Arms add Feet - Connect the connections shown in red, blue, and yellow
*If using portable foot sensor 76878FS, connect to seat sensor wiring harness in place of blue connection

3700 Sagamore Parkway North . PO Box 5729 . Lafayette, IN 47903 USA . Ph: 765-423-1505 Fax: [phone] . www.lafayetteinstrument.com . E-mail: [email protected]
3700 Sagamore Parkway North . PO Box 5729 . Lafayette, IN 47903 USA . Ph: 765-423-1505 Fax: [phone] . www.lafayetteinstrument.com . E-mail: [email protected]
Model 76871VA User’s Manual
9

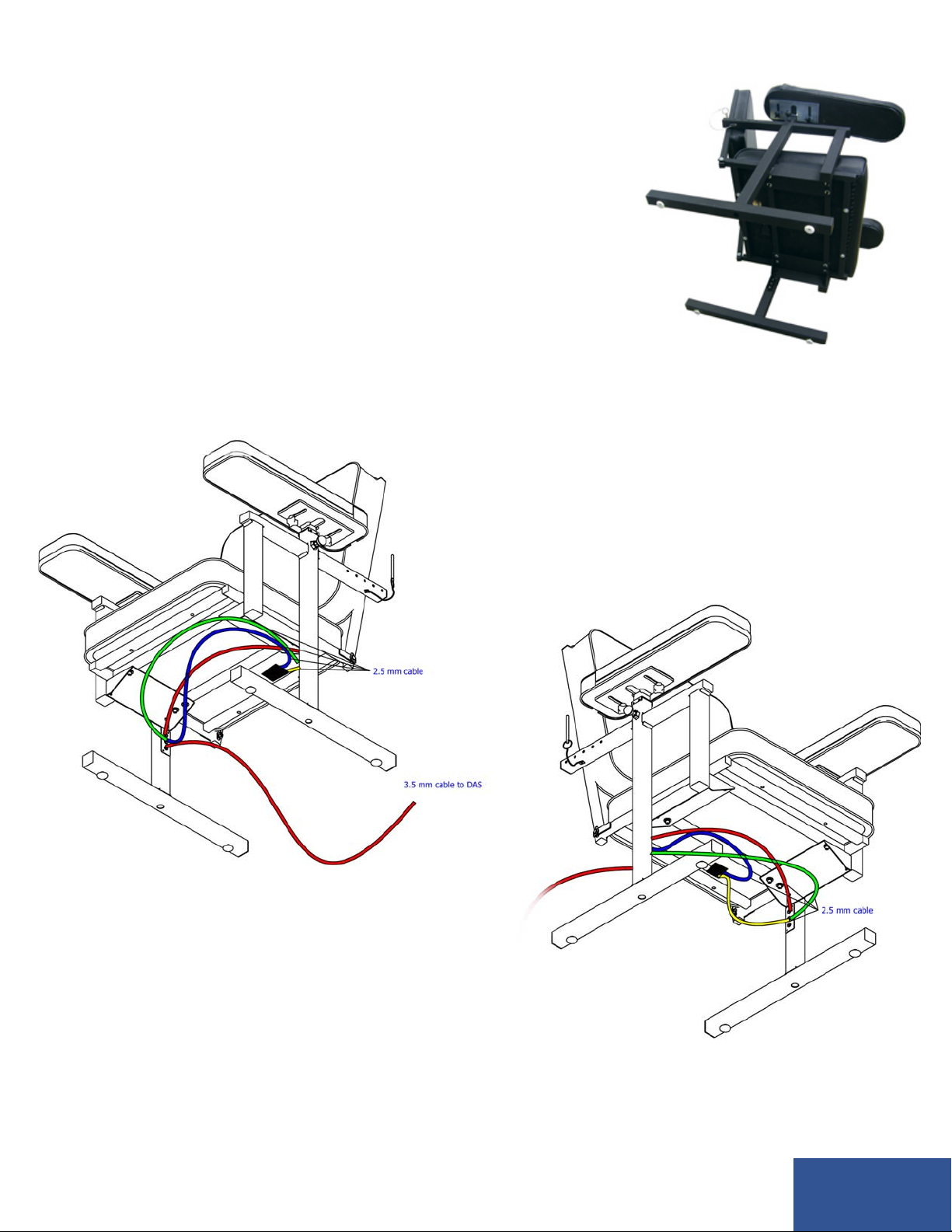

76871VA / VAS / VAF / VASF Sensor Setup:
Arms only - Connect only the connections shown in red
Arms add Seat - Connect the connections shown in red and blue
Arms add Feet - Connect the connections shown in red and green
Arms add Seat add Feet - Connect the connections shown in red, blue, and yellow
*If using portable foot sensor 76878FS, connect to chair in place of yellow connection

3700 Sagamore Parkway North . PO Box 5729 . Lafayette, IN 47903 USA . Ph: 765-423-1505 Fax: [phone] . www.lafayetteinstrument.com . E-mail: [email protected]
Lafayette Instrument Subject’s Chair w/ Activity Sensor
3700 Sagamore Parkway North . PO Box 5729 . Lafayette, IN 47903 USA . Ph: 765-423-1505 Fax: [phone] . www.lafayetteinstrument.com . E-mail: [email protected]
10
76871VF / VAF / VSF / VASF Sensor Setup:
Feet only - Connect only the connections shown in red
Feet add Arms - Connect the connections shown in red, black, and blue
Feet add Seat - Connect the connections shown in red and green
Feet add Seat add Arms - Connect the connections shown in red, black, and yellow

3700 Sagamore Parkway North . PO Box 5729 . Lafayette, IN 47903 USA . Ph: 765-423-1505 Fax: [phone] . www.lafayetteinstrument.com . E-mail: [email protected]
3700 Sagamore Parkway North . PO Box 5729 . Lafayette, IN 47903 USA . Ph: 765-423-1505 Fax: [phone] . www.lafayetteinstrument.com . E-mail: [email protected]
Model 76871VA User’s Manual
11
notes:

3700 Sagamore Parkway North . PO Box 5729 . Lafayette, IN 47903 USA . Ph: 765-423-1505 Fax: [phone] . www.lafayetteinstrument.com . E-mail: [email protected]
Lafayette Instrument Subject’s Chair w/ Activity Sensor
3700 Sagamore Parkway North
P.O. Box 5729 • Lafayette, IN 47903 USA
Tel: [phone] • 800.428.7545
Fax: [phone]
E-mail: [email protected]
www.lafayetteinstrument.com
Ordering Information:
All phone orders must be accompanied by a hard copy of
your order. All must include the following information:
1) Complete billing and shipping addresses
2) Name and department of end user
3) Model number and description of desired item(s)
4) Quantity of each item desired
5) Purchase order number or method of payment
6) Telephone number
DOMESTIC TERMS
There is a $50 minimum order. Open accounts can be ex-
tended to most recognized educational institutions, hospitals
and government agencies. Net amount due 30 days from the
date of shipment. Enclose payment with the order; charge with
VISA, MasterCard; or pay COD. We must have a hard copy
of your order by mail or fax. Students, individuals and private
companies may call for a credit application.
INTERNATIONAL PAYMENT INFORMATION
There is a $50 minimum order. Payment must be made in
advance by: draft drawn on a major US bank; wire transfer
to our account; charge with VISA, MasterCard; or confirmed
irrevocable letter of credit. Proforma invoices will be provided
upon request.
RETURNS
Equipment may not be returned without first receiving a
Return Goods Authorization Number (RGA).
When returning equipment for service, please call Lafayette
Instrument to receive a RGA number. Your RGA number will
be good for 30 days. Address the shipment to: Lafayette Instru-
ment Company, 3700 Sagamore Parkway North, Lafayette, IN
47904, U.S.A. Shipments cannot be received at the PO Box.
The items should be packed well, insured for full value, and
returned along with a cover letter explaining the malfunction.
Please also state the name of the Lafayette Instrument repre-
sentative authorizing the return. An estimate of repair will be
given prior to completion ONLY if requested in your enclosed
cover letter. We must have a hard copy of your purchase order
by mail or fax, or repair work cannot commence.
WARRANTY
Lafayette Instrument guarantees its equipment against all defects
in materials and workmanship to the ORIGINAL PURCHASER
for a period of one (1) year from the date of shipment, unless
otherwise stated. During this period, Lafayette Instrument
will repair or replace, at its option, any equipment found to
be defective in materials or workmanship. If a problem arises,
please contact our office for prior authorization before returning
the item. This warranty does not extend to damaged equipment
resulting from alteration, misuse, negligence or abuse, normal
wear or accident. In no event shall Lafayette Instrument be liable
for incidental or consequential damages. There are no implied
warranties or merchantability of fitness for a particular use, or
of any other nature. Warranty period for repairs or used equip-
ment purchased from Lafayette Instrument is 90 days.
DAMAGED GOODS
Damaged equipment should not be returned to Lafayette
Instrument prior to thorough inspection.
When a shipment arrives damaged, note damage on delivery
bill and have the driver sign it to acknowledge the damage.
Contact the delivery service, and they will file an insurance
claim. When damage is not detected at the time of delivery,
contact the carrier and request an inspection within 10 days
of the original delivery. Please call the Lafayette Instrument
Customer Service Department for a return authorization for
repair or replacement of the damaged merchandise.
