laguna SmartShop II SUV User manual

SSII SUV MANUAL
LAGUNA TOOLS
2072 Alton Parkway
Irvine, California 92606
Ph: 800.234.1976
www.lagunatools.com © 2018, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.

SmartShop® II SUV
2)
3) Set-up Menu Screen Flow
4) Main / Home Screen Defined
7) Jog Screen Defined
12) Program Preview Screen
13) Setup Screen Menu
14) Program Manager
16) CNC Tool Data
18) G-code Editor
19) Machine
21) Set-up / Networking Screen
22) Alarm Screens

2

3

4
Main / Home screen defined:
Above is the Start-up Home screen.
Park Tool = Pressing this button will put the active tool in
spindle into its tool holder and leave the spindle empty. You
should never leave a tool in spindle when machine is Idle.
Leaving a tool in spindle will cause rust and damage to tool
holder and or spindle.
Verify Origin = Pressing this button will move the machine to
whatever ZPO is selected on the Jog screen, G54-G59.

5
Hold = The Hold button is used to Pause a program run. Press
the Run button to continue. NOTE: The spindle stays running
during hold. Press stop button to stop the spindle and
program.
Run = The Run button is used to start a CNC Program.
Preview Program = This button will open a visual
representation of the active program in X and Y axis and
provide a estimated run time.
Settings = The settings button enters the Over ride / MDI
screen. This is also accessible from the set-up menu screen
under CNC Settings.
Right side fields defined:
Select Program drop down window = This field allows you to
quickly select a program from the files copied to the controllers
memory.
Active Tool = This references the current tool in spindle.
Feedrate = This shows the current federate as dictated by the
active program.
Spindle RPM = This shows the current spindle speed.
Start at Block = This is the run from line number function. With
the machine in a Stopped state input the line in which you
would like to start from and press the Run button.

6
Start at Tool = This field allows the program to jump to a
specific tool for it’s starting point. Input the tool number
desired then press run. There will be a slight delay while the
code is scanned to the requested starting point.
Coord’s selector/Lower right drop down = This is the selector
for the X,Y, and Z coordinates displayed at the bottom of the
Main page.
Machine coordinates – These are the actual distances from
machine Zero.
Relative coordinates – These are resettable to zero from
current position and equate to a digital tape measure function.
ZPO coordinates – These are based on the G54-G59 set and
selected from the Jog screen.
CNC Monitor = These 5 lines are displaying the CNC G-code as it
is running.

7
Jog screen defined:
Jog past Y safe = This button is used for maintenance and repair
issues only. There is no operator function for this.
Dust hood Up/Down = This button is used to manually retract
or extend the dust hood.
Teach Tool Length = This button is used to manually set tool
length for the active tool. This is handy on the jog page so you
don’t have to toggle to the tools page while manually jogging to
a Z reference.

8
Teach ZPO = This button will write the current X and Y locations
to the Zero Point Offset selected from the upper right field G54-
G59.
Reset Relative Coord’s Display = This button resets the Relative
position of X and Y to Zero. Use would be a digital tape
measure.
Disable Switch Limits = This button is used for maintenance
and repair issues only. There is no operator function for this.
Jogging Functions = There are 3 settings for Jogging.
1st – Select the Jog type, Either Continuous Jog or a Step jog at a
specified increment.
2nd – For continuous Jog, select the percentage of the max
speed set in the controller. If max speed is 1000 ipm then 50%
Jog speed will move the Axis at 500 ipm.
3rd – For step jog select the step size you wish to increment jog
at for each push of the jog + or – button.
Use the + and or – button to move the axis forward or back.
Tool Touch Sensor Input = This is an indicator to verify the Tool
Touch Off (TTO) switch is working properly.

9
Settings / Over Ride Screen defined:
Enter the Settings page from the Settings button in the lower
left of the Main screen or from the CNC settings button on the
Set-up menu screen.
or
Over rides = This screen allows for the adjustment of the Rapid
Feed rate, Cutting feed rate and the spindle RPM. You can
adjust all three with a percentage above or below the set
parameters while the program is running.

10
MDI field = Manual Data Input is for executing a single line of
code at a time or a M code. Simply input the desired function
and press Execute Command to activate.
Feed Rate Field = This field displays the programmed feed rate
in the G code.
Spindle On/Off Delay = This is used to force an On and Off
delay in the control of the spindle. This is in lieu of a
programmed delay or used as an additional delay to the
programmed ramp up and down.
Max Spindle Speed = This field must match the maximum
speed you speed can rotate. This is only used if your factory
spindle is replaced with a different top speed.
Enable Control Blocks = This is function for higher end users
that want to use control blocks such as shown below:

11
Enable Optional Stop = This Button enables a M0 to cause a
program pause for additional operations or jigging during a
program run. Pressing Run Button on the Main screen restarts
the program from the pause. With this Button off the M0 is
ignored.
DRO display = The Digital Read Out’s at the bottom of this
screen reference the current machine coordinates for X,Y, and
Z.
Stop = This button cancels the program currently running.
Advanced = This can only be accessed by use of a password and
is used by technicians to perform Servo tuning adjustments.
There are no user functions here.

12
Program Preview screen: This screen will pre-run the selected
G-code and give a X and Y graphical representation of the
program as shown below.

13
The following screens are accessible from the Setup Screen
Menu. See page 3 for screen flow chart.

14
Program Manager: This screen is used for the
managing the programs within your controller.
User Tab – This is used to display the various folders within the
controller.
Programs Tab – This displays the programs within a specified
folder.
USB Tab – This displays the programs from a USB stick when
inserted into the control cabinet.

15
Copying programs to the controller = A program must be
selectable from the Programs Tab in order to be made active.
Use the User Tab to select a folder containing programs
transferred over a network with FileZilla or use the USB tab to
select from a flash drive. Highlight a program and press the
copy button. Then open the Programs tab and select an empty
field. Press the paste button to insert the G-code into the
program folder for active selection.
The following buttons are standard file manager functions just
like those used in P.C.’s.
Rename, Create directory, Copy, Cut, Paste, and Delete do
exacting what they say.
Refresh = This buttons polls the program storage area and
brings the list up to a real time reference.
Multiselect = This button allows the selection of multiple
programs for pasting into another location or deleting.

16
Tools screen: This page is used for all data regarding Tooling
dimensions and offsets.
Access button:
Tool selection Drop down field = Use this to select the tool in
which you wish to manipulate. The tool number displayed
propagates the fields below with its current data and allows for
full manual adjustments if needed.
Tool Length field = This represents the distance from Z home to
the end of the cutter. This can be propagated by the automatic
touch off routine, manually set with data entry or taught By
Teach tool button followed by Set tool Data Button.

17
Execute Automatic Touch Off (TTO) = Select the tool in which
needs to be measured and press The Execute button. The
machine will gather the correct tool holder and proceed to the
TTO switch. Z will rapid to the Z pre dimension in the machine
settings then slow until it finds the switch.
Manual Setting of Tool length = Use the Jog function to move
the cutter to the table or work surface. Press the Teach Tool
Length button to measure the Z axis distance. Press Set Tool
Data to write the measurement to the machine settings.
Failure to press the Set Tool Data will lose the measured value.
Set Tool in Spindle = This field allows for the manual
adjustment of the active tool physically in the spindle. If you
manually swap tool cones around you must update the
machine so the active tool is properly represented.
Tool Touch Sensor Input = This is an indicator to verify the Tool
Touch Off (TTO) switch is working properly.

18
This screen has the tools to check a G-code
program and give the ability to manually edit said G-code on
the machine.
Check Code = This button will a program test by pre-running
the code. This will check that the code can be run within the
machine limits and ZPO.
Code Editing = Use the arrow keys and associated buttons to
perform quick code edits on the machine.

19

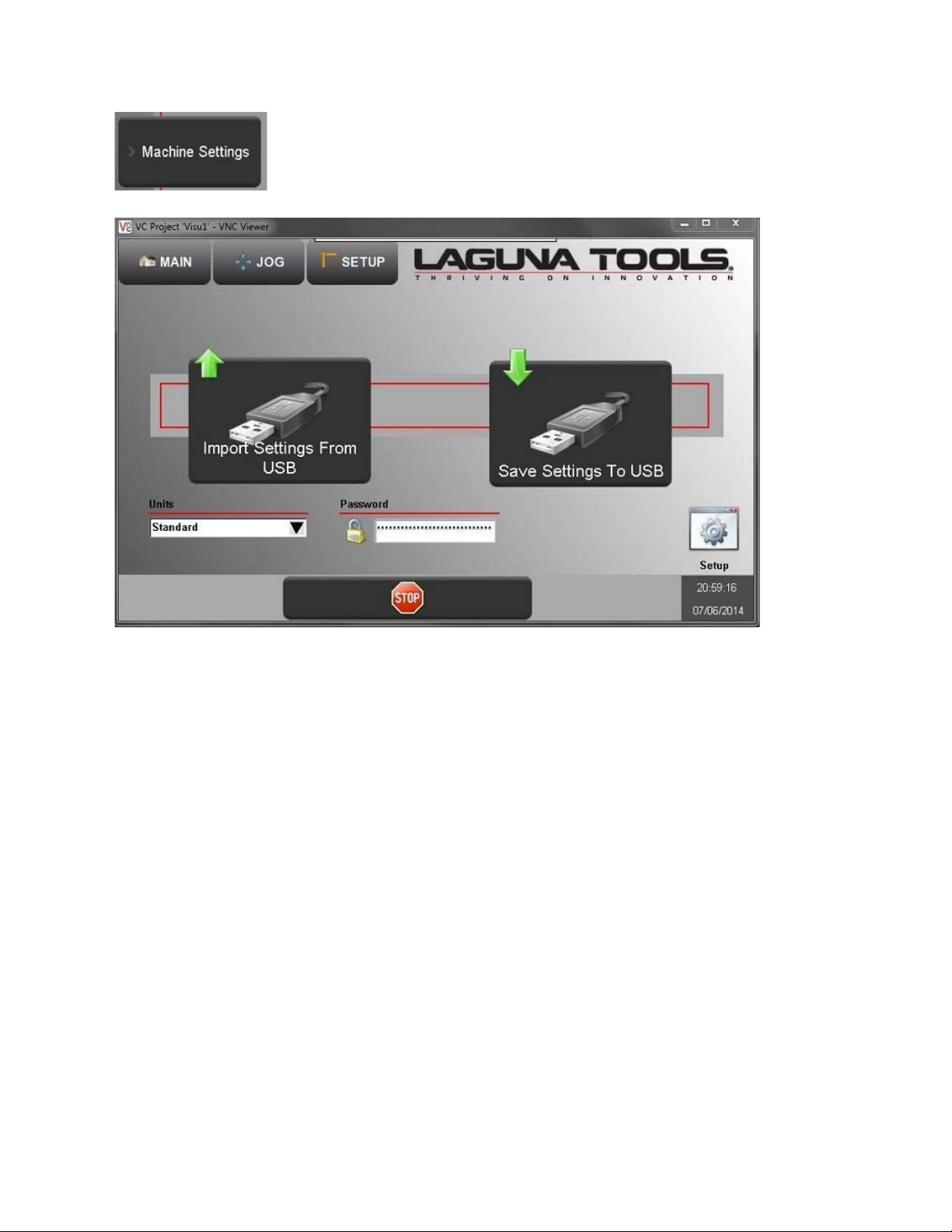

Machine settings screen:
This screen is to manage the machine settings. These settings
consist of the calibration, Tool changer locations, and machines
limits. Pressing the Save to CF button will write a copy of the
machine settings to the controller’s memory.
Pressing Save Settings to USB is recommended so a hard copy
of machine settings is available if service requires them to re-
initialize the system. This is also very handy for or service
people so your machine can be exactly replicated in our shop
for troubleshooting.
