Lakes Bathrooms COASTLINE LEVANZO Cannes Installation and operating instructions

COASTLINE LEVANZO Hinged Bypass Panel
Installation / Maintenance Instructions

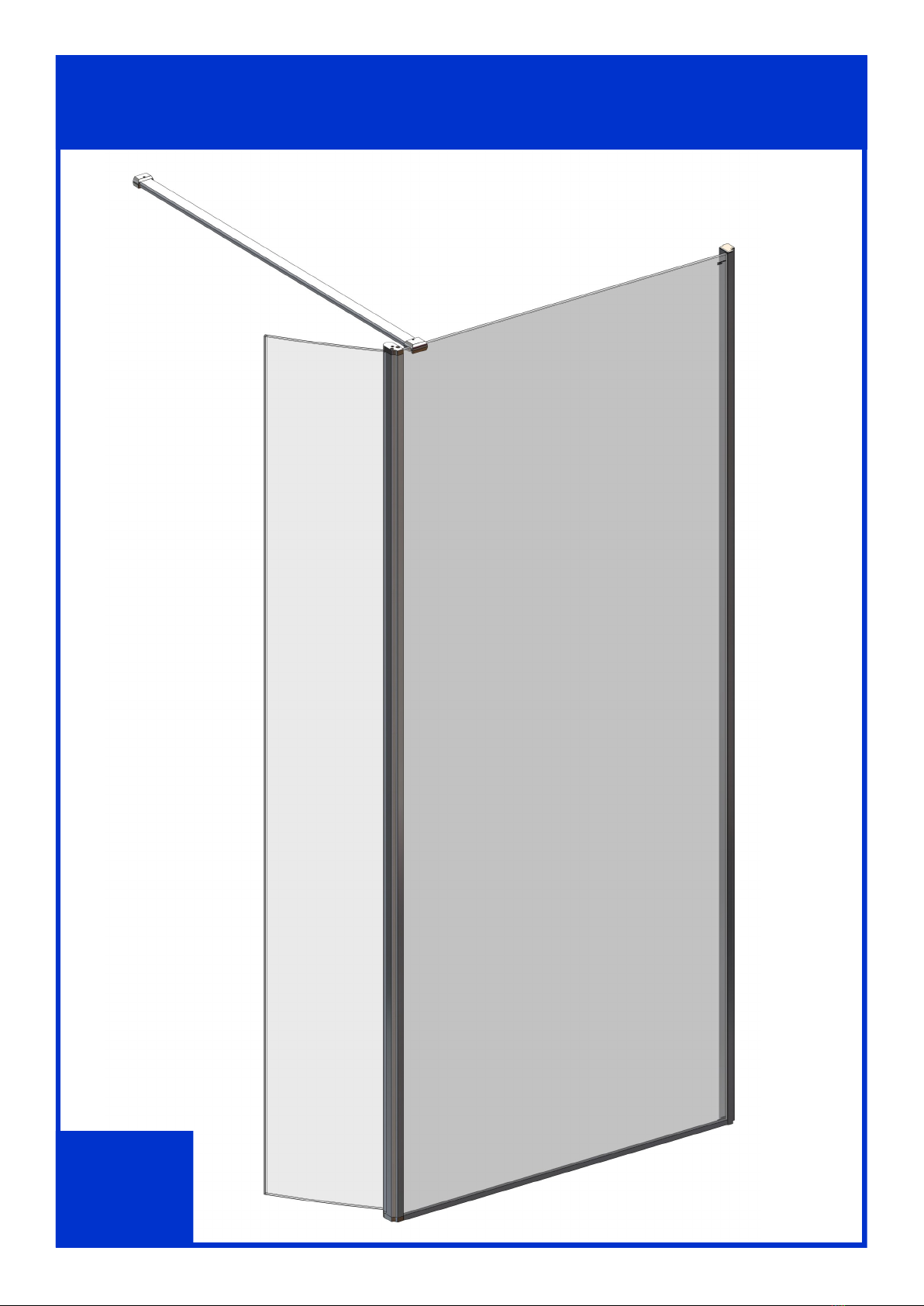

Typical application, (Cannes) shown.
May also be used with Marseilles & Riviera *
Rev 01.16
Lakes
Bathrooms

IMPORTANT NOTES :
Please Read Carefully & retain these instructions for Future Reference.
1. For ease & safety we advise that two persons assemble this product.
2. Protect shower tray surfaces at all times.
3. Exposed glass corners / edges MUST NOT contact hard surfaces at any time.
4. Check for cables, pipes etc before drilling walls.
5. Ensure all surfaces are dry, clean & free of loose debris / dust.
6. Unpack goods with care (small parts can become lodged in packaging & inadvertently discarded).
Check parts supplied against parts & ttings listed herein. Damaged parts / omissions may be
resolved by calling Lakes Bathrooms Helpline.
7. Whilst precautions are taken in manufacture, care must be taken when handling as rail ends may
have sharp edges.
8. Before commencing, check :
a) shower tray (if used) is level & completely sealed to nished / tiled walls.
b) nished walls are sound & free of cracks, loose tiles / grout.
8. AFTER INSTALLATION, DO NOT ‘WET’ ENCLOSURE FOR 48 HOURS TO ENSURE FULL CURE OF
SILICONE SEALANT.
USE :
General Care & Maintenance.
Provided this product is installed & operated in accordance with these instructions, problems should
not arise. However should maintenance be required it should be carried out by a competent person
with reference to these instructions. Before any work is carried out the root cause of the problem
must be identied. Lakes Bathrooms service engineers are available if necessary to consult / carry out
remedial work. Call Lakes Bathrooms HELPLINE.
Cleaning.
(Every one to two weeks depending on local water {hardness} conditions).
All glass panels in this product have a hydrophobic coating aiding ‘runoff’ of water droplets, reducing
the need for frequent cleaning. For best appearance / product life however, regular cleaning is
recommended.
Use ONLY mild soap / detergent solutions to clean. Rinse with water, squeegee glass panels & wipe
frames dry with a soft cloth. Under no circumstances should abrasive, caustic or scouring products be
used. DO NOT use ‘spray & leave’ type cleaning products.
Non compliance with these cleaning instructions may cause decorative nishes to deteriorate & could
adversely affect safe operation of the enclosure.
Limescale ~ should a build up of limescale occur, remove using a 50:50 solution of white vinegar &
water applied with a soft cloth & rinsed / dried thoroughly afterwards.
Daily Care.
To prevent the build up of limescale, do not allow water droplets to dry on glass or frames. After
showering, rinse with water, remove droplets from glass with a squeegee & wipe frame with a soft
cloth.
Customer Service.
Quality Guarantee : Lakes Bathrooms Ltd guarantee Shower Doors & Enclosures against any man-
ufacturing or material defects for the lifetime of the product. We will resolve defects free of charge by
repairing / replacing parts as we feel necessary. To be ‘free of charge’ service work must be carried out
by Lakes Bathrooms or approved agents.
Not Covered by this Guarantee : Damage or defects that result from improper installation, improper
use, or lack of maintenance (including limescale buildup). Damage or defects that result from repairs /
modications undertaken by unauthorized persons. This guarantee is in addition to statutory & other
legal rights.
What to do if something goes wrong : Should the product not function correctly on initial use, rstly,
contact the installer to check that unit installation & commissioning are in accordance with these
instructions. Should this not resolve difculties or should performance decline, consult
‘Troubleshooting’ section to see if simple home maintenance is needed. Alternatively our HELPLINE staff
can assist, or if necessary arrange for a service engineer to visit.
Spares : We maintain extensive spare part stocks. Spares can be ordered / purchased from your retailer
in the rst instance. Parts will normally be dispatched within two working days from order placement.
Pro Forma invoices will be sent for cheque payments.

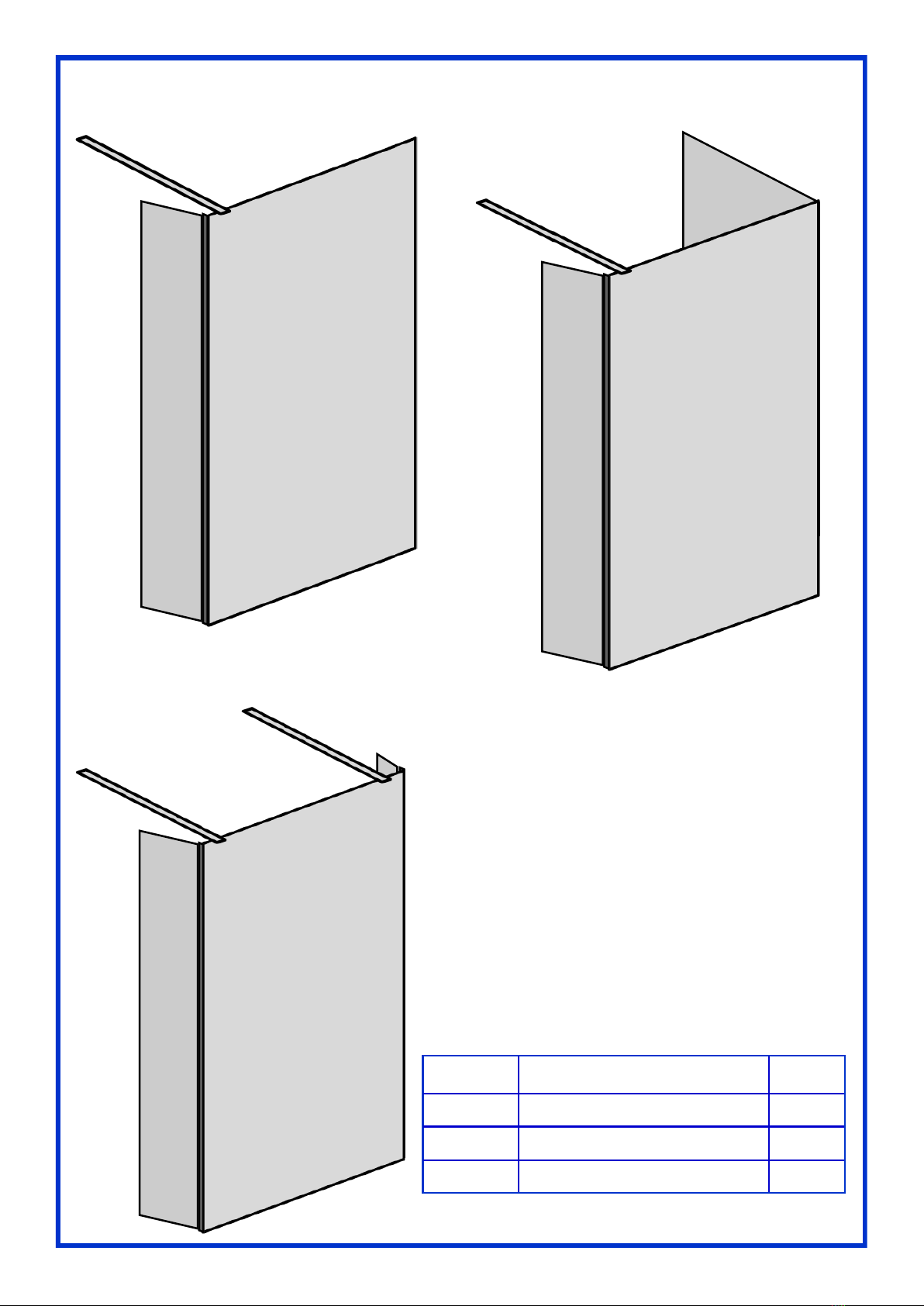

MODELS : order with respective Coastline product, OR add to existing installation to make the
following styles..... refer to, & use in conjunction with Coastline Walk In instructions.
Unit Comprises Cartons
Cannes LK810 + LK827 2
Marseilles LK815 + LK818 + LK827 3
Riviera * LK819 + LK827 (+ LK827) 2 (3)
Riviera*
(may be single or twin bypass)
Cannes
(or Side Panel)
Marseilles

Good quality CLEAR silicone
sealant & applicator
Spirit level (with vertical ‘bubble’)
(recommended 1m minimum long )
Pozidriv screwdriver
Supplied : Bypass assembly
comprising
Bypass sub assy
(glass + hinge alum #2)
Hinge seal
(S059-1971)
Hinge alum #1
(8025-1969)
Hinge boss
2x (LK827-004)
Bearing sleeve
2x (LK827-006)
Hinge 2x
(handed pair)
(LK827-002/003)
Gasket 2x
(glass corners)
(LK827-007)
4mm x 30 long pan head
pozidriv self tapping screw
6x (F006)
Tools Required

B
1. check that the glass corner gaskets are tted to both hinges, then
2. With panel carefully supported, apply a continuous bead of clear silicone sealant along
entire length of glass groove (& into hinge recesses).
Glass corner gasket
**
A
If already tted, carefully cut silicone & remove the corner trim from bottom glass corner.
Thoroughly clean & dry edge of glass, top to bottom. At this stage it is recommended to
check that the bypass panel will t to the glass edge - in particular check that bottom
hinge & gasket t beneath glass corner ** right upto the base trim
Lakes Coastline hinge bypass is fully reversible so can be tted to LH or RH products.
Installation may be carried out at same time as parent unit, OR at a later date.

C
Align & push bypass assy onto glass edge rmly until
aluminium is fully seated onto glass edge over entire
height.
CHECK that alum #1 is completely straight using a long
(1.5m) straight edge or spirit level.
If bow is present, the ‘high’ areas should be pressed
further by hand, or using a block of wood for protection,
may be ’knocked on’ with a mallet or hammer until
straight.
Check door motion is smooth & free of resistance.
Clean off ALL excess silicone sealant with a damp cloth
or alcohol wipe.

Lakes
Bathrooms
Lakes Bathrooms Ltd
Alexandra Way
Ashchurch
Tewkesbury
Gloucestershire GL20 8NB
Service England, Scotland, Wales
8.30am—5pm Mon ~ Thurs
8.30am—4.30pm Fri
Tel / HELPLINE : 01684 853870
Fax : [phone]
www.lakesbathrooms.co.uk
Email : [e-mail]
Service : Northern Ireland
Ian A Kernohan
Firtrees
Green Way Industrial Estate
Conlig
Northern Ireland
BT23 7SU
8.30am—5pm Mon ~ Thurs
8.30am—4.30pm Fri
Tel : [phone]
Fax : [phone]
Email : [email protected]om
D
With door fully inward. Apply silicone sealant as shown
to bottom hinge / tray joint, (& if new installation, across
base of front panel as indicated).
Leaving door inward, allow all silicone sealant joints
to cure for 24hrs before using enclosure.
Basic troubleshooting :
Screen hinges noisy / not moving smoothly :
Apply sanitary silicone based grease to hinge bearing diameters.
Check that hinge seal is not distorted or trapped in gap between proles.
Leakage : The sealing method described in these instructions relies on a continuous seal
between walls & shower tray before installing the screen, in the unlikely event of a screen
leak, water will be visible on the outside of the screen itself or around the perimeter silicone
seal ONLY. Water / moisture appearing outside this area (ie at oor level or under shower
tray) is normally due to incorrect tray / wall sealing.
