Lamusa SM-1909/L How to use

SM-1909/L
STARTING MANUAL
MAINTENANCE
DOSAGE
SPARE PARTS
Please read and follow this operating manual before putting the machine into operation.

2
,62
%85($89(5,7$6
&HUWLILFDWLRQ
LAMUSA seed drills and fertilizer spreaders are manufactured in a highly specialized environment
and our factory has a vast customer-endorsed experience.
LAMUSA machines use highly advanced technology and are guaranteed to work without mal-
functions in a great variety of conditions. They are provided with easy-to-use and ecient devices.
LAMUSA machines perform excellently with only minimum operator maintenance.
This manual will help you use your LAMUSA product with the upmost eciency.
1st Edition – July 2015
Ref.: CN-811055/GB
Created by: Maquinaria Agrícola LAMUSA, S.L.
It is forbidden to copy any part of this manual.
Specications are subject to change or modication without notice.
The pictures included do not necessary show the standard version.
Certied quality system

1
TABLE OF CONTENT
LAMUSA SM-1909/L
STARTING MANUAL
MAINTENANCE
DOSAGE
SPARE PARTS
1. INTRODUCTION...............................................................................................................................................3
2. SAFETY INSTRUCTIONS ..................................................................................................................................4
2.1 SAFETY SYMBOLS................................................................................................................................................4
3. TECHNICAL CHARACTERISTICS....................................................................................................................... 5
3.1 TECHNICAL CHARACTERISTICS.........................................................................................................................5
3.2 STANDARD EQUIPMENT.....................................................................................................................................5
3.3 OPTIONAL EQUIPMENT......................................................................................................................................5
3.4 USE ACCORDING TO DESIGN.............................................................................................................................6
3.5 GENERAL SAFETY INSTRUCTIONS ...................................................................................................................6

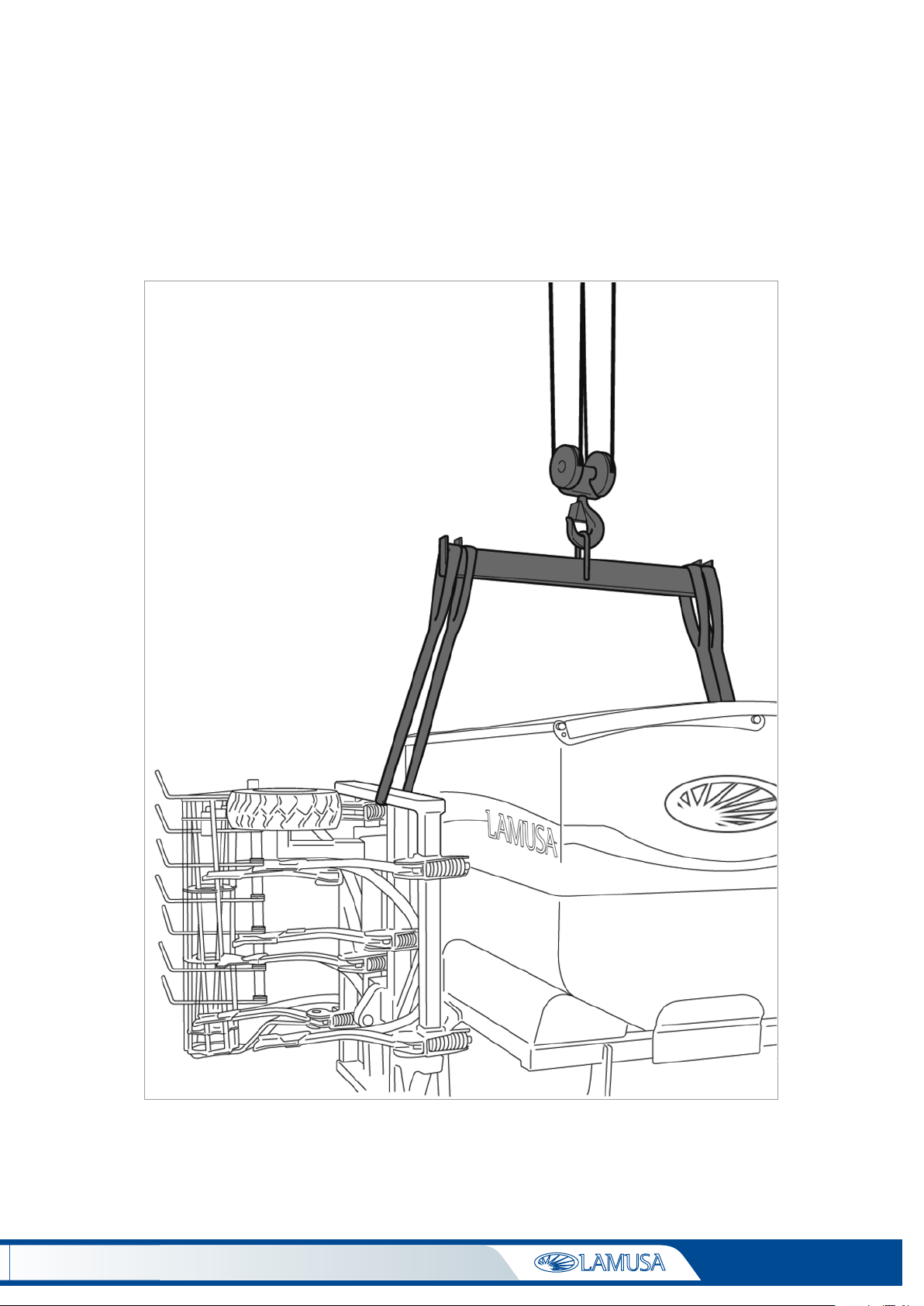

3.6 LOADING AND UNLOADING INSTRUCTIONS .................................................................................................7
4. ESSENTIAL SOWING CONCEPTS......................................................................................................................8
4.1 TERRAIN.................................................................................................................................................................8
4.2 THE SEED...............................................................................................................................................................8
4.3 SEED PLANTING DEPTH .....................................................................................................................................8
5. STARTING ...................................................................................................................................................... 10
5.1 COUPLING THE SEED DRILL .............................................................................................................................10
5.2 HYDRAULIC CONNECTIONS ............................................................................................................................11
5.3 LOADING THE SEED DRILL...............................................................................................................................11
5.4 TRANSPORT POSITION .....................................................................................................................................12
5.5 HYDRAULIC SYSTEM.........................................................................................................................................12
6. DOSAGE......................................................................................................................................................... 13
6.1 REGULAR SEEDS.................................................................................................................................................13
6.2 FINE SEEDS (microdosing) ...............................................................................................................................14
6.3 PREVIOUS FLOW TEST ......................................................................................................................................14
6.4 COMPLEMENTARY DOSING TESTS .................................................................................................................15
7. ADJUSTING SEED PLANTING DEPTH............................................................................................................. 17
7.1 ADJUSTING RATCHETS AND SPINDLES..........................................................................................................17
7.2 CENTRAL RATCHET WITH SLIDE......................................................................................................................18
7.3 HEIGHT-ADJUSTABLE TINE COULTERS...........................................................................................................18
7.4 INCLINATION OF THE FOLDING PARTS .........................................................................................................19
7.5 ADJUSTING THE ROLLER ..................................................................................................................................19
8. TYPES OF DISTRIBUTION ..............................................................................................................................20
8.1 SEED DISTRIBUTION BY MECHANICAL FAN................................................................................................. 20
8.2 SEED DISTRIBUTION BY HYDRAULIC FAN.................................................................................................... 20
9. OPTIONAL EQUIPMENT................................................................................................................................. 21
9.1 HARROW ..............................................................................................................................................................21
9.2 HYDRAULIC TRACK MARKERS........................................................................................................................ 22
9.2.1 Adjusting track marker’s LENGTH ..................................................................................................... 23

2
PLEASE, READ THIS MANUAL CAREFULLY BEFORE USING THE MACHINE
10. ELECTRONICAL CONTROLLER .................................................................................................................... 24
10.1 FRONT PANEL DESCRIPTION ........................................................................................................................24
10.2 FORWARD SPEED – C1...................................................................................................................................24
10.3 TOTAL AREA / SEED DRILL WIDTH – C2......................................................................................................25
10.4 FRONT PANEL WITH MARKER PATHS (OPTIONAL)...................................................................................25
10.4.1 TRAMLINING - C3 ................................................................................................................................26
10.5 FAN RPM / FAN ALARMS – C4.......................................................................................................................29
10.6 SEED SHAFT RPM – C5 ...................................................................................................................................29
10.7 HOPPER LOW LEVEL ALARM – C6................................................................................................................29
10.8 TOTAL SOWING SHUT-OFF (OPTIONAL)....................................................................................................30
10.9 SHUT-OFF SOWING FROM FOLDING PARTS (OPTIONAL) .......................................................................30
11. MAINTENANCE ........................................................................................................................................... 32
11.1 LUBRICATION...................................................................................................................................................32
11.2 TYRES PRESSURE ............................................................................................................................................32
11.3 SCREWS.............................................................................................................................................................32
11.4 DISTRIBUTOR HEAD AND SEED HOSES ......................................................................................................32
12. DOSAGE TABLE........................................................................................................................................... 33
13. SPARE PARTS .............................................................................................................................................. 35
13.1 CHASSIS ............................................................................................................................................................36
13.2 TINE COULTER .................................................................................................................................................38
13.3 REGULABLE TINE COULTER ..........................................................................................................................39
13.4 TRACK ERASERS..............................................................................................................................................40
13.5 TRACK ERASERS TRACTOR ...........................................................................................................................41
13.6 WHEEL FLOATING ...........................................................................................................................................42
13.7 SIDE WHEEL .....................................................................................................................................................43
13.8 HOPPER ........................................................................................................................................................... 44
13.9 SMALL HYDRAULIC FAN................................................................................................................................46
13.10 BIG HYDRAULIC FAN ....................................................................................................................................47
13.11 SMALL MECHANICAL FAN ...........................................................................................................................48
13.12 BIG MECHANICAL FAN.................................................................................................................................50
13.13 SMALL FAN WITH WHEEL HUB ...................................................................................................................52
13.14 BIG MECHANICAL FAN D320.......................................................................................................................53
13.15 DISTRIBUTOR.................................................................................................................................................54
13.16 MECHANICAL TRANSMISSION ...................................................................................................................56
13.17 NEUMATIC DISTRIBUTION...........................................................................................................................58
13.18 SEED HOSES CLOSING SYSTEM IN FOLDING PARTS...............................................................................60
13.19 SEED HOSES CLOSING SYSTEM IN FOLDING PARTS INDEPENDENT...................................................62
13.20 TRAMLINES....................................................................................................................................................64
13.21 HARROW ........................................................................................................................................................66
13.22 ROLLER...........................................................................................................................................................67
13.23 TRACK MARKER 400/450/500/600 ............................................................................................................68
13.24 STAIR...............................................................................................................................................................70
13.25 CLOSURES MACHINE ...................................................................................................................................71
13.26 FINISHES ........................................................................................................................................................72

3
1. INTRODUCTION
It is essential to read and follow the instructions and recommendations in this manual before
operating the machine. Careful reading enables maximum operator eciency, prevents acci-
dents and damage, and increases the seed drill’s capacity and life expectancy.
Please ensure that this manual has been read by any person involved in performing opera-
tional tasks, (including preparation, dealing with mechanical problems and supervising the
machine), maintenance (inspection and technical assistance) and transport.
For your safety, please follow these technical safety instructions as LAMUSA will not be res-
ponsible for damages caused by not observing the information provided.
In the rst chapters you will nd the Technical Characteristics and Safety Instructions, as well
as some essential sowing concepts. Basic concepts that are required to operate the machine
are explained in the Starting and Maintenance sections. The last part of this manual consists
of Dosage Tables, detailed by seed type.
LAMUSA RETAINS THE RIGHT TO MODIFY ILLUSTRATIONS, TECHNICAL DATA AND WEIGHTS
INDICATED IN THIS OPERATING MANUAL, IF THESE CHANGES HELP TO IMPROVE THE QUA
LITY OF THE SEED DRILLS.

4
SAFETY INSTRUCTIONS
2. SAFETY INSTRUCTIONS

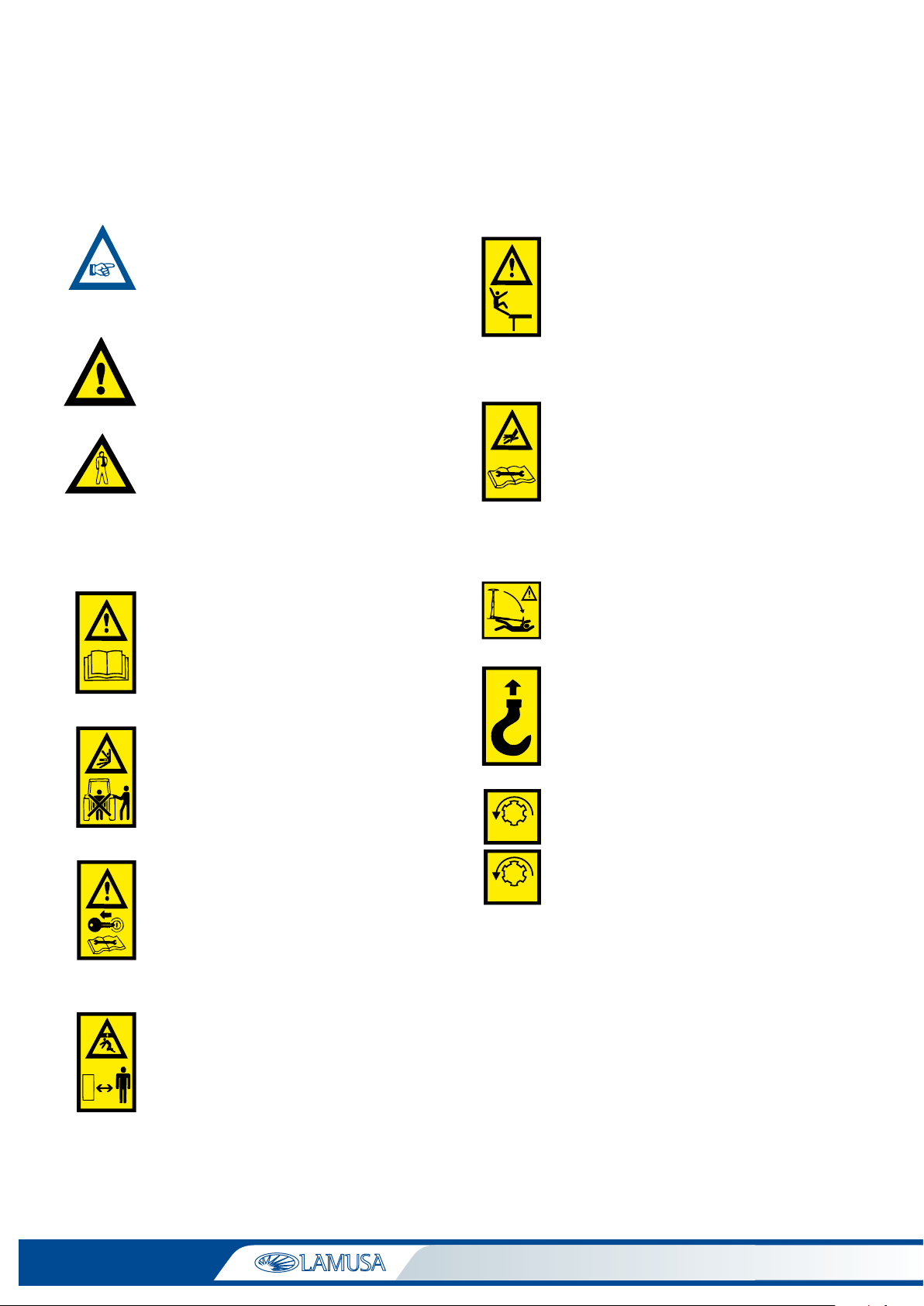

2.1 SAFETY SYMBOLS
In this operating manual you will nd three dierent symbols relating to safety:
TO FACILITATE OPERATION WITH THE SEED
DRILL.
TO AVOID DAMAGES ON THE SEED DRILL OR
IN THE OPTIONAL EQUIPMENTS.
THIS SYMBOL WARNS OF THE RISK OF INJURY.
On the machine, you will nd the following symbols:
READ THE INSTRUCTIONS CAREFULLY AND
OBSERVE THE SAFETY ADVICE GIVEN IN THE
OPERATING MANUAL.
DURING THE COUPLING MANOEUVRE, STAY
AWAY FROM THE REAR PART OF THE TRAC
TOR. RISK OF SERIOUS PHYSICAL INJURY.
DURING MAINTAINING OR REPAIRING THE
SEED DRILL, YOU MUST STOP THE TRACTOR’S
ENGINE COMPLETELY, IT MUST NOT BE STAR
TED.
RISK OF BEING CRUSHED WHEN WORKING
UNDER THE MACHINE, PLEASE SECURE THE
MACHINE TO PREVENT THIS RISK.
NEVER USE THE LADDER TO ACCESS THE
PLATFORM WHEN THE MACHINE IS RUNNING.
IT IS FORBIDDEN TO RIDE ON THE MACHINE
DURING OPERATION. RISK OF SERIOUS PHYSI
CAL INJURIES.
DANGER OF INFECTION FROM ESCAPING
HYDRAULIC FLUID AT HIGH PRESURE! THIS
CAN INFLICT SERIOUS INJURIES WITH POTEN
TIALLY FATAL CONSEQUENCES IF IT PASSES
THROUGH THE SKIN AND INTO THE BODY.
KEEP THE HOSE LINES IN GOOD CONDITION.
RISK OF SERIOUS PHYSICAL INJURIES.
NEVER STAND UNDER TRACK MARKERS OR IN
THEIR OPERATIONAL AREA. RISK OF SERIOUS
PHYSICAL INJURIES.
COUPLING POINT FOR TRANSPORT BY CRANE.
PTO SHAFT’S SPEED AND TURNING DIREC
TION ONLY IN MACHINES WITH MECHANICAL
FANS.
540 rpm
1000 rpm

5
TECHNICAL CHARACTERISTICS
3. TECHNICAL CHARACTERISTICS
3.1 TECHNICAL CHARACTERISTICS
TYPE / ROWS ROWS
SPACING
WORKING
WIDTH
SEED HOPPER
CAPACITY WEIGHT KGS TYRES TYPE TRANSPORT WIDTH
500/31 16 cm 5 m 1.600 / 2.000 L. 2.250 kg 340/55-16 3 m
600/37 16 cm 6 m 1.600 / 2.000 L. 2.540 kg 340/55-16 3 m
700/43 16 cm 5 m 1.600 / 2.000 L. 2.830 kg 340/55-16 3 m
Harrow Seed Tine
Coulters
Adjustable Side
Wheel
Roller
3.2 STANDARD EQUIPMENT
• 1.600 or 2.000 L Seed Hopper
• Sieve
• Kit for dosing test
• Monitor displaying: fan r.p.m., seed distributor shaft
r.p.m., hopper level low and hectare counte.
• Signalling light equipment
• Working Lamps
• Adjustable side wheels
• Rear roller
• Harrow
• Mechanical fan with PTO shaft at 1000 rpm or hydrau-
lic fan
• Tine coulters with tungsten carbide tips.
3.3 OPTIONAL EQUIPMENT
• Total sowing shut-o
• Shut-o sowing from folding parts
• Tramlines
• Hydraulic kit: hydraulic pump tted on the tractor’s
universal joint shaft, refrigerated oil tank
• Hydraulic horizontal-folding track markers
• Pre-emergency track markers
• Monitor, radar and electric motor to control dosing
• Track erasers

6
TECHNICAL CHARACTERISTICS
3.4 USE ACCORDING TO DESIGN
The Seed Drill SM-1909/L has been designed for normal use in agricultural work, especially cereal and
other kind of grain seeds.
If the machine is used in circumstances other than the above, the manufacturer will not be held respon-
sible for any damage caused.
The user must observe all regulations concerning safety, trac and hygiene.
If the machine is modied by the user, the manufacturer’s warranty is cancelled. LAMUSA will not be
held responsible for any damage caused.
3.5 GENERAL SAFETY INSTRUCTIONS
Before starting the machine, please check the machine is in good condition for work and is safe for road use.
In thoroughfare, please observe trac signs and regulations.
It is forbidden to ride on the machine or climb into the machine when it is running.
Before using the machine, the user must be familiar with all operating elements.
Please be extremely careful when coupling and uncoupling the machine to the tractor.
Please check that the PTO shaft is in good condition and well protected.
Prevent the protective tube from turning by holding both the tube and chain provided for this purpose.
Mount the PTO shaft’s transmission only when the tractor’s engine is o.
Before connecting the PTO shaft, be sure that the danger zone surrounding the machine is clear.
Never leave the tractor’s driver’s seat while the machine is in operation.
Do not deposit external elements inside the hopper.
When mantaining the hydraulic system of the seed drill, make sure that it is depressurised and the
tractor’s engine is o.
Please regularly check the condition of the tubes and hosepipes in the hydraulic system. These parts
age naturally and their life should not surpass six years. Please replace when necessary.
When raising the seed drill, the front axle is unloaded. Ensure that the machine has enough load to
prevent it overturning. At this time you must ensure that the condition of both the steering and the
brakes is optimal.
During transit with the raised seed drill, block the lowering switch. Before leaving the tractor, lower the
seed drill onto the ground and remove the tractor’s starting key.
Always use enough supporting elements when maintaining the machine in a raised position to prevent
the machine from lowering or falling.

7
Fig. 1
TECHNICAL CHARACTERISTICS
3.6 LOADING AND UNLOADING INSTRUCTIONS
Use a bridge crane to load and unload the truck. A specically designed hook, as shown in gure 1,
should be used to prevent damage caused by the weight of the machine itself. Tow ropes should be
fastened to the machine’s tripod as well as to the fasten points situated in the tine coulters’ chassis.

8
ESSENTIAL SOWING CONCEPTS
4. ESSENTIAL SOWING CONCEPTS
4.1 TERRAIN
The better the soil condition, the better the sowing quality. Work is more dicult on big clods or une-
ven furrows.
Although LAMUSA machines resist harsh conditions, if the seedbed does not satisfy appropriate condi-
tions then the sowing quality will suer.
4.2 THE SEED
It is essential that seeds are well maintained and clean. Barley seeds should be trimmed.
4.3 SEED PLANTING DEPTH
The recommended seed planting depths are from three to ve centimetres. Planting too deep causes
problems as rhizome cannot reach the surface and the plant will die. It does not matter that some grains
are visible because the harrow’s tines will cover them eventually.
The seed planting depth has consequences for tillering, as well as for the plant’s strength and its ability
to resist frostbite or drought. The parent shoot grows from 1 to 2 cm under the ground, whatever the
depth of the seed.
Planting deeper does not necessarily mean getting deeper roots. Only a few roots grow from the lower
part of the seed. Most of them grow from a parent shoot close to ground level.
Normal Planting Depth: from 2 to
4 cm.
Thick stem, short rhizome, resistant
to frostbite
Multiple tillering providing from 3 to
6 shoots and a lot of blades, from 6
to 10.
Deep and thick roots, approximately
5 cm in width and 10-12 cm in depth.
With less grains per sowing square
metre, more ears are obtained.
Deeper Planting: from 5 to 6 cm.
Fine stem, rhizome exposed to frost-
bite.
Late and weak tillering, 1 or zero
shoots and only a few blades, 3-4
aprox.
Medium quality roots of approxima-
tely 3 cm in width and 5 cm in depth
More grains per sowing square metre
are required to obtain the same num-
ber of ears as in the previous case.
Very deep planting: from 8 to 10 cm.
Very ne stem. No tillering and only
one blade.
Seed runs out of supplies by growing
a long rhizome which frostbite can
easily cut.
The plant takes weak roots, appro-
ximately 1 cm in width and 3 cm in
depth.
Twice the number of grains per
sowing metre are required to obtain
the same number of ears as in the
rst case.

9
ESSENTIAL SOWING CONCEPTS
IN VERY COLD PLACES, REPEATED FROSTBITE CAN HAVE A HONEYCOMB EFFECT ON THE GROUND’S
MOST SUPERFICIAL LAYER. IN THIS CASE THE PLANT’S VERY FIRST ROOTS CAN LOOSEN AND THE
PLANT WILL DIE. SLIGHTLY DEEPER PLANTING IS RECOMMENDED AND IF POSSIBLE, THE USE OF RO
LLERS TO COMPACT THE EARTH TO BETTER PROTECT THE SEEDS.
IN ALL LAMUSA MACHINES, THE RIGHT SIDE WHEEL ACTIVATES THE SEED DISTRIBUTOR’S MECHANI
CAL TRANSMISSION. CONSEQUENTLY, SHARP CURVES SHOULD BE PERFORMED TOWARDS THE LEFT
SIDE, SINCE USING THE GROUND WHEEL DRIVE WOULD CAUSE A LESSER SEED DISTRIBUTION.
WHEN STARTING THE MACHINE, FURROWS WILL NOT CONTAIN ANY SEEDS FOR A METRE. WHEN
STOPPING THE MACHINE, SEEDS WHICH WERE PREVIOUSLY INSIDE THE SEED HOSES, SLIDE FROM
THE MACHINE AND END UP PILED ON THE GROUND. TAKE THIS INTO ACCOUNT WHEN STOPPING
AND STARTING THE MACHINE IN ORDER TO ACHIEVE MORE ACCURACY.
ALWAYS WORK AT A UNIFORM SPEED AS SUDDEN ACCELERATING AND SLOWING DOWN WILL CAU
SE AN IRREGULAR SEED DISTRIBUTION.

10
STARTING
5. STARTING
5.1 COUPLING THE SEED DRILL
Seed drill SM-1909/L is supplied with a three-point linkage
of category 3.
Fig. 5
Fig. 6
BE ESPECIALLY CAREFUL DURING COUPLING
AND UNCOUPLING THE MACHINE.
Once the seed drill is coupled with the tractor, the PTO shaft
should be adapted. First dismount and insert one end into
the tractor’s universal joint shaft and the other end into the
seed drill. Look for the minimal movement length “L” (g. 6)
by raising and lowering the hydraulic lift.
Cut the spare plastic and metal into parts of the same length
and remount the PTO shaft.
Operate the hydraulic lift and check that the PTO shaft’s mo-
vement is correct.
WHEN OPERATING THE PTO SHAFT CHECK
THAT THE ENGINE IS OFF. ALWAYS WORK WITH
THE PTO SHAFT PROTECTED AND IN GOOD
CONDITION. PREVENT THE PTO SHAFT’S TUBE
FROM TURNING BY SECURING IT WITH THE
CHAIN PROVIDED.
WHEN LOWERING THE SEED DRILL TO THE
GROUND, UNPLUG THE TRACTOR’S UNIVERSAL
JOINT SHAFT SO THAT THE PTO SHAFT DOES
NOT HAVE AN EXCESSIVE INCLINATION MAX.
35º.
WHEN HOLDING THE TRACTOR UNIVER
SAL JOINT SHAFT’S CLUTCH IN, PERFORM IT
GENTLY. STARTING SUDDENLY COULD SE
RIOUSLY DAMAGE THE SEED DRILL.

11
STARTING
5.2 HYDRAULIC CONNECTIONS
To use the machine’s hydraulic connections you will need:
When folding the machine: a double-acting.
If the machine has hydraulic fan: one single-acting and free
return line.
Fig. 7
1
FOR THE FREE RETURN LINE CONNECTION
USE THE PLUGADAPTER PROVIDED FIG. 7/1
5.3 LOADING THE SEED DRILL
For access to the hopper, the access ladder should be unfol-
ded.
Pull the trigger to free the folding ight to the ground.
To fold, return the folding ight until the safety trigger is se-
cured.
Fig. 8
Retirar la goma de sujeción de la lona y replegarla hacia la
Remove the tension element of the hopper’s folding cover
and fold it over to the left using the handle.
Fig. 9
Fig. 10

12
STARTING

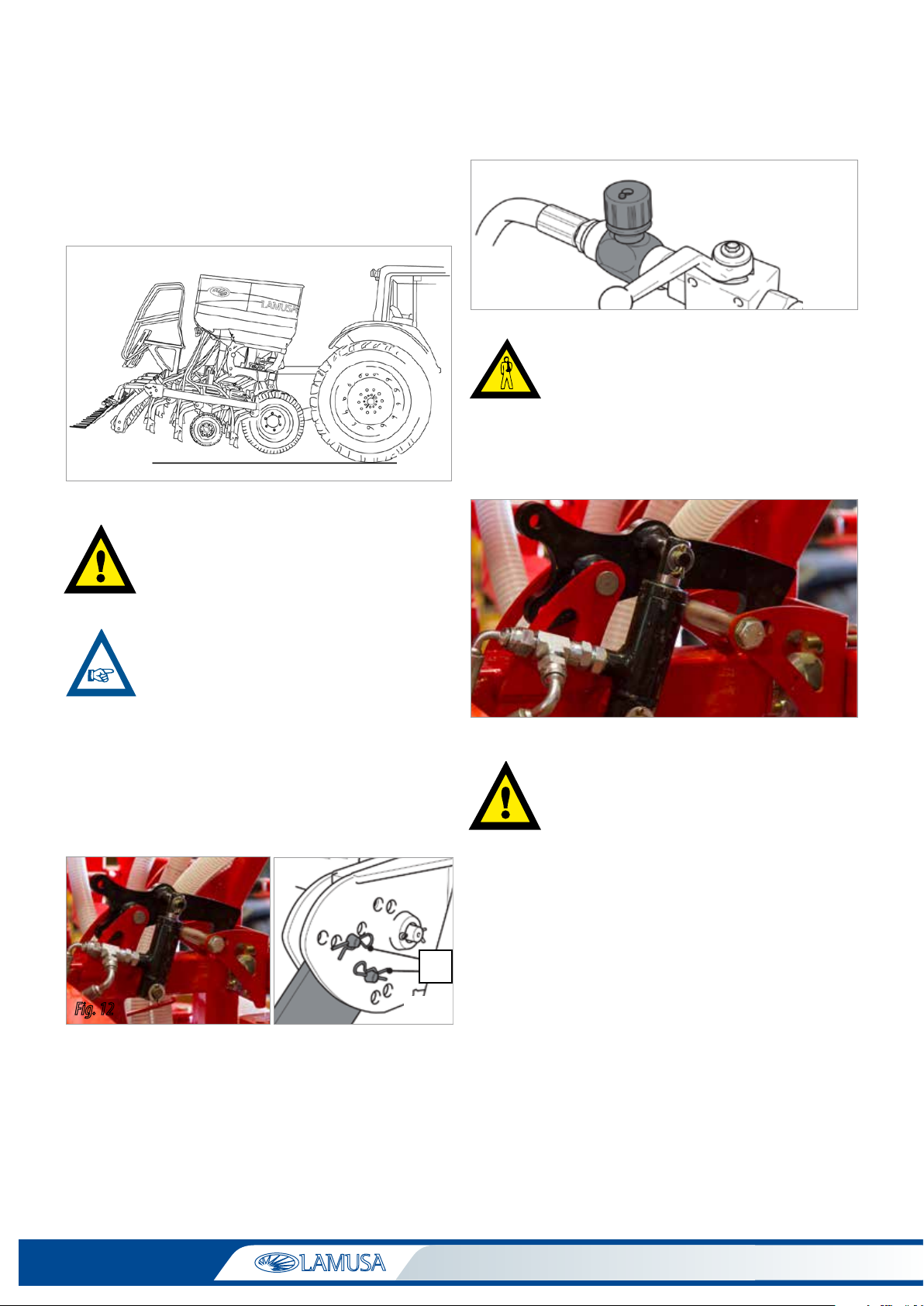

5.4 TRANSPORT POSITION
To set up the transport position, follow these steps:
1. Folding the track markers (optional equipament).
2. Raise the machine until tine coulters are detached from
the ground.
Fig. 11
AFTER COUPLING THE MACHINE TO THE
TRACTOR, CHECK THE ROAD HOLDING IS CO
RRECT AND THE STEERING IS WORKING PRO
PERLY.
PREVENT THE MOBILE ELEMENTS FROM MO
VING.
3. Raise folding parts and check that the hydraulic safety
trigger (g. 12) is correctly fastened. This will prevent the
folding parts from falling during transit.
4. Place the 2 side rollers’ bolts (g. 13) in the holes to block
their movement.
Fig. 13
A
Fig. 12
5.5 HYDRAULIC SYSTEM
FLOW REGULATORS
To smoothly hydraulically fold and unfold the seed drill, the-
re are two ow regulators (g. 14) that perform both actions
respectively. They should be adjusted depending on the
hydraulic ow supplied by the tractor. Starting with an al-
most completely closed ow regulator is recommended to
prevent folding too fast, which could damage the seed drill.
Fig. 14
NEVER STAND UNDER THE MACHINE’S EXTEN
SION ARMS OR IN THEIR SWIVEL AREA.
The machine is also provided with hydraulic safety triggers
to secure the folding parts during transit. The gure shows
the trigger in the safety position.
BEFORE UNFOLDING THE FOLDING PARTS TO
START WORK, AS WELL AS AFTER PRESSURI
SING THE SYSTEM, MAKE SURE THE TRIGGERS
HAVE BEEN UNFASTENED.

13
DOSAGE
6. DOSAGE
There are two ways of dosing:
For regular seeds
For ne seeds with minimum ow rate
WHEN CHANGING THE POSITION BOLT AND THE CLIP PIN OF THE AIR OUTLET TO THE FAN, IT IS ESSENTIAL
THAT THE SEED DOSING ROLLER CAN TURN FREELY AND THE HOPPER IS EMPTY.
1.Seed distributor
2.Dosing adjusting scale
3.Bolt
N= regular seed
F= ne or small seed
4.Spindle
5.Trap-door to empty the hopper
and the seed distributor
6.Trap-door to empty the hopper
and the seed distributor
7.Venturi injector sluice
8.Clip pin of the air outlet to fan
N= regular seed
F= ne or small seed
6.1 REGULAR SEEDS
Remove the safety fork (g. 17/9)
Keep the bolt (g. 17/3) in the position as indicated in the gure.
Turn the spindle (g. 17/4) to adjust dosing.
Place the clip pin of the air outlet to fan (g 17/8) in position N (regular seed)
Pinion gear nº10 must be t into pinion gear nº11 (g. 18).
10 11
Fig. 18
3
94
Fig. 17
8
8
23
4
7
6
5
1
Fig. 16

14
DOSAGE

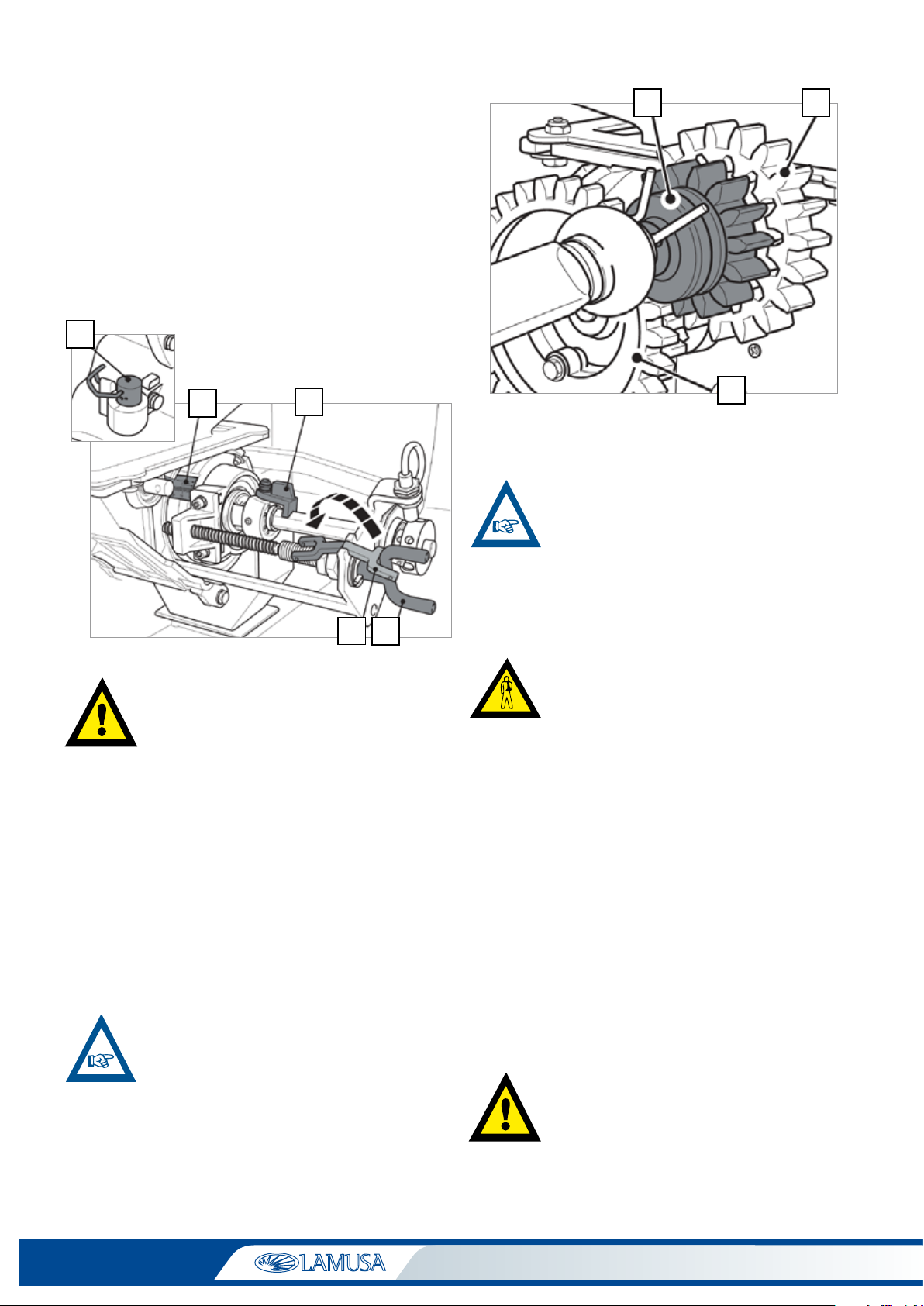

6.2 FINE SEEDS (microdosing)
Remove the safety fork (g. 19/9).
Turn the spindle (nº4, g. 19) to position 0 on the scale (g.
19/4).
Place the clip pin of the air outlet to fan (g 19/8) in position
F (ne seed).
Turn the spindle (g. 19/4) to adjust dosing between 0 and
25.
Turn the bolt (g. 19/3) until it is inserted into axle slot.
8
2
94
3
Fig. 19
WHEN MICRODOSING FINE SEEDS, DO NOT
EXCEED NUMBER 25 IN ADJUSTING SCALE
FIG 19/2
The aim of microdosing is to better distribute both ne and
regular seeds in small numbers.
Micro position
Pull the pinion gear nº10 until it is released from the pinion
gear nº11 and t it into pinion gear nº12 (g. 20).
The correct value for using microdosing M-system in ne
seeds can be found in the dosing tables (see section).
CHECK THE CLEANING BRUSH IS IN GOOD
CONDITION BEFORE BEGINING TO SOW FINE
SEEDS.
Fig. 20
10 11
12
6.3 PREVIOUS FLOW TEST
YOU MUST TURN THE WHEEL UNIFORMLY
USING THE CRANK AT APPROXIMATELY ONE
REVOLUTION PER SECOND, DEPENDING ON
THE LAND’S CHARACTERISTICS, TYRE’S MA
NUFACTURER OR TYRE PRESSURE. IT IS HIGHLY
RECOMMENDED TO PERFORM A FIELD TEST
AS DESCRIBED IN THIS MANUAL.
IT IS DANGEROUS TO TURN THE WHEEL WITH
YOUR HANDS AS THE MUD SCRAPER CAN
CAUSE INJURIES.
Accurately weigh the collected seeds.
At a selected opening, you can obtain the kilograms per hec-
tare distributed by the machine, by multiplying the weight
by 40.
For ease of performing these operations the machine should
be coupled to the tractor in a slightly elevated position (whe-
els should not be in contact with the ground). It is also neces-
sary that the hopper is only half-lled with seeds to alleviate
diculty in turning the wheel with the crank.
If seeds show excess treatment powder, ow can be redu-
ced, consequently a second control is recommended after
sowing approximately three hoppers.
TO PERFORM THE PREVIOUS FLOW TEST IT IS
ESSENTIAL THAT THE MACHINE, THE TRACTOR
AND THE UNIVERSAL JOINT SHAFT ARE ALL
SWITCHED OFF.

15
DOSAGE

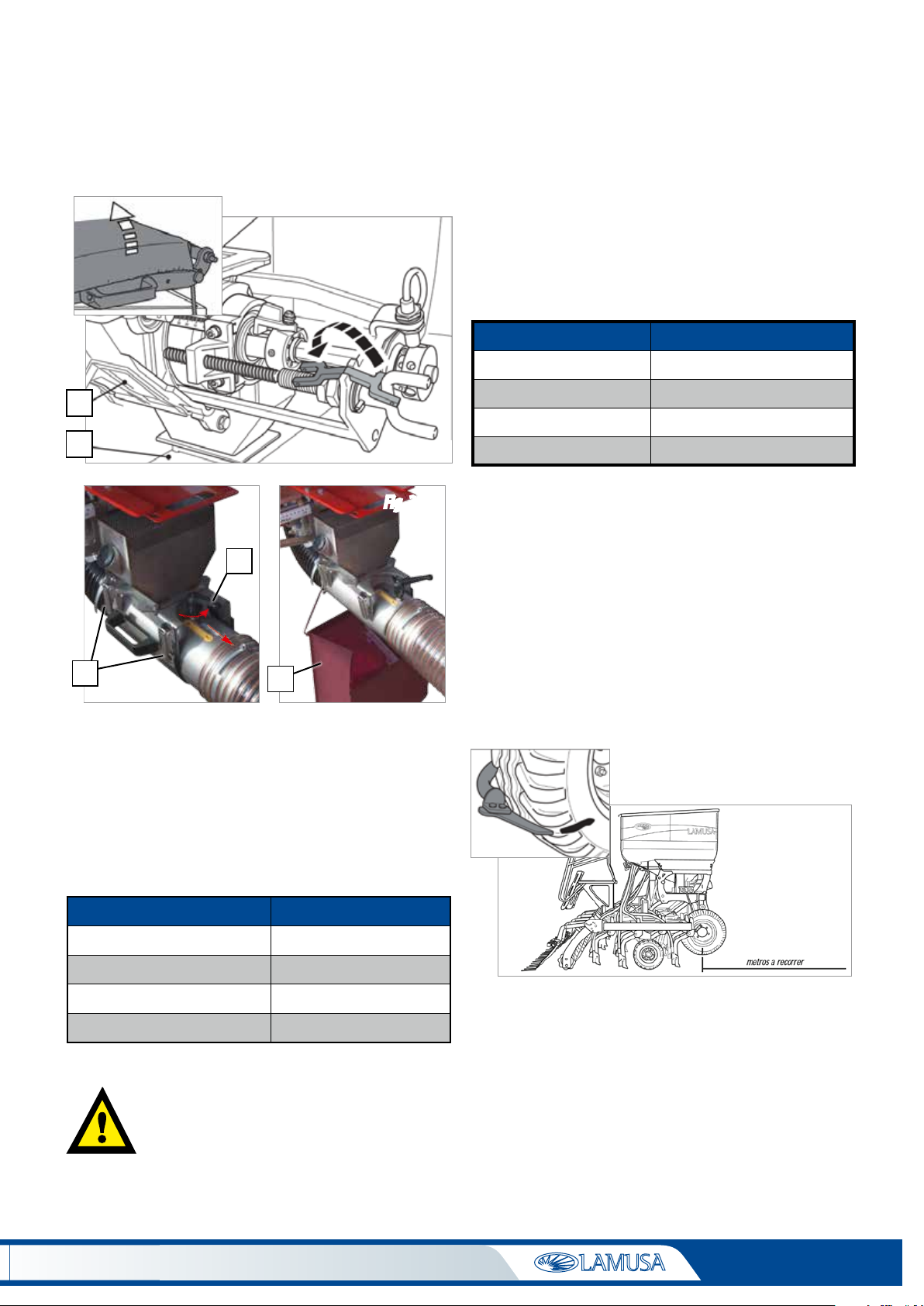

Close the trap-door (g. 21/5).
Open the hopper’s folding cover (g. 21) and ll the hopper
with seeds.
Open the lower trap-door (g. 21/7).
Fig. 21
7
5
Fig. 21 A
7
X
2
Fig. 21 B
Turn the handle for unblock him (X, Fig. 21 A) and move it to po-
sition “NO”(Test position).
Place a sack or a container under the exit of the venturi injec-
tor sluice which has previously been opened.
Place the crank in the right wheel of the seed drill and turn it
clockwise as many times as indicated below.
TYPE MACHINE ROUE 340/55-16
SM 400/25 26,5 tours
SM 450/29 23,5 tours
SM 500/31 21 tours
SM 600/37 17,6 tour s
WHEN YOU END THE TEST, CLOSE THE COVER OF
VENTURI INJECTOR, MOVE HANDLE IN POSITION
“OK” AND LOCK IT.
6.4 COMPLEMENTARY DOSING TESTS
1- Test to determine the number of wheel turns.
If dierences exist between the test and the actual dose dis-
tribution (due to a very uneven or light soil, low pressurised
tyres, etc.), an experimental test can be performed.
First of all, the distance (in metres) as shown in the table
below should be marked on the eld’s ground using a tape
measure:
WORKING WIDTH METRES TO COVER
SM 400 62,5
SM 450 55,6
SM 500 50,0
SM 600 41,7
Next, the seed drill in working position should cover that dis-
tance.
By means of a mark made previously on the tyre, count the
number of turns performed in the covered distance. A good
place whereby which to count could be the wheel’s mud
scraper.
By following these steps we can obtain the actual number of
turns performed in the seed dosing test. By performing the
test, we will know the actual kilograms per hectare distribu-
ted by the machine.
Fig. 22
2- Seed dosing adjustments.
When using high quality certied seeds it is not enough to
know the weight in kilograms distributed by the machine, as
the nal result of the harvest will depend on the number of
plants which eventually ripen.

16
DOSAGE
Every plant requires a certain amount of land from which nutrients will be absorbed. Therefore, both
a low or an excessive plant density can be detrimental. To determine how many kilograms per hectare
are to be sown, you should know the number of plants per square metre that are going to be planted.
As a guidance, the recommended number of plants per square metre when sowing wheat or barley in
un-irrigated land can be found in following table :
Please note that in spring there is less tillering so more seeds should be sown.
LAMUSA AGROINDUSTRIAL S.L. RECOMMENDS THAT THE FARMER SEEKS PROFESSIONAL ADVICE
ABOUT THIS SUBJECT FROM A TECHNICAL SOWING CENTRE
SEED DOSING SHOULD BE ADJUSTED TO EACH TERRAIN, DEPENDING ON THE: TEXTURE, FERTILI
ZING LEVEL, PLUVIOMETER RESULTS AND SOWING SEASON, GRAIN QUALITY, GERMINATING AND
TILLERING POWER, ETC
It should be taken into account that a seed’s germinating power is variable and dependant on multiple
factors. It can be experimentally calculated to be between 70% and 80%, which is practically equivalent
to multiplying the number of grains to be sown by 1,43 or 1,25 respectively.
Next, we describe a practical method to determine the number of kilos per hectare to be distributed
once we know how many plants per square metre we want to obtain.
1- Place seeds on the “seed counter” (g. 23)
Wipe seed counter with your hand to make sure that there is only one grain per slot (100 grains in total).
Do the same 10 more times to obtain 1000 grains
2- Weigh 1000 grains with the precision scales. We call the result the OPERATIVE WEIGHT
3- Once we know how many seeds per square metre we are going to sow, we should adjust the fo-
llowing kilograms per hectare in the dosing control:
Kilograms per hectare=(grains per m2x OPERATIVE WEIGHT) / 100
AUTOMN SPRING
Premature sowing, 200 plants per m2Premature sowing, 310 plants per m2
Late sowing: 265 plants per m2Late sowing: 445 plants per m2

17
Fig. 24 Fig. 25
1
ADJUSTING SEED PLANTING DEPTH

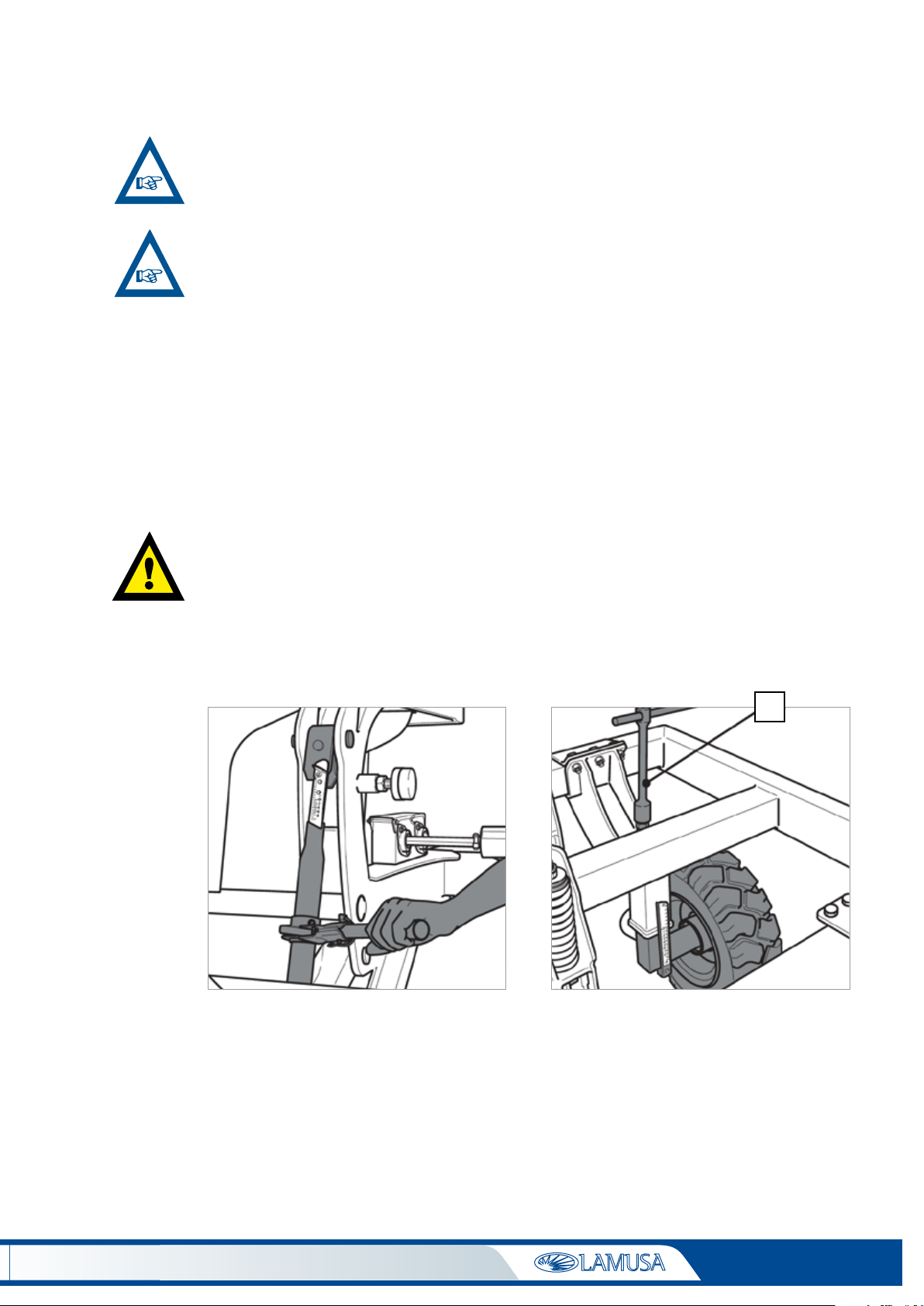

7. ADJUSTING SEED PLANTING DEPTH
SEED DRILL SHOULD ALWAYS WORK HORIZONTALLY, WITH BOTH THE REAR AND FRONTAL TINE
COULTERS EQUALLY PENETRATING THE LAND.
VERY IMPORTANT: THE TRACTOR’S CONTROLLER THAT MOVES THE FOLDING PARTS’ CYLINDER
MUST BE IN FLOTATION MODE, TO BETTER ADAPT TO THE GROUND.
7.1 ADJUSTING RATCHETS AND SPINDLES
There are two ratchets in the machine’s central body and two spindles in the side wheels. All of them
have an adjusting scale to indicate their position. Their adjustment positions in the respective scales
should be the same.
After adjustments, the control lever of the ratchet should be pulled back towards the inner part of the
machine.
WHEN SOWING ON TILLED OR NONCOMPACT GROUND, TAKE THE PRECAUTION OF SELECTING ONE
OR TWO POINTS LOWER IN THE ADJUSTING SCALE ON THE SIDE WHEELS IN ORDER TO AVOID SIN
KING INTO THE GROUND.
To adjust the side wheels, use the crank provided (1, g. 25).

18
1
Fig. 26
1
Fig. 27
ADJUSTING SEED PLANTING DEPTH

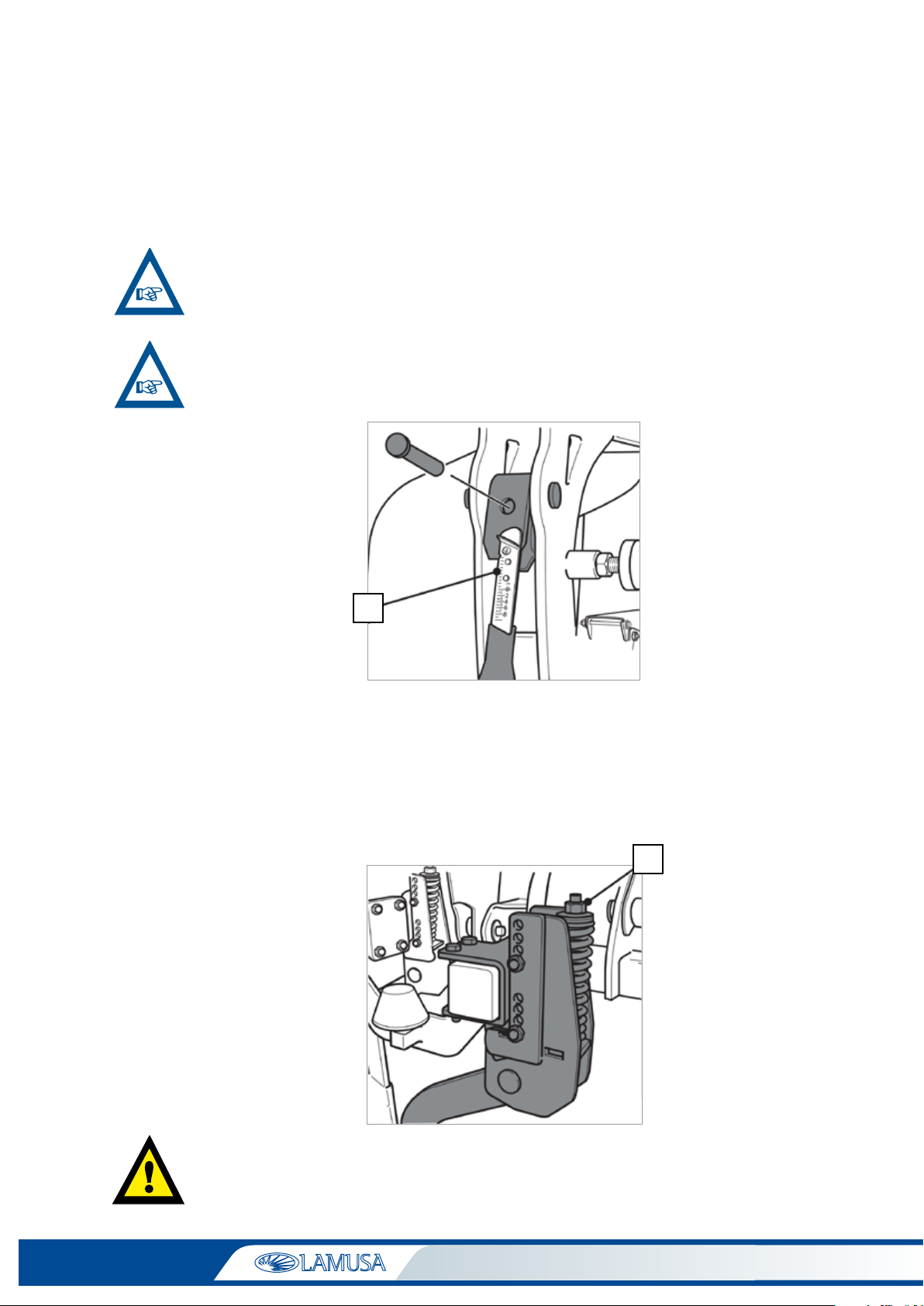

7.2 CENTRAL RATCHET WITH SLIDE
In the upper part of the ratchets you will nd a slide along with a blocking bolt. This bolt allows, when
placed, to lean the machine’s weight on the sowing equipment and therefore put the maximum pres-
sure that direct sowing requires. When the bolt is not placed, sowing equipment stays in otation mode
to work on the tilled land.
NOTILL SOWING: THE BLOCKING BOLT IS PLACED AND THE SLIDE’S POSITION FIG. 26/1 IS FROM
THE SCALE TOWARDS THE TOP.
SOWING TILLED LAND: WITHOUT THE THE BLOCKING BOLT AND THE SLIDE’S POSITION FIG. 26/1
FROM THE SCALE TOWARDS THE BOTTOM.
7.3 HEIGHT-ADJUSTABLE TINE COULTERS
Tine coulters which are aligned with both the tractor’s wheels and the seed drill, have an adjustable
height by means of a slide with holes which allows them to be lowered up to 7 cm. This allows to com-
pensate the track mark eect and to achieve a more uniform seed planting depth. Pressure performed
by the tine coulters can be adjusted by using the nut on top of the spring (g. 27/1)
EXCESSIVE LOOSENING OF THE NUT COULD CAUSE THE SPRING TO JUMP OUT DANGEROUSLY DUE
TO PRELOADING.
