Landice Pro ElliptiMill 92001 User manual

PART NUMBER 92001
Worldwide Excellence For Over 40 Years
Pro ElliptiMill
Ownerʼs Manual

To start the elliptical:
Pressing START powers up the elliptical and lights up the displays. The starting effort level is set
to Level 1.
To pause the elliptical:
Pressing PAUSE will stop your workout clock, but all statistical information will be preserved.
When you are ready to continue, press START to resume your workout.
To turn off the elliptical:
Pressing OFF will shut down the elliptical. All current statistical information will be cleared.
To change effort level:
Hold EFFORT “+” key down to increase effort level.
Hold EFFORT “-” key down to decrease effort level.
To view different display screens during your workout:
Press DISPLAY at any time to choose the display screen that best suits your workout.
To enter your weight:
Press WEIGHT INPUT to enter your weight for more accurate calorie calculations.
To run a program:
1. Press PROGRAM to toggle through the different built-in and user programs.
2. Press DISPLAY to select workout time and EFFORT “+/-” to adjust program max resistance.
3. Once you have set your desired workout time and maximum effort, press START to begin.
Note: While running a program, the red PROGRAM light will be lit.
To exit a program and return to manual mode:
While running a program, press the PROGRAM button. The red PROGRAM light will go out,
and you will be back in manual mode.
START
START
PAUSE
PAUSE

i
Important Safety Instructions
[1] If you are suffering from any illness, condition, or disability which affects your ability to run, walk or exercise, do not
use this product without consulting your doctor first.
[2] If you are suffering from any illness, condition, or disability which affects your ability to run, walk or exercise, do not
use this product without supervision present. Failure to do so can result in serious injury should you fall while the
machine is in motion.
[3] Failure to leave ample clearance around the elliptical could result in the user becoming trapped between the
mechanism and a wall, resulting in serious injury.
Allow a minimum clearance of 6 inches on each side of the elliptical.
Allow a minimum clearance of 1 foot at the rear of the elliptical.
[4] Be sure to familiarize yourself with this manual. Look it over carefully. Be sure you understand the control panel
operation before using the elliptical.
When using an electrical appliance, basic precautions should always be followed. Read all instructions before using.
DANGER: Always unplug the elliptical before cleaning or removing any shrouds. To reduce the risk of electric shock in
the event of an electrical storm, always unplug the elliptical from the electrical outlet immediately after using.
WARNING: Failure to observe the following operating instructions can result in serious injury!
SAVE THESE INSTRUCTIONS

ii
Important Safety Instructions
[1] An appliance should never be left unattended when plugged in. Unplug from outlet when not in use.
[2] Close supervision is necessary when this unit is used by or near children or disabled persons.
[3] Use this elliptical only for its intended use as described in this manual.
[4] Never operate this elliptical if it has a damaged cord or plug, if it is not working properly, or if it has been damaged.
Call your selling dealer immediately for examination and repair.
[5] Keep the power cord away from heated surfaces. Be sure the line cord has plenty of slack and does not get pinched
underneath the elliptical.
[6] Never drop or insert any object into any opening. Be sure no objects are near or underneath the elliptical.
[7] Do not use outdoors.
[8] Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
[9] Connect this appliance to a properly grounded dedicated outlet only.
[10] To disconnect, press the OFF button, and unplug the unit from the wall outlet.
GROUNDING INSTRUCTIONS
This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for
electric current to reduce risk of electric shock. This product is equipped with a cord having an equipment grounding
conductor and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
120 VOLT ELLIPTICALS
Ellipticals marked 120 VAC are intended for use in a nominal 120-volt circuit with a grounding plug. Make sure the product
is connected to an outlet having the same configuration as the plug. No adapter should be used with this product.
200 - 250 VOLT ELLIPTICALS
Ellipticals marked 200-250 VAC are intended for use on a circuit having a nominal rating more than 120V and are factory-
equipped with a specific cord and plug to permit connection to a proper electric circuit. Make sure the product is connected
to an outlet having the same configuration as the plug. No adapter should be used with this product. If the product must
be reconnected for use on a different type of electric circuit, qualified service personnel should make the reconnection.
DANGER: Improper connection of the equipment-grounding connector can result in a risk of electric shock. Check with
a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify
the plug provided with the product. If it will not fit in the outlet, have a proper outlet installed by a qualified electrician.
WARNING: To reduce the risk of electric shock or injury to persons:

Table of Contents
Basics
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Assembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Running a Program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Heart Rate Monitoring
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Heart Rate Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1
Introduction
Congratulations! You’ve made a very smart investment! Your Pro ElliptiMill elliptical is a high-quality fitness tool that will
give you years and years of fitness benefits.
One of the great things about your new ElliptiMill is that it uniquely monitors your workout intensity in “treadmill terms”.
Meaning, if your speed readout displays 7 mph, you are exerting the same energy as running 7 mph.
Regardless of the application, unpleasant weather is not an obstacle. Cold, windy, wet days will never discourage you again,
nor will the heat and humidity of the summer months. If you’re the type of person that likes to do two things at once, now
you can watch your favorite program on TV or keep an eye on your kids and take care of your health at the same time.
Your ElliptiMill was a smart purchase, but you already knew that, so let’s move on and get started.
INSTRUCTION MANUAL
Be sure to familiarize yourself with this manual. Look it over carefully. Be sure you understand the control panel operation
before using the elliptical.
WARRANTY INFORMATION
Fill out your warranty registration card and mail it in today. Landice backs your elliptical with a strong warranty.
For the factory to respond to any problems you may have, we need your warranty information on file. Do it today.
Landice will send you a complimentary Landice T-shirt upon receipt of your warranty registration card.
SELECTING A LOCATION
Place the elliptical in a climate-controlled room.
Failure to do so may effect warranty.
Allow a minimum clearance of 6 inches on each side of the elliptical.
Allow a minimum clearance of 1 foot at the rear of the elliptical.
Failure to leave ample clearance around the elliptical could result in the user becoming trapped between the mechanism and
the wall should the user accidentally trip and fall while exercising.
Be sure the line cord has plenty of slack and does not get pinched underneath the elliptical. Make sure the elliptical is
plugged into a dedicated line.
BEFORE YOU BEGIN
Following are some things you should do before you start to exercise on your elliptical:

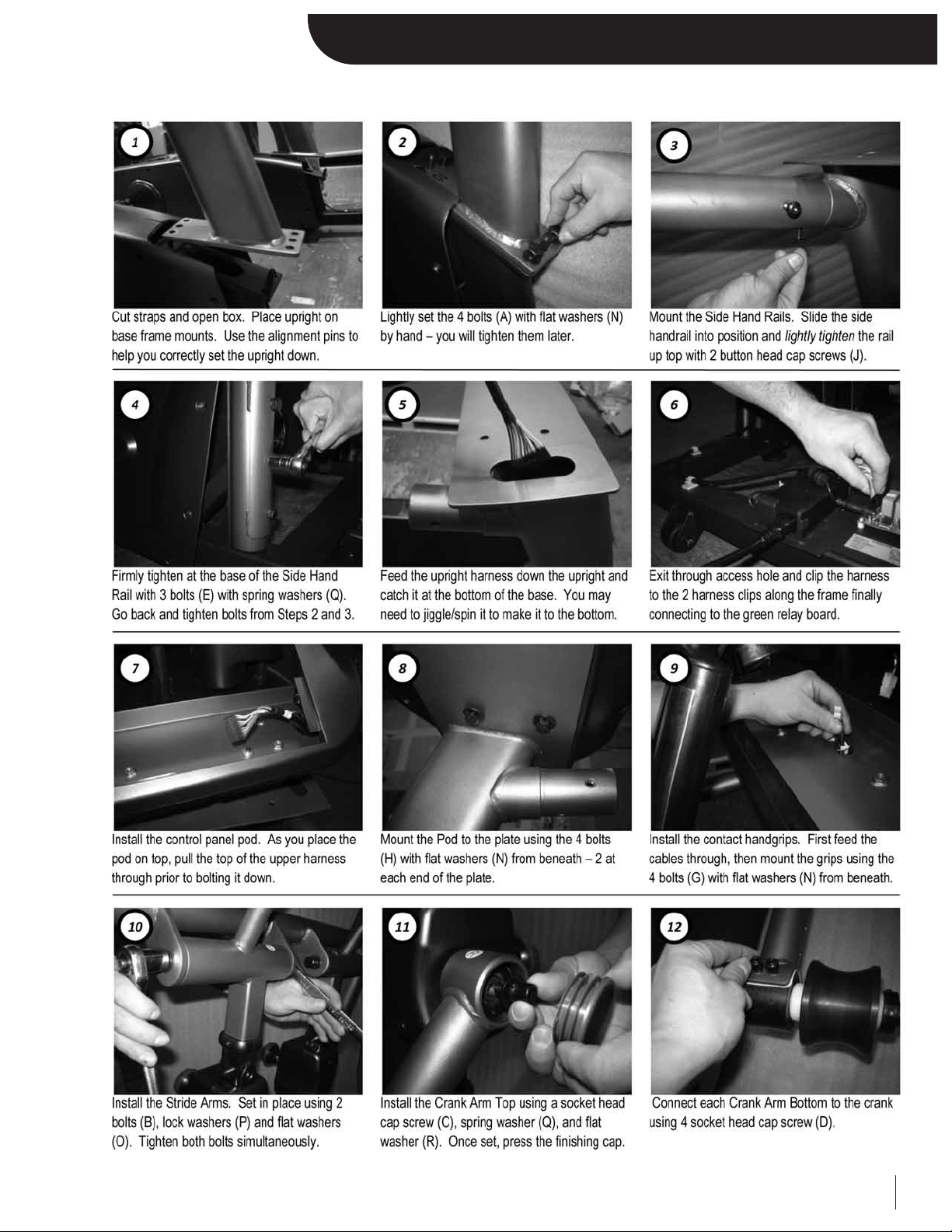

E7 / E9 Assembly Instructions
2

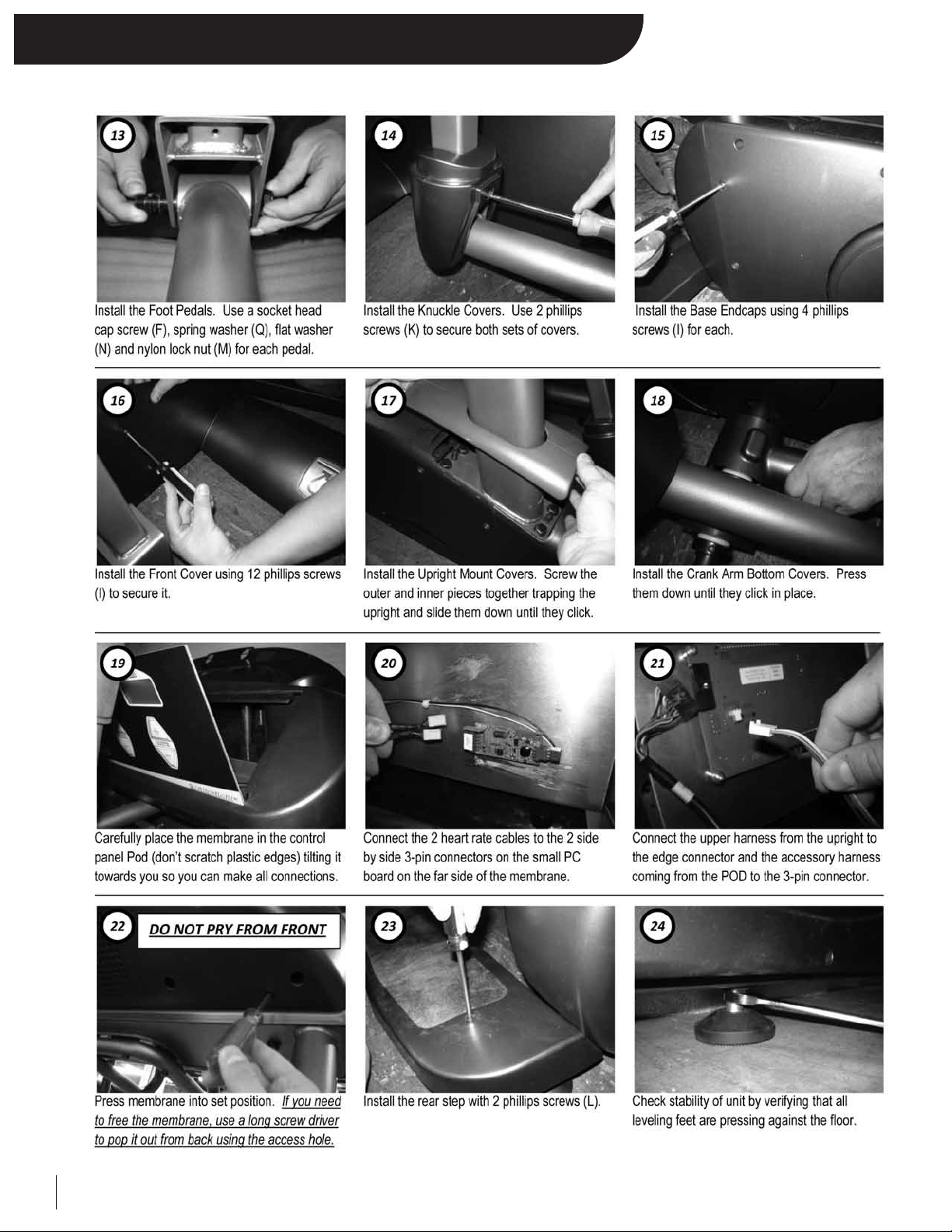

E7 / E9 Assembly Instructions
3
* If installing an LVS (optional), go to those
instructions now.

4
Features
ADJUSTABLE STRIDE LENGTH SYSTEM
The Adjustable Stride Length System allows you to vary your stride length from 17-23 inches.
MANUAL CONTROL
The user controls all aspects of the elliptical during workout.
5 BUILT-IN PROGRAMS
2 USER-DEFINED PROGRAMS
Programs defined by the manual changes you make during a workout (up to twenty changes).
All the changes made during the program will be stored in the elliptical as a user program even if the
elliptical is unplugged.
HEART RATE MONITORING (CONTACT / WIRELESS)
The ElliptiMill comes fitted with contact heart rate grips. Once you grab the contact grips, the
software will automatically display your heart rate. Once you release them, the display will revert to
the statistic you were previously viewing.
Another heart rate monitoring option is the wireless chest strap. Wearing the chest strap allows the
elliptical to receive and display your heart rate wirelessly (see Heart Rate Monitors).
ENGLISH/METRIC MODE
With the elliptical turned off: While pressing EFFORT “-” and WEIGHT INPUT, press START.
Repeat the same steps to switch back to Metric mode.

5
Getting Started
START
START
START
START
Make sure you read and understand this owner’s manual. Now you are ready to begin.
SET YOUR STRIDE
Prior to your workout, check to see what stride setting the elliptical is currently set at. The current stride setting is the num-
ber (17, 19, 21 or 23) that is located directly behind the positional loop.
To change it, loosen the knob and t-handle. Loosen the knob until it releases allowing you to pull it back. While pulling
back on the knob, slide the stride adjustment to the desired setting. Once set, tighten the knob and t-handle.
Start by standing on the rear step and stepping onto each foot pedal.
Press the button. The displays will power up and the effort level will default to Level 1.
MANUAL MODE
Upon startup the elliptical enters Manual Mode. In this mode, you control all of the elliptical functions. Any changes in
effort level will be a direct result of you touching the control panel.
In Manual Mode, you can view one of the 6 statistics by pressing or all of them by holding
and activating the scan feature.
DISPLAY OPTIONS
TIME Time logged on elliptical Minutes: Seconds
DISTANCE Metabolic Running Equivalent** Miles or Km (Metric)*
SPEED Metabolic Running Equivalent** MPH or Km/Hr (Metric)*
CALORIES Total calories burned Based on user’s weight
REV/MIN Pedal Speed of elliptical Revolutions per Minute
PULSE User’s current pulse Contact or Wireless
NOTE: You can reset your statistics at any point during your workout by holding for 3 seconds.
*English to Metric: With the elliptical turned off, while pressing EFFORT “-” AND WEIGHT INPUT, press START. Follow
the same steps, to revert back to English units.
**Speed and distance are calculated using an advanced metabolic running equivalent algorithm. Your pedal speed and effort
level will yield a “running” speed with the equivalent energy consuming intensity.
ENTER YOUR WEIGHT
Entering your weight is crucial for Calorie and “running” speed calculations. Press WEIGHT INPUT, then press DISPLAY
or EFFORT “+/-” to adjust the user weight.

6
Running a Program
SELECT PROGRAM
Press PROGRAM at any time to display the program selection screen. Continue pressing PROGRAM to
scroll through all the programs. Once you have reached your desired workout, simply wait 3 seconds to
enter the Program Setup.
SELECT PROGRAM TIME
Using the DISPLAY button, toggle the program time from 10-99 minutes on the center display. If you
hold the display button, the time scrolls faster.
SELECT MAXIMUM EFFORT LEVEL
Using the EFFORT “+/-” keys, adjust the maximum effort level for your workout. The value you select will
rescale the workout to never exceed this effort level.
Press to begin.
As soon as you press START, the center display will show the program you have selected with a 3 second countdown. For
the duration of the program, the time will count down and the red program light will remain lit. For built-in programs, use
the program pictures on the left side of the panel as a reference. Each green block represents a segment for a total of 20
segments. During a segment change, the display will flash the next segment number and its effort level. If you want to
exit the program at any time and return to manual mode simply press PROGRAM.
USER PROGRAMS
These programs run and operate exactly like the standard built-in programs, except that any changes that you make to the
effort level during the program will be permanently stored in the software’s memory. The next time you run the same user
program, it will reflect your custom changes.
User Programs 1 and 2 come preprogrammed from the factory as identical replicas of Fat Burn and Intermediate. While
running a user program, customize it to your liking.
START
START

Every ElliptiMill comes standard with speakers and fan.
SPEAKERS:
To use the speakers, connect to one of 2 available inputs: 3.5 mm head phone plug (compatible with any audio source with a standard
headphone jack) and the iPod® docking connector.
Speakers only operate when the ElliptiMill is ON. Once you connect your personal player, you’ll be able to turn on/off and adjust the
different levels by pressing the “+/-” keys to the right of the fan vent.
FAN:
Fan will only operate when the unit is ON. You’ll be able to turn on/off and adjust the different levels by pressing the “+/-” keys to
the left of the fan vent.
Note: The accessories keypad has a small power LED (light) on the bottom left corner. This is a diagnostic light which will remain lit as an
indicator that the accessories are being adequately powered.
7
Accessories

Heart Rate Monitoring
8
The Pro ElliptiMill elliptical comes standard with a wireless heart rate monitoring device and contact heart rate grips (see
Heart Rate Monitors) to give you feedback on how your body is affected by your workout. We will take a look at a few basic
concepts of heart rate monitoring so you can better understand how it all works and how to maximize its use to allow you to
reach the fitness level you desire.
WHAT IS EXERCISE INTENSITY?
Exercise intensity is a measure of how hard you are working at a given time during exercise. The American College of Sports
Medicine (ACSM), the world’s leading medical and scientific authority on sports medicine and fitness, recommends that
every individual involved in an exercise program know how hard his/her body is working during exercise.
Your heart provides key information for determining how intensely you are working during exercise. Your heart rate (how
many times your heart beats per minute) is really an efficiency rating for your entire body. The number of times your heart
beats during each minute of exercise is a measurement of the intensity of the exercise. If your heart rate is low, exercise
intensity is low; if your heart rate is high, your exercise intensity is high.
WHAT IS MAXIMUM HEART RATE?
Maximum Heart Rate (MHR) is the maximum attainable heart rate your body can reach before total exhaustion. True
maximum heart rate is measured during a fatigue or “stress” test. This test must be done in a clinical setting and is not
practical or accessible for most people. Fortunately, your maximum heart rate can be established with a high degree of
accuracy using the following simple formula:
WARNING: The use of this formula assumes no underlying heart or respiratory disease or other condition, which could
be adversely affected by exercise. Consult your doctor before using this chart!!!
185 beats per minute is the estimated maximum number of times John’s heart can beat before his body would fatigue or
“max out”. This number is extremely helpful because it tells us the absolute highest exercise intensity John can handle before
his body wears out. The ACSM says that during exercise, John should keep his heart rate below his maximum so that he will
not become exhausted and have to quit. In fact, the ACSM gives John a specific percentage range of his maximum heart rate
to exercise in, known as his Target Heart Rate Zone (THRZ).
Estimated Maximum Heart Rate =220 minus your age.
If John is 35 years old, what is his estimated maximum heart rate?
220-35=185
John’s Estimated Maximum Heart Rate = 185

Your heart is the most important muscle in your body and, like all muscles, must be exercised regularly to remain strong and
efficient. According to fitness experts, exercise is more effective when you work out in a specific heart rate range or zone.
This is referred to as your Target Heart Rate Zone (THRZ) and is reflected by the number of beats per minute your heart
pumps. This zone can vary greatly depending on your age, fitness level and various other factors. If your heart rate is too
low during exercise, your body reaps little or no benefit. This means you’re not likely to see the results you want, like weight
loss or increased endurance. If your heart rate is too high during exercise, you may tire too quickly and become frustrated,
or even run the risk of injury. In this case, you’re likely to quit exercising because it’s simply too difficult.
Monitoring exercise intensity helps you to stay at a level of exercise that allows you to accomplish your goals. In fact, the
American College of Sports Medicine (ACSM) recommends that, in order to get the most benefit from your cardiovascular
exercise, you should work within your Target Heart Rate Zone for at least 20 to 60 minutes per workout, 3 to 5 times per
week. Knowing your exercise intensity (heart rate) will allow you to work at the right level of exercise to accomplish this.
Your Target Heart Rate Zone represents the minimum and maximum number of times your heart should beat in one minute
of exercise. The ACSM recommends that all individuals should work within a Target Heart Rate Zone of 60% to 85% of
Maximum Heart Rate. This means that your heart rate during exercise should not fall below 60% or rise above 85% of your
maximum heart rate. Let’s look at John from our earlier example. John is 35 years old, so his estimated maximum heart
rate is 220 minus 35, or 185 beats per minute (bpm). The ACSM says that John should exercise between 60% and 85% of
185 beats per minute to stay in his THRZ. Let’s determine John’s THRZ:
111-157 beats per minute is the range or zone John will want to keep his heart rate in during exercise in order to achieve his
goals. If John is a beginning exerciser, he’ll want to stay at the low end of his THRZ. If John is a more advanced exerciser, he
may want to work at the higher end of his THRZ to challenge himself more.
DIFFERENT INTENSITY LEVELS WITHIN A TARGET HEART RATE ZONE
Beginner: 60% of MHR
Weight Loss: 75% of MHR
Aerobic: 85% of MHR
A monitor consists of two parts: a transmitter and a receiver. Each time your heart beats, the electrodes detect the beat and
send the information to the receiver on the elliptical. Your current heart rate (bpm) is visible on the elliptical’s display.
Why should I monitor exercise intensity?
How do I determine my Target Heart Rate Zone?
What is a heart monitor?
John’s Estimated Maximum Heart Rate: 185 bpm
Lower Target Limit: 185(MHR) X 0.6 111 bpm
Upper Target Limit: 185(MHR) X 0.85 157 bpm
John’s Target Heart Rate Zone 111-157 bpm
9
Heart Rate Monitoring

10
Heart Rate Monitors

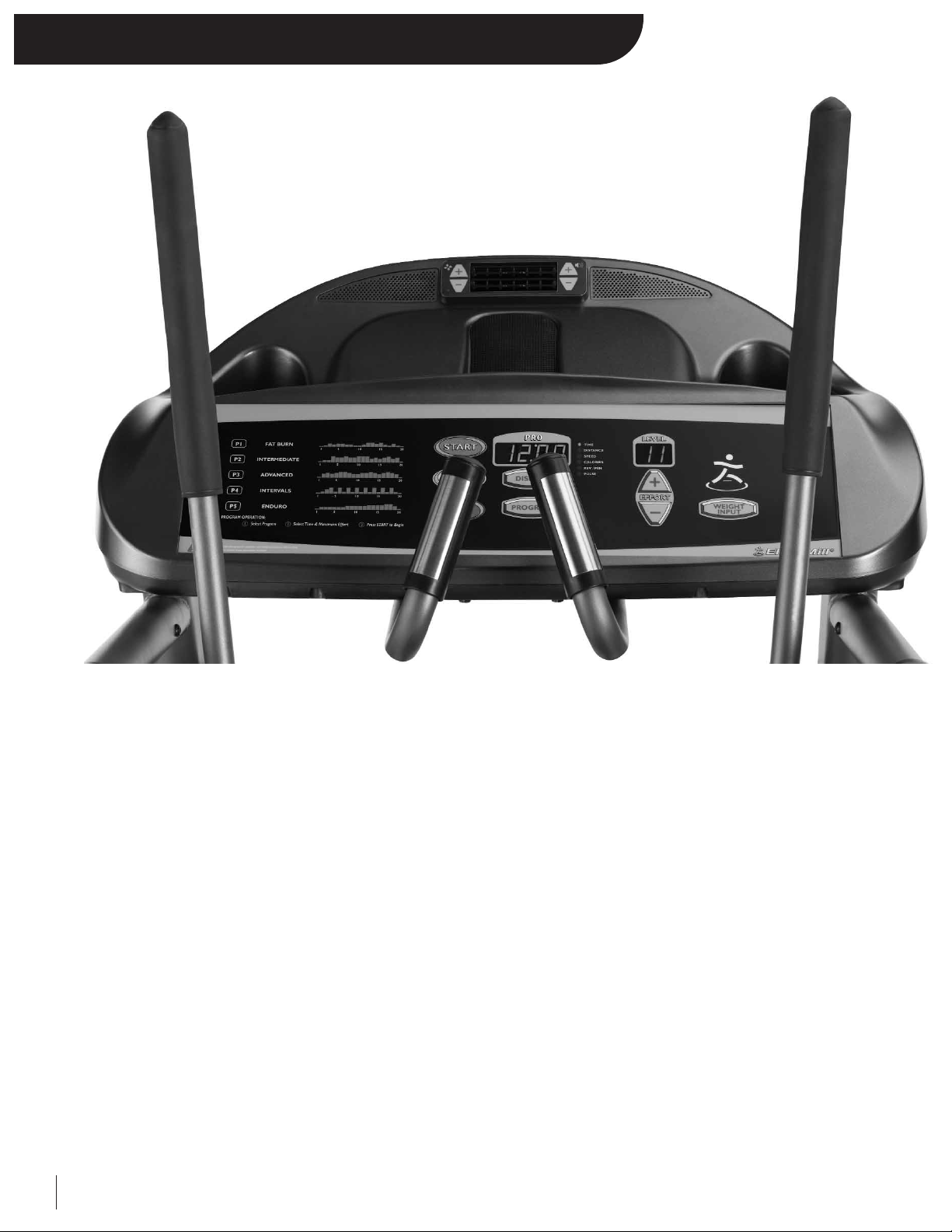

Every ElliptiMill comes with AccuTrack Contact Heart Rate Grips that can be
used in place of the wireless chest strap.
CONTACT GRIPS (shown on right)
To use the Contact Grips follow these steps:
Grab the contact grips.
The center display will start flashing to communicate that the system is active
and acquiring a signal.
After about 5-10 seconds, your heart rate will be displayed and remain
displayed as long as you hold on to the grips.
Once you release them, the display will automatically revert to the statistic
displayed prior to grabbing the grips.
Note: If you are wearing the wireless chest strap, the AccuTrack Contact Heart Rate Grips will override the wireless signal
while your hands are on the grips. Once you release the grips, the elliptical will default back to the wireless signal.
The contact grips are designed to reliably operate up to approximately 70 RPM. Higher speeds can cause the user’s hands to
shift and hinder the heart rate signal acquisition. For the most reliable results, use the wireless chest strap.
WIRELESS HEART RATE CHEST STRAP TRANSMITTER (shown below)
To use the Wireless Chest Strap follow these steps:
SECURE THE CHEST STRAP
Center the transmitter on the chest as high under the pectoral muscles (breasts) as possible. Tighten the strap so that the
belt is as tight as possible without being uncomfortable.
APPLY CARDIO GEL TO THE ELECTRODES
A tube of Landice Cardio Gel was shipped with your ElliptiMill. Pull
the belt away from your chest and apply a small dab to each electrode.
This will ensure a strong electrical contact between the transmitter
and your chest.
The Heart Rate Transmitter works best against bare skin. Since sweat (saltwater) is an electrical conductor, the transmitter
will work over a T-shirt if the shirt is wet with sweat. If you are having trouble getting an accurate pulse reading, try wearing
the belt against bare skin.
CARE AND MAINTENANCE
The transmitter activates when the belt is properly wetted. In order to conserve battery life, wipe the electrodes dry when
not in use. Clean monthly with mild soap and water and wipe dry. Do not use abrasives in cleaning, as they can cause per-
manent damage to the electrodes. Do not bend or stretch the electrode strips, especially when storing the belt transmitter.

111 Canfield Avenue, Randolph, NJ 07869 · 1-800-LANDICE · Tel. [phone] · Fax [phone] · www.landice.com
