Landice L10 90 Series User manual

Part Number: 73208
L10 Treadmill
90 Series
Installation Manual

1
1. Important Safety Instructions
1.1. Safety
Read all instructions before using the treadmill.
Save these instructions.
Veuillez lire toutes les instructions avant d'utiliser le tapis roulant.
VEUILLEZ CONSERVER CES INSTRUCTIONS.
DANGER
To reduce the risk of electric shock: always unplug
the treadmill from the electrical outlet immediately
after using and before cleaning.
To reduce the risk of burns, fire, electric shock or
injury to persons, keep the power cord away from
heated surfaces. Be sure the cord has plenty of
slack and cannot be pinched under the treadmill
when it elevates and de-elevates.
DANGER
Pour réduire le risque d'électrocution : toujours
débrancher le tapis roulant de la prise électrique
immédiatement après son utilisation et avant de le
nettoyer.
Pour réduire le risque de brûlure, d'incendie,
d'électrocution ou de blessure corporelle, tenez le
câble électrique éloigné des surfaces chauffées.
Assurez-vous que le câble ait suffisamment de
mou et ne puisse pas se coincer sous le tapis
roulant lorsqu'il s'élève ou s'abaisse.

2
1.2. Grounding Instructions
This product must be grounded. if it should malfunction or break
down, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. The treadmill is
equipped with a cord having an equipment grounding conductor
and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
WARNING
Failure to leave ample clearance around the
treadmill could cause you to be trapped
between the treadmill and a wall if you fall,
resulting in burns or other serious injury
from the moving treadbelt. Allow a
minimum clearance of 18 inches (46 cm) on
each side of the treadmill. Allow a minimum
clearance of 6 feet (183 cm) at the rear of the
treadmill.
Le fait de ne pas laisser suffisamment
d'espace dégagé autour du tapis roulant
peut avoir comme conséquence, en cas de
chute, que vous soyez immobilisé entre le
tapis roulant et un mur, la courroie en
mouvement pouvant causer des brûlures ou
autres blessures. Laissez un espace dégagé
d'au minimum 46 cm de chaque côté du
tapis roulant. Laissez un espace dégagé
d'au minimum 183 cm à l'arrière du tapis
roulant.
WARNING
Connect treadmill to a properly grounded,
dedicated electrical outlet only. See the
following Grounding Instructions.
Ne branchez le tapis roulant que sur une
prise électrique raccordée à la terre et
exclusivement dédiée au tapis roulant. Voir
les instructions de mise à la terre qui
suivent.

3
1.3. 200 – 240-Volt Treadmills
Treadmills marked 200 – 240V AC are intended for use on a circuit
having a nominal rating greater than 220V and are factory-
equipped with a specific power cord and plug to permit connection
to a proper electrical circuit. Ensure the treadmill power cord is
connected to an outlet having the same configuration as the plug.
No adapter should be used with 200 – 240 VAC treadmills.
If the treadmill must be configured for use on a different type of
electrical circuit, qualified service personnel should make the
proper connection.
Ce produit doit être mis à la terre. En cas de dysfonctionnement ou
de panne, la mise à la terre offre une voie de moindre résistance
au courant électrique, ce qui réduit de risque d'électrocution. Le
tapis roulant est équipé d'un câble électrique muni d'un fil
conducteur de mise à la terre et d'une fiche de mise à la terre.
Cette fiche doit être branchée sur une prise adaptée, correctement
installée et raccordée à la terre conformément à tous les codes et
règlements locaux.
Tapis roulant 200 – 240 volts
DANGER
Improper connection of the grounding connector
can result in a risk of electric shock. Check with a
qualified electrician/service technician if you are
in doubt as to whether the treadmill is properly
grounded. Do not modify the plug provided with
the treadmill–if it will not fit the outlet, have a
proper outlet installed by a qualified electrician.
DANGER
Un mauvais raccordement à l'équipement de mise
à la terre vous expose à un risque d'électrocution.
Renseignez-vous auprès d'un électricien/
technicien de service qualifié en cas de doute sur
la mise à la terre correcte du tapis roulant. Ne
modifiez pas la fiche fournie avec le tapis roulant:
si elle ne convient pas à la prise, faites installer
une prise adaptée par un électricien qualifié.

4
Les tapis roulant sur lesquels est inscrit 200-240 CA (VAC) sont
destinés à une utilisation à une tension nominale supérieure à 220
V et équipés en série d'un câble électrique et d'une fiche
spécifiques pour permettre le branchement sur une prise adaptée.
Si le tapis roulant doit être configuré pour une utilisation sur un
type de circuit électrique différent, il convient de faire appel à du
personnel de service qualifié pour installer le bon raccordement.

Contents
5
Contents
1. Important Safety Instructions ...........................................1
1.1. Safety................................................................................... 1
1.2. Grounding Instructions......................................................... 2
1.3. 200 – 240-Volt Treadmills .................................................... 3
2. Installation ..........................................................................7
2.1. Tools Needed....................................................................... 7
2.2. Hardware Included............................................................... 7
2.3. Unpacking ............................................................................ 8
2.4. Assembly ........................................................................... 13
2.5. Leveling Treadmill.............................................................. 26
2.6. Treadbelt Tensioning ......................................................... 28
2.7. Treadbelt Tracking ............................................................. 28
2.8. Cover Installation ............................................................... 30

Contents
6

7
2. Installation
2.1. Tools Needed
• M4-Allen Wrench 4mm (included in hardware #22)
• M6-Allen Wrench 6mm (included in hardware #21 blue handle)
• Installer provides the following tools:
• Allen Wrench 5mm
• Med Philips Screwdriver
• Socket wrench 16mm and 17mm
2.2. Hardware Included
The following hardware is supplied:
Figure 2-1. Supplied Hardware on Blister Pack
• M6x15-6 pieces (#14 on blister pack)
• Serrated Lock washers for M6-6 pieces (#17 on blister pack)
• M8x15-18 pieces (#13 on blister pack)
• Serrated Lock washers for M8-18 pieces (#16 on blister pack)
#14 PHILLIPS SCREW M6*15 (6PCS)
#22 ALLEN WRENCH S=4 (1PC)
#17 SERRATED LOCK WASHERS Ø6 (6PCS)
#13 BUTTON HEAD CAP SCREW M8*15 (18PCS)
#21 ALLEN WRENCH S=6 (2PCS)
L10
#10 BOLT M10*25 (4PCS) #16 SERRATED LOCK WASHERS Ø8 (18PCS)
#15 PHILLIPS SCREW M6*75 (4PCS)
#11 NYLON LOCK NUT M10 (2PCS)
#12 FLAT WASHER Ø11*Ø23*2 (2PCS)
#18 PHILLPS SCREW M4*10 (2PCS)

Installation Unpacking
8
• M10x25-4 pieces (#10 on blister pack)
• M10 Nylon Lock Nut-2 pieces(#11 on blister pack)
• M10 Flat Washer-2 pieces (#12 on blister pack)
• M4x10-2 pieces (#18 on blister pack)
• M4x75 –4 pieces (#15 on blister pack)
• Screws for Mini-Pod-2 pieces Button head (need #5 Allen wrench
(see red arrow)
• Nuts for Mini-Pod-2 pieces M8 size nylon nut (see red arrow)
2.3. Unpacking
Unpacking and installation of the treadmill should be done by a
qualified technician. The packaged treadmill is very heavy and weighs
600 lbs (272KG), packaged.
1. Locate where the treadmill will be used to provide space as shown
in Figure 2-2.
WARNING
To avoid injury, use caution when moving
and lifting the treadmill during unpacking
and assembly.
AVERTISSEMENT
Pour éviter toute blessure, faites attention
lors du déplacement et du levage du tapis
roulant lors du déballage et de
l'assemblage.

Unpacking Installation
9
Figure 2-2. Free Space Areas
2. Move boxed unit to room where it will be used, cut the straps, and
take off the top of the box (Figure 2-3).
Figure 2-3. Open Shipping Box
24” (0.6m)
24” (0.6m)
79” (2m)
12”
(0.3m)
Small Box
Large Box

Installation Unpacking
10
3. Remove wood bracing from inside the box. You will have to slide
larger box toward center to remove wood brace covering it
(Figure 2-4).
Figure 2-4. Bracing Removal
4. Open the large box. Inside you will find:
Figure 2-5. Large Box Contents
• Plastic wrapped hardware and tools
• Handrails
•Mini Pod
• Cup holder
• Treadmill Lubricant
• Line Cord
• Manual and Warranty Card
Large Box
Small Box

Unpacking Installation
11
5. Open smaller box. Inside you will find the console/display
(Figure 2-6).
Figure 2-6. Console/Display
6. Remove Upright from box (Figure 2-7).
Figure 2-7. Packed Upright
Upright

Installation Unpacking
12

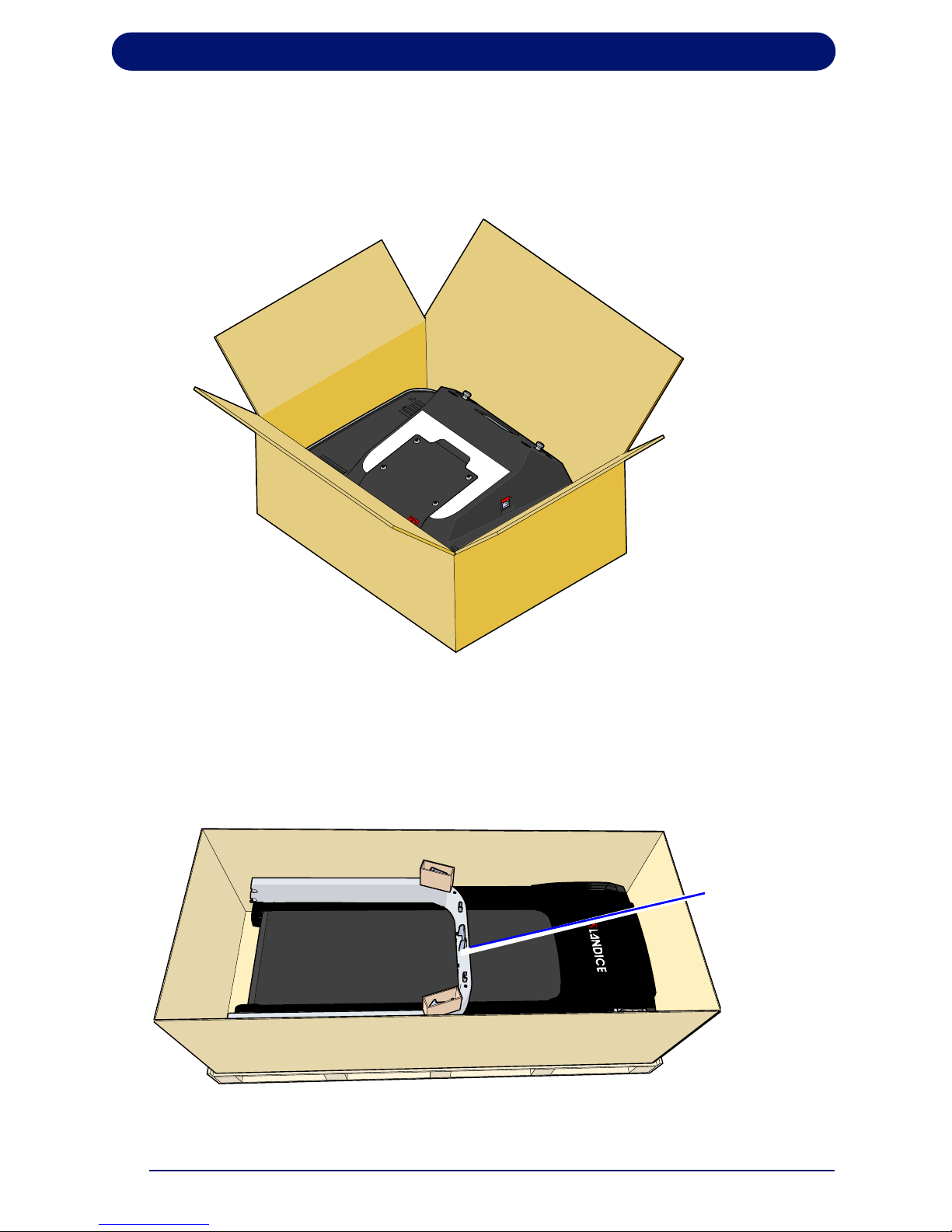

7. Cut open the box and remove bubble wrap (Figure 2-8).
Figure 2-8. Packed Base
8. Remove the Treadmill base from the box and place where it will be
used as determined in Step 1. One person uses the Grab Bar and
two people lift at each front corner as shown in Figure 2-9.
Figure 2-9. Base Removal
Grab Bar
Lift at corners

Assembly Installation
13
2.4. Assembly
1. Remove the two M6x20 and four M5x15 Socket Head Cap Screws
that secure the motor covers in place and place them in a safe
place for reuse later when the covers are re-installed (Figure 2-10).
Figure 2-10. Motor Cover Outer Screws
2. Remove the smaller Forward Covers as shown above (Figure 2-
10).
3. On both sides: Remove both inside 4mm screws as shown in
Figure 2-11 and place them in a safe place for reuse later when the
covers are re-installed.
M5x15 Socket
Head Cap Screws
(2X)
M6x20 Socket
Head Cap Screws
(4X)
Forward Cover
(2X)

Installation Assembly
14
Figure 2-11. Motor Cover Inner Screws
Note: Do not remove the wire tie protruding from the Upright.
You will need this to guide the Upper Wire Harness
through the Upright later.
WARNING
Failure to leave ample clearance around the
treadmill could cause you to be trapped
between the treadmill and a wall if you fall,
resulting in burns or other serious injury
from the moving treadbelt. Allow a minimum
clearance of 18 inches (46 cm) on each side
of the treadmill. Allow a minimum clearance
of 6 feet (183 cm) at the rear of the treadmill.
AVERTISSEMENT
Le fait de ne pas laisser suffisamment
d'espace dégagé autour du tapis roulant
peut avoir comme conséquence, en cas de
chute, que vous soyez immobilisé entre le
tapis roulant et un mur, la courroie en
mouvement pouvant causer des brûlures ou
autres blessures. Laissez un espace dégagé
d'au minimum 46 cm de chaque côté du
tapis roulant. Laissez un espace dégagé
d'au minimum 183 cm à l'arrière du tapis
roulant.
Screws

Assembly Installation
15

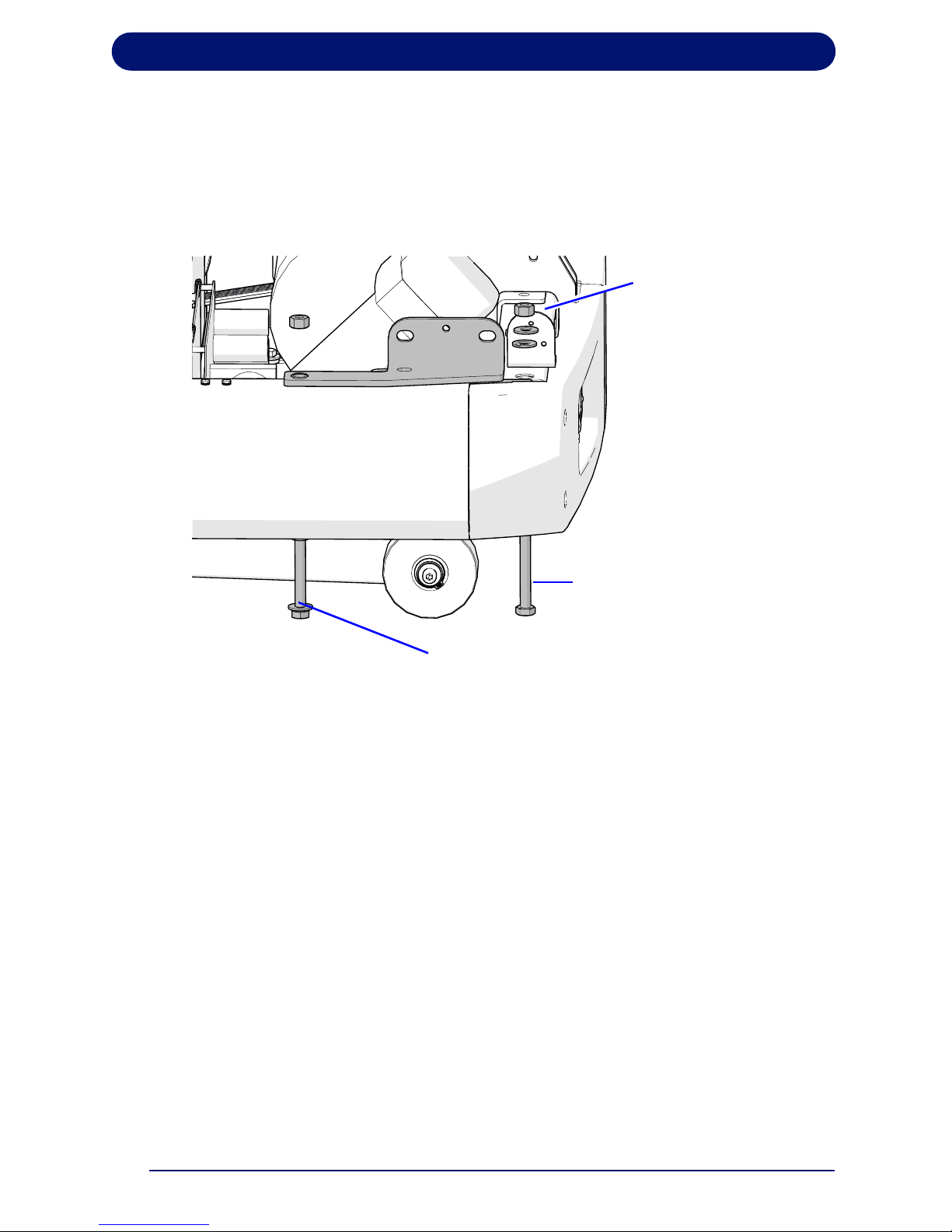

4. On both sides: The M10x165 and M10x180 Hex Head Bolts used
to secure the Upright to the Frame are shipped in the Frame, held
in place during shipment with 16mm nuts. Remove the nuts and
allow the bolts to slide down and rest on the floor (Figure 2-12).
Figure 2-12. Bolt Shipping Position
5. Untie wire tie from the Upright. You will use this to pull the Upper
Harness through Upright Upper Access Hole later.
6. Align the pins on the bottom of the Upright Plate with the holes in
the Frame and lower the Upright fully onto the Frame (Figure 2-13).
M10x180 Hex Head Bolt
M16 Nut (4X)
M10x165 Hex Head Bolt

Installation Assembly
16
Figure 2-13. Upright Installation
7. Remove the two Nylon Lock Nuts #11 from the blister card.
8. On both sides: Push the Rear Bolt up through the Frame and
Upright Base Plate and install the Nylon Lock Nut. Do not fully
tighten at this time.
9. Thread the Front Bolt into the Welded Nut on the Upright Base
Plate but do not fully tighten at this time.
10. On both sides: Thread the two M10x30 Hex Head Bolts through
Frame Bracket into the Upright as shown in the following figure
(Figure 2-14).
Alignment Pin
Welded Nut

Assembly Installation
17
Figure 2-14. Upright Side Bolts
11. Tighten all eight M10x30 Hex Head Bolts.
12. Slide Lower Control Assembly onto Center Upright Bracket and the
End Plates into the Side Brackets as shown in Figure 2-15.
10x30 Hex
Head Bolts
(4X)

Installation Assembly
18
Figure 2-15. Lower Control Assembly Installation
13. Attach the Lower Control Assembly to the Center Upright Bracket
from the bottom using four M8x15 Socket Head Cap Screws (#13
on card) with the provided blue Allen wrench (#21 on card). Do not
completely tighten (Figure 2-16).
Lower Control
Assembly
End Plate (both ends)
Side Brackets
(both sides)
Center
Upright
Bracket
