L&L TLC15 User manual

TLC15 - TLC16 - TLC17 1.1 DESCRIZIONE
Radiocomando rolling code 433.92 MHz
TLC15:1 canale con funzione settabile
TLC16:2 canali con funzione settabile
TLC17:4 canali con funzione settabile
1.2 DATI TECNICI
AREA TOUCH / TOUCH AREA
AREA TOUCH / ZONE TOUCH
BATTERIA / BATTERY
BATTERIE / BATTERIE
1
IT
2
TLC15 TLC16
TLC17
Batteria CR 2450
Circa 3 anni
Rolling code
433.92 MHz ISM
100 m (interno di edifici: 40 m)
40 mm x 40 mm h 10 mm
Alimentazione
Durata batteria
Codifica
Frequenza radio
Portata
Dimensioni
1.2 TECHNICAL DATA
Battery CR 2450
About 3 years
Rolling code
433.92 MHz ISM
100 m (40 m inside buildings)
40 mm x 40 mm h 10 mm
Power supply
Battery life
Code
Radio frequency
Range
Dimensions

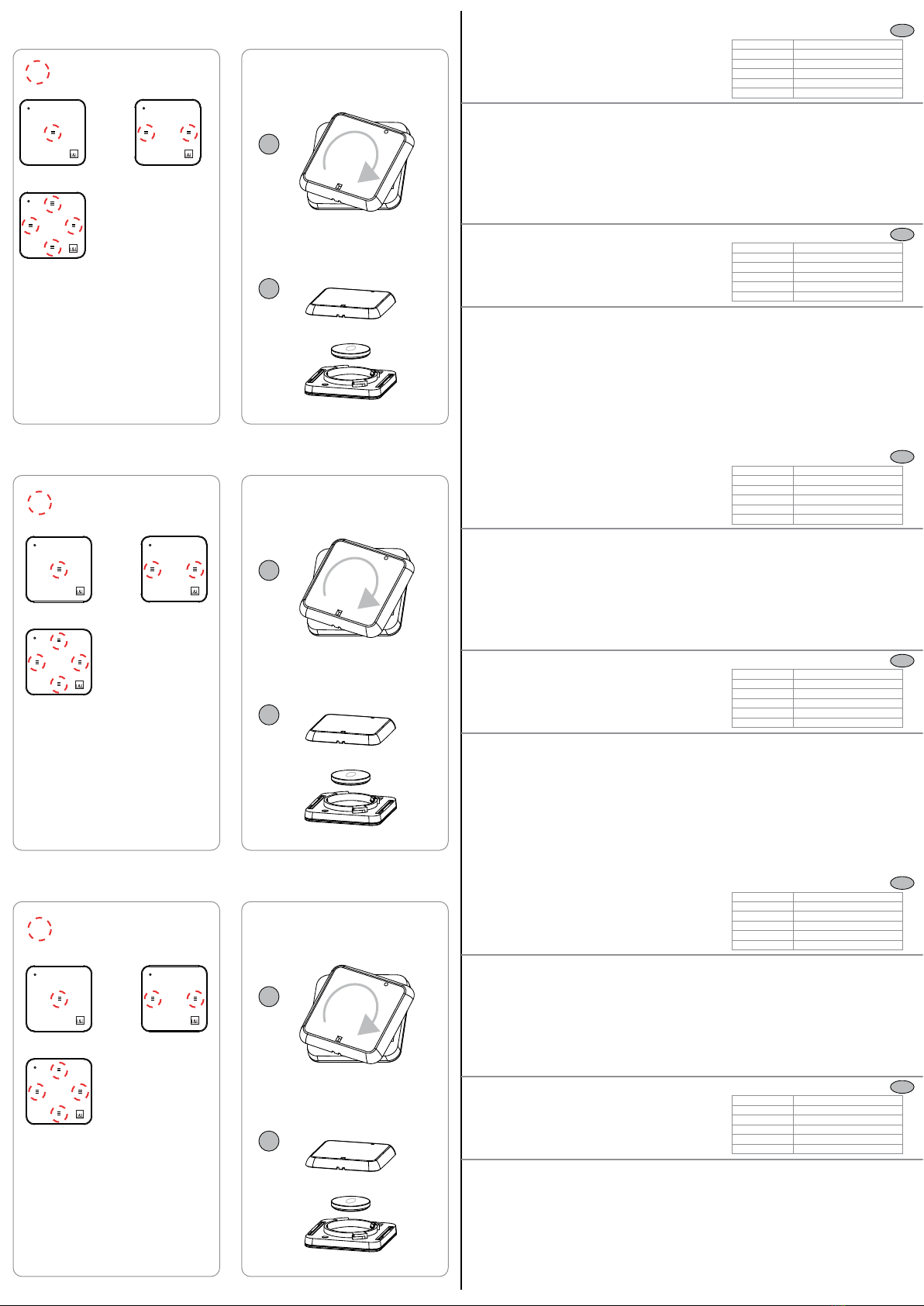

2PROGRAMMAZIONE DEL TRASMETTITORE
Con questa procedura si programma un canale per abbinarlo a una ricevente compatibile.
Per eseguire la seguente procedura è necessario accedere alla ricevente.
PROCEDURA:
1- Attivare la ricevente sulla quale si vuole utilizzare il trasmettitore in modalità
“programmazione radio di trasmettitori generici” e selezionare la funzione che
si desidera abbinare al tasto (vedi il manuale della ricevente)
2- Fare una pressione con il tasto desiderato, il led della ricevente emette
tre lampeggi per segnalare l’avvenuta ricezione.
3- Il trasmettitore torna allo stato di stand by.
1.1 PRODUCT FEATURES
Remote control rolling code 433.92 MHz
TLC15:1 channel with settable function
TLC16:2 channels with settable function
TLC17:4 channels with settable function
EN
2TRANSMITTER PROGRAMMING
This procedure is used to programme a channel in order to then associate it with a
compatible receiver. Access to the receiver is required to carry out the following procedure.
PROCEDURE:
1- Activate the receiver on which you want to use the transmitter in "radio programming of generic
transmitters" mode and select the function that you want to associate with the key
(see receiver manual).
2- Press the desired key; the receiver's LED flashes three times
to signal it has been received.
3- The transmitter goes back into stand-by.
+
1.1 DESCRIZIONE
Radiocomando rolling code 433.92 MHz
TLC15:1 canale con funzione settabile
TLC16:2 canali con funzione settabile
TLC17:4 canali con funzione settabile
1.2 DATI TECNICI
AREA TOUCH / TOUCH AREA
AREA TOUCH / ZONE TOUCH
BATTERIA / BATTERY
BATTERIE / BATTERIE
1
IT
2
Batteria CR 2450
Circa 3 anni
Rolling code
433.92 MHz ISM
100 m (interno di edifici: 40 m)
40 mm x 40 mm h 10 mm
Alimentazione
Durata batteria
Codifica
Frequenza radio
Portata
Dimensioni
1.2 TECHNICAL DATA
Battery CR 2450
About 3 years
Rolling code
433.92 MHz ISM
100 m (40 m inside buildings)
40 mm x 40 mm h 10 mm
Power supply
Battery life
Code
Radio frequency
Range
Dimensions
2PROGRAMMAZIONE DEL TRASMETTITORE
Con questa procedura si programma un canale per abbinarlo a una ricevente compatibile.
Per eseguire la seguente procedura è necessario accedere alla ricevente.
PROCEDURA:
1- Attivare la ricevente sulla quale si vuole utilizzare il trasmettitore in modalità
“programmazione radio di trasmettitori generici” e selezionare la funzione che
si desidera abbinare al tasto (vedi il manuale della ricevente)
2- Fare una pressione con il tasto desiderato, il led della ricevente emette
tre lampeggi per segnalare l’avvenuta ricezione.
3- Il trasmettitore torna allo stato di stand by.
1.1 PRODUCT FEATURES
Remote control rolling code 433.92 MHz
TLC15:1 channel with settable function
TLC16:2 channels with settable function
TLC17:4 channels with settable function
EN
2TRANSMITTER PROGRAMMING
This procedure is used to programme a channel in order to then associate it with a
compatible receiver. Access to the receiver is required to carry out the following procedure.
PROCEDURE:
1- Activate the receiver on which you want to use the transmitter in "radio programming of generic
transmitters" mode and select the function that you want to associate with the key
(see receiver manual).
2- Press the desired key; the receiver's LED flashes three times
to signal it has been received.
3- The transmitter goes back into stand-by.
+
1.1 DESCRIZIONE
Radiocomando rolling code 433.92 MHz
TLC15:1 canale con funzione settabile
TLC16:2 canali con funzione settabile
TLC17:4 canali con funzione settabile
1.2 DATI TECNICI
AREA TOUCH / TOUCH AREA
AREA TOUCH / ZONE TOUCH
BATTERIA / BATTERY
BATTERIE / BATTERIE
1
IT
2
Batteria CR 2450
Circa 3 anni
Rolling code
433.92 MHz ISM
100 m (interno di edifici: 40 m)
40 mm x 40 mm h 10 mm
Alimentazione
Durata batteria
Codifica
Frequenza radio
Portata
Dimensioni
1.2 TECHNICAL DATA
Battery CR 2450
About 3 years
Rolling code
433.92 MHz ISM
100 m (40 m inside buildings)
40 mm x 40 mm h 10 mm
Power supply
Battery life
Code
Radio frequency
Range
Dimensions
2PROGRAMMAZIONE DEL TRASMETTITORE
Con questa procedura si programma un canale per abbinarlo a una ricevente compatibile.
Per eseguire la seguente procedura è necessario accedere alla ricevente.
PROCEDURA:
1- Attivare la ricevente sulla quale si vuole utilizzare il trasmettitore in modalità
“programmazione radio di trasmettitori generici” e selezionare la funzione che
si desidera abbinare al tasto (vedi il manuale della ricevente)
2- Fare una pressione con il tasto desiderato, il led della ricevente emette
tre lampeggi per segnalare l’avvenuta ricezione.
3- Il trasmettitore torna allo stato di stand by.
1.1 PRODUCT FEATURES
Remote control rolling code 433.92 MHz
TLC15:1 channel with settable function
TLC16:2 channels with settable function
TLC17:4 channels with settable function
EN
2TRANSMITTER PROGRAMMING
This procedure is used to programme a channel in order to then associate it with a
compatible receiver. Access to the receiver is required to carry out the following procedure.
PROCEDURE:
1- Activate the receiver on which you want to use the transmitter in "radio programming of generic
transmitters" mode and select the function that you want to associate with the key
(see receiver manual).
2- Press the desired key; the receiver's LED flashes three times
to signal it has been received.
3- The transmitter goes back into stand-by.
+
TLC15 - TLC16 - TLC17
TLC15 - TLC16 - TLC17
TLC15 TLC16
TLC17
TLC15 TLC16
TLC17

1.1 BESCHREIBUNG
Fernbedienung Rolling-Code 433.92MHz
TLC15:1 Kanal mit programmierbarer Funktion
TLC16:2 Kanäle mit programmierbarer Funktion
TLC17:4 Kanäle mit programmierbarer Funktion
1.2 TECHNISCHE DATEN DE
Batterie CR 2450
Etwa 3 Jahre
Rolling code
433.92 MHz ISM
100 m (40 m in Gebäuden)
40 mm x 40 mm h 10 mm
Versorgung
Lebensdauer Batterie
Kodierung
Funkfrequenz
Reichweite
Abmessungen
1.2 TECHNICAL DATA
Batterie CR 2450
Environ 3 ans
Rolling code
433.92 MHz ISM
100 m (40 m l'intérieur)
40 mm x 40 mm h 10 mm
Alimentation
Durée de la batterie
Codification
Fréquence radio
Portée
Dimensions
2PROGRAMMIERUNG DES TRANSMITTERS
Mit diesem Vorgang wird ein Kanal programmiert, um ihn mit einem kompatiblen Empfänger zu
verbinden. Um folgenden Vorgang durchzuführen, ist es notwendig, Zugriff zum Empfänger zu haben.
VORGANG:
1- Empfänger, auf dem der Transmitter verwendet werden soll, im Modus „Funk-Programmierung von
allgemeinen Transmittern“ aktivieren und die Funktion auswählen, die der Taste zugeordnet werden soll
(siehe Handbuch des Empfängers)
2- Die gewünschte Taste einmal drücken, die LED des Empfängers blinkt dreimal, um anzuzeigen,
dass sie das Signal empfangen hat.
3- Der Transmitter kehrt auf Stand-by zurück.
1.1 DESCRIPTION
Radiocommande Rolling Code 433,92MHz
TLC15:1 canal avec fonction configurable
TLC16:2 canaux avec fonction configurable
TLC17:4 canaux avec fonction configurable
FR
2TRANSMITTER PROGRAMMING
This procedure is used to programme a channel in order to then associate it with a
compatible receiver. Access to the receiver is required to carry out the following procedure.
PROCEDURE:
1- Activate the receiver on which you want to use the transmitter in "radio programming of generic
transmitters" mode and select the function that you want to associate with the key
(see receiver manual).
2- Press the desired key; the receiver's LED flashes three times
to signal it has been received.
3- The transmitter goes back into stand-by.
