Introduction
The Crestron® DM-TX-4KZ-202-C and DM-TX-4KZ-302-C are DigitalMedia 8G+®
transmitters and switchers that support 4K60 4:4:4 and HDR (HDR10) video signals. The
DM-TX-4KZ-202-C provides a built-in 2 x 1 auto-switcher with two HDMI® inputs. The
DM-TX-4KZ-302-C provides a built-in 3 x 1 auto-switcher with two HDMI inputs and one
DisplayPort™ signal input. The DM-TX-4KZ-202-C and DM-TX-4KZ-302-C also function as
control modules, providing RS-232, IR, and Ethernet control ports. In addition, USB HID
device and host ports are included for USB signal extension.
This guide provides information about the following:
lPhysical description of the side views of the DM-TX-4KZ-202-C and
DM-TX-4KZ-302-C
lConfiguration of some of the capabilities of the DM-TX-4KZ-202-C and
DM-TX-4KZ-302-C, for example, automatic audio/video signal format management
via EDID
lHDCP 2.2. compliance
lTroubleshooting
lPin assignments
For installation information, refer to the DM-TX-4KZ-202-C and DM-TX-4KZ-302-C Quick
Start Guide (Doc. 7939) at www.crestron.com/manuals.

2 • DM-TX-4KZ-202-C and DM-TX-4KZ-302-C Supplemental Guide — Doc. 8325B
Physical Description
The following sections provide information about the connectors, controls, and indicators
that are available on the left and right sides of the DM-TX-4KZ-202-C and
DM-TX-4KZ-302-C.
Side View, Left
The following illustration shows the left side of the DM-TX-4KZ-302-C.
NOTE: The left side of the DM-TX-4KZ-202-C provides the same connectors and
indicators as the DM-TX-4KZ-302-C with the exception of the DISPLAY PORT IN
connector and indicator.
Side View, Left (DM-TX-4KZ-302-C Shown)
Ê24 VDC 1.0 A: 2.1 x 5.5 mm DC power connector;
24 VDC power input;
Optional PW-2412WU power pack (sold separately)
ËPower LED: Green LED, indicates operating power supplied via PoDM+, HDBaseT
PoE+, or optional PW-2412WU power pack

Supplemental Guide — Doc. 8325B DM-TX-4KZ-202-C and DM-TX-4KZ-302-C • 3
ÌDM OUT: 8-pin RJ-45 female, shielded;
DM 8G+® output, HDBaseT standard compliant;
PoDM+ PD (Powered Device) port (HDBaseT PoE+ compatible);
Connects to the DM 8G+ input of a DM® switcher, receiver, or other DM device,
or to an HDBaseT® device via CAT5e, Crestron DM-CBL-8G, or Crestron
DM-CBL-ULTRA cable;
Green LED indicates DM link status;
Solid amber LED indicates HDCP video;
Flashing amber LED indicates non-HDCP video
NOTES:
lIn order to receive PoDM+, the DM OUT port requires connection to a
DigitalMedia switcher or other equipment that has a corresponding PoDM+
PSE (Power Sourcing Equipment) port. In order to receive HDBaseT PoE+,
the DM OUT port requires connection to equipment that has a
corresponding HDBaseT PoE+ PSE port. Wiring that is connected to a
PoDM+ or HDBaseT PoE+ PSE port is for intrabuilding use only.
lFor pin assignment information, refer to the Appendix: Pin Assignments (on
page13).
ÍHDMI OUT LED: Green LED, indicates HDMI signal presence at the HDMI output
ÎHDMI OUT: HDMI Type A connector, female;
HDMI digital video/audio output (DVI compatible)
NOTE:
lThe HDMI OUT port requires an appropriate adapter or interface cable to
accommodate a DVI signal. CBL-HD-DVI interface cables are available
separately.
l4K60 4:4:4 performance and HDR support require the use of HDMI and
DisplayPort cables and couplers with a minimum TMDS bandwidth of 18
Gbps.
If 4K60 4:2:0 or 4K30 4:4:4 performance is acceptable, cables and couplers
with a minimum bandwidth of 10.2 Gbps can be used. Performance may be
reduced when using multiple cables and couplers.
ÏHDMI IN 1–2 LEDs: Green LEDs, each indicates HDMI signal presence at the
corresponding HDMI input

4 • DM-TX-4KZ-202-C and DM-TX-4KZ-302-C Supplemental Guide — Doc. 8325B
ÐHDMI IN 1–2: HDMI Type A connectors, female;
HDMI digital video/audio inputs;
(DVI and Dual-Mode DisplayPort compatible)
NOTE:
lThe HDMI IN ports require an appropriate adapter or interface cable to
accommodate a DVI or Dual-Mode DisplayPort signal. CBL-HD-DVI
interface cables are available separately.
l4K60 4:4:4 performance and HDR support require the use of HDMI and
DisplayPort cables and couplers with a minimum TMDS bandwidth of 18
Gbps.
If 4K60 4:2:0 or 4K30 4:4:4 performance is acceptable, cables and couplers
with a minimum bandwidth of 10.2 Gbps can be used. Performance may be
reduced when using multiple cables and couplers.
ÑDISPLAY PORT IN LED: (DM-TX-4KZ-302-C only) Green LED, indicates video signal
presence at the DisplayPort input
ÒDISPLAY PORT IN: (DM-TX-4KZ-302-C only) DisplayPort connector, female;
DisplayPort digital video/audio input
NOTE: 4K60 4:4:4 performance and HDR support require the use of HDMI and
DisplayPort cables and couplers with a minimum TMDS bandwidth of 18 Gbps.
If 4K60 4:2:0 or 4K30 4:4:4 performance is acceptable, cables and couplers with a
minimum bandwidth of 10.2 Gbps can be used. Performance may be reduced
when using multiple cables and couplers.
Side View, Right
The following illustration shows the right side of the DM-TX-4KZ-302-C.
NOTE: The right side of the DM-TX-4KZ-202-C provides the same connectors, controls,
and indicators as the right side of the DM-TX-4KZ-302-C.

Supplemental Guide — Doc. 8325B DM-TX-4KZ-202-C and DM-TX-4KZ-302-C • 5
Side View, Right (DM-TX-4KZ-302-C)
ÊGround ( ):6-32 screw, chassis ground lug
ËRESET: Recessed push button for reboot of the device
ÌSETUP: (Applicable only to a configuration in which a DigitalMedia switcher is not
used)
Red LED indicates that the SETUP button is pressed and times out automatically;
Recessed push button for Ethernet setup of the default static IP address of the
device
NOTE: The default static IP address of the DM-TX-4KZ-302-C is 192.168.1.252. The
default static IP address of the DM-TX-4K-202-C is 192.168.1.251.
ÍIR: 2-pin 3.5 mm detachable terminal block;
IR/serial port;
IR output up to 1.1 MHz;
1-way serial TTL/RS-232 (0-5 V) up to 19200 baud
ÎCOM: 5-pin 3.5 mm detachable terminal block;
Bidirectional RS-232 port;
Up to 115.2k baud, hardware and software handshaking support

6 • DM-TX-4KZ-202-C and DM-TX-4KZ-302-C Supplemental Guide — Doc. 8325B
ÏLAN: 8-pin RJ-45 female;
10BASE-T/100BASE-TX Ethernet port;
Green LED indicates Ethernet link status;
Amber LED indicates Ethernet activity
NOTES:
lFor pin assignment information, refer to the Appendix: Pin Assignments (on
page13).
lDo not connect the LAN port to an Ethernet switch if the DM OUT port is
connected to a DigitalMedia™ switcher.
ÐCOMPUTER: USB Type B female;
USB 2.0 device port for computer console (setup) or for connection to a computer or
other USB HID compliant host (USB signal extension and routing)
ÑUSB HID: USB Type A female;
USB 2.0 host port for connection to a mouse, keyboard, or other USB HID compliant
device (USB signal extension and routing), or for connection to a Crestron TT-100
Series Crestron Connect It™ cable caddy (sold separately)

Supplemental Guide — Doc. 8325B DM-TX-4KZ-202-C and DM-TX-4KZ-302-C • 7
Configuration
This section provides information about the following:
lEDID configuration
lHDBaseT configuration
lUSB HID control configuration
EDID Configuration
EDID (Extended Display Identification Data) configuration allows management of the
EDID that is to be sent to the upstream device connected to an HDMI input of the DM-TX-
4K-202-C or to an HDMI or DisplayPort input of the DM-TX-4K-302-C. By default, the
EDID is set to 4K60 444 2CH Non-HDR for HDMI and DisplayPort inputs. If a different
EDID is desired, use DMTool to configure the EDID. An overview of the steps necessary to
configure the EDID is as follows:
NOTE: For detailed information, refer to the Crestron Toolbox™ software help file.
1. Connect to the DM-TX-4KZ-202-C or DM-TX-4KZ-302-C.
2. Open the Setup window of the HDMI input for the DM-TX-4KZ-202-C or the Setup
window of the HDMI or DisplayPort input for the DM-TX-4KZ-302-C.
3. In the EDID Configuration dialog box, configure the EDID by doing any of the
following:
lCustomize the current EDID.
lLoad an EDID template and modify it.
lCreate a new EDID file.
lLoad the existing EDID and modify it.
lObtain an EDID from the output and then save or customize it.
lApply an EDID that is saved on a computer.

8 • DM-TX-4KZ-202-C and DM-TX-4KZ-302-C Supplemental Guide — Doc. 8325B
EDID Configuration Dialog Box for HDMI Input (DM-TX-4K-302-C Dialog Box Shown)
HDBaseT Configuration
The DM-TX-4KZ-202-C or DM-TX-4KZ-302-C are HDBaseT certified, enabling direct
connection to other HDBaseT certified equipment. Via the DM 8G+ output of the
DM-TX-4KZ-202-C or DM-TX-4KZ-302-C, the transmitter can be connected directly to a
third-party HDBaseT compliant device without requiring a DigitalMedia receiver.
SIMPL Windows allows an HDBaseT receiver device to be added to the DM-TX-4KZ-202-C
or DM-TX-4KZ-302-C. The HDBaseT receiver device adds a COM port to the
DM-TX-4KZ-202-C or DM-TX-4KZ-302-C and enables two-way serial communication.
To add a third-party HDBaseT receiver device to the DM-TX-4KZ-202-C or
DM-TX-4KZ-302-C, use SIMPL Windows. In the Configure View of SIMPL Windows, add a
third-party HDBaseT receiver device to slot 9 for the HDBaseT receiver slot of the
DM-TX-4KZ-202-C or DM-TX-4KZ-302-C.
NOTE: For detailed information, refer to the SIMPL Windows help file.

Supplemental Guide — Doc. 8325B DM-TX-4KZ-202-C and DM-TX-4KZ-302-C • 9
HDBaseT Receiver Slot (Slot 9)
When the third-party HDBaseT receiver device is added to slot 9, the HDBaseT Receiver
symbol adds a COM port to the device and enables two-way serial communication.
Addition of HDBaseT Receiver to Slot 9 and COM Port in Slot 1
USB HID control configuration
A keyboard, mouse, or other USB HID compliant device can be connected locally to the USB
HID port of the DM-TX-4KZ-202-C and DM-TX-4KZ-302-C. The USB HID compliant device
can be used to control a remote computer or other host device that is connected to the
USB HID compliant port of a DigitalMedia device, that is, a DigitalMedia transmitter or a
DMC input card of a DigitalMedia switcher.
USB signal routing is handled by the DigitalMedia system. SIMPL Windows allows USB
signal routing from the device connected to the USB HID port of the DM-TX-4KZ-202-C or
DM-TX-4KZ-302-C to the host device that is connected to the USB HID compliant port of
a DigitalMedia device. To configure USB routing, set the <USB_HID_Control> serial input
join to the IP address of the DigitalMedia device to which USB signals are to be routed. The
IP address must be in hexadecimal format. For detailed information about the <USB_HID_
Control> serial input join and about setting the IP address, refer to the SIMPL Windows
help file.

10 • DM-TX-4KZ-202-C and DM-TX-4KZ-302-C Supplemental Guide — Doc. 8325B
HDCP 2.2 Compliance
The DM-TX-4KZ-202-C and DM-TX-4KZ-302-C are compliant with HDCP 2.2. HDCP 2.2,
commonly referred to as HDCP 2, is the next generation of HDCP (High-Definition Content
Protection). Note the following about HDCP 2:
lCompared to HDCP 1, HDCP 2 brings a higher level of cryptographic protection to
HDMI technology.
lHDCP 2 is not HDMI 2. It is possible to have a system built on HDCP 1 and HDMI 2,
HDCP 2 and HDMI 1, or HDCP 2 and HDMI 2.
lAlthough not all 4K content requires HDCP 2, most 4K consumer video content
requires HDCP 2.
lAny product that supports HDCP 2 also supports HDCP 1.
lHDCP is needed only when the source demands HDCP. If the source demands HDCP
2, then every device in the signal path must support HDCP 2.
lThere are no issues related to HDCP 2 and cabling—all cables are compatible with
HDCP 2.

Supplemental Guide — Doc. 8325B DM-TX-4KZ-202-C and DM-TX-4KZ-302-C • 11
Troubleshooting
The following table provides troubleshooting information. If further assistance is required,
contact a Crestron customer service representative.
DM-TX-4KZ-202-C or DM-TX-4KZ-302-C Troubleshooting
Problem Possible Cause(s) Corrective Action
Video is not
displayed, but the
audio may be
heard.
The HDCP settings of one or more
DigitalMedia devices in the signal path
do not support the HDCP level of the
source.
Ensure that the HDCP settings
of all DigitalMedia devices in
the signal path support the
HDCP level of the source.
The display does not support the HDCP
level of the source.
Ensure that the display
supports the HDCP level of the
source.
Video is not
displayed.
The desired input may not be selected in
DMTool.
Ensure that Auto mode is
selected or that the desired
input is selected in DMTool.
The HDMI video is
intermittent.
The HDMI cable connections are faulty. Verify that each end of the
cable is connected properly.
The LAN
connection is
unresponsive.
The transmitter and another
DigitalMedia endpoint are both
connected to a DigitalMedia switcher.
The LAN port of the other endpoint is
also connected to an Ethernet switch.
When a DigitalMedia endpoint
is connected to a DigitalMedia
switcher, the LAN port of the
endpoint cannot be connected
to an Ethernet switch.
Disconnect the LAN port from
the Ethernet switch.
The transmitter
cannot establish a
link to the device
that is connected
to the DM OUT
port. The DM link
status LED is off.
The cable connections are faulty. Verify that each end of the
cable is properly connected. If
necessary, check the cable
terminations.
The transmitter
does not remain
powered on.
When the transmitter is not
powered by the optional
PW-2412WU power pack (sold
separately), the DM OUT port
is not connected to a PoDM+or
HDBaseT PoE+ power sourcing
equipment (PSE) port that is
required to power the
transmitter.
Ensure that the DM OUT port is
connected to an appropriate
PSE port when not being
powered by the optional PW-
2412WU power pack.

12 • DM-TX-4KZ-202-C and DM-TX-4KZ-302-C Supplemental Guide — Doc. 8325B
Problem Possible Cause(s) Corrective Action
The SIMPL
Windows program
is not operational.
In a configuration in which a
DigitalMedia switcher is not used, the IP
table is not set properly.
Verify that the IP table is set
properly in System Info in the
Crestron Toolbox software.
If the transmitter connects to a
DigitalMedia switcher, the transmitter
does not connect to the correct DM
input port of the switcher.
Ensure that the transmitter
connects to the correct DM
input port of the switcher.
The video flickers
or drops when the
transmitter is
touched or when
metal in the
vicinity of the
device is touched.
The transmitter is not properly
grounded.
Ensure that the transmitter is
properly grounded.
NOTE: If, for any reason, the factory default settings of the DM-TX-4KZ-202-C or
DM-TX-4KZ-302-C must be restored, do the following: From the Tools menu in the Crestron
Toolbox software, select Text Console and enter the following command:
restore y

Supplemental Guide — Doc. 8325B DM-TX-4KZ-202-C and DM-TX-4KZ-302-C • 13

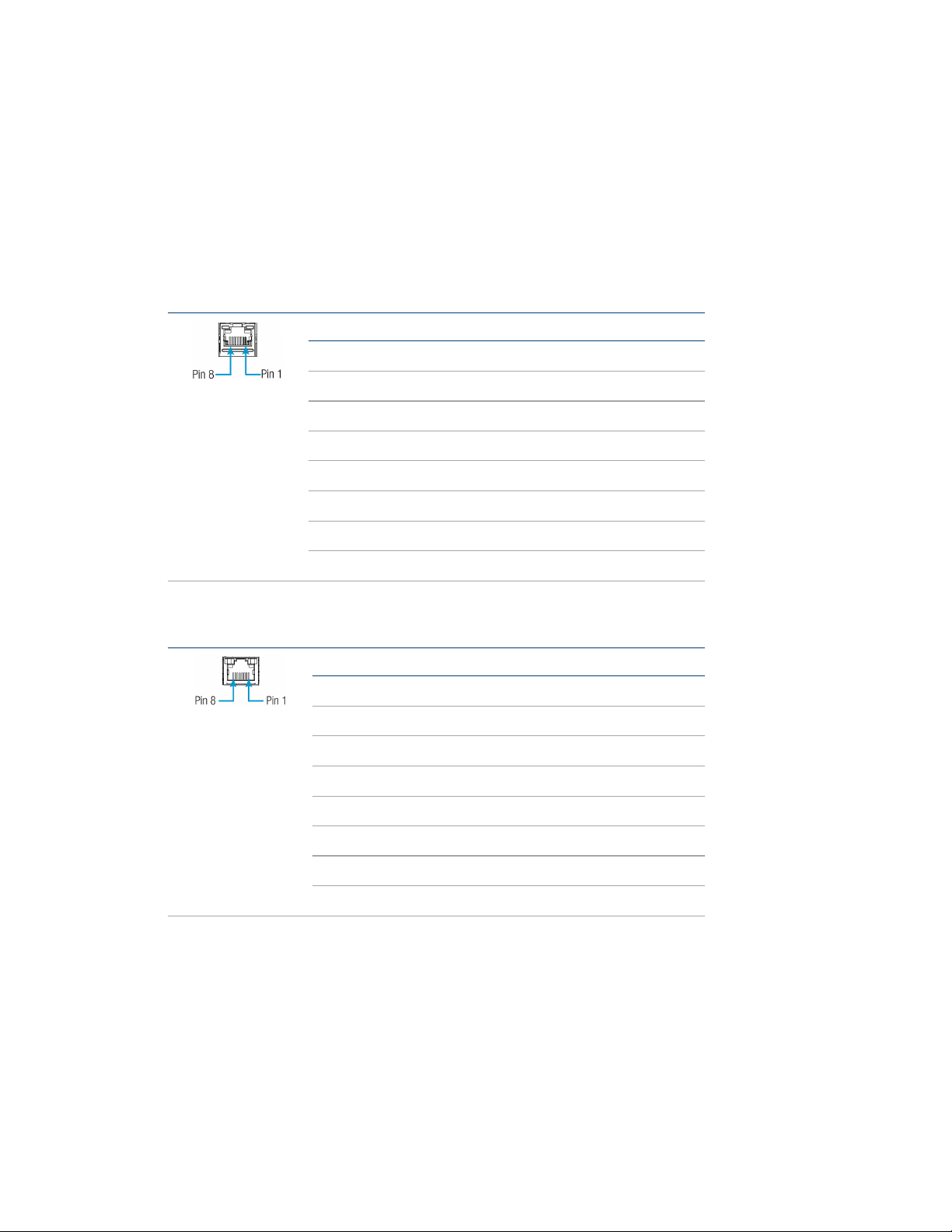

Appendix: Pin Assignments
This section provides information about pin assignments and wiring for the following
connectors:
lDM OUT
lLAN
DM OUT Pin Assignments and Wiring
Pin Number Wire Color
1 Orange/White
2 Orange
3 Green/White
4 Blue
5 Blue/White
6 Green
7 Brown/White
8 Brown
LAN Pin Assignments
Pin Number Signal
1 TX+
2 TX–
3 RX+
4 N/C
5 N/C
6 RX–
7 N/C
8 N/C

This page is intentionally left blank.
Supplemental Guide — Doc. 8325B DM-TX-4KZ-202-C and DM-TX-4KZ-302-C • 14

Crestron Electronics, Inc.
15 Volvo Drive, Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: [phone]
www.crestron.com
Supplemental Guide — Doc. 8325B
2051709
05/04/20
Specifications subject to
change without notice.
