4630-36 Folding Seeder
Operator’s Manual

F-640-0615 Edition i
Table of Contents
1 Introduction
Understanding Safety Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
2 Standard Specifications
General Torque Specifications (rev. 4/97) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
TORQUE SPECIFIED IN FOOT POUNDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
PARKER® BRAND FITTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
AEROQUIP® BRAND FITTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
GATES® BRAND FITTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
3 Assembly Instructions

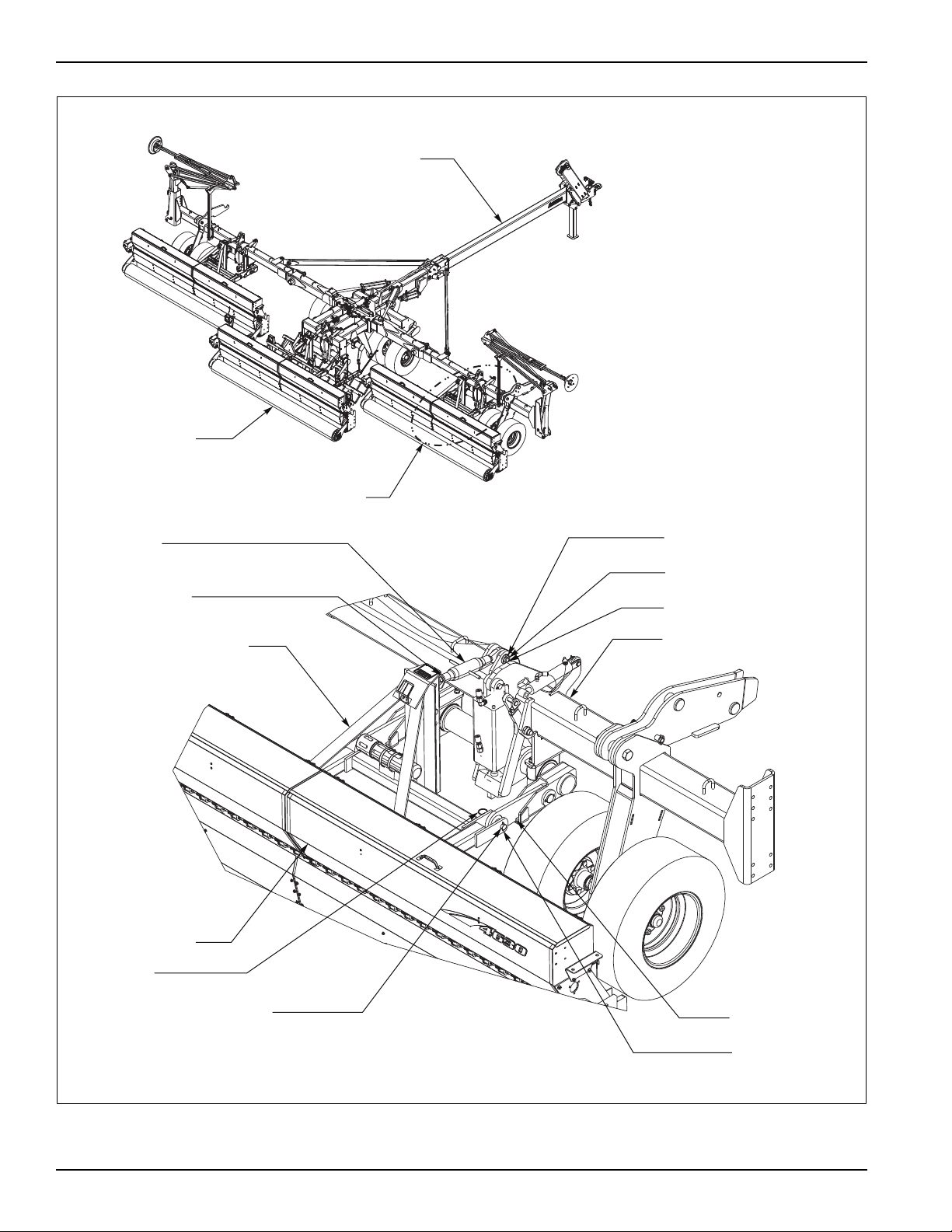

Seeder Attachment to Seeder Hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Seeder Removal from Seeder Hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Seed Shaft Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

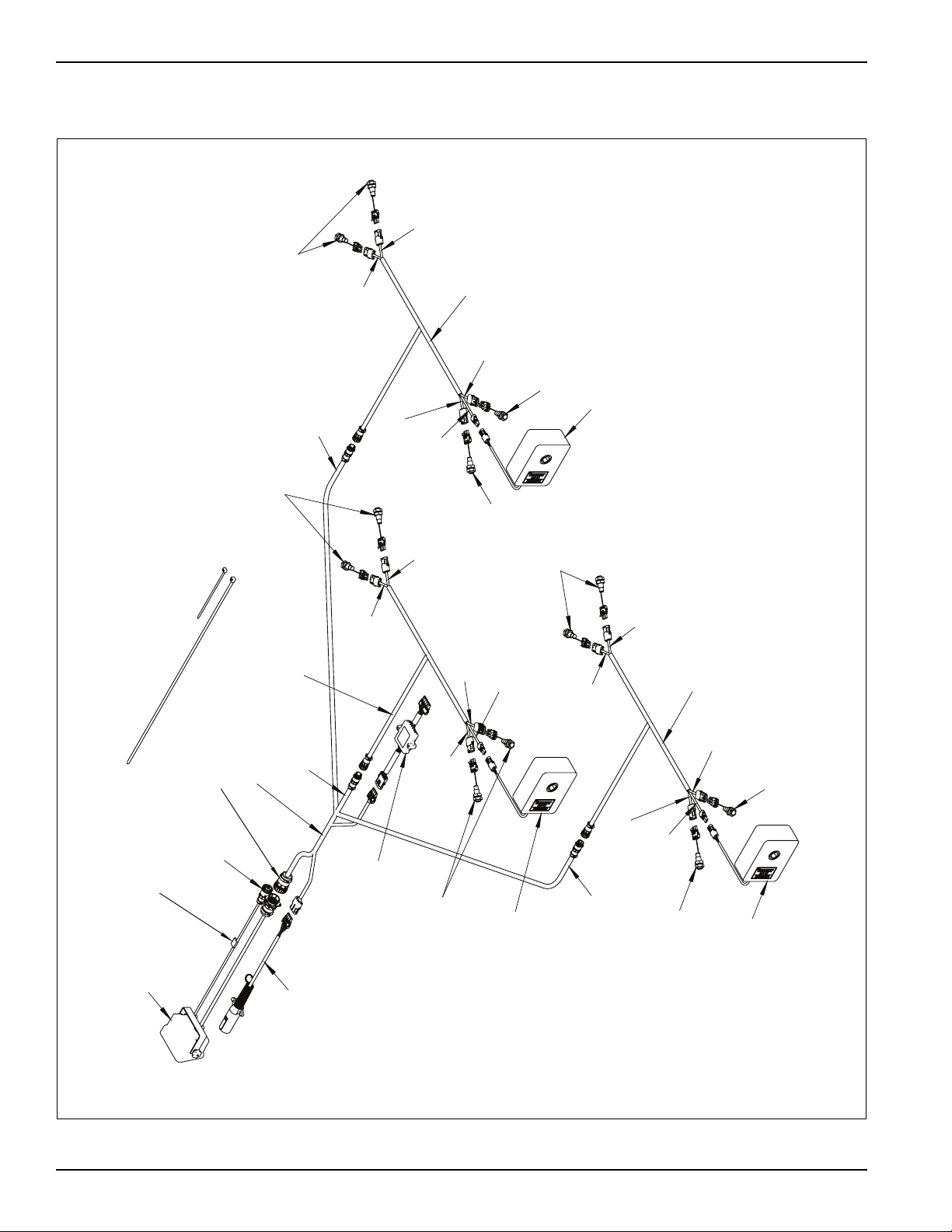

Single Box Sensor Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Double Box Sensor Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

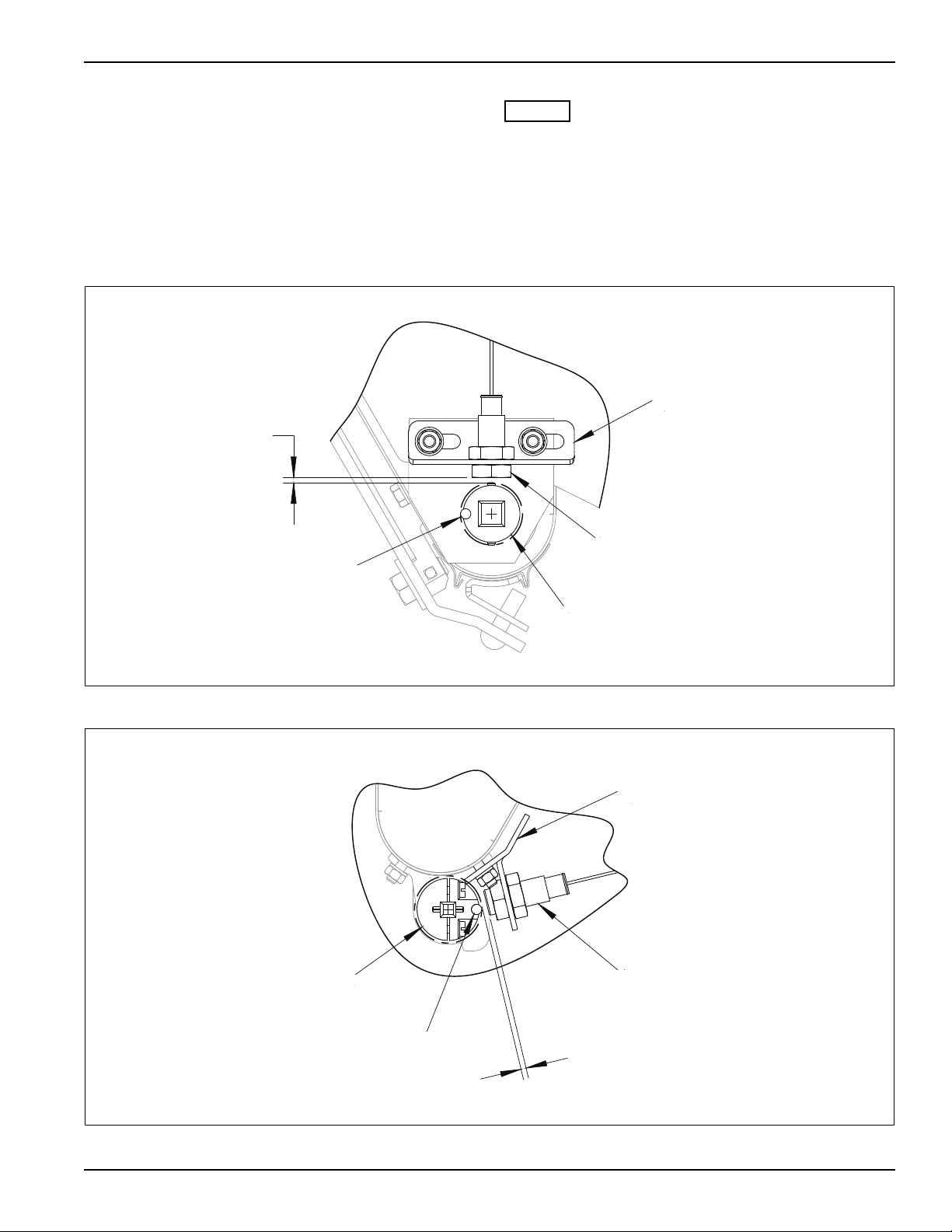

Seed Shaft Sensor Mounting Dimension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
4 Operation and Maintenance
Tractor Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Seeder Hitch Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Attaching Seeder Hitch To The Tractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Transport Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Folding/Unfolding the Seeder Hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Leveling the Hitch Clevis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Leveling the Hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Transporting the Seeder Hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Hydraulic Lift System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

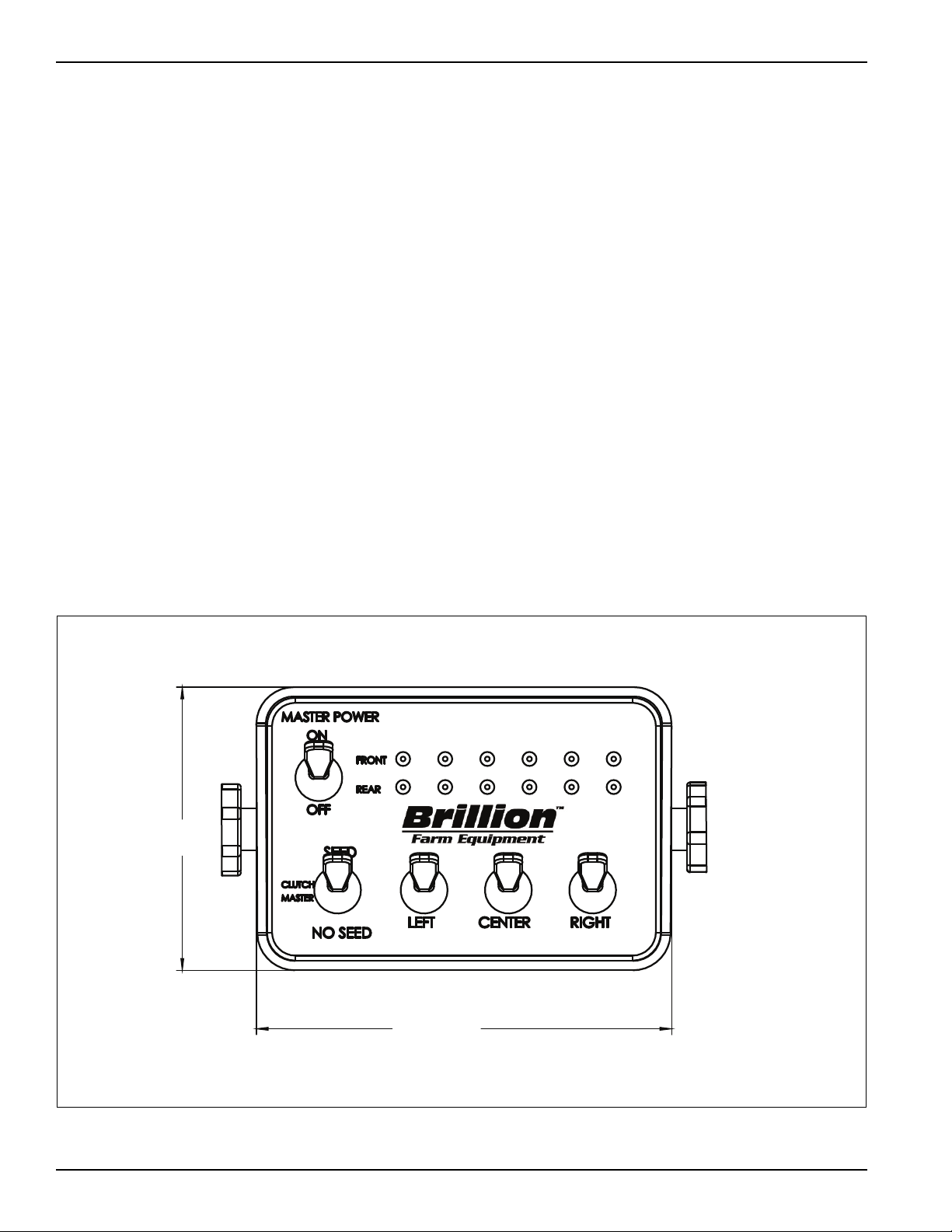

Seed Shaft Monitor with Clutch Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Hydraulic Row Markers (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Hydraulic Row Marker Disc Adjustment (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
Wheel Bearing Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Hydraulic Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Hose Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

ii F-640-0615 Edition
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Lubrication Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18
5 Troubleshooting Guide
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

1-1
Chapter 1
Introduction
The Landoll 4630-36 Folding Seeder is a quality product designed to give years of trouble free performance. By
following each section of this manual, your system will perform as designed for you and your operation
CHAPTER 1 gives basic instructions on the use of this manual.
CHAPTER 2 gives product specifications. These specifications supply lengths and measures for your
equipment. A Standard Bolt Torque Table is provided to give guidelines for bolt torques to
be used when servicing this product.
CHAPTER 3 contains assembly instructions for your 4630-36 Folding Seeder. When these procedures
are correctly followed, your equipment should provide you years of trouble-free operation
and service.
CHAPTER 4 instructs how to operate your equipment before using it, and describes adjustments
needed. It also gives practical advice for the care and maintenance of your Landoll
equipment. Drawings in this section locate adjustment points on the equipment.
NOTE: IF THE EQUIPMENT IS IMPROPERLY ASSEMBLED OR MAINTAINED, THE
WARRANTY IS VOID. IF YOU HAVE ANY QUESTIONS CONTACT:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
or phone:
[phone] or
[phone]
or FAX:
[phone]
CHAPTER 5 is a troubleshooting guide to aid in diagnosing and solving problems with the equipment.
PARTS LIST is a separate manual showing the various assemblies, sub-assemblies, and systems.
Refer to that manual when ordering Landoll replacement parts. Order parts from your
Landoll dealer.
WARRANTY The Warranty Registration form is included with the product documents. Fill it out and
mail it within 15 days of purchase
NOTE: IMPROPER ASSEMBLY, MODIFICATION, OR MAINTENANCE OF YOUR
LANDOLL MACHINE CAN VOID YOUR WARRANTY.
COMMENTS Address comments or questions regarding this publication to:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
ATTENTION: PUBLICATIONS -DEPT. 55

1-2 F-640-0615 Edition
INTRODUCTION
Understanding Safety
Statements
You will find various types of safety information on the
following pages and on the machine signs (decals)
attached to the vehicle. This section explains their
meaning.
The Safety Alert Symbol means ATTENTION! YOUR
SAFETY IS INVOLVED!

DANGER

WARNING

CAUTION
NOTE
Means that failure to follow these instructions could
cause damage to the equipment or cause it to operate
improperly.
NOTE
Make sure you read and understand the information
contained in this manual and on the machine signs
(decals) before you attempt to operate or maintain this
vehicle.
The safety statements contained in this manual relate to
the operation of the 4630-36 Folding Seeder.
Danger means a life-threatening situation exists.
Death can occur if safety measures or
instructions on this label are not properly
followed.
Warning means serious injury or death can occur
if safety measures or instructions on this label
are not properly followed.
Caution means serious equipment or other
property damage can occur if instructions on this
label are not properly followed.

2-1
Chapter 2
Standard Specifications
4630-36 SERIES FOLDING SEEDER
MODEL
NUMBER
WORKING
WIDTH
TRANSPORT
HEIGHT
TRANSPORT
LENGTH
TRANSPORT
WIDTH
TIRE AND
WHEELS
ESTIMATED
WEIGHT
(LBS.)
4630-36 36’-0” 11’-0” 34’-0” (w/
seeders) or
30’-0” (w/o
seeders)
13’-6” (4) 12L x 15, Load Range F -
8 bolt (frame)
(4) 11L -15,
12 ply - 6 bolt (wing)
* 18,100 -
20,366 Lbs.
Note: Specifications are subject to change without prior notification.
** Estimated Weight dependent upon seeder option included.
AVAILABLE SEEDER OPTIONS
MODEL
NUMBER SEEDER OPTION SEEDER OPTION MANUALS
MANUAL
NO.
SSBP-36 (3)SSBP-12 Agricultural
Seeders
Sure Stand Seeder Operator’s Manual
Sure Stand Seeder Parts Manual
1P480
1P481
SSP-136 (3) SSP-112 Agricultural
Seeders
Alfalfa Seeder Medium Capacity Sure Stand Operator’s Manual
Alfalfa Seeder Medium Capacity Sure Stand Parts Manual
9K713
9K712
SSP-2361 (3) SSP-2121
Agricultural Seeders
High Capacity Sure Stand Seeder Operator’s Manual
High Capacity Sure Stand Seeder Parts Manual
1P126
1P125
SLP-2361 (3) SLP-2121 Turfmaker
II Seeders
Turfmaker II Grass Seeder Operator’s Manual
Turfmaker II Grass Seeder Parts Manual
9K998
9K997
SLPB-2361 (3) SLPB-2121
Turfmaker II Seeders
Turfmaker II Grass Seeder Operator’s Manual
Turfmaker II Grass Seeder Parts Manual
9K998
9K997
SLP-3361 (3) SLP-3131 Turfmaker
III Seeders
Turfmaker III Grass Seeder Operator’s Manual
Turfmaker III Grass Seeder Parts Manual
1P124
1P123
Specifications are subject to change without prior notification.
TIRE INFLATION
TIRE
SIZE
TIRE
MANUFACTURER
PLY/LOAD
RATING
INFLATION PRESSURE
(psi) (max.)
12.5L x 15 - FI Ply F Goodyear F Load 6000 lbs. @ 20mph 90 psi
11L x 15 - FI Goodyear 12 Ply/3860 lbs. 52 psi

2-2 F-640-0615 Edition
STANDARD SPECIFICATIONS
General Torque Specifications (rev. 4/97)
TORQUE SPECIFIED IN FOOT POUNDS
Table 2-1: General Torque Specifications
This chart provides tightening torques for general purpose applications when special torques are not specified on process or
drawing. Assembly torques apply to plated nuts and capscrews assembled without supplemental lubrication (as received condition).
They do not apply if special graphite moly-disulfide or other extreme pressure lubricants are used. When fasteners are dry (solvent
cleaned) add 33% to as received condition torque. Bolt head identification marks indicate grade and may vary from manufacturer to
manufacturer. Thick nuts must be used on grade 8 capscrews. Use value in [ ] if using prevailing torque nuts
UNC
SIZE
SAE
Grade 2
SAE
Grade 5
SAE
Grade 8
UNF
SIZE
SAE
Grade 2
SAE
Grade 5
SAE
Grade 8
1/4-20 4 [5] 6 [7] 9 [11] 1/4-28 5 [6] 7 [9] 10 [12]
5/16-18 8 [10] 13 [13] 18 [22] 5/16-24 9 [11] 14 [17] 20 [25]
3/8-16 15 [19] 23 [29] 35 [42] 3/8-24 17 [21] 25 [31] 35 [44]
7/16-14 24 [30] 35 [43] 55 [62] 7/16-20 27 [34] 40 [50] 60 [75]
1/2-13 35 [43] 55 [62] 80 [100] 1/2-20 40 [50] 65 [81] 90 [112]
9/16-12 55 [62] 80 [100] 110 [137] 9/16-18 60 [75] 90 [112] 130 [162]
5/8-11 75 [94] 110 [137] 170 [212] 5/8-18 85 [106] 130 [162] 180 [225]
3/4/10 130 [162] 200 [250] 280 [350] 3/4-16 150 [188] 220 [275] 320 [400]
7/8-9 125 [156] 320 [400] 460 [575] 7/8-14 140 [175] 360 [450] 500 [625]
1-8 190 [237] 408 [506] 680 [850] 1-14 210 [263] 540 [675] 760 [950]
1-1/8-7 270 [337] 600 [750] 960 [1200] 1-1/8-12 300 [375] 660 [825] 1080 [1350]
1-1/4-7 380 [475] 840 [1050 1426 [1782] 1-1/4-12 420 [525] 920 [1150] 1500 [1875]
1-3/8-6 490 [612] 1010 [1375] 1780 [2225] 1-3/8-12 560 [700] 1260[1575] 2010 [2512]
1-1/2-6 650 [812] 1460 [1825] 2360 [2950] 1-1/2-12 730 [912] 1640[2050] 2660 [3325]
METRIC:
Coarse thread metric class 10.9 fasteners and class 10.0 nuts and through hardened flat washers, phosphate coated, Rockwell “C”
38-45. Use value in [ ] if using prevailing torque nuts
Nominal
thread
diameter
(mm)
Newton
Meters
(Standard
Torque)
Foot
Pounds
(Standard
Torque)
Nominal
Thread
Diameter
(mm)
Newton
Meters
(Standard
Torque)
Foot
Pounds
(Standard
Torque
6 10 [14] 7 [10] 20 385 [450] 290 [335]
716 [22] 12 [16] 24 670 [775] 500 [625]
8 23 [32] 17 [24] 27 980 [1105] 730 [825]
10 46 [60] 34 [47] 30 1330 [1470] 990 [1090]
12 80 [125] 60 [75] 33 1790 [1950] 1340 [1450]
14 125 [155] 90 [115] 36 2325 [2515] 1730 [1870]
16 200 [240] 150 [180] 39 3010 [3210] 2240 [2380]
18 275 [330] 205 [245]

STANDARD SPECIFICATIONS
2-3
Hydraulic Fitting Torque Specifications
TORQUE SPECIFIED IN FOOT POUNDS
PARKER® BRAND FITTINGS
AEROQUIP® BRAND FITTINGS
GATES® BRAND FITTINGS
37 degree JIC, ORS, &ORB (REV. 10/97)
This chart provides tightening torques for general purpose applications when special torques are not specified on process or drawing.
Assembly torques apply to plated nuts and capscrews assembled without supplemental lubrication (as received condition). They do
not apply if special graphite moly-disulfide or other extreme pressure lubricants are used. When fasteners are dry (solvent cleaned)
add 33% to as received condition torque. Bolt head identification marks indicate grade and may vary from manufacturer to
manufacturer. Thick nuts must be used on grade 8 capscrews. Use value in [ ] if using prevailing torque nuts
Dash
Size
37 Deg.
JIC
O-ring
(ORS)
O-ring
boss
-4 11-13 15-17 13-15
-5 14-16 --------------- 21-23
-6 20-22 34-36 25-29
-8 43-47 58-62 40-44
-10 55-65 100-110 58-62
-12 80-90 134-146 75-85
-16 115-125 202-218 109-121
-20 160-180 248-272 213-237
-24 185-215 303-327 238-262
-32 250-290 -------------- 310-340
Dash
Size
37 Deg.
JIC
O-ring
(ORS)
O-ring
boss
-4 11-12 10-12 14-16
-5 15-16 --------------- 16-20
-6 18-20 18-20 24-26
-8 38-42 32-35 50-60
-10 57-62 46-50 75-80
-12 79-87 65-70 125-135
-14 -------------- -------------- 160-180
-16 108-113 92-100 200-220
-20 127-133 125-140 210-280
-24 158-167 150-165 270-360
Dash
Size
37 Deg.
JIC
O-ring
(ORS)
O-ring
boss
-4 10-11 10-12 14-16
-5 13-15 --------------- ---------------
-6 17-19 18-20 24-26
-8 34-38 32-40 37-44
-10 50-56 46-56 50-60
-12 70-78 65-80 75-83
-14 -------------- 65-80 --------------
-16 94-104 92-105 111-125
-20 124-138 125-140 133-152
-24 156-173 150-180 156-184
-32 219-243 -------------- --------------

2-4 F-640-0615 Edition
STANDARD SPECIFICATIONS

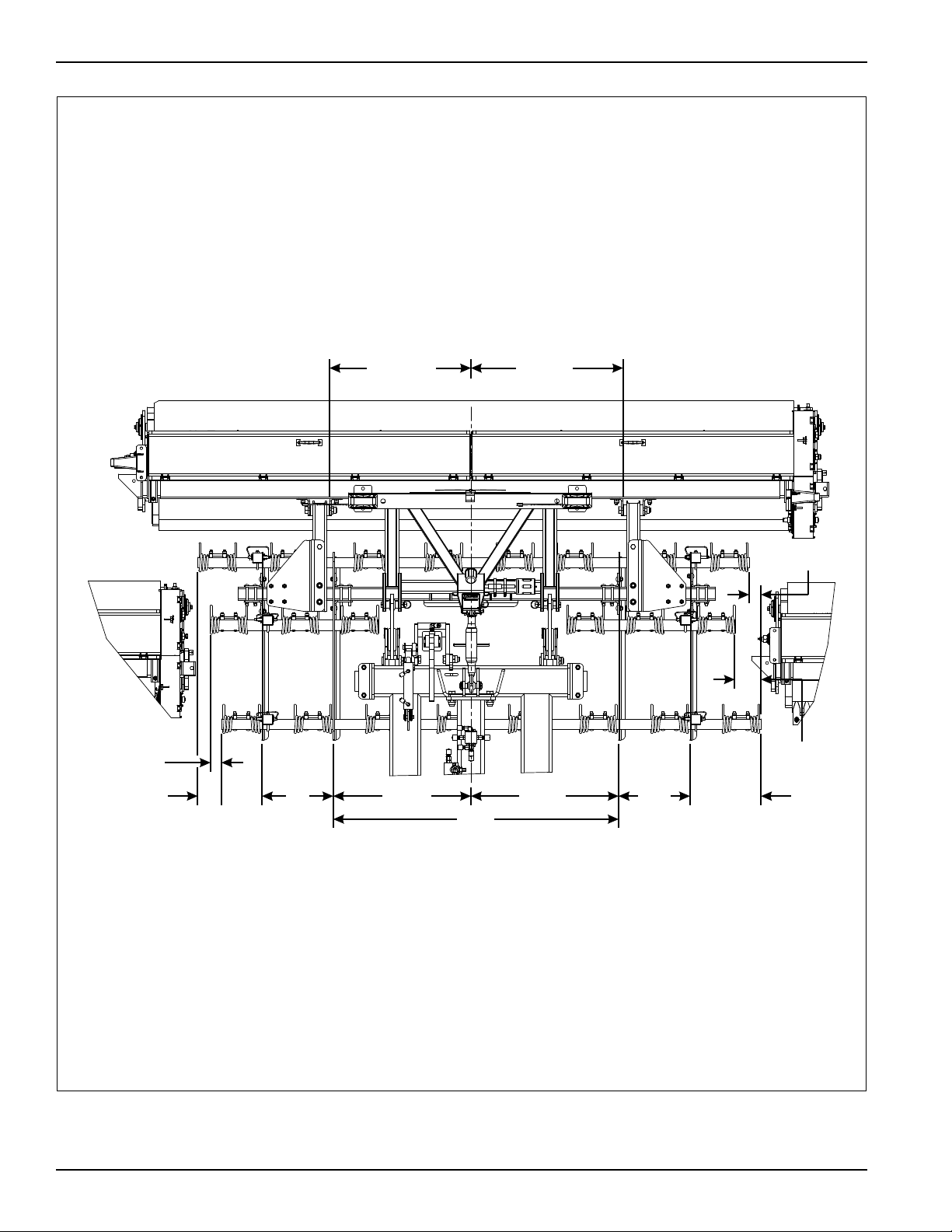

Figure 2-1: 4630-36 Folding Seeder Harrow Placement
31-21/32 34-1/8
C
L
2-15/32
(5-11/32) 16 30-7/8 33-1/8
(64)
16 15-15/16
2-21/32
5-29/32
4630-36 harrow placement
