Sure Stand AG Seeder
Models SS16 and SSP16
Operator’s Manual

i
Table of Contents
1 Introduction and Safety Information
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Description of Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Owner Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Warranty Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Understanding Safety Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Transporting Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Attaching, Detaching and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Maintenance Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Protective Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Tire Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Chemical Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Prepare for Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
High Pressure Fluid Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Safety Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
2 Assembly
Drawbar Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Wheel Arm Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
3Pt Hitch Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Drawbar Air System Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
3Pt Hitch Air System Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Hydraulic Lift Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Drawbar Model LED Warning Lamps Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
3Pt Hitch Model LED Warning Lamps Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
Acre Meter Installation - Optional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
Seed Shaft Sensor Installation - Optional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
Clutch Installation - Optional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
Clutch and Seed Shaft Sensor Electrical Layout - Optional . . . . . . . . . . . . . . . . . . . . . . . . 2-18
Clutch and Seed Shaft Sensor Console Tractor Installation - Optional . . . . . . . . . . . . . . . . 2-19
Clutch and Seed Shaft Sensor Layout - Optional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
Load Cell Installation - Optional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
Clutch and Seed Shaft Sensor Console w/Scale Indicator Tractor Installation - Optional . 2-22
Coil Tine Harrow Installation - Optional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24

ii
3 Operation
Seeder Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Tractor Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Tractor Preparation/Attaching of 3Pt Hitch Seeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Attaching/Detaching 3Pt Hitch Seeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Tractor Preparation/Attaching of Pull Type Seeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Attaching/Detaching Pull Type Seeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Hydraulic Lift System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Rear Roller Air System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Seed Rate Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Seed Rate Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Calibration for Unlisted Seeds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Clutch Operation - Optional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Electronic Acre Meter Kit - Optional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Coil Tine Harrow - Optional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
S-Tine Harrow - Optional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Seed Shaft Console LED with Clutch Control - Optional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
General Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
Transporting the Seeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
4 Maintenance
General Torque Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Hydraulic Fitting Torque Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Fasteners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Wheel Hub Bearing Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Lubrication Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Hydraulic Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Rear Roller Air System Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Roller Axle Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Clamp Tightening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Seed Meter Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Servicing Seedshaft Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
LED Warning Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Acre Meter Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
5 General Reference and Specifications

F-1021-0719 1-1
Chapter 1
Introduction and Safety Information
Introduction
The implement described in this manual has been
designed with care and built by skilled workers using
quality materials and processes. Proper assembly and
maintenance will provide you with satisfactory use for
seasons to come.
DANGER
Description of Unit
The Sure Stand concept provides precision seed
metering and accurate seed depth placement. This
combination offers optimum germination. Units are
offered in three-point hitch or pull type.
Using this Manual
This manual will familiarize you with safety, assembly,
operation, adjustment, and maintenance. Read this
manual and follow the recommendations to help ensure
safe and efficient operation.
• The information in this manual is current at time of
printing. Some parts may have changed to assure top
performance.
• Location reference: Right and Left designations in this
manual are determined by facing the direction the
implement will travel during field operation, unless
otherwise stated.
Owner Assistance
If customer service or repairs are needed, contact your
Brillion dealer. They have trained personnel, parts and
service equipment specially designed for Brillion
products. Your implement’s parts should only be
replaced with Brillion parts. If items covered in this
manual are not understood, contact your local Brillion
Dealer.
Warranty Registration
Brillion Farm Equipment, by Landoll, shall have no
warranty obligation unless each product is registered
within 10 days of retail purchase, using the Landoll
Company, LLC Ag Products on-line registration process.
Please refer to the Ag Products Policy and Procedures
Manual, accessible at www.landoll.com for step by step
instructions regarding product registration.
Enter your product information below for quick reference.
MODEL NUMBER
SERIAL NUMBER
DATE OF PURCHASE
Refer to the ID plate as shown. See Figure 1-1.
Figure 1-1: ID Plate
Read this entire manual before attempting to
assemble, adjust or operate this implement.
Failure to comply with this warning can result in
personal injury or death, damage to the
implement or its components and inferior
operation.
MODEL #
SERIAL #
MADE IN USA 1-573-010006
Landoll Company, LLC
Marysville, Kansas
www.landoll.com

1-2 F-1021-0719
INTRODUCTION AND SAFETY INFORMATION
Safety
NOTE
Investigation has shown that nearly 1/3 of all farm
accidents are caused by careless use of machinery.
Insist that all people working with you or for you abide by
all safety instructions.
Understanding Safety Statements
You will find various types of safety information on the
following pages and on the implement decals (signs)
attached to the implement. This section explains their
meaning.
NOTICE
CAUTION
WARNING
DANGER
NOTE
You should read and understand the information
contained in this manual and on the implement decals
before you attempt to operate or maintain this equipment.
Examine safety decals and be sure you have the correct

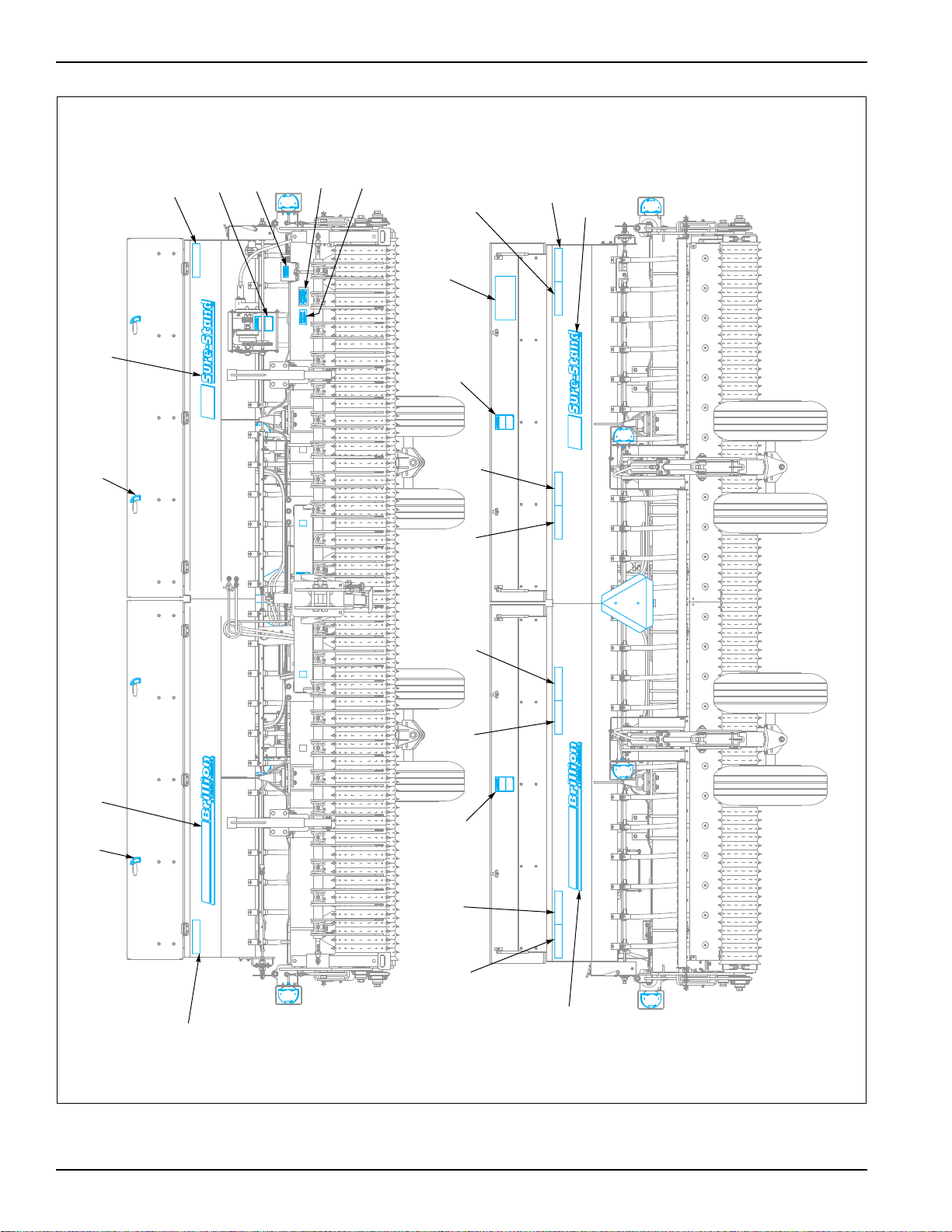

safety decals for the implement. See Figure 1-4.
Order replacement decals through your Brillion dealer.
Keep these signs clean so they can be observed readily.
It is important to keep these decals cleaned more
frequently than the implement. Wash with soap and
water or a cleaning solution as required.
Replace decals that become damaged or lost. Also, be
sure that any new implement components installed
during repair include decals which are assigned to them
by the manufacturer.
When applying decals to the implement, be sure to clean
the surface to remove any dirt or residue. Where
possible, sign placement should protect the sign from
abrasion, damage, or obstruction from mud, dirt, oil etc.
Keep Riders Off of Machinery
DANGER
Transporting Safety
IMPORTANT
It is the responsibility of the owner/operator to
comply with all state and local laws.
When transporting the implement on a road or highway,
use adequate warning symbols, reflectors, lights and
slow moving vehicle sign as required. Slow moving
tractors and towed implements can create a hazard when
driven on public roads. They are difficult to see,
especially at night.
Do not tow an implement that, when fully loaded, weighs
more than 1.5 times the weight of the towing vehicle.
Carry reflectors or flags to mark the tractor and
implement in case of breakdown on the road.
Do not transport at speeds over 20 MPH under good
conditions. Never travel at a speed which does not allow
adequate control of steering and stopping. Reduce speed
if towed load is not equipped with brakes.
Avoid sudden stops or turns because the weight of the
implement may cause the operator to lose control of the
tractor. Use a tractor 1.5 times heavier than the
implement.
Use caution when towing behind articulated steering
tractors; fast or sharp turns may cause the implement to
shift sideways.
Keep clear of overhead power lines and other
obstructions when transporting. Know the transport
height and width of your implement. See Figure 5-1.
Special notice - read and thoroughly understand.
Proceed with caution. Failure to heed caution
may cause injury to person or damage product.
Proceed with caution. Failure to heed warning
will cause injury to person or damage product.
Proceed with extreme caution. Failure to heed
notice will cause injury or death to person and/or
damage product.
• Do not allow anyone to ride on the tractor or
implement. Riders could be struck by foreign
objects or thrown from the implement.
• Never allow children to operate equipment.
• Keep bystanders away from implement during
operation.

INTRODUCTION AND SAFETY INFORMATION
F-1021-0719 1-3
Attaching, Detaching and Storage
1. Do not stand between the tractor and implement
when attaching or detaching implement unless both
are not moving.
2. Before applying pressure to the hydraulic system, be
sure all connections are tight and that hydraulic lines
and hoses are not damaged.
3. Lower implement to ground when not in use.
4. Block implement so it will not roll when unhitched
from the tractor.
5. Relieve pressure in hydraulic lines before uncoupling
hydraulic hoses from tractor.
NOTE
To relieve hydraulic pressure: Depending on tractor
hydraulic system, some can be relieved by actuating
control lever after engine is stopped. If tractor has electric
over hydraulic controls, it may be necessary to move the
control lever to the float position. Refer to tractor’s
operator’s manual.
Wear protective gloves and safety glasses or goggles
when working with hydraulic systems.
Maintenance Safety
1. Block the implement so it will not roll when working
on or under it to prevent injury.
2. Transport Locks installed.
3. Do not make adjustments or lubricate the machine
while it is in motion.
4. Make sure all moving parts have stopped.
5. Understand the procedure before doing the work.
Use proper tools and equipment.
Protective Equipment
1. Wear protective clothing & equipment appropriate for
the job. Avoid loose fitting clothing.
2. Because prolonged exposure to loud noise can
cause hearing impairment or hearing loss, wear
suitable hearing protection, such as earmuffs or
earplugs.
Tire Safety
Tire changing can be dangerous and should be
performed by trained personnel using correct tools and
equipment.
1. When inflating tires, use a clip-on chuck and
extension hose long enough to allow you to stand to
one side, not in front of or over the tire assembly.
Use a safety cage if available.
2. When removing and installing wheels use
wheel-handling equipment adequate for the weight
involved.
Chemical Safety
Agricultural chemicals can be dangerous. Improper use
can seriously injure persons, animals, plants, soil &
property.
1. Read chemical manufactures instructions and store
or dispose of unused chemicals as specified. Handle
chemicals with care & avoid inhaling smoke from any
type of chemical fire.
2. Store or dispose of unused chemicals as specified by
the chemical manufacturer.
Prepare for Emergencies
1. Keep a First Aid Kit and Fire Extinguisher handy
2. Keep emergency numbers for doctor, ambulance,
hospital and fire department near phone.
High Pressure Fluid Safety
Escaping fluid under pressure can be nearly invisible and
have enough force to penetrate the skin causing serious
injury. Use a piece of cardboard, rather than hands, to
search for suspected leaks.
Any fluid injected into the skin must be surgically
removed within a few hours or gangrene may result.
Avoid the hazard by relieving pressure before
disconnecting hydraulic lines.
NOTE
Relieve hydraulic pressure by shifting the control valve
lever to float.
Wear protective gloves and safety glasses or goggles
when working with hydraulic systems.

1-4 F-1021-0719
INTRODUCTION AND SAFETY INFORMATION
Safety Chain
1. Use a safety chain to help control drawn machinery
should it separate from the tractor drawbar.
2. Use a chain with a strength rating equal to or greater
than the gross weight of towed machinery, in
accordance with ASAE S338.2 specifications. If two
or more machines are pulled in tandem, a larger
chain may be required. Chain capacity must be
greater that the total weight of all towed implements.
A second chain should be used between each
implement.
3. Attach the chain to the tractor drawbar support or
specified anchor location. Never attach the chain to
an intermediate support. Allow only enough slack in
the chain to permit turning. The distance from hitch
pin to attachment point or intermediate support point
should not exceed 9 inches. If the distance from the
drawbar pin to either the front or rear chain
attachment point exceeds 9 inches, intermediate
chain support is required.
4. Replace chain if any links or end fittings are broken,
stretched or damaged.
5. Do not use a safety chain for towing.
Figure 1-2: Ring Hitch
Figure 1-3: Clevis Hitch
662S6DIHW\&KDLQ
6DIHW\&KDLQ
%ROW81&[
:DVKHU)ODW´
/RFNQXW
7UDFWRU
'UDZEDU
6DIHW\&KDLQ
%ROW81&[
:DVKHU)ODW´
/RFNQXW
7UDFWRU
'UDZEDU

INTRODUCTION AND SAFETY INFORMATION
F-1021-0719 1-5
Decals
Figure 1-4: Decals
:$51,1*
'2127*21($5/($.6
+LJKSUHVVXUHRLOHDVLO\SXQFWXUHV
VNLQFDXVLQJVHULRXVLQMXU\
JDQJUHQHRUGHDWK
,ILQMXUHGVHHNHPHUJHQF\PHGLFDO
KHOS,PPHGLDWHVXUJHU\LV
UHTXLUHGWRUHPRYHRLO
'RQRWXVHÀQJHUVRUVNLQWR
FKHFNIRUOHDNV
/RZHUORDGRUUHOLHYHK\GUDXOLF
SUHVVXUHEHIRUHORRVHQLQJÀWWLQJV
.


,7(0
,7(0
527$7,21
&$/,%5$7,21
&5$1.
7227+
7227+
7227+
7227+
&$/,%5$7,21
0$&+,1(0$<%(&$/,%5$7(')2581/,67('6(('$6)2//2:6
6(('6+$)7785165(92/87,2163(5$&5(6(('(' 
5$,6(0$&+,1($1'/2&.,175$163257326,7,21 
3/$&($&$19$6257$5381'(50$&+,1(72&$7&+6((' 
',6(1*$*(&/87&+,)(48,33('7851+(;21 
75$160,66,216+$)75(92/87,216&2817(5
&/2&.:,6(&&::,7+3529,'('&5$1.785160$<%(
86(',)5(68/76$5($'-867('$66+2:1,167(3
:(,*+6((')25$3352;,0$7(3/$17,1*5$7(,1/%6$&5( 
08/7,3/<:(,*+7%<,)21/<78516:(5(86('
3/$17,1*5$7(6)256630,&520(7(5,13281'63(5$&5(
:,//&5$&.620(6(('6$77+(6(6(77,1*6
1275(&200(1'('/(17,/6625*+8068'$1*5$66
5$7(6$5(,17(1'('$6$*8,'(21/<9$5,$7,216,16,=($1'&/($1/,1(66:,//
$))(&75$7(6&+(&.$&5($*($1'3281'62)6(('86(')25%(675(68/76



23(1
&/26('
.
.
  
:$51,1*
029,1*3$57+$=$5'
7235(9(176(5,286,1-85<)520
029,1*3$576
.((3&29(56&/26(''85,1*23(5$7,21
'2127$//2:$1<21(725,'(25&/,0%
0$&+,1('85,1*23(5$7,21
.((32%6(59(56$:$<
.
.


:$51,1*:$51,1*

3$5.,1*
67$1'
3
3
3$5.,1*3,1
-
-
&$87,21
029,1*0$&+,1(6&$1&$86(,1-85<.((3$:$<
.((3$:$<)520029,1*75$&725625,03/(0(176
.((327+(56$:$<
'21275,'(25$//2:27+(56725,'(2175$&725
25,03/(0(17
%/2&.,03/(0(177235(9(17029(0(17:+(1
81+,7&+(')52075$&725
.((3$//*8$5'6$1'6+,(/'6,13/$&(:+,/(
0$&+,1(253$576$5(,1027,21 -
-
,7(0
,7(0
,7(0 ,7(0
,7(0
,7(0
,7(0
,7(0
,7(0
,7(0
,7(0
,7(0
,7(0

1-6 F-1021-0719
INTRODUCTION AND SAFETY INFORMATION
Figure 1-5: Decal Locations, SS16 Front and Back Views (1 of 2)
)52179,(:
%$&.9,(:
66'HFDO)URQW%DFN
663'HFDO)URQW%DFN

















INTRODUCTION AND SAFETY INFORMATION
F-1021-0719 1-7
Figure 1-6: Decal Locations, SS16 Side Views (2 of 2)


/()76,'(9,(:
5,*+76,'(9,(:
66'HFDO6LGH
 








1-8 F-1021-0719
INTRODUCTION AND SAFETY INFORMATION
Figure 1-7: Decal Locations, SSP16 Front and Back (1 of 2)

)52179,(:
%$&.9,(:
663'HFDO)URQW%DFN
663'HFDO)URQW%DFN
















INTRODUCTION AND SAFETY INFORMATION
F-1021-0719 1-9
Figure 1-8: Decal Locations, SSP16 Side Views (2 of 2)
/()76,'(9,(:
5,*+76,'(9,(:
663'HFDO6LGH
/()76,'(9,(:
5,*+76,'(9,(:
663'HFDO6LGH





 



1-10 F-1021-0719
INTRODUCTION AND SAFETY INFORMATION
Table provided for general use.
NOTES:

F-1021-0719 2-1
Chapter 2
Assembly
CAUTION
WARNING
NOTE
Refer to the repair parts manual F-1020 for identification
of parts and for the approximate relationship of the parts
in assembly.
To ensure alignment of assemblies, leave the nuts
loose until completion of final assembly. Use lock
washers or flat washers as specified. Spread all cotter
pins.
After completion of final assembly, tighten all nuts
evenly to prevent misalignment, distortion or binding.
Tighten all screws and nuts to the recommended
torques.
IMPORTANT
• If pre-assembled parts or fasteners are temporarily
removed, remember where they go. It is best to keep
parts separated.
• Check that all working parts move freely, bolts are
tight and cotter pins spread.
• Refer to the Torque Table for proper torque valves.
Note the different torque requirements for bolts with
lock nuts. See Page 4-1.
“Left” and “Right” refer to directions seen as if standing
behind the machine and facing in the direction of forward
travel.
IMPORTANT
All harnesses must be firmly attached to machine
frame members, or nylon tubing, so they don’t sag or
become torn loose by field debris. Use the tie straps
provided.
Check to be sure the harnesses at center of machine is
slack enough so as not to be stretched or interfered
with while rotating frame from transport to field
working position and vice versa.
Do not work on or under this machine unless
securely blocked and supported by a hoist or
tractor or by other sufficient means.
Do not attempt to lift heavy parts manually. Use a
hoist or a fork lift to move these parts into
position.

2-2 F-1021-0719
ASSEMBLY
Drawbar Installation
WARNING
1. Center the Drawbar Assembly on Seeder Frame and
attach using six 3/4-10 U-Bolts, Flat Washers and
Locknuts. Tighten. See Figure 2-1.
2. Install Toolbox to Drawbar cross member using two
3/8-16 x 1 Bolts, Flat Washers and Flanged
Locknuts.
3. Attach Air Manifold Assembly to the Drawbar cross
member using one 5/8-11 x 1-3/4 Bolt, Flat Washer
and Flanged Locknut.
4. Attach the Manual Holder to the Drawbar using two
1/4-20 x 1 Bolts, Flat Washers and Locknuts.
5. Install Hose Support to the Drawbar using one
5/8-11 x 2 Bolt, Flat Washer and Flanged Locknut.
6. Place Wrenches and Calibration Crank in Toolbox.

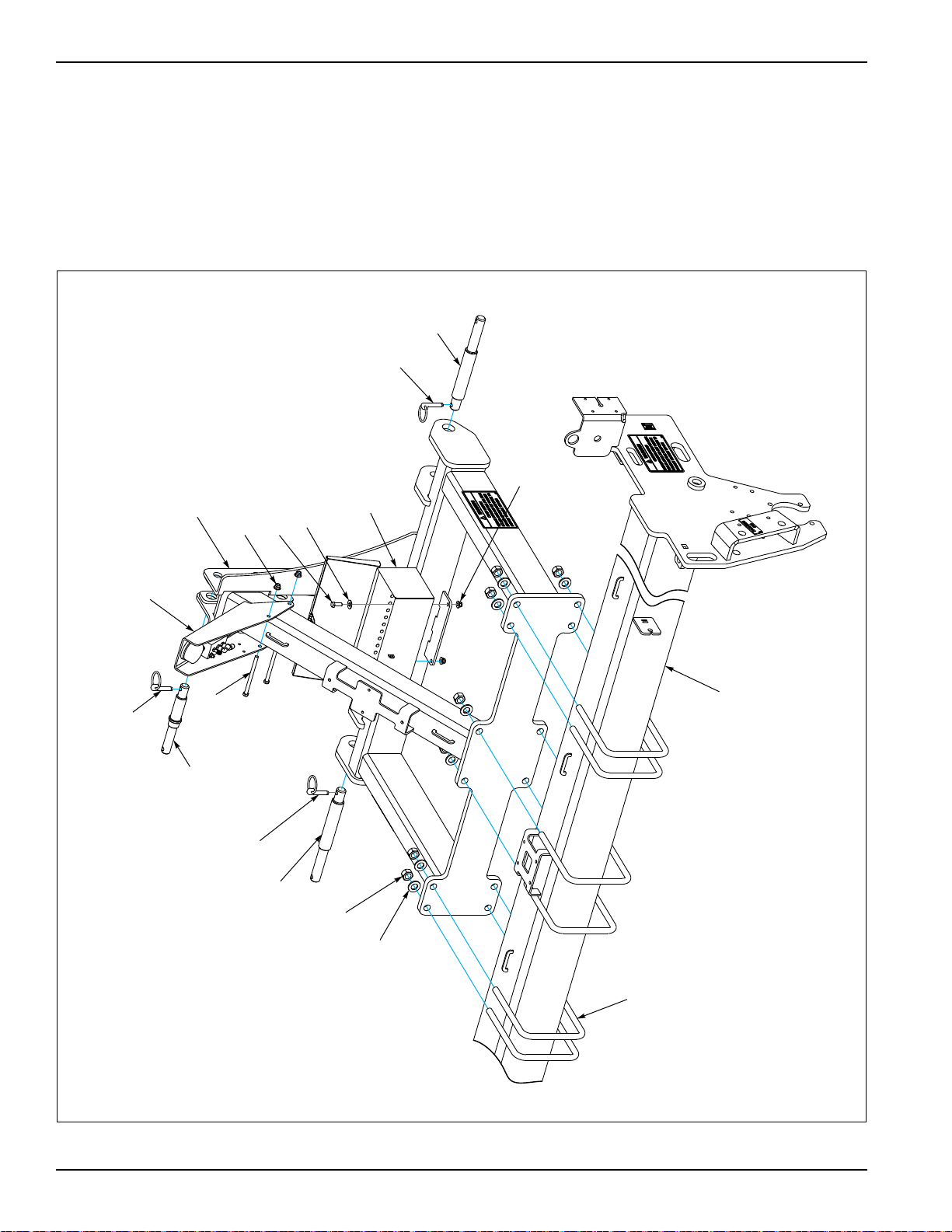

Figure 2-1: Drawbar Installation
Do not attempt to lift heavy parts manually. Use a
hoist or a fork lift to move these parts into
position.
0DQXDO+ROGHU
&DOLEUDWLRQ&UDQN
:UHQFKHV
/RFNQXW

)ODW:DVKHU
%ROW[
/RFNQXW)ODQJH

%ROW[
+RVH6XSSRUW
'UDZEDU
$VVHPEO\
$LU0DQLIROG
$VVHPEO\
%ROW[
/RFNQXW)ODQJH

/RFNQXW)ODQJH

)ODW:DVKHU
%ROW[
)ODW:DVKHU

7RROER[
/RFNQXW
)ODW:DVKHU
8%ROW
)ODW:DVKHU
662S'UDZEDU

ASSEMBLY
F-1021-0719 2-3
Wheel Arm Installation
1. Position Wheel Arm Assembly into the Wheel Arm
Bracket. See Figure 2-2.
2. Position a 3/4 Thrust Washer on each side of the
Wheel Arm Assembly and insert Step Pin.
3. Attach Step Pin to Wheel Arm Bracket with 1/2-13 x 2
Bolt and Locknut. Secure Step Pin with 1-1/4 x 2-1/2
x 1/2 Washer, Slotted Nut and 1/4 x 2-1/2 Cotter Pin.
4. Install 3 x 8 Hydraulic Cylinder to the Wheel Arm
Bracket, by sliding a 1 x 2 11ga SS Washer over 1 x
8-3/4 Pin and insert into Wheel Arm Bracket and
Hydraulic Cylinder Base End. Slide a SS Washer
over end of Pin and secure with Cotter Pin.
5. Mount the Tire and Wheel Assembly to the Wheel
Arm Assembly, secure with 9/16-18 Wheel Nuts.
(See “Tires” on page 4-3.)

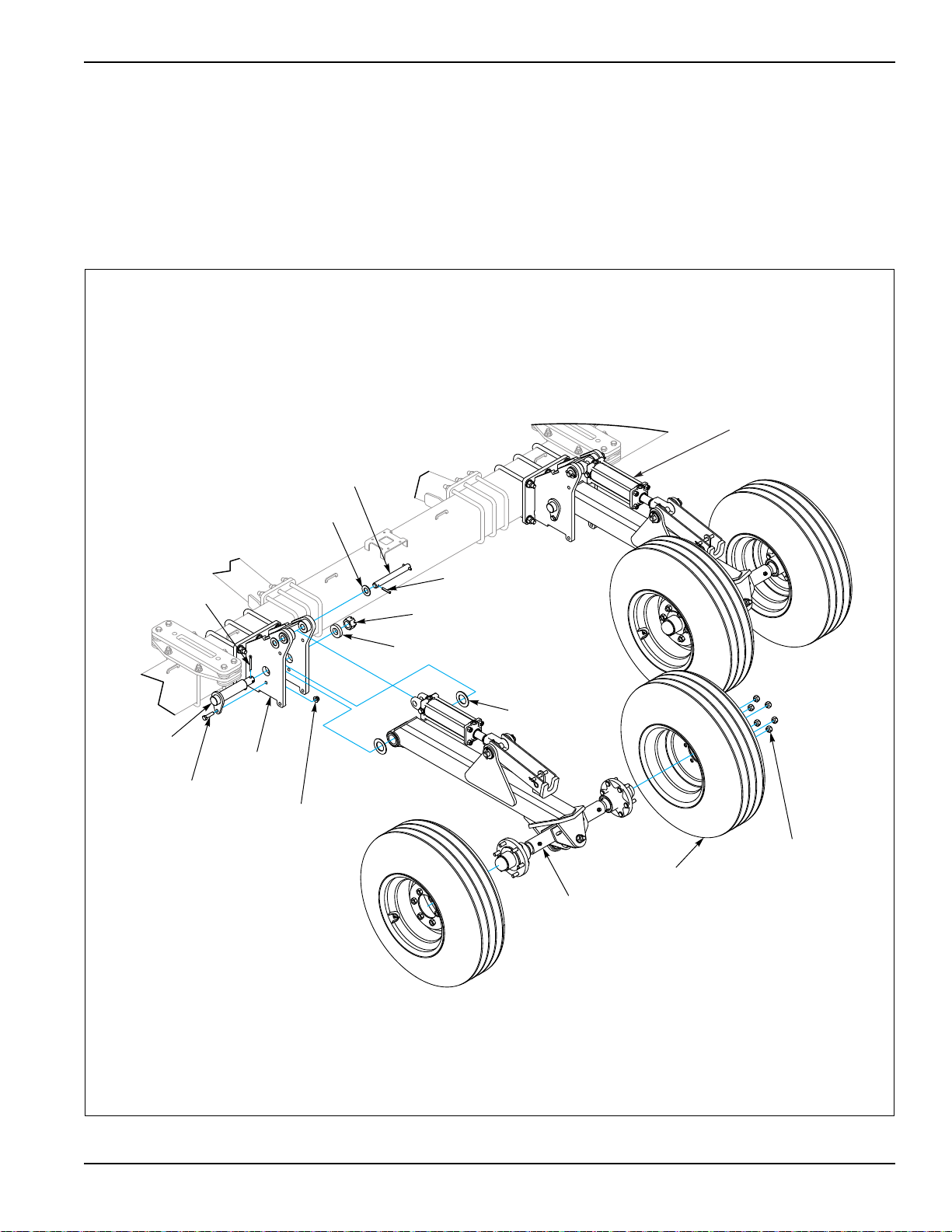

Figure 2-2: Wheel Arm Installation

:KHHO1XWV


7LUHDQG:KHHO
$VVHPEO\

%ROW
[
7KUXVW:DVKHU


:KHHO$UP
$VVHPEO\
:DVKHU[[
6ORWWHG1XW
5ROO3LQ[
:DVKHU66
[[JD
6WHS
3LQ
3LQ[


/RFNQXW
)ODQJH

:KHHO$UP
%UDFNHW
&RWWHU3LQ
[
662S:KO$UP
[
+\G&\O

2-4 F-1021-0719
ASSEMBLY
3Pt Hitch Installation
1. Attach the 3Pt Hitch to the Seeder Frame with 3/4-10
U-Bolts, Flat Washers and Locknuts. Tighten. See
Figure 2-3.
2. Attach the Air Manifold Bracket Assembly to the 3Pt
Hitch using two 3/8 x 16 x 5-1/4 Bolts, and Flanged
Locknuts. Do Not tighten until harnesses are
installed.
3. Attach the Toolbox to the 3Pt Hitch using two 3/8-16
x 1 Bolts, Flat Washers and Flanged Locknuts.
4. Insert Top Link and lower 3Pt Pins. Secure with 7/16
Lynch Pins.
Figure 2-3: 3 Pt Hitch (1 of 2)
)ODW:DVKHU
%ROW[
)ODQJH/RFNQXW
)ODQJH/RFNQXW
$LU0DQLIROG
%UDFNHW$VVHPEO\
%ROW[
7RS/LQN3LQ
/\QFK3LQ

/\QFK3LQ
/RZHU
3W3LQ
/RZHU3W3LQ
/\QFK3LQ

7RROER[
3W+LWFK
)ODW:DVKHU
/RFNQXW

8%ROW

6HHGHU)UDPH
6632S+LWFK3W

ASSEMBLY
F-1021-0719 2-5
5. Attach the Manual Holder to the 3Pt Hitch using two
1/4-20 x 1 Bolts, Flat Washers and Locknuts.
6. Attach the Connector Holder to the Air Manifold
Bracket Assembly using two 1/4-20 x 3/4 Bolts, Flat
Washers and Locknuts.
7. Place the Calibration Crank and Wrenches in the
Toolbox. See Figure 2-4.
Figure 2-4: 3 Pt Hitch (2 of 2)
%ROW[
0DQXDO+ROGHU
)ODW:DVKHU /RFNQXW
)ODW:DVKHU
%ROW[
&RQQHFWRU
+ROGHU
&DOLEUDWLRQ&UDQN
:UHQFKHV
6632S0DQXDO+ROGHU

2-6 F-1021-0719
ASSEMBLY
Drawbar Air System Installation
1. Cut the nylon tubing into two equal lengths,
approximately 15ft each. Set aside.
2. Screw the coated threaded male end of the Push to
Connect Elbow into each air springs port. Insert a
nylon tube end into each Push to Connect Elbow.
3. Route the nylon tubing along the left and right sides
of frame and up the Drawbar to the Air Manifold. See
Figure 2-5.
4. Cut off any excess nylon tubing and insert ends into
the Air Manifold Assembly Push to Connect Elbows.
Cut ends of Nylon Tubing should be smooth and burr
free. Burrs can cause slow leaks.
5. Secure nylon tubing with tie straps after all
Harnesses and Hydraulic Hoses have been installed.
6. When Assembly is complete, pressurize the Rear
Roller Air System. (See “Rear Roller Air System”
on page 3-7.)

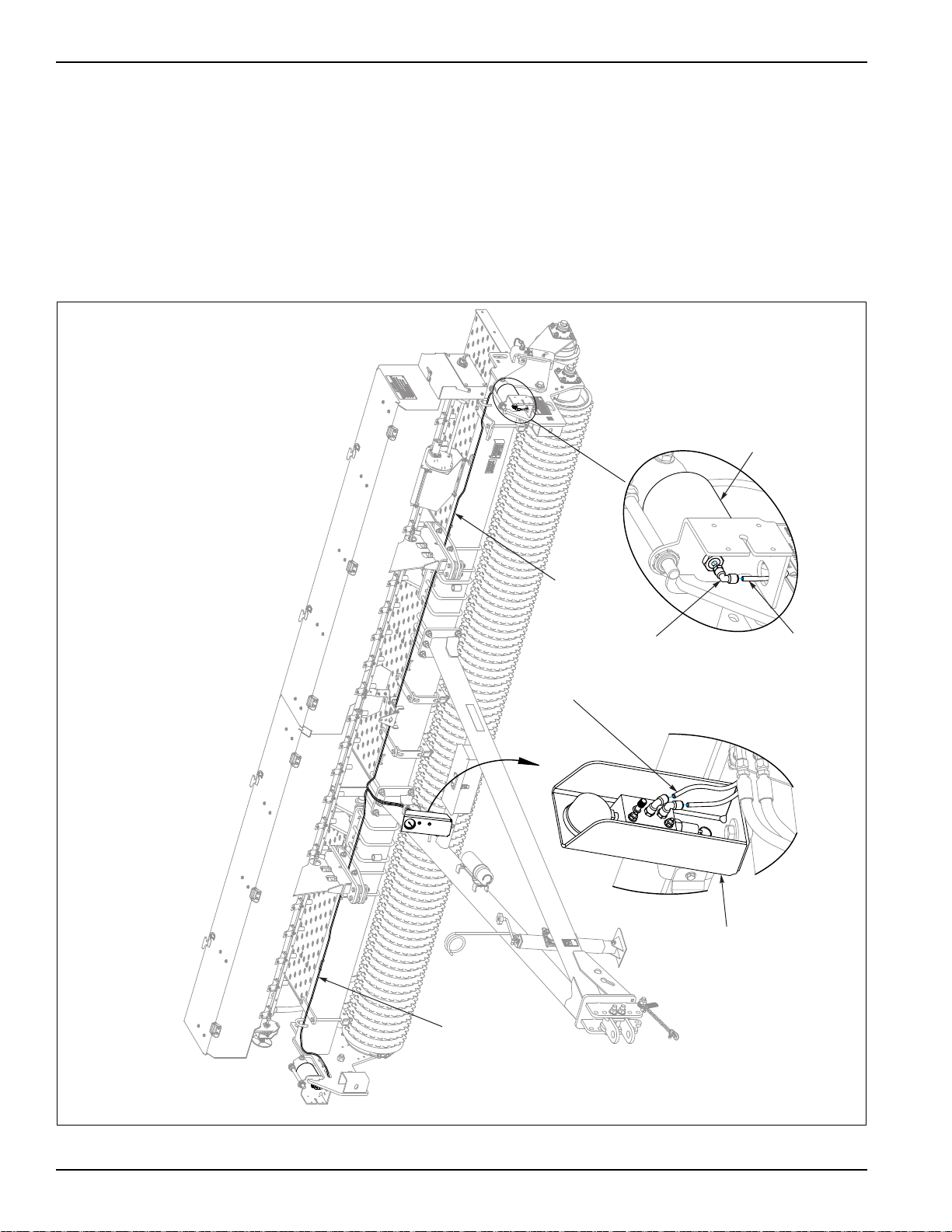

Figure 2-5: Drawbar Air System
662S$LU6\VWHP
´2'
662S$LU6\VWHP
6632S$LU6\VWHP
6632S$LU6\VWHP
1\ORQ7XELQJ´2'
3XVKWR&RQQHFW(OERZ
2'[137
$LU0DQLIROG$VVHPEO\
1\ORQ7XELQJ1\ORQ7XELQJ
1\ORQ7XELQJ´2'
$LU6SULQJ
