Landscape Fusion F1178 User manual

ASI 220A

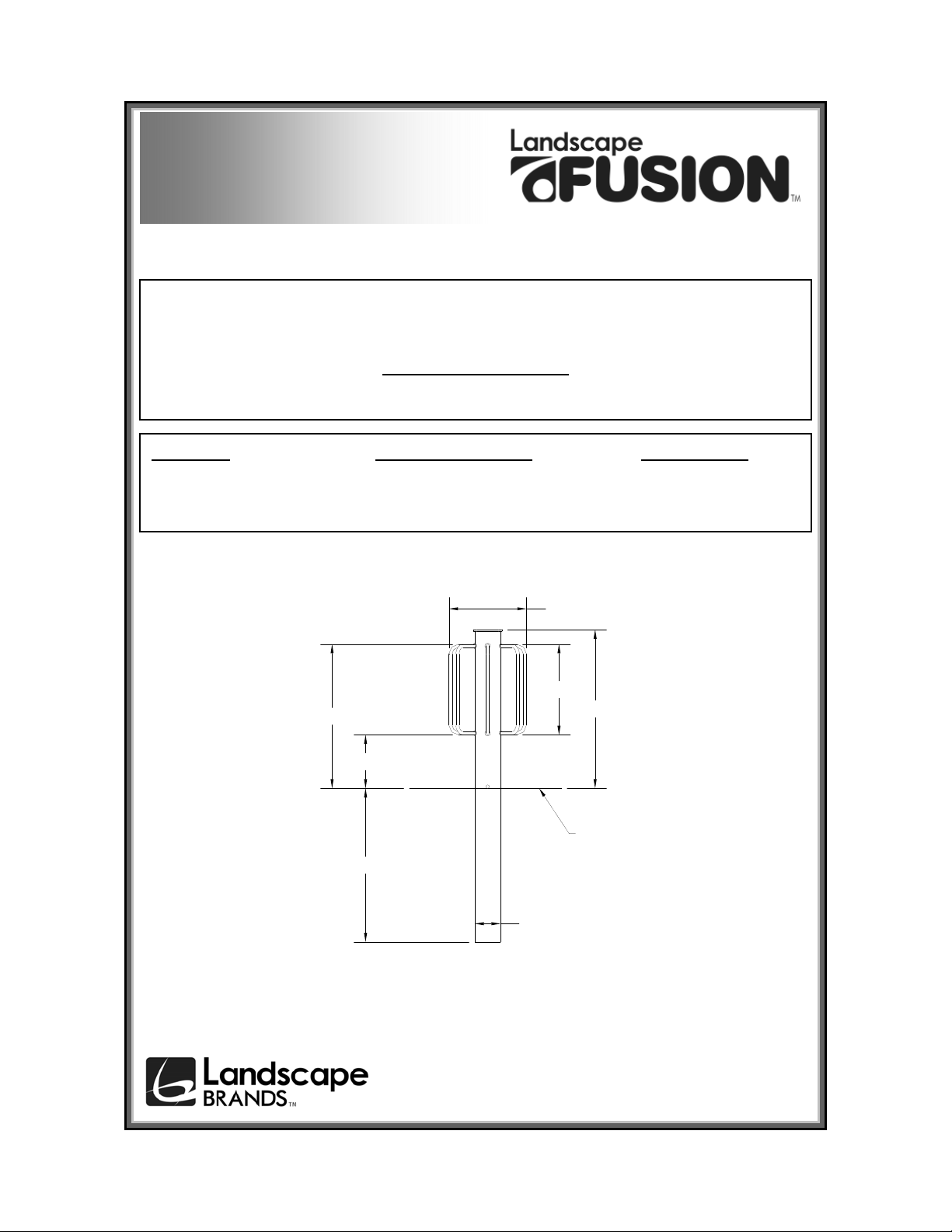

Assembly Instructions for F1178, In Ground Euro Style Bike Rack
A
SSEMBLY
INSTRUCTIONS
Parts List Hardware Included Tools Needed
1- In Ground Bike Rack None None
To prevent scratching on any of the finished pieces, we recommend assembling the unit on packing
material (paper and cardboard). Do not drag assembled unit on any surface. The assembly is a two-
person operation.
Cleaning Recommendations
For cleaning, use mild household cleansers or soap and water.
Do not use vinyl cleansers or protectants.
In Ground Bike Rack,
Euro Style
4.0000
23.7344
8.2656
22.2656 24.5156
14.0000
12.0000
GROUND
LEVEL
211 N. Lindbergh Blvd. • St. Louis, MO 63131-7809
800-231-1327 • www.landscapebrands.com

ASI 220A
A
SSEMBLY
INSTRUCTIONS
24.00
26.00
12.00
Note:
1. Diagram #2 shows a typical depth
of pipe to be submerged in
cement. The bottom flange is to
be submerged 10” into cement.
Crown the cement to optimize
drainage. Cement walls should be
vertical to minimize the effects of
frost upheaval. Loose soil
conditions will require a larger
hole. (e.g. sand & gravel.)
Diagram #1 Diagram #2
