User Manual
P1202 / P1301 L-ESD set
ESD Langer Pulse H 0.2/2.5 E 0.2/5.5 ns Field Coupling
IC immunity test against ESD electric and magnetic field
- Translation of the original user manual -
Copyright © Februar 2020
LANGER EMV-Technik GmbH

2 - 35
LANGER
EMV-Technik
DE-01728 Bannewitz
[e-mail]
www.langer-emv.com
P1202 / P1301 L-ESD set
Content: Page
Declaration of Conformity 41
General Information 52
Storage of the User Manual 52.1
Reading and Understanding the User Manual 52.2
Local Safety and Accident Prevention Regulations 52.3
Images 52.4
Limitation of Liability 52.5
Errors and Omissions 52.6
Copyright 52.7
Description of Symbols 62.8
Scope of Delivery 73
Technical Parameters 84
P1202 L-ESD –General Parameters 84.1
P1202 L-ESD –Magnetic Flux Density B 84.2
P1202 L-ESD - Shunt 84.3
P1301 L-ESD –General Parameters 94.4
P1301 L-ESD –Electric Field Strength 94.5
BPM 02 dB/dt Field Meter 104.6
EPM 02 dE/dt Field Meter 104.7
BPS 203 Burst Power Station 104.8
Intended Use 115
Staff Requirements 115.1
Risks if Not Used for Its Intended Purpose 125.2
Safety Instructions 125.3
Overview of P1202 / P1301 L-ESD Set 156
System Description 156.1
BPS 203 Burst Power Station 166.2
P1202 Magnetic Field Source 186.3
FKE 30 Field Chamber Insert 206.4
P1301 –Electric Field Source 216.5
EPM 02 and BPM 02 Field Meters 226.6
D70 h10 and D70 h03 Spacer Rings 236.7
Set-up of the P1202 / P1301 L-ESD Set 247
Orientation of the Field Sources 257.1
Start-up, Measurement and Calibration 268
Measuring Devices 268.1
Test Board 268.2

3 - 35
LANGER
EMV-Technik
DE-01728 Bannewitz
[e-mail]
www.langer-emv.com
P1202 / P1301 L-ESD set
Quick Start 268.3
Pulse-Current Measurement (only P1202) 278.4
Calibration of the Measurement Set-up 298.5
Measurement Sequence 308.6
BPS 203-Client Software 319
Installation 319.1
Software Client –General Notes 319.2
Pulse Configuration 329.3
Setting of a Defined Pulse Counter 329.4
Probe Parameter Read Out 329.5
Operating Modes 339.6
Status Bar Messages 339.7
Menus 349.8
Warranty 35

4 - 35
LANGER
EMV-Technik
DE-01728 Bannewitz
[e-mail]
www.langer-emv.com
P1202 / P1301 L-ESD set
Declaration of Conformity1
Hersteller / Manufacturer / Fabricant
Langer EMV-Technik GmbH
Nöthnitzer Hang 31
01728 Bannewitz, Germany
Die Langer EMV-Technik GmbH bescheinigt die Konformität für das Produkt
The Langer EMV-Technik GmbH herewith declares conformity of the product
Langer EMV-Technik GmbH déclare la conformite du produit
Bezeichnung / Product name / Designation:
P1202 / P1301 L-ESD set
mit / with / avec:
BPS 203
P1202
P1301
EPM 02
BPM 02
mit den folgenden Bestimmungen
with applicable regulations
avec les directives suivantes
EMV Richtlinien:
EMV Directives:
Directives CEM:
2014/30/EU
2014/30/EU
2014/30/UE
Niederspannungsrichtlinie:
Low-Voltage Equipment Directive:
Directive des equipments basse tension:
2014/35/EU
2014/35/EU
2014/35/UE
Angewendete harmonisierte Normen
Harmonized standards applied
Normes harmonisées utilisées
EMV / EMC / CEM:
EN 61000-6-1:2007-10
EN 61000-6-3:2011-09
Sicherheit / Safety / Sécurité:
EN 61010-1:2011-07
2020-10-02
------------------------
------------------------------------------
Datum / Date / date
Gunter Langer
Geschäftsführer
Managing Director
P.D.G

5 - 35
LANGER
EMV-Technik
DE-01728 Bannewitz
[e-mail]
www.langer-emv.com
P1202 / P1301 L-ESD set
General Information2 Storage of the User Manual2.1
This user manual enables the safe and efficient use of the P1202 / P1301 L-ESD set. It must be
kept close at hand and accessible to the user.
Reading and Understanding the User Manual2.2
Read the user manual carefully, observe the safety information (Section 5.3) and follow the
instructions given in this manual before putting the device into service.
Local Safety and Accident Prevention Regulations2.3
The local accident prevention and general safety regulations also apply to ensure that the
P1202 / P1301 L-ESD set is used for its intended purpose.
Images2.4
Figures have been included in this user manual to assist the reader's understanding but may differ
from the device's actual version.
Limitation of Liability2.5
In the following cases, Langer EMV-Technik GmbH can assume no liability for damage to property
and personal injury if:
- The information given in this user manual has not been observed.
- P1202 / P1301 L-ESD set was operated by staff not qualified in the field of EMC.
- P1202 / P1301 L-ESD set was subjected to unauthorised modifications or technical
changes.
- P1202 / P1301 L-ESD set was not used according to its intended purpose.
- Spare parts or accessories were used that had not been approved by
Langer EMV-Technik GmbH.
The actual scope of delivery may deviate from the illustrations and texts in this user manual due to
the customization of orders or due to technical changes and innovations.
Errors and Omissions2.6
The information in this manual has been carefully checked and is believed to be accurate;
however, the Langer EMV-Technik GmbH assumes no responsibility for any clerical, typographical,
or proofreading errors, or omissions.
Copyright2.7
The content of this user manual is protected by copyright law and may only be used in connection
with the P1202 / P1301 L-ESD set. This user manual may not be used for any other purpose
without the prior written approval of Langer EMV-Technik GmbH.

6 - 35
LANGER
EMV-Technik
DE-01728 Bannewitz
[e-mail]
www.langer-emv.com
P1202 / P1301 L-ESD set
Description of Symbols2.8
Warning signs
Prohibition Signs
General warning sign
No access for people with active
implanted cardiac devices
Warning, Electricity

7 - 35
LANGER
EMV-Technik
DE-01728 Bannewitz
[e-mail]
www.langer-emv.com
P1202 / P1301 L-ESD set
Scope of Delivery3
Item Designation Type Qty.
1 ESD Magnetic Field Source Langer Pulse 0.2/2.5 ns P1202 L-ESD 1
2 ESD E-Field Source Langer Pulse 0.2/5.5 ns P1301 L-ESD 1
3 Burst Power Station BPS 203 1
4 Control Software BPS 203-Client 1
5 dB/dt Field Meter BPM 02 1
6 dE/dt Field Meter EPM 02 1
7 Spacer Ring, 3 mm D70 h03 1
8 Spacer Ring, 10 mm D70 h10 1
9 Field Chamber Insert FKE 30 1
10 Measuring Cable SMA-SMB 1 m 2
11 High-Voltage Cable, Fischer-Fischer HV FI-FI 1 m 1
12 Control Cable FBK 12P 1 m 1
13 USB Cable Type A-B USB-AB 1
14 Power Supply Unit NT Ex EU 1
15 System Case P1202 / P1301 case 1
16 User Manual P1202 / P1301 m 1
17 Quick Guide 1
----------------------------------------------------------------------------------------------------------------------------------
Important: The scope of delivery may deviate depending on the respective order!

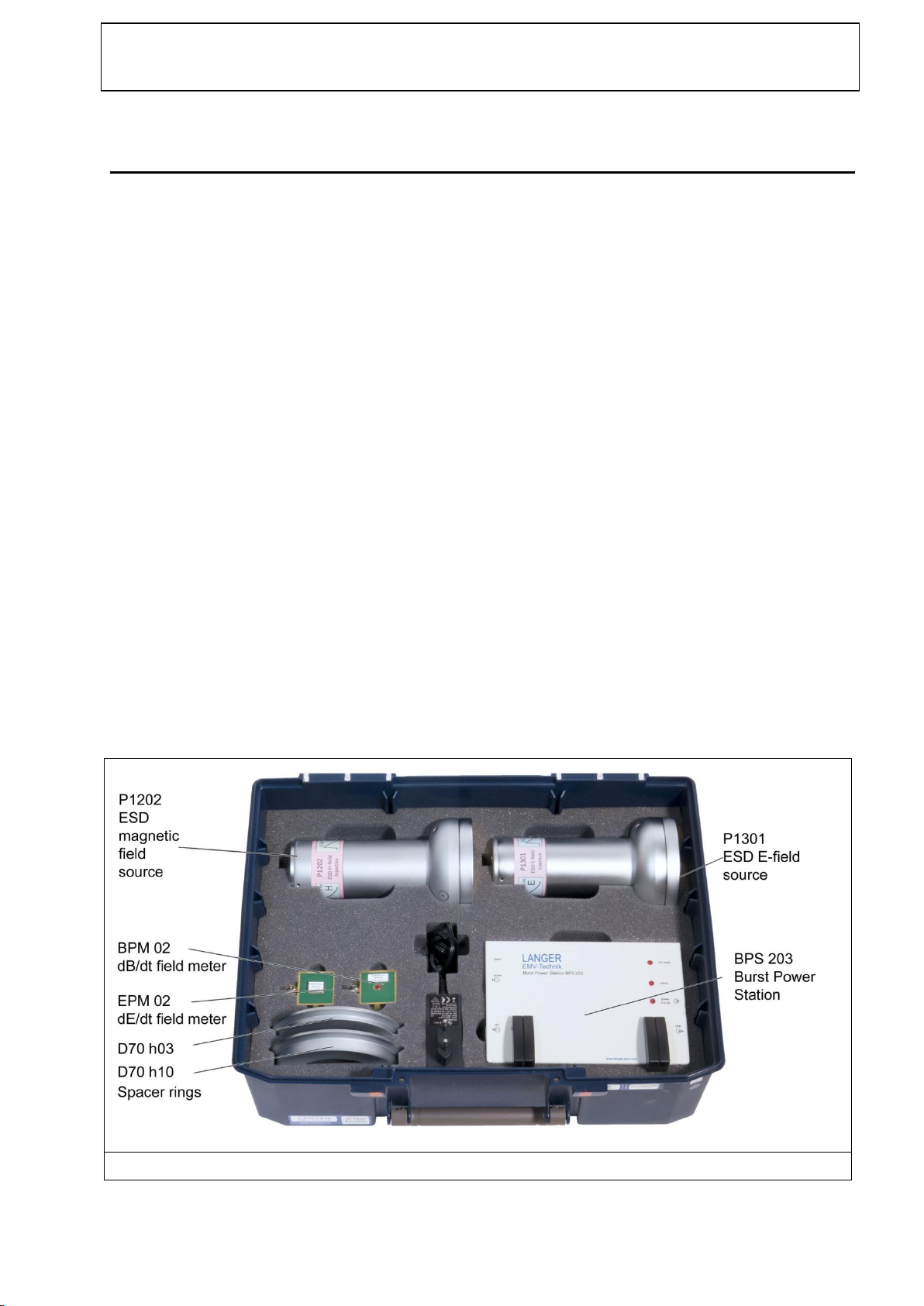

Figure 1: Case of P1202 / P1301 L-ESD set

8 - 35
LANGER
EMV-Technik
DE-01728 Bannewitz
[e-mail]
www.langer-emv.com
P1202 / P1301 L-ESD set
Technical Parameters4 P1202 L-ESD –General Parameters4.1
Dimensions (h/w/d)
(180 x 96 x 96) mm
Weight
700 g
Pulse parameter
Shape
0.2 / 2.5 ns
Frequency
0.1 Hz –10 Hz
Max. current
± 144 A
Voltage
± (0.1 –6) kV
Ammeter
Measurement output
50 Ω, SMB
Shunt
0.1 Ω
Current correction factor R
-26 dB Ω
Connector –input
50 ΩFischer (D103A023)
Table 1: P1202 general parameters
P1202 L-ESD –Magnetic Flux Density B4.2
 in kV
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
5.5
6
Viout in V
0.6
1.2
1.8
2.4
3
3.6
4.2
4.8
5.4
6
6.6
7.2
in A
12
24
36
48
60
72
84
96
108
120
132
144
D70 h03 spacer, height h = 3 mm
B in µT
0.293
0.586
0.878
1.17
1.46
1.76
2.05
2.34
2.64
2.93
3.22
3.51
D70 h10 spacer, height h = 10 mm
B in µT
0.149
0.298
0.446
0.595
0.744
0.893
1.04
1.19
1.34
1.49
1.63
1.79
Table 2: Magnetic flux density generated depending on the high voltage  and probe current 
P1202 L-ESD - Shunt4.3
Bandwidth
3 GHz
Measurement error
approx. 10 %
Attenuator settings
x 20 A / V → 26 dB
Deskew B to  at measurement output
1 ns
Table 3: P1202 shunt parameters

9 - 35
LANGER
EMV-Technik
DE-01728 Bannewitz
[e-mail]
www.langer-emv.com
P1202 / P1301 L-ESD set
P1301 L-ESD –General Parameters4.4
Dimensions (height/width/depth)
(180 x 96 x 96) mm
Weight
700 g
Pulse parameter
Shape
0.2 / 5.5 ns
Frequency
0.1 Hz –10 Hz
Voltage
± (0.1 - 6) kV
Connector - input
50 ΩFischer (D103A023)
Table 4: P1301 general parameters
P1301 L-ESD –Electric Field Strength4.5
 in kV
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
5.5
6
D70 h03 spacer, height h = 3 mm
E in kV/cm
1.67
3.33
5
6.67
8.33
10
11.67
13.33
15
16.67
18.33
20
D70 h10 spacer, height h = 10 mm
E in kV/cm
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
5.5
6
Table 5: Electric field strength depending on the high voltage 

10 - 35
LANGER
EMV-Technik
DE-01728 Bannewitz
[e-mail]
www.langer-emv.com
P1202 / P1301 L-ESD set
BPM 02 dB/dt Field Meter4.6
Frequency range
500 kHz - 3 GHz
Magnetic flux density 
calculation based on the voltage 
at the measurement output
󰇗 
  

  󰇛 
󰇜󰇗
  󰇗󰇛󰇜
Table 6: Conversion factor of BPM 02
EPM 02 dE/dt Field Meter4.7
Frequency range
500 kHz - 3 GHz
Electric field strength 
calculation based on the voltage 
at the measurement output
󰇗 
  

  󰇛 
󰇜󰇗
  󰇗󰇛󰇜
Table 7: Conversion factor of EPM 02
BPS 203 Burst Power Station4.8
Frequency range
0.1 Hz –30 Hz
Output voltage
± (0.1 ... 9) kV
Supply voltage
12 V / 1 A DC
Interface
USB
Weight
350 g
Sizes (L x W x H)
(175 x 122 x 61) mm
Software
BPS 203-client
Table 8: BPS 203 technical parameters

11 - 35
LANGER
EMV-Technik
DE-01728 Bannewitz
[e-mail]
www.langer-emv.com
P1202 / P1301 L-ESD set
Intended Use5
The P1202 ESD magnetic field source and P1301 ESD electric field source can be used to test the
immunity of integrated circuits (ICs) against magnetic and electric ESD fields, respectively.
The P1202 generates a magnetic ESD field and the P1301 field source generates an electric ESD
field. The respective field source is positioned above the test IC by using a spacer ring and the
generated ESD field is then applied to the IC to determine its immunity against ESD disturbances.
The P1202 / P1301 L-ESD set is used for applications such as:
- test the immunity of integrated circuits (ICs) against magnetic and electric fields
- determine the orientation of critical loops within the tested IC
The user must comply with all information and instructions given in this user manual.
The P1202 / P1302 L-ESD set may only be used in an environment with a temperature of
10 to 30 degree Celsius and a humidity of 20 to 85 percent without condensation.
Keep the L-ESD set free from dirt and liquids to prevent adverse effects on tests and damage to
the field sources and other parts of the set.
Staff Requirements5.1
Only persons who are trained and qualified in the field of electromagnetic compatibility (EMC) may
operate the P1202 / P1301 L-ESD set.
Persons whose responses are impaired by alcohol, medicines, drugs or similar substances must
not be allowed to operate the P1202 / P1301 L-ESD set.

12 - 35
LANGER
EMV-Technik
DE-01728 Bannewitz
[e-mail]
www.langer-emv.com
P1202 / P1301 L-ESD set
Risks if Not Used for Its Intended Purpose5.2
Danger due to misuse!
Incorrect use of the P1202 / P1301 L-ESD set can lead to dangerous
situations!
Incorrect use of the P1202 / P1301 L-ESD set may put the user at risk, damage the L-ESD set
and/or the technical equipment connected to the L-ESD set.
Examples of improper use that may put persons/equipment at risk:
-Safety devices are bypassed or rendered ineffective.
-The P1202 / P1301 L-ESD set is used in a defective state.
-The P1202 / P1301 L-ESD set is used outside the specified range of technical parameters.
-The field of application is changed by modifications to the design.
Claims due to the P1202 / P1301 L-ESD set’s abnormal use are excluded!
Safety Instructions5.3 General Safety Information5.3.1
Risks cannot be totally excluded even if the P1202 / P1301 L-ESD set is used for its intended
purpose.
Observe the safety information and hazard warnings listed below to prevent damage to property
and personal injury. Also observe the operating and safety instructions for all other devices used in
the measurement set-up.
Carry out a visual check before performing a measurement with a product from
Langer EMV-Technik GmbH. Replace anything that is damaged, like connecting cables,
attachments, field meters and sources. Please contact Langer EMV-Technik GmbH if damaged
parts need to be replaced or repaired.
Wear tight-fitting clothes when using the P1202 / P1301 L-ESD set.
Langer EMV-Technik GmbH assumes no liability for damage to property and/or personal injury or
for consequential damage that arises from the incorrect unpacking, set-up or operation of
the P1202 / P1301 L-ESD set.
Warning!

13 - 35
LANGER
EMV-Technik
DE-01728 Bannewitz
[e-mail]
www.langer-emv.com
P1202 / P1301 L-ESD set
Hazard Due to Electrical Voltage5.3.2
Danger from electricity!
Risk of injury due to electric shock!
Always check any attachments, measuring devices, cables, field meters and sources before
using the P1202 / P1301 L-ESD set. Never use any damaged or defective devices.
Do not connect or disconnect any cables whilst the P1202 / P1301 L-ESD set is in
operation.
Only staff from Langer EMV-Technik GmbH may open the field sources and work on the
electrical components and electrical lines.
Switch devices off immediately, disconnect the mains plug and contact
Langer EMV-Technik GmbH if you detect any damaged insulation on lines, cables or
electric components!
Hazard due to Electromagnetic Fields (Near and Far Fields)5.3.3
Danger from electromagnetic fields!
Risk of affecting a cardiac device!
Persons with a cardiac device, such as a pacemaker or implanted defibrillator, are not
allowed to work on or approach the P1202 / P1301 set whilst it is in operation.
Material damage due to electromagnetic fields!
Risk of affecting or damaging electronic devices!
Keep electronic devices, that are not necessary for the test set-up in a appropriate safety
distance so they are not affectd by generated electromagnetic fields.
Use shielded rooms or enclosures (e.g. shielded tents) to protect electronic devices against
electromagnetic near and far fields.
Make sure that the field chamber (Figure 7) is not opened under any circumstances while
the P1202 / P1301 L-ESD set is in operation.
Warning, Electricity
Prohibition, No access
for people with active
implanted cardiac
devices
!
Caution!

14 - 35
LANGER
EMV-Technik
DE-01728 Bannewitz
[e-mail]
www.langer-emv.com
P1202 / P1301 L-ESD set
Material damage due to high intensity electromagnetic fields!
Risk of damaging or destroying the test IC (latch-up)!
Protect the test IC by e.g.:
- connecting a protective resistor in the test IC’s incoming power supply,
- increasing the intensity gradually and stopping when a functional fault occurs or
- interrupting the power supply to the test IC in the event of a latch-up.
Make internal functional faults of the test IC visible from outside by:
- monitoring representative signals in the test IC,
- using special test software,
- making the reaction of the test IC to inputs visible (reaction test).
!
Caution!

15 - 35
LANGER
EMV-Technik
DE-01728 Bannewitz
[e-mail]
www.langer-emv.com
P1202 / P1301 L-ESD set
Overview of P1202 / P1301 L-ESD Set6 System Description6.1

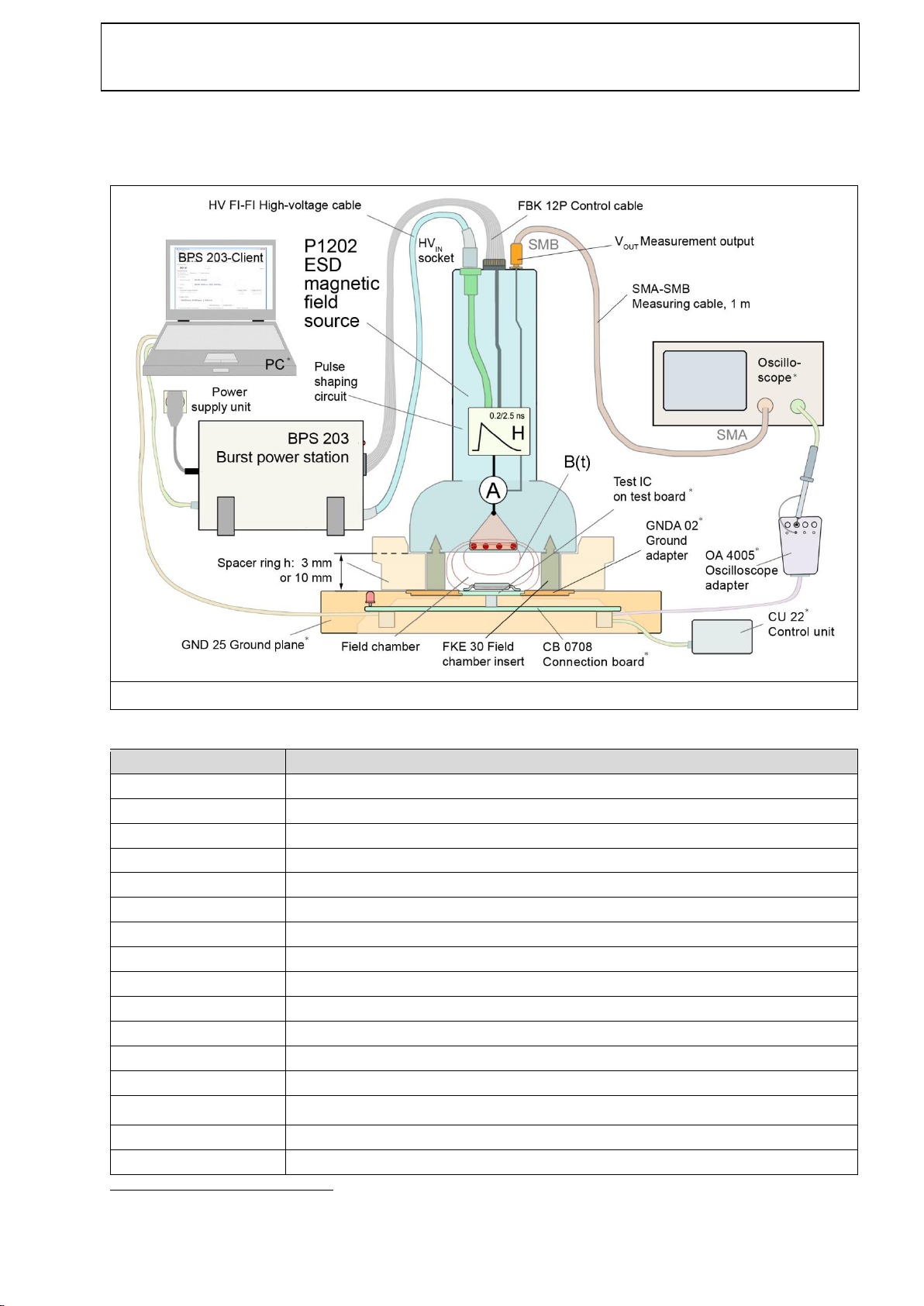

Figure 2: Set-upofP1202probe.Alldeviceswhicharenotincludedinthescopeofdeliveryaremarkedwithanasterisk(*).
Name
Description
P1202
Generates the H-field injected into the DUT
P1301
Generates the E-field injected into the DUT
BPS 203
Supplies the high voltage and control signals
HV / signal cable
Connects L-ESD field sources with the BPS 203
Measurement cable
SSMB to SMA cable to connectmeasurement output with an oscilloscope
D70 h03
Spacer ring with height of 3 mm
D70 h10
Spacer ring with height of 10 mm
FKE 30
Field chamber insert
SMA-SMB 1m
Measuring cable
HV FI-FI 1m
High-voltage cable, Fischer-Fischer
FBK 12P 1m
Control cable
USB cable
Connects the BPS 203with a PC, type A-B
Power supply unit
12V / 1A power supply unit, used to power the BPS 203
BPS 203-Client1
PC software / DLL to control L-ESD field sources
BPM 02
dB/dt field meter
EPM 02
dE/dt field meter
1
Minimum requirements: Win XP SP3 or above

16 - 35
LANGER
EMV-Technik
DE-01728 Bannewitz
[e-mail]
www.langer-emv.com
P1202 / P1301 L-ESD set
BPS 203 Burst Power Station6.2
The BPS 203 is used as a high voltage supply
and control unit for the L-ESD field sources.
The BPS 203 is connected to a computer with
windows operating system. The provided
installation medium includes the BPS 203-
Client software and a DLL for implementing
automated systems.
Figure 3: BPS 203 burst power station
Features are:
-adjustment of pulse frequency and pulse voltage
-single pulse or pulse sequence with selectable pulse rate
Figure 4: BPS 203 features

17 - 35
LANGER
EMV-Technik
DE-01728 Bannewitz
[e-mail]
www.langer-emv.com
P1202 / P1301 L-ESD set
Socket
Description
Signal Cable socket
High-voltage power supply and
HV Socket
Probe communication
Power Supply
Power input for BPS 203and the attached probe
USB Port
USB-B port to connect BPS 203to a PC
Table 9: BPS 203features
LED
State
Description
Status
10Hz
Fault: Probe is not connected
or is incorrectly connected
2Hz
Probe is ready (both cables
have to be connected)
2Hz
Pulse operation
HV ready
-
BPS 203 is ready to initiate
(start pulse)
USB
-
USB Connection to PC
established
12V
Power
-
BPS 203is powered

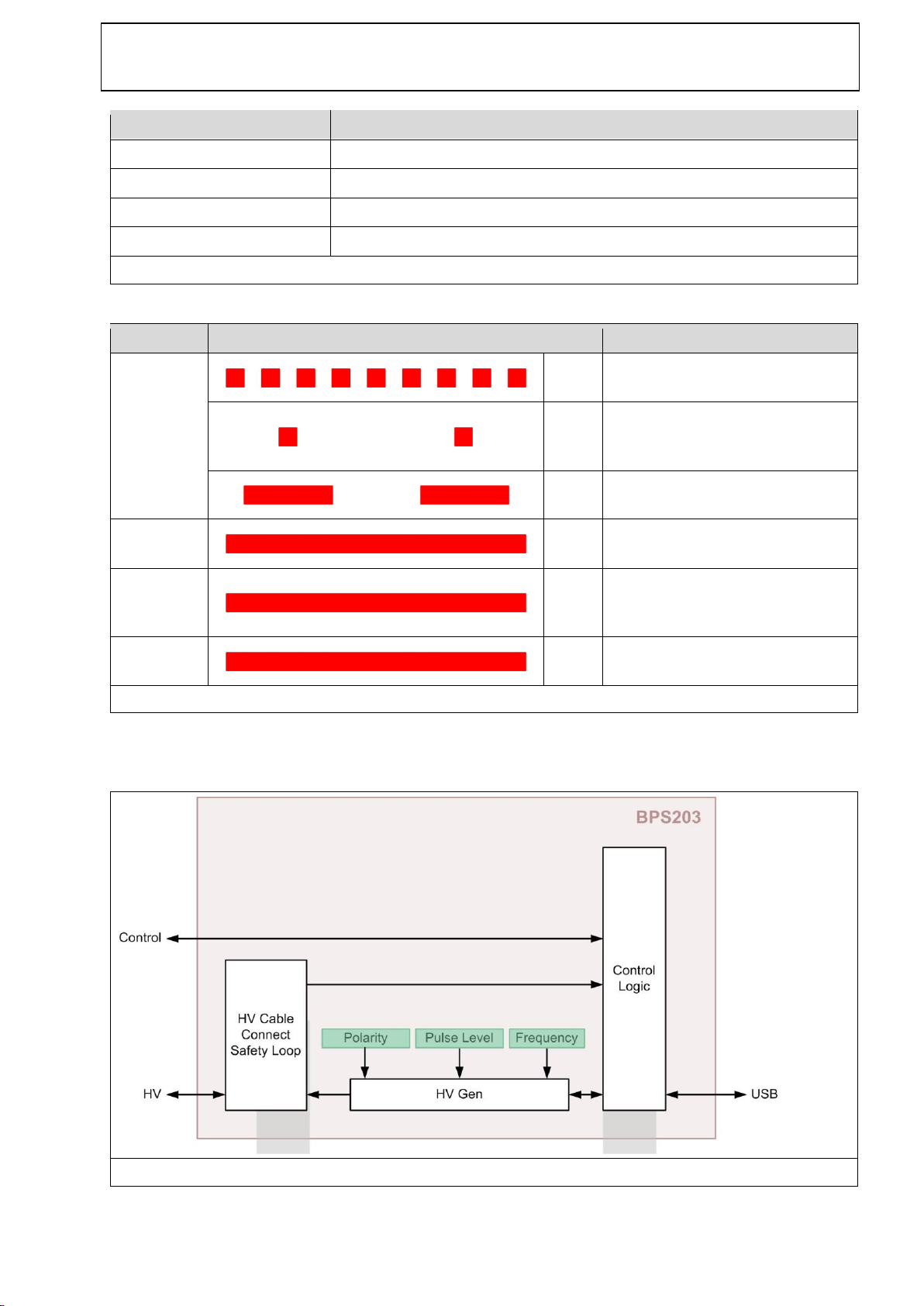

Table 10 BPS 203 states (Indicator LEDs)
Figure 5 shows the block diagram of the BPS 203. The internal logic is controlled by the
BPS 203-Client or the DLL.
Figure 5: Block diagram of the BPS 203

18 - 35
LANGER
EMV-Technik
DE-01728 Bannewitz
[e-mail]
www.langer-emv.com
P1202 / P1301 L-ESD set
P1202 Magnetic Field Source6.3
Figure 6 shows the P1202 ESD magnetic field source.
The P1202 has three plug connectors, a high-voltage input (Fischer connector) to supply the
field source, a digital control input (12 pin header) to control the field source and a measurement
output (SMB connector) at the top.
The high-voltage input is marked  and the measurement output is marked.
Figure 6: P1202 ESD field source with 3 cm long electric conductor
On the inside of the P1202 ESD field source (see Figure 3), the HV power input is connected to
the pulse shaping circuit. The output of the pulse shaping circuit is connected to the
electric conductor located at the bottom of the field source. The end of the electric conductor is
connected to ground of the field source and thus causes a short circuit in the current path.
The resulting current generates a magnetic field that develops around the electric conductor.

19 - 35
LANGER
EMV-Technik
DE-01728 Bannewitz
[e-mail]
www.langer-emv.com
P1202 / P1301 L-ESD set
Figure 7: Principle of the immunity measurement using the P1202 field source (magnetic field)
Figure 7 shows the basic measurement principle. The field source, the spacer ring, the
field chamber insert and the ground plane with the test IC form a field chamber. This field chamber
limits and shields the generated magnetic field.
A shunt is located in the current path of the field source to measure the field-generating current .
This current can be calculated from the voltage at the field source's measurement output (refer to
Section 8.4). The measurement output is terminated with 50 Ωinside the field source.

20 - 35
LANGER
EMV-Technik
DE-01728 Bannewitz
[e-mail]
www.langer-emv.com
P1202 / P1301 L-ESD set
FKE 30 Field Chamber Insert6.4
The FKE 30 field chamber insert is used together with the P1202 field source and the
D70 h10 spacer ring. The field chamber insert has to be installed at the bottom of the
P1202 field source as shown in Figure 8.
The field chamber insert ensures a higher suppression of the field’s electric component. All
measured probe parameters are determined with the FKE 30 installed.

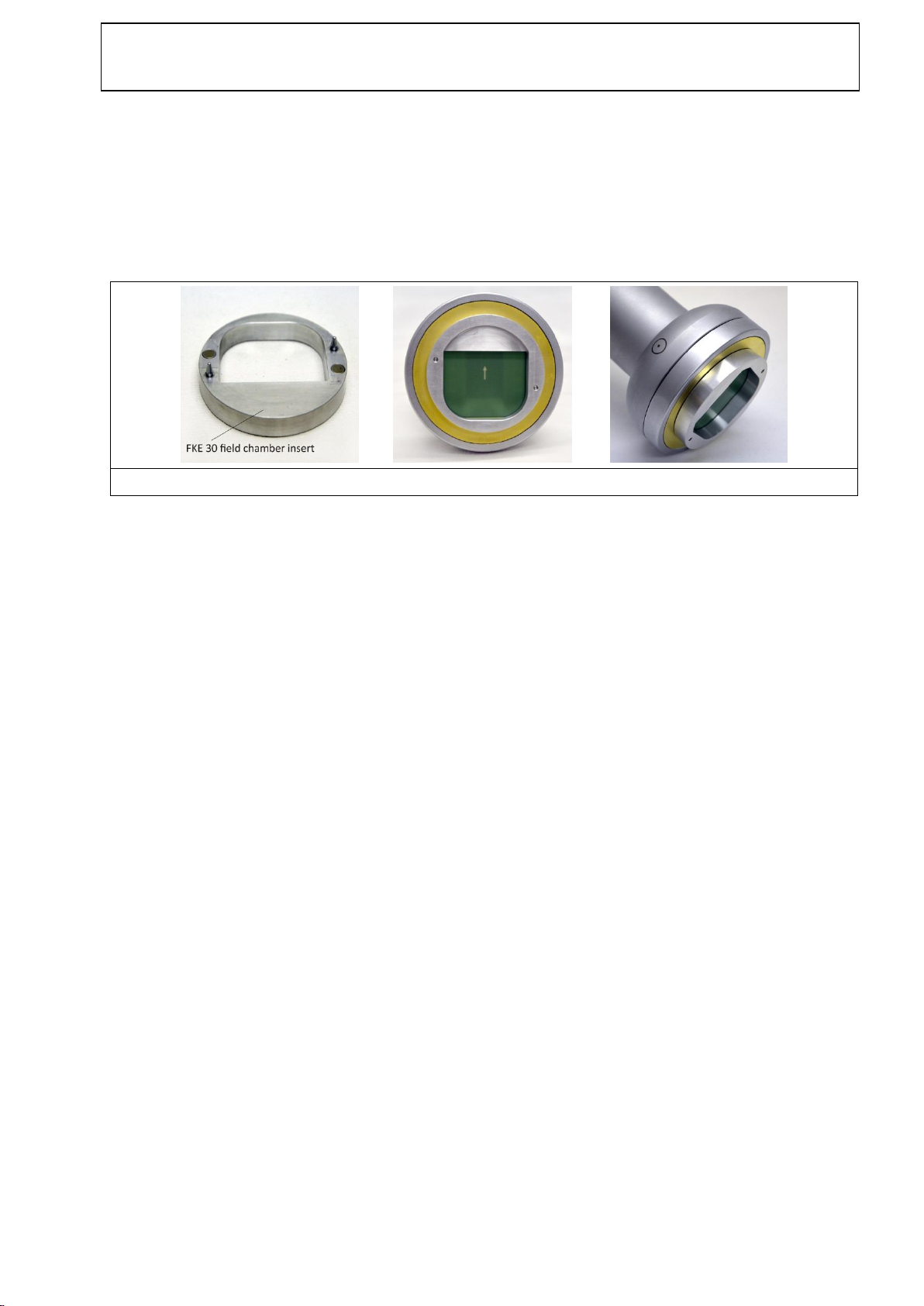

Figure 8: FKE 30 field chamber insert for use with P1202 field source
