Lanner NCA-2513 User manual

NCA-2513
User Manual
Version: 1.0
Date of Release: 2020-08-04
Network Computing
Innovative Platforms for Next Generation Network Infrastructure

Icon Descriptions
The icons are used in the manual to serve as an indication of interest topics or important messages. Below
is a description of these icons:
Note: This check mark indicates that there is a note of interest and is something that you should
pay special attention to while using the product.
Warning: This exclamation point indicates that there is a caution or warning and it is something
that could damage your property or product.
Online Resources
The listed websites are links to the online product information and technical support.
Resources
URL
Lanner
http://www.lannerinc.com
Product Resource
http://www.lannerinc.com/download-
center
RMA
http://eRMA.lannerinc.com
Copyright and Trademarks
This document is copyrighted © 2020. All rights are reserved. The original manufacturer reserves the right
to make improvements to the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means
without the prior written permission of the original manufacturer. Information provided in this manual is
intended to be accurate and reliable. However, the original manufacturer assumes no responsibility for its
use, nor for any infringements upon the rights of third parties that may result from such use.
Acknowledgment
Intel® and Atom™ are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the U.S.
and/or other countries.
Intel® is a trademark of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.

Compliances and Certification
CE
This product has passed the CE test for environmental specifications. Test conditions for passing included
the equipment being operated within an industrial enclosure. In order to protect the product from being
damaged by ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the use of CE-compliant
industrial enclosure products.
FCC Class A
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. The operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
EMC Notice
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. The operation of this equipment in a
residential area is likely to cause harmful interference in which case users will be required to correct the
interference at their own expense.
Safety Guidelines
Follow these guidelines to ensure general safety:
Keep the chassis area clear and dust-free during and after installation.
Do not wear loose clothing or jewelry that could get caught in the chassis. Fasten your tie or scarf and
roll up your sleeves.
Wear safety glasses if you are working under any conditions that might be hazardous to your eyes.
Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.
Disconnect all power by turning off the power and unplugging the power cord before installing or
removing a chassis or working near power supplies
Do not work alone if potentially hazardous conditions exist.
Never assume that power is disconnected from a circuit; always check the circuit.

Lithium Battery Caution:
Risk of Explosion if Battery is replaced by an incorrect type. Dispose of used batteries according to the
instructions.
Installation only by a trained electrician or only by an electrically trained person who knows all English
Installation and Device Specifications which are to be applied.
Do not carry the handle of power supplies when moving to another place.
Operating Safety
Electrical equipment generates heat. Ambient air temperature may not be adequate to cool equipment
to acceptable operating temperatures without adequate circulation. Be sure that the room in which you
choose to operate your system has adequate air circulation.
Ensure that the chassis cover is secure. The chassis design allows cooling air to circulate effectively. An
open chassis permits air leaks, which may interrupt and redirect the flow of cooling air from internal
components.
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs
when electronic components are improperly handled and can result in complete or intermittent failures.
Be sure to follow ESD-prevention procedures when removing and replacing components to avoid these
problems.
Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. If no wrist strap is available,
ground yourself by touching the metal part of the chassis.
Periodically check the resistance value of the antistatic strap, which should be between 1 and 10
megohms (Mohms).
Mounting Installation Precaution
Environment:
Do not install and/or operate this unit in any place that flammable objects are stored or used in.
If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack
environment may be greater than room ambient. Therefore, consideration should be given to installing
the equipment in an environment compatible with the maximum ambient temperature (Tma) specified
by the manufacturer.
Installation of the equipment (especially in a rack) should consider the ventilation of the system’s intake
(for taking chilled air) and exhaust (for emitting hot air) openings so that the amount of air flow required
for safe operation of the equipment is not compromised.
To avoid a hazardous load condition, be sure the mechanical loading is even when mounting.
Consideration should be given to the connection of the equipment to the supply circuit and the effect
that overloading of the circuits might have on over-current protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing this concern.
Reliable earthing should be maintained. Particular attention should be given to supply connections other
than direct connections to the branch circuit (e.g. use of power strips).

Lanner Electronics Inc. shall not be held liable for any losses resulting from insufficient strength for
supporting the unit or use of inappropriate installation components.
Installation & Operation:
The installation of this product must be performed by trained specialists; otherwise, a non-specialist
might create the risk of the system’s falling to the ground or other damages.
Lanner Electronics Inc. shall not be held liable for any losses resulting from insufficient strength for
supporting the system or use of inappropriate installation components.
Consignes de sécurité
Suivez ces consignes pour assurer la sécurité générale :
Laissez la zone du châssis propre et sans poussière pendant et après l’installation.
Ne portez pas de vêtements amples ou de bijoux qui pourraient être pris dans le châssis. Attachez votre
cravate ou écharpe et remontez vos manches.
Portez des lunettes de sécurité pour protéger vos yeux.
N’effectuez aucune action qui pourrait créer un danger pour d’autres ou rendre l’équipement dangereux.
Coupez complètement l’alimentation en éteignant l’alimentation et en débranchant le cordon
d’alimentation avant d’installer ou de retirer un châssis ou de travailler à proximité de sources
d’alimentation.
Ne travaillez pas seul si des conditions dangereuses sont présentes.
Ne considérez jamais que l’alimentation est coupée d’un circuit, vérifiez toujours le circuit. Cet appareil
génère, utilise et émet une énergie radiofréquence et, s’il n’est pas installé et utilisé conformément aux
instructions des fournisseurs de composants sans fil, il risque de provoquer des interférences dans les
communications radio.
Avertissement concernant la pile au lithium
Risque d’explosion si la pile est remplacée par une autre d’un mauvais type.
Jetez les piles usagées conformément aux instructions.
L’installation doit être effectuée par un électricien formé ou une personne formée à l’électricité
connaissant toutes les spécifications d’installation et d’appareil du produit.
Ne transportez pas l’unité en la tenant par le câble d’alimentation lorsque vous déplacez l’appareil.
La machine ne peut être utilisée qu’à un lieu fixe comme en laboratoire, salle d’ordinateurs ou salle de
classe.
Sécurité de fonctionnement
L’équipement électrique génère de la chaleur. La température ambiante peut ne pas être adéquate pour
refroidir l’équipement à une température de fonctionnement acceptable sans circulation adaptée. Vérifiez
que votre site propose une circulation d’air adéquate.

Vérifiez que le couvercle du châssis est bien fixé. La conception du châssis permet à l’air de
refroidissement de bien circuler. Un châssis ouvert laisse l’air s’échapper, ce qui peut interrompre et
rediriger le flux d’air frais destiné aux composants internes.
Les décharges électrostatiques (ESD) peuvent endommager l’équipement et gêner les circuits électriques.
Des dégâts d’ESD surviennent lorsque des composants électroniques sont mal manipulés et peuvent
causer des pannes totales ou intermittentes. Suivez les procédures de prévention d’ESD lors du retrait et
du remplacement de composants.
Portez un bracelet anti-ESD et veillez à ce qu’il soit bien au contact de la peau. Si aucun bracelet n’est
disponible, reliez votre corps à la terre en touchant la partie métallique du châssis.
Vérifiez régulièrement la valeur de résistance du bracelet antistatique, qui doit être comprise entre 1 et
10 mégohms (Mohms).
Consignes de sécurité électrique
Avant d’allumer l’appareil, reliez le câble de mise à la terre de l’équipement à la terre.
Une bonne mise à la terre (connexion à la terre) est très importante pour protéger l’équipement contre
les effets néfastes du bruit externe et réduire les risques d’électrocution en cas de foudre.
Pour désinstaller l’équipement, débranchez le câble de mise à la terre après avoir éteint l’appareil.
Un câble de mise à la terre est requis et la zone reliant les sections du conducteur doit faire plus de 4
mm2 ou 10 AWG.
This equipment must be grounded. The power cord for product should
be connected to a socket-outlet with earthing connection.

Battery Precautions
Lithium Battery Caution: There is danger of explosion if the battery is incorrectly replaced. Replace
only with the same or equivalent type. Dispose of batteries according to the manufacturer's instructions.
Disposal of a BATTERY into fire or a hot oven, or mechanically crushing or cutting of a BATTERY can result
in an EXPLOSION.
Leaving a BATTERY in an extremely high temperature surrounding environment can result in an
EXPLOSION or the leakage of flammable liquid or gas.
A BATTERY subjected to extremely low air pressure may result in an EXPLOSION or the leakage of
flammable liquid or gas.
Suitable for installation in Information Technology Rooms in accordance with Article 645 of the National
Electrical Code and NFPA 75.
Peut être installé dans des salles de matériel de traitement de l'information conformément à l'article 645
du
National Electrical Code et à la NFPA 75.
The machine can only be used in a restricted access location, such as labs or computer facilities with the
proper authorization.
Les matériels sont destinés à être installés dans des EMPLACEMENTS À ACCÈS RESTREINT.

Table of Contents
Chapter 1: Product Overview............................................................9
Chapter 2: Motherboard Information ............................................14
Chapter 3: Hardware Setup.............................................................26
Chapter 4: BIOS Setup .....................................................................39
Appendix A: Setting up Console Redirections...............................80
Appendix B: Installing Intel®LAN Controller Driver for Linux......81
Appendix C: Terms and Conditions ................................................82

CHAPTER 1: PRODUCT OVERVIEW
The NCA-2513, a 1U 19” rackmount network appliance with high availability, virtualization-optimized design
and Intel® Atom™ C3000 Series CPU (codenamed Denverton) with up to 8 cores of processing prowess.
Featuring 6~8 LAN ports, 1x NIC module slot, optional LTE module and 150W PSUs, NCA-2513 is the ideal
hardware platform for uCPE, SD-WAN and edge computing with mobile connectivity
Package Content
Your package contains the following items:
1x NCA-2513 Network Security Platform
1x Accessory Pack
1x Power Cable
1x Short Ear Rack Mount Kit with screws
1x Console Cable
Nameplate
1xSATA Cable
Note: If you should find any components missing or damaged, please contact your dealer
immediately for assistance.
Warning:
1. The Harcuvar system can take up to 9 minutes from booting up to EFI shell in its first initial. In
the 2nd boot, 2 minutes is all it takes for a fast boot, which is considered normal for a total of 32G DIMM.
However, with DIMM of higher capacity used, the boot-up time gets longer.
2. After clearing CMOS or when PXE boot is enabled, the system boot-up time is doubled.
Console
Cable
SATA
Cable
Power
Cable
Mounting Ear
Bracket Kit
Accessory Pack
NCA-2513

Ordering Information
SKU No.
NCA-2513 A
Intel C3758 8 Core with QAT + 8x GbE + 1x NIC (1x PCIex8/2x PCIex4)
NCA-2513 B
Intel C3558R 4 Core with QAT + 8x GbE + 1x NIC (1x PCIex8/2x PCIex4)
NCA-2513 C
Intel C3558 4 Core with QAT + 6x GbE + 1x NIC (1x PCIex8/2x PCIex4)
NCA-2513 D
Intel C3338R 2 Core with QAT + 6x GbE + 1x NIC (1x PCIex4)
Optional Accessories
Model
Description
Riser KIT FOR NCA-2513
Riser Card KIT for the rear slot
PGN LTE KIT FOR NCA-2513
LTE KIT
WIFI KIT FOR NCA-2513
WIFI KIT
Slide rail
Slide rail KIT
System Specifications
Form Factor
1U 19" Rackmount
Platform
Processor Options
Intel® Atom™ C3000 2 to 8 Cores
(Denverton)
CPU Socket
Onboard
Chipset
SoC
Security Acceleration
Intel® QuickAssist Technology
BIOS
AMI SPI Flash BIOS
System Memory
Technology
DDR4 2400MHz, ECC or non-ECC
UDIMM/RDIMM
Max. Capacity
64 GB (32GBx 2 slots)
Socket
2x 288pin DIMM
Networking
Ethernet Ports
2x GbE RJ45 Intel® i210
4x GbE RJ45 Intel® SoC Integrated MAC
2x GbE RJ45 Intel® i350-AM2 (SKU A/B)
Bypass
2pairs Gen3 (SKU A/B)
NIC Module Slot
1
LOM
IO Interface
N/A
OPMA slot
N/A
I/O Interface
Reset Button
1 (Default software reset control by GPIO)
LED
Power/Status/Storage
Power Button
1x ATX Power switch
Console
1x RJ45
USB
2 x USB 3.0(SKU A,B) / 2.0 (SKU C,D)
LCD Module
2x 20 character LCM, 4 x keypads
Display
N/A
Power input
AC power inlet on PSU
Storage
HDD/SSD Support
2x2.5”HDD/SSD Internal (by SKU)
Onboard Slots
1 x M.2 (SATA) 2280 B key
Expansion
PCIe
1 x PCI-E*8 FH/HL (Optional)

1 x Pigeon LTE module support (Optional)
mini-PCIe / M.2
1 x mini-PCIe
Miscellaneous
Watchdog
Yes
Internal RTC with Li-Battery
Yes
TPM
Yes (Onboard)
Cooling
Processor
Passive CPU heatsink
System
1x smart fans
Environmental Parameters
Temperature
0 to 40ºC Operating
-20 to 70ºC Non-Operating
Humidity (RH)
5 to 90% Operating
5 to 95% Non-Operating
System Dimensions
(WxDxH)
438 x 319 x 44 mm
Weight
4.8 kg
Package Dimensions
(WxDxH)
540 x 500 x 230 mm
Weight
8 kg
Power
Type/Watts
150W Single PSU
Input
100-240V~, 5A-3A, 50-60Hz
Approvals and Compliance
RoHS, CE, FCC, UL

Front Panel
No.
Description
F1
LCM
With a Keypad
F2
LED Indicators
F3
Reset Button
Software reset
F4
Console Port
1x Console port
F5
USB Port
2x USB 3.0 port (By SKU)
F6
LAN LED
Indicators
F7
GbE Port
(SKU A/B)
2x GbE RJ45 Intel® i350-AM2
F8
GbE Ports
2x GbE RJ45 Intel® i210-AT
4 x GbE RJ45 Intel® SoC Integrated MAC
F9
PGN Module Slot
Support 1x PGN LTE Module
F10
LAN Module Slot
Support 1x STD NIC module
F1
F9
F4
F5
F10
F2
F3
System Power
System Status
HDD Activity
NCA-2513
F7
F8
8
F6
Speed
Link/Active
Speed
Link/Active

Rear Panel
No.
Description
R1
Rear PCIe Expansion
1x PCIex8 Expansion slot (Riser card required) (FH/HL) (By SKU)
R2
Cooling Fans
1x smart fan
R3
Power Button
1x ATX Power button
R4
Power Supply
1x 150W PSU
R3
R2
R1
R4

CHAPTER 2: MOTHERBOARD INFORMATION

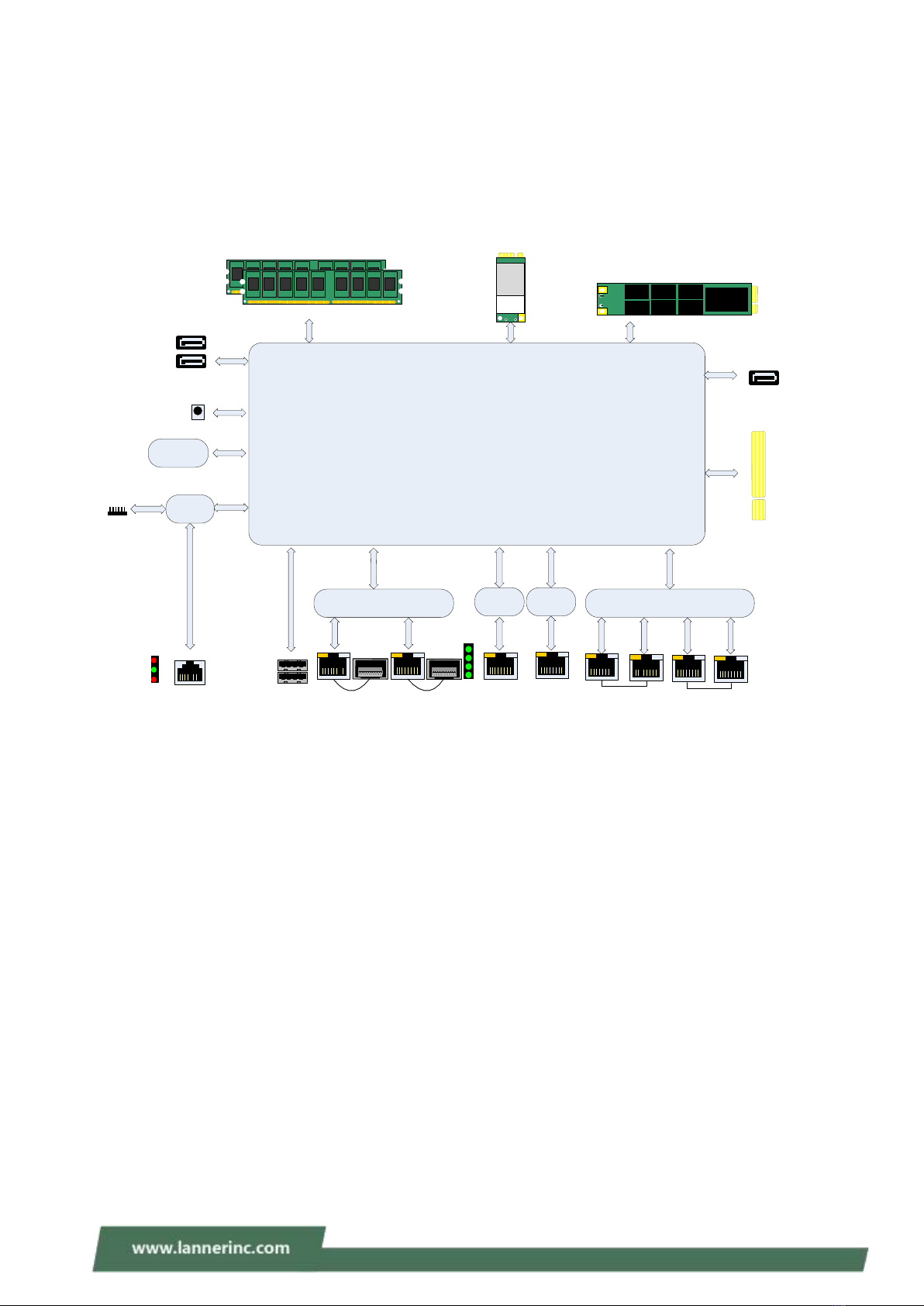

Block Diagram
The block diagram indicates how data flows among components on the motherboard. Please refer to the
following figure for your motherboard’s layout design.
Intel Denverton-NS
8C C3758(20 HSIO)/ 4C 3558R(20 HSIO) /2C 3338R(10 HSIO)
DDR4
GPIO
USB2.0/3.0
RJ-45
Console
Reset Bottom
SATA3.0
Support upto 64GB ECC/non-ECC
DDR4 Long-DIMM (2DPC)
SATA3.0
I210AT
1x PCIEx11x PCIEx1
TPM2.0
LPC
USB3.0
88E1543
4x SGMII
I210AT
SIO
SLB9670VQ
One pair
Gen3
bypass
2nd console
MiniPCIE
1xPCIE/USB2.0
One pair
Gen3
bypass
USB2.0
SPI
I350-AM2
1x PCIEx2
Support PGN Module(USB 3.0 Signal)
1x PCIEx8 or
2 x PCIEx4
M.2 2280 SATA SSD
colayout colayout
USB 3.0SKU A/B only

Motherboard Layout
The motherboard layout shows the connectors and jumpers on the board. Refer to the following picture as
a reference of the pin assignments and the internal connectors.
MPCIE1
COMB2
CPU
RAM

Internal Jumper & Connectors
JRTC1：SRTC reset
JRTC2：RTEST reset
JRESET1：RESET option
JATX1：AT/ATX Mode selection
J8：GEN3 LAY Bypass programming
Pin
Description
1-2 (Default)
Normal
2-3
Clear CMOS
Pin
Description
1-2 (Default)
Normal
2-3
Clear CMOS
Pin
Description
1-2
Hardware Reset
2-3(Default)
Software Reset
Action
Description
w/o Jumper
ATX mode
w/ Jumper(default)
AT mode
Pin
Description
1-2 (Default)
Normal
2-3
Programming
1
2
3
1
2
3
1
2
3
1
2
3

Pin Assignment of Power
ATX1: Power Supply Connector
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
+3.3V
2
+3.3V
3
+3.3V
4
-12V
5
GND
6
GND
7
+5V
8
PSON
9
GND
10
GND
11
+5V
12
GND
13
GND
12
GND
15
ATXPWGD
16
-5V
17
5VSB
18
+5V
19
+12V
20
+5V
21
+12V
22
+5V
23
+3.3V
24
GND
SATAPWR1: SATA Power Connector 1x4 Pins 2.54mm
Pin number
Pin signal
1
12V
2
Ground
3
Ground
4
5V
4 3 2 1

Pin Assignment of External Port
RJ3~RJ4: Single RJ45 w/ transformer
RJ1_2: Stack 1x2 RJ45 w/ transformer
LAN5_8: 1x4 RJ45 w/o transformer
Pin number
Pin signal
In/Out
1
MD0+
2
MD0-
3
MD1+
4
MD2+
5
MD2-
6
MD1-
7
MD3+
8
MD3-
Pin number
Pin signal
In/Out
1
MD0+
2
MD0-
3
MD1+
4
MD2+
5
MD2-
6
MD1-
7
MD3+
8
MD3-
Pin number
Pin signal
In/Out
1
MD0+
2
MD0-
3
MD1+
4
MD2+
5
MD2-
6
MD1-
7
MD3+
8
MD3-
1
8
1
8
1
8
1
8

SFP1_2: Stack Fiber CONN
PIN
DESCRIPTION
PIN
DESCRIPTION
1
GND
11
GND
2
TX Fault
12
RD-
3
TX Disable
13
RD+
4
MOD_DEF2/SDA (DATA)
14
GND
5
MOD_DEF1/SCL (CLK)
15
VCC_R (PWR2)
6
ABS_N
16
VCC_T (PWR1)
7
RS0
17
GND
8
RX_LOS
18
TD+
9
RS1
19
TD-
10
GND
20
GND
COM1 : RJ45 Console
USB1_2: USB3.0 Dual CONN
Pin number
Pin signal
In/Out
1
Request To Send (RTS)
2
Data Terminal Ready (DTR)
3
Transmitted Data (TxD)
4
Signal Ground
5
Signal Ground
6
Received Data (RxD)
7
Data Set Ready (DSR)
8
Clear To Send (CTS)
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
USB5V
10
USB5V
2
D1-
11
D2-
3
D1+
12
D2+
4
GND
13
GND
5
SSRX1-
14
SSRX2-
6
SSRX1+
15
SSRX2+
7
GND
16
GND
8
SSTX1-
17
SSTX2-
9
SSTX1+
18
SSTX2+
1
8
1
20
10
11
1
10
11
20

Pin Assignment of Internal Header/Socket
JSATA1~2:180º SATA CONNECTOR
PIN NO.
DESCRIPTION
1
GND
2
TX+
3
TX-
4
GND
5
RX-
6
RX+
7
GND
MPCIE1: MiniPCIE Socket
Pin
Description
Pin
Description
1
NC
27
GND
2
VCC3
28
VCC1P5
3
NC
29
GND
4
GND
30
SMB_CLK
5
NC
31
TXN
6
VCC1P5
32
SMB_DATA
7
CLKREQ
33
TXP
8
NC
34
GND
9
GND
35
GND
10
NC
36
USB_D-
11
REFCLK-
37
GND
12
NC
38
USB_D+
13
REFCLK+
39
VCC3
14
NC
40
GND
15
GND
41
VCC3
16
NC
42
NC
17
NC
43
GND
18
GND
44
NC
19
NC
45
NC
20
PH, VCC3
46
NC
21
GND
47
NC
22
RSEST
48
VCC1P5
23
RXN
49
NC
24
VCC3
50
GND
25
RXP
51
NC
26
GND
52
VCC3
