Thank you for choosing the FW-7581. The FW-7581 is a
1U network communication appliance that is designed to
meet your demand for high quality network application
platform with its high port density. The FW-7581 comes
with 1 FE and 6 Gb Ethernet ports with one pair capable
to be an abnormal state packet bypass.
Below are key features of the FW-7581:
This platform is built around the Intel G41 chipset and1.
supports a variety of dierent Intel processors. These
include Intel® Core 2 Quad, Core 2 Duo, Pentium® D,
Celeron CPU.
Dual-channeled 240-pin DDR3 SDRAM DIMM sockets2.
to support up to 4 GB of unbuffered, non-ECC DDR3
memory (Dual Channel utilize two 64-bit data
channels for higher data throughput.)
Low-Profile expansion for connecting3. the PCI-E slot
using the (x)8 lane architecture to add customized
capabilities
With the Intel® Graphics Media Accelerator X45004.
(Intel® GMA X4500) on the G41 Express Chipset, the
VGA port (optional) has built-in support for smooth
high-definition video playback without the need for
add-in video cards or decoders.
System Specification
Features Description
Form Factor 1U Rackmount
Platform
Processor
Supports Intel Core2 Quad,
Core2 Duo, PentiumD,
Celeron Processors,
LGA775
Chipset Intel G41 + ICH7R
System Memory
Technology Dual-channel DDR3 1066 /
1333 MHz
Max Capacity 4GB
Socket 2 x 240P DIMM
OS Support Windows, Linux
Storage
HDD Bay(s) 1 x 2.5”
Storage Interface 2 x Serial ATA
1 x CompactFlash
Networking
Ethernet Port Density 6 x RJ45 GbE onboard
1 x RJ45 FE Mng port
Controller 6 x Intel 82574L,
1 x FE 9620DM
Bypass 1 x pair LAN Bypass
I/O Interface
Console 1 x RJ45
USB 2 x USB 2.0
Expansion PCIe 1 x PCIe (x)8
Cooling
Processor 1U Passive Heatsink with 2
Cooling Fans
System 1 x Cooling Fan with
Smart Fan
Environmental
Parameters
Temperature, ambient operat-
ing / storage 0ºC ~40ºC / -20ºC~60ºC
Humidity (RH), ambient oper-
ating / ambient non-operating
5 ~ 90%, non condensing /
5 ~ 95%, non condensing
Miscellaneous
LCD Module 2 x 20 character
Watchdog Yes
Internal RTC with Li Battery Yes
Physical
Dimensions
Dimensions (WxHxD) 431 x 44.4 x 305mm
Weight 5 kg (11 lbs)
Power
Type / Watts 1U ATX SPS / 220W
Input AC 90~264V@47~63Hz
Output
+5V output: 1V min, 12V
max;
+3.3V output: 1V min,
14V max;
+12V output 1V min, 14V
max

2
Introduction
Chapter 1
Network Application Platforms
Package Contents
Your package contains the following items:
FW-7581 Network Security Platform•
Power cable•
1 crossover Ethernet cable (1.8 meter)•
1 straight-through Ethernet cable (1.8 meter)•
1 RJ-45 console cable•
Serial-ATA power/data cable•
1 threaded-screw set•
1 name plate label•
Drivers and user’s manual CD.•
Approvals &
Compliance
CE Emission, FCC Class
A, RoHS
Ordering
Information
FW-7581A STD with 1pairs bypass,
with Riser card
FW-7581B STD without bypass, with-
out Riser card

3
Introduction
Chapter 1
Network Application Platforms
F1 Power/Status/HDD LED
Power: If the LED is on it indicates that the system is powered on. If it is off, it indicates that the system is powered off.
Status: If the LED is green, it indicates that the system’s operational state is normal. If it is red, it indicates that the system is
malfunctioning.
HDD: If the LED is on, it indicates that the system’s storage is functional. If the LED blinks, it indicates data access activities.
If it is off, it indicates that there is no hard disk present or functional.
F2 System Panel
The LCD System Panel can be programmed to display operating status and configuration information. For more details or
sample programming code, please refer to Appendix B Programming the LCM.
F3 Reset Switch
The reset switch can be used to reboot the system without turning off the power.
F4 Console Port
By using suitable rollover cable or RJ-45 to DB-9 Female, you can connect to a computer terminal for diagnostic or
configuration purpose. Terminal Configuration Parameters: 115200 baud, 8 data bits, no parity, 1 stop bit , no flow control.
F5 Two USB 2.0 Ports
It connects to any USB devices; for example, a flash drive.
F6 Management Port (provided by Intel 9620DM)
This FastEthernet port can be connected for configuration or troubleshooting purpose.
F7 6 Gigabit LAN ports (provided by Intel 82574L)
Left LED (Yellow): If the LED is on, it indicates that the port is link/active. If it blinks, it indicates network activity.
Right LED (Clear): If the LED is orange, it indicates that the connection speed is 1000Mbps. If the LED is green, it indicates
that the connection speed is 100Mbps. If the LED is off, the connection speed is 10Mbps.
1 pair (LAN5-LAN6) can be configured as LAN Bypass when failure events occur. This feature is implemented in hardware
using watch dog timer functionality. Refer to Appendix D Programming Lan Bypass for a sample implementation of this
feature.
Note:
The LAN Bypass are active only on port 5 and 6.1.
The LAN Bypass is only available on model FW-7581A.2.
Front Panel Features
F3 F4 F5
F1 F2 F7F6

4
Introduction
Chapter 1
Network Application Platforms
Rear Panel Features
R1 AC Power-in socket and power supply fan
R2 System Fan
R3 CPU Fan 2 and 1
R4 ATX Power Switch
R5 Low profile Expansion slot: A slot for connecting the extended PCI-E card
The slot is for installing an additional adapter card which is connected to the main board via a riser card.
Note: The system comes in with internal connectors for VGA, RS-232 serial and USB2.0 ports. These ports can be wired
to be shown on the back panel..
R1 R2 R3 R4 R5

5
Introduction
Chapter 2
Network Application Platforms
Chapter 2:
Hardware Setup
Preparing the Hardware Installation
To access some components and perform certain service
procedures, you must perform the following procedures
first.
WARNING: To reduce the risk of personal injury,
electric shock, or damage to the equipment,
remove the power cord to remove power from the
server. The front panel Power On/Standby button
does not completely shut off system power.
Portions of the power supply and some internal
circuitry remain active until AC power is removed.
Unpower the FW-7581 and remove the power cord.1.
Unscrew the 3 threaded screws from the top cover of2.
the FW-7581 System.
Slide the cover backwards and open the cover3.
upwards.
Installing the System Memory
The motherboard supports DDR3 memory that features
data transfer rates of 1066 and 1333 MHz to meet the
higher bandwidth requirements of the latest operating
system and Internet applications. It comes with two
Double Data Rate(DDR3) Dual Inline Memory Modules
(DIMM) sockets.
Open the DIMM slot latches.1.
Install the DIMM.2.
Note:
All DIMMs installed must be the same speed1.
(DDR3 1066 or 1333). Do not install DIMMs
supporting different speeds.
The motherboards can support up to 4 GB2.
memory capacity in maximum. .
Installing the Hard Disk
The system can accommodate one Serial-ATA disks. Follow
these steps to install a hard disk into the FW-7581:
Unsrew the 4 screws on the hard disk tray to take out1.
the hard disk tray from the system.
Place hard disk on the hard disk tray and align the holes2.
of the hard disk with the mounting holes on the tray.
Secure the hard disk with 4 mounting screws on the3.
hard disk tray.
Connect the Serial-ATA power and data cables to the4.
hard disk’s power and data connectors respectively.
Plug the Serial-ATA cable to the Serial-ATA Connector5.
on the main board.
1
2
1
21

6
Introduction
Chapter 2
Network Application Platforms
Press the load lever and release it from the retention2.
tab.
Lift the load lever and then the plate.3.
Align the cut-out of the CPU and the the notch on4.
the socket. The CPU should fit perfectly into the
socket. Note that the CPU fits in the socket in only one
direction.
Close the plate and push the load lever to lock it back5.
to the retention tab.
Peel off the sticker on the CPU to expose the thermal6.
compound.
Put the heatsink on the installed CPU, match the7.
screws with the screw holes on the board. Fasten two
screws which are opposite to each other at a time and
then the other two. It is easier this way because of the
springiness of the bracket.
Place the heatsink cover on top of the installed heatsink8.
and screw the three screws to fasten it on the case.
Note:
The CPU heat sink could only be installed in only1.
one direction as shown in the picture.
To protect the CPU socket pins, retain the CPU2.
cap when the CPU is not installed.
Installing a CompactFlash Card
FW-7581 provides one CompactFlash slot. Follow the
procedures bellow for installing a CompactFlash card.
Align CompactFlash card and the card slot with the1.
arrow pointing toward the connector.
Push the card to insert into the connector.2.
.
CPU and the Heat Sink Installation
The FW-7581 sever system is powered by the MB-7581
sever board, which comes with one ZIF type LGA775 CPU
socket.
Follow the procedures bellow for installing a CPU
Remove the CPU socket cap.1.
12
2
3
5
7
4
2
3
4
5
7
8

7
Motherboard Information
Chapter 3
Network Application Platforms
Chapter 3:
Motherboard Information

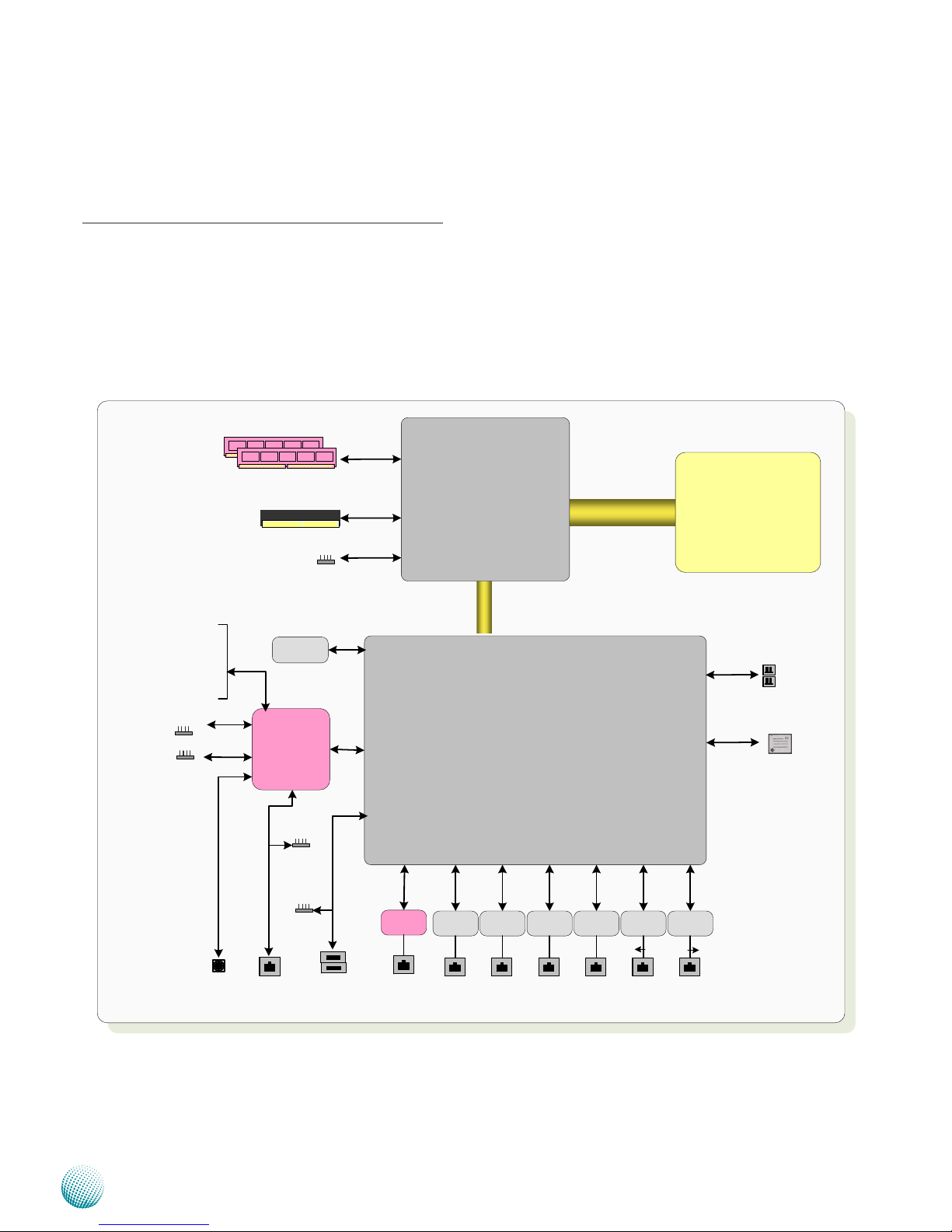

Block Diagram
The block diagram depicts the relationships among the
interfaces or modules on the motherboard. Please refer
to the following figure for your motherboard’s layout
design.
Intel
(LGA775)
Conroe
Wolfdale
Intel G41
(25W)
INTEL
ICH7/ICH7R
(~3W)
LPC
FSB
800/1066/1333MHz
6x GbE RJ-45
Connectors w/ LED
6x PCI-E x1
8.5GB/s
DDR3 1333 MHz
Non-ECC Unbuffered
1x 2.5"
HD Bay
DMI x2/x4
PCI 1.1
Compact Flash
2x USB
PIN header
2x USB
connectors
USB 2.0
2x SATAII
2x SATAII Ports
Dual
Channels
Up to 4GB Maximum
PCI-E x8 Golden Finger
Intel
82574L
Intel
82574L
Winbond
83627DHG
2x Console
PIN header
LCM
KB/Mouse
GPIO
Fan Monitor
Thermal Monitor SPI
Intel
82574L
Intel
82574L
Intel
82574L
Intel
82574L
TPM
IDE
VGA
VGA PIN Header
For REAR DB19
RJ45
console
Watchdog
Reset
Bottom
DM
9620
10/100
Mng.port
By-pass
MB-7581
10/100
MAC

8
Motherboard Information
Chapter 3
Network Application Platforms
Motherboard Layout
The motherboard layout shows the connectors and
jumpers on the board. Refer to the following picture
as a reference of the pin assignments and the internal
connectors.
CF Card Connector (CF1)
CMOS (J19)
CPU Socket
SPI ROM Update Jumper
(SPI-ROM1)
Serial Cable
Connector (J13)
VGA Cable
Connector (J9)
System Power Button
Connector (CONN2)
ATX Power
Connector
USB Cable
Connector (J8)
SATA 1/2
Connectors (J4/J3)
Keyboard and Mouse
Connectors (J16)
Hardware and Software
Reset Jumper (J14)
Port 80 Pin
Header (LPC1)
AT Mode Power Button
Connector (CONN1)
AT Mode Jumper (J10)
M16
Fan Connector
CPU Fan1 to Fan 3
Connectors (FAN1/
FAN2/FAN3)
CF Card Master/Slave Selection
Jumpber (J2)
DIMM Socket
(DIMM1/DIMM2)
System Fan Connector
AT/ATX Mode Selection
Jumper (J11)

9
Motherboard Information
Chapter 3
Network Application Platforms
Jumper Settings
VGA Interface (J9): An 2x6 (2.0mm) header for
connecting the VGA interface cable. The VGA is provided
by the integrated 82G41 Graphics Memory Controller Hub
(GMCH) which utilizes the Intel Graphics Media Accelerator
X4500 and has the following capabilities:
Built-in smooth high-definition video playback,•
without the need for add-in video cards or decoders.
Support of Intel Clear Video Technology, which•
enhances the visual experience with a combination
of video-processing hardware and software
technologies.
Support of Microsoft DirectX 10, Shader Model 4.0•
and OpenGL 2.0.
USB Connector (J8) : An 2x5 pin header for connecting
the USB module cable. It complies with USB2.0 and
support up to 480 Mbps connection speed.
AT Mode Power Button Connector (CONN1): It is for
connecting power switch in AT mode. Note that you will
need to adjust the jumpers J10, J11, and J19 altogether
below.
AT/ATX Mode Selection Jumper(J10): Jumpers J10, J11,
and J19 are used for switching power mode between AT
and ATX. Please adjust them accordingly as described in
the following jumper settings.
AT/ATX Mode Selection Jumper(J11): Jumpers J10, J11,
and J19 are used for switching power mode between AT
and ATX. Note that you have to adjust jumpers J10 and J19
accordingly.
AT/ATX Mode Selection Jumper(J19): Jumpers J10, J11,
and J19 are used for switching power mode between AT
and ATX. Note that you have to adjust jumpers J10 and J11
accordingly.
2-pin System Power Switch (CONN2): This connector is
for connecting power switch in ATX mode (CONN2).
CompactFlash Connector (CF1): It is for connecting a
Compact Flash card to be served as your system’s storage.
PIN DESCRIPTION PIN DESCRIPTION
1 GND 26 CD1-
2 DATA3 27 DATA11
3 DATA4 28 DATA12
4 DATA5 29 DATA13
5 DATA6 30 DATA14
6 DATA7 31 DATA15
7 CE1# 32 CE2#
8 NC 33 NC
9 GND 34 IOR#
10 NC 35 IOW#
11 NC 36 WE#
12 NC 37 READY#
13 CFVCC3 38 CFVCC3
14 NC 39 CSEL
15 NC 40 NC
16 NC 41 RESET
17 NC 42 WAIT#
11
9
7
5
3
1
12
10
8
6
4
2
1
3
5
7
9
2
4
6
8
10
25 1
50 26
CF1
Pin No. Pin Name Pin No. Pin Name
1 Red 2 GND
3 Green 4 GND
5 Blue 6 GND
7 HSYNC 8 KEY
9 VSYNC 10 GND
11 DD_DATA 12 DD_CLK
Pin No. Pin Name Pin No. Pin Name
1 VCC 2 VCC
3 USBD- 4 USBD-
5 USBD+ 6 USBD+
7 GND 8 GND
9 GND 10 GND
2
1
Pin No. Function
1-2 ATX mode (Default)
--- AT mode
Pin No. Function
-- ATX mode (Default)
1-2 AT mode
2
1
Pin No. Function
-- ATX mode (Default)
1-2 AT mode
2 1
Pin No. Function
1 DC_ON_N
2 GND
2 1
Pin No. Pin name
1 FP_SWIN_R
2 GND
2 1

10
Motherboard Information
Chapter 3
Network Application Platforms
PIN DESCRIPTION PIN DESCRIPTION
18 A2 43 INPACK#
19 A1 44 REG#
20 A0 45 DASP#
21 DATA0 46 DIAG#
22 DATA1 47 DATA8
23 DATA2 48 DATA9
24 WP 49 DATA10
25 CD2- 50 GND
CF Master/Slave Selection Jumper(J2): It is for selecting
the CF card as a master or slave drive.
Keyboard and mouse interface Connectors(J16): A 2x4
(2.54mm) pin header for connecting the PS/2 keyboard
and mouse interface cable.
Front LCD Module Connector(J15): A 2x5 pin header for
connecting the front system LCD display.
Hardware or Software Reset Jumper(J14): The jumper
can be adjusted to be in either hardware or software reset
mode when the reset switch is pressed. The hardware
reset will reboot the system without turning off the power.
The software reset can be programmed to reset a software
to its default settings.
Clear CMOS jumper (J5): It is for clearing the CMOS
memory and system setup parameters by erasing the data
stored in the CMOS RAM such as the system passwords.
DIMM Socket (DIMM1, DIMM2): The 240-pin DDR3SO-
DIMM is for connecting the DDR3 1066/1333 memory.
The system can support up to 4 GB in maximum and
Dual-channel architecture. Dual channel doubles data
throughput from the memory to the memory controller
by maximize memory throughput from 64-bit buses to
128-bit bus.
SATA 1 and 2 Connectors (J3, J4): It is for connecting a
2.5’’ SATA hard disk to be served as your system’s storage.
The system can support a maximum of 2 disks. It conforms
with SATA II (3.0 Gbs).
Serial InterfaceConnectors(J13, COM2): A 10-pin header
for connecting the RS-232 serial port module cable.
SPI-ROM Update Connector (SPI-ROM1): Using the
appropriate cable to connect this 10-pin ISP in header
connector, the SPI Flash soldered on board can be
updated.
LPC I/O bus (Port 80) (LPC1): It is a proprietary connector
for connecting a checkpoint device to output checkpoints
throughout bootblock and Power-On Self Test (POST) to
indicate the task the system is currently executing.
2
4
6
8
10
1
3
5
7
9
3 2 1
Pin No. Function PIN NO. DESCRIPTION
1 DCD# 2 DSR
3 SIN 4 RTS#
5 SOUT 6 CTS#
7 DTR# 8 RI#
9 GND 10 KEY
Pin No. Function Pin No. Function
1 NC 2 NC
3 ICH_SPI_CS0# 4 V_3P3_SPI_R
5 SB_SPI_MISO 6 SPI_HD_N
7 KEY 8 ICH_SPI_CLK
9 GND 10 ICH_SPI_MOSI
1
3
5
7
9
2
4
6
8
10
Pin No. Function PIN NO. DESCRIPTION
1 P5V 2 GND
3 LPT17 4 VEE
5 LPT14 6 LPT16
7 LPT3 8 LPT2
9 LPT5 10 LPT4
11 LPT7 12 LPT6
13 LPT9 14 LPT8
15 LCD- 16 P5V
17 KPA1 18 KPA2
19 KPA3 20 KPA4
21 LCM_RST 22 CTR_GRN
23 CTR_RED 24 HDD_LED¬
24
22
20
18
16
14
12
10
8
6
4
2
23
21
19
17
15
13
11
9
7
5
3
1
Pin No. Function PIN NO. DESCRIPTION
1 P5V_KM 2 MSCLK
3 MSDATA 4 KEY
5 KBDATA 6 KEY
7 KGND 8 KBCLK
7
5
3
1
8
6
4
2
3 2 1
Pin No. Function
1 GND
2 TX_P
3 TX_N
4 GND
5 RX_N
6 RX_P
7 GND
7
6
5
4
3
2
1
3
2
1
Pin No. Function
1 NC
2 MST_SLV
3 GND
Pin No. Function
1-2 Hardware reset
2-3 Software reset
Pin No. Function
1-2 Normal (Default)
2-3 Clear CMOS

11
Motherboard Information
Chapter 3
Network Application Platforms
ATX Power Connector(ATX1, ATX2): These 24-pin and
4-pin connectors are for connecting ATX power supply
plugs. Find the proper orientation when inserting the
plugs, for the supply plugs are designed to fit these
connectors in only one orientation.
CPU Fan Connectors(FAN1/FAN2/FAN3/FAN4): 4-pin
connector for connecting the smart fan. Connect CPU
fans to FAN1 and FAN2; connect system fan to FAN 3. FAN1
and FAN2 will be referred to as CPU fans and FAN3 will be
referred to as system fan on the Smart Fan control menu in
the Hardware Health Configuration of the BIOS.
System Fan Connector (FAN5): 3-pin connector for
connecting the system fan. This one doesn’t have a smart
fan feature.
CPU Socket: The LGA 775 socket is for connecting the
CPU.
Pin No. Function
1 GND
2 FAN
3 FINA
4 FINB/NA
Pin No. Function
1 GND
2 +12V
3 NC
Pin No. Function PIN NO. DESCRIPTION
1 3.3V 2 3.3V
3 3.3V 4 -12V
5 GND 6 GND
7 5V 8 PSON
9 GND 10 GND
11 5V 12 GND
13 GND 14 GND
15 POK 16 -5V
17 5VSB 18 5V
19 12V 20 5V
21 12V 22 5V
23 3.3V 24 GND
1
3
5
23
2
4
6
24
Pin No. Pin name Pin No. Pin name
1 Ground 2 P12V_A
3 Ground 4 P12V_A
1
2
3
4
1
2
3
4 3 2 1
2 4 6 8 10
1 3 5 7 9
Pin No. Function Pin No. Function
1 CLK 2AD1
3 PLTRST# 4AD0
5 FRAME# 6VCC
7 AD3 8GND
9 AD2 10 GND

12
Driver Installation
Appendix A
Network Application Platforms
Appendix A:
Driver Installation
LAN Adapters Driver Installation
This section provides the instructions on how to install
Intel® Gigabit LAN adapter drivers.
On the Windows OS
To install the Intel® Gigabit LAN controller driver on a
Windows Operating System:
To install the Intel® Gigabit LAN controller driver on a
Windows Operating System:
Restart the computer, and then log on with1.
Administrator privileges.
Insert the Drivers and User’s Manual CD to the USB-2.
optical drive.
Browse the contents of the support CD to locate the3.
file PRO2KXP.EXE from the \Driver\LAN folder. Double-
click the Executable file.
The4. program starts by extracting the file. Click Next to
continue the installation process.
Click5. Next when the Intel® PRO Network Connections
–InstallShield Wizard window appears.
Select the“I accept the terms in the license agreement”6.
and then click Next.
Select the programs that you wish to install. Make sure
7.
that you have selected the drivers.
Click Nest and then8. Install to proceed the installation.
Click9. Finish to close the installation program.
To verify the LAN controller driver installation, do the
following steps:
1. Right-click on the My Computer icon, and then select
Properties form the menu.
Click the Hardware tab, then click the Device Manager
button.
Click the + sign next to the Network adapters, then the
Intel Pro/1000 [......................] adapter should be listed.
Note: The system uses Intel 82574L Ethernet
controllers, you could obtain the latest drivers at
the Intel download center:
http://www.intel.com/products/ethernet/
You could also use the web based utility to detect
the needed drivers automatically by visiting the
following website:
http://www.intel.com/support/network/detect.htm

13
Driver Installation
Appendix A
Network Application Platforms
On Linux
Follow these instructions when installing the Intel®
LAN controller base driver for the in Red Hat® and Linux
operating system.
Insert the motherboard/system support CD to the1.
optical drive and mount the optional drive in the Linux
platform.
Copy the base driver tar file from the motherboard/2.
system support CD to the directory of your local hard
disk. The Intel® LAN driver for Linux OS is located in the
following directory:
\Driver\LAN_Driver\PRO1000\LINUX. The name format
of driver file is “e1000-<Version>.tar.gz”. For example:
the file name of driver version 7.0.38 is “e1000-7.0.38.
tar.gz”.
Untar/unzip the archive, where <x.x.x> is the version3.
number for the driver tar file:
tar zxf e1000-<x.x.x>.tar.gz
Change to the driver src directory on your system,4.
where <x.x.x> is the version number for the driver tar:
cd e1000-<x.x.x>/src/
Compile the driver module by typing the following5.
command:
make install
The binary will be installed as:6.
/lib/modules/<kernel_version>/kernel/drivers/net/
e1000.o
The install locations listed above are the default
locations. They might not be correct for certain Linux
distributions.
Load the module using either the insmod or modprobe7.
command:
modprobe igb
insmod igb
Note that for 2.6 kernels the insmod command
can be used if the full path to the driver module is specified.
For example:
insmod /lib/modules/<KERNEL VERSION>/kernel/
drivers/net/igb/igb.ko
With 2.6 based kernels also make sure that older
igb drivers are removed from the kernel, before loading
the new module:
rmmod igb; modprobe igb
Assign an IP address to the interface by entering the8.
following, where <x> is the interface number:
ifconfig eth<x> <IP_address>
Verify that the interface works. Enter the following,9.
where <IP_address> is the IP address for another
machine on the same subnet as the interface that is
being tested:
ping <IP_address>
Note: The system uses Intel 82574L Ethernet
controllers, you could obtain the latest drivers at
the Intel download center:
http://www.intel.com/products/ethernet/

14
Driver Installation
Appendix A
Network Application Platforms
VGA Driver Installation
On the Windows OS
This section provides the instructions on how to install
VGA adapter drivers on your windows.
Restart the computer, and then log on with1.
Administrator privileges.
Insert the Drivers and User’s Manual CD to the optical2.
drive.
Browse the contents of the support CD under the3.
directory: \Driver\VGA.
You may need to install the drivers manually if there4.
is no available executable program for installing the
drivers automatically.
To install the drivers manually, use the Found New5.
Hardware wizard of the Windows.
During the steps make sure that you choose to install6.
the hardware by manually selecting the drivers that
you wish to install. When this option appears, you
should select the directory containing the drivers for
the VGA adapter.
The Intel® G41 Express Chipset has the integrated Intel®
Graphics Media Accelerator X4500 (Intel® GMA X4500),
which includes built-in support for smooth high-definition
video playback without the need for add-in video cards or
decoders. It has the following features:
Intel® Clear Video Technology, a combination of video•
processing hardware and software technologies
designed to enhance the visual experience.
delivering optimized 3D graphics performance and•
support for Microsoft DirectX* 10, Shader Model* 4.0,
and OpenGL* 2.0.
You could visit the Intel support website for the VGA
drivers for the specific controllers at:
http://downloadcenter.intel.com
You could also use the web based utility to detect the
needed drivers automatically by visiting the following
website:
http://www.intel.com/support/graphics/detect.htm
On this web, it features the Intel® Driver Update Utility
to keep your Intel graphics driver up-to-date. It detects
which graphics updates are relevant to your computer,
and then helps you install them quickly and easily.
On Linux
Intel has established the website intellinuxgraphics.org to
promote a fully open sourced drivers supporting all video
technologies at:
http://intellinuxgraphics.org/index.html.
To view the list of Intel® chipset with the supported Linux
graphics drivers from Intel, visit the following link:
http://intellinuxgraphics.org/documentation.html
To obtain the latest drivers, click the link at:
http://intellinuxgraphics.org/download.html

15
Programming Watchdog Timer
Network Application Platforms
Appendix B
Appendix B:
Programming Watchdog
Timer
A watchdog timer is a piece of hardware that can be
used to automatically detect system anomalies and reset
the processor in case there are any problems. Generally
speaking, a watchdog timer is based on a counter that
counts down from an initial value to zero. The software
selects the counter’s initial value and periodically restarts
it. Should the counter reach zero before the software
restarts it, the software is presumed to be malfunctioning
and the processor’s reset signal is asserted. Thus, the
processor will be restarted as if a human operator had
cycled the power.
For sample watchdog code, see watchdog folder on the
Driver and Manual CD
For sample watchdog code, see watchdog folder on the
Driver and Manual CD

16
Setting up Console Redirection
Appendix C
Network Application Platforms
Appendix C:
Setting up Console
Redirections
Console redirection lets you monitor and configure a
system from a remote terminal computer by re-directing
keyboard input and text output through the serial port.
This following steps illustrate how to use this feature.
Connect one end of the console cable to console port1.
of the system and the other end to serial port of the
Remote Client System.
Configure the following settings in the BIOS Setup2.
menu
BIOS > Advanced > Remote Access Configuration >
Serial Port Mode > [115200, 8 , n ,1 ]
Configure Console Redirection on the client system.3.
The following illustration is an example on Windows
platform:
Click the start button, point to Programs >a.
Accessories > Communications and select Hyper
Terminal.
Enter any name for the new connection and selectb.
any icon.
Click OK.c.
From the “Connect to”. Pull-down menu, select thed.
appropriate Com port on the client system and
click OK.
Select 115200 for the Baud Rate, None. for Flowe.
contorl, 8 for the Data Bit, None for Parity Check,
and 1 for the Stop Bit.

17
Programming LAN Bypass
Appendix D
Network Application Platforms
Appendix D:
Programming LAN Bypass
The bypass function is used to link two independent
Ethernet ports when the system fails or powers off. This
means if your system is equipped with a LAN Bypass
function, a system failure or power-off event will not
interrupt your network traffic. There are typically two
statuses for the bypass, one is “Normal” state and the
other is“Bypass”status. Lanner provides three methods to
enable the LAN Bypass function:
Note: This Bypass in 7581 complies with Lanner
Generation 2 bypass
With the BIOS menu1.
Bypass Settings
System Status
LAN Bypass for Port1 and Port 2 LAN Bypass
1&2 when
power o
PWR ON Enabled Disabled Enabled
Bypass Non-Bypass
PWR OFF Bypass Bypass
Bypass Settings
System Status
LAN Bypass for Port1 and Port 2 LAN Bypass
1&2 when
power o
PWR ON Enabled Disabled Disabled
Non-Bypass Non-Bypass
PWR OFF Non-Bypass Non-Bypass
A sample program to control the GPIO
2.
A watchdog timer can also be used to control the LAN3.
Bypass function when system hangs
For sample code, look in the LAN_Bypass_Watchdog
directory under Driver and Manual CD.
Follow these procedures to run the program:
1. Compile source code on Linux platform first with the
following command:
# gcc wdbp.c -o wdbp
2. Execute the program:
#./wdbp
3. Commands:
Enable the bypass
# wdbp.exe –f
Set Watchdog Timer. This command will set the time
interval at which the counter will start count down.
# wdbp.exe -wl xxx (xxx: 1-255 sec for timer count down)
Reset Watchdog Timer. This command will reset the
watchdog timer’s counter and the bypass status to non-
bypass.
#wdbp.exe -wr xxx (xxx: 1-255 sec for timer count down)
Note: For more information, refer to the README
file contained within the program’s folder.
