Lanner FW-7525 User manual

Network
Application Platforms
Hardware platforms for next generation networking infrastructure
FW-7525
V1.1
User's Manual
Release Date: 2015/05/08

Overview
Icon Descriptions
The icons are used in the manual to serve as an
indication of interest topics or important messages.
Below is a description of these icons:
NOTE: This check mark indicates
that there is a note of interest and is
something that you should pay special
attention to while using the product.
WARNING: This exclamation point
indicates that there is a caution or
warning and it is something that could
damage your property or product.
Online Resources
The listed websites are links to the on-line product
information and technical support.
Resource Website
Lanner http://www.lannerinc.com
Product
Resources
http://www.lannerinc.com/download-
center/
RMA http://eRMA.lannerinc.com
Copyright and Trademarks
This document is copyrighted, © 2014. All rights are
reserved. The original manufacturer reserves the right to
make improvements to the products described in this
manual at any time without notice.
No part of this manual may be reproduced, copied,
translated or transmitted in any form or by any means
without the prior written permission of the original
manufacturer. Information provided in this manual
is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its
use, nor for any infringements upon the rights of third
parties that may result from such use.
Acknowledgement
Intel, Pentium and Celeron are registered trademarks of
Intel Corp.
Microsoft Windows and MS-DOS are registered
trademarks of Microsoft Corp.
All other product names or trademarks are properties of
their respective owners.
Compliances
CE
This product has passed the CE test for environmental
specifications. Test conditions for passing included
the equipment being operated within an industrial
enclosure. In order to protect the product from being
damaged by ESD (Electrostatic Discharge) and EMI
leakage, we strongly recommend the use of CE-
compliant industrial enclosure products.
FCC Class B
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference when the equipment is operated in in a
residential environment.This equipment generates,
uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in a
commercial area is likely to cause harmful interference
in which case the user will be required to correct the
interference at his own expense.
Safety Guidelines
Follow these guidelines to ensure general safety:
Keep the chassis area clear and dust-free during and after•
installation.
Do not wear loose clothing or jewelry that could get•
caught in the chassis. Fasten your tie or scarf and roll up
your sleeves.
Wear safety glasses if you are working under any•
conditions that might be hazardous to your eyes.
Do not perform any action that creates a potential hazard•
to people or makes the equipment unsafe.
Disconnect all power by turning off the power and•
unplugging the power cord before installing or removing a
chassis or working near power supplies
Do not work alone if potentially hazardous conditions•
exist.
Never assume that power is disconnected from a circuit;•
always check the circuit.

LITHIUM BATTERY CAUTION:
Risk of Explosion if Battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions
Operating Safety
Electrical equipment generates heat. Ambient air temperature
may not be adequate to cool equipment to acceptable
operating temperatures without adequate circulation. Be sure
that the room in which you choose to operate your system has
adequate air circulation.
Ensure that the chassis cover is secure. The chassis design
allows cooling air to circulate effectively. An open chassis
permits air leaks, which may interrupt and redirect the flow of
cooling air from internal components.
Electrostatic discharge (ESD) can damage equipment and
impair electrical circuitry. ESD damage occurs when electronic
components are improperly handled and can result in complete
or intermittent failures. Be sure to follow ESD-prevention
procedures when removing and replacing components to avoid
these problems.
Wear an ESD-preventive wrist strap, ensuring that it makes
good skin contact. If no wrist strap is available, ground yourself
by touching the metal part of the chassis.
Periodically check the resistance value of the antistatic strap,
which should be between 1 and 10 megohms (Mohms).
EMC Notice
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference when the equipment is operated in a
residential environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in a
commercial area is likely to cause harmful interference
in which case users will be required to correct the
interference at their own expense.
Consignes de sécurité
Suivez ces consignes pour assurer la sécurité générale :
Laissez la zone du châssis propre et sans poussière•
pendant et après l’installation.
Ne portez pas de vêtements amples ou de bijoux qui•
pourraient être pris dans le châssis. Attachez votre
cravate ou écharpe et remontez vos manches.
Portez des lunettes de sécurité pour protéger vos•
yeux.
N’effectuez aucune action qui pourrait créer un•
danger pour d’autres ou rendre l’équipement
dangereux.
•
Coupez complètement l’alimentation en éteignant•
l’alimentation et en débranchant le cordon
d’alimentation avant d’installer ou de retirer un
châssis ou de travailler à proximité de sources
d’alimentation.
Ne travaillez pas seul si des conditions dangereuses•
sont présentes.
Ne considérez jamais que l’alimentation est coupée•
d’un circuit, vérifiez toujours le circuit. Cet appareil
génère, utilise et émet une énergie radiofréquence
et, s’il n’est pas installé et utilisé conformément aux
instructions des fournisseurs de composants sans
fil, il risque de provoquer des interférences dans les
communications radio.
Avertissement concernant la pile au
lithium
Risque d’explosion si la pile est remplacée par une•
autre d’un mauvais type.
Jetez les piles usagées conformément aux•
instructions.
L’installation doit être effectuée par un électricien•
formé ou une personne formée à l’électricité
connaissant toutes les spécifications d’installation et
d’appareil du produit.
Ne transportez pas l’unité en la tenant par le câble•
d’alimentation lorsque vous déplacez l’appareil.
La machine ne peut être utilisée qu’à un lieu fixe•
comme en laboratoire, salle d’ordinateurs ou salle de
classe.

Sécurité de fonctionnement
L’équipement électrique génère de la chaleur. La•
température ambiante peut ne pas être adéquate
pour refroidir l’équipement à une température de
fonctionnement acceptable sans circulation adaptée.
Vérifiez que votre site propose une circulation d’air
adéquate.
Vérifiez que le couvercle du châssis est bien•
fixé. La conception du châssis permet à l’air de
refroidissement de bien circuler. Un châssis ouvert
laisse l’air s’échapper, ce qui peut interrompre et
rediriger le flux d’air frais destiné aux composants
internes.
Les décharges électrostatiques (ESD) peuvent•
endommager l’équipement et gêner les circuits
électriques. Des dégâts d’ESD surviennent lorsque
des composants électroniques sont mal manipulés et
peuvent causer des pannes totales ou intermittentes.
Suivez les procédures de prévention d’ESD lors du
retrait et du remplacement de composants.
- Portez un bracelet anti-ESD et veillez à ce qu’il soit
bien au contact de la peau. Si aucun bracelet n’est
disponible, reliez votre corps à la terre en touchant la
partie métallique du châssis.
Vérifiez régulièrement la valeur de résistance du
bracelet antistatique, qui doit être comprise entre 1 et
10 mégohms (Mohms).
Consignes de sécurité électrique
Avant d’allumer l’appareil, reliez le câble de mise à la•
terre de l’équipement à la terre.
Une bonne mise à la terre (connexion à la terre) est•
très importante pour protéger l’équipement contre
les effets néfastes du bruit externe et réduire les
risques d’électrocution en cas de foudre.
Pour désinstaller l’équipement, débranchez le câble•
de mise à la terre après avoir éteint l’appareil.
Un câble de mise à la terre est requis et la zone•
reliant les sections du conducteur doit faire plus de 4
mm2 ou 10 AWG.
Procédure de mise à la terre pour source
d’alimentation CC Procédure de mise à la
terre pour source d’alimentation CC
Desserrez la vis du terminal de mise à la terre.•
Branchez le câble de mise à la terre à la terre.•
L’appareil de protection pour la source•
d’alimentation CC doit fournir 30 A de courant.
Cet appareil de protection doit être branché à la
source d’alimentation avant l’alimentation CC.
Version Descriptions
0.2 Add the BIOS menu information
1.0 Ocial release
1.1 Modied SSD and CF card installations

Table of Contents
Chapter 1: Introduction 6
System Specifications 6
Package Contents 7
Optional Accessories 7
Front Panel Features 8
Rear Panel Features 9
Chapter 2: Motherboard Information 10

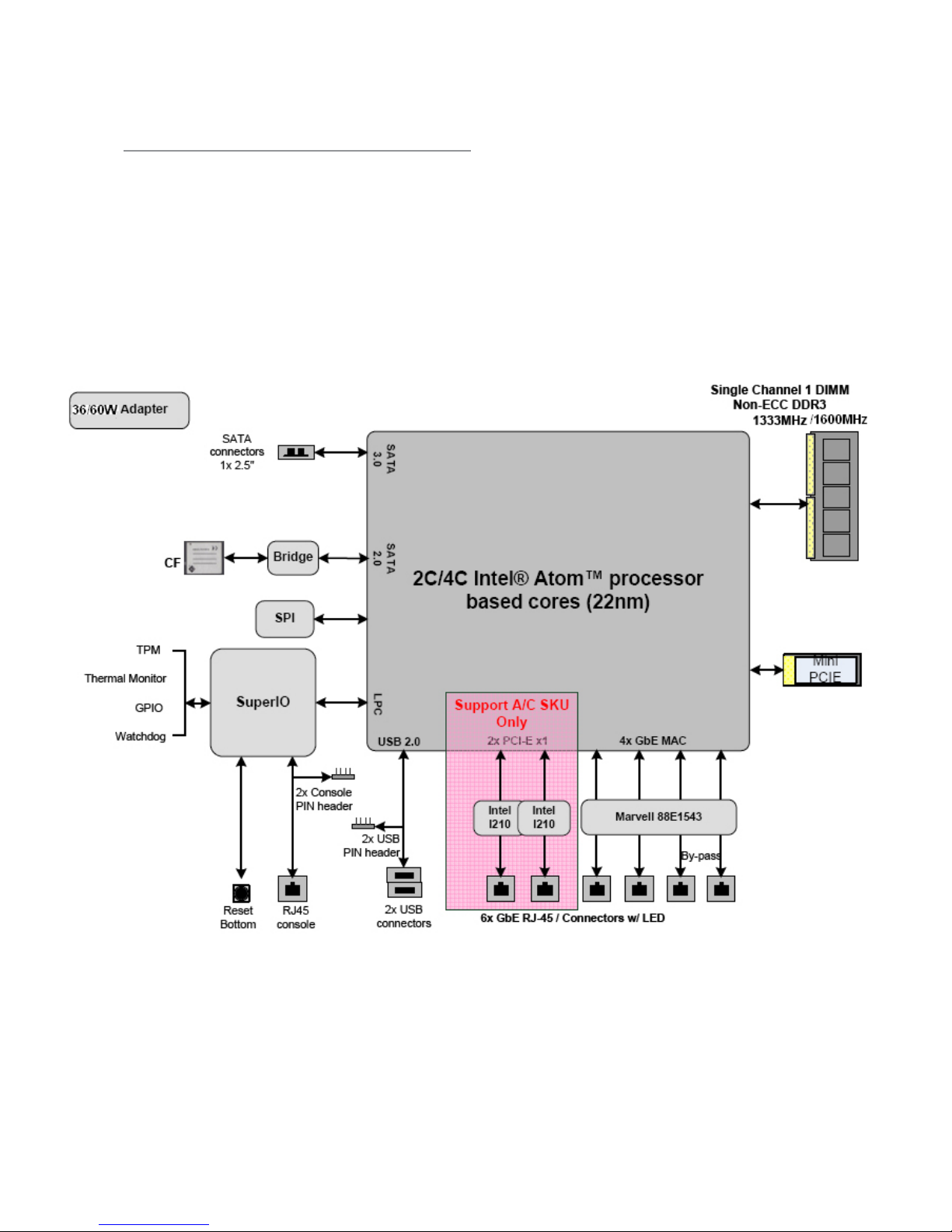

Block Diagram 10
Motherboard Layout 11
Jumper Settings & Connector Pinouts 12
Chapter 3: Hardware Setup 16

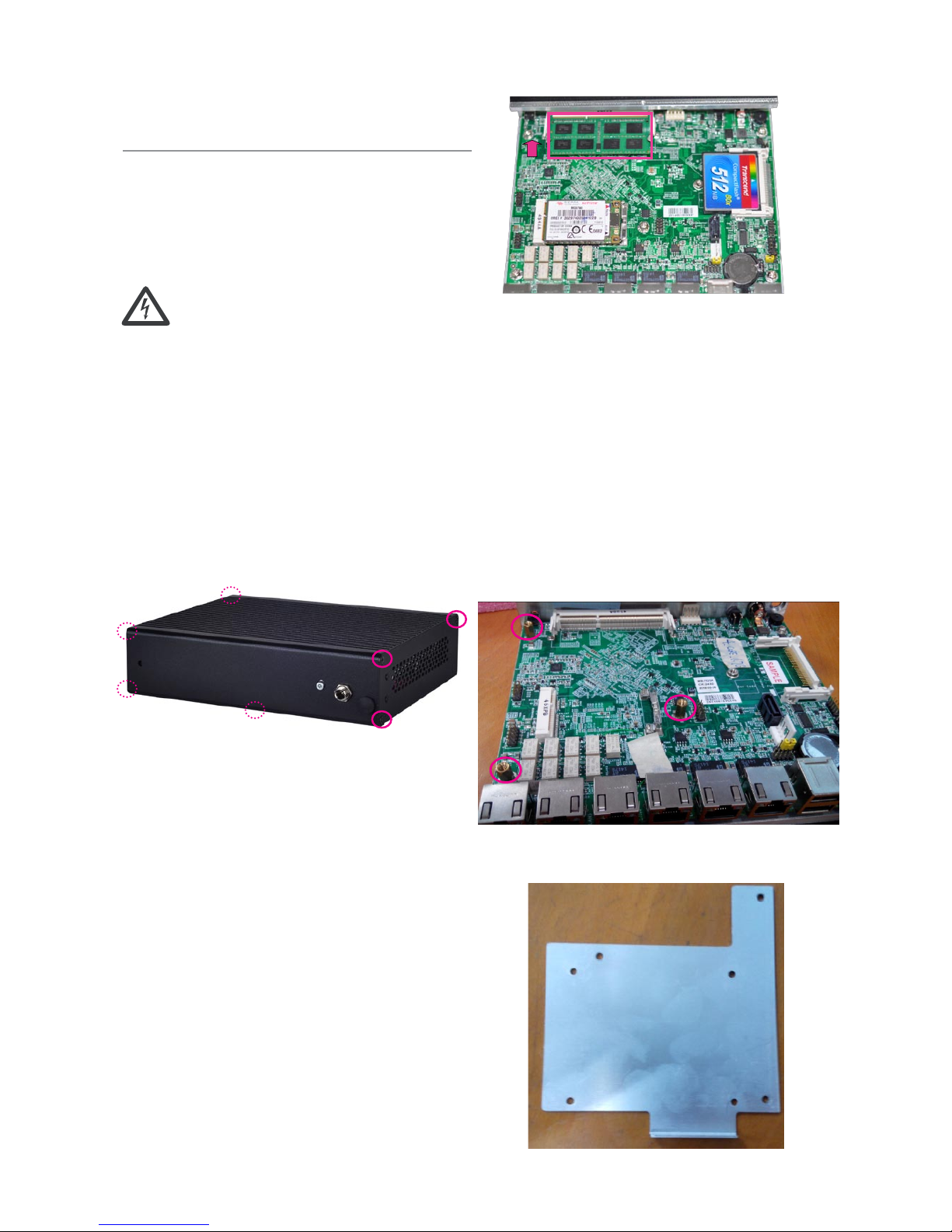

Preparing the Hardware Installation 16
Installing the System Memory 16
Installing Disk Drive 16
Installing the CompactFlash Card 17
Installing the Mini-PCIe Card 17
Installing FW-7525 on the Wall 18

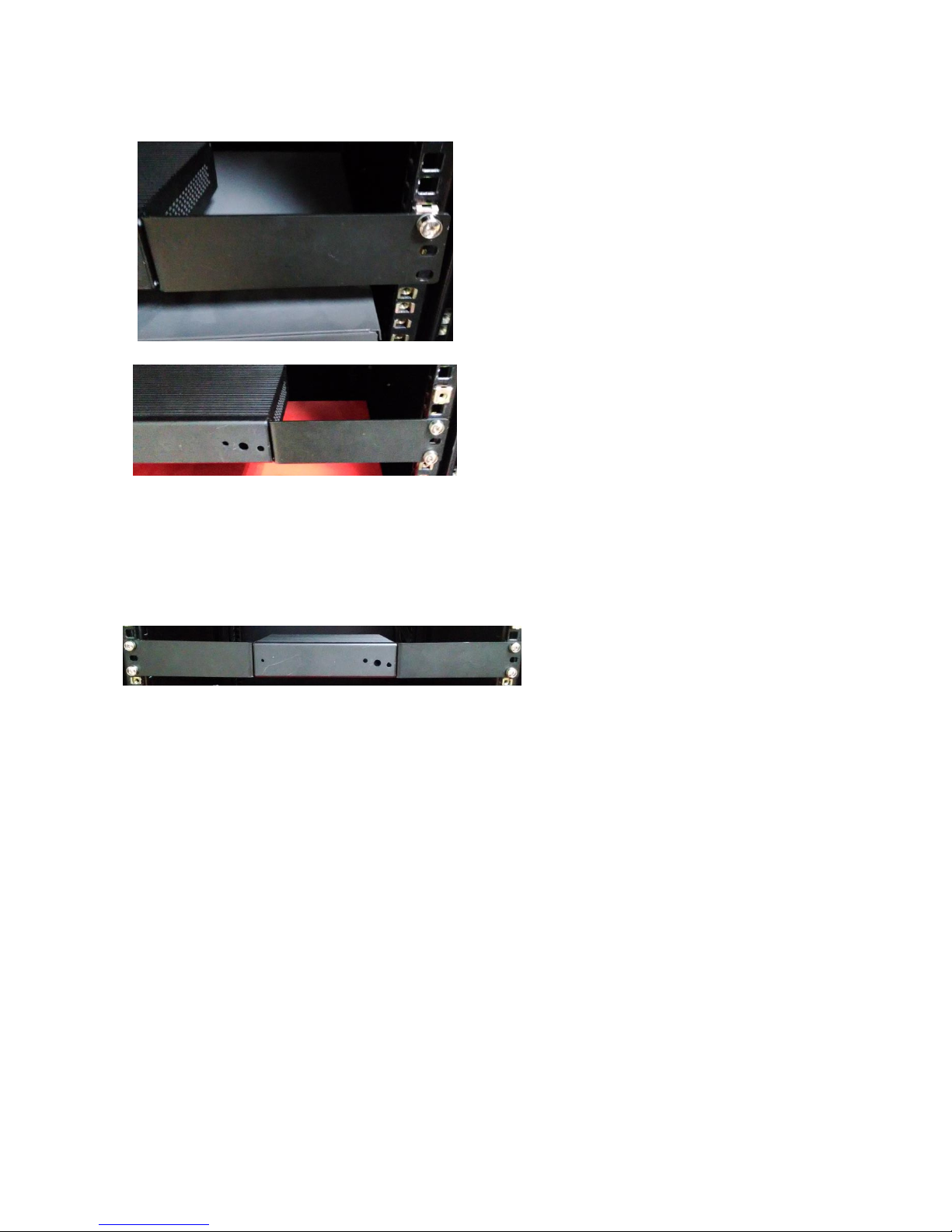

Installing FW-7525 on a Rack 19
Chapter 4: BIOS Settings 21
Appendix A: Programming Watchdog Timer 36
Appendix B: Setting up Console Redirections 36
Appendix C: Programming Generation 2 LAN Bypass 37
Appendix D: Installing Intel QuickAssist Software for Linux 39
Appendix E: Terms and Conditions 40

Chapter 1:
Introduction
Thank you for choosing Lanner FW-7525. FW-7525 is
a fanless desktop network security system utilizing the
cutting edge capabilities of the Intel Rangeley platform
(Based on Intel Atom C2000 series 2-core/4-core CPU,
System-On-Chip solution). The Rangeley platform
is built-in Intel QuickAssist Crypto acceleration, it
targets at Entry-level UTM, Firewall, VPN, IPS and WAN
optimization applications in SMB environment. The
system built-in 4 or 6 GbE LAN ports, 1 x Non-ECC
DDR3 1333/1600 DIMMs, and 36/60 W power adapter.
Features:
Intel Atom C2358/C2518/C2558 CPU built-in Intel•
QuickAssist Crypto acceleration
Fanless design•
Rangeley Platform•
Fanless design, compact form factor•
Intel AES-NI new instructions, improves security•
without slowing response times
Support up to 8 GB DDR3 Memory•
Intel i210AT LAN controller•
Support Gen.2 LAN Bypass function (model A, C,•
and D only))
Intel Virtualization Technology•
Intel C2000 series processor comes with an enhanced
cryptographic/content processing acceleration via
integrated Intel®QuickAssist Integrated Accelerator
with the following instructions:
–Bulk Encryption: AES, DES, 3DES, RC4
–Hash: SHA-1, MD5; SHA-2 (SHA-224, SHA-256, SHA-
384, SHA-512);
Authentication: HMAC, AES-XCBC, AES-CCM, and
AES-GCM
–Public Key Exchanges: RSA, DH, DSA, ECC
Form Factor Desktop
Platform Processor Options
2-core Intel® Atom
Processor C2358 2-core,
C2518 4-core, or C2558
2.4GHz 4-core CPU (Code-
named “Rangeley”)
BIOS AMI BIOS 16MB
System
Memory
Technology
Single Channel Non-ECC
DDR3 1333/1600 MHz,
1.5 V
Max. Capacity 8 GB
Socket 1 x 204-pin SO-DIMM
OS Support Linux Kernel 2.6 or above
Storage HDD/SSD Bays 1 x 2.5” SSD kit
CompactFlash 1 x Type II CompactFlash
Networking
Ethernet Ports 4 or 6 x GbE RJ45 onboard
Bypass 1 pairs Generation 2 (on
model FW-7525A/C only)
Controllers 2 x Intel i210AT, 4 x
Marvell 88E1543
Ethernet Modules N/A
Management Port N/A
I/O Interface
Reset Button 1 x reset button
Software reset by default
Console 1 x RJ45
USB 2 x USB 2.0
IPMI via OPMA
slot N/A
Display N/A
Expansion PCIe 1 x Mini-PCIe
PCI N/A
Cooling Processor Fanless
System Fanless
Environmental
Parameters
Temperature,
ambient operating
/ storage
0 ~ 40º C / -20~70º C
Humidity (RH),
ambient operating
/ ambient non-
operating
5~90%, non-condensing /
5~95%, non-condensing
Miscellaneous
LCD Module N/A
Watchdog Yes
Internal RTC with
Li Battery Yes
Physical
Dimensions
Dimensions
(WxHxD) 177 x 44 x 145.5 mm
Weight 1.2 kg
Power Type/Watts 36W/60W Power Adapter
Input 100~240V@50~60Hz
System Specifications

Certications/Compliance CE Class B, FCC Class B,
RoHS
Ordering Information
FW-7525A
Fanless Network Security Appliance with
Intel® AtomTM processor C2358 (Code-
named “Rangeley”), 6 GbE LAN ports with
Gen.2 Bypass, 36W power adapter
FW-7525B
Fanless Network Security Appliance with
Intel® AtomTM processor C2358 (Code-
named “Rangeley”), 4 GbE LAN ports
without Bypass, 36W power adapter
FW-7525C
Fanless Network Security Appliance with
Intel® AtomTM processor C2518 (Code-
named “Rangeley”), 6 GbE LAN ports with
Gen.2 Bypass, 60W power adapter
FW-7525D
Fanless Network Security Appliance with
Intel® AtomTM processor C2558 (Code-
named “Rangeley”), 6 GbE LAN ports with
Gen.2 Bypass, 60W power adapter
Package Contents
Your package contains the following items:
FW-7525 Network Security Platform•
US standard Power cable•
1 console cable•
Drivers and user’s manual CD.•
36W/60W power adaptor•
1 – screws pack•
Optional Accessories
The system has a variety of optional accessories, visit the
following website for more information.
http://www.lannerinc.com/products/x86-network-
appliances/rackmount/fw-7525

Front Panel Features
F4
F1 F2 F3
LAN1 LAN2
Intel i210AT Intel i210AT
LAN3 LAN4
Marvell 88E1543 Marvell 88E1543
LAN5 LAN6
Marvell 88E1543 Marvell 88E1543
(bypass pair)
F1 Console Port
RJ-45 console port: it is used to connect to a computer terminal for diagnostic or configuration
purpose.
F2 SSD/Status/Power LED
F3 Two USB 2.0 Ports
F4 Ethernet Ports (LAN1: PXE-capable Port, LAN5-LAN6: bypass pair*)
LAN3~LAN6 GbE ports are provided by Marvell 88E1543 and LAN1~LAN2 are provided by Intel
i210AT. LAN1 is capable of Preboot eXecution Environment (PXE) (This feature needs to be enabled or
disable in the BIOS; the default is disabled). One pair (LAN5-LAN6) can be configured as LAN Bypass
by using Lanner Gen2 Bypass technology when failure events occur. This feature can be enabled
dynamically with a watch dog timer. Refer to your User’s Manual CD for sample implementation of
this feature.
Note:
The LAN bypass functionality is only available on model FW-7525A/C/D1.
The FW-7525B only has 4 Ethernet ports.2.

Rear Panel Features
R2
R1 R3
R1 Reset Switch
The reset switch can be used to reboot the system without turning off the power.
R2 ATX Power-on button with LEDs
Standby mode in Red; Power-on mode in Green
R3 Power-in Socket
The system requires 36W/60W power.

Chapter 2:
Motherboard Information
Block Diagram
The block diagram depicts the relationships among the
interfaces or modules on the motherboard. Please refer
to the following figure for your motherboard’s layout
design.

Motherboard Layout
The motherboard layout shows the connectors and
jumpers on the board. Refer to the following picture
as a reference of the pin assignments and the internal
connectors.
FAN1
LAN6
JBAT1
LAN5 LAN4 LAN3 LAN2 LAN1 USB1 COM1
J20
PKMB1
LPC1
MPCIE1
PS4P1
SATA6G_1
GPIO1
SPIROM1
J4
USB2
CF1
COMB2

Jumper Settings & Connector Pinouts
Fan Connectors(FAN1 ): The 5-pin connector is for
connecting the CPU fan.
Keyboard and Mouse Connector (PKMB1)
COM Port 2 (COMB2): The internal COM port
Pin No. Signal
1 PWM
2 NC
3 TACH
4 P12V
5 GND
Pin No. Signal Pin No. Signal
1 +P5V_KM 2 MS_L_CLK
3 MS_L_DAT 4 NC
5 KB_L_DAT 6 NC
7 GND 8 KB_L_CLK
2
8
1
7
Pin No. Signal Pin No. Signal
1 NDCD2- 2 NDSR2-
3 NSIN2 4 NRTS2-
5 NSOUT2 6 NCTS2-
7 NDTR2- 8 NRI2-
9 COMGND2 10
2
10
1
9
USB Pin Header (USB2): It is for connecting the USB
module cable. It complies with USB2.0 and support
up to 480 Mbps connection speed.
Dual USB 2.0 Ports (USB1): This provides two USB 2.0
ports on the front panel.
Console Port (COM1): The external COM port with RJ45
connector
Pin No. Signal
1 +P5V_USB0_L
2 USB0_SB_L_DN
3 USB0_SB_L_DP
4 GND
5 +P5V_USB0_L
6 USB1_SB_L_DN
7 USB1_SB_L_DP
8 GND
1 2 3 4
5 6 7 8
Pin No. Signal Pin No. Signal
1 LNRTSA# 5 GND
2 LNDTRA# 6 LNSINA
3 LNSOUTA 7 LNDSRA#
4 GND 8 LNCTSA#
Pin No. Signal Pin No. Signal
1 +P5V_USB2_L 2 NC
3 USB2_SB_L_DN 4 NC
5 USB2_SB_L_DP 6 NC
7 GND 8 GND
9 GND 10 Key ping
2
10
1
9

GPIO Output Pin (GPIO1): Theses pins can be used
to write to an internal register to control the GPIO
output pin state.
SPI-ROM Update Connector (SPIROM1): It is for
updating the SPI Flash soldered on board for service
and repair purposes.
LPC I/O bus (It can also be called Port 80) (LPC1):
It is a proprietary connector for connecting
a checkpoint device to output checkpoints
throughout booting and Power-On Self Test
(POST) to indicate the task the system is currently
executing.
2
1
10
9
Pin No. Signal Pin No. Signal
1 SIO_GP20 2 SIO_GP21
3 SIO_GP46 4 SIO_GP47
5 SIO_GP53 6 SIO_GP54
7 SIO_GP56 8 SIO_GP57
9 P5V 10 GND
Pin No. Signal Pin No. Signal
1 SPI_HOLD0_L 2 NC
3PMU_AVN_SPI_R_
CS0 4 V_3P3_SPI
5 PMU_AVN_SPI_MISO 6 NC
7 NC 8 PMU_AVN_SPI_R_CLK
9 GND 10 PMU_AVN_SPI_R_MOSI
Pin No. Signal Pin No. Signal
1 CLK_33M_P80 2 LPC_AD1
3 PLTRST_PORT80_N 4 LPC_AD0
5 LPC_FRAME_N 6 P3V3
7 LPC_AD3 8 Key ping
9 LPC_AD2 10 GND
12
910
12
910
Clear CMOS jumper (JBAT1): It is for clearing the
CMOS memory and system setup parameters
by erasing the data stored such as the system
passwords in the CMOS RAM.
CompactFlash Connector (CF1): It is for connecting a
Compact Flash card to be served as your system’s
storage. The connector is a CF Type II slot which
could fit both CF Type I or CF Type II cards.
Pin No. Signal
1 VBAT
2 PCH_RTCRST_N
3 GND
25 1
50 26
CF1
1
Pin No. Signal Pin No. Signal
1 GND 26 DET1
2 CF_DD3 27 CF_DD11
3 CF_DD 4 28 CF_DD 12
4 CF_DD 5 29 CF_DD 13
5 CF_DD 6 30 CF_DD 14
6 CF_DD 7 31 CF_DD 15
7 -CF_DCS0 32 -CF_DCS1
8 GND 33 CF_VS1
9 GND 34 CF_DIOR_N
10 GND 35 CF_DIOW_N
11 GND 36 WE#
12 GND 37 CF_IDEIRQ
13 VCC_CF 38 VCC_CF
14 GND 39 MST_SLV
15 GND 40 CF_VS2
16 GND 41 CF_IDERST_N
17 GND 42 CF_IORDY
18 CF_DA2 43 CF_DMARQ
19 CF_DA 1 44 CF_DDACK_N
20 CF_DA 0 45 CFACT_N
21 CF_DD0 46 CF_PDIAG
22 CF_DD 1 47 CF_DD 8
23 CF_DD 2 48 CF_DD 9
24 GND 49 CF_DD 10
25 DET2 50 GND
1 2 3

SO-DIMM Socket (CN1): The 204-pin DDR3 SO-DIMM
is for connecting the Non-ECC DDR3 1333/1600
memory. The system can support up to 8 GB in
maximum.
SATA Connector: It is for connecting a SATA HDD/SSD
for your system’s storage.
The system can accommodate one disk (2.5) with SATA
3.0 standard. The controller contains two modes
of operation—a legacy mode using I/O space, and
an AHCI mode using memory space. Software that
uses legacy mode will not have AHCI capabilities.
The AHCI (Advanced Host Controller Interface) is a
programming interface which defines transactions
between the SATA controller and software and
enables advanced performance and usability
with SATA. Platforms supporting AHCI may take
advantage of performance features such as no
master/slave designation for SATA devices—each
device is treated as a master—and hardware assisted
native command queuing. AHCI also provides
usability enhancements such as Hot-Plug.
Note:
You will need to configure your SATA as1.
AHCI mode in the BIOS in order to use the
advanced features of SATA. To do this, access
the BIOS menu under IntelRCSetup->
South Bridge Chipset Configuration->SATA
Configuration.
Also, the hotplug enable/disable option is2.
under the same SATA Configuration menu.
Enable the hotplug function explicitly in this
menu if you need it.
Pin No. Signal
1 GND
2 TX_P
3 TX_N
4 GND
5 RX_N
6 RX_P
7 GND
4-Pin SATA Power Connector (PS4P1)
AT-Mode Power Button Connector (J21) It is for
connecting the power switch in AT mode.
Hardware or Software Reset Jumper(J4): The jumper
can be adjusted to be in either hardware or software
reset mode when the reset switch is pressed. The
hardware reset will reboot the system without
turning off the power. The software reset can be
programmed to reset a software to its default
setting.
Pin No. Signal
1 +12V
2 Ground
3 Ground
4 5V
Pin No. Signal
1 P3VSB
2 MR
4
3
2
1
1 2
Pin No. Signal
1-2 Hardware reset
2-3 Software reset
1 2 3

PCIe Expansion Connector (MPCIEC1): Mini-PCIe
connector
PIN NO. Signal PIN NO. Signal
1 PMU_WAKE# 27 GND
2 VCC3 28 1.5V
3 NC_RSV1 29 GND
4 GND 30 SMB_CLK
5 NC_RSV2 31 MINI_PCIE_TXN0
6 1.5V 32 SMB_DATA
7 MINI_CLKREQ_N1 33 MINI_PCIE_TXP0
8 NC_UIM_PWR 34 GND
9 GND 35 GND
10 NC_UIM_DATA 36 USB_IO3_DN
11 MINIPCIE_REF-
CLKN 37 GND
12 NC_UIM_CLK 38 USB_IO3_DP
13 MINIPCIE_REFCLKP 39 VCC3
14 NC_UIM_RST 40 GND
15 GND 41 VCC3
16 NC_UIM_VPP 42 NC_LED_WWAN#
17 NC_RSV3 43 GND
18 GND 44 NC_LED_WLAN#
19 NC_RSV4 45 NC_RSV9
20 RF_KILL_N2_R 46 NC_LED_WPAN#
21 GND 47 NC_RSV10
22 PLTRST_
MINIPCIE_N 48 1.5V
23 MINI_PCIE_RXN0 49 NC_RSV11
24 P3VSB 50 GND
25 MINI_PCIE_RXP0 51 NC_RSV12
26 GND 52 VCC3

Chapter 3:
Hardware Setup
Preparing the Hardware Installation
To access some components and perform certain service
procedures, you must perform the following procedures
first.
WARNING: To reduce the risk of personal
injury, electric shock, or damage to the
equipment, remove the power cord to
remove power from the server. The front
panel Power On/Standby button does not
completely shut off system power. Portions of
the power supply and some internal circuitry
remain active until AC power is removed.
Unpower the FW-7525 and remove the power cord.1.
Unscrew 3 screws on each side and on the bottom of2.
the cover of the FW-7525 System.
Slide the cover backwards to open it.3.
Installing the System Memory
The motherboard supports DDR3 memory that features
data transfer rates of 1333, 1600 MHz to meet the higher
bandwidth requirement of the latest operating system
and Internet applications. To install the memory:
Aligh the SO-DIMM’s key with the socket’s notch.1.
Install the memory.2.
Note:
The system requires1. Non-ECC DDR3 1333/1600
MHz memory.Do not install memories with
different specifications.
The system can support up to 8 GB in maximum.2.
Installing Disk Drive
The system can accommodate one 2.5”SATA SSD disk
drive. Please follow the steps below for installation.
1. Install three standoffs (brass joints) as shown in the
image below.
2. Prepare the SSD bracket.

3. Place an SSD on the bracket as shown below.
4. Turn the bracket and the SSD around and align the 4
screw holes. Then, secure the SSD onto the bracket with
screws.
5. Turn the SSD and the bracket back and place it above
the motherboard. Please make sure the 3 screw holes
on the bracket match the locations of the 3 standoffs
installed earlier. Fasten the 3 screws.
6. Connect SATA cable between the SSD and the
motherboard.
Installing the CompactFlash Card
FW-7525 provides one CompactFlash slot. Please follow
the steps below to install a CompactFlash card.
1. Align CompactFlash card and the card slot with the
arrow pointing toward the connector. The card fits only
the correct way into the slot; do not force the card into
the slot.
2. Insert the card into the connector until it firmly fits in
place..
Installing the Mini-PCIe Card
FW-7525 provides one Mini-PCIe slot. Follow the
procedures bellow for installing a mini-PCIe card.
Align Mini-PCIe card key with the card slot notch1.
Push the other end of the card to be tightened with2.
the latch.
Notes: SSD is NOT
included in the
package.
3. Apply a supplied screw to secure the CF card.

Installing FW-7525 on the Wall
FW-7525 can be mounted on the wall by using optional
mounting kit. The following will present steps of
wallmounting FW-7525.
1. Prepare the pair of wallmounting brackets.
2. Turn the system upside down and locate the 4 screw
holes on each corner of the system.
3. Align the brackets on each side of the system.
Remember that the screw holes must be aligned. Then
insert screws to secure the brackets.
4. Place the system on where it will be mounted on
the wall.
You may draw marks for the circled screw holes as the
image below for applying wall anchors in later steps.
Do the same for both sides.
5. Apply the 4 white wall anchors designated in the
last step. You must have a drilling machine to perform
this step.
Then, insert threaded nails into the anchors. Do NOT
insert the nails totally into the anchor. Leave a tiny gap
enough to hang the wallmounting bracket.
6. Hang the system onto the wall as the image below.
Remember to match the brackets’ 4 screw holes with
the 4 threaded nails on the wall. You may screw the
nails tighter after you hang the system.

Installing FW-7525 on a Rack
FW-7525 can be mounted on a wall by using optional
mounting kit.
Please read the precautions first.
1. Elevated Operating Ambient - If installed in a closed or
multi-unit rack assembly,
the operating ambient temperature of the rack
environment may be greater than room
ambient. Therefore, consideration should be given to
installing the equipment in an
environment compatible with the maximum ambient
temperature (Tma) specified by the manufacturer.
2. Reduced Air Flow - Installation of the equipment in a
rack should be such that the
amount of air flow required for safe operation of the
equipment is not compromised.
Mechanical Loading - Mounting of the equipment in the
rack should be such that a
hazardous condition is not created due to uneven
mechanical loading.
3. Circuit Overloading - Consideration should be given to
the connection of the
equipment to the supply circuit and the effect that
overloading of the circuits might have
on over-current protection and supply wiring.
Appropriate consideration of equipment
nameplate ratings should be used when addressing this
concern.
4. Reliable Earthing - Reliable earthing of rack-mounted
equipment should be maintained. Particular attention
should be given to supply connections other than direct
connections to the branch circuit (e.g. use of power
strips).”
Warning :
Slide/rail mounted equipment is not to be used as a shelf
or a work space
______________________________________________
After reading the precautions, please see the following
for mounting FW-7525 on a rack.
1. Prepare the L-shaped rackmounting brackets.
2. Locate the 2 screw holes on each side of the system.
3. Attach the L-shaped brackets to the screw holes on each
side of the system, as the image below. Apply screws to
secure the brackets until totally fixed.

4. Attach the ears of the L-shaped brackets to the rack
and then apply long threaded nails.
Notes: rack-use screws and nuts are not supplied in
the mounting kit.
5. Repeat Step 4 for another side.
Table of contents
Other Lanner Server manuals
Popular Server manuals by other brands

Meinberg
Meinberg LANTIME M100 Constructions and Installations Instructions

HP
HP P4535A - Web Cache Server Appliance manual

Compaq
Compaq 386746-001 - ProLiant - 1600 Performance notes

Siemens
Siemens SINUMERIK 840D sl operating instructions

BayTech
BayTech PS-4A owner's manual

Avaya
Avaya S8700 Series maintenance
