Larson Electronics HLX-SWG-EB Series User manual

HLX-SWG-EB Series
Instruction Manual

2
1 Contents
1 Contents ................................................................................................................2
2 General Information ...............................................................................................2
3 Safety Instructions .................................................................................................3
4Function of Circuit-Breaker ...................................................................................3
5Technical Data ......................................................................................................4
6Arrangement and Assembly ................................................................................10
7Installation ...........................................................................................................11
8Commissioning ....................................................................................................12
9Servicing ..............................................................................................................13
10Transport and Storage ........................................................................................13
11Disposal ...............................................................................................................13
2 Symbols
Warning!
This symbol indicates advice which, if ignored, puts your health or the ability of the 
device or components to function at risk.
Note
This symbol indicates important additional informations, tips and recommendations.
HLX-SWG-EB Series
Larson Electronics, LLC Phone: Fax: [phone] www.larsonelectronics.com
[phone]

3
3 Safety Instructions
The most important safety instructions are summarized in this section. They supplement
the corresponding regulations which the staff responsible must study.
When working in areas, subject to explosion hazards, the safety of personnel and plant
depends on complying with all relevant safety regulations. Assembly and maintenance
staff working on installations therefore have a particular responsibility. They require 
precise knowledge of the applicable standards and regulations.
Use the breakers in accordance with their designated use and for their intended
purpose only (see “Function of Circuit-Breaker on page 3). Incorrect or impermissible
use or non-compliance with these instructions invalidates our warranty provision. No
modifications or alterations to the devices impairing their explosion protection are
permitted. The breakers must only be fitted and operated if they are undamaged, dry
and clean.
4 Function of Circuit-Breaker

The Series HLX-SWG-EB Circuit-Breaker protects cables against overload and
short-circuit in hazardous areas. It is designed for fitting into an enclosure with type
of protection increased safety.
As a user, please observe:
national and local safety and accident prevention regulations,
national and local assembly and installation regulations (e.g. IEC/EN 60079-14),
generally recognised technical regulations,
safety instructions and information in these operating instructions,
characteristic values and rated operating conditions on the rating and data plates,
instruction plates on the unit,
that any damage can invalidate the Ex-protection.
HLX-SWG-EB Series
Larson Electronics, LLC Phone: Fax: [phone] www.larsonelectronics.com
[phone]

4
5 Technical Data
Version AC MCBs AC / DC MCBs
Explosion protection
Gas explosion protection
ATEX EII 2 G Ex d e IIC Gb
EI M 2 Ex d e I Mb
EII 2 G Ex d e IIC Gb
EI M 2 Ex d e I Mb
IECEx Ex d e IIC
Ex d e I
Ex d e IIC
Ex d e I
Certificates
ATEX PTB 02 ATEX 1049 U PTB 02 ATEX 1049 U
IECEx IECEx PTB 06.0062U IECEx PTB 06.0062U
Rated operational current
No. of poles 1 pole, 1 pole + N, 2 pole, 3 pole, 3 pole + N, 
4 pole
1 pole, 2 pole
Rated frequency 50 / 60 Hz 50 / 60 Hz DC
Rated insulation voltage 500 V 500 V
Rated operational voltage
Minimal Voltage Ubmin 12 V AC / DC 12 V AC / DC
Maximal Voltage Ubmax
Service life
Mechanical 2x104switching cycles 2x104switching cycles
Electrical 104switching cycles 104switching cycles
Isolation function yes (IEC/EN 60947-2) yes (IEC/EN 60947-2)
Pulse resistance 6 kV 6 kV
Utilization category A (IEC/EN 60947-2) A (IEC/EN 60947-2)
Tripping characteristic B 6 ... 40 A
Tripping characteristic C/D/Z 0.5 ... 40 A
Tripping characteristic B 6 ... 40 A
Tripping characteristic C/D 0,5 ... 40 A
Standard version
AC DC
1 pole 230 V 48 V
1 pole + N 230 V - -
2 pole 230 / 400 V 110 V 1)
3 pole 230 / 400 V - -
3 pole + N 230 / 400 V - -
4 pole 230 / 400 V - -
1) 2 poles in series
UL-Version
1 pole 277 V 2) 60 V 2)
1 pole 230 V 3) 60 V 3)
2 pole 277 / 480 V 2) 125 V 2)
2 pole 230 / 400 V 3) 125 V 3)
3 pole 277 / 480 V 2) 125 V 2)
3 pole 230 / 400 V 3) 125 V 3)
1) acc. to UL 1077
2) acc. to EN 60898
Standard version
AC DC
1 pole 230 V 220 V
1 pole + N - - - -
2 pole 230 / 400 V 220 V
440 V 1)
1) 2 poles in series
AC 250 V / 440 V
DC 53 V / 120 V
AC 250 V / 440 V
DC 250 V / 440 V
HLX-SWG-EB Series
Larson Electronics, LLC Phone: Fax: [phone] www.larsonelectronics.com
[phone]

5

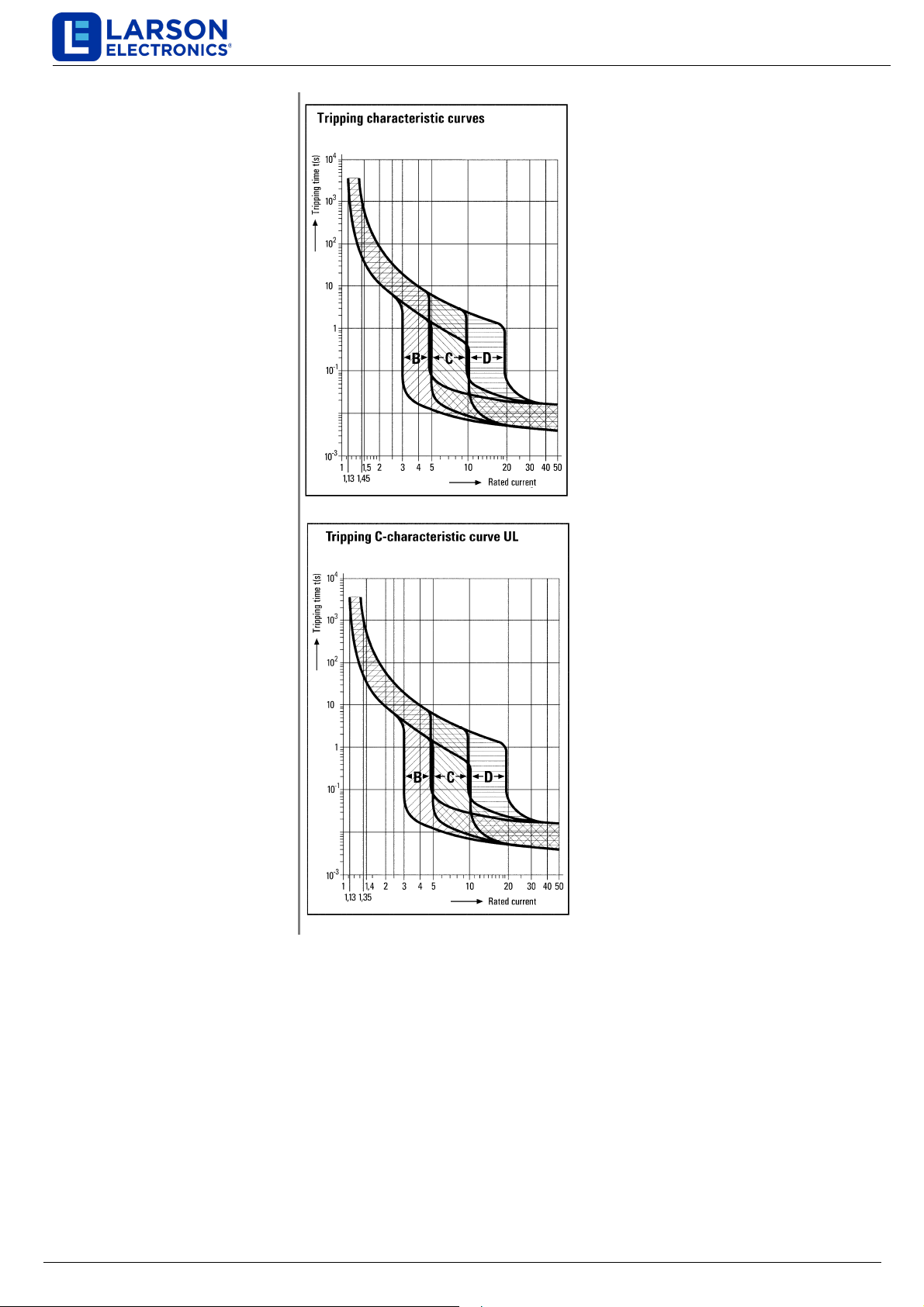

Tripping characteristic curves
08903E02
11514E02
HLX-SWG-EB Series
Larson Electronics, LLC Phone: Fax: [phone] www.larsonelectronics.com
[phone]

6

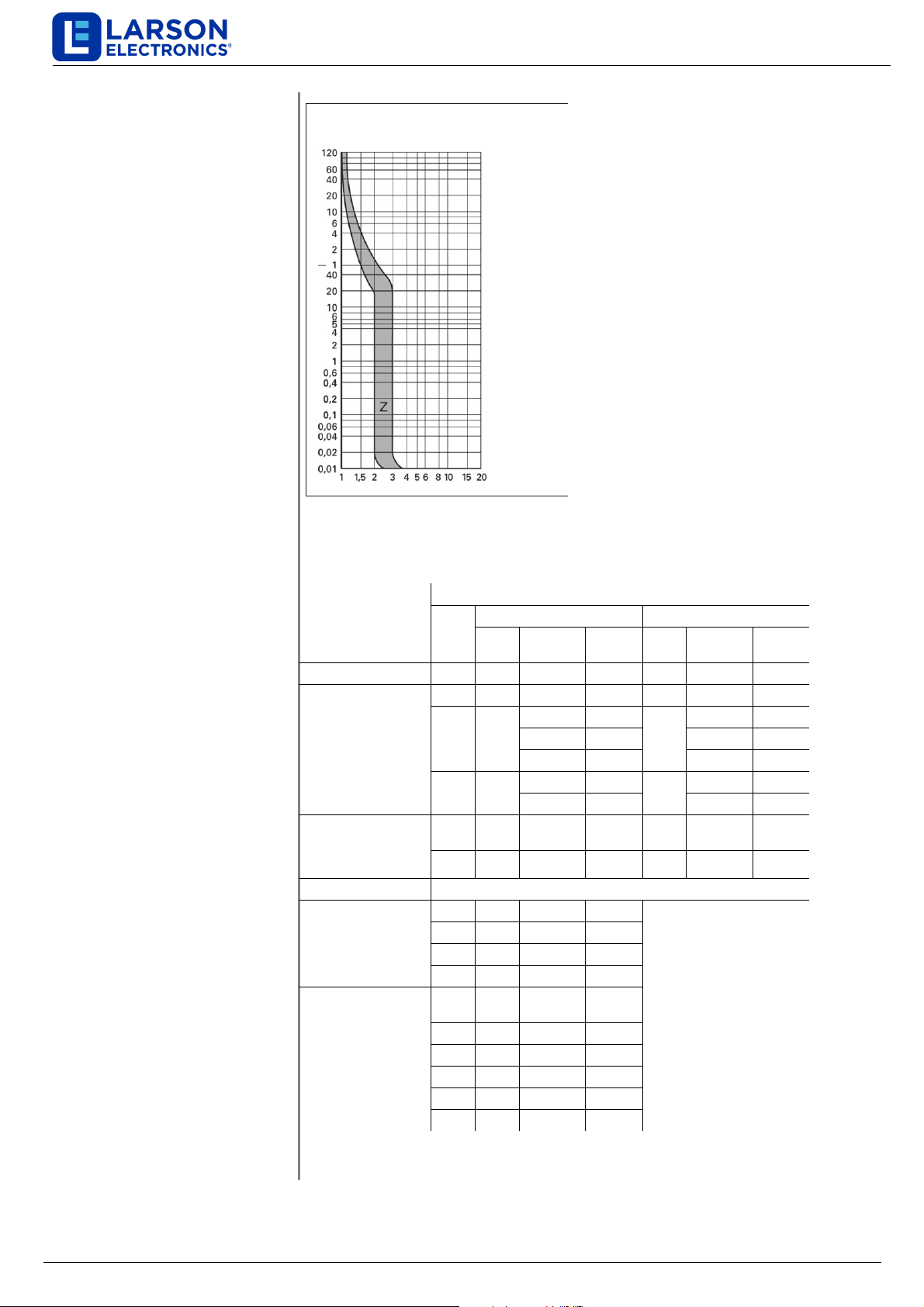

Tripping characteristic curves
Selectivity class 3 (IEC/EN 60898)
Response value of 
short-circuit trip
The response value of the short-circuit trip is approximately 40 % higher for DC than for AC 
at 50 / 60 Hz
Rated switching capacities
Breaking capacity 6 kA resp. 10 kA
Version Circuit breaker, current limiting with thermal and magnetic release
01546E02
Tripping Z-characteristic curve
AC MCBs
Poles

Series with 6 kA Series with 10 kA
Voltage
(V)
Current
(kA)
Voltage
(V)
Current
(kA)
AC to IEC/EN 60898 1 - 4 Icn 230 / 240 6 Icn 230 / 240 10
AC to IEC/EN 60947-2 1 Icu 240 10 Icu 240 15
1+N,
2
Icu 127 30 Icu 127 40
240 20 240 30
415 10 415 15
3, 4 Icu 240 20 Icu 240 30
415 10 415 15
DC to 
IEC/EN 60947-2
(Time constante
15 ms)
1I
cu /
Ics
60 20 Icu /
Ics
60 25
2 125 25 125 30
AC / DC MCBs
AC to IEC/EN 60898 1 Icn 230 6
2I
cn 230 / 400 6
1, 2 Icn 120 10
2, 3 Icn 240 10
DC to
IEC/EN 60898
1I
cu /
Ics
220 6
2 220 / 440 6
1I
cn 125 10
1, 2 Icn 220 6
2I
cn 250 10
2I
cn 440 6
HLX-SWG-EB Series
Larson Electronics, LLC Phone: Fax: [phone] www.larsonelectronics.com
[phone]

7
Characteristics
Back-up protection
Ambient temperature - 20 ... + 60 °C In case of different temperature range please consider correction factor!
Characteristic
to IEC/EN 60898
ZB C D
Rated current
range
0.5 ... 32 A 6 ... 32 A 0.5 ... 32 A 0.5 ... 32 A
Loads > Semi-
conductor 
devices
> Elektric heatings
> Lighting
> Socket outlet
circuits
> Control circuits
e.t.c.
> Operating
equipment
> Light fitting
groups
> Motors
> Transformers
e.t.c.
> Operating
equipment
> Motors with
heavy starting
characteristic
e.t.c.
Normal
temperature
20 °C 30 °C 30 °C 30 °C 30 °C
Thermal overload
trip
1.05
... 
1.2 In
1.13 
... 
1.45 In
1.13 ... 1.45 In1.13 ... 1,45 In1.13 ... 1.45 In
Thermal overload
trip 135% UL
-- -- -- 1.13 ... 1.35 In--
Magnetic trip 2 ... 3 In3 ... 5 In5... 10 In10 ... 20 In
Fuses must be fitted upstream to protect circuit-breakers against high short-circuit currents in
high power networks. These protect thecircuit-breakers against short-circuit currents of up to 50
kA. If a short-circuit occurs, both protective devices cut out simultaneously, so that the circuit-
breaker is not destroyed and remains fully functional.
Following MCBs
Type
tripping
characteristic
C, D B, Z B, C, D, Z
Rated 
operational 
current
Ith (A)
Preceding fuse type gG
Minimal rated operational current (A) Maximal rated
operational 
current (A)
HLX-SWG-EB
1 4 - - - -
28 63
310
6201080
10 25 16
16 40 20
20 50 32 100
25 63 40
32 80 50
40 100 50 125
HLX-SWG-EB Series
Larson Electronics, LLC Phone: Fax: [phone] www.larsonelectronics.com
[phone]

8
Correction factors
Degree of protection Degree of protection acc. to IEC/EN 60529
Connecting terminals IP20
Material
Enclosure Epoxy resin
Weight
Auxiliary contact
Version see circuit diagrams
Fault signal switch This switch indicates independent switching of the protective device on overload or short-circuit.
Auxiliary switch The switch indicates the status of the protective device (ON/OFF), whether it is switched manually
or automatically.
Correction factors for ambient temperatures other than 30 °C
10889E00 10887E00
10888E00
Type 8562/51 520 g
Type 8562/52 1040 g
Type 8562/53 1400 g
Type 8562/54 2050 g
Rated operating current [A] AC-14 230 V AC 5 A
DC-12 60 V DC 1 A
DC-12 48 V DC 2 A
DC-12 24 V DC 4 A
Min. switching voltage AC 24 V
DC 24 V
Min. switching current AC 10 mA
DC 200 mA
Rated short-circuit limit current:
back-up protection via fusible link
6 A gG
1 kA
HLX-SWG-EB Series
Larson Electronics, LLC Phone: Fax: [phone] www.larsonelectronics.com
[phone]

9
Auxiliary contact
Remote trip This opens the connected protective device when triggered.
Undervoltage trip The undervoltage trip triggers the circuit breaker if the voltage drops below 50% of the rated
operational voltage (0.5 x Ue).
Please contact the manufacturer if operating conditions are non-standard.
Further technical data is available upon request.
The temperature class depends upon where the protective enclosure is installed.
Change the Circuit-Breaker at the end of its service-life to guarantee ongoing
protection!

Upstream fuse/downstream Circuit-Breaker for back-up protection Icc max:
100 kA (80 kA, 400 V with fuse)
Rated operational voltage AC 110 / 415 V
DC 110 / 125 V
AC 24 / 60 V
DC 24 / 48 V
Tripping time < 10 ms
Rated operational voltage AC 240 V
AC/DC 12 V
AC/DC 24 V
AC/DC 48 V
Tripping time < 150 ms
HLX-SWG-EB Series
Larson Electronics, LLC Phone: Fax: [phone] www.larsonelectronics.com
[phone]

10
6 Arrangement and Assembly
6.1 Mounting Orientation
6.2 Dimensional Drawings
These circuit-breakers are explosion-protected devices to IEC/EN 60079-0. They
must be fitted into an enclosure with type of protection increased safety “e“.
04934T00
Vertical,
Handle at the bottom
Dimensional Drawings (All Dimensions in mm) - Subject to Alterations
Ø5,50
117
36 97,50
25
156
146
5,50
R5,50
1,50
18 117
18
R5,50
R2,75
1,50
54
97,50
25
156
146
5,50
HLX-SWG-EB Series
Larson Electronics, LLC Phone: Fax: [phone] www.larsonelectronics.com
[phone]

11
7 Installation
7.1 Mains Connection
7.2 Rated connection cross-section
Solid, stranded or finely stranded copper wires can be used. 1 or 2 wires of the same
cross-section can be fitted under one terminal. Both wires must be made of the same 
material. No preparation is necessary prior to connecting the wires.
Notice: Auxiliary contacts can be led out through the main contact terminals.
observe the cross-sections
note the terminal marking
Connect the cables with particular care.
Choose suitable cables and route them accordingly to ensure that the maximum 
permissible conductor temperatures are not exceeded.
To ensure that creepage distances are maintained remove precisely 10, 17 or 21 mm of
insulation (see chapter “Rated connection cross-section“).
The conductor must not be damaged (scored) when stripping the insulation!
Only heat-resistant cables must be used, if connected directly.
When terminal sleeves are fitted, they must be applied with a suitable tool.
Conductor Main contact terminals Auxiliary contact terminals
single-wire 2 x 1.5 ... 10 mm2*
2 x AWG 16 to 8
2 x 0.75 ... 2.5 mm2
2 x AWG 18 to 13
1 x 10 mm2
(bend the end of the 
conductor)
stranded or 
flexible-stranded
2 x 1.5 ... 6 mm2
2 x AWG 16 to 10
2 x 0.75 ... 1.5 mm2
2 x AWG 18 to 16
Permissible tightening 
torques for the options 
mentioned*
3.0 Nm 1.0 ... 1.2 Nm
9 ... 11 lb.in
*Permissible tightening
torques for 10 mm2
single-wire cable
3.0 Nm
HLX-SWG-EB Series
Larson Electronics, LLC Phone: Fax: [phone] www.larsonelectronics.com
[phone]

12
7.3 Connection diagrams
Connect the device according to the rating plate. It has to be taken care that the neutral
conductor is connected correctly.
8 Commissioning
Before commissioning, ensure that:
the device has been installed in accordance with the standards,
the connections have been correctly made,
the device is not damaged,
all screws and nuts are fully tightened.
Note
As part of the installation procedure, the tight fit of the clamping connection must be che-
cked according to IEC/EN 60079-14, -17.
If necessary, the clamping connections must be retightened to the relevant torques.

Schematic
1 pole 1 pole + N 2 pole 3 pole
3 pole + N 4 pole Universal current +/-,
1 pole
Universal current +/-,
2 pole
Auxiliary contact 
1 CO
Fault indication 
contact 1 CO
Auxiliary contact 
1 NO
Fault indication con-
tact 1 NO
Auxiliary contact 
1 CO
Fault indication 
contact 1 CO
Remote trip Undervoltage
trip
1/2
2/1
2/1
N
1/2
N
2/1 4/3
1/2 3/4
2/1 4/3
1/2 3/4
6/5
5/6
2/1 4/3
1/2 3/4
6/5
N
5/6
N
2/1 4/3
1/2 3/4
6/5 8/7
5/6 7/8
2
+1
+1 -3
24
96
95
98
06
05
08
05
08
98
95
0595
0898 0696
C2 C1
U>
D1 D2
U<
HLX-SWG-EB Series
Larson Electronics, LLC Phone: Fax: [phone] www.larsonelectronics.com
[phone]

13
9 Servicing
Maintenance
The following items must be checked as part of the maintenance schedule:
Check that no cable connections are loose.
Check the plastic enclosure for cracks or other visible signs of damage.
Check that the permitted temperatures, in accordance with IEC/EN 60079-0, are 
adhered to.
Check the reset function of the switch lever.
Check that the device functions correctly.
Maintenance Intervals
Check explosion-protected components regularly to ensure that its fitting, installation and
operation are in accordance with the regulations.
Refer to the corresponding national regulations (e.g. IEC/EN 60079-14) for the type and
scope of tests. The maintenance intervals must be chosen, such that the occurrence of
deficiences, anticipated in the system, can be avoided.
Note the following when establishing the intervals between checks:
the operating conditions (degree of utilization of the Miniatur Circuit-Breaker, 
maloperation)
manufacturers’ instructions in technical documentation (mechanical and electrical
service life)
major changes in the whole system (e.g. changes of zone allocation)
Remedial Action
Take the device out of operation! (Disconnect it from the supply!)
Replace with new device!
10 Transport and Storage
Transport and Storage are only permitted in the original packing.
11 Disposal
Maintenance and repair work on the devicess may only be carried out by appropriately
authorized and trained personnel.
Before any work commences, the devices must be disconnected from the supply.
Observe the relevant national regulations in the country of use!
Any defects, which affect the explosion protection, must be remedied immediately:
Observe the national standards for refuse disposal.
HLX-SWG-EB Series
Larson Electronics, LLC Phone: Fax: [phone] www.larsonelectronics.com
[phone]
