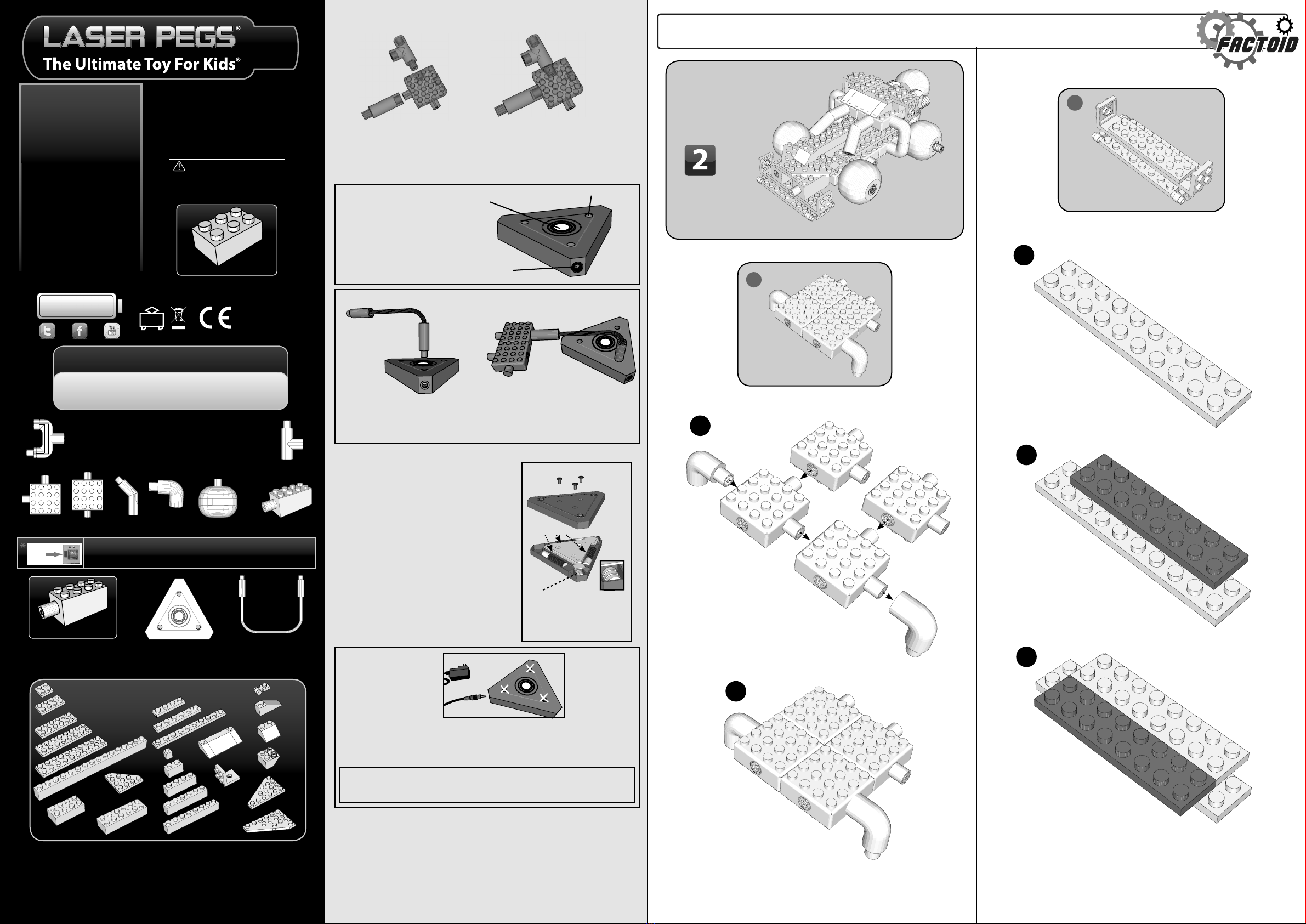

  9. LaserPegs FACTOID 1000 User manual

LaserPegs FACTOID 1000 User manual

Copyright 2013© All Rights Reserved Global & Multiple Patents Pending.
US Patent #7,731,558
www.LaserPegs.com
Please read this manual before you begin!
Failure to follow this manual’s instructions may
result in damage to the Triangle Power Base, AC
Adapter and/or Laser Pegs®. Not adhering to
these instructions will void the manufacturer’s
warranty. The packaging must be kept because
it contains important information.
To construct with Laser Pegs®, slide two pieces together to form a
connection. Slide each piece on and o smoothly. To build away from the
Triangle Power Base, use the Peg Cord in one of the top three peg holes to
light up your model! The 90° Pegs are essential to construction but they DO
NOT LIGHT UP.
This manual is copyright and cannot be reproduced or used online without Laser
Pegs®Ventures LLC permission. Copyright 2013 © All Rights Reserved US Patent
#7,731,558 Additional Global & Multiple Patents Pending. Laser Pegs®Ventures
LLC. 8304 Consumer Ct Sarasota FL. 34240. Contact: [email protected]
Compatible with other construction kits
Each Laser Peg® is color coded on the circuit board inside
each shape. There is No LED In The 90 Degree Peg.
Laser Pegs®link that
allows you to connect to
other construction kits.
Triangle Power
Base
www.LaserPegs.com
Laser Pegs®
Peg Cord
Color
Code
Connecting Pegs
Push button to
turn on/o
Push Red Power Button to
cycle through 3 dierent
light settings
OFF/ON/FLASH/FLASH FASTER.
Red
Button Power
Peg Holes
AC Adapter
Connection
Connect Laser Pegs® TRIANGLE POWER BASE
To build away from the Laser Pegs®
Triangle Power Base use the Peg
Cord in one of the top three holes to
illuminate your model!
Using an
AC Adapter
Remove all batteries
from Laser Pegs® Power
Base before using the
5-volt AC adapter.
When using an AC
Adapter, NEVER
place the Adapter
plug into the Tri-
angle Power Base
top peg holes.
Connect cord to model.
WARNING:
CHOKING HAZARD-Small parts.
Not for children under 3 yrs.
Do not submerge in water.
All additional model instructions can
be downloaded at www.LaserPegs.com
MODEL INSTRUCTIONS
Construction Compatible
Laser Pegs
®
Stackable
When you remove a peg from another
peg or model DO NOT PULL ON CORD!
Replacing Batteries
EN71, RoHS COMPLIANT
This product complies to
all safety requirements
of ASTM F 963
WARNING! Each Laser Peg® draws current from the batteries. Therefore, the more
pegs you use, the quicker you will deplete your battery power! As the power
weakens, the current will slowly fail and some Laser Pegs® will light up (typically
the reds and yellows) and some won’t. When the Laser Pegs® dim, the Laser Pegs®
are not broken, they just need stronger batteries or an AC Adapter.
You have 3 simple options...
1. Use a 5-volt AC Adapter –available from www.LaserPegs.com
2. Change the batteries.
3. Use high quality batteries. They will last a little longer, but they will still deplete
rapidly the more laser pegs you connect!
*To avoid short-circuits, keep metal objects and
other unauthorized materials from obstructing
the peg holes.
The AC Adapter and the Triangle Power Base are to be regularly examined for
damage to the cord, plug, enclosure and other parts, and in the event of such
damage, they must not be used until the damage has been repaired.
1000
For Boys And Girls
Ages 5 And Up
LIGHTED
CONSTRUCTION SET INCLUDES:
• 38 Laser Pegs®
• 159 Construction parts
• Laser Pegs® Peg Cord
• Triangle Power Base
• Instruction Manual
Requires 3-AA Batteries
Batteries NOT
Included
Laser Pegs® Parts List
Construction Parts List
SQUARE
PEG STACKABLE
30 Models+
ANY CREATION YOU CAN BUILD
There is No LED In The 90 Degree Peg
Never connect more than 200
Laser Pegs® when using a 5-volt
(2000mA) AC Adapter.
45° PEG WHEEL PEG
Y PEG STRAIGHT
T-PEG
SQUARE
M-M PEG
90° PEG
x7 x8
x3
x2 x4 x4
x4
x6
x6
x6
x7
x7
x14
x16
x10
x10
x10
x20
x4
x4
x4
x4
x5
x5
x5 x2
x2
x2
x8
x2
x2
x2
x2
1. Remove the three (3) screws.
2. Place three (3) AA batteries in the correct
position - as displayed inside the Triangle
Power Base. (Batteries are to be inserted
with the correct polarity.)
3. Reassemble the Triangle Power Base.
4. Replace the three (3) screws.
5. Push RED Power Button to turn on!
6. Do not mix old and new batteries.
7. Do not mix alkaline, standard (carbon-
zinc), or rechargeable (nickel-cadmium,
NiMH) batteries!
8. Exhausted batteries are to be removed
from the Triangle Power Base.
9. Never connect more than 200 Laser Pegs®
10. Non-rechargeable batteries are not to be
recharged.
11. Rechargeable batteries are only to be
recharged under adult supervision.
12. Rechargeable batteries are to be removed
from the toy before being recharged.
13. The supply terminals are not to be short-
circuited.
Add 3-AA Batteries
3-AA Batteries
Remove LR-44 Batteries
The LR-44 batteries are only for the
“Try-Me” function, they should be re-
moved from the Triangle Power Base
and replaced with 3 -“AA” batteries
before giving it to the child.
A
Model
Diculty
Level
DUNE BUGGY
1
STEP
2
STEP
3
STEP
4
STEP
5
STEP
B
DUNE BUGGY - Called "Pink Panthers" by elite British forces, these once recreational vehicles are
now frequently used by militaries across the world.
Copyright 2013© All Rights Reserved Global & Multiple Patents Pending.
US Patent #7,731,558
www.LaserPegs.com
A
6
STEP
7
STEP
8
STEP
9
STEP
10
STEP
11
STEP
14
STEP
12
STEP
16
STEP
15
STEP
13
STEP
C
COMBINE
COMBINE
Copyright 2013© All Rights Reserved Global & Multiple Patents Pending.
US Patent #7,731,558
www.LaserPegs.com
20
STEP
21
STEP
27
STEP
22
STEP
23
STEP
24
STEP
25
STEP
26
STEP
18
STEP
19
STEP
17
STEP
ATTACH MODEL TO THE
TRIANGLE POWER BASE
WITH THE PEG CORD
COMBINE
B
FLIP
FLIP
