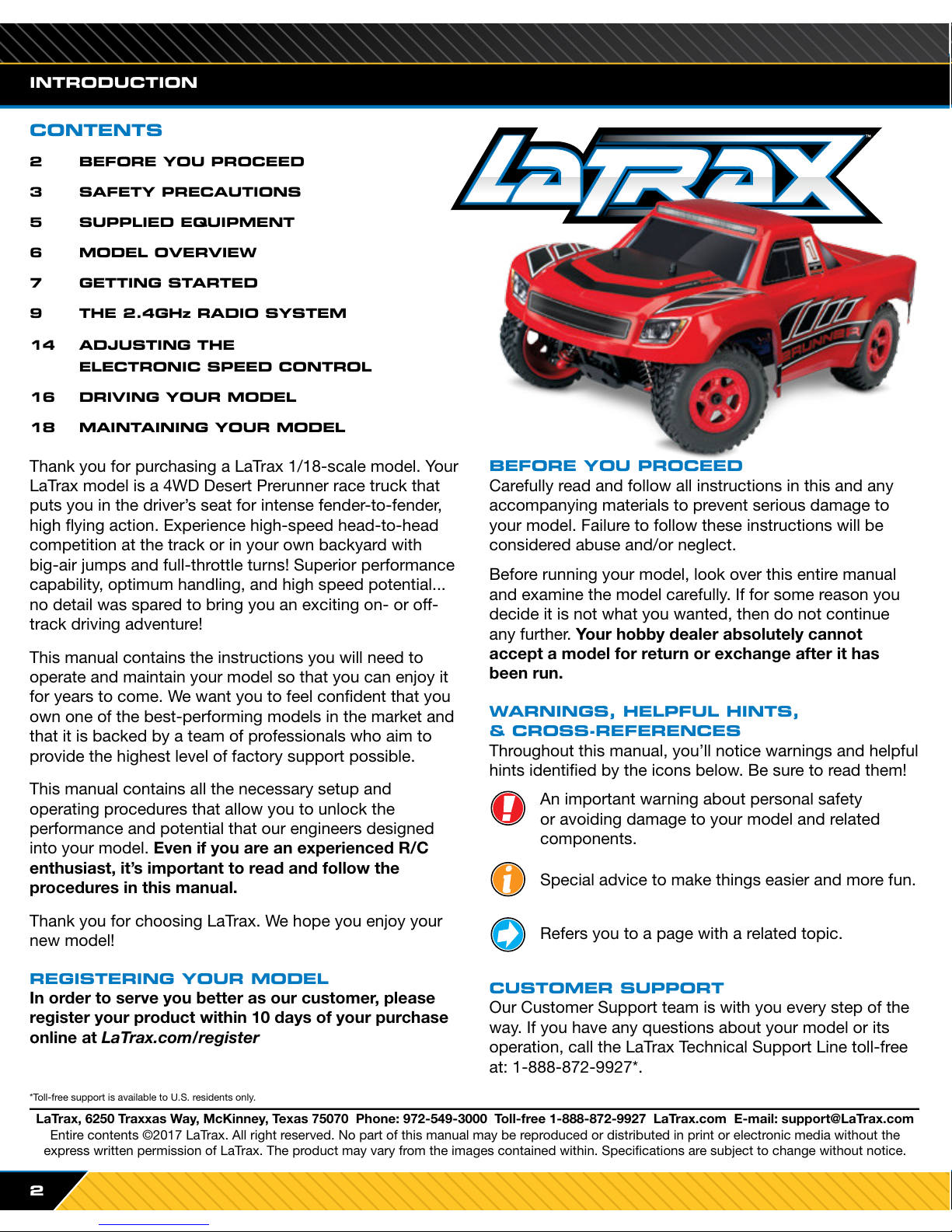

Thank you for purchasing a LaTrax 1/18-scale model. Your
LaTrax model is a 4WD Desert Prerunner race truck that
puts you in the driver’s seat for intense fender-to-fender,
high ying action. Experience high-speed head-to-head
competition at the track or in your own backyard with
big-air jumps and full-throttle turns! Superior performance
capability, optimum handling, and high speed potential...
no detail was spared to bring you an exciting on- or off-
track driving adventure!
This manual contains the instructions you will need to
operate and maintain your model so that you can enjoy it
for years to come. We want you to feel condent that you
own one of the best-performing models in the market and
that it is backed by a team of professionals who aim to
provide the highest level of factory support possible.
This manual contains all the necessary setup and
operating procedures that allow you to unlock the
performance and potential that our engineers designed
into your model. Even if you are an experienced R/C
enthusiast, it’s important to read and follow the
procedures in this manual.
Thank you for choosing LaTrax. We hope you enjoy your
new model!
REGISTERING YOUR MODEL
In order to serve you better as our customer, please
register your product within 10 days of your purchase
online at LaTrax.com/register
BEFORE YOU PROCEED
Carefully read and follow all instructions in this and any
accompanying materials to prevent serious damage to
your model. Failure to follow these instructions will be
considered abuse and/or neglect.
Before running your model, look over this entire manual
and examine the model carefully. If for some reason you
decide it is not what you wanted, then do not continue
any further. Your hobby dealer absolutely cannot
accept a model for return or exchange after it has
been run.
WARNINGS, HELPFUL HINTS,
& CROSS-REFERENCES
Throughout this manual, you’ll notice warnings and helpful
hints identied by the icons below. Be sure to read them!
CUSTOMER SUPPORT
Our Customer Support team is with you every step of the
way. If you have any questions about your model or its
operation, call the LaTrax Technical Support Line toll-free
at: 1-888-872-9927*.
LaTrax, 6250 Traxxas Way, McKinney, Texas 75070 Phone: [phone] Toll-free 1-888-872-9927 LaTrax.com E-mail: [e-mail]
Entire contents ©2017 LaTrax. All right reserved. No part of this manual may be reproduced or distributed in print or electronic media without the
express written permission of LaTrax. The product may vary from the images contained within. Specications are subject to change without notice.
INTRODUCTION
An important warning about personal safety
or avoiding damage to your model and related
components.
Special advice to make things easier and more fun.
Refers you to a page with a related topic.
*Toll-free support is available to U.S. residents only.

www.modellmarkt24.chwww.modellmarkt24.ch
3

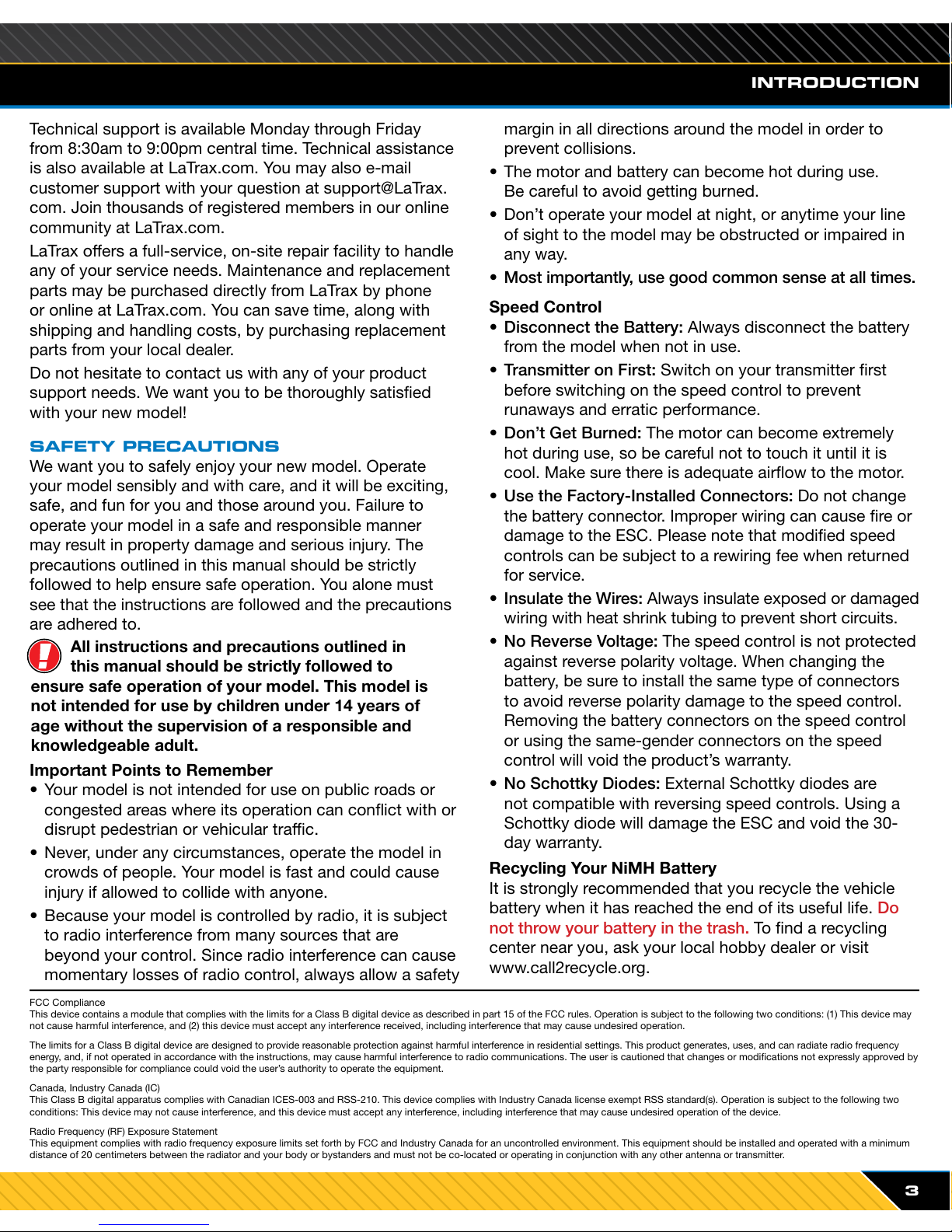

Technical support is available Monday through Friday
from 8:30am to 9:00pm central time. Technical assistance
is also available at LaTrax.com. You may also e-mail
customer support with your question at support@LaTrax.
com. Join thousands of registered members in our online
community at LaTrax.com.
LaTrax offers a full-service, on-site repair facility to handle
any of your service needs. Maintenance and replacement
parts may be purchased directly from LaTrax by phone
or online at LaTrax.com. You can save time, along with
shipping and handling costs, by purchasing replacement
parts from your local dealer.
Do not hesitate to contact us with any of your product
support needs. We want you to be thoroughly satised
with your new model!
SAFETY PRECAUTIONS
We want you to safely enjoy your new model. Operate
your model sensibly and with care, and it will be exciting,
safe, and fun for you and those around you. Failure to
operate your model in a safe and responsible manner
may result in property damage and serious injury. The
precautions outlined in this manual should be strictly
followed to help ensure safe operation. You alone must
see that the instructions are followed and the precautions
are adhered to.
Important Points to Remember
• Your model is not intended for use on public roads or
congested areas where its operation can conict with or
disrupt pedestrian or vehicular trafc.
• Never, under any circumstances, operate the model in
crowds of people. Your model is fast and could cause
injury if allowed to collide with anyone.
• Because your model is controlled by radio, it is subject
to radio interference from many sources that are
beyond your control. Since radio interference can cause
momentary losses of radio control, always allow a safety
margin in all directions around the model in order to
prevent collisions.
• The motor and battery can become hot during use.
Be careful to avoid getting burned.
• Don’t operate your model at night, or anytime your line
of sight to the model may be obstructed or impaired in
any way.
• Most importantly, use good common sense at all times.
Speed Control
• Disconnect the Battery: Always disconnect the battery
from the model when not in use.
• Transmitter on First: Switch on your transmitter rst
before switching on the speed control to prevent
runaways and erratic performance.
• Don’t Get Burned: The motor can become extremely
hot during use, so be careful not to touch it until it is
cool. Make sure there is adequate airow to the motor.
• Use the Factory-Installed Connectors: Do not change
the battery connector. Improper wiring can cause re or
damage to the ESC. Please note that modied speed
controls can be subject to a rewiring fee when returned
for service.
• Insulate the Wires: Always insulate exposed or damaged
wiring with heat shrink tubing to prevent short circuits.
• No Reverse Voltage: The speed control is not protected
against reverse polarity voltage. When changing the
battery, be sure to install the same type of connectors
to avoid reverse polarity damage to the speed control.
Removing the battery connectors on the speed control
or using the same-gender connectors on the speed
control will void the product’s warranty.
• No Schottky Diodes: External Schottky diodes are
not compatible with reversing speed controls. Using a
Schottky diode will damage the ESC and void the 30-
day warranty.
Recycling Your NiMH Battery
It is strongly recommended that you recycle the vehicle
battery when it has reached the end of its useful life. Do
not throw your battery in the trash. To nd a recycling
center near you, ask your local hobby dealer or visit
www.call2recycle.org.
FCC Compliance
This device contains a module that complies with the limits for a Class B digital device as described in part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
The limits for a Class B digital device are designed to provide reasonable protection against harmful interference in residential settings. This product generates, uses, and can radiate radio frequency
energy, and, if not operated in accordance with the instructions, may cause harmful interference to radio communications. The user is cautioned that changes or modications not expressly approved by
the party responsible for compliance could void the user’s authority to operate the equipment.
Canada, Industry Canada (IC)
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two
conditions: This device may not cause interference, and this device must accept any interference, including interference that may cause undesired operation of the device.
Radio Frequency (RF) Exposure Statement
This equipment complies with radio frequency exposure limits set forth by FCC and Industry Canada for an uncontrolled environment. This equipment should be installed and operated with a minimum
distance of 20 centimeters between the radiator and your body or bystanders and must not be co-located or operating in conjunction with any other antenna or transmitter.
INTRODUCTION
All instructions and precautions outlined in
this manual should be strictly followed to
ensure safe operation of your model. This model is
not intended for use by children under 14 years of
age without the supervision of a responsible and
knowledgeable adult.

www.modellmarkt24.chwww.modellmarkt24.ch
4

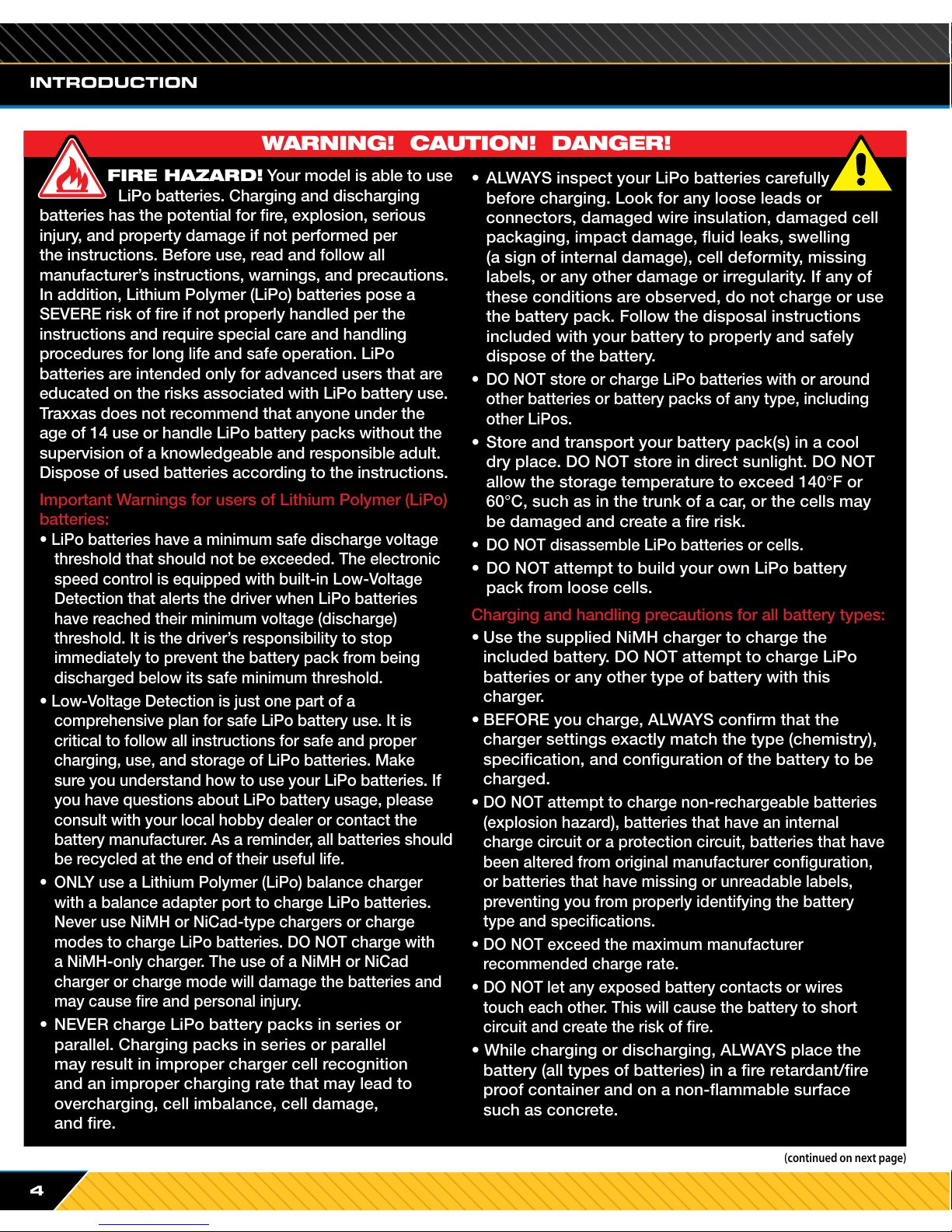

Your model is able to use
LiPo batteries. Charging and discharging
batteries has the potential for re, explosion, serious
injury, and property damage if not performed per
the instructions. Before use, read and follow all
manufacturer’s instructions, warnings, and precautions.
In addition, Lithium Polymer (LiPo) batteries pose a
SEVERE risk of re if not properly handled per the
instructions and require special care and handling
procedures for long life and safe operation. LiPo
batteries are intended only for advanced users that are
educated on the risks associated with LiPo battery use.
Traxxas does not recommend that anyone under the
age of 14 use or handle LiPo battery packs without the
supervision of a knowledgeable and responsible adult.
Dispose of used batteries according to the instructions.
Important Warnings for users of Lithium Polymer (LiPo)
batteries:
• LiPo batteries have a minimum safe discharge voltage
threshold that should not be exceeded. The electronic
speed control is equipped with built-in Low-Voltage
Detection that alerts the driver when LiPo batteries
have reached their minimum voltage (discharge)
threshold. It is the driver’s responsibility to stop
immediately to prevent the battery pack from being
discharged below its safe minimum threshold.
• Low-Voltage Detection is just one part of a
comprehensive plan for safe LiPo battery use. It is
critical to follow all instructions for safe and proper
charging, use, and storage of LiPo batteries. Make
sure you understand how to use your LiPo batteries. If
you have questions about LiPo battery usage, please
consult with your local hobby dealer or contact the
battery manufacturer. As a reminder, all batteries should
be recycled at the end of their useful life.
• ONLY use a Lithium Polymer (LiPo) balance charger
with a balance adapter port to charge LiPo batteries.
Never use NiMH or NiCad-type chargers or charge
modes to charge LiPo batteries. DO NOT charge with
a NiMH-only charger. The use of a NiMH or NiCad
charger or charge mode will damage the batteries and
may cause re and personal injury.
• NEVER charge LiPo battery packs in series or
parallel. Charging packs in series or parallel
may result in improper charger cell recognition
and an improper charging rate that may lead to
overcharging, cell imbalance, cell damage,
and re.
FIRE HAZARD!
WARNING! CAUTION! DANGER!
• ALWAYS inspect your LiPo batteries carefully
before charging. Look for any loose leads or
connectors, damaged wire insulation, damaged cell
packaging, impact damage, uid leaks, swelling
(a sign of internal damage), cell deformity, missing
labels, or any other damage or irregularity. If any of
these conditions are observed, do not charge or use
the battery pack. Follow the disposal instructions
included with your battery to properly and safely
dispose of the battery.
• DO NOT store or charge LiPo batteries with or around
other batteries or battery packs of any type, including
other LiPos.
• Store and transport your battery pack(s) in a cool
dry place. DO NOT store in direct sunlight. DO NOT
allow the storage temperature to exceed 140°F or
60°C, such as in the trunk of a car, or the cells may
be damaged and create a re risk.
• DO NOT disassemble LiPo batteries or cells.
• DO NOT attempt to build your own LiPo battery
pack from loose cells.
Charging and handling precautions for all battery types:
• Use the supplied NiMH charger to charge the
included battery. DO NOT attempt to charge LiPo
batteries or any other type of battery with this
charger.
• BEFORE you charge, ALWAYS conrm that the
charger settings exactly match the type (chemistry),
specication, and conguration of the battery to be
charged.
• DO NOT attempt to charge non-rechargeable batteries
(explosion hazard), batteries that have an internal
charge circuit or a protection circuit, batteries that have
been altered from original manufacturer conguration,
or batteries that have missing or unreadable labels,
preventing you from properly identifying the battery
type and specications.
• DO NOT exceed the maximum manufacturer
recommended charge rate.
• DO NOT let any exposed battery contacts or wires
touch each other. This will cause the battery to short
circuit and create the risk of re.
• While charging or discharging, ALWAYS place the
battery (all types of batteries) in a re retardant/re
proof container and on a non-ammable surface
such as concrete.
(continued on next page)
INTRODUCTION

www.modellmarkt24.chwww.modellmarkt24.ch
5

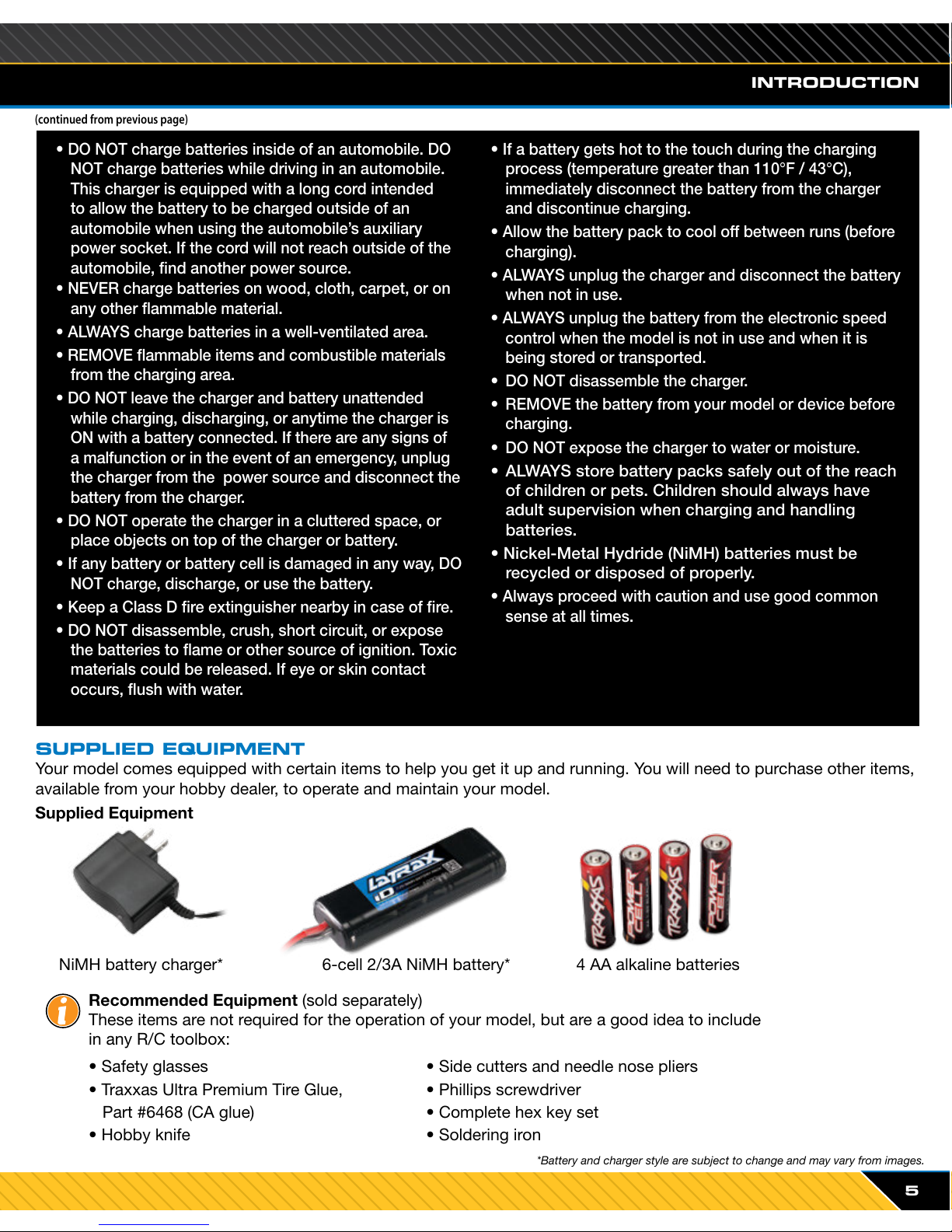

• DO NOT charge batteries inside of an automobile. DO
NOT charge batteries while driving in an automobile.
This charger is equipped with a long cord intended
to allow the battery to be charged outside of an
automobile when using the automobile’s auxiliary
power socket. If the cord will not reach outside of the
automobile, nd another power source.
• NEVER charge batteries on wood, cloth, carpet, or on
any other ammable material.
• ALWAYS charge batteries in a well-ventilated area.
• REMOVE ammable items and combustible materials
from the charging area.
• DO NOT leave the charger and battery unattended
while charging, discharging, or anytime the charger is
ON with a battery connected. If there are any signs of
a malfunction or in the event of an emergency, unplug
the charger from the power source and disconnect the
battery from the charger.
• DO NOT operate the charger in a cluttered space, or
place objects on top of the charger or battery.
• If any battery or battery cell is damaged in any way, DO
NOT charge, discharge, or use the battery.
• Keep a Class D re extinguisher nearby in case of re.
• DO NOT disassemble, crush, short circuit, or expose
the batteries to ame or other source of ignition. Toxic
materials could be released. If eye or skin contact
occurs, ush with water.
• If a battery gets hot to the touch during the charging
process (temperature greater than 110°F / 43°C),
immediately disconnect the battery from the charger
and discontinue charging.
• Allow the battery pack to cool off between runs (before
charging).
• ALWAYS unplug the charger and disconnect the battery
when not in use.
• ALWAYS unplug the battery from the electronic speed
control when the model is not in use and when it is
being stored or transported.
• DO NOT disassemble the charger.
• REMOVE the battery from your model or device before
charging.
• DO NOT expose the charger to water or moisture.
• ALWAYS store battery packs safely out of the reach
of children or pets. Children should always have
adult supervision when charging and handling
batteries.
• Nickel-Metal Hydride (NiMH) batteries must be
recycled or disposed of properly.
• Always proceed with caution and use good common
sense at all times.
(continued from previous page)
INTRODUCTION
SUPPLIED EQUIPMENT
Your model comes equipped with certain items to help you get it up and running. You will need to purchase other items,
available from your hobby dealer, to operate and maintain your model.
NiMH battery charger* 4 AA alkaline batteries6-cell 2/3A NiMH battery*
Supplied Equipment
Recommended Equipment (sold separately)
These items are not required for the operation of your model, but are a good idea to include
in any R/C toolbox:
• Safety glasses
• Traxxas Ultra Premium Tire Glue,
Part #6468 (CA glue)
• Hobby knife
• Side cutters and needle nose pliers
• Phillips screwdriver
• Complete hex key set
• Soldering iron
*Battery and charger style are subject to change and may vary from images.

www.modellmarkt24.chwww.modellmarkt24.ch
6

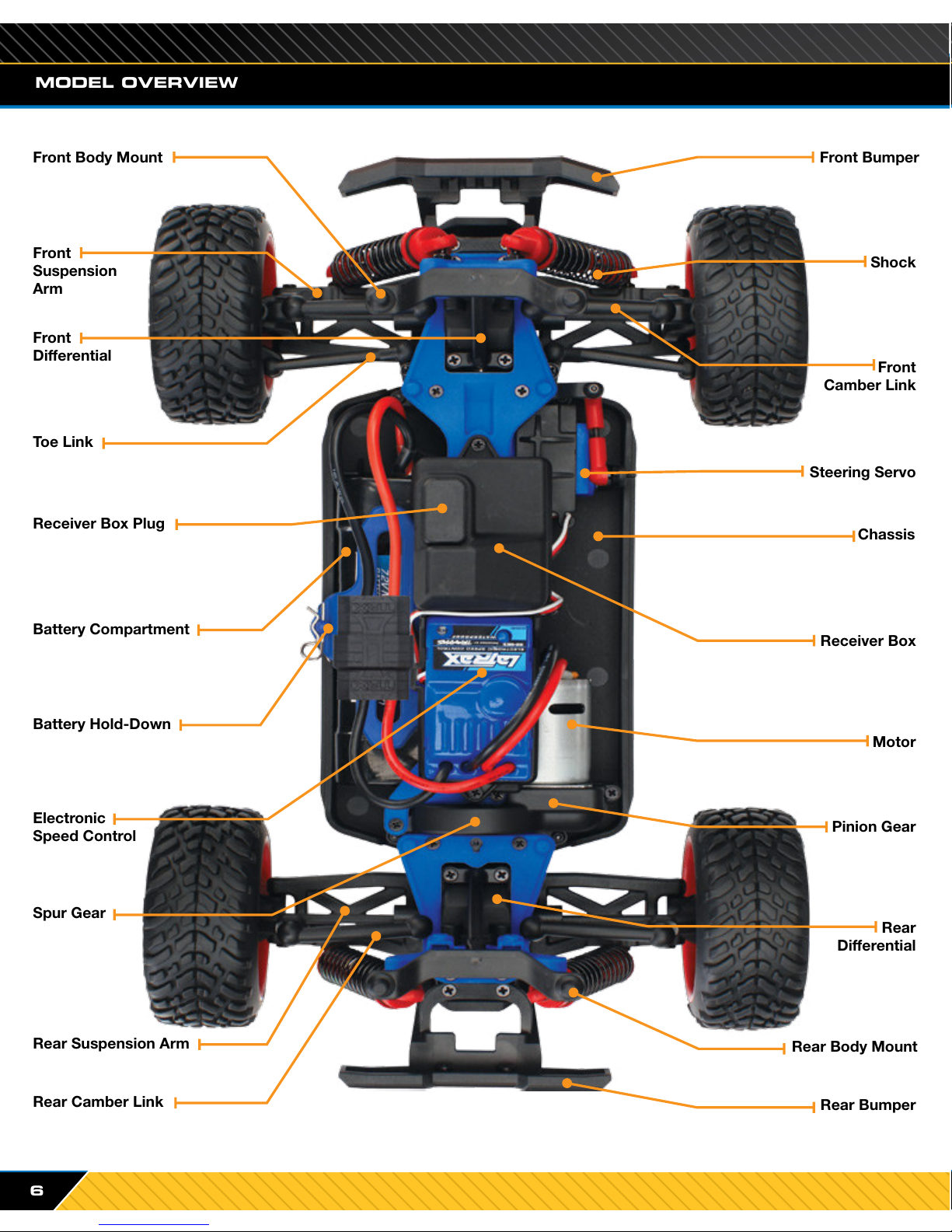

Rear Camber Link
Steering Servo
Front
Camber Link
Rear
Differential
Rear Body Mount
Rear Bumper
Chassis
Receiver Box
Shock
Battery Compartment
Receiver Box Plug
Electronic
Speed Control Pinion Gear
Front Body Mount
Battery Hold-Down
Motor
Front Bumper
Spur Gear
Rear Suspension Arm
Toe Link
Front
Differential
Front
Suspension
Arm
MODEL OVERVIEW

www.modellmarkt24.chwww.modellmarkt24.ch
7
GETTING STARTED

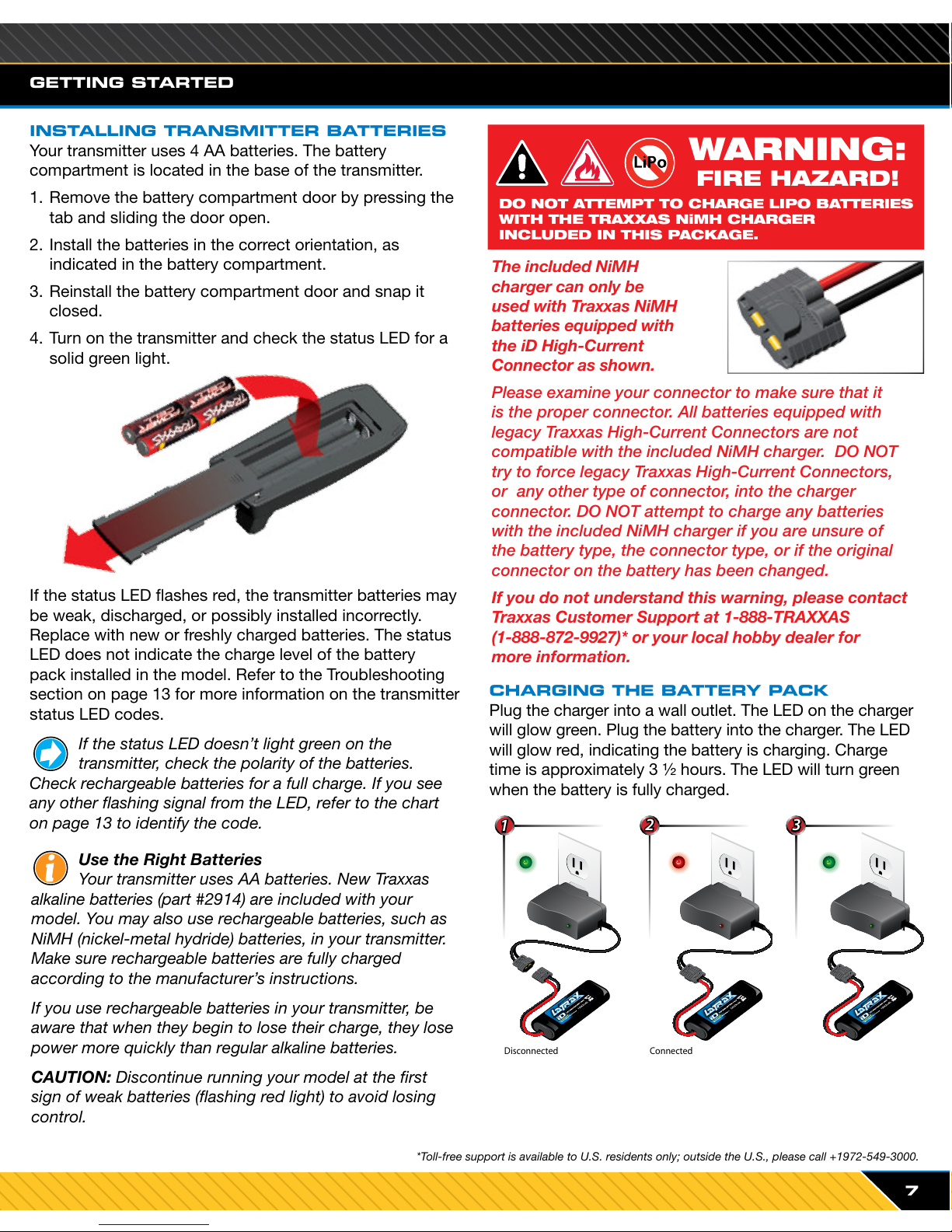

INSTALLING TRANSMITTER BATTERIES
Your transmitter uses 4 AA batteries. The battery
compartment is located in the base of the transmitter.
1. Remove the battery compartment door by pressing the
tab and sliding the door open.
2. Install the batteries in the correct orientation, as
indicated in the battery compartment.
3. Reinstall the battery compartment door and snap it
closed.
4. Turn on the transmitter and check the status LED for a
solid green light.
If the status LED ashes red, the transmitter batteries may
be weak, discharged, or possibly installed incorrectly.
Replace with new or freshly charged batteries. The status
LED does not indicate the charge level of the battery
pack installed in the model. Refer to the Troubleshooting
section on page 13 for more information on the transmitter
status LED codes.
If the status LED doesn’t light green on the
transmitter, check the polarity of the batteries.
Check rechargeable batteries for a full charge. If you see
any other ashing signal from the LED, refer to the chart
on page 13 to identify the code.
CHARGING THE BATTERY PACK
Plug the charger into a wall outlet. The LED on the charger
will glow green. Plug the battery into the charger. The LED
will glow red, indicating the battery is charging. Charge
time is approximately 3 ½ hours. The LED will turn green
when the battery is fully charged.
Use the Right Batteries
Your transmitter uses AA batteries. New Traxxas
alkaline batteries (part #2914) are included with your
model. You may also use rechargeable batteries, such as
NiMH (nickel-metal hydride) batteries, in your transmitter.
Make sure rechargeable batteries are fully charged
according to the manufacturer’s instructions.
If you use rechargeable batteries in your transmitter, be
aware that when they begin to lose their charge, they lose
power more quickly than regular alkaline batteries.
CAUTION: Discontinue running your model at the rst
sign of weak batteries (ashing red light) to avoid losing
control.
WARNING:
FIRE HAZARD!
DO NOT ATTEMPT TO CHARGE LIPO BATTERIES
WITH THE TRAXXAS NiMH CHARGER
INCLUDED IN THIS PACKAGE.
The included NiMH
charger can only be
used with Traxxas NiMH
batteries equipped with
the iD High-Current
Connector as shown.
Please examine your connector to make sure that it
is the proper connector. All batteries equipped with
legacy Traxxas High-Current Connectors are not
compatible with the included NiMH charger. DO NOT
try to force legacy Traxxas High-Current Connectors,
or any other type of connector, into the charger
connector. DO NOT attempt to charge any batteries
with the included NiMH charger if you are unsure of
the battery type, the connector type, or if the original
connector on the battery has been changed.
If you do not understand this warning, please contact
Traxxas Customer Support at 1-888-TRAXXAS
(1-888-872-9927)* or your local hobby dealer for
more information.
KA2555-R01
23
1
Disconnected Connected
KA2555-R01
KA2555-R01
*Toll-free support is available to U.S. residents only; outside the U.S., please call [phone].

www.modellmarkt24.chwww.modellmarkt24.ch
8
GETTING STARTED

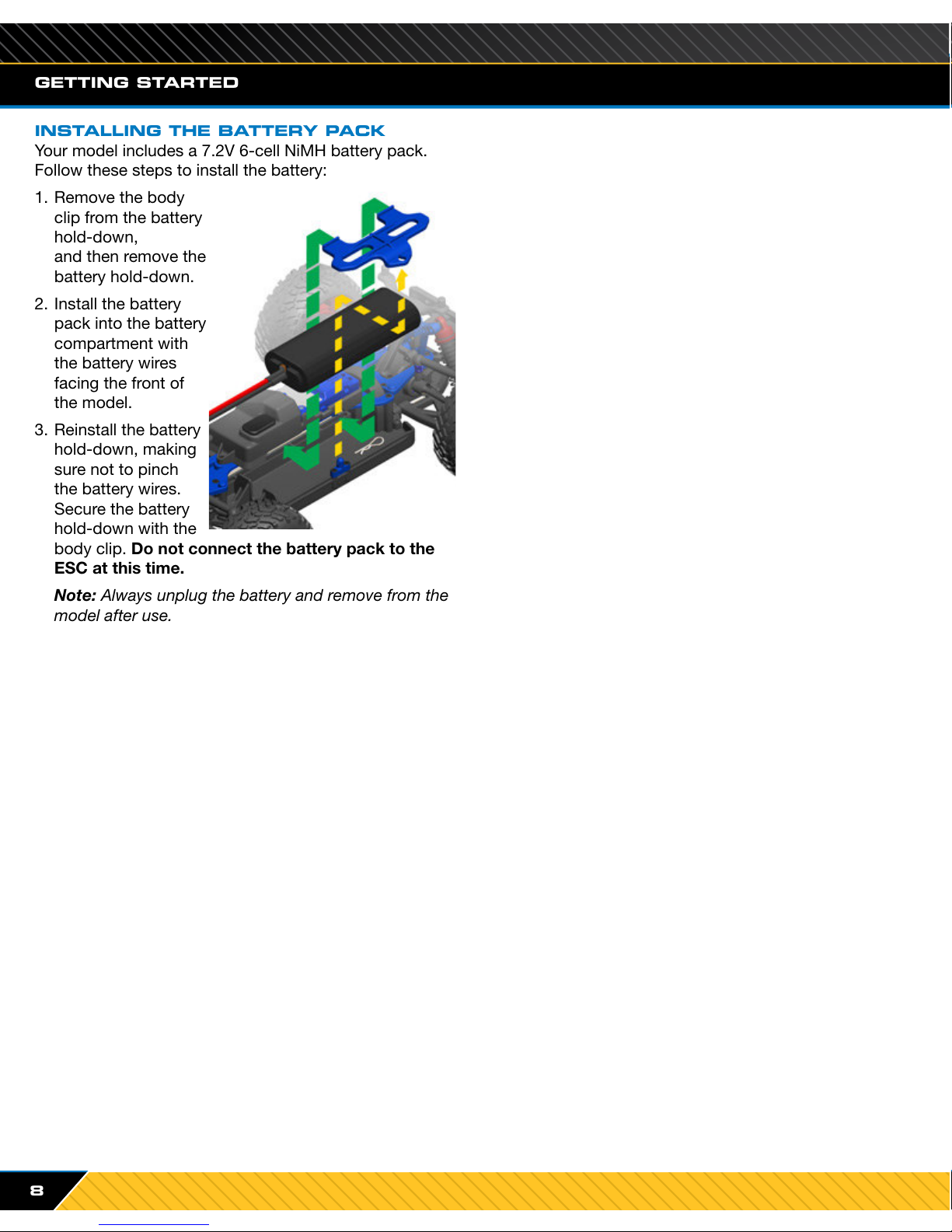

INSTALLING THE BATTERY PACK
Your model includes a 7.2V 6-cell NiMH battery pack.
Follow these steps to install the battery:
1. Remove the body
clip from the battery
hold-down,
and then remove the
battery hold-down.
2. Install the battery
pack into the battery
compartment with
the battery wires
facing the front of
the model.
3. Reinstall the battery
hold-down, making
sure not to pinch
the battery wires.
Secure the battery
hold-down with the
body clip. Do not connect the battery pack to the
ESC at this time.
Note: Always unplug the battery and remove from the
model after use.

www.modellmarkt24.chwww.modellmarkt24.ch
9
THE 2.4GHz RADIO SYSTEM
THE 2.4GHz RADIO SYSTEM
Your model includes a 2.4GHz transmitter. When powered
on, the transmitter will automatically locate and lock onto an
available frequency, allowing multiple models to be raced
together without frequency conicts. The included radio
system has been programmed for your model at the factory
and does not require adjustment, but it does have settings
you may need to access to maintain proper operation of
your model. The detailed instructions (page 11) included
in this manual will help you understand and operate the
functions of the radio system. For additional information and
how-to videos, visit LaTrax.com.
RADIO AND POWER
SYSTEM TERMINOLOGY
Please take a moment to familiarize yourself with these
radio and power system terms. They will be used
throughout this manual.
2.4GHz Spread Spectrum – This model is equipped with
the latest R/C technology. Unlike AM and FM systems
that require frequency crystals and are prone to frequency
conicts, the 2.4GHz radio system automatically selects
and locks onto an open frequency, offering superior
resistance to interference and “glitching.”
BEC (Battery Eliminator Circuit) - The BEC can either
be in the receiver or in the ESC. This circuit allows the
receiver and servos to be powered by the main battery
pack in an electric model. This eliminates the need to
carry a separate pack of 4 AA batteries to power the radio
equipment.
Current - Current is a measure of power ow through the
electronics, usually measured in amps. If you look at wire
like a garden hose, current is a measure of how much
water is owing through the hose.
Electronic Speed Control (ESC) - An electronic speed
control is the electronic motor control inside the model.
ESCs use power more efciently than mechanical speed
controls so that the battery runs longer. An ESC also has
circuitry that prevents loss of steering and throttle control
as the battery loses its charge.
Frequency band - The radio frequency used by the
transmitter to send signals to your model. This model
operates on the 2.4GHz direct-sequence spread
spectrum.
mAh – Abbreviation for milliamp hour, a measure of the
capacity of the battery pack. The higher the number, the
longer the battery will last between recharges.
Neutral position - The standing position that the servos
seek when the transmitter controls are at the neutral
setting.
NiMH - Abbreviation for nickel-metal hydride.
Rechargeable NiMH batteries offer high current handling
and much greater resistance to the “memory” effect.
NiMH batteries generally allow higher capacity than
NiCad batteries. They can last up to 500 charge cycles. A
peak charger designed for NiMH batteries is required for
optimal performance.
Receiver - The radio unit inside your model that receives
signals from the transmitter and relays them to the servos.
Resistance - In an electrical sense, resistance is a
measure of how an object resists or obstructs the ow
of current through it. When ow is constricted, energy
is converted to heat and is lost. The power system is
optimized to reduce electrical resistance and the resulting
power-robbing heat.
Servo - Small motor unit in your model that operates the
steering mechanism.
Transmitter - The hand-held radio unit that sends throttle
and steering instructions to your model.
Trim - The ne-tuning adjustment of the neutral position
of the servos, made by adjusting the steering trim knob on
the face of the transmitter.
Thermal Shutdown Protection - Temperature sensing
electronics used in the ESC detect overloading and
overheating of the transistor circuitry. If excessive
temperature is detected, the unit automatically shuts
down to prevent damage to the electronics.
2-channel radio system - The 2.4GHz radio system,
consisting of the receiver, the transmitter, and the servos.
The system uses two channels: one to operate the throttle
and one to operate the steering.
Voltage - Voltage is a measure of the electrical potential
difference between two points, such as between the
positive battery terminal and ground. Using the analogy
of the garden hose, while current is the quantity of water
ow in the hose, voltage corresponds to the pressure that
is forcing the water through the hose.

www.modellmarkt24.chwww.modellmarkt24.ch
10
RADIO SYSTEM RULES
• The 2.4GHz transmitter has a directional antenna.
For maximum range, hold the transmitter upright and
pointed in the direction of the model. Pointing the
transmitter away from the model will reduce radio range.
• Always turn your transmitter on rst and off last. This
procedure will help to prevent your model from receiving
stray signals from another transmitter, or other source,
and running out of control. Your model has electronic
failsafes to prevent this type of malfunction, but the rst,
best defense against a runaway model is to always turn
the transmitter on rst and off last.
• Always use new or freshly charged batteries for the
radio system. Weak batteries will limit the radio signal
between the receiver and the transmitter. Loss of the
radio signal can cause you to lose control of your model.
• In order for the transmitter and receiver to bind to one
another, the receiver in the model must be turned on
within 20 seconds of turning on the transmitter. The
transmitter LED will ash fast red, indicating a failure to
link. If you miss it, simply turn off the transmitter and
start over.
• DO NOT CUT any part of the receiver’s antenna wire.
Cutting the antenna will reduce range.
THE 2.4GHz RADIO SYSTEM
Steering
Trim
Steering Wheel
Power
Switch
Battery Compartment
Set Button
Red/Green
Status LED
TRANSMITTER
RADIO SYSTEM WIRING DIAGRAM
Antenna
Receiver
CH1 - Channel 1*
CH1 - Steering Servo
CH2 - Electronic
Speed Control
CH3 - Channel 3*
Motor
Battery Connector
(Male) to battery
Channel 2
Electronic
Speed Control
Channel 1
Steering Servo
*Not used
Throttle Trigger
When rechargeable batteries begin to lose their
charge, they will fade much faster than alkaline dry
cells. Stop immediately at the rst sign of weak batteries.
Never turn the transmitter off when the battery pack is
plugged in. The model could run out of control.
Always turn your
transmitter on rst. Plug in the battery. Turn on the model.

www.modellmarkt24.chwww.modellmarkt24.ch
11
RADIO SYSTEM CONTROLS
Using Reverse: While driving, push the throttle
trigger forward to apply brakes. Once stopped,
return the throttle trigger to neutral. Push the throttle
trigger forward again to engage proportional reverse.
USING THE RADIO SYSTEM
The 2.4GHz Radio System has been adjusted at the
factory for correct operation with your model. The
adjustment should be checked before running the model,
in case of movement during shipping. Here’s how:
1. Turn the transmitter switch on. The status LED on the
transmitter should be solid green (not ashing).
2. Elevate the model on a block or a stand so that all the
tires are off the ground. Make sure your hands are clear
of the moving parts of the model.
3. Plug the battery pack connector into the speed control
connector.
4. The on/off switch is integrated into the speed control.
Press and release the EZ-Set button to turn the model
on. The LED will shine RED (see note, below). To turn
the ESC off, press and hold the EZ-Set button until the
LED turns off. Note: If the LED shines green, Low-
Voltage Detection is activated. This may cause poor
performance from the included NiMH battery pack. The
default factory setting is for Low-Voltage Detection to
be disabled (LED shines red). See page 15 for more
information on Low-Voltage Detection.
5. Turn the steering wheel on the transmitter back and
forth and check for rapid operation of the steering
servo. Also, check that the steering mechanism is not
loose or binding. If the steering operates slowly, check
for weak batteries.
6. When looking down at the model, the front wheels
should be pointing straight ahead. If the wheels are
turned slightly to the left or right, slowly adjust the
steering trim control on the transmitter until they are
pointing straight ahead.
7. Gently operate the throttle trigger to ensure that you
have forward and reverse operation, and that the motor
stops when the throttle trigger is at neutral.
8. Once adjustments are made, turn off the receiver on
your model, followed by the hand-held transmitter.
Range-Testing the Radio System
Before each running session with your model, you should
range-test your radio system to ensure that it operates
properly.
1. Turn on the radio system and check its operation, as
described in the previous section.
2. Have a friend hold the model. Make sure hands and
clothing are clear of the wheels and other moving parts
on the model.
3. Walk away from the model with the transmitter until
you reach the farthest distance you plan to operate the
model.
4. Operate the controls on the transmitter once again to
be sure that the model responds correctly.
5. Do not attempt to operate the model if there is
any problem with the radio system or any external
interference with your radio signal at your location.
Higher Speeds Require Greater Distance
The faster you drive your model, the more quickly it will
near the limit of radio range. At top speed, this model can
cover up to 40 feet per second! It’s a thrill, but use caution
to keep your model in range. If you want to see your
model achieve its maximum speed, it is best to position
yourself in the middle of the model’s running area, not
the far end, so you drive the model toward and past your
position. In addition to maximizing the radio’s range, this
technique will keep your model closer to you, making it
easier to see and control.
No matter how fast or far you drive your model,
always leave adequate space between you, the
model, and others. Never drive directly toward
yourself or others.
THE 2.4GHz RADIO SYSTEM
Forward
Neutral
Brake/Reverse
T
U
R
N
R
I
G
H
T
T
U
R
N
L
E
F
T

www.modellmarkt24.chwww.modellmarkt24.ch
12
RADIO SYSTEM BASIC ADJUSTMENTS
Steering Trim
The steering trim knob located on the face of
the transmitter adjusts the neutral (center) point
of the steering channel. If your model pulls to the right or
left when the steering wheel is centered, turn the knob
until the model drives straight when the steering wheel is
centered.
Channel Reversing
The 2.4GHz transmitter has been programmed with
the correct servo direction settings for your model and
should not require adjustment. These instructions are for
reference and troubleshooting only.
Reversing a channel reverses the direction of the
corresponding servo. For example, if you turn the steering
wheel to the right and the model turns left, Channel 1
would need to be reversed to correct the servo direction.
Use the following procedures to reverse the steering and
throttle channels, if necessary. Servo reversing should
only be required if you accidentally reset the direction
of a channel. Do not reverse the steering or throttle
channels unless necessary.
Steering reversing procedure:
1. Press and hold the SET button on the transmitter for
two seconds. The status LED will ash green.
2. Turn and hold the steering wheel to the full left or full
right position (it does not matter which position you
choose).
3. While holding the steering wheel in position, press the
SET button to reverse the channel.
4. The channel is now reversed. Conrm correct servo
operation before running your model.
Throttle reversing procedure:
Note: Throttle reversing is often times unnecessary on
electric models, as issues with the throttle can usually
be solved by reprogramming the speed control and/
or verifying that the motor is wired correctly. Before
attempting to reverse the throttle channel using the
procedure below, you should rst recalibrate the speed
control. Refer to “ESC Setup Programming” on page 15.
1. Press and hold the SET button on the transmitter for
two seconds. The status LED will ash green.
2. Move and hold the throttle trigger to the full forward or
full brake position (it does not matter which position you
choose).
3. While holding the throttle trigger in position, press the
SET button to reverse the channel.
4. The channel is now reversed. Recalibrate the speed
control and then conrm correct servo operation before
running your model.
Binding Instructions
For proper operation, the transmitter and receiver must
be electronically “bound”. This has been done for you at
the factory. Should you ever need to re-bind the system
or bind to an additional transmitter or receiver, follow
these instructions. Note: The receiver must be connected
to a 4.8-6.0v (nominal) power source for binding and the
transmitter and receiver must be within 5 feet of each other.
1. Press and hold the SET button on the transmitter.
2. Turn on the transmitter and release the SET button.
The status LED will ash red slowly, indicating that the
transmitter is in bind mode.
3. Press and hold the LINK button on the receiver.
4. Turn on the speed control by pressing the EZ-Set
button, and release the LINK button.
5. When the LEDs on both the transmitter and the receiver
turn solid green, the system is bound and ready for use.
Conrm that the steering and throttle operate properly
before driving your model.
Failsafe
The 2.4GHz radio system is equipped with a built-in
failsafe function that returns the throttle to its last saved
neutral position in the event of a signal loss. The LED on the
transmitter and the receiver will rapidly ash red when the
failsafe mode is activated. If failsafe activates while you are
operating your model, determine the reason for signal loss
and resolve the problem before operating your model again.
THE 2.4GHz RADIO SYSTEM

www.modellmarkt24.chwww.modellmarkt24.ch
13
TRANSMITTER LED CODES
LED Color / Pattern Name Notes
Solid green Normal Driving Mode
See page 11 for information on how to use the transmitter controls.
Slow red
(0.5 sec on / 0.5 sec off)
Binding See page 12 for more information on binding.
Flashing medium red
(0.25 sec on / 0.25 sec off)
Low Battery Alarm Put new batteries in the transmitter. See page 7 for
more information.
Flashing fast red
(0.125 sec on / 0.125 sec off)
Link Failure / Error Transmitter and receiver are no longer bound. Turn the system off
and then back on to resume normal operation. Find source of the
link failure (i.e., out of range, low batteries, damaged antenna).
RECEIVER LED CODES
LED Color / Pattern Name Notes
Solid green Normal Driving Mode
See page 11 for information on how to use your transmitter controls.
Slow red
(0.5 sec on / 0.5 sec off)
Binding See page 12 for more information on binding.
Flashing fast red
(0.125 sec on / 0.125 sec off)
Failsafe /
Low-Voltage Detect
Consistent low voltage in the receiver triggers failsafe so that there
is enough power to center the throttle servo before it completely
loses power.
THE 2.4GHz RADIO SYSTEM

www.modellmarkt24.chwww.modellmarkt24.ch
14
ADJUSTING THE ELECTRONIC SPEED CONTROL
PROFILE SELECTION
The speed control is factory set to Sport Mode (100%
forward, brakes, and reverse). You can program the speed
control to disable reverse (Race Mode) or to allow 50%
power (patent-pending Training Mode) using the following
mode selection procedures. Please note that the speed
control should be connected to the receiver and the
transmitter adjusted as described previously. The proles
are selected by entering the programming mode.
Selecting Sport Mode
(Prole #1: 100% Forward, 100% Brakes, 100% Reverse)
1. Connect a fully charged battery pack to the model and
turn on your transmitter.
2. With the ESC off, press and hold the EZ-Set button
until the LED turns solid green, then solid red, and then
begins blinking red (indicating the Prole numbers).
3. When the LED blinks RED ONCE, release the EZ-Set
button.
4. The LED will blink and then turn solid red. The model is
ready to drive.
Selecting Race Mode
(Prole #2: 100% Forward, 100% Brakes, No Reverse)
1. Connect a fully charged battery pack to the model and
turn on your transmitter.
2. With the ESC off, press and hold the EZ-Set button
until the LED turns solid green, then solid red, and then
begins blinking red (indicating the Prole numbers).
3. When the LED blinks RED TWICE, release the EZ-Set
button.
4. The LED will blink and then turn solid red. The model is
ready to drive.
Selecting Training Mode
(Prole #3: 50% Forward, 100% Brakes, 50% Reverse)
1. Connect a fully charged battery pack to the model and
turn on your transmitter.
2. With the ESC off, press and hold the EZ-Set button
until the LED turns solid green, then solid red, and then
begins blinking red (indicating the Prole numbers).
3. When the LED blinks RED THREE TIMES, release the
EZ-Set button.
4. The LED will blink and then turn solid red. The model is
ready to drive.
ESC OPERATION
To operate the speed control and test the programming,
place the vehicle on a stable block or stand so that all of the
wheels are off the ground.
1. With the transmitter on, press and release the EZ-Set
button. The LED will shine RED. This turns the ESC
on. If you press and release too quickly, you may hear
the steering servo jump but the LED may not stay on.
Simply press the button again until the LED shines RED
and then release.
2. Apply forward throttle. The LED will turn off until full
throttle power is reached. At full throttle, the LED will
shine RED.
3. Move the trigger forward to apply the brakes. Note that
braking control is fully proportional. The LED will turn
off until full braking power is reached. At full brakes, the
LED will shine RED.
4. Return the throttle trigger to neutral. The LED will shine RED.
Green to Red
to Off
One blink Red,
Release Solid Red
Green to Red
to Off
Two blinks Red,
Release Solid Red
Green to Red
to Off
Three blinks Red,
Release Solid Red
Patent-Pending Training Mode (Prole #3) reduces
forward and reverse throttle by 50%. Training Mode is
provided to reduce the power output, allowing beginning drivers
to better control the model. As driving skills improve, simply
change to Sport or Race Mode for full-power operation.
If you missed the mode you wanted, keep the EZ-Set
button pressed down and the blink cycle will repeat until
the button is released and a Mode is selected.
Tip For Fast Mode Changes
The ESC is set to Prole 1 (Sport Mode) as the default. To
quickly change to Prole 3 (Training Mode), with the transmitter
on and the ESC turned off, press and hold the SET button until
the light blinks red three times and then release. For full power,
turn off the ESC then quickly change back to Prole 1 (Sport
Mode) by pressing and holding the SET button until the light
blinks red one time and then releasing.

www.modellmarkt24.chwww.modellmarkt24.ch
15
5. Move the throttle trigger forward again to engage
reverse (Prole #1). The LED will turn off. Once full
reverse power is reached, the LED will shine RED.
6. To stop, return the throttle trigger to neutral. Note that
there is no programmed delay when changing from
reverse to forward. Use caution to avoid slamming the
speed control from reverse to forward. On high-traction
surfaces, this could result in transmission or driveline
damage.
7. To turn the ESC off, press and hold the EZ-Set button
until the red LED turns off.
8. The ESC is equipped with thermal shutdown protection
to guard against overheating caused by excessive
current ow. If the operating temperature exceeds safe
limits, the ESC will automatically shut down. The LED
on the face of the ESC will rapidly blink red, even if
the throttle trigger is moved back and forth. Once the
temperature returns to a safe level, the ESC will once
again function normally.
ESC Setup Programming
(Calibrating your ESC and transmitter)
Read through all of the programming steps before you
begin. If you get lost during programming or receive
unexpected results, simply unplug the battery, wait a few
seconds, plug the battery back in, and start over.
1. Elevate the model on a block or a stand so that all the
tires are off the ground. This is a precaution to prevent
runaway when the speed control in turned on before it
is programmed.
2. Connect a fully charged battery pack to the ESC.
3. Turn on the transmitter (with the throttle at neutral).
4. Press and hold the EZ-
Set button (A). The LED
will rst turn green and
then red. Release the
button.
5. When the LED blinks
RED ONCE, pull the
throttle trigger to the full
throttle position and hold
it there (B).
6. When the LED blinks RED
TWICE, push the throttle
trigger to the full reverse
and hold it there (C).
7. When the LED blinks GREEN ONCE,
programming is complete. The LED will
then shine red, indicating the ESC is on
and at neutral (D).
ESC Battery Settings (Low-Voltage Detection Setting)
The ESC is equipped with a built-in Low-Voltage Detection
feature that constantly monitors the battery voltage when
activated. This feature is not compatible with the NiMH
battery supplied with your model. Low-Voltage Detection
has been DISABLED for best performance with your battery;
however, you should verify that the setting has not been
changed before each use.
Verify that Low-Voltage Detection is DISABLED:
1. Turn on the transmitter (with the throttle at neutral).
2. Connect a fully charged battery pack to the model.
3. Press and release the EZ-Set button
to turn the ESC on. If the LED is solid
red, then the Low-Voltage Detection
is DISABLED. If the LED is solid
green, then Low-Voltage Detection
is ACTIVATED (not safe for use with
NiMH batteries).
To disable Low-Voltage Detection (NiMH setting):
1. Make sure the LED on the ESC is on and GREEN.
2. Press and hold the EZ-Set button (the LED will turn off).
After ten seconds, the motor will beep three times and
the LED will shine RED. Release the button.
3. Low-Voltage Detection is now DISABLED.
ADJUSTING THE ELECTRONIC SPEED CONTROL
Solid Red LED
Safe for NiMH use
Green then Red,
Release
A
Once Red
B
Twice Red
C
Solid Red
D
LED Codes and Protection Modes
• Solid Red: ESC power-on light.
• Fast Blinking Red: The ESC is equipped with thermal
shutdown protection to guard against overheating caused
by excessive current ow. If the operating temperature
exceeds safe limits, the ESC will automatically shut down.
Let the ESC cool.
• Slow Blinking Red (with Low-Voltage Detection on):
The ESC has entered Low-Voltage Protection. When
the battery voltage begins to reach the minimum
recommended discharge voltage threshold, the ESC will
limit the power output to 50% throttle. When the battery
voltage attempts to fall below the minimum threshold,
the ESC will shut down all motor output. The LED on the
speed control will slowly blink red, indicating a low-voltage
shutdown. The ESC will stay in this mode until a fully
charged battery is connected.
• Fast Blinking Green: The ESC’s LED will blink fast green
if the speed control is not receiving a signal. Make certain
the speed control is properly plugged into the receiver and
the transmitter is switched on.
• Flashing Red and Green: The ESC has entered Over
Voltage Protection. If a battery with too high voltage is
used, the ESC will go into a failsafe mode.

www.modellmarkt24.chwww.modellmarkt24.ch
16

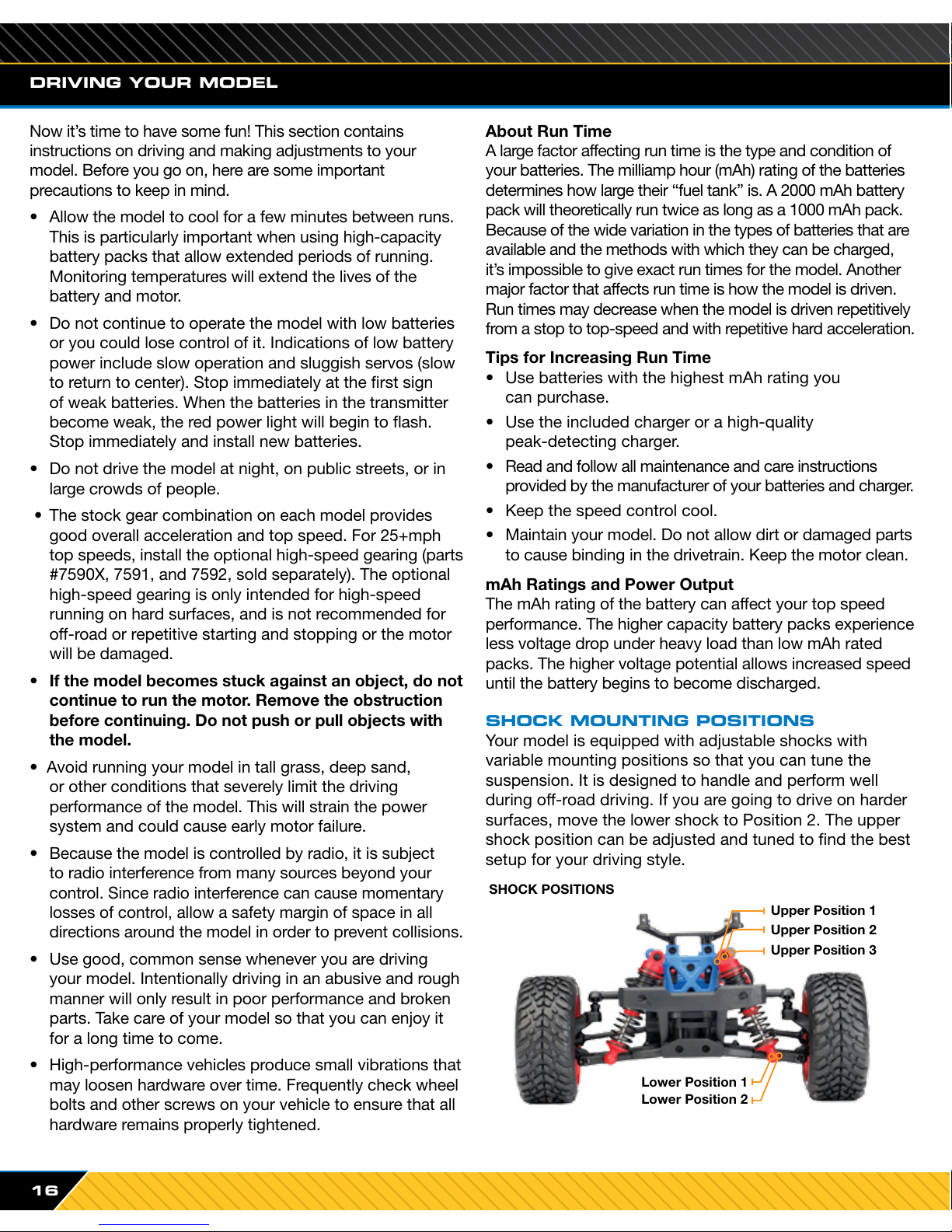

Now it’s time to have some fun! This section contains
instructions on driving and making adjustments to your
model. Before you go on, here are some important
precautions to keep in mind.
• Allow the model to cool for a few minutes between runs.
This is particularly important when using high-capacity
battery packs that allow extended periods of running.
Monitoring temperatures will extend the lives of the
battery and motor.
• Do not continue to operate the model with low batteries
or you could lose control of it. Indications of low battery
power include slow operation and sluggish servos (slow
to return to center). Stop immediately at the rst sign
of weak batteries. When the batteries in the transmitter
become weak, the red power light will begin to ash.
Stop immediately and install new batteries.
• Do not drive the model at night, on public streets, or in
large crowds of people.
• The stock gear combination on each model provides
good overall acceleration and top speed. For 25+mph
top speeds, install the optional high-speed gearing (parts
#7590X, 7591, and 7592, sold separately). The optional
high-speed gearing is only intended for high-speed
running on hard surfaces, and is not recommended for
off-road or repetitive starting and stopping or the motor
will be damaged.
• If the model becomes stuck against an object, do not
continue to run the motor. Remove the obstruction
before continuing. Do not push or pull objects with
the model.
• Avoid running your model in tall grass, deep sand,
or other conditions that severely limit the driving
performance of the model. This will strain the power
system and could cause early motor failure.
•
Because the model is controlled by radio, it is subject
to radio interference from many sources beyond your
control. Since radio interference can cause momentary
losses of control, allow a safety margin of space in all
directions around the model in order to prevent collisions.
• Use good, common sense whenever you are driving
your model. Intentionally driving in an abusive and rough
manner will only result in poor performance and broken
parts. Take care of your model so that you can enjoy it
for a long time to come.
• High-performance vehicles produce small vibrations that
may loosen hardware over time. Frequently check wheel
bolts and other screws on your vehicle to ensure that all
hardware remains properly tightened.
About Run Time
A large factor affecting run time is the type and condition of
your batteries. The milliamp hour (mAh) rating of the batteries
determines how large their “fuel tank” is. A 2000 mAh battery
pack will theoretically run twice as long as a 1000 mAh pack.
Because of the wide variation in the types of batteries that are
available and the methods with which they can be charged,
it’s impossible to give exact run times for the model. Another
major factor that affects run time is how the model is driven.
Run times may decrease when the model is driven repetitively
from a stop to top-speed and with repetitive hard acceleration.
Tips for Increasing Run Time
• Use batteries with the highest mAh rating you
can purchase.
• Use the included charger or a high-quality
peak-detecting charger.
• Read and follow all maintenance and care instructions
provided by the manufacturer of your batteries and charger.
• Keep the speed control cool.
• Maintain your model. Do not allow dirt or damaged parts
to cause binding in the drivetrain. Keep the motor clean.
mAh Ratings and Power Output
The mAh rating of the battery can affect your top speed
performance. The higher capacity battery packs experience
less voltage drop under heavy load than low mAh rated
packs. The higher voltage potential allows increased speed
until the battery begins to become discharged.
SHOCK MOUNTING POSITIONS
Your model is equipped with adjustable shocks with
variable mounting positions so that you can tune the
suspension. It is designed to handle and perform well
during off-road driving. If you are going to drive on harder
surfaces, move the lower shock to Position 2. The upper
shock position can be adjusted and tuned to nd the best
setup for your driving style.
DRIVING YOUR MODEL
Upper Position 1
Upper Position 2
Lower Position 1
Upper Position 3
Lower Position 2
SHOCK POSITIONS

www.modellmarkt24.chwww.modellmarkt24.ch
17

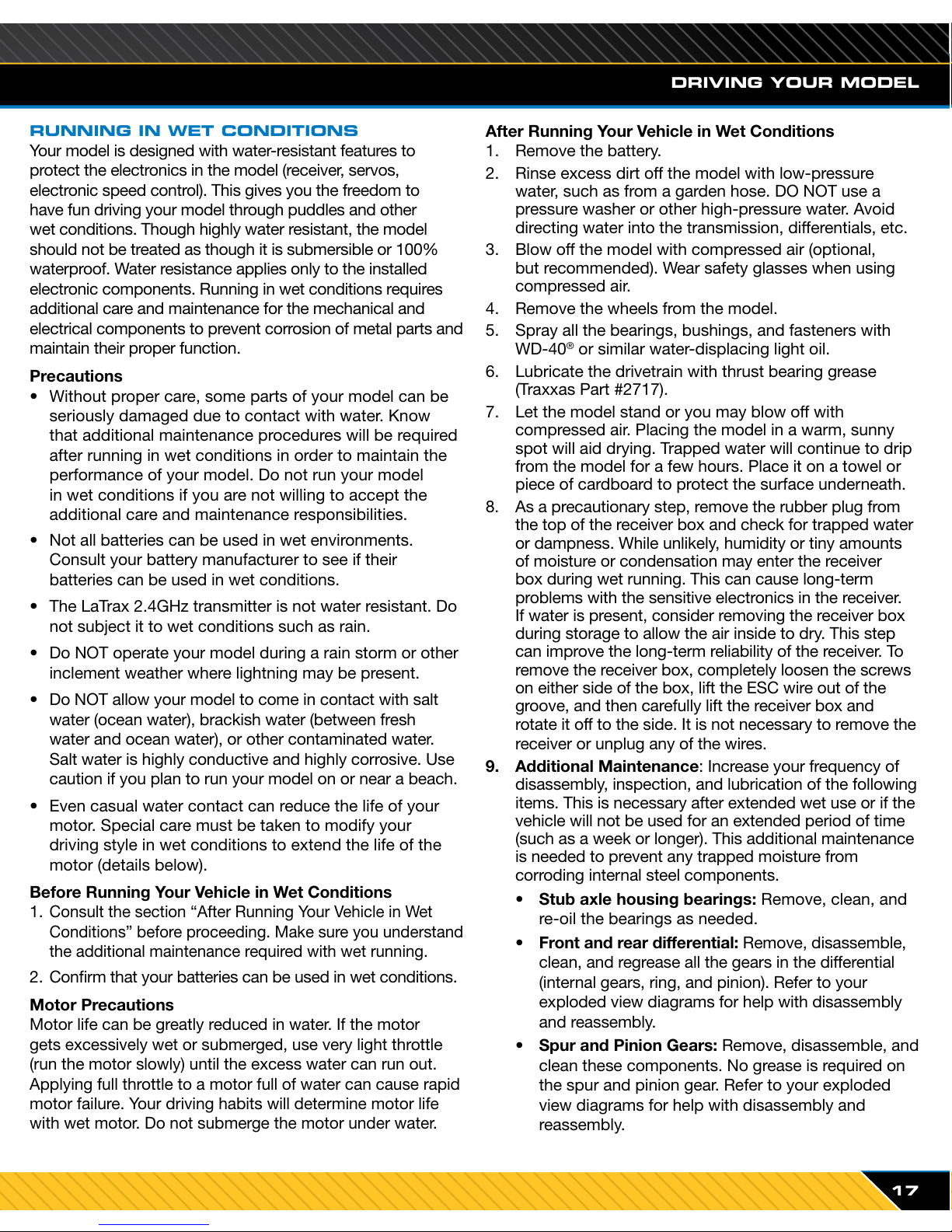

RUNNING IN WET CONDITIONS
Your model is designed with water-resistant features to
protect the electronics in the model (receiver, servos,
electronic speed control). This gives you the freedom to
have fun driving your model through puddles and other
wet conditions. Though highly water resistant, the model
should not be treated as though it is submersible or 100%
waterproof. Water resistance applies only to the installed
electronic components. Running in wet conditions requires
additional care and maintenance for the mechanical and
electrical components to prevent corrosion of metal parts and
maintain their proper function.
Precautions
• Without proper care, some parts of your model can be
seriously damaged due to contact with water. Know
that additional maintenance procedures will be required
after running in wet conditions in order to maintain the
performance of your model. Do not run your model
in wet conditions if you are not willing to accept the
additional care and maintenance responsibilities.
• Not all batteries can be used in wet environments.
Consult your battery manufacturer to see if their
batteries can be used in wet conditions.
• The LaTrax 2.4GHz transmitter is not water resistant. Do
not subject it to wet conditions such as rain.
• Do NOT operate your model during a rain storm or other
inclement weather where lightning may be present.
• Do NOT allow your model to come in contact with salt
water (ocean water), brackish water (between fresh
water and ocean water), or other contaminated water.
Salt water is highly conductive and highly corrosive. Use
caution if you plan to run your model on or near a beach.
• Even casual water contact can reduce the life of your
motor. Special care must be taken to modify your
driving style in wet conditions to extend the life of the
motor (details below).
Before Running Your Vehicle in Wet Conditions
1.
Consult the section “After Running Your Vehicle in Wet
Conditions” before proceeding. Make sure you understand
the additional maintenance required with wet running.
2. Conrm that your batteries can be used in wet conditions.
Motor Precautions
Motor life can be greatly reduced in water. If the motor
gets excessively wet or submerged, use very light throttle
(run the motor slowly) until the excess water can run out.
Applying full throttle to a motor full of water can cause rapid
motor failure. Your driving habits will determine motor life
with wet motor. Do not submerge the motor under water.
After Running Your Vehicle in Wet Conditions
1. Remove the battery.
2. Rinse excess dirt off the model with low-pressure
water, such as from a garden hose. DO NOT use a
pressure washer or other high-pressure water. Avoid
directing water into the transmission, differentials, etc.
3. Blow off the model with compressed air (optional,
but recommended). Wear safety glasses when using
compressed air.
4. Remove the wheels from the model.
5. Spray all the bearings, bushings, and fasteners with
WD-40®or similar water-displacing light oil.
6. Lubricate the drivetrain with thrust bearing grease
(Traxxas Part #2717).
7. Let the model stand or you may blow off with
compressed air. Placing the model in a warm, sunny
spot will aid drying. Trapped water will continue to drip
from the model for a few hours. Place it on a towel or
piece of cardboard to protect the surface underneath.
8. As a precautionary step, remove the rubber plug from
the top of the receiver box and check for trapped water
or dampness. While unlikely, humidity or tiny amounts
of moisture or condensation may enter the receiver
box during wet running. This can cause long-term
problems with the sensitive electronics in the receiver.
If water is present, consider removing the receiver box
during storage to allow the air inside to dry. This step
can improve the long-term reliability of the receiver. To
remove the receiver box, completely loosen the screws
on either side of the box, lift the ESC wire out of the
groove, and then carefully lift the receiver box and
rotate it off to the side. It is not necessary to remove the
receiver or unplug any of the wires.
9. Additional Maintenance: Increase your frequency of
disassembly, inspection, and lubrication of the following
items. This is necessary after extended wet use or if the
vehicle will not be used for an extended period of time
(such as a week or longer). This additional maintenance
is needed to prevent any trapped moisture from
corroding internal steel components.
• Stub axle housing bearings: Remove, clean, and
re-oil the bearings as needed.
• Front and rear differential: Remove, disassemble,
clean, and regrease all the gears in the differential
(internal gears, ring, and pinion). Refer to your
exploded view diagrams for help with disassembly
and reassembly.
• Spur and Pinion Gears: Remove, disassemble, and
clean these components. No grease is required on
the spur and pinion gear. Refer to your exploded
view diagrams for help with disassembly and
reassembly.
DRIVING YOUR MODEL

www.modellmarkt24.chwww.modellmarkt24.ch
18
• Motor: Remove the motor, clean with aerosol
motor cleaner, and re-oil the bushings with
lightweight electric motor oil. Be sure to wear eye
protection when using spray aerosol cleaners.
MAINTAINING YOUR MODEL
Your model requires timely maintenance in order to stay in
top running condition. The following procedures should be
taken very seriously.
Inspect the vehicle for obvious damage or wear.
Look for:
1. Cracked, bent, or damaged parts
2. Check the wheels and steering for binding.
3. Check for leaks and proper operation of the
shock absorbers.
4. Check the wiring for any frayed wires or loose
connections.
5. Check the mounting of the receiver and servo and
speed control.
6. Check the tightness of the wheel hex bolts with
a wrench.
7. Check the operation of the radio system, especially
the condition of the batteries.
8. Check for any loose screws in the chassis structure or
suspension.
9. Inspect the gears for wear, broken teeth, or debris
lodged between the teeth.
10. Check the tightness of all the pivot balls.
Other periodic maintenance:
• Motor: Every 10-15 runs, remove and clean the motor
by wiping away accumulated dirt and debris from
around the motor shaft bushing on the pinion gear
side of the motor.Use a product such as electric motor
cleaning spray to ush dirt out of the motor. After
cleaning, lubricate the bushings at each end of the
motor with a drop of light-weight electric motor oil.
• Chassis: Keep the chassis clean of accumulated dirt
and grime. Periodically inspect the chassis for damage.
• Shocks: Keep the oil level in the shocks full. Use only
100% pure silicone shock oil to prolong the life of the
seals. If you are experiencing leakage around the top of
the shock, inspect the bladder in the top cap for signs of
damage or distortion from overtightening. If the bottom
of the shock is leaking, then it is time for a rebuild. The
Traxxas rebuild kit for two shocks is part #7662.
• Suspension: Periodically inspect the model for signs
of damage such as bent or dirty suspension pins, bent
camber links, loose screws, and any signs of stress or
bending. Replace components as needed.
• Driveline: Inspect the driveline for signs of wear
such as worn drive yokes, dirty axle driveshafts,
and any unusual noise or binding. Remove the gear
cover, inspect the spur gear for wear, and check the
tightness of the set screw in the pinion gear. Tighten,
clean, or replace components as needed.
Storage
When you are through running the model for the day, blow it
off with compressed air or use a soft bristled paint brush to
dust-off the vehicle. Always disconnect and remove the battery
from the model whenever the model is stored. If the model will
be stored for a long time, then also remove the batteries from
the transmitter.
Keep this manual and the other documents included with
your model for future reference. If you misplace your manual
or any of the documents, they may be downloaded at
LaTrax.com.
If you have any questions about your model or its operation,
call the LaTrax Technical Support line toll-free at:
1-888-872-9927*
Technical support is available Monday through Friday from
8:30am to 9:00pm central time.
*Toll-free support is available to U.S. residents only; outside the U.S., please call [phone].
Always wear eye protection when using compressed air
or spray cleaners and lubricants.
DRIVING YOUR MODEL
ESC SPECIFICATIONS
Input Voltage: 5–6 cells NiMH (6.0–7.2V DC)
Case Size (W x D x H): 26.5 x 46.5 x 22mm
Weight: 33 grams
BEC Voltage: 6.0V DC
Power Wire: 18 Gauge / 40mm
Input Harness: 26 Gauge / 130mm
Motor Wires: 18 Gauge / 65mm
MOTOR SPECIFICATIONS
Size: 370, brushed
Turns: 28-turn
Voltage: 7.2V

www.modellmarkt24.chwww.modellmarkt24.ch
19
OWNER’S MANUAL
MODEL 76064-5
LaTrax, 6250 Traxxas Way, McKinney, Texas 75070 Phone: [phone] Toll-free 1-888-872-9927 LaTrax.com
170727 76064-5-OM-N-EN-R00
