1

Before use
2
The Latte Bluetooth headset Mocha is a lightweight and
compact wireless connectivity device. The DSP (digital signal
processor) feature of the Latte Mocha Series offers superior
audio performance via noise reduction and echo cancellation.
The Latte Mocha Series is compatible with most Bluetooth
mobile phones that support the “headset” and/or “hands-free”
profile(s).

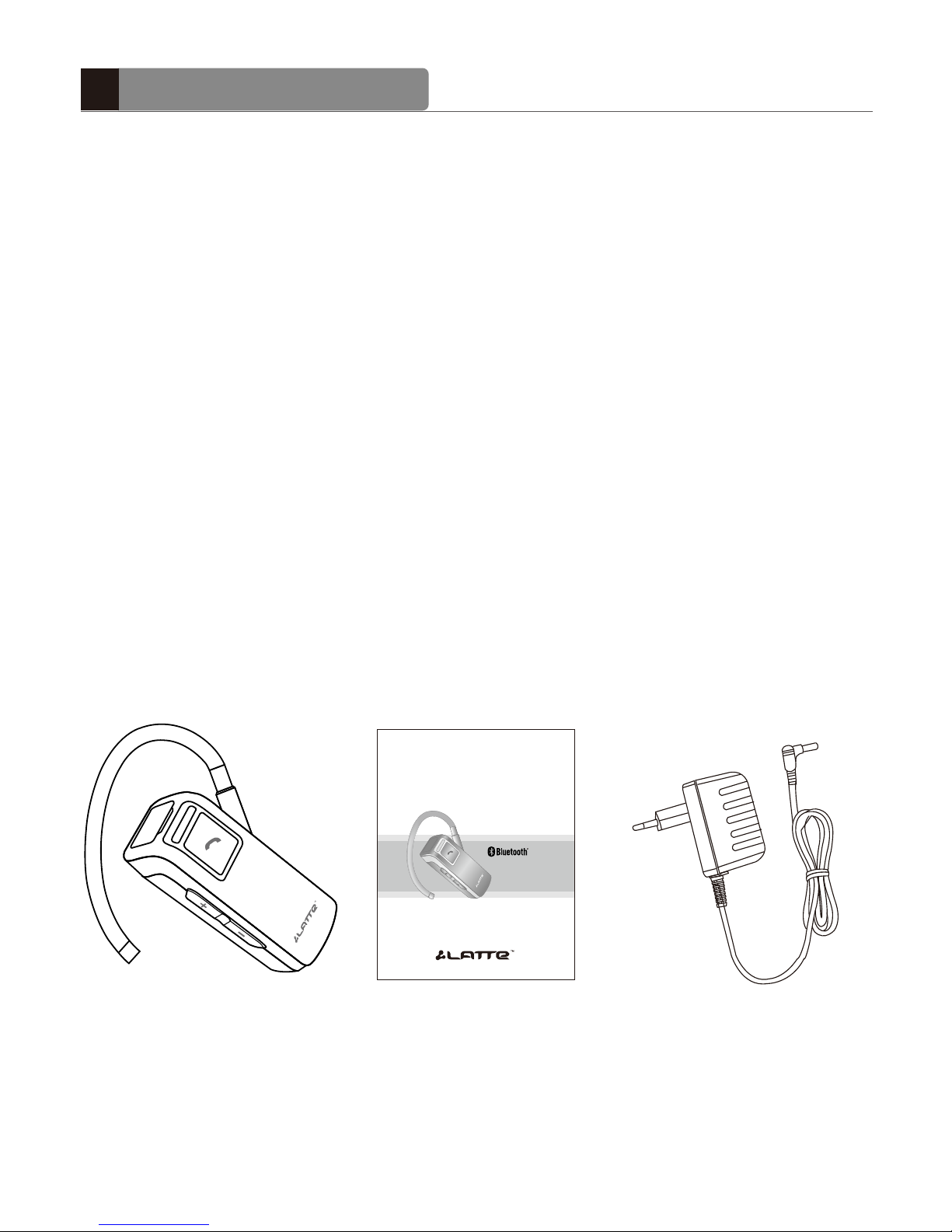

[Package contents]
Ensure that the items mentioned below are all included in the
package. If any item is missing, please contact the dealer.
Bluetooth headset User manual Charger
Latte Mocha Series User Manual
Bluetooth Headset

3
[Wearing]
The ear loop of the Latte Mocha Series can be rotated and
adjusted to fit on either the left or the right ear, as shown below.
Before use
Left Right
Ear loop Speaker
Status LED
Multifunction button
Microphone
Charging port
Volume controls
[Description of parts]

[Low battery]
 The status LED will flash red with a beeping sound that would
indicate that the battery charge is low.
 Charge the battery as soon as the abovementioned
phenomenon is detected.
 The headset will turn off when the battery is not charged.
4
Before use
[Charging]

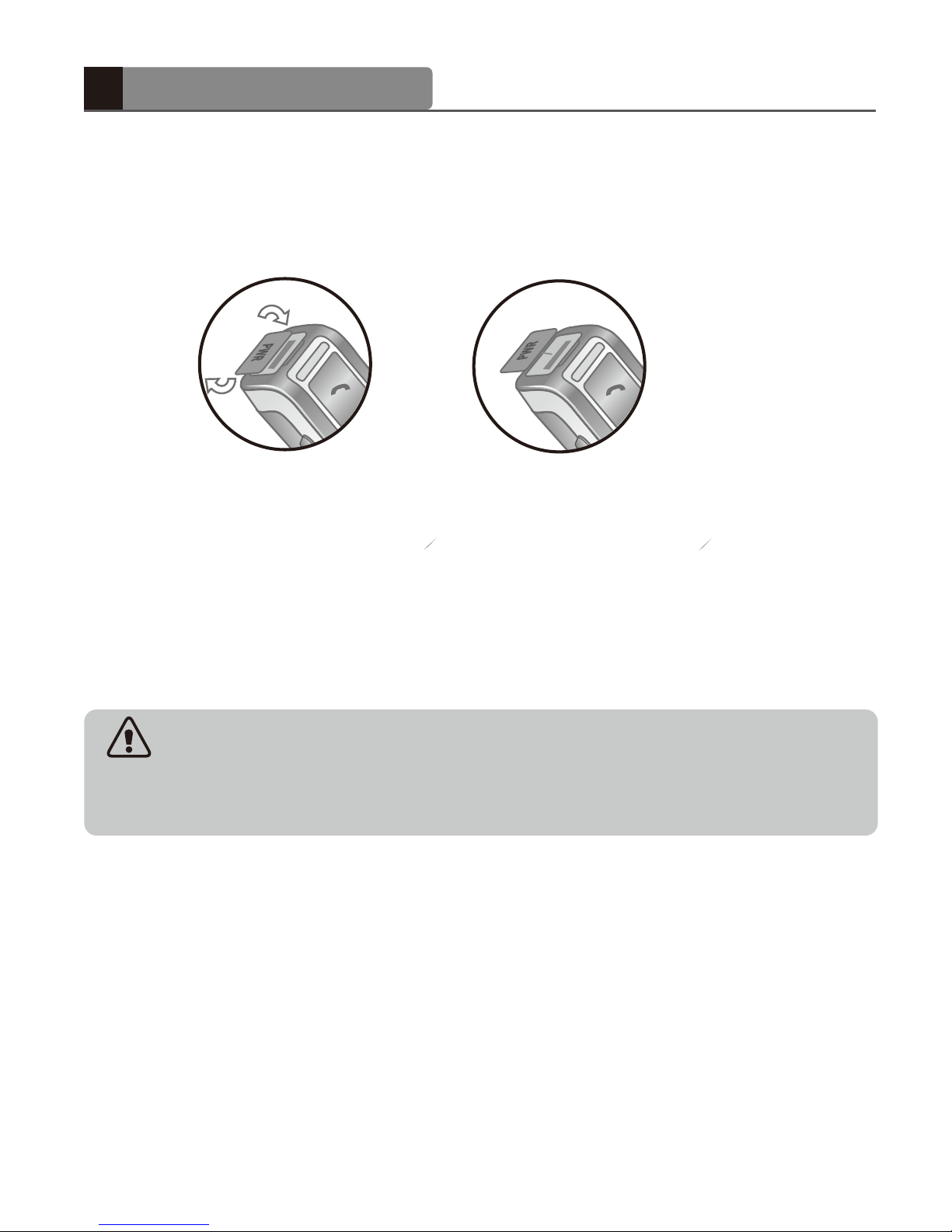

 Open and twist the cover on the charging port, as shown below.
 Insert the charger completely into the charging slot until the
status LED glows red. Note that connecting the charger while
the power is on will turn off the headset.
 The buttons on the headset will not function while charging.
 Charge your headset until the status LED turns off. The unit
will be fully charged in approximately 2 h.
WARNING: Do not attempt to charge the Latte Mocha
Series with any charger other than the one provided. Using
another charger may damage or destroy the headset.

5
[Power on]
1. Press and hold for 2 s.
2. You will hear a booting tone and the status LED will flash
blue 5 times briefly and rapidly.
[Power off]
1. Press and hold for 5 s.
2. You will hear a beep and the status LED will flash blue 5
times briefly and rapidly.
[Pairing]
Before using your headset for the first time, you must pair it with
your Bluetooth mobile phone.
1. Begin with the headset turned off; then, press and hold
down for 5 s.
2. You will hear two short beeps, and the status LED will begin
to flash red and blue in turn continuously.
3. Go to the Bluetooth menu in your mobile phone and search
for either “headset” or “hands-free” (When the headset is
connected as a hands-free device, you can use all functions
of the Latte Mocha Series).
How to use

4. Select “Latte Mocha Series” from the list of searched devices.
5. When prompted for a passkey, enter 0000.
6. A beep will sound when the devices are paired successfully.
The Latte Mocha Series will turn off automatically if it stays in
the “pairing mode” for over 3 min without being paired to any
device. In this case, you have to reattempt the pairing
process (see abovementioned steps). The connection can be
made automatically after pairing depending on the features of
different models of mobile phones.
6
How to use

7
[Connecting]
To use the headset after pairing (or after losing the connection),
you should connect it to the paired mobile phone. For more
details regarding the connection method, please refer to the
manual of your Bluetooth mobile phone.
Auto reconnection
1. When the headset turns off while connecting
The headset will be automatically reconnected without the
pairing process when power is supplied (the mobile phone
connected previously should be within 10 m from the headset).
2. Out of range
The headset will be automatically reconnected when it is
brought back within a 10-m range of the mobile phone
connected previously within 3 min. If you want to connect
immediately, briefly press once.
How to use
When out of range (greater than 10 m), the connection
between the headset and the Bluetooth device will be
dropped.
If the headset and the Bluetooth device have been
separated for over 3 min, up to 10 min will be required for
auto reconnection.

8
[Answering a call]
The headset and mobile phone will ring simultaneously when
an incoming call is received. You can answer a call by pressing
briefly (The call can also be answered using the mobile
phone).
[Making a call]
Voice dialing*
Press and release once. You will hear the voice-activation
tone; say the registered name on the voice dialing list.
Last number redialing *
Press and hold for 1 s; this will activate the last number
redial feature. Subject to different models of mobile phone, it will
show you the recently dialed call list; then, you can briefly press
again to make a call.
How to use
This function is only available if your mobile phone
supports the voice dialing function and the headset is
paired as a hands-free device.
If your mobile phone does not support voice dialing, the
headset will activate the last number redial feature. The
headset may not activate any action; this again depends
on the features of different models of mobile phones.

9
[Ending a call]
To end a call, briefly press .
[Volume control]
Briefly press the volume up or volume down button
located at the side of the headset in order to control the
speaker volume. Eight levels of volume control are available.
[Functions during a call]
Transferring a call*
Briefly press to transfer a call from your mobile phone to
your headset while on a call (the headset and the mobile phone
must be connected prior to this process). To transfer a call from
your headset to your mobile phone, press and hold the volume
up button for 5 s.
How to use

Call waiting*
Answer the second incoming call without ending the first call by
pressing for 1 s. To return to the first call, simply press
again for 1 s.
Call reject*
To activate the call reject function, press for 1 s when an
incoming call is detected.
Mute
To activate the mute function, press the volume down button
for 5 s. When the call mute function is activated, the other party
will not be able to hear your voice; however, you will still be able
to hear their voice. Further, you will hear a beep periodically. To
release the call mute function, press the volume down button
for 5 s again.
10
How to use
The *(star) mark indicates that these functions are only
available with a hands-free profile, and the connected
mobile phone should support these functions. For addi-
tional information regarding these functions, refer to the
user manual of your Bluetooth mobile phone.

11
Function Action
Headset status
Power on
Power off
Volume up
Transferring
a call
Volume down
Call waiting
Ending a call
Answering a call
Voice dialing
Mute on
Pairing
Call reject
Mute off
Last number
redialing
Power off
Power on
Talking
Ringing
Ringing
Power off
Mute
Talking
Talking
Talking
Talking
Idle
Idle
Talking
How to use
Press for 2 s
Press for 5 s
Briefly press the volume up button
Press for 1 s
Briefly press
[Summary of button functions]
Briefly press
Briefly press
Press for 1 s
Press for 5 s
Press for 1 s
Briefly press the volume up button
Press the volume down button for 5 s
Press the volume down button for 5 s
- From the mobile phone to the headset:
Briefly press once
- From the headset to the mobile phone:
Press and hold the volume up button
for 5 s

12
Power off
Power on
Pairing
Charging
Charging completed
Battery power is low
When the headset and
mobile phone is
connected and when
the user is talking on
the headset
Unintentional loss of
connection
(until the connection is
recovered)
Shutdown tone
Booting tone
Beeps twice
No beep
No beep
No beep
Beeps periodi-
cally
Beeps periodi-
cally
The LED flashes blue 5
times rapidly
The LED flashes blue 5
times rapidly
The LED flash red and
blue in turn continuously
The LED flashes blue
twice every 5 s
The red LED is on
The red LED is off
The blue LED turns red
The LED flashes purple
(blue and red) once
every 5 s
How to use
[LED indication and signal sound]
Function Status of LED
Signal Sound

13
Power on
Unable to
communicate
using the
headset
Extremely
low or loud
speaker
volume
Unable to pair
the Latte
Mocha Series
headset with
a Bluetooth
mobile phone
The LED flashes blue 5
times rapidly
Charge the battery if the
battery power is low
Check whether the battery
of the Latte Mocha Series
headset is charged
Check whether your
mobile phone supports
the “headset” and/or
“hands-free” profile(s)
Your mobile phone should
support “headset” and/or
“hands-free” profile(s) to
use the Latte Mocha Series
Press either the volume up
button or the volume
down button to control
the volume accordingly
With power off, press and
hold for at least 5 s to
place the Latte Mocha
Series in the pairing mode
Press for 2 s to turn
on the headset
Check whether the
battery is fully charged
Check whether the
headset is on
Check the speaker
volume
Check whether the
headset is in the pairing
mode
[Troubleshooting]
In case the headset does not function correctly, please follow
the corrective action given in the table below. If the problem is
not solved even after performing the corrective actions, please
contact the dealer from whom the headset was purchased.
Supplement
Status Corrective action
Signal Sound

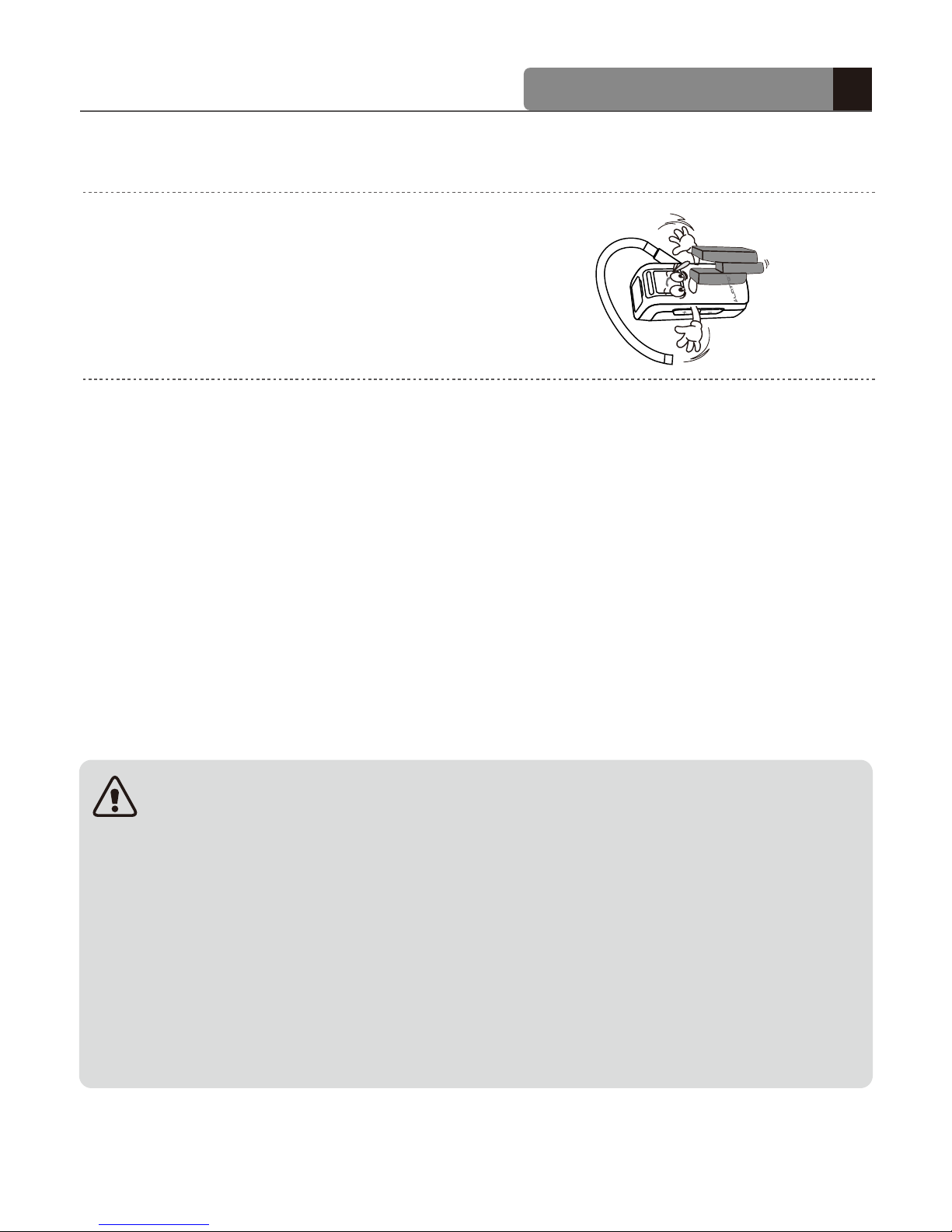

[Cautions]
14
1. Do not drop the unit from
a height.
3. Do not expose this unit
directly to water, alcohol,
benzene, etc. for cleaning.
5. Do not place this unit near
flammables.
6. Protect this unit from
humidity and dust.
4. Do not expose this unit
directly to flammables.
2. Do not modify, repair, or
take apart this unit.
Supplement

15
 Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
 There is a risk of explosion if the battery is replaced by an
incorrect type.
 The ear loop is made of durable plastic that does not break
but bend. However, frequent bending of the ear loop is not
recommended.
7. Do not place a heavy object on
this unit.
Supplement
In order to ensure the best performance and to prevent
any damage to or misuse of the Latte Mocha Series unit,
please read the complete information provided in this
user manual carefully prior to using it.
Any modifications or changes in this manual due to
typographical errors or inaccuracies in the stated
information shall only be made by Latte Communica-
tions, Inc.

16
[Additional information]
 The cover range of wireless communication is within a
maximum of 10 m and the conditions vary according to
obstacles.
 The Latte Mocha Series can be connected only to those
mobile phones that support the Bluetooth “headset” and/or
“hands-free” profile(s). This headset is not compatible with
the standard cordless phones used in homes.
 As it operates in the same frequency range, the Latte Mocha
Series can be affected by the devices that operate in the ISM
band (2.402 GHz ~ 2.480 GHz), for example, wireless LAN,
microwave devices, medical appliances, etc. Therefore, in
order to ensure proper operation, the Latte Mocha Series
headset should be away from these devices.
 Please turn off your headset in an area with a potentially
explosive atmosphere (oil warehouse, explosive warehouse,
etc.). In rare occurrences, this headset could generate
sparks. This could lead to an explosion or fire, which could
result in bodily injury. Therefore, follow the warning notices in
those areas carefully.
Supplement

17
 If handled properly, a rechargeable battery can have a long
service life. A new battery or one that has not been used for a
long period of time could have reduced capacity the first few
times it is used.
Supplement

[Standards and specifications]
*The standard usage time of the battery can vary depending
on the usage condition of the mobile phone.
18
Supplement
Bluetooth specification
Supported profiles
Frequency
Transmitting output
Cover range
Standby time
Talk time
Charging time
Operation temperature
Charger rated voltage input
Dimension/Weight
V 2.0
Headset and hands-free profiles
2.402 GHz ~ 2.480 GHz (ISM band)
Class 2
Within 10 m/33 ft
Up to 170 h
Up to 5 h
Approximately 2 h
–10°C ~ 55°C
AC 100 V ~ 220 V, 50 Hz ~ 60 Hz
43.9(L) × 18.4(W) × 14.9(H) mm/11 g
Name of product A wireless device for wireless data communi-
cation system (Latte Mocha Series)
