Lava Heat Lazzaro User manual

-THERMOFILM HEATSTRIP-
3
YEAR
L
I
M
I
T
E
D
W
A
R
R
A
N
T
Y
WWW.LAVAHEAT.COM
ECO-FRIENDLY
REMOTE CONTROLLED
2-LEVEL HEAT SETTING
EASY 120V PLUG-IN
WALL-MOUNT INCLUDED
OWNER'S MANUAL
D
E
S
I
G
N
P
A
T
E
N
T
E
D
ELECTRIC POWERED
750-1500w
REMOTE CONTROL
(INCLUDED)
TEMP
DOWN UP
POWER
EASY 120V STANDARD
PLUG-IN WALL MOUNT BRACKET
(INCLUDED)
ECO-FRIENDLY

Owner’s Manual
Questions, problems, missing / replacement parts? Before returning to your retailer, call
our customer service department at 1.888.779.5282, 9 a.m.-6:00 p.m. PST,
Monday-Friday or email [email protected]

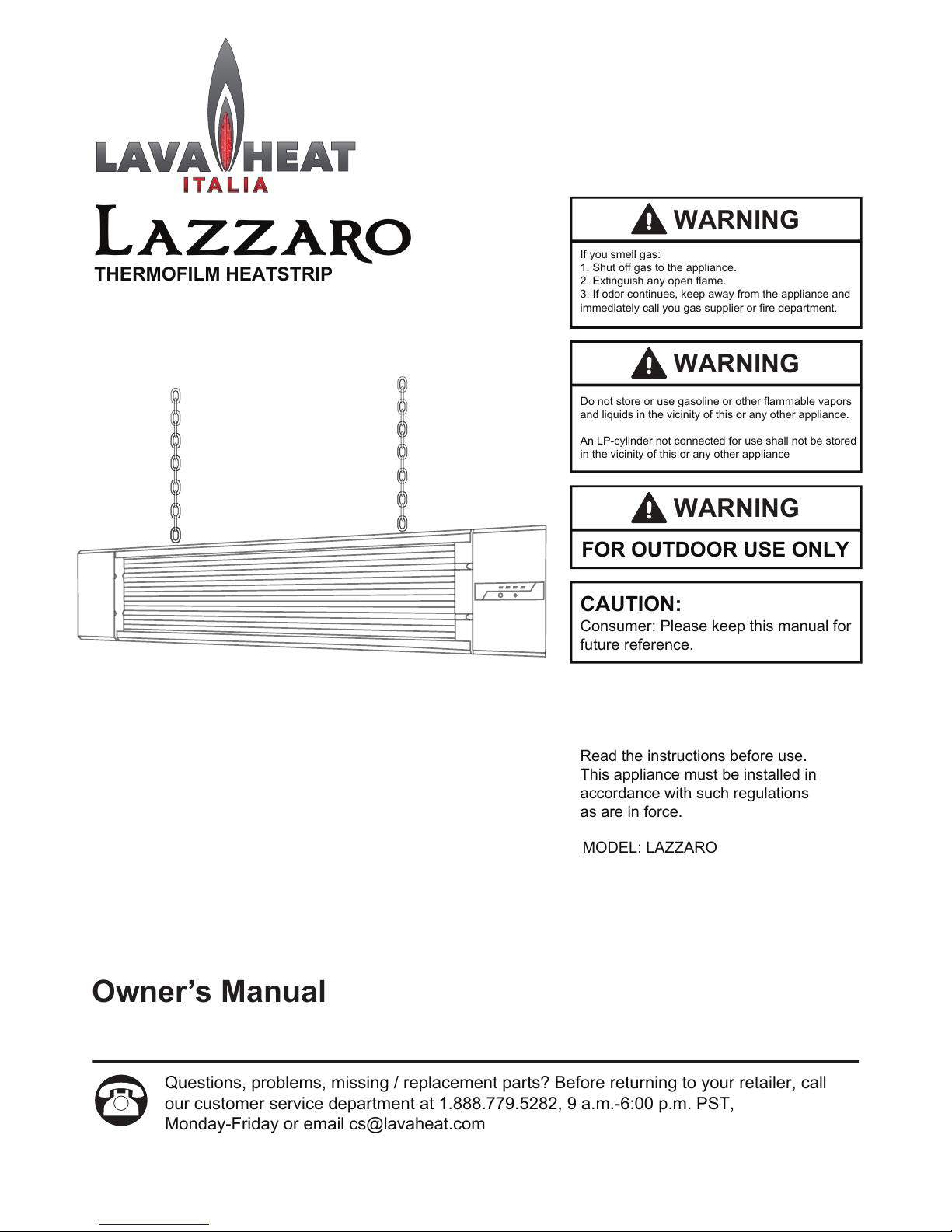

Lazzaro
THERMOFILM HEATSTRIP
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and
immediately call you gas supplier or fire department.
WARNING
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be stored
in the vicinity of this or any other appliance
CAUTION:
Consumer: Please keep this manual for
future reference.
Read the instructions before use.
This appliance must be installed in
accordance with such regulations
as are in force.
MODEL: LAZZARO
FOR OUTDOOR USE ONLY
WARNING
WARNING

Please read these instructions carefully before using your new heater
Unpack the heater to make sure that all the items are present and that there are no
components left in the box and that the heater head is free from any packing material.
Using the detailed drawing follow the steps to assemble your heater.
Do not connect the heater to the electrical supply until all the assembly is complete.
Do not connect the heater to the electrical supply if any of the components or the power
cord is damaged in any way.
If in doubt contact your supplier.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
The instruction manual shall provide adequate instructions for connection to the supply
ensuring an equivalent protection!
WARNING: This heater is not equipped with a device to control the room temperature.
Do not use this heater in small rooms when they are occupied by persons not capable of
leaving the room on their own, unless constant supervision is provided.
Children of less than 3 years should be kept away unless continuously supervised.
Children aged from 3 years and less than 8 years shall only switch on/off the appliance
provided that it has been placed or installed in its intended normal operating position and
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children aged from 3 years and less than 8
years shall not plug in, regulate and clean the appliance or perform user maintenance.
ACCESSORIES
REF
1 Part 1 1 7 screws M4*8
screws M6*10
2
2
1
1
1
2
2
3
4
5
6 part 3
Security Scre
M6*10
part 2
Screws M6*10
Explosive bolt
M6*50 4
4
1
1
2 12
11
10
8
8
M6 spanner
‘L’ hexagonal
wrench
Remote Control
Chain
NAME QTY QTYREF NAME

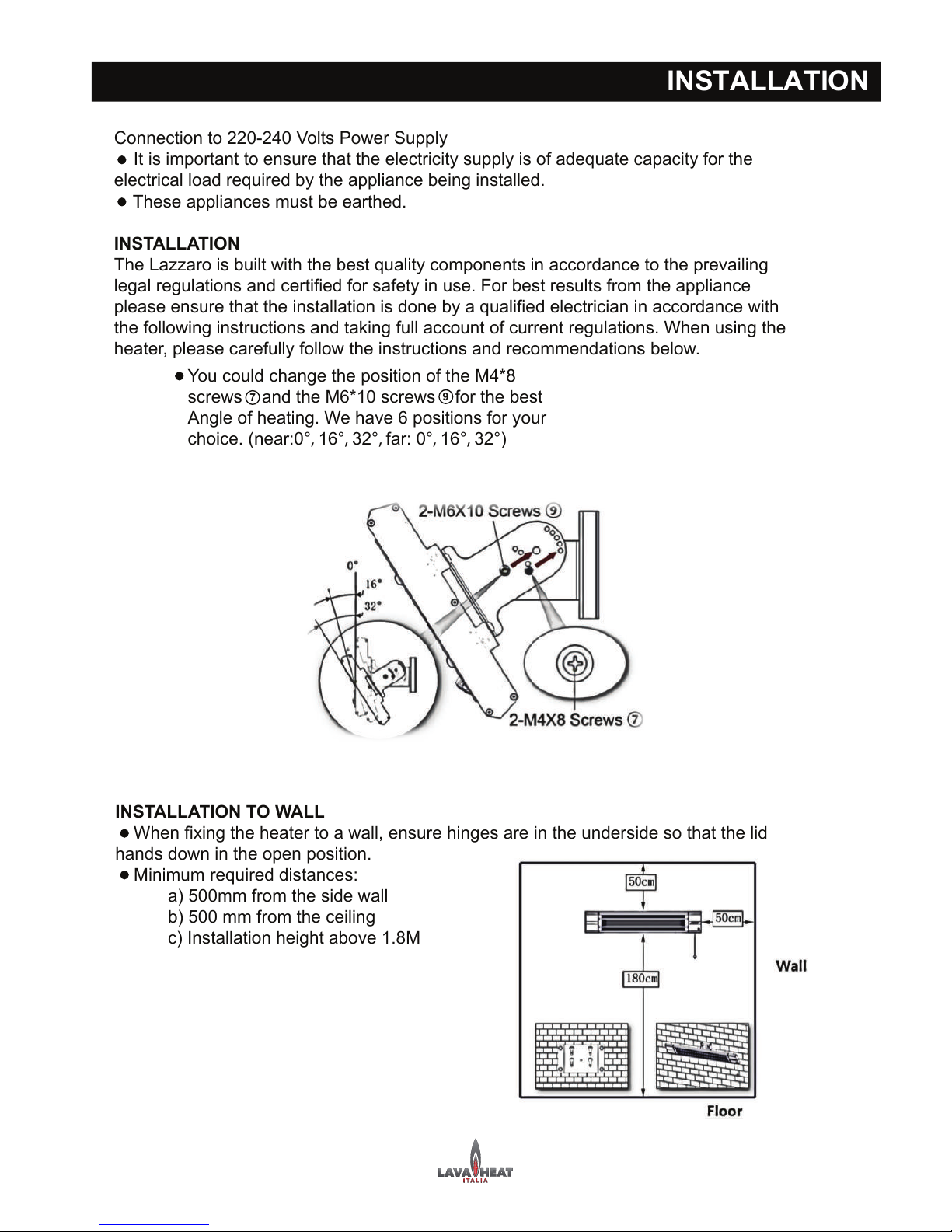

Connection to 220-240 Volts Power Supply
It is important to ensure that the electricity supply is of adequate capacity for the
electrical load required by the appliance being installed.
These appliances must be earthed.
INSTALLATION
The Lazzaro is built with the best quality components in accordance to the prevailing
legal regulations and certified for safety in use. For best results from the appliance
please ensure that the installation is done by a qualified electrician in accordance with
the following instructions and taking full account of current regulations. When using the
heater, please carefully follow the instructions and recommendations below.
INSTALLATION TO WALL
When fixing the heater to a wall, ensure hinges are in the underside so that the lid
hands down in the open position.
Minimum required distances:
a) 500mm from the side wall
b) 500 mm from the ceiling
c) Installation height above 1.8M
INSTALLATION
You could change the position of the M4*8
screws and the M6*10 screws for the best
Angle of heating. We have 6 positions for your
choice. (near:0°, 16°, 32°, far: 0°, 16°, 32°)
79

The heater must be fixed to a wall with the bracket supplied to allow adequate
ventilation.
Never fix or place heater near flammable or combustible materials.
Generally heaters must be placed at a safe distance (clear space) of at least
2.0m from combustible materials and glass walls. If installed in workshops or garag-
es where inflammable or combustible paints are used, the heaters must be installed
at a distance of at least 4.0m from the source of danger.
If the heaters are placed in areas where spray painting of any description is taking
place, they should not be used during the painting operations.
Never use the heater in particularly dusty and explosive areas.
INSTALLATION TO CEILING
Minimum required distances:
d) 250mm from the side wall
e) Minimum 500mm from the ceiling(range:500mm-750mm)
f) Installation height above 1.8M

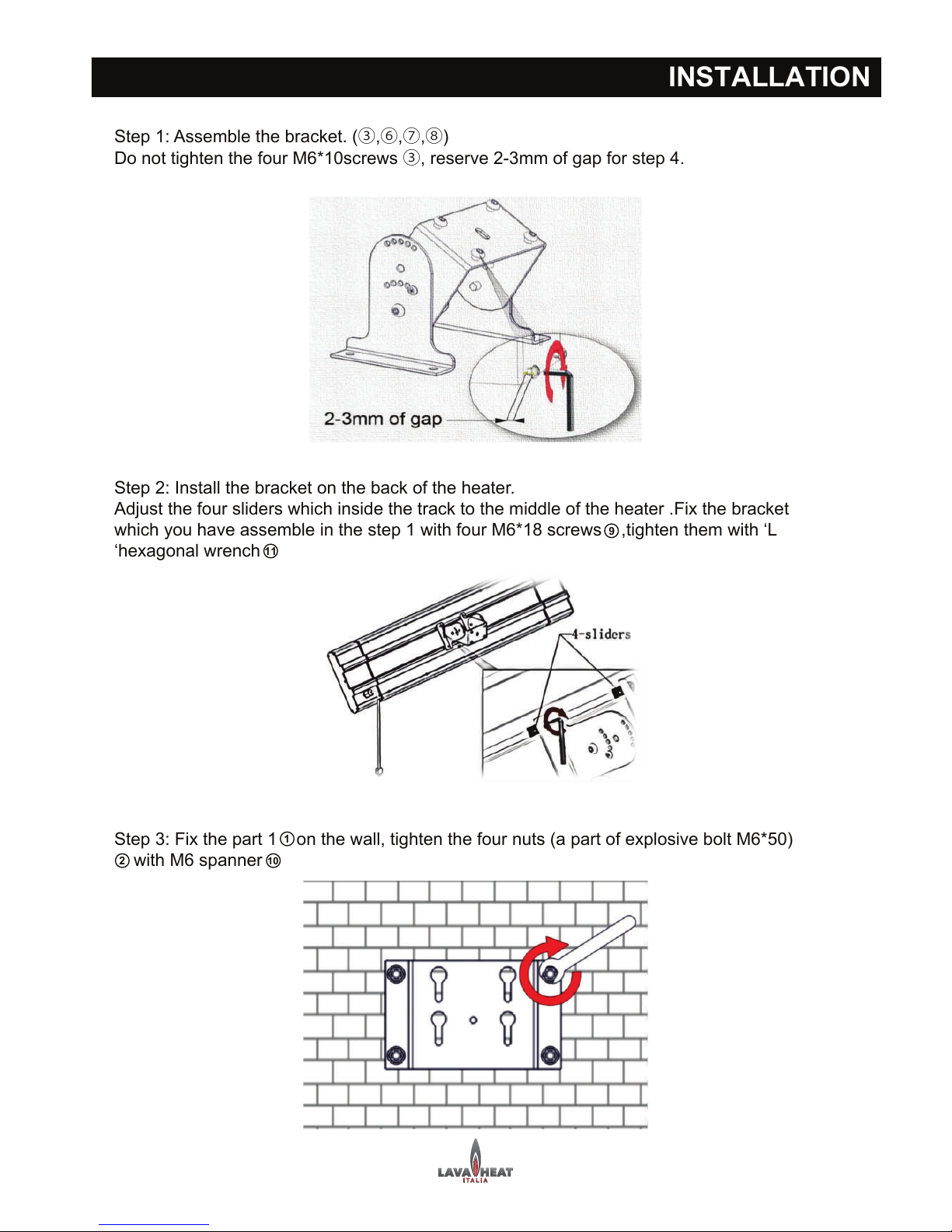

ASSEMBLING PROCESS FOR WALL MOUNT
Preparation stage:
Please remove the four M6*10 Screws on the heater, and use them
for the Step 2
INSTALLATION

Step 1: Assemble the bracket. (③,⑥,⑦,⑧)
Do not tighten the four M6*10screws ③, reserve 2-3mm of gap for step 4.
Step 2: Install the bracket on the back of the heater.
Adjust the four sliders which inside the track to the middle of the heater .Fix the bracket
which you have assemble in the step 1 with four M6*18 screws ,tighten them with ‘L
‘hexagonal wrench
Step 3: Fix the part 1 on the wall, tighten the four nuts (a part of explosive bolt M6*50)
with M6 spanner
INSTALLATION
11
9
INSTALLATION
1
210

Step 5: Please tighten the M6*10 security screw to avoid accidents
Step 4: Put the heater on the wall, slide it into the part 1
COMPLETE!
5
1
INSTALLATIONINSTALLATION

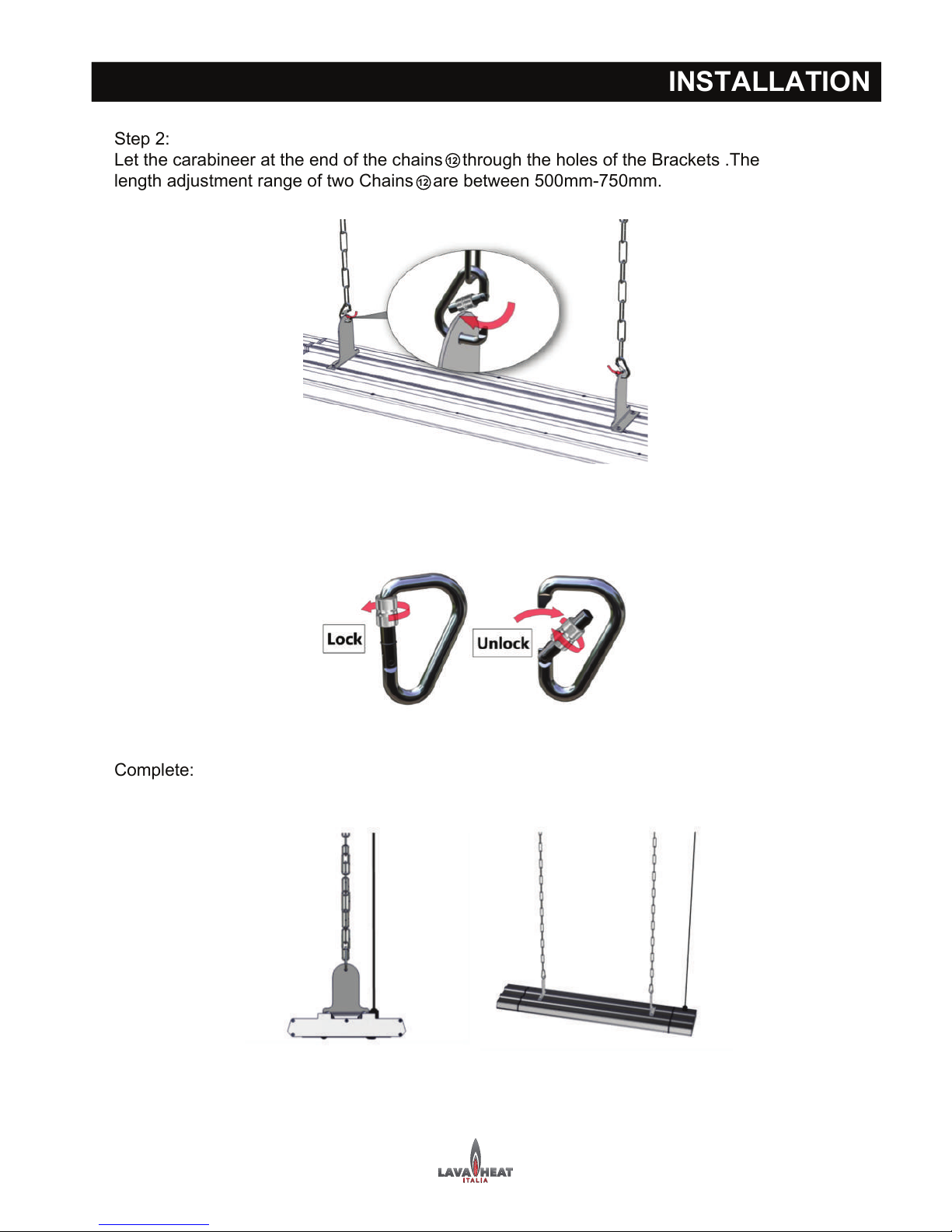

ASSEMBLING PROCESS FOR CELLING MOUNT
Preparation stage:
Please remove the four M6*10 Screws on the heater,and use them for the step1.
Step 1:
Adjust the four sliders which inside the track. The distance between the sliders should be
between 600 mm to 788 mm. Fix the brackets ⑥ with four M6*18 screws, tighten them
with ‘L ‘hexagonal wrench.
SAFETYINSTALLATION

Step 2:
Let the carabineer at the end of the chains through the holes of the Brackets .The
length adjustment range of two Chains are between 500mm-750mm.
Complete:
SAFETY
12
12
INSTALLATION

CAUTION
Some parts of this product can become very hot and cause burns. Particular attention
has to be given where children and vulnerable people are present.
1. Mount the heater outside or in a large open area and well away from any
obstructions such as branches or where the heater is near any objects that can
be affected by heat, such as furniture, curtains or other inflammable objects
(minimum distance 1 meter).
2. Do not position immediately above or below an electrical socket.
3. The unit must be placed with the clearance of 180cm to the floor and 30cm to the
ceiling.
4. When the power supply cord is damaged, it must be replaced by authorized
agent or other professional people to avoid danger.
5. This appliance is not intended for use by persons (including children) with
reduced physical. Sensory or mental capabilities, or lack of experience and
knowledge,
unless they have been given supervision or instruction concerning use of the
appliance
by a person responsible for their safety.
6. Children should be supervised to ensure that they do not play with the appliance.
7. Do not use it near bath tubs, wash areas or swimming pools.
8. Do not use it in unventilated areas
9. Do not use where gas, petrol, paint or other inflammable goods are stored.
10. Do not move when connected to an electrical supply and always wait until the
patio heater cool down before storing away.
11. Do not touch the heater head when in use.
12. Do not leave after turn it on and unattended especially when children or animals
are in the vicinity.
13. The indication of different positions of switches should be visible from a distance
of 1M at least.
14. The Marking concerning covering shall be visible after the heater has been
installed. It shall not be placed on the back of heaters.
15. The heater must be correctly installed according to the instructions.
16. The heater must be securely placed on a horizontal and flat Wall surface.
17. The heater will be at high temperature when in use. It keeps hot for a period after
shut down. Potential danger would occur when you touch it during this period.

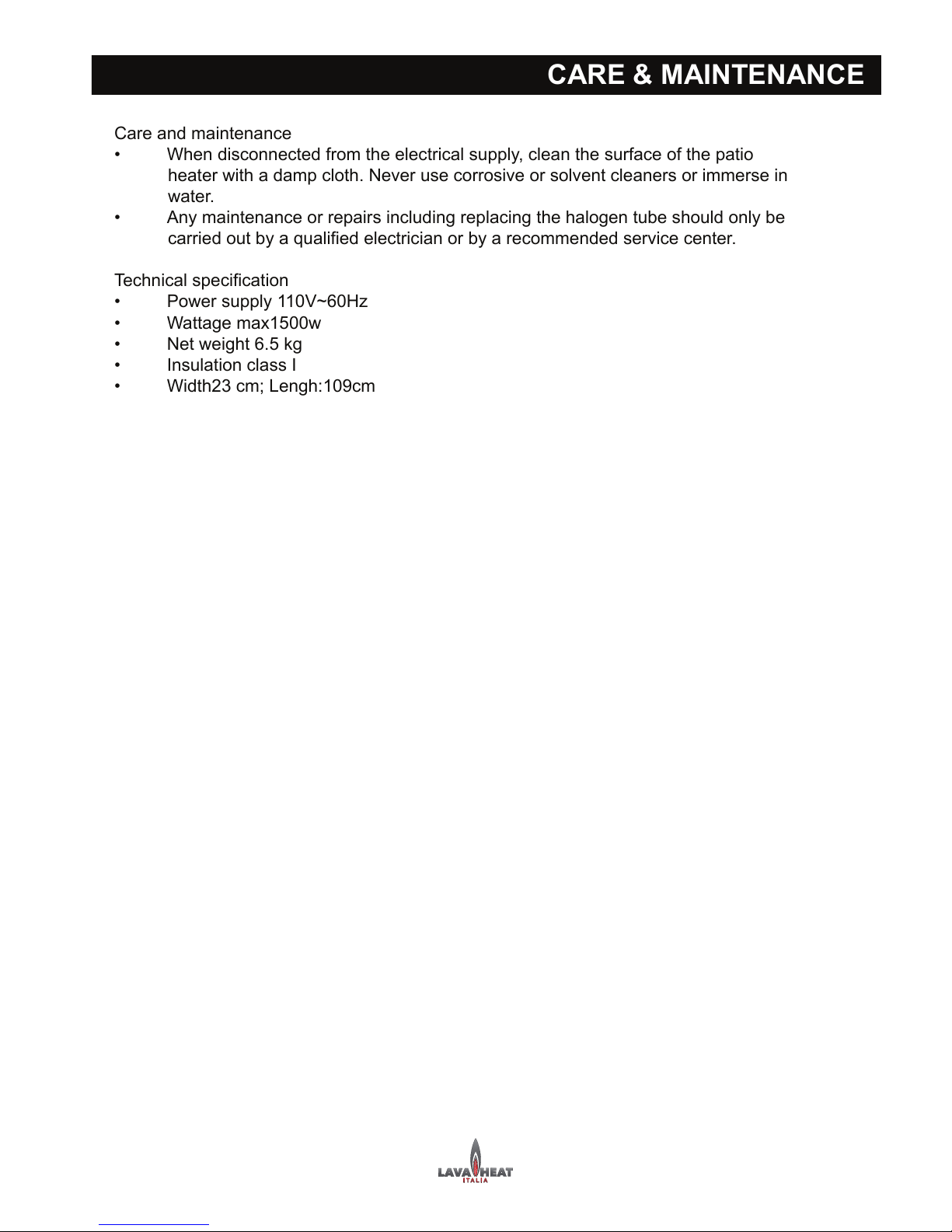

SAFETY
