LawnMaster LB4050002KIT Installation manual

LB4050002KIT
SAFETY AND OPERATING MANUAL
40V 4-in-1
BRUSH CUTTER KIT

2
IMPORTANT
It is essential that you read the instructions in this manual before operating this
machine. All notes and images are subject to technical modication.
READ FIRST BEFORE USE!
LAWNMASTER LITHIUM BATTERY INSTRUCTIONS
1. Battery must be fully charged before initial use.
2. Never let the battery discharge below two bars on the battery indicator light-dis-
charging below two bars may cause damage to the battery.
3. Do not continue use if machine stops-fully recharge battery rst if below two
barindicator. If above the two bar minimum assess the tool for potential obstructions.
4. We recommend to fully recharge the battery immediately after every use. Allow the
battery to cool for at least 15 minutes before recharging.
5. Do not store for a long period without fully recharging battery.
6. Check battery temperature. If above 38°C let battery rest and cool.
Lithium batteries do not need to be fully discharged before recharging.

3
SAFETY
GENERAL SAFETY WARNINGS
Failure to follow the warnings and instruc-
tions may result in electric shock, re and/
or serious injury.
Save all warnings and instructions for
future reference.
TRIMMER
The product is designed for cutting grass
and light weeds only in private garden
areas.
The product is not intended or recom-
mended for use in public gardens, parks,
sports centers or at roadsides, for agricul-
tural or forestry use. The product is not to
be used for cutting or chopping hedges,
shrubs, bushes, owers or compost.
READ CAREFULLY BEFORE USE & KEEP
FOR FUTURE REFERENCE
SAFE OPERATING PRACTICES
1.TRAINING
a) Read the instructions carefully. Be
familiar with the controls and the correct
use of the machine.
b) Never allow children, persons with
reduced physical, sensory or mental
capabilities or lack of experience and
knowledge or people unfamiliar with these
instructions to use the machine, local
regulations may restrict the age of the
operator.
c) Keep in mind that the operator or user
is responsible for accidents or hazards
occurring to other people or their property.
2. PREPARATION
a)Before use, always visually inspect the
machine for damaged, missing or mis-
placed guards or shields.
b)Never operate the machine while people,
especially children, or pets are nearby.
3. OPERATION
Wear eye protection, long trousers and
stout shoes at all times while operating
the machine. Avoid using the machine
in bad weather conditions especially
when there is a risk of lightning. Use the
machine only in daylight or good articial
light.
Never operate the machine with damaged
guards or shields or without guards or
shields in place. Switch on the motor only
when the hands and feet are away from
the cutting means.
ALWAYS DISCONNECT THE MACHINE
FROM THE BATTERY PACK
• Whenever the machine is left
unattended;
• Before clearing a blockage;
• Before checking, cleaning or working
on the machine;
• After striking a foreign object;
• Whenever the machine starts
vibrating abnormally.
Take care against injury to feet and hands
from the cutting means. Always ensure

4
that the ventilation openings are kept clear
of debris. Never use saw blade.
Always be sure of your footing on slopes.
Walk, never run.
Not overreach and keep the balance at all
times.
Not to touch moving hazardous parts
before the machine is disconnected from
the mains and the moving hazardous parts
have come to a complete stop.
4. MAINTENANCE AND STORAGE
a)Disconnect the machine from the
battery pack before carrying out
maintenance or cleaning work.
b)Use only the manufacturer’s
recommended replacement parts and
accessories.
c)Inspect and maintain the machine
regularly. Have the machine repaired only
by an authorized repairer.
d)When not in use, store the machine out
of the reach of children.
ADDITIONAL
GENERAL SAFETY WARNINGS
WORK AREA SAFETY
1) Keep work area clean and well lit. Clut-
tered or dark areas invite accidents.
2) Do not operate power tools in areas
which may ignite the dust or fumes
atmospheres, such as in the presence of
ammable liquids, gases or dust.
3) Power tools create sparks which may
ignite the dust or fumes.
4) Keep children and bystanders away
while operating control. a power tool. Dis-
tractions can cause you to lose control.
PERSONAL SAFETY
1) Stay alert, watch what you are doing
and use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the inuence of
drugs, alcohol or medication. A moment.
of inattention while operating power tools
may result in serious personal injury.
2) Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protec-
tion used for appropriate conditions will
reduce personal injuries.
3) Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or battery
pack, picking up or carrying the tool. Car-
rying power tools with your nger on the

5
switch or energising power tools that have
the switch, on invites accidents.
4) Remove any adjusting key or wrench
before turning the power tool on. A wrench
or a key left attached to a rotating part
of the power tool may result in personal
injury.
5) Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the power tool in
unexpected situations.
6) If devices are provided for the
connection of dust extraction and
collection facilities, ensure these are
connected and properly used. Use of
dust collection can reduce dust-related
hazards.
SAFETY
• Your Brush Cutter is tted with a
harness. Carefully adjust the harness
to t comfortably and help to support
the weight of the machine at your
right side.
• Identify the Quick Release mecha-
nism and practice using it BEFORE
you start using the machine. It’s cor-
rect use may prevent serious injury in
the case of an emergency. Never wear
additional clothing over the harness
or otherwise restrict access to the
quick release mechanism.

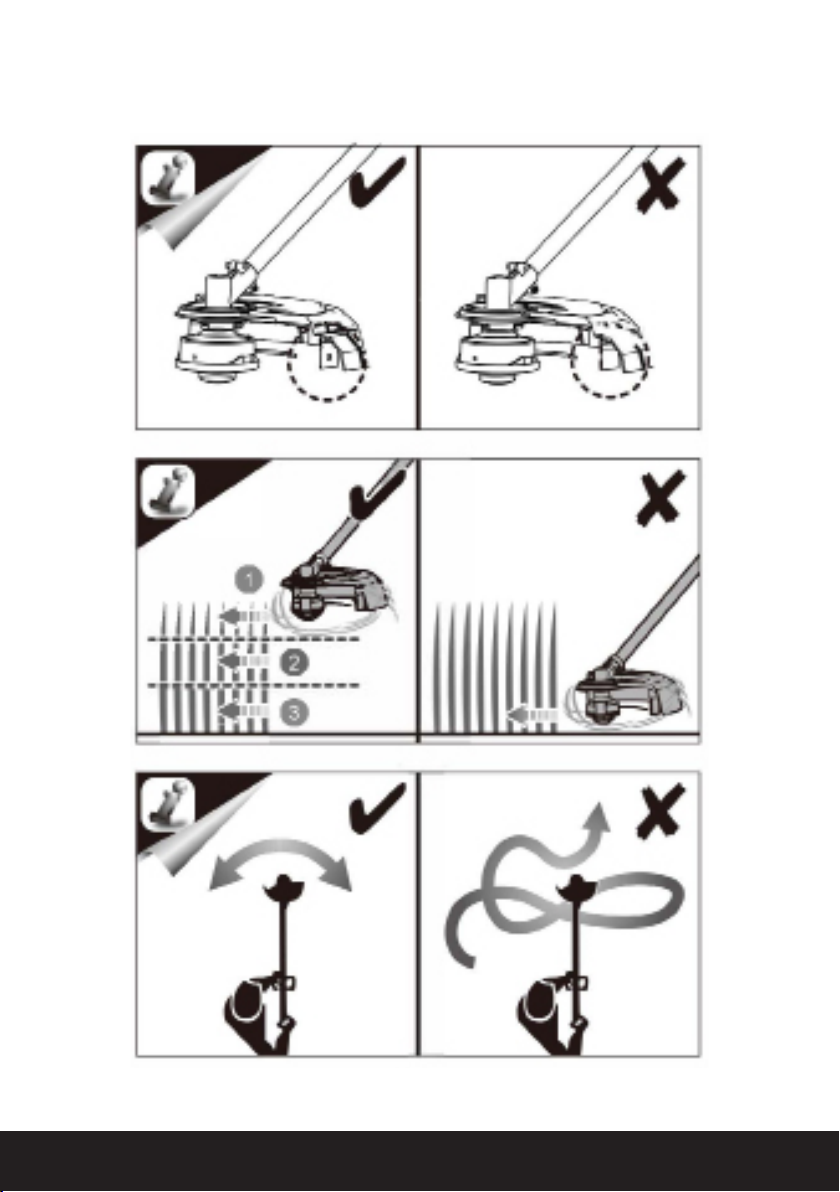

• For cutting ease and safety, approach
the weeds being cut from the right to
the left. In the event an unexpected
object or woody stock is encountered,
this practice could minimize the blade
thrust reaction. Both hands must
be used at all times to control this
product.
WARNING
Some regions have regulations that
restrict the use of the product. Check with
your local authority for advice.
TRANSPORTATION
AND STORAGE
Stop the machine and allow it to cool
before storing or transporting. Do not
store or transport the machine with
batteries tted, remove and secure
separately.
Clean all foreign material from the
product. Store it in a cool dry and well
ventilated place that is inaccessible to
children. Keep away from corrosive agents
such as garden chemicals and de-icing
salts. Do not store outdoors.
For transportation, secure the machine
against movement or falling to prevent
injury to persons or damage to the
machine.
BRUSH CUTTER MAINTENANCE
WARNING
Use only original manufacturer’s
replacement parts, accessories and
attachments. Failure to do so can cause
possible injury, poor performance and may

6
WARNING
Servicing requires extreme care and
knowledge and should only be serviced by
a qualied technician.
For service we suggest you return the
product to your nearest authorized service
center for repair. When servicing, use only
identical replacement parts.
• You may make adjustments and
repairs described here. For other
repairs, contact the authorized ser-
vice agent.
• Before any maintenance or
adjustment, disable the machine by
removing the power source.

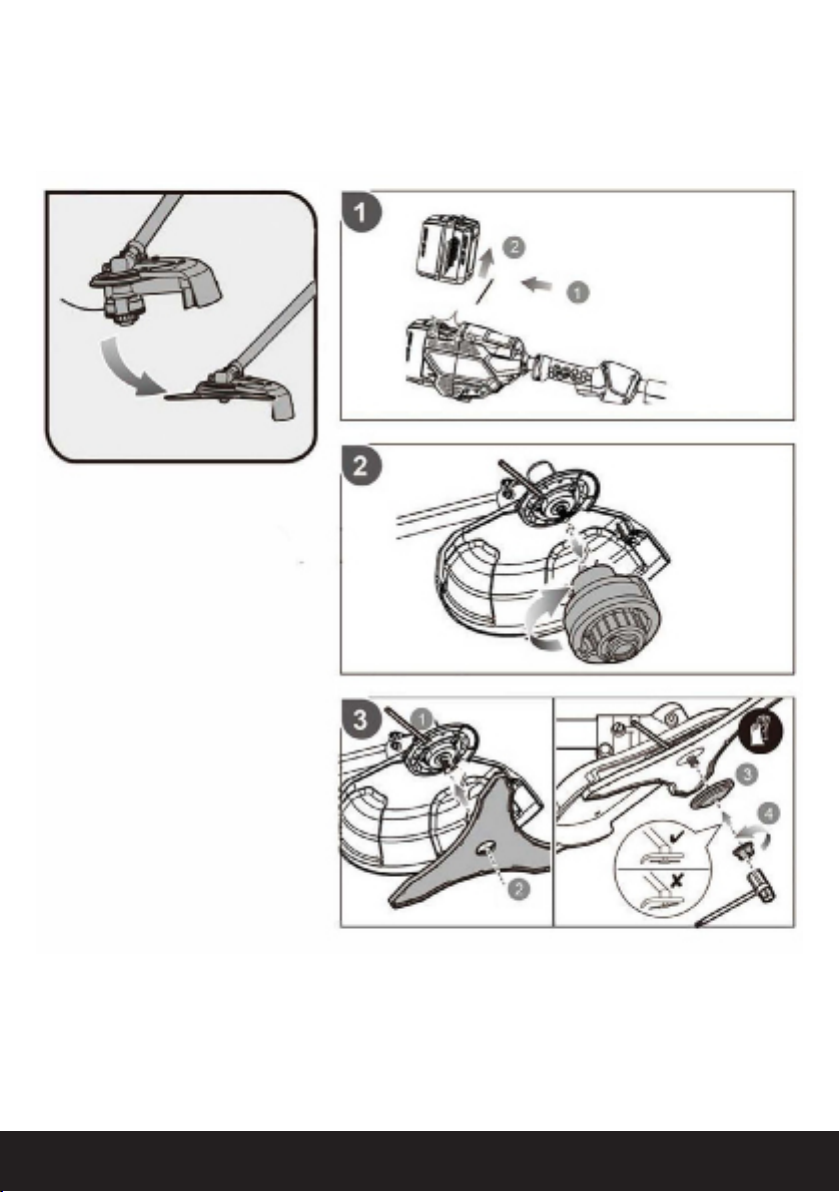

• After extending new cutter line or
cleaning, checking the blade, always
return the product to its normal
INTENDED USE
The product is only intended for use
outdoors. For safety reasons the product
must be adequately controlled by using
two handed operation.
The product is intended for cutting long
grass, pulpy weed, or brush and similar
vegetation at or about ground level. The
cutting plane should be approximately
parallel to the ground surface. The product
should not be used to trim hedges, bushes
or other vegetation where the cutting
plane is not parallel to the ground surface.
RESIDUAL RISK
Even when the product is used as
prescribed, it is still impossible to
completely eliminate certain residual risk
factors. The following hazards may arise
in use and the operator should pay special
attention to avoid the following:
• Injury caused by vibration. Always use
the right tool for the job, use desig-
nated handles and restrict working
time and exposure.
• Exposure to noise can cause hearing
injury. Wear ear protection and limit
exposure.
• Kickback can occur when using the
brush cutter. Ensure proper control by
using both hands on the designated
handles.
Read and follow the directions elsewhere
in this manual to help reduce the risk of
kickback.
RISK REDUCTION
It has been reported that vibrations from
hand-held tools may contribute to a condi-
tion called Raynaud’s Syndrome in certain
individuals. Symptoms may include
tingling, upon exposure to cold. Hereditary
factors, exposure to cold and dampness,
diet, smoking and work practices are all
thought to contribute to the development
of these symptoms.
There are measures that can be taken by
the operator to possibly reduce the effects
of vibration:

7
• Keep your body warm in cold weather.
When operating the unit wear gloves
to keep the hands and wrists warm.
It is reported that cold weather is a
major factor contributing to
• Raynaud’s Syndrome.
• After each period of operation, exer-
cise to increase blood circulation.
• Take frequent work breaks. Limit the
amount of exposure per day.
• If you experience any of the
symptoms of this condition,
immediately discontinue use and see
your doctor about these symptoms.
WARNING
Injuries may be caused, or aggravated, by
prolonged use of a tool. When using any
tool for prolonged periods, ensure you
take regular breaks.
BATTERY
Compatible battery - LB40B
Compatible charger - LB40BCKT
Battery & Charger Included in
LB4050002KIT
PRODUCT SPECIFICATIONS
Model: LB4050002KIT
Voltage: 40V
Cutting Line Diameter: 2.0 mm
Cutting Capacity
Brush Cutter: 260mm
Cutting Capacity
Line Trimmer: 330 mm
Pole Saw Chain: 3/8 X.043 LP
39DL
A-Weighted Sound
Pressure Level: 82dB(A)
A-Weighted Sound
Power Level: 96dB(A)
Recommended Torque For
Blade Retention: > 11 N.m
Recommended Torque For
String Head Retention: > 6 N.m

8
Conforms to all regulatory standards in
the country in the EU where the product is
purchased.
The guaranteed sound power level is
shown on this label by 95 dB for Lawn
Trimmer.
The following signal words and meanings
are intended to explain the levels of risk
associated with this product:
Indicates an imminently hazardous
situation, which, if not avoided, will
result in death or serious injury.
Indicates a potentially hazardous
situation, which, if not avoided, could
result in death or serious injury.
Indicates a potentially hazardous
situation, which, if not avoided, may
result in minor or moderate injury.
(Without Safety Alert Symbol) Indicates
a situation that may result in property
damage.
DANGER
WARNING
CAUTION
DANGER
SAFETY ALERT
Read and understand all instructions
before operating the product, follow all
warnings and safety instructions.
Wear eye, ear and head protection.
Wear non-slip safety footwear when
using the product.
Wear non-slip, heavy duty gloves.
Do not expose to rain or damp
condition.
This unit is not intended for use with a
toothed saw type blade. Rotational
direction and maximum speed of the
shaft for the cutting attachment.
All bystanders a safe distance away
from the product.
Keep all bystanders, especially
children and pets, at least 15m away
from the operating area
Keep hands away from blades
Beware of blade thrust
Keep all bystanders, especially children
and pets, at least 15m from the operat-
ing area.
Pull: Quick release tab
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your local authority or
retailer for recycling advice.

9
x 1
x 1
x 1
x 1
UNPACKING
x 1

10

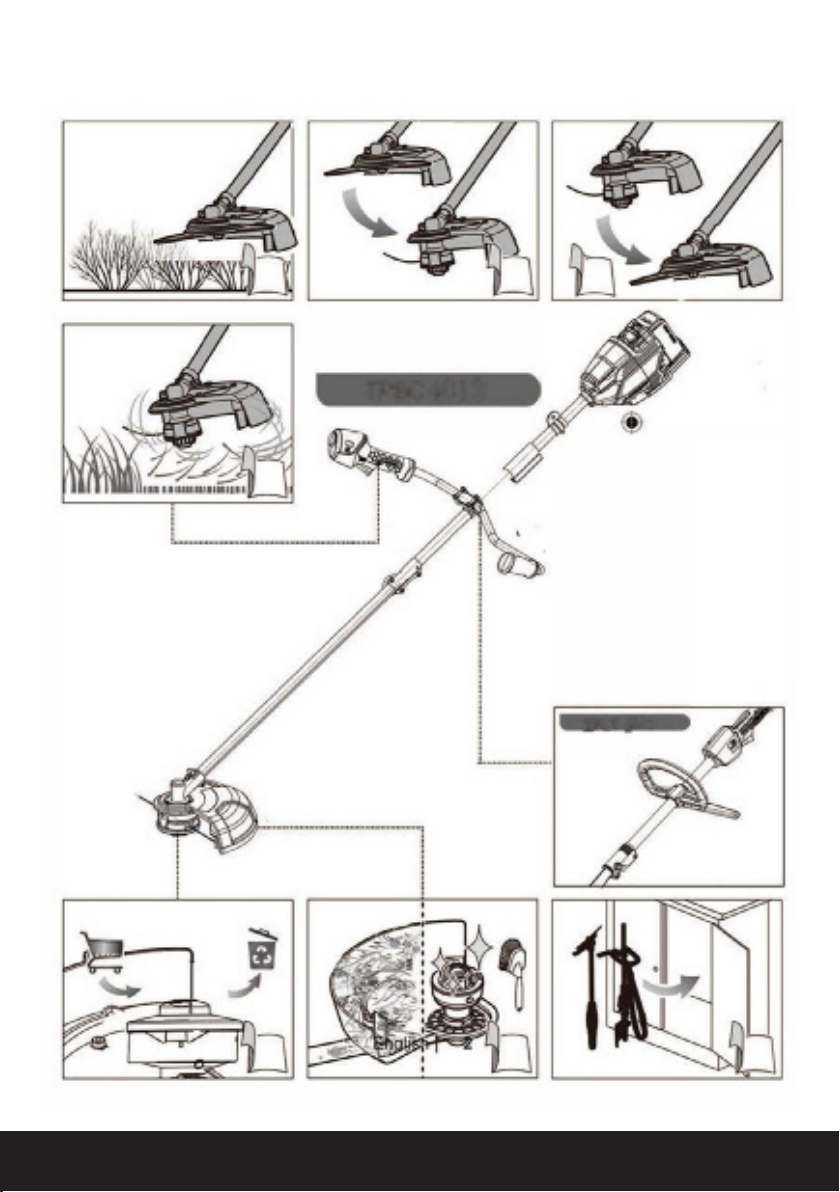

GETTING STARTED WITH THE BRUSH CUTTER

11
GETTING STARTED WITH THE BRUSH CUTTER

12
GETTING STARTED WITH THE BRUSH CUTTER

13
GETTING STARTED WITH THE BRUSH CUTTER

14
OPERATION OF THE BRUSH CUTTER

15
OPERATION OF THE BRUSH CUTTER

16
OPERATION OF THE BRUSH CUTTER

17
OPERATION OF THE BRUSH CUTTER

18
OPERATION OF THE BRUSH CUTTER

19
OPERATION OF THE BRUSH CUTTER

20

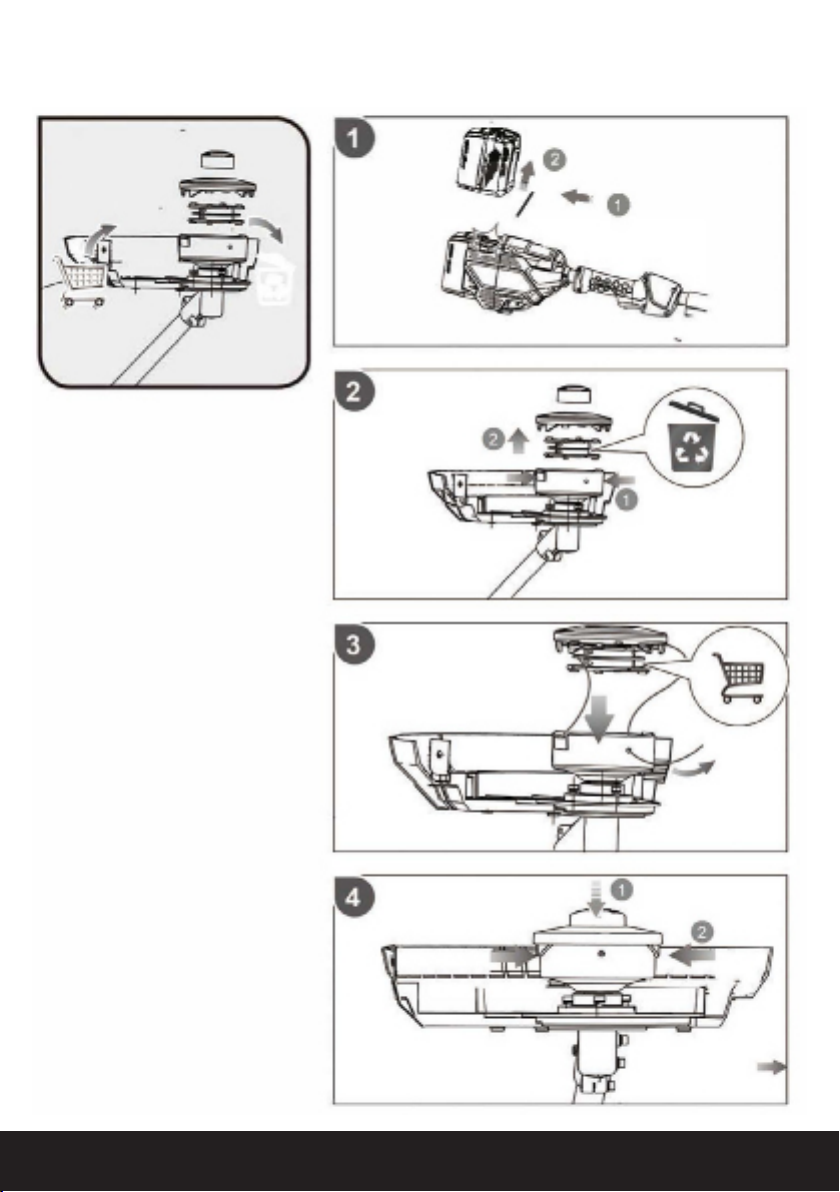

MAINTENANCE OF THE BRUSH CUTTER
