LawnMaster CLGT2425S User manual

Instruction Manual
24V Lithium-ion Cordless Grass Trimmer CLGT2425S
WARNING: Read all safety instructions carefully before assembling and operating this
machine. Ensure the machine has been assembled correctly and safely. Keep the instructions
safe and pass them on to any subsequent user so that the information is always available.
Original Instructions
CLGT2425S-01 (With Battery and Charger)
CLGT2425S-BARE (Battery and Charger Not Included)

22
21
1
2
3
4
5
6
7
8
9
10
11
12
16
17
19
18
20
14
Fig.2
Fig.1
Fig.6
13
15
Fig.4 Fig.5
Fig.3
Not included with CLGT2425S-BARE

4
TABLE OF CONTENTS
Section Page
Symbols
Safety Information
In the Box
Assembly
Operation
Maintenance
Troubleshooting
Technical Data
Recycling and Disposal
5-6
7-13
13
14
15-20
21-22
23-24
25
26

5
SYMBOL DESIGNATION/EXPLANATION
Caution
Read instruction manual.
Keep bystanders away.
Do not expose to rain.
Wear eye protection.
Wear hearing protection.
Disconnect the battery pack before any repair or maintenance.
The cutting head will continue to rotate for a few seconds after the equipment
has been switched off. Keep hands and feet well away.
Beware of objects being thrown by the machine. Keep bystanders a safe
distance away from the machine.
Protection Class II
Cutting Width
Only recharge battery packs with the supplied charger indoors.
Fuse.
Do not dispose of electrical equipment in domestic waste.
Batteries contain Li-ion, waste batteries should be sorted for ecofriendly
disposal. Do not dispose of waste batteries as unsorted municipal waste.
SYMBOLS
The following warning symbols appear throughout this manual and indicate the
appropriate safety measures you should take when operating and maintaining the
appliance.
Li-ion

6
SYMBOLS
SYMBOL DESIGNATION/EXPLANATION
Do not dispose of battery packs in rivers or immerse in water.
Do not subject the battery to direct sunlight over long periods and do not leave
Recycle electrical waste products in an environmentally safe way where facilities
exist.
To avoid serious personal injury, do not attempt to use this product until you read thoroughly and
understand completely the instruction manual.
If you do not understand the warnings and instructions in the instruction manual, do not use this
product.
WARNING

7
SAFETY INFORMATION
Read the instructions carefully. Be familiar with the controls
and the correct use of the appliance.
WARNING
Personal Safety
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their
safety.
Children should be supervised to ensure that they do not
play with the appliance.
Use the appropriate appliance for the required job. This
device is only intended for trimming grass outdoors in
domestic and private gardens.
Consider the work area and environment before each use.
Do not expose the machine to high humidity or rain. Do
not use the machine in damp and wet conditions. Keep the
work area well lit.
Keep all bystanders, children, and pets away. The operator
is responsible for accidents or hazards occurring to other
people or property.
until you are ready to use the machine.
Never reach towards rotating parts with your hands or feet
when the product is running. Only remove trimmings when
the product is switched off and the battery pack removed.
Before each use, carefully check the machine for damage.

8
SAFETY INFORMATION
Check for alignment of moving parts, binding of moving
parts, breakage of parts, mountings and any other
conditions that may affect its correct operation. Do not
use the tool if any parts are damaged or defective. Have
any damaged or defective parts repaired or replaced by a
When not in use, tools should be stored in a dry, safe place
out of the reach of children.
Maintain tools with care. Keep tools clean and in good
condition for better and safer operation. Follow the
instructions in the ‘Maintenance’ section. Keep handles and
switches dry, clean and free from oil and grease.
General Safety
Stay alert, watch what you are doing and use common
sense when operating an appliance. Do not use the
drugs, alcohol or medication. A moment of inattention while
operating the appliance may result in serious personal
injury.
this product. Eye protection, non-slip safety shoes and
hearing protection used for appropriate conditions will
reduce personal injuries.
and balance at all times. This enables better control of the
power tool in unexpected situations.
operating the machine. Do not wear loose clothing, long
hair or jewelry as these can be caught in moving parts.

9
SAFETY INFORMATION
is designed only to be used with nylon cutting line.
made for this machine by the manufacturer. Failure to do
so can result in personal injury.
out any maintenance or cleaning work, and while the
product is not in use or storage.
trimmer.
debris.
injury or damage to the trimmer.
motor is switched off.
hands. Always let it come to a stop by itself.
walls or rocks etc.
running.
especially careful when working on sloping terrain.

10
SAFETY INFORMATION
cutting line never comes into contact with the operator’s
body, especially hands and feet.
away from the user.
wire or other foreign bodies before operating the trimmer.
Battery Safety Information
manufacturer. A charger that is suitable for one type of
another battery pack. Incorrect use may result in electric
shock, overheating or leakage of corrosive liquid from the
battery.
sources may cause an increased danger of explosion.
use a battery pack or charger that has been dropped or
received a sharp blow. A damaged battery is subject to
explosion. Properly dispose of a dropped or damaged
battery immediately.
ignition, such as a pilot light.
An exploded battery can propel debris and chemicals. If
this rule will reduce the risk of electric shock.

11

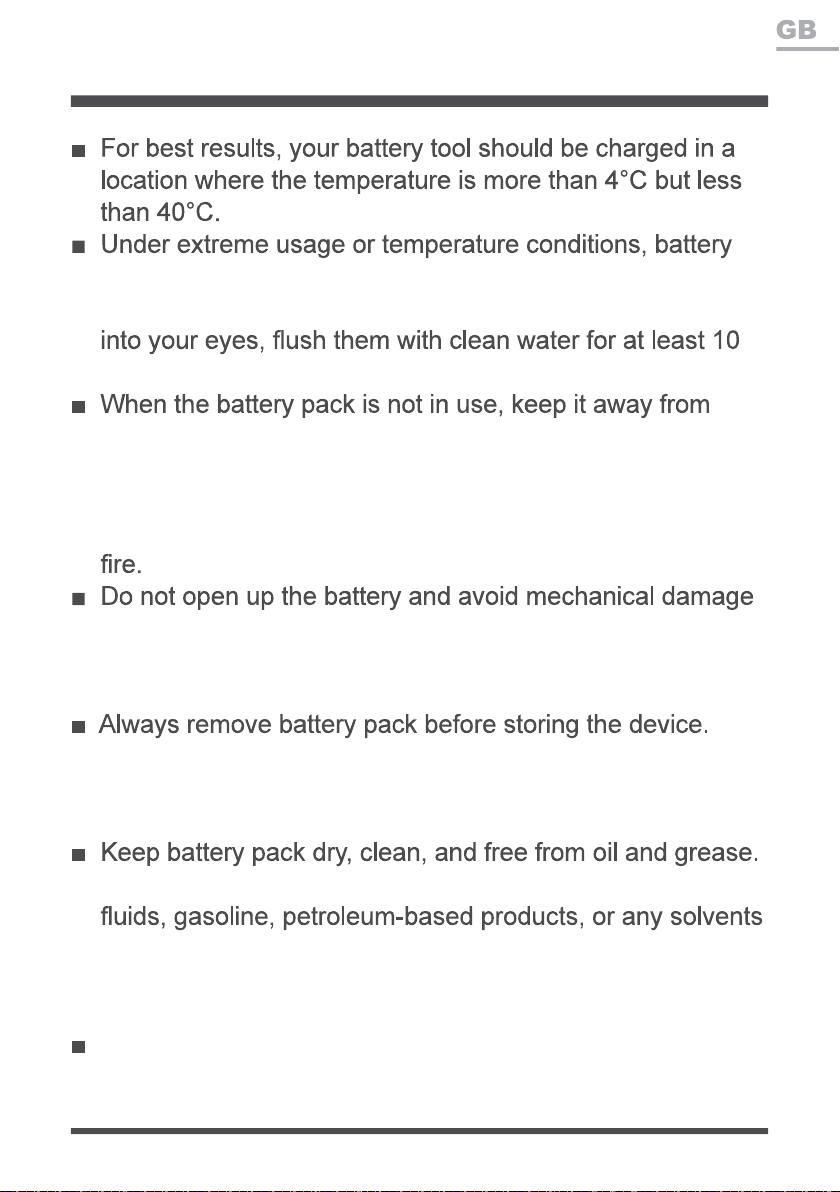

SAFETY INFORMATION
leakage may occur. If liquid comes in contact with your
skin, wash immediately with soap and water. If liquid gets
minutes, then seek immediate medical attention.
other metal objects like: paper clips, coins, keys, nails,
screws, or other small metal objects that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause sparks, burns, or a
to the battery. Risk of short circuit and fumes may be
emitted. Ensure fresh air and seek medical assistance in
the event of discomfort.
When battery becomes fully charged, unplug the charger
from the power supply and remove the battery pack from
the charger.
Always use a dry cloth when cleaning. Never use brake
to clean battery pack.
Charger Safety Information
Ensure the battery pack is charged indoors only, in a dry,
cool and well-ventilated environment.

12

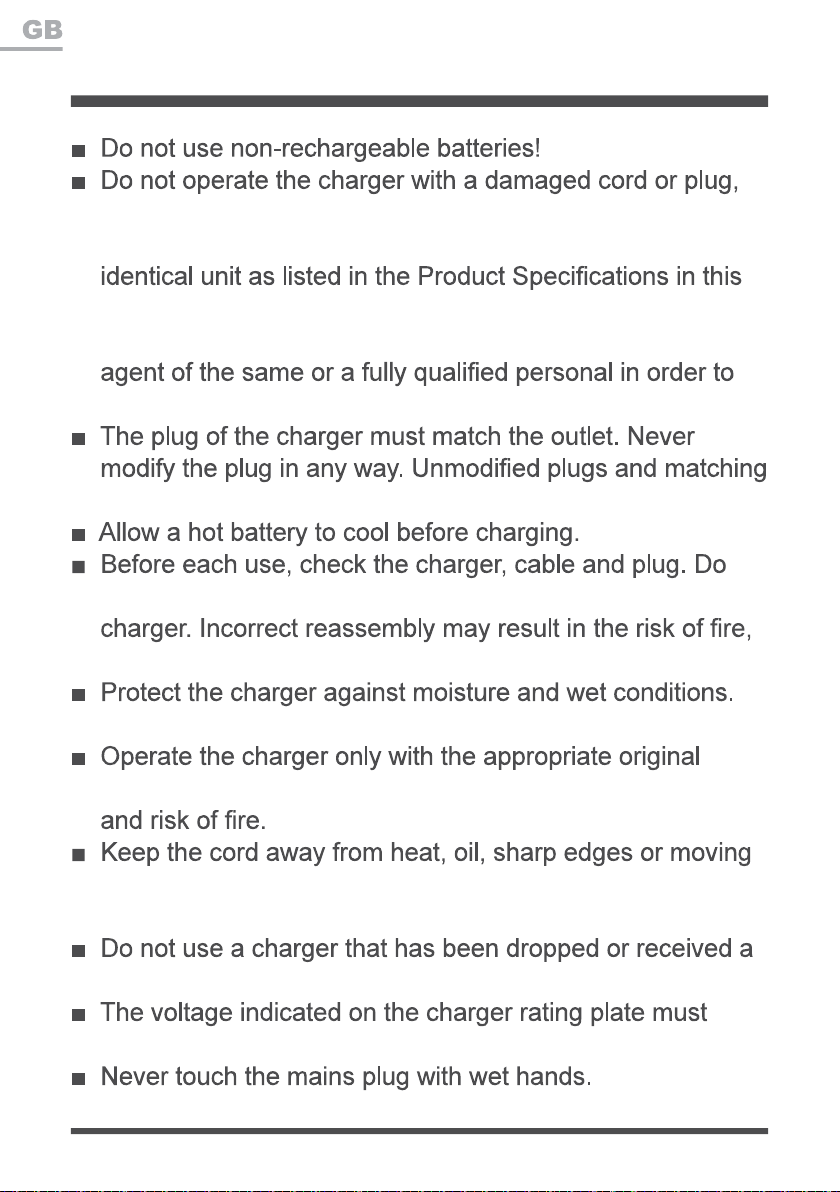

SAFETY INFORMATION
which could cause shorting and electric shock. If damaged,
immediately discontinue use. Replace the charger with the
manual. If the power cord for this equipment is damaged, it
must be replaced by the manufacturer, a customer service
prevent hazards.
outlets will reduce the risk of electric shock.
not use a defective charger and do not disassemble the
electric shock or electrocution.
There is a danger of electric shock.
batteries. Charging other batteries may result in injuries
parts. Damaged or entangled cords increase the risk of
electric shock.
sharp blow.
correspond to the voltage of the power source.

13
SAFETY INFORMATION
Intended Use
not for any commercial trade use. It must not be used for
any purposes other than those described. Any use of the
machine that deviates from its intended use and is not
included in these instructions is considered unauthorised
use and relieves the manufacturer from his or her legal
liability.
IN THE BOX
1. Main Handle
2. On/Off Trigger
3. Lock-off Switch
4. Battery Housing
5. Auxiliary Handle
6. Locking Collar
7. Telescopic Shaft
8. Supporting Wheels
9. Safety Guard with Line Cutting Blade
10. Trimming Line
11. Trimmer Head with Line Spool
12. Plant Protector
13. Head Adjustment Button
14. Motor Housing
15. Wing Knob
16. Angle Adjustment Button
17. Quick Release Knob
18. MX 24V 2.0Ah Battery Pack*
19. Release Button
20. MX 24V Battery Charger with BS Plug
21. MX 24V Battery Charger with VDE Plug
22. Instruction Manual
*Not included with CLGT2425S-BARE

14
ASSEMBLY
Assembly Preparation
includes suitable personal protective equipment.
Fitting the Safety Guard (See Fig. 1)
Attaching the Auxiliary Handle (See Fig. 2)
place, fold the knob inwards using moderate force. If it feels too tight when folding in, turn it
Supporting Wheels (Optional Use) (See Figs. 3-5)
NOTE: The position of the supporting wheels can be adjusted by loosening the wing knob
and moving to the desired position. The supporting wheels can be moved to up and down the
telescopic shaft depending on the height of cut required.
Installing and Removing the Battery Pack (See Fig. 6)
trimmer.
with the blade. Failure to avoid contact can result in serious personal injury.
WARNING
WARNING

15
supply.
NOTE: It is normal for the battery pack and the charger to become warm during charging process.
If the battery does not charge properly, check to make sure the electrical outlet is operational.
Use only with 24V Lawnmaster®
WARNING
OPERATION
Battery Pack Operation
life.
Protect the battery from heat, from continuous exposure to sun and keep away from radiation or
other heat sources. Do not leave the battery in the trimmer in direct sunlight over long periods.
The battery is supplied partially charged. To ensure full capacity of the battery, charge the battery
without reducing its service life. Interrupting the charging procedure does not affect the battery.

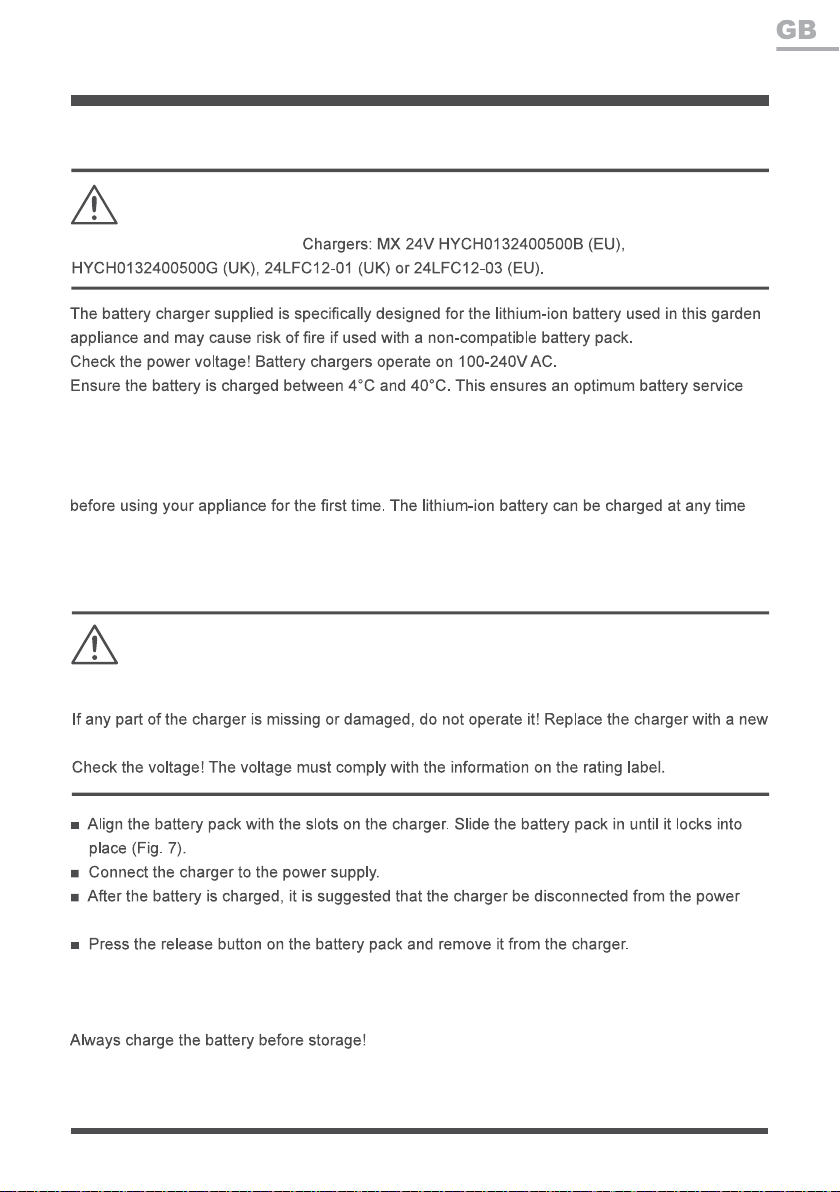

Charger Operation (See Fig. 7)
Use only with 24V Lawnmaster® MX 24V 24LB2004-C or MX 24V 24LB4005-C battery.
one. Failure to pay attention to this warning could result in possible serious injury.
WARNING

16
OPERATION
Charger LED ( 1 )
• If the battery is not connected to the charger, a continuous green LED light indicates that
the plug is plugged into an outlet socket and the battery charger is ready for operation.
• Charging: a continuous red LED on the charger indicates that the battery is charging
normally.
• Charged: a continuous green LED on the charger indicates that the battery is ready for use.
• on the charger indicates that charging is
the charging voltage is too low. As soon as the permitted temperature is reached, the battery
charger will automatically switch to charging.
• After continuous or repeated charging cycles without interruption, the charger may warm up.
This is normal and does not indicate a technical defect of the battery charger.
The indicator lights on the charger show the charger status:
To operate the appliance, wear suitable clothing, eye and ear protection.
Prior to every use, check that the appliance is operative. Do not block the on/off trigger or the
lock-off switch. The switch and trigger must reliably turn off the motor when you release the switch.
Do not operate the appliance if one of the switches is damaged.
WARNING
Switching On and Off (See Fig. 8)
INDICATOR LIGHT STATUS
Red, continuous Charging
Green, continuous Fully charged / Connected to
Charging paused 1
NOTE:
body. Before turning on the appliance, check that it will not touch any objects.

17
NOTE: A short or worn trimming line will not cut well. If you notice reduced cutting performance,
you should check if there is enough trimming line on the spool. Remove the battery pack
before inspection. For spool replacement, refer to the Spool Replacement instructions in the
Maintenance section.
This trimmer is equipped with an automatic single line mechanism. To release more line, start and
stop the trimmer 2 - 3 times.
The trimming line extends automatically during every starting process. For the correct functioning
of the automatic line extension mechanism, the spool must stop completely before you restart
the trimmer. If the trimming line is initially longer than the cutting diameter, it is automatically
shortened to the right length by the line cutting blade.
NOTE: Regularly check the trimming line for damage and whether the line still has the correct
When no line end is visible:
Adjusting the line length manually:
the trimming line.
The excess line that is cut off has a chance of hitting the user or other objects. Keep hands and
feet well away.
WARNING
OPERATION
After turning off the appliance, the trimmer head will continue to rotate for some time. Allow the
WARNING
Cutting Device - Advancing the Trimmer Line (See Fig. 9)

18
OPERATION
Safety Guard
The line cutting blade on the safety guard is delivered with a protective covering. Ensure this is
WARNING
Auxiliary Handle (See Fig. 10)
The auxiliary handle can be set to various positions. Set the handle in such a manner that the
trimmer head is slightly tilting forwards when in the working position.
Telescopic Shaft (See Fig. 11)
The telescopic shaft allows you to adjust the trimmer to suit your height.
Trimmer Head Angle (See Figs. 12-14)
Adjust the angle of the trimmer head according to the intended operation.
0° 90° 180°
WARNING

19
Trimming (See Figs. 17-21)
Ensure the protective tape on the line cutting blade is removed before use and the safety guard is
WARNING
NOTE!
discharge of grass clippings.
OPERATION
Pivoting Head (See Fig. 15)
Plant Protector (See Fig. 16)
be hit by the trimmer head.
Push the plant protector to its outer position for operation until it snaps into place.
Push the plant protector to its inner position until it snaps into place after operation and when
Only adjust the plant protector position when the product is switched off and the trimmer head is at
a complete stop.
WARNING

20
OPERATION
switched off and the battery removed.
sensitive bark, and damage fence posts.
not come into contact with them. Use the plant protector to ensure that the cutting device does
Vertical Cutting/Lawn Edge Trimming (See Figs. 22-23)
Be particularly careful and attentive when holding the trimmer head vertically. To avoid injuries,
keep enough distance to the trimmer head.
WARNING
Move the trimmer to the right and left in a slow swinging motion to trim slopes and steep inclines.
To trim lawn edges, slowly move the appliance along the lawn edges.
